| Product type | Refrigerator with freezer |
| Brand | Whirlpool |
| Model | W9M 941A B H |
| Lighting | LED (energy efficiency class F or G depending on model) |
| Defrosting | Automatic in the refrigerator compartment |
| Door reversibility | Yes, possible (intervention recommended by two people) |
| Refrigerator compartment | Storage of fresh food and drinks |
| Freezer compartment | Long-term storage and freezing of fresh food |
| Coldest zone | Shelves above the fruit and vegetable drawer |
| Fruit and vegetable drawer | Present, removable |
| Shelves and door bins | Removable, quantities vary by model |
| Ventilation | Natural air circulation |
| Recommended ambient temperature | Not specified in the manual, refer to the rating plate |
| First use | Wait 2 hours after installation before plugging in, then 4-6 hours to reach temperature |
| Cleaning | Soft cloth with warm water and mild detergent. Do not use steam cleaners or abrasive products |
| Condenser cleaning | Regularly with a vacuum cleaner |
| Drain cleaning | Clean regularly with the supplied tool |
| Safety | Unplug before any maintenance or cleaning operation |
| Spare parts | Available for 7 to 10 years depending on regulations |
| Repairs | Contact an authorized after-sales service to guarantee the use of original parts |
Frequently Asked Questions - W9M 941A B H WHIRLPOOL
User questions about W9M 941A B H WHIRLPOOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual W9M 941A B H - WHIRLPOOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. W9M 941A B H by WHIRLPOOL.
USER MANUAL W9M 941A B H WHIRLPOOL
User Manual
USER MANUAL
INDEX
Use & Care guide 2
General Information 2
LED light 2
Light systems (depending on the model) 2
Shelves and door balconies 2
Door 2
How to use the appliance 3
First time use 3
Refrigerator compartment and food storage 3
How to store fresh food and beverages 3
Freezer compartment and food storage 3
Removing the freezer drawer container 3
Tips for freezing and storing fresh food 3
Frozen food: shopping tips 4
Food shelf life at different temperatures 4
Functional sounds 4
Recommendation in case of no use of the appliance 5
Cleaning and maintenance 6
Gasket replacement 7
After-sales service 8
General Information
LED light
If the LED light system does not work, please contact the Service to replace it.
Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.
Light systems (depending on the model)
 | This product contains a light source of energy efficiency class F |
 | This product contains a light source of energy efficiency class G |
 | This product contains a light source of energy efficiency class G |
 | This product contains a light source of energy efficiency class G |
 | This product contains a light source of energy efficiency class G |
 | This product contains a light source of energy efficiency class F |
 | This product contains a light source of energy efficiency class G |
Shelves and door balconies
All shelves, flaps and pull-out baskets are removable. The quantity of those components can differ dependently on the model.
Door
Door reversibility
Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. It is recommended to reverse the door swing with two persons. Follow the instructions in the Installation Guide.
How to use the appliance
First time use
After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.
Refrigerator compartment and food storage
The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.
Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.
Air ventilation
The natural circulation of air in the refrigerator compartment results in zones with different temperatures. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.
How to store fresh food and beverages
Foods which give off a large amount of ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, melons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).
Freezer compartment and food storage
The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid fresh food coming into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves, etc. Make sure that these components can still close easily after loading. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.
Removing the freezer drawer container
- Open the freezer door.
- Pull the upper container upwards by the right and left corners (1).
- Remove the drawer (2). Install the upper container in the reverse order.
Tips for freezing and storing fresh food
We recommend labeling and dating all your frozen food. Adding a label will help you to identify foods and to know when they should be used before their quality deteriorates. Do not re-freeze defrosted food. Before freezing, wrap and seal fresh food in: aluminum foil, cling film, air and water-tight plastic bags, polythene containers with lids, or freezer containers suitable for freezing fresh food. Food must be fresh, mature, and of prime quality in order to obtain high-quality frozen food. Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, color, and flavor. Some meat, especially game, should be hung before it is frozen. Always leave hot food to cool before placing it in the freezer. Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen. Do not freeze bottles with liquid.
Frozen food: shopping tips
When purchasing frozen food products:
- Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have begun.
- When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
- Once at home, place the frozen foods immediately in the freezer.
- If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
- Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package. Always observe the storage information on the package.
Food shelf life at different temperatures
| FROZEN COMPARTMENT | |||
| Product Storage period (-12°C) | Recommended Storage period (-18°C) | Storage period (-24°C) | |
| Butter or margarine 1 month | 6 months 9 months | ||
| Fish 1 month 1-3 months 6 | months | ||
| Fruits (except citrus) & Vegetables | 1 month 8-12 months 12 months | ||
| Meat- Ham- sausage Roasts (beef-pork- lamb) Steaks or chops (beef-lamb-pork) | 1 month 2 months | 8-12 months4 months | 12 months |
| Milk, Fresh fluid, Cheese, Ice cream or sherbet | 1 month 1-3 months 5 months | (not recommended for ice cream) | |
| Poultry (chicken-turkey) 1 month | 5-7 months 9 months | ||
| UNFROZEN COMPARTMENT | |||
| Product | Storage period 0-3°C | Storage period (3-6°C) | Storage period 6-8°C |
| Cans, drinks, eggs, sauces, pickles, butter, jam | 3-4 weeks | 3-4 weeks | 3-4 weeks |
| Tropical fruit | Not recommended 2-4 weeks | 3-4 weeks | |
| Cheese, milk, dairy food, deli food, yoghurt | 2-5 days | 2-5 days | 2-5 days |
| Cold cuts, desserts, meat and fish and home-cooked food | 3-5 days | 1-2 days | Not recommended |
| Store vegetables and fruits (excluding tropical fruits and citrus) | 15 days | 10-12 days | 4-7 days |

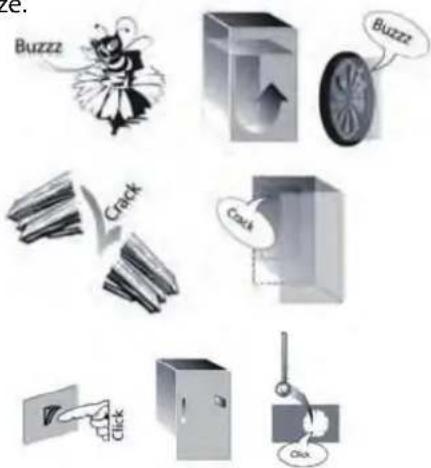

Functional sounds
Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.
Some of the functional sounds can be reduced through:
- Leveling the appliance and installing it on an even surface.
- Separating and avoiding contact between the appliance and furniture.
- Checking if the internal components are correctly placed.
- Checking if bottles and containers are not in contact with each other.
Some of the functional sounds you might hear
- A hissing sound when switching on the appliance for the first time or after a long pause.
- A gurgling sound when refrigerant fluid enters into the pipes.
- BRRR sound is from the compressor running.
- Buzzing sound when water valve or fan start working.
- A cracking sound when compressor starts.
- The CLICK is from the thermostat which adjusts how often the compressor is running.
Recommendation in case of no use of the appliance
In the event of non-use of the appliance
Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it.
Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.
In the event of an interruption to the power supply
Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).
Cleaning and maintenance
Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.
Never use abrasives. Never clean refrigerator parts with flammable fluids.
Do not use steam cleaners.
The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors. Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth. The condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.
Important:
The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth. The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

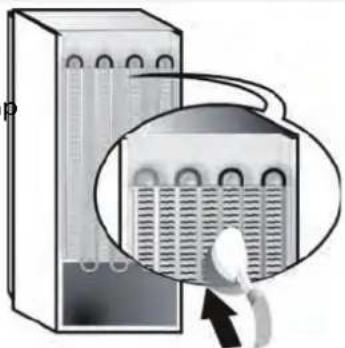

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided.
Gasket replacement
After-sales service
BEFORE CALLING THE AFTER-SALES SERVICE
- See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING section.
- Switch the appliance off and back on again to see if the fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE.
To receive assistance, call the number shown on the warranty booklet.
When contacting our Client After-sales service, always specify:
• a brief description of the fault; • the type and exact model of the appliance;
• the service number (number after the word Service on the rating plate). The service number is also indicated on the guarantee booklet. • your full address; • your telephone number.
If any repairs are required, please contact an authorized aftersales service (to guarantee that original spare parts will be used and repairs carried out correctly).
Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.
