USER MANUAL VT-5164 V-TAC

White plastic funnel-shaped object with two small metal feet at the base (no text or symbols visible)

GU10 LENS

E27 G45

E14 Candle

E14 P45

B22 A60

E27 A60

E27 A65

works with the Google Assistant

works with amazon alexa

MULTI-LANGUAGE MANUAL - QR CODE

Please scan the QR code to access the manual in multiple languages.

QR code image containing encoded data, no visible human-readable text

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC SMART LED Lighting. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

SAFETY WARNING

1) Lamps are limited to indoor use and are not advisable for use in humid environment
2) Lamps and lanterns cannot be installed on the surface of ordinary combustible materials. Increase in temperature is normal for lamps.
3) Do not exert external force or throw on the lamp.
4) Lamps should be stored in cool/dry place. Always make sure the environment is clean before installing the lamp.
5) Do not discard the lamps with regular trash. Lamps are made with electronic components and should be properly disposed at designated locations with unified treatment like traditional electronic equipment.

INSTALLATION

Step1: Disconnect the power supply and install the lamp.

Step2: Turn the power ON to test the lamp.

Step3: Scan the given QR code, or download "V-TAC Smart Light" from the App Store (iOS) or the Google Play Store (Android).

For ANDROID

QR code with red and black triangular logo in center, likely for digital link or payment

For IOS

QR code with red and black pixelated logo in center, likely linking to a digital resource or webpage

Step4: Open the V-TAC Smart Light app and tap on register for creating a new account.

V-TAC Smart Light

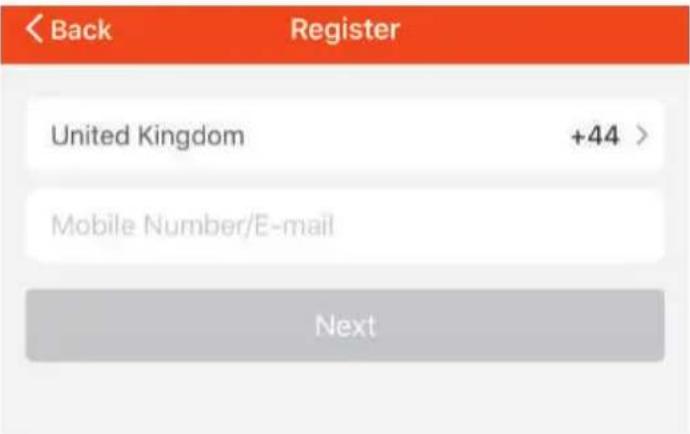

Step5:

A) Mobile Number: Select the country, then enter your mobile number. Once done, tap 'Next'.
B) E-Mail: Enter your email id and tap on 'Next'.

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

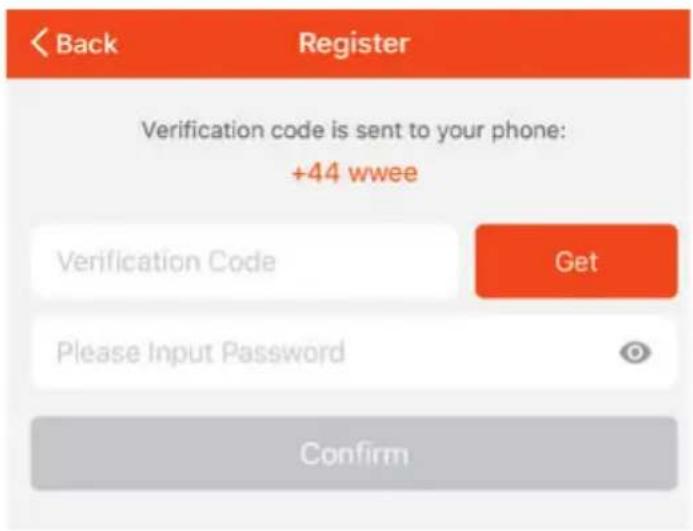

Step6: Enter the verification code which will be sent to your mobile number/email id, then assign a new password to your account and tap on "Confirm".

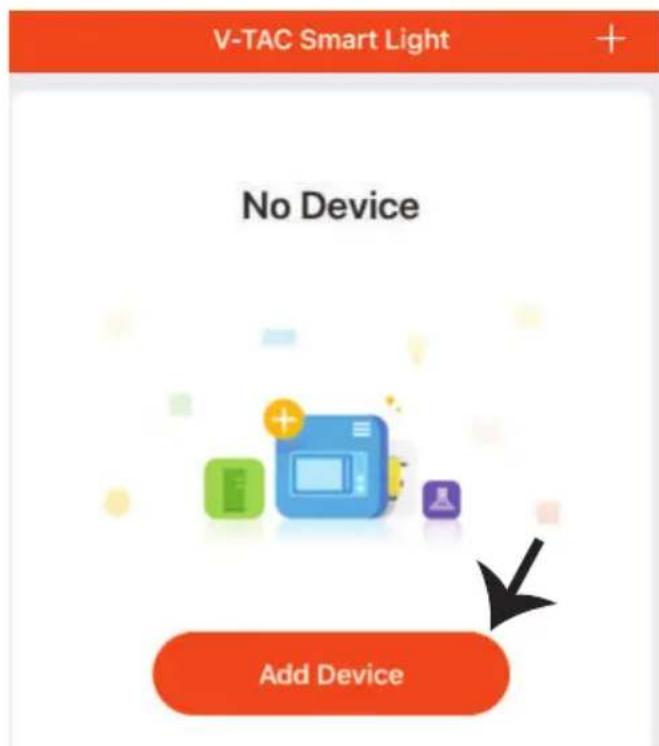

Step7: Tap on 'Add Device' or the + sign. Make sure the lamp is switched on.

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

V-TAC Smart Light No Device Add Device

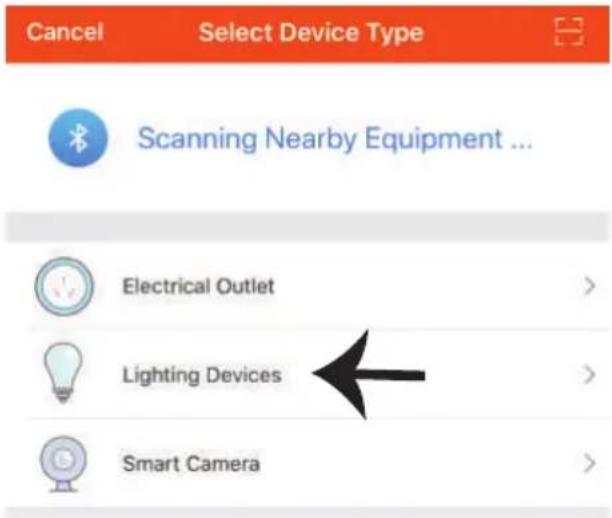

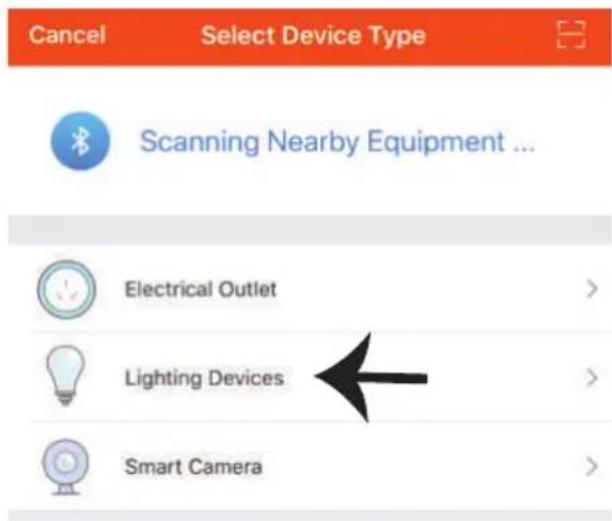

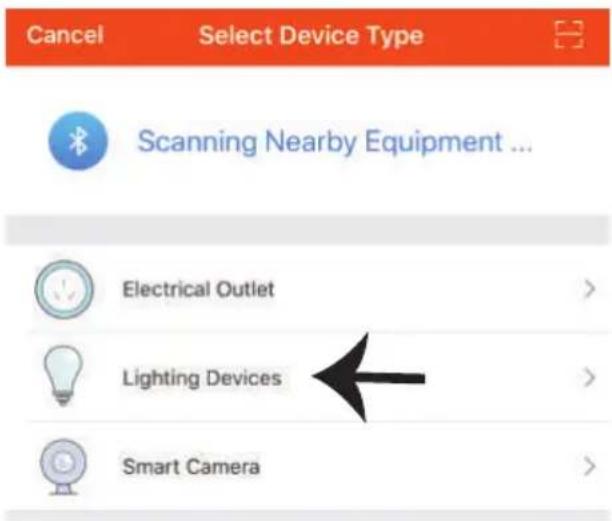

Step8: Choose 'Lighting Devices' to start pairing the lamp to the app.

Cancel Select Device Type Scanning Nearby Equipment ... Electrical Outlet > Lighting Devices > Smart Camera >

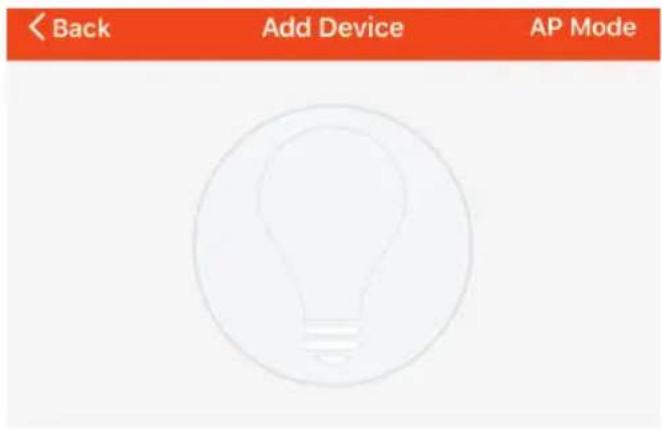

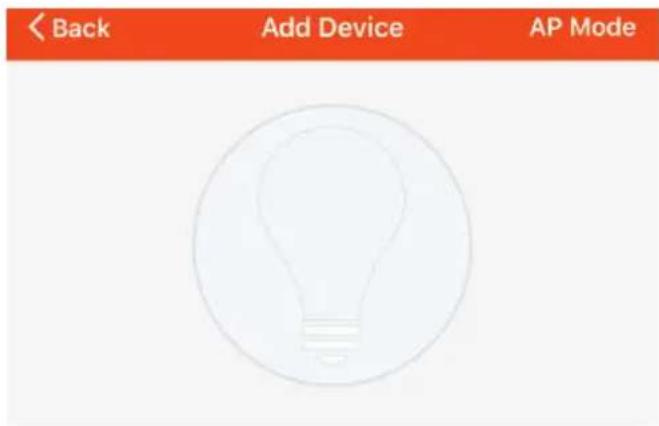

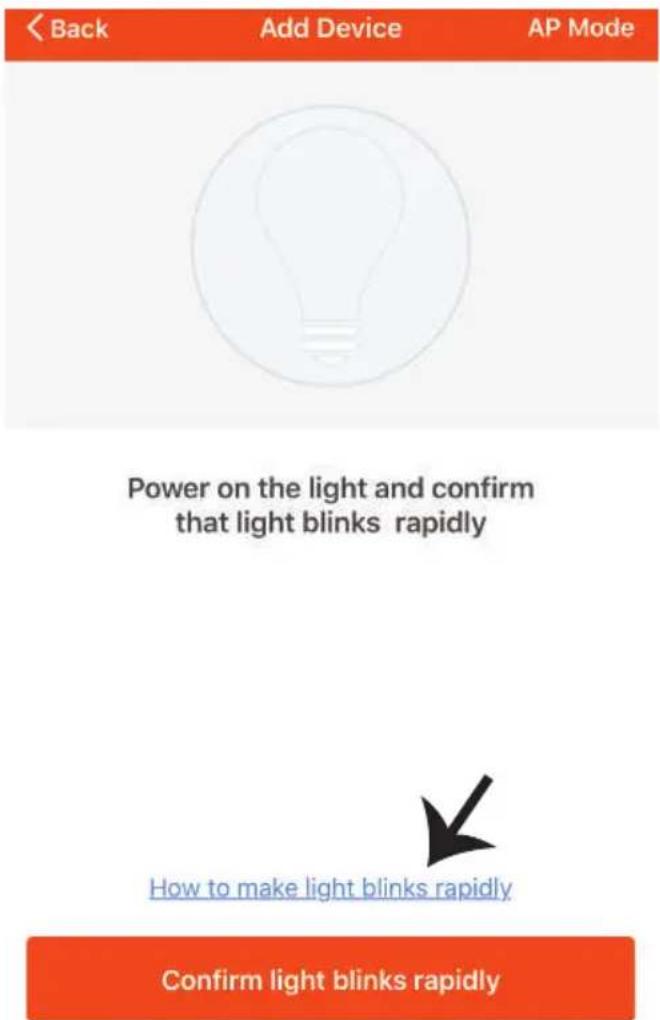

Step9: To pair the device with lamp make sure the light is blinks rapidly.

Once the light blinks rapidly, the lamp is in pairing mode. If the bulb is not blinking rapidly, you can do one of the following steps:

A. Switch the bulb on & off repeatedly for 3 times, with short intervals of less than 2 seconds.
B. Tap the 'How to make light blink rapidly' link (as shown on the image to the right)

Network Modes:

1) EZ Mode: Light flashes twice per second
2) AP mode: Slow flash, once every 2 second

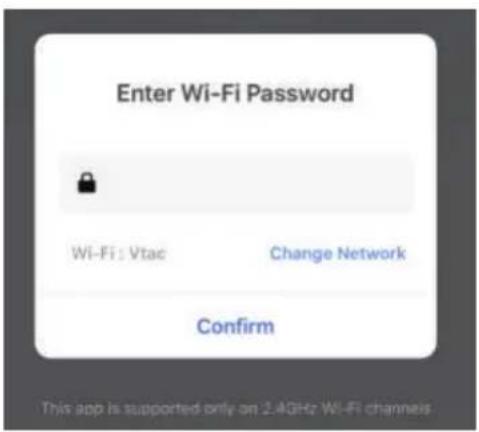

Confirm if the light blinks rapidly, select the WiFi network, and enter the password.

Enter Wi-Fi Password Wi-Fi: Vtac Change Network Confirm This app is supported only on 2.4GHz Wi-Fi channels

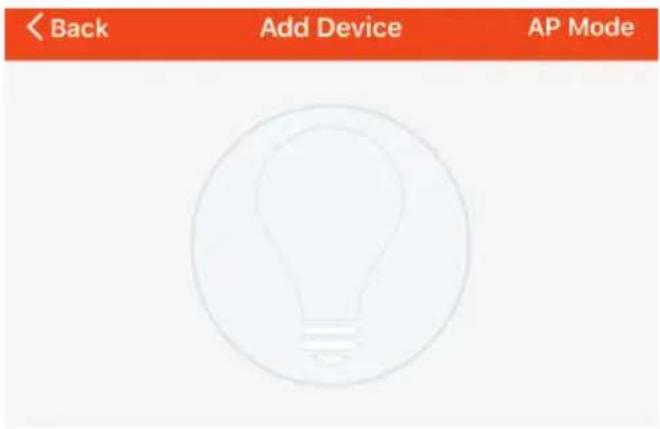

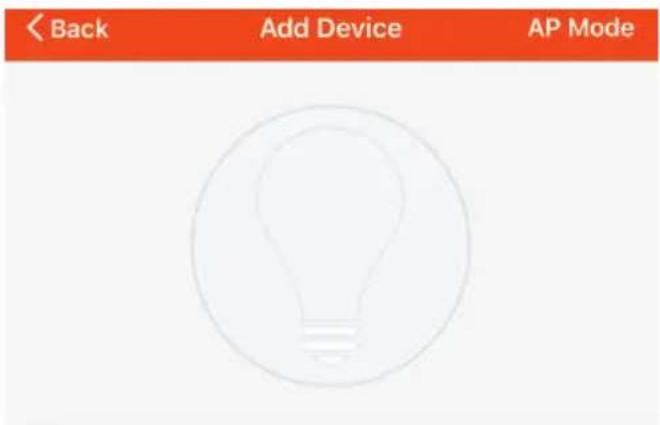

< Back Add Device AP Mode

Power on the light and confirm that light blinks rapidly

How to make light blinks rapidly Confirm light blinks rapidly

Step10: Once you have successfully completed step 9, you will be redirected to below page, where the App searches, registers and initializes the device(lamp) (ref image below)

Connecting Now

Make sure your phone and device are as close to your router as possible.

• Searching for Device
• Registering device to the cloud
• Initializing your Device

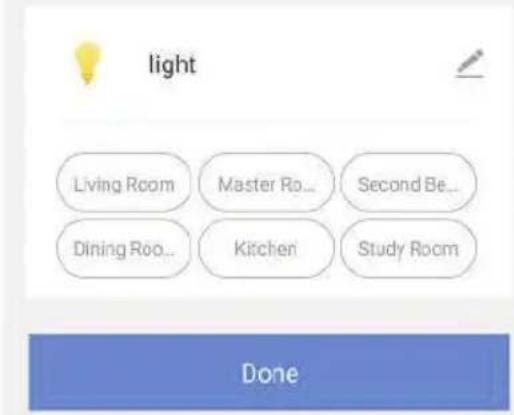

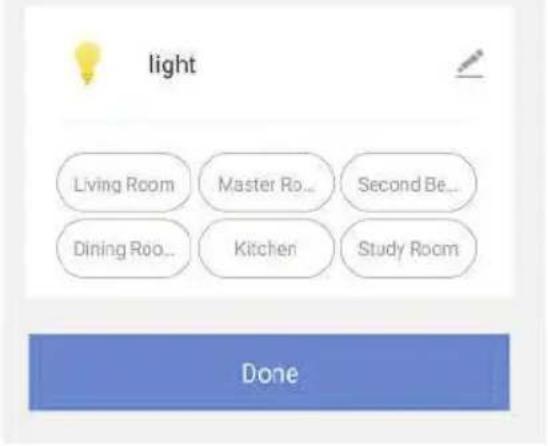

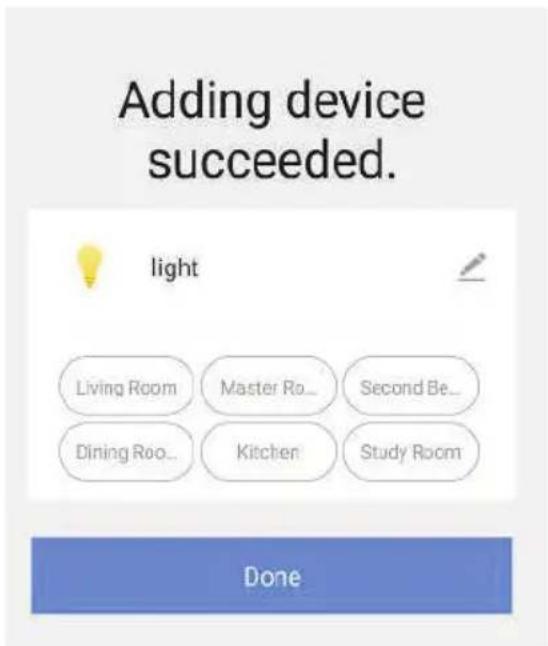

Step11: Once your device is successfully added, rename the device to your preference.

Adding device succeeded.

light Living Room Master Ro... Second Be... Dining Ro... Kitchen Study Room Done

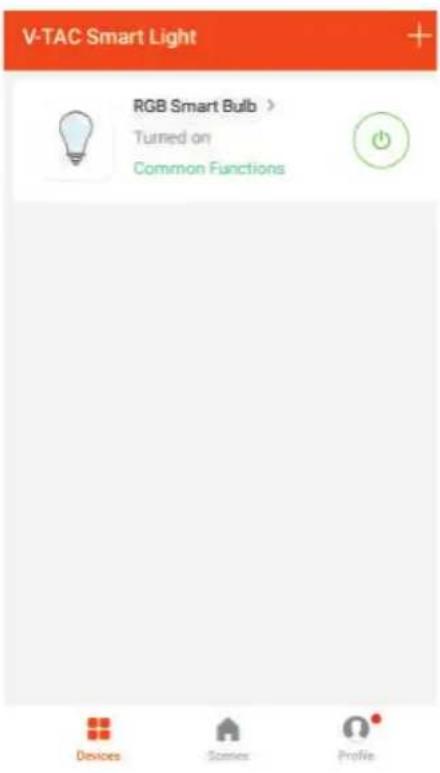

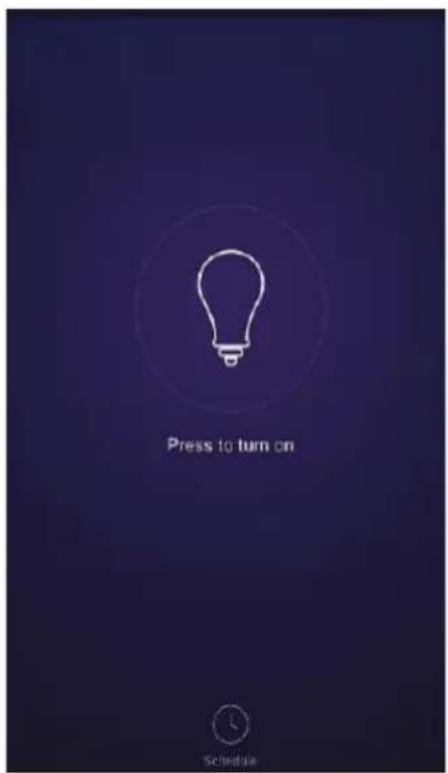

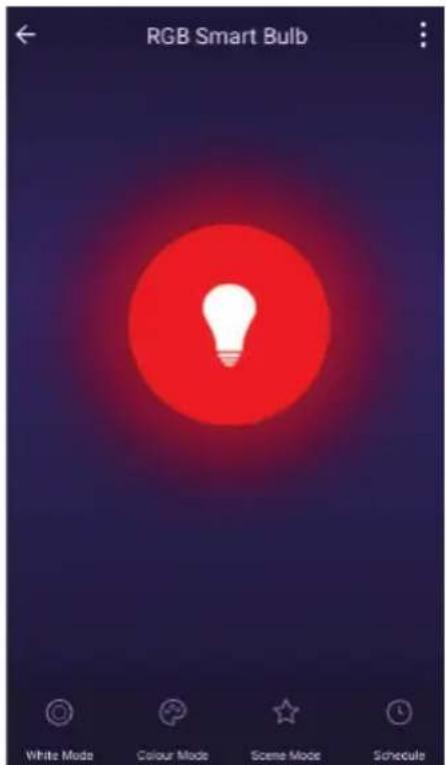

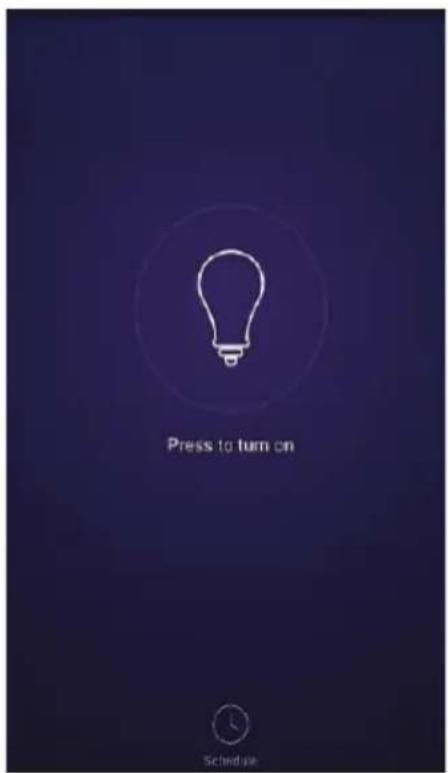

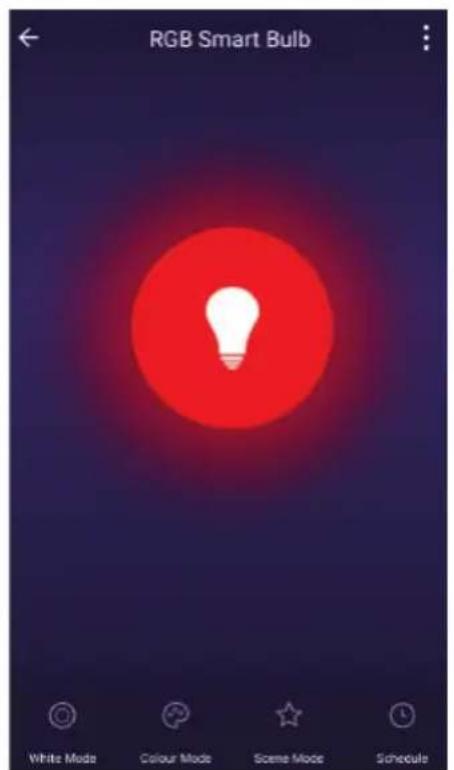

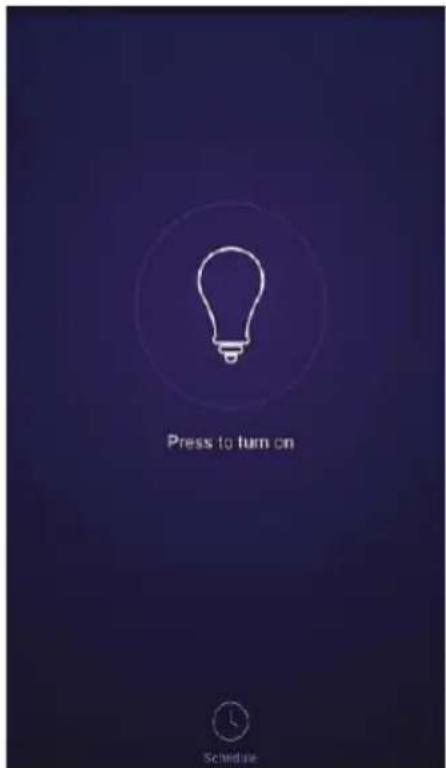

Step12: After successfully pairing the lamp with the app, you can start controlling multiple features of the lamp through your mobile-on/off switch, changing the colour temperature, timing & schedules, dimming options, and more.

V-TAC Smart Light RGB Smart Bulb > Turned on Common Functions Devices Stories Profile

Press to turn on Schedule

RGB Smart Bulb White Mode Colour Mode Scene Mode Schedule

ALEXA SETTINGS

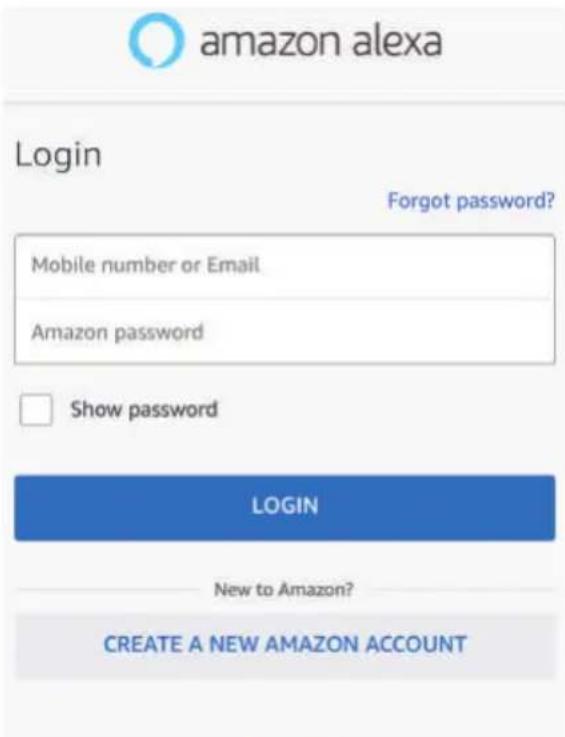

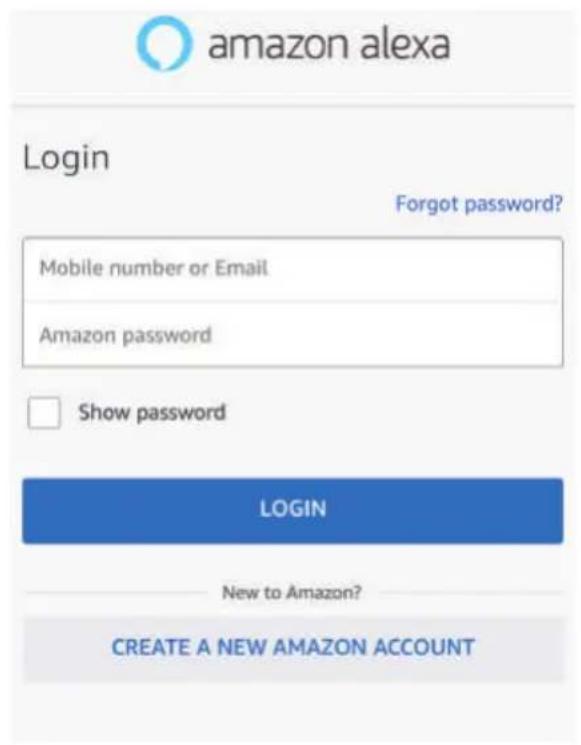

Step1: Install the Amazon Alexa app via the App Store(iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

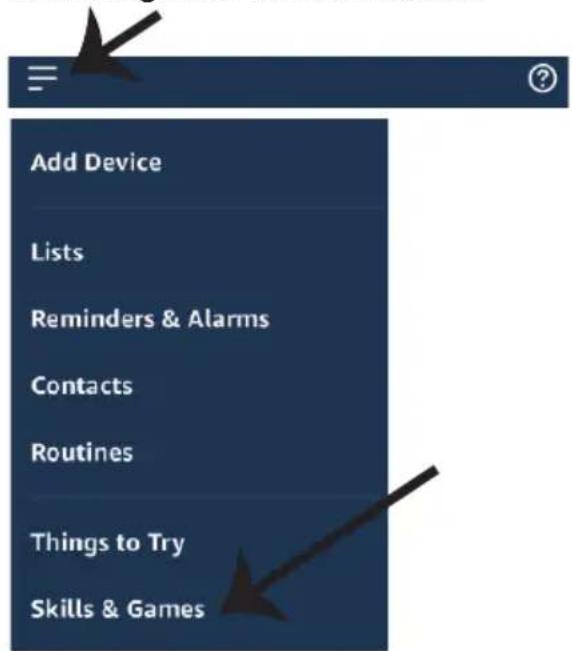

Step3: Tap on = settings and tap on

"skills and games" as shown below.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

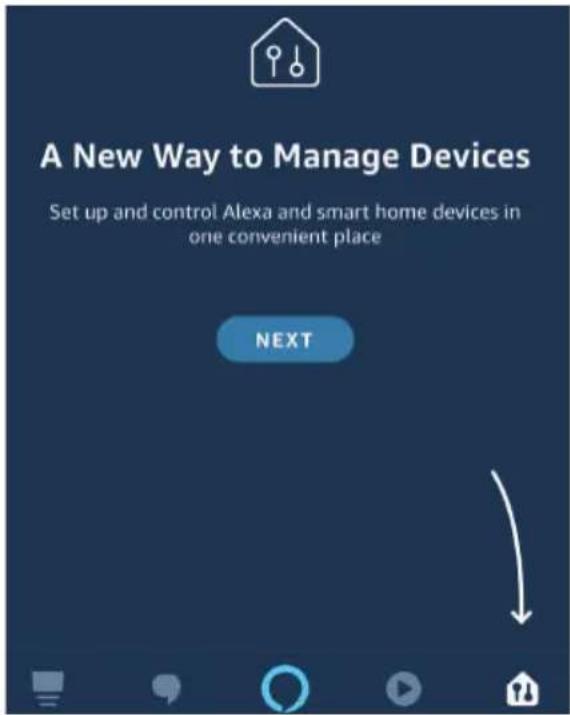

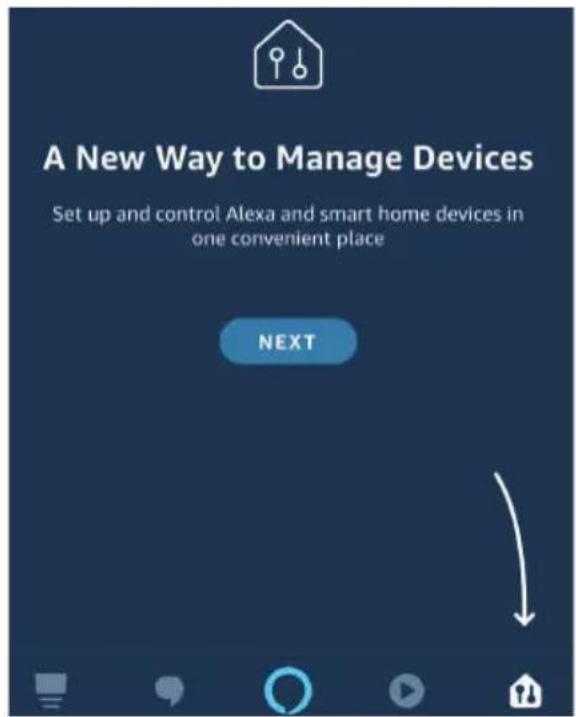

Step2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and skill.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

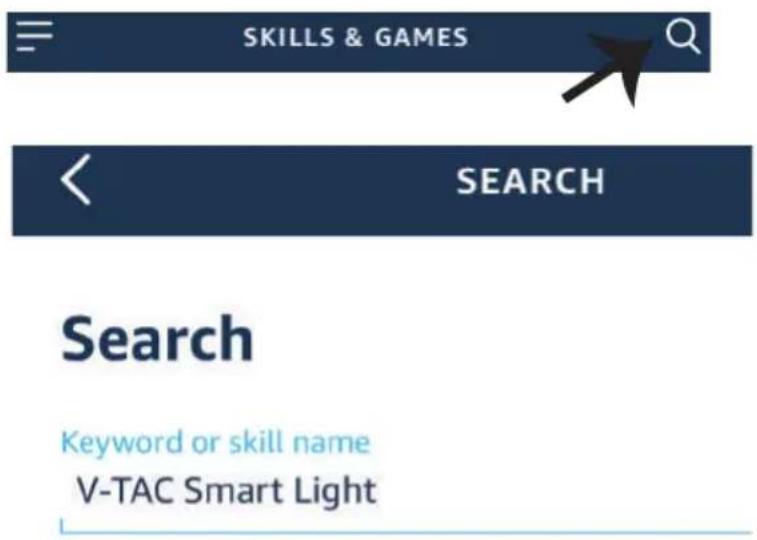

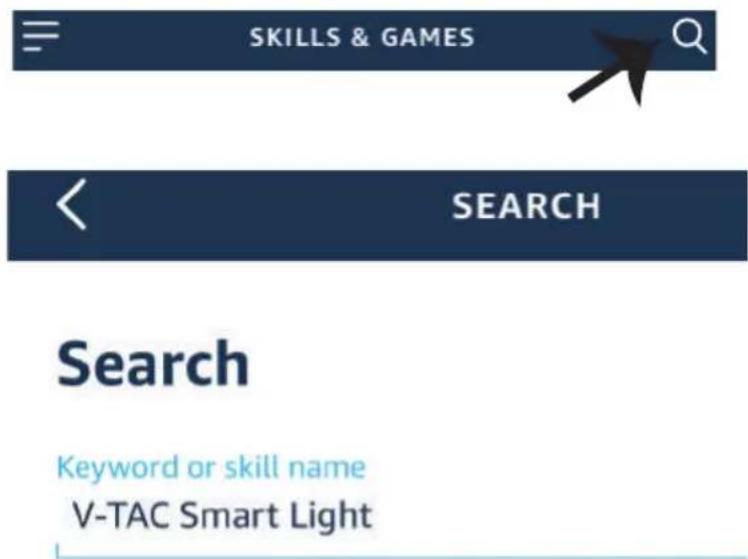

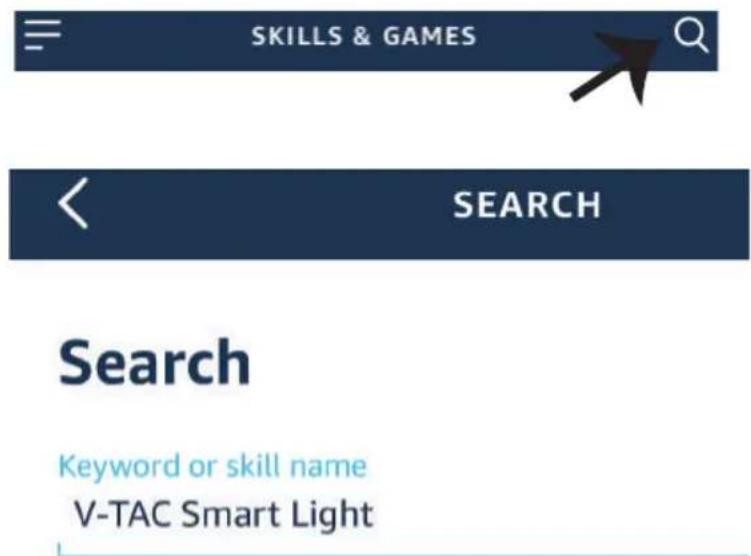

Step4: Search for 'V-TAC Smart Light' on the "Skills & Games" page as shown below.

SKILLS & GAMES SEARCH Search Keyword or skill name V-TAC Smart Light

Step5: Enable the Skill.

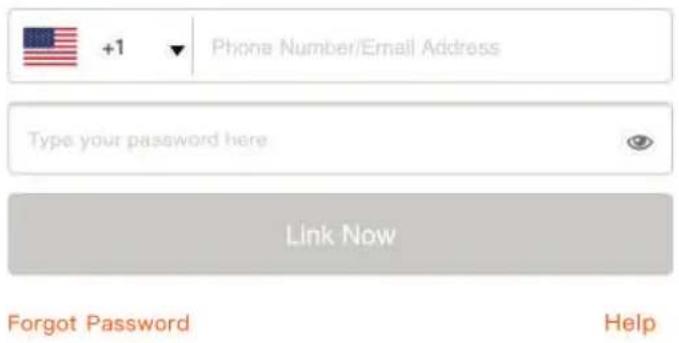

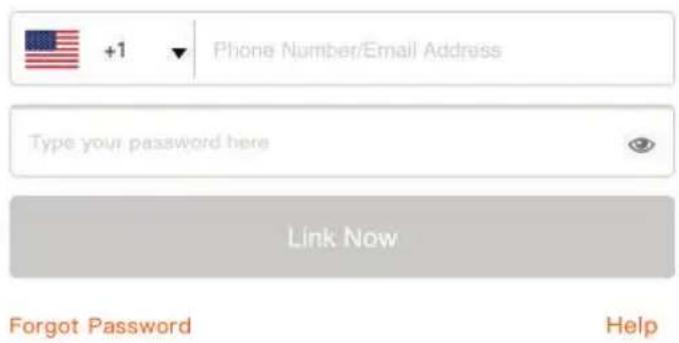

Step6: Enter your V-TAC Smart Light login ID and password and tap on "Link Now"

ENABLE

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Step7: Once you tap on Link Now, you will be redirected to a new page requesting for authorization(Ref Image below). Tap on "Authorize"

Step8: You will receive confirmation of the account being linked successfully (Ref Image below)

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Step8: Discover your smart device on Alexa. Once you have enabled the skill

A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

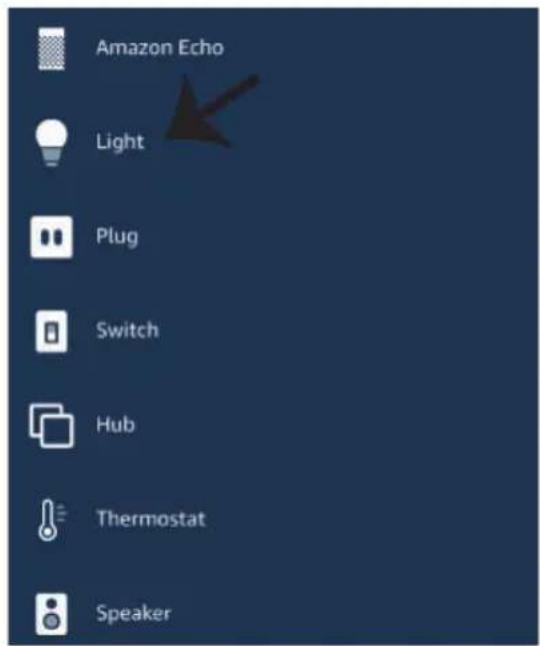

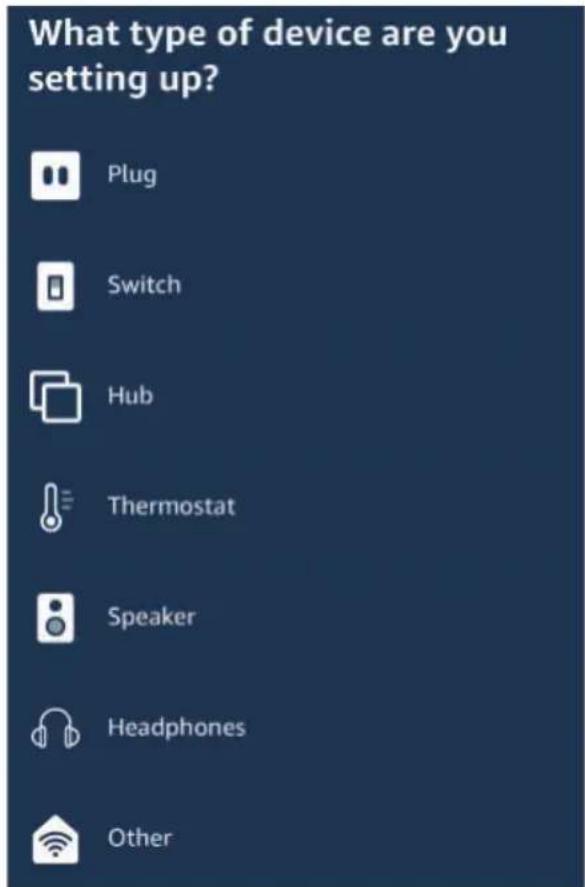

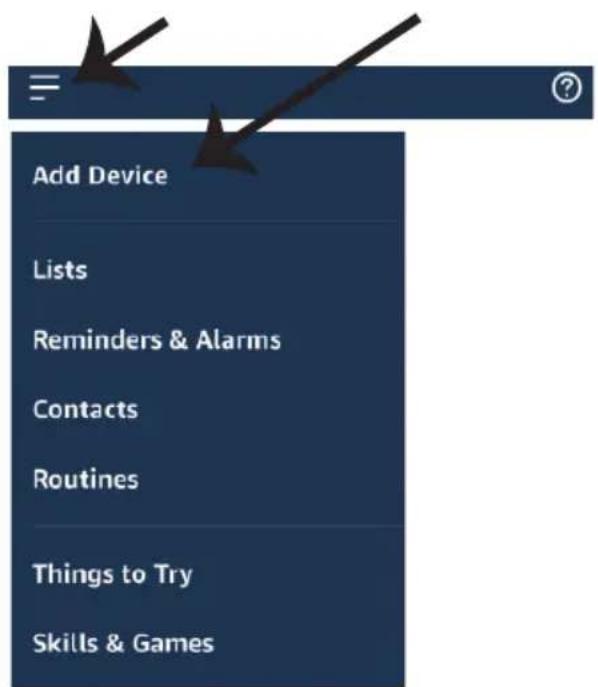

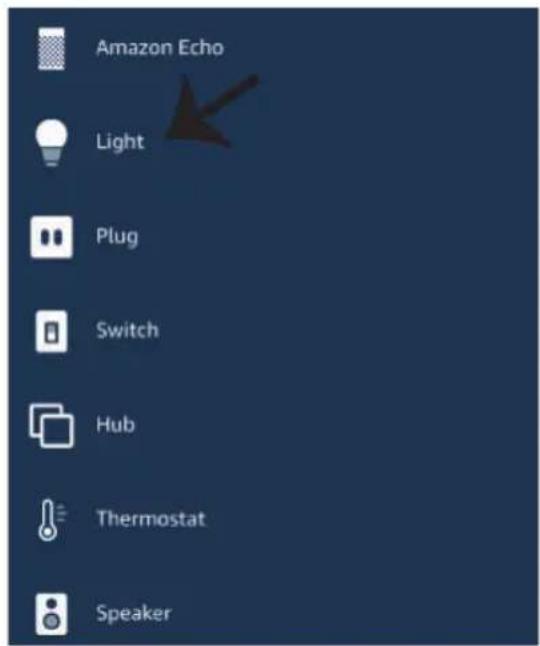

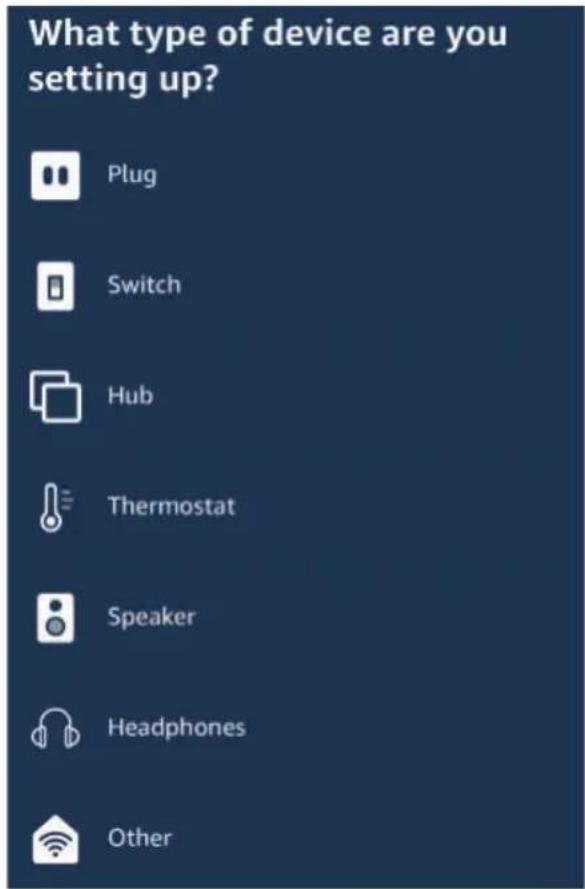

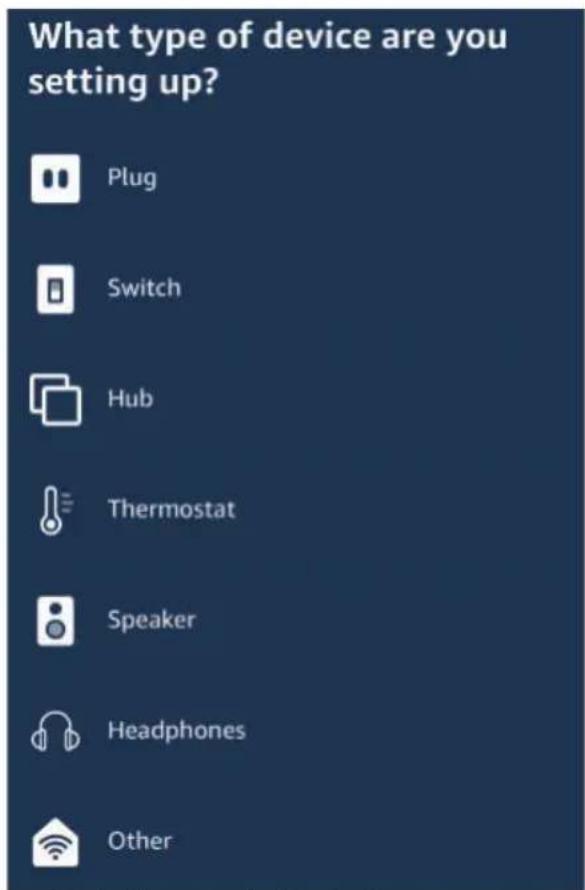

B) To add device manually on home page tap on which you are adding and tap on discover device

and tap on Add device, select the device

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa. Below are a few commands you can use:

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.
➢! Alexa, set bedroom light to green.
➢! Alexa, set bedroom light to warm white.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Device - Lamp
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in.
c) Create a New Home/Choose from the existing home if any.
d) Power ON the Google Home device and connect it to the App.(Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

Abstract geometric shapes including a square, circle, and triangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

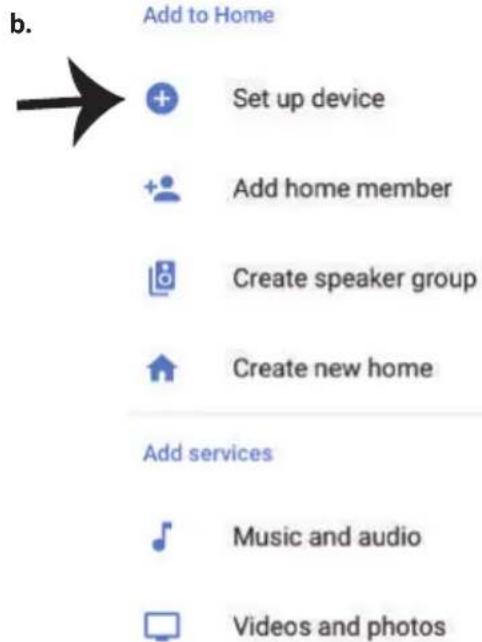

Step2: Once you are on the Google home page, tap on the Add "+" icon—to add a new device and skill. And then tap on Set up device as shown in below image.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step3: Make sure the Smart Bulb is paired with V-TAC Smart Light app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

Step4: Type "V-TAC Smart Light" on the search bar and tap on the icon of "V-TAC Smart Light"

× V-TAC Smart Life

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

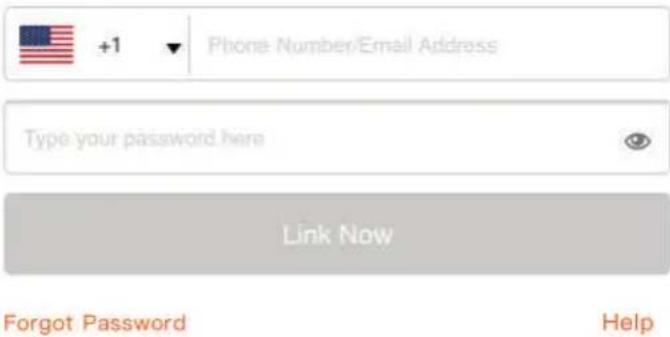

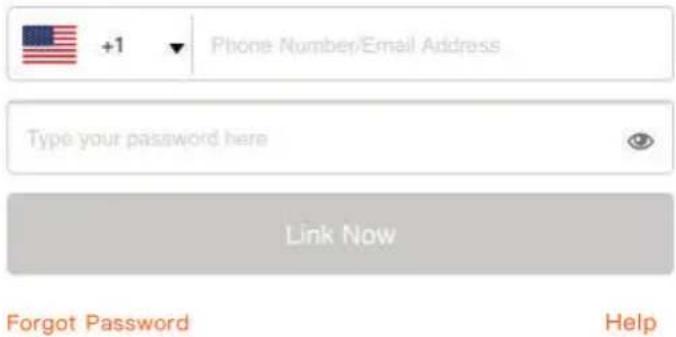

Step5: Sign In with your V-TAC Smart Light Login credentials to Link the Smart Light device

Step6: Tap on Authorize in order to proceed to linking the device.

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Step7

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home.
b. Select the device and tap on Next as show in image b.

a. Done

assistant.google.com

Account is now Linked

b. ×

Choose device

home light Light

Step8: Select the Home where you would like to add the Smart Light under. (Or) you can create a New home in order to add the Smart Light to it.

Step9: You have successfully added Smart Light device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Local devices

1 device

Office Speaker

Step10:

a. You can turn the Lamp On/OFF by taping on On/Off options as shown below. (OR) You can tap on the Smart Lamp.

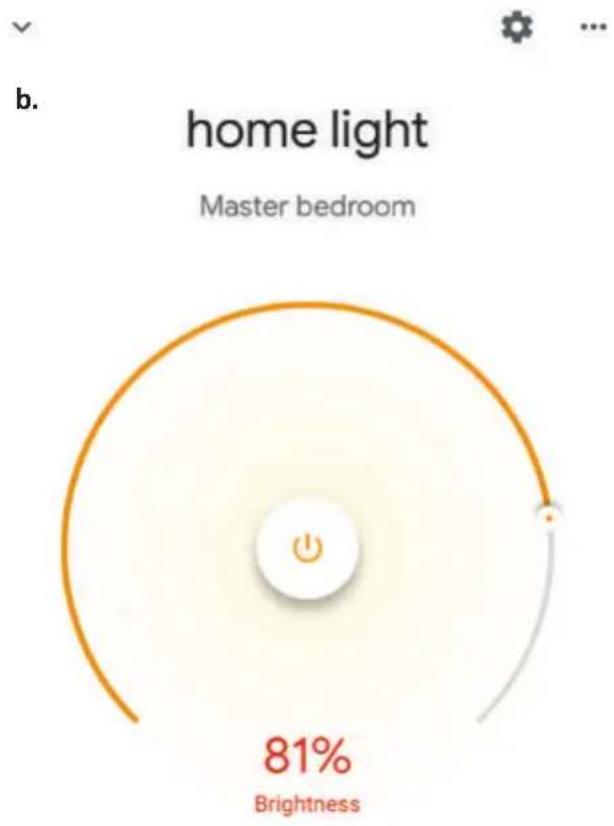

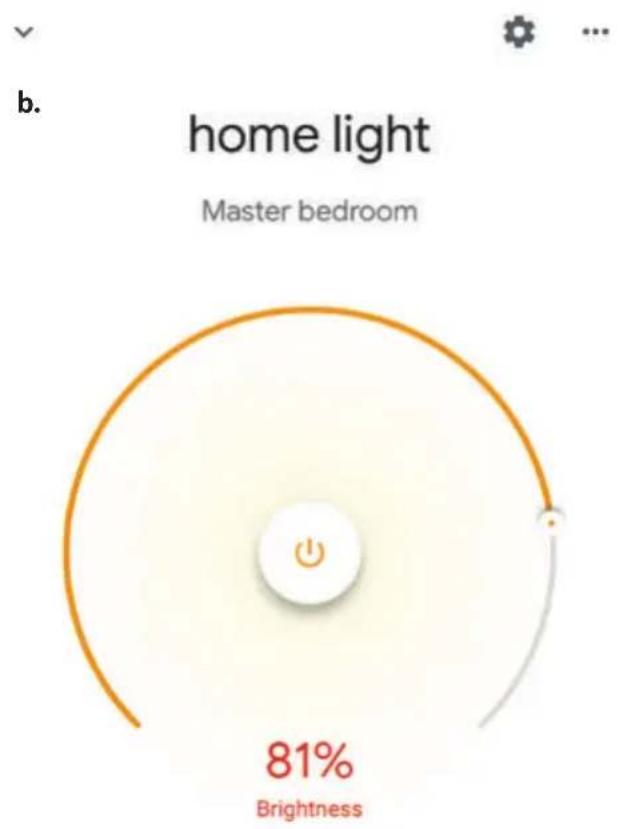

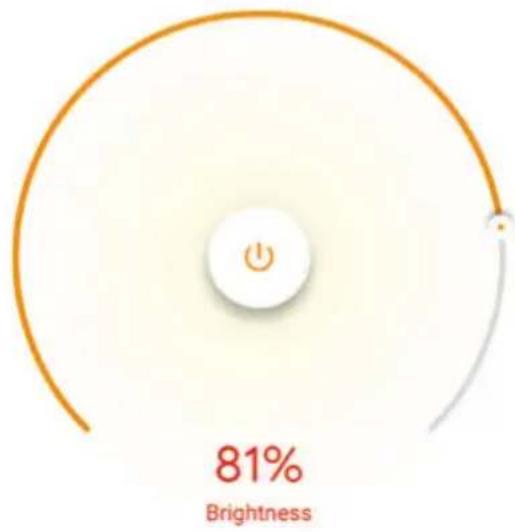

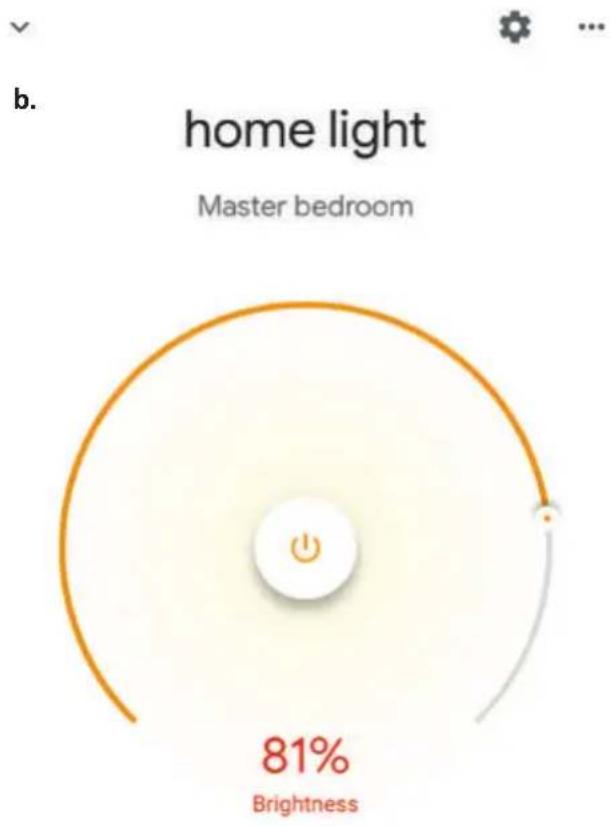

b. You will be redirected to page(as shown in image b) where you can control the lights "Power and Dimmingfunctionality".

a. Smart-Home

Off On Add Settings

Master bedroom
1 device

home light Off • On

Local devices

1 device

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few commands you can use:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.
➢! OK Google, set bedroom light to green.
➢! OK Google, set bedroom light to warm white.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Google Home App
2. Make sure you have Google Home Device
3. Smart Device - Lamp
4. Stable Wifi network
