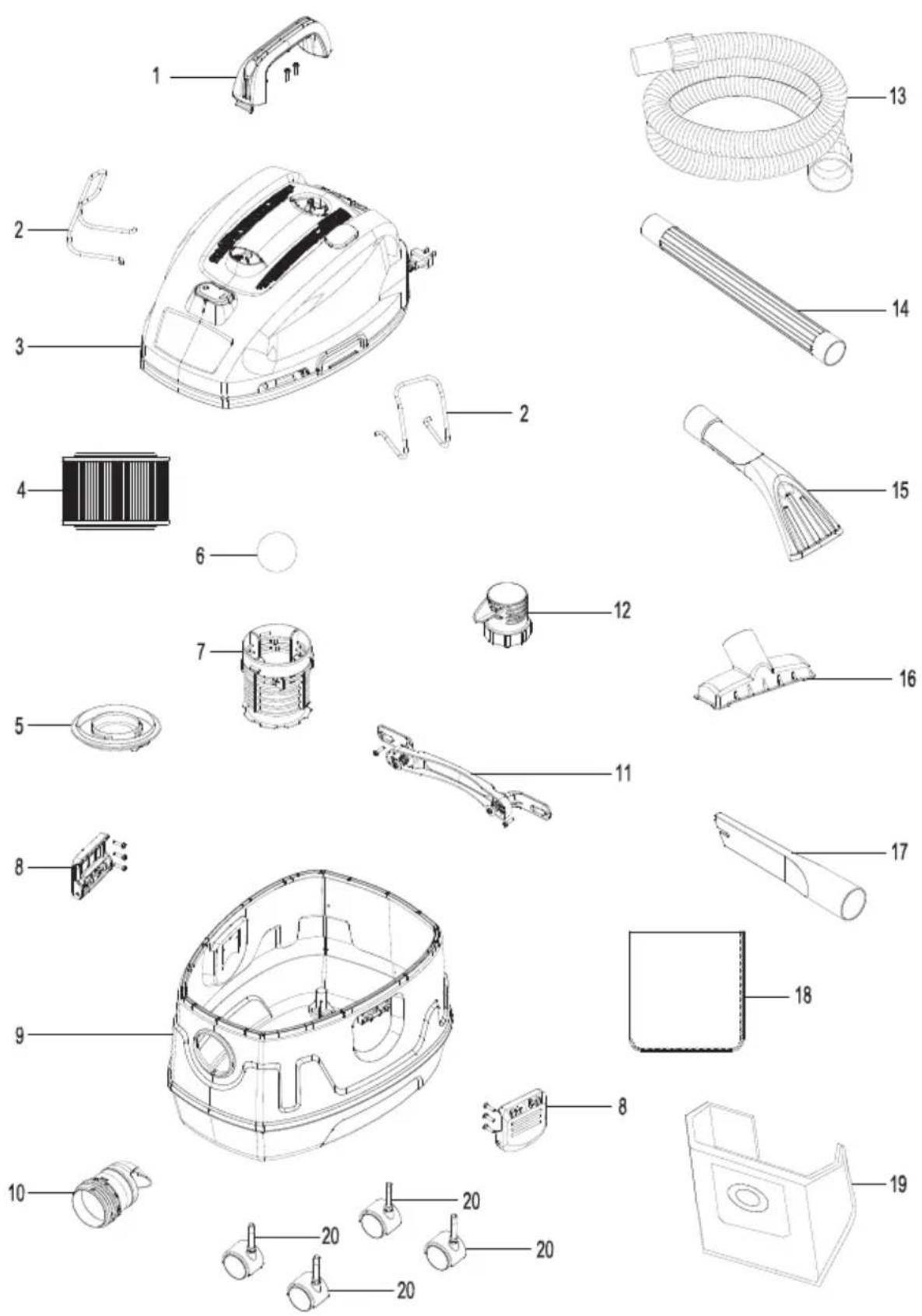

Exploded View....17

Parts List....18

Thank you for purchasing this Vacmaster ^® wet/dry vacuum cleaner. Feel confident that with Vacmaster ^® you are obtaining a high-quality product engineered for optimal performance. This vacuum is capable of picking up liquids and dry materials.

IMPORTANT INFORMATION

GALLONS

"Tank Size" refers to the actual tank volume and does not reflect capacity available during operation.

PEAK HP

"Peak Horsepower" is a term used in the wet-dry vac industry for consumer comparison purposes. It does not denote the operational horsepower output of a wet-dry vac, but rather the horsepower output of a motor, including the motor's inertial contribution, achieved in laboratory testing. In actual use, motors do not operate at the peak horsepower shown.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

WARRANTY

We take pride in producing a high-quality, durable product. This Vacmaster ^® product carries a limited five (5) year warranty against defects in workmanship and materials from date of purchase (or, for deliveries in the State of California, one year from the date of delivery), under normal household use. If product is to be used for commercial, industrial, or rental use, a 90-day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, which may vary from state to state. For product service call Customer Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs, or alterations;
• Consumables such as filters and accessories;
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
• Normal deterioration of the exterior finish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

Read and understand this operator's manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or damage to your vacuum, use only manufacturer recommended accessories.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

When using a vacuum, basic precautions should always be followed including the following. Failure to follow the warnings and instructions may result in explosion, fire and/or serious injury.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum, or use this vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dust like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.

• To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.

- Do not use or store near hazardous materials.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

- Do not expose to rain. Store indoors.

- If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not use with damaged cord or plug.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.

- Keep cord away from heated surfaces.

- Do not run the vacuum over cord.

- Do not handle plug or vacuum with wet hands.

- Do not use without dust bag and/or filters in place.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

- Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.

- Turn off all controls before unplugging.

- Unplug before connecting or disconnecting hose, or any other accessories.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Use extra care when cleaning on stairs.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.

CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing.

When using as blower:

• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

SAVE THESE INSTRUCTIONS

For Household Use Only

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacuums before servicing. Use this vacuum as described in this manual. Observe the following warnings that appear on the motor housing of your vacuum.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR'S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE, OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER.

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUMS WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE-INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS 'DOUBLE INSULATED' AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

		Length of Extension Cord
		25ft (7.62m) 50ft (15.24m) 100ft(30.48m)			150ft (45.72m)120V
Ampere rating		A.W.G. Wire Size
More than Not more than
0	6	18	16	16	14
6	10	18	16	14	12
10	12	16	16	14	12
12	16	14	12	Not recommended

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

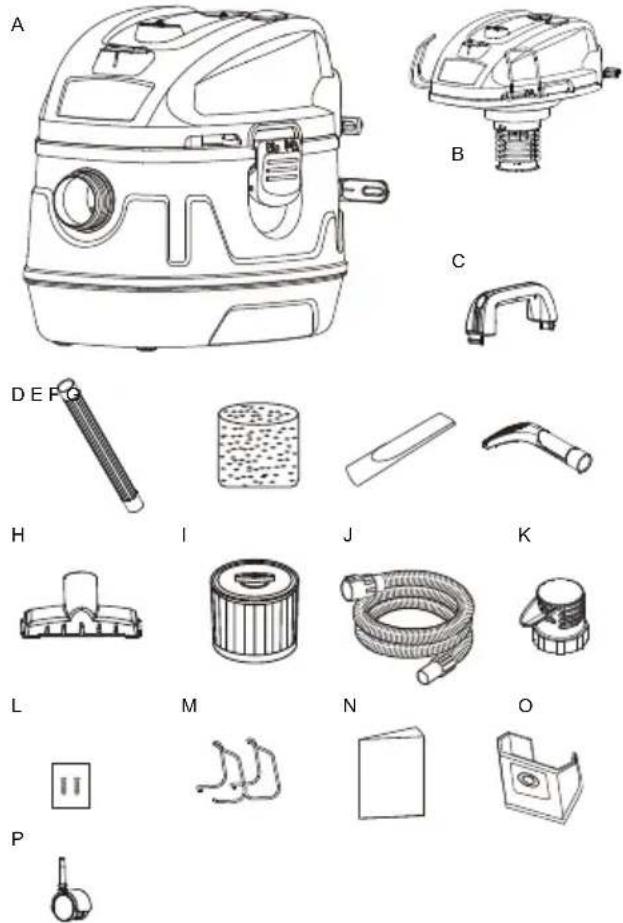

UNPACKING & CHECKING CARTON CONTENTS

Remove all contents from the box. Remove the powerhead and take out any contents inside the collection tank. Check each item against the carton contents list.

Carton Contents List:

Key Description Qty.

A Vacuum Assembly....1

B Powerhead....1

C Handle 1

D Extension Wand ....1

E Foam Wet Filter....1

F Crevice Tool....1

G Car Nozzle 1

H Utility Nozzle 1

I Cartridge Filter ....1

J Hose....1

K Noise Diffuser....1

L 2 Screws (Bag)....1

M Hose Storage Rack....2

N Operator's Manual....1

O Dust Collection Bag....1

P Caster....4

NOTE: The hose and accessories for this vacuum are 1-7/8" (47.6mm) diameter.

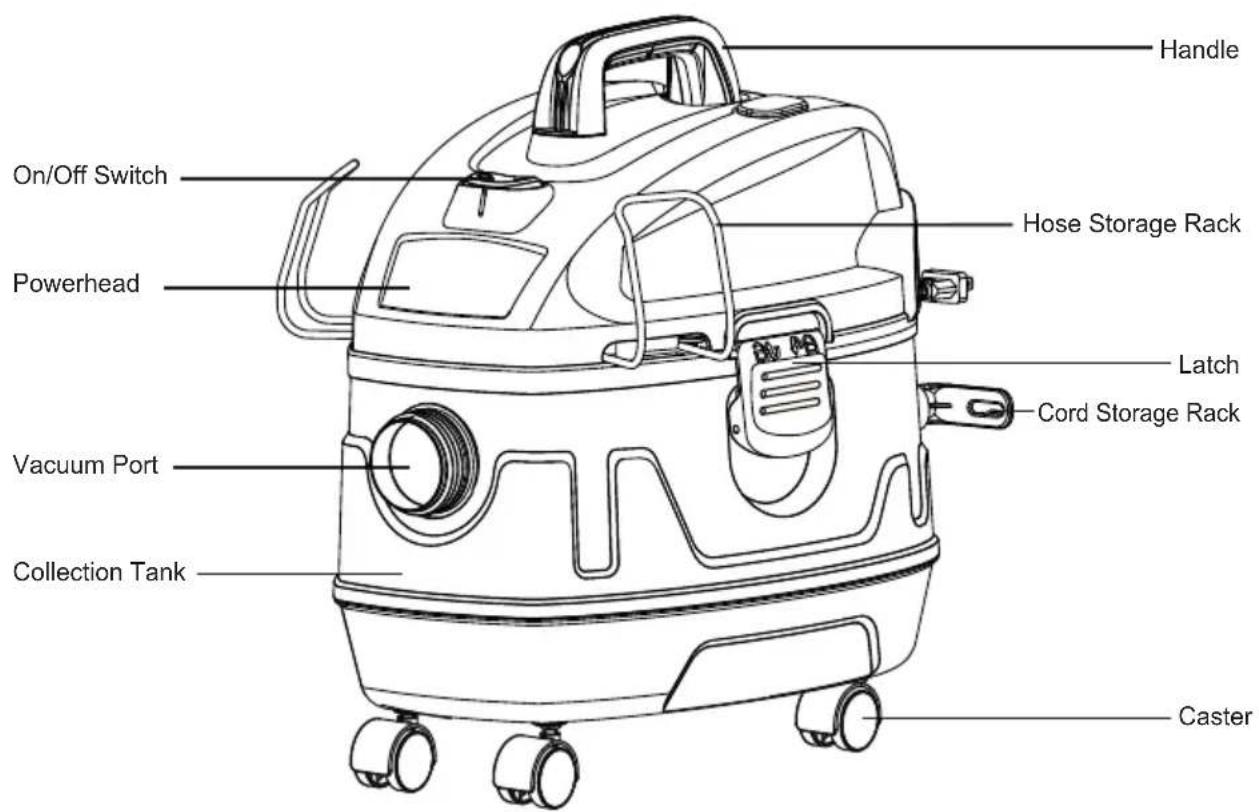

Handle On/Off Switch Hose Storage Rack Powerhead Latch Cord Storage Rack Vacuum Port Collection Tank Caster

GENERAL ASSEMBLY INSTRUCTIONS

A Phillips head screw driver is required

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a motor or pump assembly with directional arrows (no text or symbols)

Line drawing of a damaged mechanical component with broken parts and a label '4' (no text or symbols on the object itself)

Diagram of a mechanical device with multiple arms and a central cross-shaped component, no visible text or symbols

Diagram of a car interior with a valve and handle, showing mechanical components (no text or labels)

Simple line drawing of a cylindrical object on a base with a ribbon, no text or symbols present

Diagram of a mechanical knob with a rotating knob (no text or symbols)

Mechanical component diagram showing a piston-like structure with a downward arrow indicating force or movement (no text or symbols present)

10

Technical illustration of a mechanical device with no visible text or symbols

Illustration of a hand using a vacuum cleaner to adjust the air gap (no text or symbols visible)

Illustration of a hand using a portable air purifier device (no text or symbols visible)

14 1 2

Illustration of a hand holding a coiled cable with a spring, no text or symbols present

Simple diagram showing a hand pressing down on a mechanical component (no text or symbols)

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the powerhead off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed on page 7 (Fig. 4).
5. Turn the collection tank upside down and insert the four casters into the sockets on the bottom of the base. Press casters down until they snap into place (Fig. 5).
6. Insert the handle into the slots located on the top of the powerhead and secure it with the screws provided. Do not over-tighten the screws (Fig. 6).
7. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 14 for installation instructions (Fig. 7 & 8).
8. Optional: For improved dust filtering, fit the collection bag flange onto the inlet port, taking care not to damage the bag. For installation instructions, see page 14 (Fig. 9).
   NOTE: The dust collection bag is for dry pick-up only.

9. For wet vacuum cleaning, remove the cartridge filter, and install the supplied foam wet filter. See page 15 for the foam wet filter installation instructions (Fig. 10).

10. Place the powerhead back on the collection tank (Fig. 11).

11. Position the hose storage rack as illustrated. Insert one side of the rack into the channel making sure it is secured in place. Squeeze in the other end and insert it into the corresponding channel making sure it is secured (Fig. 12 & 13).

12. Align the top section with the latches, and snap into place (Fig. 14).

13. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise to lock into place (Fig. 15).

14. Choose the desired accessory and insert onto the free end of the hose or extension wand (Fig. 16).

NOISE DIFFUSER

For quiet operation, install the noise diffuser into the blower port by inserting the locking end of the diffuser into the blower port and turning clockwise to lock into place.

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation ☐ eliminates the need for the three wire grounded power cord and grounded power supply system.

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

2

Simple line drawing of a cylindrical object on a base with a triangular pointer, no text or symbols present

Diagram of a cylindrical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a mechanical device with downward arrows indicating motion or force (no text or symbols)

7

Simple line drawing of a hand dipping into a sink with a downward arrow (no text or symbols)

Illustration of a plug plug with directional arrows indicating movement (no text or symbols)

10 O

DRY VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUST INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).

2. In order to prepare your vacuum for dry vacuuming, make sure the cartridge filter completely covers the filter cage against the powerhead. Your wet/dry vacuum comes with the cartridge filter pre-installed. For installation instructions, see page 14 (Fig. 2 & 3).

3. Place the filter retainer on the top of the cartridge filter and tighten down by turning the retainer handle clockwise (Fig. 4).

4. Optional: For improved dust filtering, fit the collection bag flange onto the inlet port, taking care not to damage the bag. For installation instructions, see page 14 (Fig. 5).

NOTE: The dust collection bag is for dry pick-up only.

1. Place the powerhead back on the collection tank and secure it in place using the latches (Fig. 6).

OPERATING INSTRUCTIONS: DRY VACUUMING

1. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise to lock into place.

2. Push the required accessory onto the free end of the hose or extension wand (Fig. 7).

3. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the powerhead into the outlet (Fig. 8 & 9).

4. Turn the vacuum on by flipping the switch to the 'I' ON position and begin vacuuming (Fig. 10).

5. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.

$$ O = O F F \quad I = O N $$

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

DO NOT USE THE COLLECTION BAG FOR LIQUID VACUUMING.

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a spring, showing a downward arrow (no text or symbols)

3

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug with arrows indicating direction (no text or symbols)

6 O

Illustration of a showerhead emitting water, no text or symbols present

LIQUID VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUST INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG THE POWER CORD INTO THE POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt (Fig. 1).
2. Remove the cartridge filter, then carefully install the foam wet filter over the filter cage and place the powerhead back on the collection tank. For foam wet filter installation instructions, see page 15 (Fig. 2).

DO NOT USE THE CARTRIDGE FILTER OR DUST COLLECTION BAG FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS: WET VACUUMING

1. Push the required accessory onto the free end of the hose or extension wand (Fig. 3).
2. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 4 & 5).
3. Turn the vacuum on by flipping the switch to the 'I' ON position and begin vacuuming (Fig. 6).
4. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.
5. After use, empty the collection tank, clean and dry the inside and outside before storage (Fig. 7).

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the powerhead to the collection tank. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the collection tank, clean, and dry the inside and outside before storage.

REMEMBER! The foam wet filter must be removed after wet vacuuming and the cartridge filter must be installed before dry vacuuming again.

BLOWER OPERATION

Diagram of a plug being inserted into a socket, showing arrows indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with a tool (no text or symbols visible)

3

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug plug with directional arrows indicating movement (no text or symbols)

6 O

7

Illustration of a plug with directional arrows indicating motion (no text or symbols)

This Wet/Dry Vac has blowing capabilities. To use the blower feature, follow the instructions listed below.

WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.

CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from the hose and collection tank.
3. Remove the hose from the vacuum port. Remove the noise diffuser from the blower port.
4. Insert the locking end of the hose into the blower port on the back of the powerhead and lock into place (Fig. 2).
5. Choose the desired accessory and insert onto the end of the hose (Fig. 3).
6. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 4 & 5).
7. Before turning on the vacuum, firmly hold the loose end of the hose. Turn the vacuum on by flipping the switch to the 'I' ON position (Fig. 6).
8. The unit will now blow through the vacuum hose and can be used to clear obstructions within the hose (Fig. 7).
9. Once you have completed blowing, flip the on/off switch to the 'O' OFF position and unplug the power cord from the outlet (Fig. 8).

MAINTENANCE

Illustration of a spray bottle emitting bubbles of paper (no text or symbols)

EMPTYING THE COLLECTION TANK

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWERHEAD FROM COLLECTION TANK.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Undo the latches and remove the powerhead from the collection tank (Fig. 3). Place powerhead on a soft, clean surface upside down.
4. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 4).
5. Clean or replace the filters.
6. Check the hose, accessories, and power cord to ensure that they have not been damaged.
7. Place the powerhead back onto the collection tank and secure latches.

IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.

NOTICE! The filters included are made of high-quality materials designed to stop small dust particles. The cartridge filter should be used for dry pick-up only. A dry cartridge filter is necessary to pick up dust. If the cartridge filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes or tears; replace it immediately.

CORD STORAGE

1. When unpacking your new Wet/Dry Vacuum, the cord storage hooks will be turned inward.
2. To use the cord storage, rotate both hooks outward until they click into place (Fig. 1 & 2).
3. When you are ready to use your vacuum, simply rotate one of the hooks inward to quickly release the cord (Fig. 3).

STORAGE

Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.

REPAIRS

Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.

INSTALLING & CLEANING CARTRIDGE FILTER

Illustration of an electrical plug with a socket and lightning bolt symbol (no text or labels)

23

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical component with a cylindrical shaft and circular top, showing a downward arrow (no text or symbols)

Diagram of a cylindrical mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a spring and cylindrical component, no text or symbols present

INSTALLING CARTRIDGE FILTER

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the powerhead and place in an upside-down position.
3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the filter retainer on the top of the cartridge filter over the raised lip and tighten down by turning the retainer clockwise; do not over-tighten (Fig. 4 & 5).
5. Place the powerhead back onto the collection tank.

REMOVING & CLEANING CARTRIDGE FILTER

1. Unlock and remove the filter retainer by turning the retainer handle counterclockwise.
2. With the removed powerhead in an upside-down position, carefully remove the cartridge filter from the filter cage (Fig. 6).
3. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance, a new filter is recommended.
4. Install cleaned or new filters as above in steps 2-4 of Installing Cartridge Filter.

INSTALLING DUST COLLECTION BAG

Illustration of a plug with a shield and arrow indicators (no text or symbols)

Illustration of a mechanical device with a downward arrow indicating motion (no text or symbols)

Illustration of a small robotic device with wheels and control panels (no text or symbols)

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the powerhead and place in an upside-down position.
3. Slide the cardboard dust bag flange onto inlet port until it stops (Fig. 2).
4. Unfold the dust bag so that it is evenly distributed around the inside of the tank (Fig. 3).
5. Place the powerhead back onto the collection tank.

INSTALLING & CLEANING FOAM WET FILTER

Illustration of an electric plug with a switch and lightning bolt (no text or symbols)

23

Simple line drawing of a cylindrical object on a base with a cross mark, no text or symbols present

Diagram of a mechanical assembly showing a piston and spring with a cylindrical component, no text or symbols present.

Illustration of three hands pouring liquid from a container onto a surface, no text or symbols present

INSTALLING FOAM WET FILTER

1. Verify that the power cord is disconnected from the outlet (Fig.1).
2. Remove the powerhead and place in an upside-down position. Follow instructions to remove the cartridge filter on page 14.
3. Carefully slide the foam wet filter down over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the powerhead onto the collection tank.

CLEANING FOAM WET FILTER

1. With the removed powerhead in an upside-down position, carefully remove the foam wet filter (Fig. 4).
2. Use a mild soap and water solution to wash the foam wet filter and rinse with clean water (Fig. 5).
3. Allow the wet filter to air dry for 24 hours before storing or installing onto the filter cage.

TROUBLESHOOTING

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING.

PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will not operate.	No power supply.	Check the power supply, cord, breakers, and fuses.
	Faulty power cord.	Unplug and check the power cord. If damaged, have it repaired by a professional.
	Collection tank is full. Empty the collection tank.
	Switch in the wrong position.	Press the ON ‘I’ button on the powerhead.
The dust comes out from the motor cover.	The cartridge filter is missing or damaged.	Attach or replace the cartridge filter.
	Vacuum has been used to collect fine dust, such as drywall dust, fireplace soot, or ash, without a fine dust filter.	Remove the standard cartridge filter and install the appropriate fine dust filter.
Reduced efficiency and motor/speed vibration.	There are blockages in the nozzle, hose, or the collection tank inlets.	Unplug and check nozzle, hose and collection tank inlets for blockages.
	The cartridge filter is clogged by fine dust.	Take off the filter and clean it or install a new cartridge filter.

EXPLODED VIEW

Exploded view diagram of a cleaning device with numbered parts for identification

PARTS LIST

Part	Part Number Description	Quantity
1 55	1253101 Handle Assembly	1
2 55	1013103 Hose Storage Rack	2
3 Powerhead Assembly	1
4 55	1062107 Cartridge Filter	1
5 55	1062108 Filter Retainer	1
6 55	1013104 Float	1
7 55	1012116 Filter Cage	1
8 55	1253104 Latch Assembly	2
9		Collection Tank	1
10	551062105	Vacuum Port Assembly	1
11	551062104	Quick Release Cord Wrap Assembly	1
12	551027140 Noise Diffuser	1
13	551059111 Hose	1
14	551390102 Extension Wand	1
15	551170108 Car Nozzle	1
16	551011109 Utility Nozzle	1
17	551001118	Crevice Tool	1
18	551009111 Foam Wet Filter	1
19	551644105 Dust Collection Bag	1
20	551009108 Caster	4

TABLA DE CONTENIDOS

SECCIÓN

PÁGINA

Garantía....3

Illustration of a plug with arrows indicating direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a damaged backpack with broken legs and plastic components (no text or symbols)

Diagram of a mechanical component with arrows indicating movement or force, no visible text or symbols

Diagram of a robotic device with a hand valve and control panel, no text or symbols present

Simple line drawing of a cylindrical object with a curved arrow, no text or symbols present

Diagram of a rotary knob with a rotating arrow, no text or symbols present

Diagram of a vehicle's front-mounted device with a downward arrow indicating motion (no text or symbols)

10

Mechanical device diagram showing a mounted machine with arrows indicating motion or force (no text or symbols)

Illustration of a hand using a tool to clean or adjust a mechanical device (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to clean or install a machine (no text or symbols visible)

14 1 2

Illustration of a hand holding a coiled cable with a clamped arm (no text or symbols)

Simple line drawing of a mechanical component with an arrow pointing to it (no text or symbols)

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Mechanical component diagram showing a piston-like structure with a downward arrow, no text or symbols present

Simple line drawing of a cylindrical object mounted on a base with a triangular pointer (no text or symbols)

Diagram of a mechanical component with a rotating arrow, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a motor or generator with directional arrows indicating motion (no text or symbols present)

Simple line drawing of a mechanical component with an arrow pointing to it (no text or symbols)

8

Illustration of a hand holding a plug with arrows indicating direction (no text or symbols)

10

ASPIRADO EN SECO

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a spring, showing a downward arrow (no text or symbols)

3

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug with arrows indicating direction (no text or symbols)

6 O

Illustration of a showerhead emitting water, no text or symbols present

ASPIRADO EN MOJADO

Diagram of a plug being inserted into a socket, showing arrows indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with a handle (no text or symbols visible)

3

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug plug with directional arrows indicating movement (no text or symbols)

6 O

7

Illustration of a plug with directional arrows indicating motion (no text or symbols)

Illustration of a spray bottle emitting bubbles of paper (no text or symbols)

Illustration of an electrical plug with a fuse and lightning bolt, no text or symbols present

23

Simple line drawing of a cylindrical object mounted on a base, with no text or symbols present.

Diagram of a cylindrical mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a cylindrical mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and spring, showing an upward arrow (no text or symbols)

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Illustration of a mechanical device with a downward arrow indicating motion (no text or symbols)

Illustration of a small robotic device with wheels and control panels (no text or symbols)

Illustration of a plug with electrical connections and lightning bolts (no text or symbols)

23

Simple line drawing of a top hat placed on a plate with a bow (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a spring-like base, showing an upward arrow (no text or symbols)

Illustration of two cups pouring liquid from a container into a container (no text or symbols)

Exploded view diagram of a cleaning device with numbered parts for identification

LISTA DE PARTES

Instructions relatives à la double isolation....6

Line drawing of a mechanical device with no visible text or symbols

C

H

1

J

K

L

M

N

O

INSTRUCTIONS RELATIVES AU MONTAGE GÉNÉRAL

Illustration of a plug with arrows indicating direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a damaged mechanical device with broken parts and debris (no text or symbols)

Diagram of a mechanical device with four protruding pins and a downward arrow, no text or symbols present

Diagram of a robotic device with a handle and sensor, showing mechanical components (no text or symbols)

Simple line drawing of a cylindrical object with a bow, placed on a base (no text or symbols)

Diagram of a rotary knob with a rotating arrow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

10

Diagram of a mechanical device with a central shaft and base, showing internal components and directional arrows (no text or symbols)

Illustration of a hand using a tool to clean or adjust a mechanical device (no text or symbols visible)

Illustration of a hand using a portable air conditioner (no text or symbols visible)

14 1 2

Illustration of a hand holding a coiled tube with a spring, no text or symbols present

Simple line drawing of a mechanical component with an arrow pointing to it (no text or symbols)

AVERTISSEMENT : NE PAS BRANCHER LE CORDON D'ALIMENTATION À UNE PRISE DE COURANT. ASSUREZ-VOUS QUE LA FICHE EST DÉBRANCHÉE AVANT DE MONTER L'ASPIRATEUR D'ATELIER SEC ET HUMIDE. AFIN DE RÉDUIRE TOUS RISQUES D'ÉLECTROCUTION, NE PAS EXPOSER CE PRODUIT À LA PLUIE.

DÉBALLAGE DE VOTRE ASPIRATEUR D'ATELIER SEC ET HUMIDE ET MONTAGE GÉNÉRAL

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and spring, showing a downward arrow (no text or symbols)

Simple line drawing of a cylindrical object with a base and a triangular pointer, no text or symbols present.

Diagram of a rotary knob with a rotating knob and base, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating motion (no text or symbols present)

Mechanical device diagram showing a motor or generator assembly with directional arrows (no text or symbols)

7

8

Illustration of a plug with arrows indicating direction (no text or symbols)

10 O

ASPIRATION DE POUSSIÈRES

AVERTISSEMENT :VEILLEZ À LIRE, À ASSIMILER ET À METTRE EN APPLICATION LES CONSIGNES INTITULÉES « CONSIGNES IMPORTANTES DE SÉCURITÉ ». NE PAS UTILISER L'ASPIRATEUR DANS DES ZONES OÙ L'AIR CONTIENT DES GAZ ET VAPEURS INFLAMMABLES OU DES POUSSIÈRES EXPLOSIVES. LES GAZ OU VAPEURS INFLAMMABLES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : L'ESSENCE POUR BRIQUETS, LES PRODUITS DE NETTOYAGE DE TYPE SOLVANTS, LA PEINTURE À L'HUILE, L'ESSENCE, L'ALCOOL OU LES SPRAYS AÉROSOLS. LES POUSSIÈRES EXPLOSIVES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : LE CHARBON, LE MAGNÉSIUM, LES GRAINS OU LA POUDRE À CANON. AFIN DE RÉDUIRE LES RISQUES POUR LA SANTÉ PROVENANT DES VAPEURS OU POUSSIÈRES, N'ASPIREZ PAS DE MATIÈRES TOXIQUES.

AVERTISSEMENT : NE PAS BRANCHER LE CORDON D'ALIMENTATION À UNE PRISE DE COURANT. ASSUREZ-VOUS QUE LA FICHE EST DÉBRANCHÉE AVANT DE REMPLACER LES FILTRES.

ATTENTION : NE PAS ASPIRER DE LA POUSSIÈRE DE PLACOPLÂTRE, DE LA SUIE OU DES CENDRES DE CHEMINÉE À L'AIDE D'UN FILTRE POUR MATÉRIAUX HUMIDES/À POUSSIÈRE ORDINAIRES. CES POUSSIÈRES SONT TRÈS FINES ET NE SERONT PAS RETENUES PAR LE FILTRE, CE QUI POURRAIT ENTRAÎNER DES DOMMAGES DU MOTEUR. POUR L'ASPIRATION DE POUSSIÈRES FINES, UTILISEZ UN FILTRE À POUSSIÈRES FINES.

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a spring, with an arrow indicating downward motion (no text or symbols present)

3

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug with directional arrows indicating electrical or mechanical components (no text or symbols)

6 O

Illustration of a showerhead emitting water, no text or symbols present

ASPIRATION DE LIQUIDES

AVERTISSEMENT : VEILLEZ À LIRE, À ASSIMILER ET À METTRE EN APPLICATION LES CONSIGNES INTITULÉES « CONSIGNES IMPORTANTES DE SÉCURITÉ ». NE PAS UTILISER L'ASPIRATEUR DANS DES ZONES OÙ L'AIR CONTIENT DES GAZ ET VAPEURS INFLAMMABLES OU DES POUSSIÈRES EXPLOSIVES. LES GAZ OU VAPEURS INFLAMMABLES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : L'ESSENCE POUR BRIQUETS, LES PRODUITS DE NETTOYAGE DE TYPE SOLVANTS, LA PEINTURE À L'HUILE, L'ESSENCE, L'ALCOOL OU LES SPRAYS AÉROSOLS. LES POUSSIÈRES EXPLOSIVES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : LE CHARBON, LE MAGNÉSIUM, LES GRAINS OU LA POUDRE À CANON. AFIN DE RÉDUIRE LES RISQUES POUR LA SANTÉ PROVENANT DES VAPEURS OU POUSSIÈRES, N'ASPIREZ PAS DE MATIÈRES TOXIQUES.

AVERTISSEMENT : NE PAS BRANCHER LE CORDON D'ALIMENTATION À LA PRISE DE COURANT. ASSUREZ-VOUS QUE LA FICHE EST DÉBRANCHÉE AVANT DE REMPLACER LES FILTRES.

Diagram of a plug being inserted into a socket, showing arrows indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with a handle (no text or symbols visible)

3

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a plug plug with directional arrows indicating movement (no text or symbols)

6 O

7

Illustration of a plug with directional arrows indicating motion (no text or symbols)

Illustration of a plug with electrical socket and lightning bolts (no text or symbols)

23

Simple line drawing of a mechanical component with a cylindrical shaft and base, no text or symbols present.

Diagram of a cylindrical mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a cylindrical mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and spring, showing an upward arrow (no text or symbols)

INSTALLATION DU FILTRE À CARTOUCHE

Illustration of a plug with a circular socket and directional arrows indicating electrical or mechanical components (no text or symbols)

Illustration of a mechanical device with a downward arrow indicating motion (no text or symbols)

Illustration of a small robotic device with wheels and control panels (no text or symbols)

Illustration of a plug with a fuse and lightning bolt, no text or symbols present

23

Simple line drawing of a top hat placed on a plate with a bow (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a coiled spring, showing an upward arrow (no text or symbols)

Illustration of two hands pouring liquid from a cup into a container (no text or symbols)

INSTALLATION DU FILTRE EN MOUSSE POUR MATÉRIAUX HUMIDES

Exploded view diagram of a cleaning device with numbered parts for identification

LISTE DES PIÈCES
