USER MANUAL 50PN6500 LG

Dec/26/2012 Dec/26/2012 Dec/26/2012

Part number 2nd, 3rd Suffix

2. Printing Specification

Coated, Snow white paper 150 g/ ㎡

Uncoated, wood-free paper 60 g/㎡

Eng/Ger/Fre/Ita/Spa/Por/Dut/Gree/slovenian (9)

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,

Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

3. Origin Notification

LGEAK : Printed in Kazakhstan LGEKR : Printed in Korea LGERS : Printed in Mexico LGEAZ

Printed in Brazil LGEMA : Printed in Poland LGESY : Printed in China LGEEG : Printed in Egypt LGEMX : Printed in Mexico LGETH : Printed in Thailand LGEIL

Printed in India LGEND : Printed in China LGEVN : Printed in Vietnam LGEIN

Printed in Indonesia LGERA : Printed in Russia LGEWR : Printed in Poland

Front (Eng) Front (Ger) Front (Fre) Front (Ita) Front (Spa) Front (Por) Front (Dut) Front (Gre) Front (Slo) Part number

PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. PN45** PN65** P/NO : MFL67710006 (1301-REV00) Printed in Korea www.lg.com

SETTING UP THE TV A-3

Image shown may differ from your TV. Attaching the stand

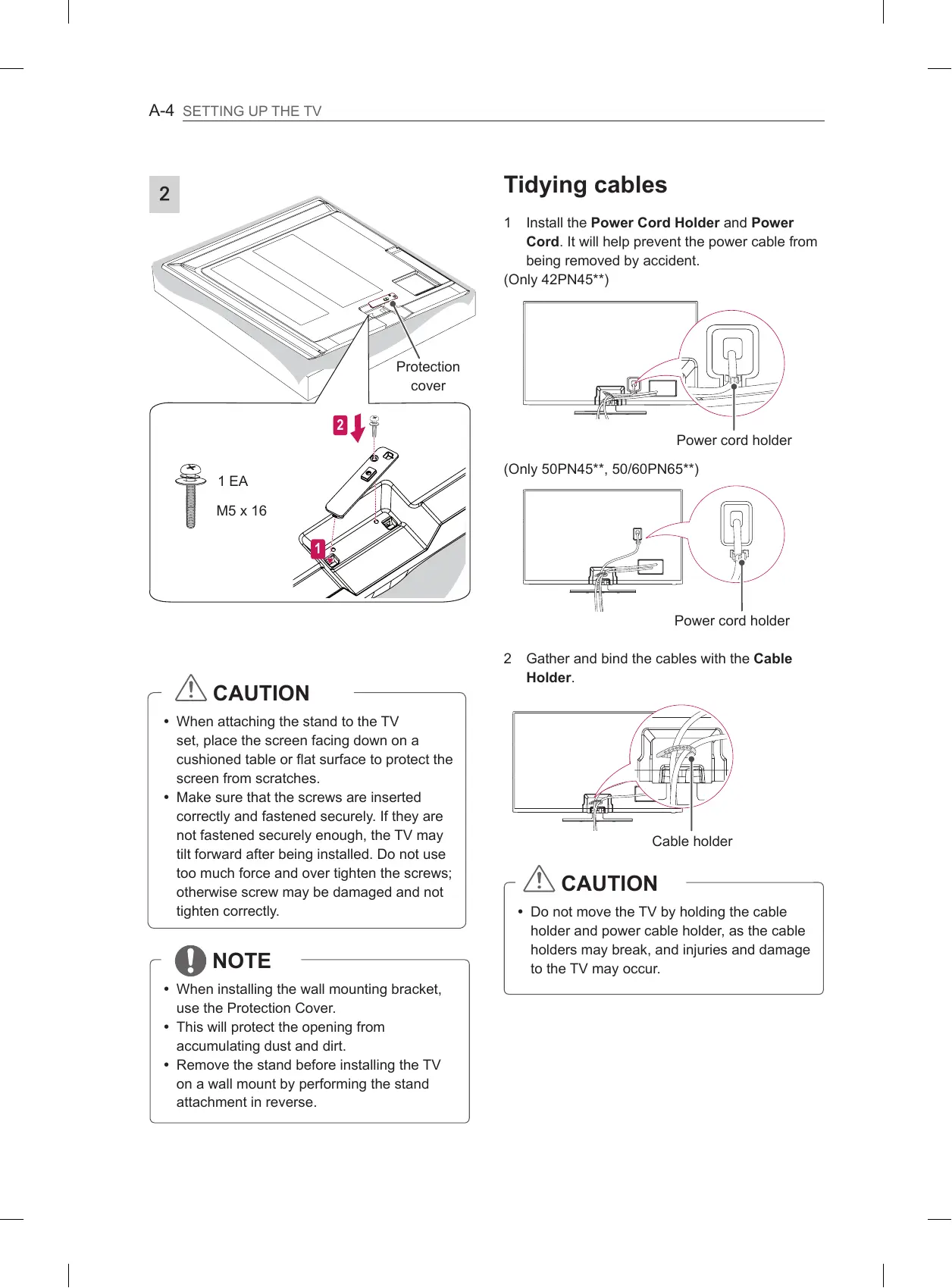

A-4 SETTING UP THE TV

Install the Power Cord Holder and Power Cord. It will help prevent the power cable from being removed by accident. (Only 42PN45**)

Power cord holder (Only 50PN45**, 50/60PN65**) 1 EA M5 x 16

CAUTION yy When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. yy Make sure that the screws are inserted correctly and fastened securely. If they are not fastened securely enough, the TV may tilt forward after being installed. Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly. NOTE yy When installing the wall mounting bracket, use the Protection Cover. yy This will protect the opening from accumulating dust and dirt. yy Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. Gather and bind the cables with the Cable Holder. Cable holder CAUTION yy Do not move the TV by holding the cable holder and power cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. www.lg.com

Installation Procedure

ASSEMBLING AND PREPARING

Unpacking Separate purchase Parts and buttons Lifting and moving the TV Mounting on a table Mounting on a wall

Cleaning your TV - Screen, frame, cabinet and stand - Power cord

TROUBLESHOOTING WARNING yy If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION yy If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE yy The note helps you understand and use the product safely. Please read the note carefully before using the product. LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP

Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration. “DivX Certified® to play DivX® video up to HD 1080p, including premium content.” “DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.” “Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com ENGLISH Licenses

SAFETY INSTRUCTIONS ENGLISH Safety Instructions Please read these safety precautions carefully before using the product. WARNING Do not place the TV and remote control in the following environments: --A location exposed to direct sunlight --An area with high humidity such as a bathroom --Near any heat source such as stoves and other devices that produce heat --Near kitchen counters or humidifiers where they can easily be exposed to steam or oil --An area exposed to rain or wind --Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation. Do not place the product where it might be exposed to dust. This may cause a fire hazard. Mains plug is the disconnecting device. The plug must remain readily operable.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture. Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.) You may be electrocuted or injured. Insert the power cable completely into wall socket. If the power cable is not inserted completely into wall socket, a fire could break out. Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock. Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock. When mounting a TV on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV. It may cause fire, electric shock. SAFETY INSTRUCTIONS Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Des icca

Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. Dispose of used batteries carefully to protect a child from eating them. Please seek Doctor- Medical Attention immediately if child consumes batteries. Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model) Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances. Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre. Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur. Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged. Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted. Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark. ENGLISH Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

SAFETY INSTRUCTIONS ENGLISH Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair. If any of the following occur, unplug the product immediately and contact your local service centre. --The product has been impacted by shock --The product has been damaged --Foreign objects have entered the product --The product produced smoke or a strange smell This may result in fire or electric shock. If you don’t intend to use the product for a long time, unplug the power cable from the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. SAFETY INSTRUCTIONS Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock. Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product. If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop. Only use the attachments / accessories specified by the manufacturer. When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician. This may create a fire hazard or an electric shock hazard. We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision. Only use the specified type of battery. This could cause damage to the remote control. Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. Make sure there are no objects between the remote control and its sensor.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room. When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product. ENGLISH CAUTION

SAFETY INSTRUCTIONS ENGLISH Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock. Please follow the installation instructions below to prevent the product from overheating. --The distance between the product and the wall should be more than 10 cm. --Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). --Do not install the product on a carpet or cushion. --Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire. Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it. Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage). As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board. As this could be hazards. When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock. SAFETY INSTRUCTIONS Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund. You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction. Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund. Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product. ENGLISH When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

ENGLISH NOTE yy Image shown may differ from your TV. yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. yy The available menus and options may differ from the input source or product model that you are using. yy New features may be added to this TV in the future. yy The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption. yy The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. Installation Procedure

Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION yy Do not use any unapproved items to ensure the safety and product life span. yy Any damage or injuries caused by using unapproved items are not covered by the warranty. yy Some models have a thin film attached on to the screen and this must not be removed.

ASSEMBLING AND PREPARING

Power Cord Holder (See p. A-4) Desk-mount Screw (Only 42PN45**) (See p. 16) Stand Body / Stand Base (See p. A-3) Protection Cover (Only 50PN45**, 50PN65**) (See p. A-4) Power Cord

M4 x 14 Screw for assembly (Only 42PN45**) (See p. A-3) Ferrite core (Depending on model) (See p. 12)

M5 x 16 Screw for assembly (Only 50PN45**, 50/60PN65**) (See p. A-3)

12 ASSEMBLING AND PREPARING

ENGLISH NOTE The items supplied with your product may vary depending on the model. Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. How to use the ferrite core 1 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug. [to the TV] [to a wall plug] [Figure 1] 2 Use the ferrite core to reduce the electromagnetic interference in the cable. Place the ferrite core close to the TV. (Black) [Cross Section of Ferrite Core] Wind the component Y, Pb, Pr, L, R cable on the ferrite core once. [to the TV] [to an External device] 10 mm(+ / - 5 mm) [Figure 2-1] Gather and bind the component Y, Pb, Pr, L, R and scart cable with the ferrite core. [to an External device] [to the TV] (Black) [Cross Section of Ferrite Core] 10 mm(+ / - 5 mm) [Figure 2-2] Wind the PC audio cable on the ferrite core once. [to an External device] [to the TV] 10 mm(+ / - 5 mm) [Figure 2-3] 3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable once on the ferrite core B and thrice on the ferrite core A. Place the ferrite core close to the TV and an External device. A (Gray) B (Gray) [to the TV]

[to an External device] [Figure 3] [Cross Section of Ferrite Core] - If there are three ferrite cores, follow as shown in Figures 1 and 2. - If there is LAN port, additionally follow as shown in Figure 3. For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

ASSEMBLING AND PREPARING

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. LG Audio Device Compatibility PN45** PN65** LG Audio Device

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies. ENGLISH Separate purchase

Adjusts the volume level. Scrolls through the saved programmes. AV IN 1 Remote control sensor COMPONENT

ASSEMBLING AND PREPARING

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. yy When transporting a large TV, there should be at least 2 people. yy When transporting the TV by hand, hold the TV as shown in the following illustration. CAUTION yy Avoid touching the screen at all times, as this may result in damage to the screen. yy It is recommended to move the TV in the box or packing material that the TV originally came in. yy Before moving or lifting the TV, disconnect the power cord and all cables. yy When holding the TV, the screen should face away from you to avoid damage. yy Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. yy When transporting the TV, do not expose the TV to jolts or excessive vibration. yy When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right. ENGLISH Lifting and moving the TV

ENGLISH Mounting on a table

Lift and tilt the TV into its upright position on a table. -- Leave a 10 cm (minimum) space from the wall for proper ventilation. Adjusting the angle of the TV to suit view (This feature is not available for all models.) Adjusting the angle of the TV to suit view Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ 10 cm 10 cm

yy When adjusting the angle of the product, watch out for your fingers. Connect the power cord to a wall outlet. CAUTION yy Do not place the TV near or on sources of heat, as this may result in fire or other damage. -- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury. Securing the TV to a wall (This feature is not available for all models.) Securing the TV to a table Fix the TV to a table to prevent from tilting forward, damage, and potential injury. Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand. (Only 42PN45**)

WARNING yy To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. -- If there are bolts inserted at the eye-bolts position, remove the bolts first. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

ASSEMBLING AND PREPARING

yy Make sure that children do not climb on or hang on the TV.

NOTE yy Use a platform or cabinet that is strong and large enough to support the TV securely. yy Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. 10 cm 10 cm 10 cm Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall Mounting Bracket) VESA (A x B) Standard screw Number of screws Wall mount bracket yy Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur. yy If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel. yy Do not over tighten the screws as this may cause damage to the TV and void your warranty. yy Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer’s warranty. NOTE 10 cm Model CAUTION 42/50PN45** 50/60PN65** 400 x 400

PSW420BX yy Use the screws that are listed on the VESA standard screw specifications. yy The wall mount kit includes an installation manual and necessary parts. yy The wall mount bracket is not provided. You can obtain additional accessories from your local dealer. yy The length of screws may differ depending on the wall mount. Make sure to use the proper length. yy For more information, refer to the manual supplied with the wall mount. ENGLISH CAUTION

18 REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. CAUTION yy Do not mix old and new batteries, as this may damage the remote control. Make sure to point the remote control toward the remote control sensor on the TV. RATIO INPUT INFO Views the information of the current programme and screen. SETTINGS 1.,;@the main 2 abcmenus. 3 def Accesses Q. MENU 4the ghi 5 jkl menus. 6 mno Accesses quick 7pqrs 8 tuv 9 wxyz Selects menus or options and confirms your input. LIST 0 Q.VIEW Navigation buttons (up/down/left/right) Scrolls through menus or options. FAV Back P GE Returns to the previous level. MUTE EXIT Clears all on-screen displays and return to TV viewing. SETTINGS POWER Turns the TV on or off. SUBTITLE Recalls your preferred subtitle in digital mode. AV MODE Selects an AV mode. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. GUIDE Shows programme guide. MUTE Mutes all sounds. 1 TELETEXT BUTTONS These buttons are used for teletext. PAGE Moves to the previous or next screen. ꕘ(FREEZE) Freezes the current frame while using the TV, AV, Component, or HDMI input source. TV/ RAD

MY APPS Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu.

Switches the Audio Description On or Off. EXIT Control buttons ( Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK). SUBTITLE 2 Colour buttons These buttons are used for teletext (on TELETEXT models only), REC Programme edit. INFO ( : Red, : Green, : Yellow, : Blue) LIVE TV

ENGLISH Using the User guide User Guide allows you to more easily access the detailed TV information. Press SETTINGS to access the main menus. Press the RED button to access the Customer Support menus. Press the Navigation buttons to scroll to User Guide and press OK.

User Guide OPTION > To set language SETTING PROGRAMME Setting PICTURE, SOUND Setting OPTION Language You can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : Selects the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed. OPTION Advabced Function Information PICTURE AUDIO SETUP TIME LOCK OPTION INPUT MY MEDIA SETTING Press OK() to set picture settings. Customer Support

OPTION Zoom In Close Language You can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : Selects the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed. Exit Software Update

Allows to select the category you want.

Allows to select the item you want. You can use to move between pages.

Allows to browse the description of the function you want from the index.

Shows the description of the selected menu. You can use to move between pages.

Zooms in or out the screen. 20 MAINTENANCE / TROUBLESHOOTING ENGLISH MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION yy Make sure to turn the power off and disconnect the power cord and all other cables first. yy When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand yy To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. yy To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. CAUTION yy Avoid touching the screen at all times, as this may result in damage to the screen. yy Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions. yy Do not use any chemicals as this may damage the product. yy Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly. TROUBLESHOOTING Problem Solution Cannot control the TV with the remote control. yy Check the remote control sensor on the product and try again. yy Check if there is any obstacle between the product and the remote control. to , yy Check if the batteries are still working and properly installed ( No image display and no sound is produced. yy Check if the product is turned on. yy Check if the power cord is connected to a wall outlet. yy Check if there is a problem in the wall outlet by connecting other products. The TV turns off suddenly. yy Check the power control settings. The power supply may be interrupted. yy Check if the Auto sleep feature is activated in the Time settings. yy If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity. When connecting to the PC (HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed. yy Turn the TV off/on using the remote control. yy Reconnect the HDMI cable. yy Restart the PC with the TV on.

BEDIENING EXTERN APPARAAT

B-10 MAKING CONNECTIONS

TV Out: Izhod za analogne in digitalne televizijske signale. OPOMBA yy Kabel Euro Scart mora biti signalno zaščiten. Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. NOTE yy The external device connection may differ from the model. yy Connect external devices to the TV regardless of the order of the TV port. yy If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. yy Refer to the external equipment’s manual for operating instructions. yy If you connect a gaming device to the TV, use the cable supplied with the gaming device. yy In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. yy In PC mode, some resolution settings may not work properly depending on the graphics card.

CI Module Size (W x H x D) Environment condition

VHF, UHF C-Band, Ku-Band VHF, UHF 6,000 1,800 VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47 External antenna impedance 75 Ω

Only satellite models Only DVB-T2 support models Except for DVB-T2 support models HDMI/DVI-DTV supported mode Component port connecting information Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 720x480

(Only 50PN65**, 60PN65**) Component ports on the

Video output ports on DVD player

Signal Component 480i/576i

(50 Hz / 60 Hz only) Please contact LG First. If you have any inquiries or comments, please contact LG customer information centre. Customer Information Centre Country Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. Country Service Service
