USER MANUAL PR579AC PRIMO

White PRIMO air conditioner unit with three ventilation slots and a gray top cover (no visible text or symbols on the device body)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a cylindrical object with textured surface and flared edges (no visible text or symbols)

10 10a

O

1 3 5 4 6

Diagram showing a remote control device with labeled parts: LCD display, plastic housing, and cable connection.

Two white plastic containers labeled 11a and 11b, with no visible text or symbols on the containers themselves.

Three white plastic components with numbered labels: 12, 12a, 12b, and 12c (no text or symbols on the objects themselves)

INSTALLATIE

Abstract line drawing of a coiled, twisted structure with no text or symbols

Illustration of a coiled tube or pipe with a looped end, no text or symbols present

INSTALLATIE VAN DE RAAMBEVESTIGING

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Two technical illustrations showing a pipe insertion into a window, with no visible text or symbols.

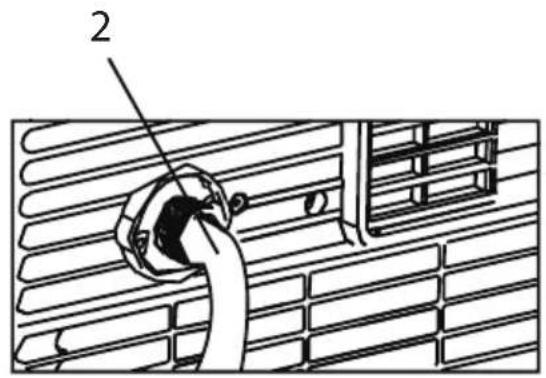

INSTALLATIE MUURBEVESTIGING

Diagram showing a mechanical assembly or mounting process with two views of a component, no text or symbols present.

Technical line drawing of a server rack unit with a magnified inset showing mechanical components (no text or symbols)

2

Technical line drawing of a server rack unit with a close-up inset showing its internal components (no text or symbols)

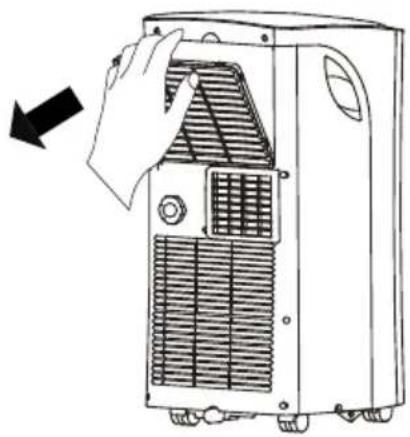

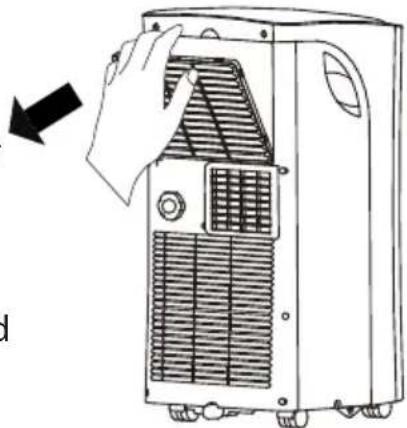

REINIGING

Line drawing of a hand opening a portable air conditioner unit with ventilation grilles (no text or symbols)

BEHUIZING

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Diagram showing labeled parts of a remote control device, including a digital display and plastic housing with numbered annotations.

Two white plastic components: a coiled spring and a side view with a circular opening (no text or symbols)

Two white plastic containers labeled 11a and 11b, with no additional text or symbols visible.

Three white plastic components with numbered labels: 12, 12a, 12b, and 12c (no text or symbols on the parts themselves)

INSTALLATION

Abstract line drawing of a twisted rope or fiber with a circular gap (no text or symbols)

Illustration of a coiled, worm-like structure with no text or symbols

INSTALLATION KIT DE FIXATION À LA FENÊTRE

Diagram showing mechanical assembly transformation from a circular component to a cylindrical component (no text or symbols)

Two-panel line drawing showing a pipe inserted into a window, with no text or symbols present.

INSTALLATION KIT DE FIXATION MURALE

Diagram showing two mechanical assembly steps: one with a curved component and arrow indicating direction, the other with a cylindrical component (no text or symbols)

Technical diagram of a server rack unit with a magnified inset showing mechanical components (no text or labels)

2

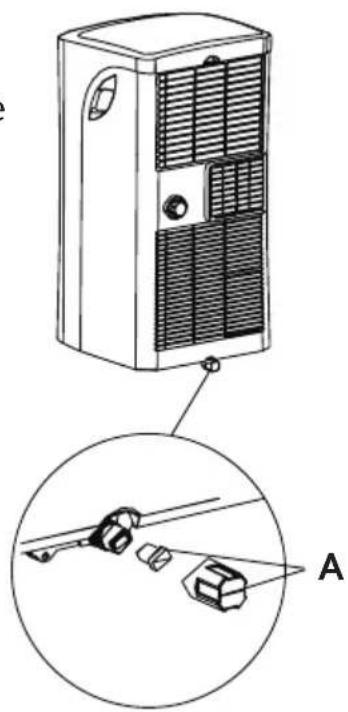

Vidange code P1

Technical line drawing of a server unit with labeled component A, showing internal structure and mounting bracket (no text or symbols beyond label)

NETTOYAGE

Diagram of a hand opening a device into a fan array (no text or symbols visible)

BOÎTIER

Close-up of a cylindrical object with textured surface, possibly a rolled paper or plastic sheet (no visible text or symbols)

10 10a

O

White ceramic pot with lid and handle, no visible text or symbols

11a

White plastic circular component with three protrusions (no text or symbols visible)

11b

White rectangular object with a small cutout, possibly part of a device or component, shown without any visible text or symbols.

12a)12b

White plastic mechanical component with multiple cylindrical slots and mounting brackets (no text or symbols visible)

O

Close-up of a black cylindrical object with a spiral grooves, no visible text or symbols.

12c

MONTAGE

Abstract line drawing of a coiled, twisted structure with no text or symbols

Illustration of a coiled, worm-like structure with no text or symbols

MONTAGE DER FENSTER-LUFTABFUHR

Diagram showing a mechanical joint before and after assembly, with no visible text or symbols

Two technical illustrations showing a pipe insertion into a window, with no visible text or symbols.

MONTAGE DER WAND-LUFTABFUHR

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a server unit with a magnified inset showing internal components (no text or symbols)

2

Technical line drawing of a server unit with labeled components, showing internal structure and mounting bracket (no text or symbols present)

Line drawing of a hand opening a refrigerated air conditioner unit with cooling fins (no text or symbols)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
  • In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or

supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Never use an extension cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the PRIMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
• Do not use or store this appliance outdoors.
• Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Only use the appliance for domestic use.

The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.
• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠️ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Never cover the air inlet or air outlet, to prevent overheating the unit.
• Never splash water on the unit, or place the unit near water, to prevent electrocution.
• Never place another appliance on the same electrical circuit as the air conditioning.

• Never put any foreign objects in the openings of the air conditioning.

• When you turn off the unit and want to turn it on immediately afterwards, the compressor will need 3 min. to start up again.

• Always place the unit at least 1m away from TV or radio, to prevent disturbance.
• Never place the unit in direct sun light, to prevent discoloration of the air conditioning.
• Make sure the angle of the unit is never more than 35^ , when you move the air conditioning. Never place the unit upside down.
  • Always remove the water from the water tank, when storing the air conditioning. This will keep your air conditioning in optimal condition for a long time.
• Never use any chemicals to clean the unit, this will cause damage.
• Always make sure to disconnect the unit from the electrical supply before attaching or removing the air inlet grill.
• Make sure the air conditioning is always protected against condensation, splashing water, etc. Make sure the air conditioning can't come in contact or be pulled into water or any other liquid. If for some reason the air conditioning will fall in to water or any other liquid, immediately remove the plug form the socket.
• Never use the air conditioning in a damp room such as a bathroom or a laundry room.

• Make sure that the free space around the unit is at least 30 cm.

• Never touch the unit with wet hands or bare feed.

• Do not press the buttons on the control panel with anything other than your fingers.
• Never remove fixed parts from the air conditioning. Never use the unit when it is not working properly, or when the unit has fallen or has been damaged.
• Reparations, checking for leaks or other services need to happen by a qualified technician with the right certificates.
• Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.
• Do not touch the unit with wet or damp hands or when barefoot.
• If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
• When the water drainage function is not in use, keep the upper and the lower drain plug firmly to the unit. When the drain plug is not in use, keep it carefully to prevent children from choking.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances.

Arrange cord away from traffic area and where it will not be tripped over.

- Disconnect the power if strange sounds, smell, or smoke comes from it.

⚠ SPECIFIC INFORMATION REGARDING APPLIANCES WITH R290 REFRIGERANT GAS.

• Thoroughly read all of the warnings.

- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

- The appliance must be placed in an area without any continuous sources of ignition (for example: open flames, gas or electrical appliances in operation).

- Do not puncture and do not burn.

- Refrigerant gases can be odourless.

- The appliance must be installed, used and stored in an area that is greater than 7 ~m^2 .

- This appliance contains a certain number of grams (see rating label back of unit) of R290 refrigerant gas.

• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

- If the appliance is installed, operated or stored in a nonventilated area, the room must be designed to prevent the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.

• The appliance must be stored in such a way as to prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
• Repairs must be performed based on the recommendations from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Caution: risk of fire / flammable materials This appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

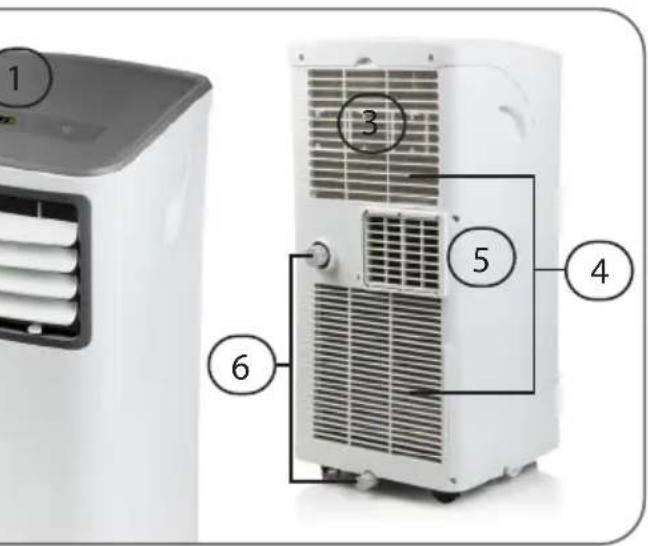

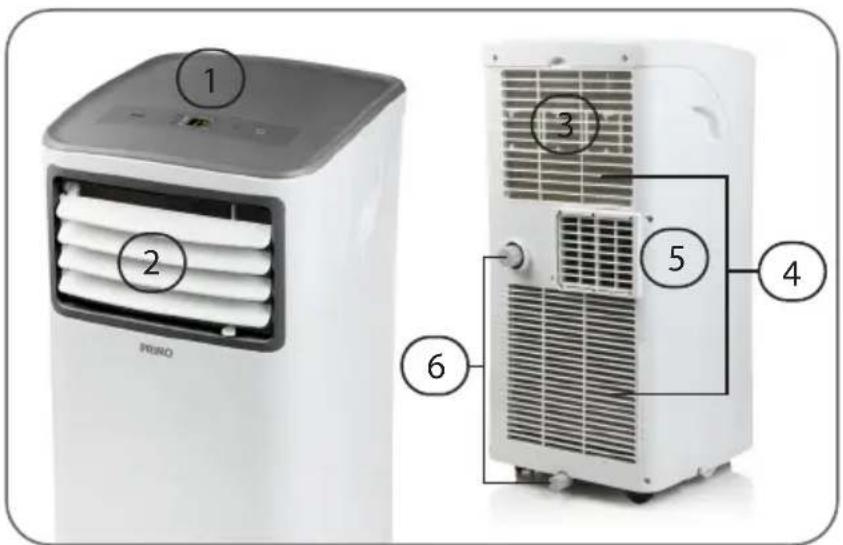

PARTS

Front

1. Control panel
2. Air outlet

Back

1. Air filter
2. Air intake
3. Air outlet
4. Drainage

1 2 PISO 3 5 4 6

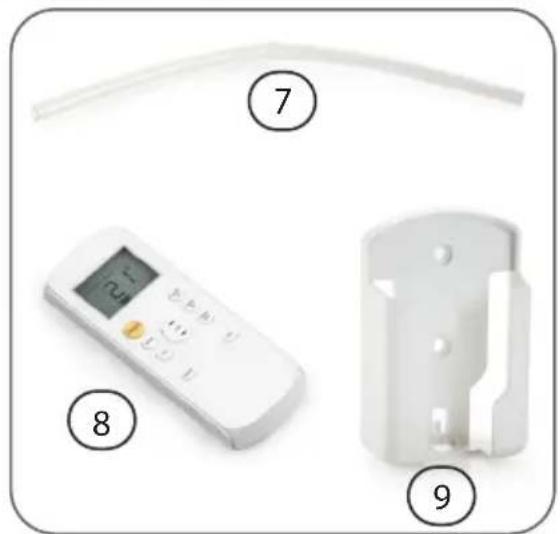

Spares

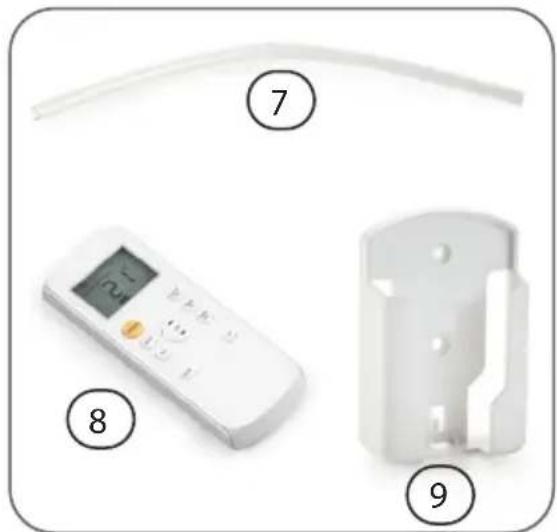

1. Drain tube
2. Remote control

3. Wall mount remote control

4. Air outlet hose 10 a. Coupling air outlet hose

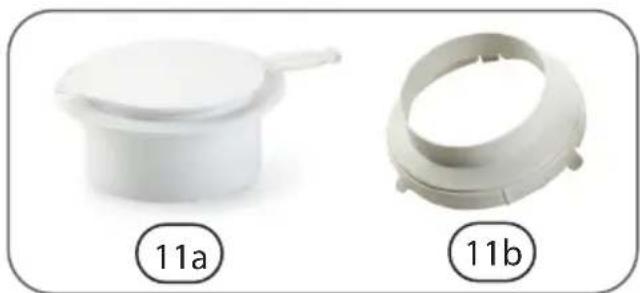

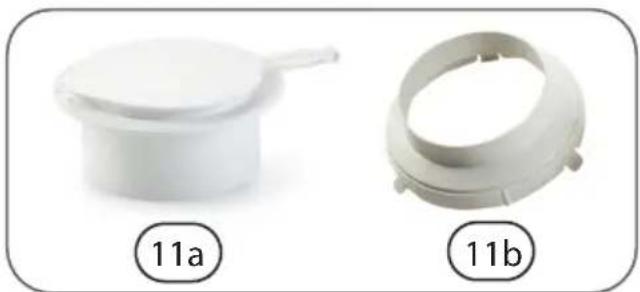

5. Wall mount 11 a. Wall adapter 11 b. Wall mount connector

6. Window attachment 12 a. Window Adaptor 12 b. Window Coupling 12 c. Seals

Diagram showing labeled parts of a remote control device, including a digital display, plastic housing, and cable connection.

Two white plastic components: a coiled spring and a circular holder, with no visible text or symbols.

Two white plastic containers, one with a lid and the other a ring-shaped holder, both labeled with circled numbers 11a and an empty oval (no text or symbols on the containers themselves)

Three white plastic components with numbered labels: 12, 12a, 12b, and 12c (no text or symbols on the objects themselves)

INSTALLATION

• Place the air conditioning on a solid and stable floor, this way you will prevent excessive noise and vibrations. Make sure that the floor is strong enough to support the weight of the appliance.
• The appliance has small wheels for easy moving. Make sure only to move the air conditioning over a flat and level surface. Be careful when moving the air conditioning over carpet. Never roll the unit over an object.
• Place the unit near an earthed socket.
• Never place any object within 30 cm round the air conditioning.
• The air outlet hose must be used in the COOL or AUTO mode. During the FAN or DRY mode, you don't need to attach the air outlet hose.
• Also make sure that there are no obstacles around the air outlet outside, in a radius of 50 ~cm .
• Make sure the air outlet hose isn't bend during use.

Hand-drawn illustration of a coiled tube or pipe with a circular symbol in the background (no text or labels)

Illustration of a coiled, worm-like structure with no text or symbols

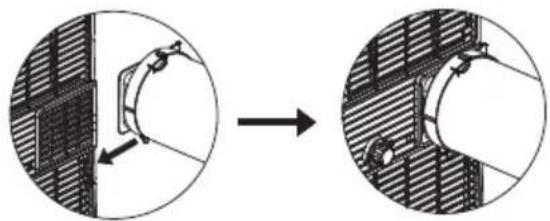

INSTALLATION OF THE WINDOW KIT

• Place the coupling of the air outlet hose on the end of the hose.

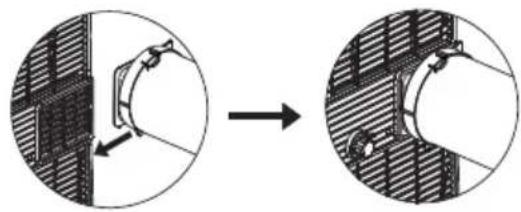

• Place the air outlet hose on the air outlet at the back of the appliance.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

• Place the coupling of the window attachment on the other end of the air outlet hose.

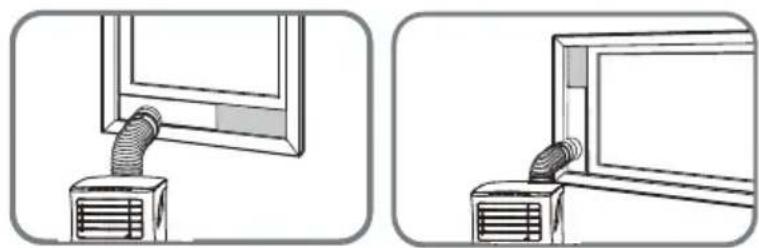

• Place the window adaptor in your window. This is possible for horizontal and vertical sliding windows. Block the window adapter at the desired length.
• Attach the hose with the coupling to the window adapter.
• Make use of the window seals to close off any possible openings in the window.

Two technical illustrations showing a pipe insertion into a window, with no visible text or symbols.

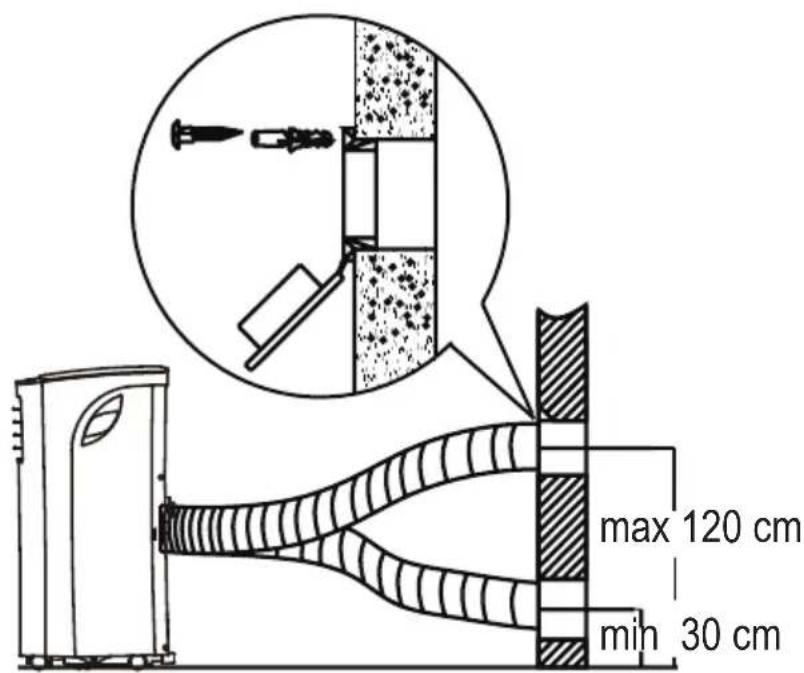

INSTALLATION WALL KIT

• Place the coupling of the air outlet hose on the end of the hose.
• Place the air outlet hose on the air outlet at the back of the appliance.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

• Make an opening in the wall the size of the wall adapter.
• Place the wall adapter in the opening. Attach the wall adapter using the screws supplied.
• Place the coupling of the wall attachment on the other end of the air outlet hose.
• Attach the hose with coupling to the wall adapter.

max 120 cm min 30 cm

USE

The horizontal strip on the front of the air conditioning can be opened and shut manually in order to aim the air outlet better.

CONTROL PANEL

MODE 3 - Cool Fan Dry 19 4 + 1 1

1. ON-OFF - touch

To turn the unit off or on.

1. “+” en “-” - touch

Use these touches to select the temperature. The temperature can be set between 17^ C and 30^ C. When pressing both buttons at the same time you can switch between “°C” or “°F”.

1. MODE - touch

With this touch you can select the desired function. Every time when pressing this touch the function will change: COOL, DRY and FAN. The related indication light will turn on on the control panel. If you choose the FAN setting, the ventilation blows on the automatic position. You can only adapt the ventilation speed with the remote control.

1. LED display

Will show het temperature selections. When the DRY or FAN mode is selected, the display will show the room temperature.

REMOTE CONTROL

When using the remote control make sure that you always aim it towards the apparatus. If you don't do this, you can briefly aim the remote control towards the apparatus and press the ON-OFF button.

When the apparatus receives a signal of the remote control you hear a beep. The remote control must be used within an eight-metre radius around the apparatus.

1 2 3 4 5 6 7 8 9

1. ON-OFF - touch

To turn the unit off or on.

2. MODE - touch

With this touch you can select the desired function. Every time when pressing this touch the function will change: AUTO, COOL, DRY and FAN. The related indication light will turn on on the control panel.

3. FAN - touch

With this touch you can select the fan speed There are three settings : LOW >>, HIGH AND AUTO.

4. SLEEP - touch

You can use this touch for activating the "sleep" mode. When pressing the "sleep" touch, the selected temperature will be elevated with 1 °C after 30 min. After another 30 min the temperature will increase with another 1°C. The air conditioning will maintain this temperature for 7 hours. After this time, the air conditioning will go back to the original set temperature and the SLEEP-function will end.

NOTE : this function cannot be selected with the FAN- or DRY- function.

5. TEMP -touch

Use these touches to select the temperature. The temperature can be set between 17°C and 30°C. If you hold down the full TEMP-button for 3 sec, you can switch between "°C" and "°F."

6. SHORT CUT - touch

With this button you can fix and switch on a preferential setting.

7. TIMER ON - touch

With this function you can select when the unit must turn on.

8. TIMER OFF - touch

With this function you can select when the unit must turn off.

9. LED - touch

This button turns off the control panel's LED display. This can be used if the display gives too much light when you want to sleep. If you press the button a second time, the display will switch on again.

SET FUNCTIONS

« AUTO »

In the AUTO setting, the unit automatically selects the appropriate setting according to the temperature selected. This setting can only be selected with the remote control. Use the MODE - button on the remote control to select AUTO. Set the desired temperature with the TEMP - button. The device will determine the setting accordingly. In AUTO-mode, you cannot adjust the speed of ventilation (FAN).

« COOL »

The COOL function allows you to cool the room to a certain temperature.

Press the MODE - button until the COOL indicator light comes on.

Use the "+" and "-" buttons on the control panel or the TEMP - button on the remote control, to set the desired room temperature.

Use the FAN - key on the remote control to set the desired ventilation speed. There are three settings: LOW, HIGH and AUTO

« DRY »

This function allows you to dehumidify the room. Keep windows and doors closed when using this function. Press the MODE - button until the DRY - indicator light comes on.

You cannot set the ventilation rate with this setting.

« FAN »

Press the MODE - button until the FAN-indicator light comes on. Press the FAN-button on the remote control to set the ventilation speed. There are three settings: LOW, HIGH and AUTO. The temperature cannot be set.

« TIMER ON »

With this function you can delay the start of the apparatus, up to maximum 24 hours.

Press the TIMER ON - button on the remote control. You can now read on the display of the remote control when the air conditioning will go on.

Press the TIMER ON - button several times to increase the time. Or keep the button pressed. Once the desired time is set, you will see "Timer on" zien staan. on the display of the remote control. 2 lights will light up on the control panel's display. If you want to switch off the timer, press the TIMER ON - button several times until the counter goes to "0". Or keep the button pressed.

« TIMER OFF »

With this function you can switch off the apparatus automatically after some time. Press the TIMER OFF - button op de afstandsbediening. You can now read on the display of the remote control when the air conditioning will go off.

Press the TIMER OFF - button several times to increase the time. Or keep the button pressed. Once the desired time is set, you will see "Timer off" on the display of the remote control. If you want to switch off the timer, press the TIMER OFF - button several times until the counter goes to "0".

You can also switch on both functions simultaneously. This determines when you switch on the apparatus, but also when the apparatus switches off. Please note: this time is always from the hour when you programme the setting. For example: it is now 1 pm. You want the apparatus to work from 4:30 to 6 pm. Set the TIMER ON on 3.5 h and TIMER OFF on 5.0 h.

« SLEEP »

When you select this setting, the set temperature will increase by 1^ C within 30 min. After another 30 min the temperature will increase with another 1^ C. The air conditioning will maintain this temperature for 7 hours. After this time, the air conditioning will go back to the original set temperature and the SLEEP-function will end.

NOTE : this function cannot be selected with the FAN and DRY-function.

« SHORTCUT »

With this button you can set and switch on a preferential setting.

If you use a certain setting more often, you can set this by pressing the SHORTCUT - button for 3 seconds. The apparatus then remembers the settings that are switched on at the moment of pressing. These settings can include: the user setting (MODE), set temperature, ventilation speed (FAN) and possibly also the SLEEP-setting.

The moment you press the SHORTCUT-button, the apparatus will work at the previously determined settings.

MAINTENANCE AND CLEANING

DRAINING

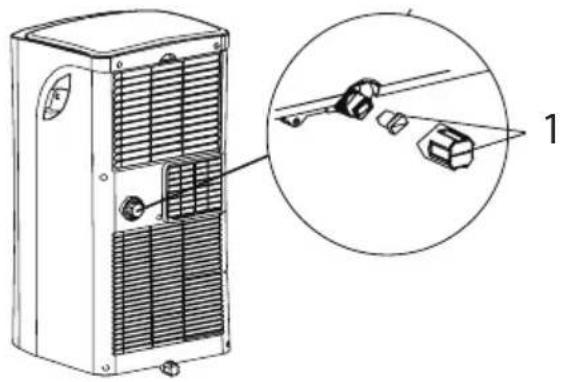

Permanent drain

During dehumidification, you can use permanent drainage.

1. Remove the drain plug and the rubber top in the center, at the back of the unit.
2. Attach the drain hose on the drain.
3. Make sure the water is drained in a save and permanent way.

Technical line drawing of a server rack with a magnified inset showing mechanical components (no text or symbols)

2

Drain code P1

When you don't use the permanent drain, the non recycled condensation water, will be stored in the water tank, at the bottom of the unit.

- When the water tank is full a few beep signals will be heard and on the display the code "P1" will appear. The "cool" or "dry" mode will end. The fan will continue to operate, this is normal.

- Move the unit over to a place where you can easily drain the water.

- Remove the seal from the drainage opening at the bottom of the unit (A). The water will now drain away.

• After fully draining the water tank, place the drain plug back on the drain opening.

- Restart the unit, make sure the error code "P1" is no longer displayed. When the code doesn't disappear, try turning off and on the unit a few times. When the error code continues, please contact the after sales service.

- NOTE: always make sure to install the drain plug, before turning the unit back on.

Technical line drawing of a server unit with labeled components, showing internal structure and mounting bracket (no text or symbols present)

CLEANING

• Always remove the plug from the socket before cleaning the unit.

- Never use any chemical or abrasive products to clean the unit.

- Never clean the unit with water or any other liquid, this can cause electrocution.

- When the power cord is damaged it must be repaired or replaced by the after sales surface of the manufacturer or by a qualified person.

AIR FILTER

• Clean the air filter at least ever 2 weeks. To make sure the air conditioning can operate in optimal conditions.
• Clean the air filter in lukewarm water with a bit of detergent. Rinse the filter thoroughly and let it dry.
  • Make sure the filter is completely dry before placing it back in to the air conditioning.

Line drawing of a hand opening a refrigerated air conditioner unit with cooling fins (no text or symbols)

AIR CONDITIONING BODY

Use a damp, soft cloth and a bit of mild detergent, to clean the outside of the unit. Make sure the unit is thoroughly dried with a soft dry cloth afterwards.

STORING

Before storing the unit for a longer period of time, please follow the next steps, to prevent damage to the unit :

• Drain all the water from the appliance.
  • Afterwards turn on the unit in the FAN-mode for half a day. Make sure the unit is placed in a heated room. This will dry the unit completely and prevent the forming of mold.
• Turn off the unit, remove the plug from the socket and remove the batteries from the remote control.
• Clean the filters and place them back in the unit.
• Store the unit in a dry, dark place.

FREQUENTLY ASKED QUESTIONS

The appliance isn't working when pressing the ON/OFF - touch.

• The error code P1 is displayed: drain the water from the air conditioning.
• The room temperature is lower than the selected temperature. Adjust the selected temperature.

The room is not cool enough.

• The windows and doors aren't closed. Make sure all windows and doors are closed.
• There are heat sources in the room. Remove all heat sources if possible.
• The air outlet hose is not connected or blocked. Attach the hose and check if there is no blockage.
• The selected temperature is to high. Adjust the selected temperature.
  • The air filter is dirty. Clean the air filter.

The appliance is making to much noise or is causing vibrations.

• The floor is not level or flat. Place the appliance on the flat and level surface if possible.
• The air filter is dirty. Clean the air filter.

The appliance is making a gurgling sound.

- The sound is produced by the refrigerant in your appliance. This is normal.

ERROR CODES

Following error codes can be displayed on your air conditioning :

• E1: the sensor for the room temperature is not working. Turn off the unit and remove the plug from the socket. Wait for 10 sec and plug the unit back in. Turn on the unit. When the error codes repeats, you need to contact the after sales service.
• E2: the sensor of the dehumidifier doesn't work. Turn off the unit and remove the plug from the socket. Wait for 10 sec and plug the unit back in. Turn on the unit. When the error codes repeats, you need to contact the after sales service.
• E4: the display is not functioning properly. Remove the plug from the socket. Wait for 10 seconds. Plug the unit back in. When the error codes repeats, you need to contact the after sales service.
• P1: the watertank is full. Remove the water according to the "drainage" section of this manual.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

Following accessories have 6 months warranty,

an be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE

QR code image containing encoded data, no visible human-readable text
