Product type	Refrigerator-freezer
Brand	Whirlpool
Model	W5 611E W
Lighting	LED, energy class F or G depending on model
Anti-frost accessory	Yes, removable and washable STOP FROST system
Refrigerator defrosting	Automatic
Door reversibility	Yes, modifiable (recommended by two people)
Freezer compartment	Allows long-term storage and freezing of fresh food
Freezing capacity	Amount of fresh food that can be frozen in 24 hours indicated on the rating plate
Shelves and door bins	Removable, number varies by model
Recommended storage temperature	Refrigerator: 0-8°C depending on zones; Freezer: -18°C (default)
Cleaning	Warm water and mild detergent, do not use abrasives or steam cleaners
Condenser cleaning	At the back, do regularly with a vacuum cleaner
Defrost drain	Clean regularly with the supplied tool
Operating noises	Normal: whistling, gurgling, rumbling, humming, cracking, clicking
Power outage	Keep doors closed; do not refreeze thawed food
Spare parts	Available for 7 to 10 years depending on regulations
After-sales service	Contact an authorized service center, provide model, service number, problem description
First use	Wait 2 hours after installation, then 4-6 hours to reach temperature

Frequently Asked Questions - W5 611E W WHIRLPOOL

How to clean the anti-frost accessory (STOP FROST)?

Open the freezer door, remove the top drawer, loosen the system and take it out. Rinse under running water (not hot), let drain and dry with a soft cloth. Replace by fixing the back part onto the protrusions then tighten the handle.

What to do in case of a power outage?

Keep doors closed to keep the cold as long as possible. Do not refreeze partially thawed food. If the outage is prolonged, an alarm may activate on models with electronic monitoring.

How to adjust the refrigerator temperature?

The ideal settings are preset at the factory. The internal temperature is influenced by ambient temperature, door opening frequency and location. Adjust based on these factors. Refer to the manual for specific controls.

Why are there water droplets on the back wall?

This is normal: the refrigerator compartment defrosts automatically. The defrost water drains to a drain and then evaporates. If condensation is excessive, close liquid containers and wrap moist foods.

How to reverse the door opening direction?

The opening direction can be changed. It is recommended that two people perform this operation. Follow the instructions in the installation manual. Intervention by after-sales service is not covered by the warranty.

What noises are normal?

The following noises are normal: whistling at startup, gurgling of the fluid, rumbling of the compressor, humming of the fan or water tap, cracking when the compressor starts, clicking of the thermostat.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a cloth and a solution of warm water with a mild detergent suitable for interiors. Never use abrasives, flammable liquids or steam cleaners. Clean the door gasket with a damp cloth.

How long to store food in the freezer?

The duration varies depending on temperature and type of food. For example, fish is stored 1 to 3 months at -18°C, poultry 5 to 7 months, fruits 8 to 12 months. Follow expiry dates and instructions in the manual.

What to do if the LED lighting does not work?

Contact After-sales Service for replacement. Do not attempt to repair it yourself. The lighting turns off automatically after 8 minutes if the door remains open.

How to freeze fresh food?

Wrap and seal food in aluminum foil, plastic wrap, vacuum bags or suitable containers. Place them in the freezing zone leaving space for air circulation. Do not freeze liquid bottles.

USER MANUAL W5 611E W WHIRLPOOL

User Manual

USER MANUAL

INDEX

Use & Care guide 2

General Information 2

LED light 2

Light systems (depending on the model) 2

Shelves and door balconies 2

Door 2

Stop frost accessory* 3

Procedure to clean the stop frost accessory 3

How to use the appliance 4

First time use 4

Refrigerator compartment and food storage 4

How to store fresh food and beverages 4

Freezer compartment and food storage 4

Removing the freezer drawer container 4

Tips for freezing and storing fresh food 4

Frozen food: shopping tips 5

Food shelf life at different temperatures 5

Functional sounds 5

Recommendation in case of no use of the appliance 6

Cleaning and maintenance 7

Gasket replacement 8

After-sales service 9

General Information

LED light

If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

Light systems (depending on the model)

	This product contains a light source of energy efficiency class F
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class F
	This product contains a light source of energy efficiency class G

Shelves and door balconies

All shelves, flaps and pull-out baskets are removable. The quantity of these components may vary depending on the model.

Door

Door reversibility

Note: The direction of door opening can be changed. If this operation is performed by After-sales Service, it is not covered by the warranty. It is recommended that two people reverse the door swing. Follow the instructions in the Installation Guide.

Stop frost accessory*

The STOP FROST accessory is designed to collect some of the frost that forms in the freezer compartment. It is easy to remove and clean, thereby reducing the time needed to defrost the inside of the freezer compartment.

Procedure to clean the stop frost accessory

• Open the freezer compartment door and remove the upper drawer (figure 2).
• Unfasten the STOP FROST accessory (figure 3) and remove it (figure 4), taking care not to drop it on the glass shelf below.

Note: If the accessory is jammed or difficult to remove, do not keep trying to remove it, but proceed with the complete defrost of the freezer compartment.

• Close the door to the freezer compartment.
• Remove the frost on the accessory by rinsing it under running (not hot) water (figure 5).
• Let the accessory drip dry and dry the plastic parts with a soft cloth.

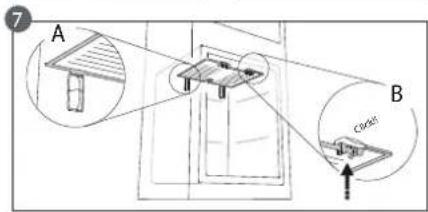

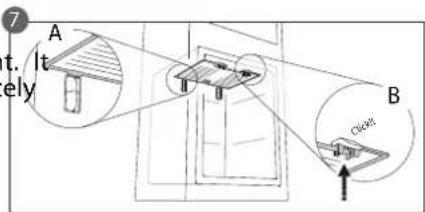

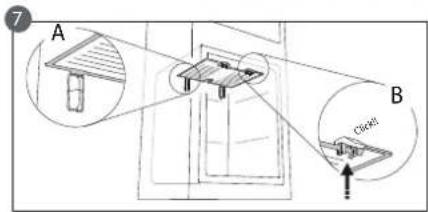

• Reinsert the accessory by placing the back part on the projections shown in figure 7-A, then refasten the handle of the accessory to the clasps above (figure 7-B).
• Reinsert the upper drawer and close the door to the freezer compartment. It is possible to clean the STOP FROST accessory on its own without completely defrosting the freezer compartment. Cleaning the STOP FROST accessory regularly helps to reduce the need to completely defrost the freezer compartment.

How to use the appliance

First time use

After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.

Refrigerator compartment and food storage

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

Air ventilation

The natural circulation of air in the refrigerator compartment results in zones with different temperatures. It is coldest directly above the fruits and vegetables crisper and at the rear wall. It is warmest at the top front of the compartment. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.

How to store fresh food and beverages

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Freezer compartment and food storage

The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid fresh food coming into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves, etc. Make sure that these components can still close easily after loading. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

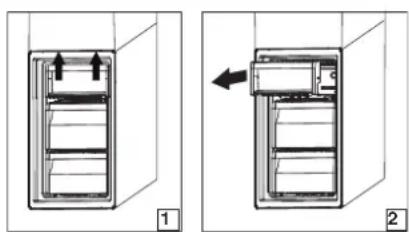

Removing the freezer drawer container

• Open the freezer door.
• Pull the upper container upwards by the right and left corners (1).
• Remove the drawer (2). • Install the upper container in the reverse order.

Tips for freezing and storing fresh food

• We recommend labeling and dating all your frozen food. Adding a label will help you identify foods and know when they should be used before their quality deteriorates. Do not re-freeze defrosted food. - Before freezing, wrap and seal fresh food in: aluminum foil, cling film, air and water-tight plastic bags, polythene containers with lids, or freezer containers suitable for freezing fresh food. - Food must be fresh, mature, and of prime quality in order to obtain high-quality frozen food. - Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, color, and flavor. Some meat, especially game, should be hung before it is frozen. • Always leave hot food to cool before placing in the freezer. - Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen. - Do not freeze bottles with liquid.

Frozen food: shopping tips

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have begun. • When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer. • If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package. • Always observe the storage information on the package.

Food shelf life at different temperatures

FROZEN COMPARTMENT
Product Storage period (-12°C)	Recommended Storage period (-18°C)	Storage period (-24°C)
Butter or margarine 1 month	6 months 9 months
Fish 1 month 1-3 months 6	months
Fruits (except citrus) & Vegetables	1 month 8-12 months 12 months
Meat- Ham- sausage Roasts (beef-pork- lamb) Steaks or chops (beef-lamb-pork)	1 month 2 months	8-12 months4 months	12 months
Milk, Fresh fluid, Cheese, Ice cream or sherbet	1 month 1-3 months 5 months (not recommended for ice cream)
Poultry (chicken-turkey) 1 month	5-7 months 9 months

UNFROZEN COMPARTMENT
Product	Storage period 0-3°C	Storage period (3-6°C)	Storage period 6-8°C
Cans, drinks, eggs, sauces, pickles, butter, jam	3-4 weeks	3-4 weeks	3-4 weeks
Tropical fruit	Not recommended 2-4 weeks	3-4 weeks
Cheese, milk, dairy food, deli food, yoghurt	2-5 days	2-5 days	2-5 days
Cold cuts, desserts, meat and fish and home-cooked food	8-5 days	1-2 days	Not recommended
Store vegetables and fruits (excluding tropical fruits and citrus)	15 days	10-12 days	4-7 days

Functional sounds

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

Some of the functional sounds can be reduced through:

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

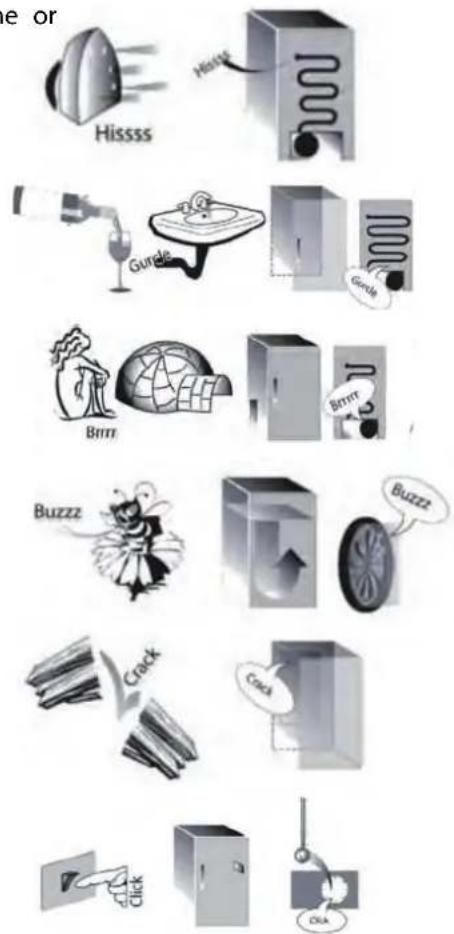

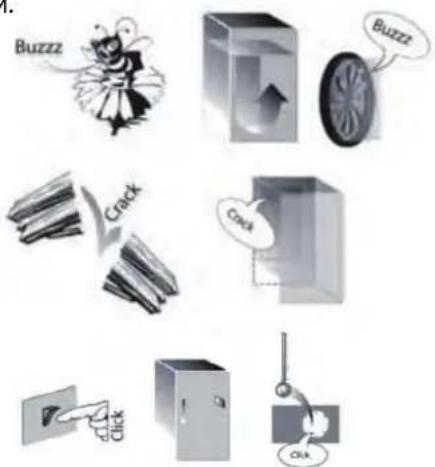

Some of the functional sounds you might hear

1. A hissing sound when switching on the appliance for the first time or after a long pause.
2. A gurgling sound when refrigerant fluid enters into the pipes.
3. BRRR sound is from the compressor running.
4. Buzzing sound when water valve or fan start working.
5. A cracking sound when compressor starts.
6. The CLICK is from the thermostat which adjusts how often the compressor is running.

Recommendation in case of no use of the appliance

In the event of non-use of the appliance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it.

Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

Cleaning and maintenance

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electric power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a cloth.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors. Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth. The condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Important:

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth. The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

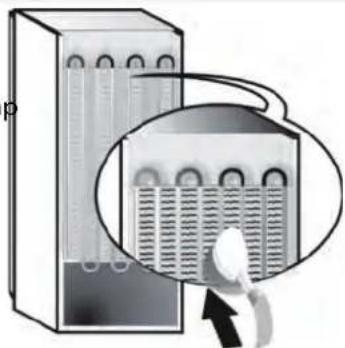

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided.

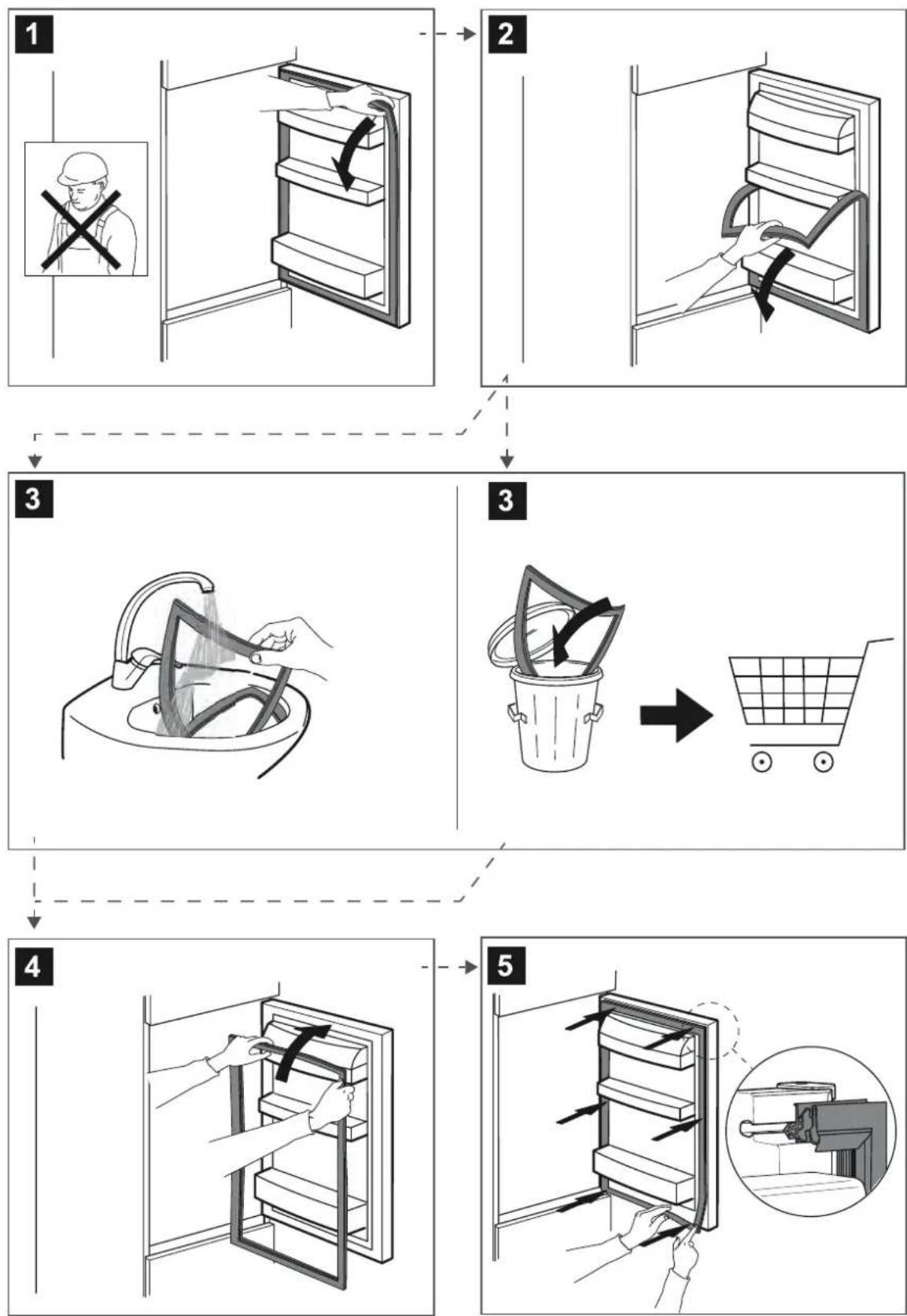

Gasket replacement

After-sales service

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.
2. Switch the appliance off and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE.

To receive assistance, call the number shown on the warranty booklet.

When contacting our Client After sales service, always specify:

• a brief description of the fault; • the type and exact model of the appliance;

• the service number (number after the word Service on the rating plate). The service number is also indicated on the guarantee booklet.

plate). The service number is also indicated on the guarantee booklet,

- your full address;

- your telephone number.

If any repairs are required, please contact an authorised aftersales service (to guarantee that original spare parts will be used and repairs carried out correctly).

Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.
