Chiaro - Baby swing Neno - Free user manual and instructions

Product type	Baby swing
Brand	Neno
Model	Chiaro
Recommended age	From birth to 9 months (or up to 9 kg)
Maximum child weight	9 kg
Dimensions (approx.)	70 x 50 x 60 cm
Product weight (approx.)	3.5 kg
Power supply	None (manual swing)
Main functions	Rocking, removable toy bar with 2 toys, 3-point safety harness, removable insert
Cover material	95% polyester, 5% elastane
Cover care	Machine washable at 30°C, delicate cycle, dry in shade
Frame care	Wipe with a damp cloth, no harsh detergents
Toy cleaning	Wipe with a damp cloth and mild detergent
Usage	On the floor only, never on an elevated surface
Safety	Safety harness mandatory, never leave unattended, stop use as soon as the child can sit up unaided
Spare parts	Contact the manufacturer via the website neno.pl
Warranty	24 months (conditions at neno.pl/gwarancja)

Frequently Asked Questions - Chiaro Neno

How to install the Neno Chiaro swing?

Install the seat frame into the base, then place the cover over the frame by securing the velcro under the base. Hang the toy bar on the handle and attach the toys. Refer to the manual for details.

From what age can I use this product?

This product is suitable from birth until the child weighs 9 kg or reaches 9 months, provided they cannot sit up without assistance.

What is the maximum supported weight?

The maximum child weight is 9 kg. Do not use beyond that.

Can I wash the swing cover?

Yes, the cover and insert are machine washable at 30°C on a delicate cycle. Do not use bleach, do not tumble dry, do not iron. Dry in shade.

Can my baby sleep in the swing?

No, this product is not designed for prolonged sleep. If your child needs to sleep, place them in a bed or crib.

Can I place the swing on a table or countertop?

No, the swing must be used only on the floor. Never place it on an elevated surface.

How to adjust the safety harness?

Place the child, put the center strap between their legs, then fasten the side straps into the buckles. Pull the end of the straps to adjust. The straps should be snug without compressing.

How to remove the toy bar?

Press the clip on the band inside the accessory to unhook the toy bar from the handle.

What to do if the velcro no longer holds?

Check that the velcro strips are clean and not worn. If the velcro does not work properly, stop using the product and contact customer service.

Where can I find spare parts for this swing?

Spare parts are available from the manufacturer. Visit neno.pl/kontakt to contact customer service.

USER MANUAL Chiaro Neno

Line drawing of a baby in a baby seat with a tray, featuring a star-shaped head and a small object on the back (no text or symbols)

Table of contents

Spis treści

5 Instrukcja obsługi PL
8 User manual EN
11 Bedienungsanleitung DE
14 Návod k použití CZ
17 Használati utasítás HU
20 Používatel'ská príručka SK
23 Användarhandbok SE
26 Käyttäjän käsikirja FI
29 Brukerhåndbok NO
32 Brugermanual DK
35 Gebruikershandleiding NL
38 Manual del usuario ES
42 Manuale utente IT
45 Manuel de l'utilisateur FR
48 Manual de utilizare RO

1

Diagram of a baby car seat with red arrows indicating movement or force, showing the seat and seatbelt mechanism.

Line drawing of a bicycle seat assembly with a magnified inset showing the handle and seat (no text or symbols)

B

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

PL

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

thank you for purchasing the Neno Chiaro bouncer. This product is suitable for children from birth to a weight not exceeding 9 kg or 9 months of age. Please read the instruction manual before use and keep it in case you need to use it again.

01. WARNINGS:

1. Never leave a child unattended and unsupervised.
2. Do not use the product if the child is able to sit up unaided or the child weighs more than 9kg.
3. The product is not intended for prolonged sleep.
4. Never use this product on elevated surfaces such as a table, the recliner can only be used on the floor.
5. Always remember to use a safety system.
6. Always use the belts, remembering to check and adjust each time you use them.
7. Only an adult should assemble the product. To avoid injuries, make sure that children are at a safe distance when folding and unfolding the product.
8. Do not let children play with the product.
9. Do not move or lift the product if the child is in it.
10. Do not lift the product by any part other than the base.
11. This product is not a replacement for a cot or bed. If your child needs to sleep, move your child to a cot or bed.
12. Do not use the product if any component is damaged or missing.
13. Do not use accessories or spare parts other than those approved by the manufacturer.
14. Check that the belts fit properly every time, and that they are fastened correctly.
15. Regularly check the attachment of the seat cover to the frame.
16. Always check all fixings before use and ensure that the components have

been fitted correctly.

1. Before positioning the bouncer, make sure that nothing is standing nearby that could cause a collision.
2. Also make sure that your child does not have access to objects, walls or other things that they can reach for or push away from. This can cause injury, suffocation and choking.
3. Do not extend the attached toys in any way, and do not hang toys other than those included.
4. Do not leave the product in full sunlight or close to heat sources.
5. Do not allow other children or adults to attempt to rock the bouncer, the bouncer is only meant to rock under the natural movements of the child lying down.
6. Check regularly the condition of seams, material joints, construction. If wear is detected, discontinue use immediately and replace the item with a new one.

02. CONTENTS OF THE KIT

1. Rocking chair base
2. Seat frame
3. Seat cover
4. Inset
5. Toy holder
6. 2 toys

03. FIRST INSTALLATION OF THE PRODUCT

1. Place the base on a flat surface.

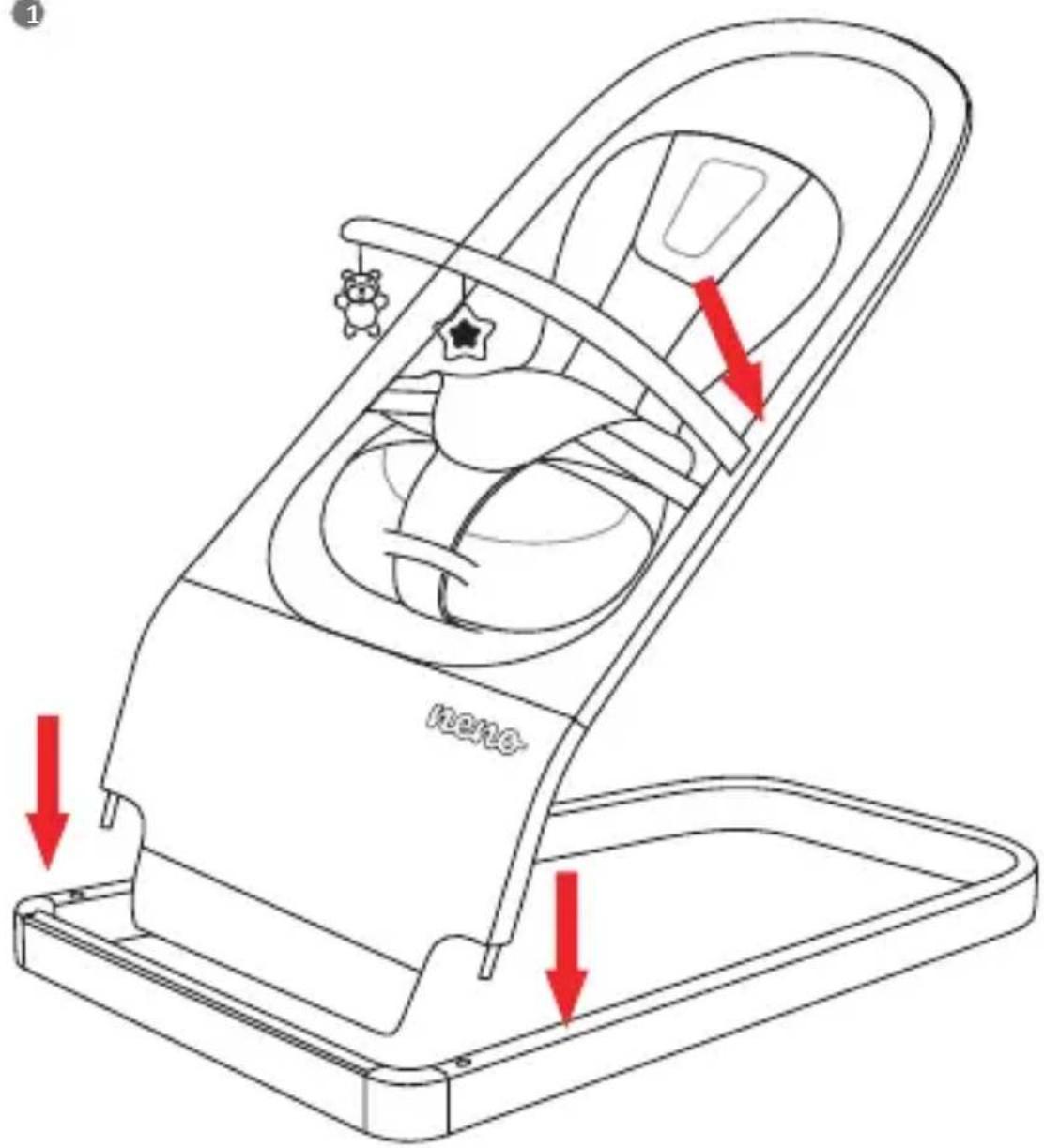

2. Insert both ends of the seat frame into the holes in the base. SEE FIG. A.1
3. Put the cover on the seat frame, returning attention so that the attachment for the holder is on the right side, fastening forward.

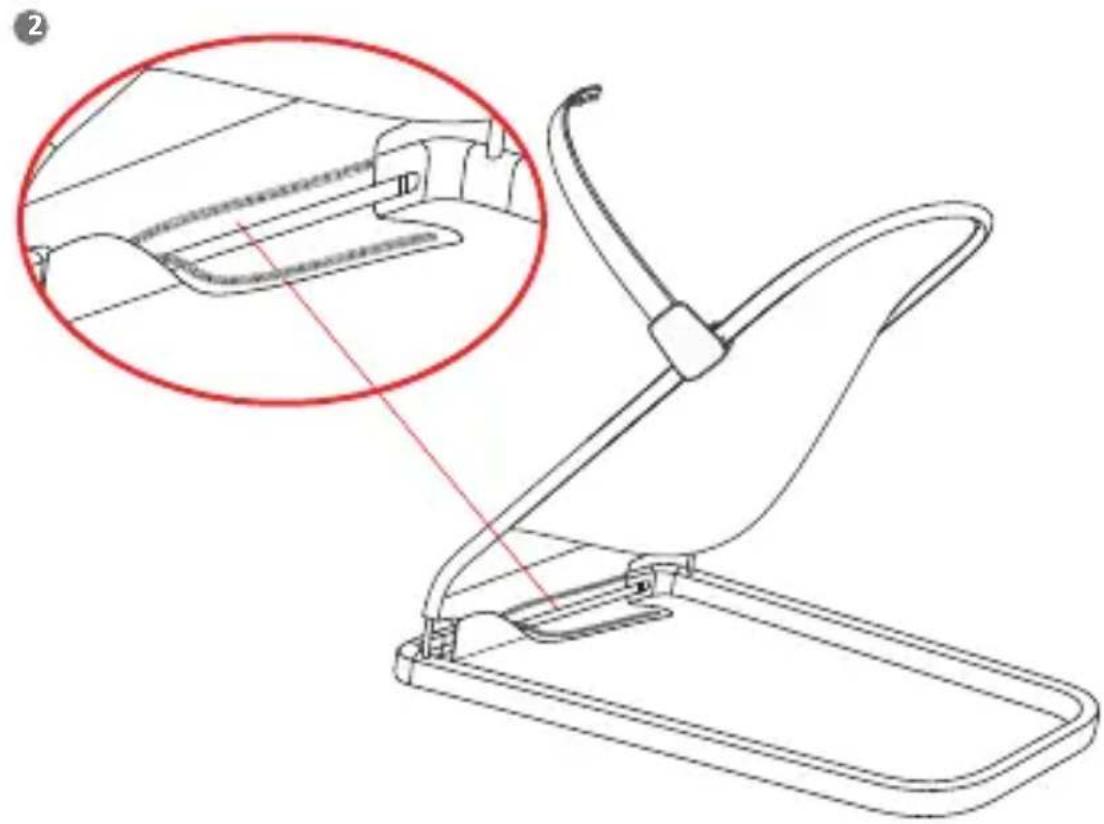

4. Put the velcro end of the cover between the base of the bouncer and the attachment on the inside of the base. SEE FIG. A.2.
5. Press the velcro end firmly against the other part on the cover so that the two velcro strips come together.
6. Hook the toy holder into the handle on the seat frame.
7. Attach the toys by putting the attachment strap from the toy through the handles on the toyholder. Once the strap is through, fasten the velcro. Check that the attachment is correct by pulling on the toys.
8. Insert the centre strap into the holder on the insert, then arrange the insert on the cover.

04. FITTING/REMOVING THE SEAT COVER

1. To remove the cover, unhook the toy holder by pressing the clip on the headband on the inside of the attachment.
2. Unfasten the velcro on the bottom of the recliner and pull the end of the material from its attachment.
3. Pull the seat cover upwards so that it is removed in its entirety.
4. Put the cover on the seat frame, returning attention so that the attachment for the toy holder is on the right side of the attachment to the front.
5. Put the velcro end of the cover between the base of the bouncer and the attachment on the inside. SEE FIG. A.2.
6. Press the velcro end firmly against the other part on the fabric so that the two velcro strips come together.

05. SEAT BELTS

1. Place your child in the bouncer and position so that the wide centre strap is between your child's legs.
2. Clip the side straps into the buckles on either side to the centre strap.
3. Make sure the straps are properly fitted to your child and all attachments are securely clipped in.

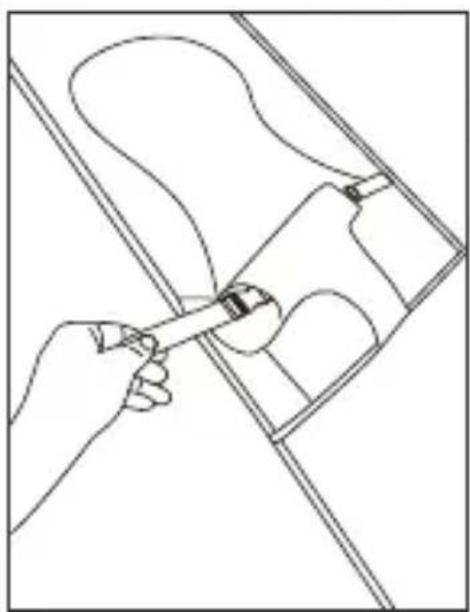

4. Adjust the straps by pulling on the end of the belt at the buckle. The straps should fit snugly but not compressing the child. SEE FIG.B.1
5. Press down on the buckles to undo the straps.

06. CLEANING AND STORAGE

1. Clean the base and seat frame with a damp cloth. Do not use detergents for cleaning. Then wipe dry so that no water marks are visible.
2. The seat cover and insert can be washed after removal in the washing machine at a maximum of 30^ C, a very gentle process. Do not bleach, tumble dry, iron or dry-clean. Leave to dry outdoors in the shade. Always check the quality of the velcro after washing - if the velcro is not working properly, do not use the product.
3. Wipe toys using a damp cloth with a small amount of mild detergent.
4. Failure to do so may result in discolouration, distortion and damage.
5. Keep the product out of the reach of children.

07. SPECIFICATIONS:

Material: fabric (95% polyester, 5% elastane)

Dimensions: 69.5x45x51.5 cm

Weight: 2.5kg

08. WARRANTY CARD

The product comes with a 24-month warranty. Warranty terms and conditions can

Details, contact and service address can be found at: https://neno.pl/kontakt Specifications and contents are subject to change without notice. We apologise for any inconvenience.

DE

BEDIENUNGSANLEITUNG

02. INNHOLDET I SETTET

02. INDHOLD AF SÆTTET

Dimensions: 69,5x45x51,5 cm

Poids: 2,5 kg

08. CARTE DE GARANTIE

KGK TREND Sp. z o.o. (formerly KGK Trade Sp. z o.o. Sp. K.) st. Ujastek 5b, 31-752 Cracow, Poland. Made in PRC
