USER MANUAL S800S Sungrow

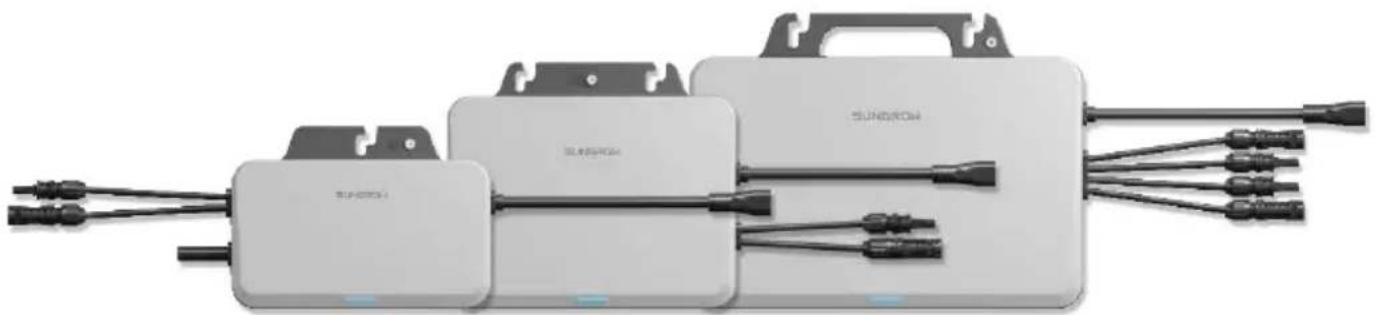

Quick Installation Guide

Single-Phase Microinverter

S450S / S800S / S1000S / S1600S

EN

1. Contents may be periodically updated or revised due to product development. The information in this guide is subject to change without notice. In no case shall this guide substitute for the user manual or related notes on the device.
2. Make sure to read over, fully understand and strictly follow the detailed instructions of the user manual and other related regulations before installing the equipment. The user manual can be downloaded by visiting the website at http://support.sungrowpower.com/; or it can be obtained by scanning the QR code on the front of the microinverter or the back cover of this guide.
3. All operations can be performed only by qualified personnel, that must be trained for installation and commissioning of electrical system, as well as dealing with hazards, have knowledge of the manual and of the local regulations and directives.
4. Before installation, check that the package contents are intact and complete compared to the packing list. Contact SUNGROW or the distributor in case of any damaged or missing components.
5. The cable used must be intact and well insulated. Operation personnel must wear proper personal protective equipment (PPE) all the time.
6. Any violation could result in personal death or injury or device damage, and will void the warranty.
7. Incorporates product approved by Anatel under number 23376-23-11568.

Safety

The inverter has been designed and tested strictly according to international safety regulations. Read all safety instructions carefully prior to any work and observe them at all times when working on or with the inverter. Incorrect operation or work may cause:

• Injury or death to the operator or a third party.
• Damage to the inverter or other properties.

Please follow the safety instructions related to the PV strings and the utility grid.

Security Declaration

To learn more about the product network security vulnerability response process and vulnerability disclosure, please scan the QR code below or visit the following website: https://en.sungrowpower.com/security-vulnerability-management

DANGER

Lethal voltage!

PV strings will produce electrical power when exposed to sunlight and can cause a lethal voltage and an electric shock.
- Only qualified personnel can perform the wiring of the PV panels.
All electrical connections must be in accordance with local and national standards.
- Only with the permission of the local utility grid company, the inverter can be connected to the utility grid.
- Do not open the enclosure at any time. Unauthorized opening will void warranty and warranty claims and in most cases terminate the operating license.
- When the enclosure lid is removed, live components can be touched which can result in death or serious injury due to electric shock.

Lethal danger from electric shock due to possibly damaged inverter

• Only operate the inverter when it is technically faultless and in a safe state.
• Operating a damaged inverter can lead to hazardous situations that can result in death or serious injuries due to electric shock.

WARNING

Risk of inverter damage or personal injury

• Do not pull out the PV connectors and AC connector when the inverter is running. Disconnect the AC circuit breaker. Wait 10 minutes for the internal capacitors to discharge. Verify that there is no voltage or current before pulling any connector.
  Even after the microinverter has been stopped, it may still be hot and cause burns. Wait 30min until the microinverter cools down, and then perform operations on it wearing protective gloves.

WARNING

All the warning labels and nameplate on the inverter body:

• Must be clearly visible.
• Must not be removed, covered or pasted.

CAUTION

Risk of burns due to hot components!

• Do not touch any hot parts (such as the heat sink) during operation.

NOTICE

Only qualified personnel can perform the country setting. Unauthorized alteration may cause:

A breach of the type-certificate marking.

Risk of inverter damage due to electrostatic discharge (ESD)!

By touching the electronic components, you may damage the inverter. For inverter handling, be sure to:

• Avoid any unnecessary touching.
• Wear a grounding wristband before touching any connectors.

Microlinverter

The warning label on the inverter body are as follows.

Danger to life due to high voltages! Only qualified personnel can open and maintain the inverter.	Burn danger due to hot surface that may exceed 60 °C.
Disconnect the inverter from all the external power sources before maintenance!	Do not touch live parts for 10 minutes after disconnection from the power sources.
Read the user manual before maintenance!	Do not dispose of the inverter together with household waste.
CE mark of conformity. EU/EEA Importer.	RoHS labeling The product complies with the requirements of the applicable EU directives.
TÜV mark of conformity.	UTE C15-712-1 Warning label for installation.
UTE C15-712-1 Warning label for installation.

Manufacturer:

Sungrow Power Supply Co., Ltd.

No 1699. Xiyou Road, Hefei 230088.P.R.China

For EU only

EU Declaration of Conformity

within the scope of the EU directives

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

The radio Equipment Directive 2014/53/EU (RED)

Low Voltage Directive 2014/35/EU (LVD)

Electromagnetic compatibility 2014/30/EU (EMC)

Restriction of the use of certain hazardous substances 2011/65/EU and 2015/863/EU (RoHS)

The manufacturer Sungrow Power Supply Co., Ltd., China hereby confirms that the product

S450S,S800S,S1000S,S1600S complies with the essential requirements and other relevant provisions of

Directives 2014/53/EU (RED), 2014/35/EU(LVD) and 2014/30/EU (EMC), 2011/65/EU and 2015/863/EU

(RoHS).The full EU Declaration of Conformity can be found at

https://support.sungrowpower.com/PdfDetail?id=1790188194723446785

The communication module that comes with the inverter and the technical parameters of wireless communication are listed in the table below. The model of the communication module actually delivered shall prevail.

The EU Declaration of Conformity for the communication module can be found at support.sungrowpower.com .

Microinverter(WIFI):

Radio technology

WLAN 802.11b/g/n

Radio spectrum

2412 MHz ~ 2472MHz

Maximum transmission power

≤20dBm

Technical parameters listed above apply to EU countries only.

FR

Sungrow Power Supply Co., Ltd.

No 1699. Xiyou Road, Hefei 230088.P.R.China

https://en.sungrowpower.com/security-vulnerability-management

GEVAAR

Sungrow Power Supply Co., Ltd.

No 1699. Xiyou Road, Hefei 230088.P.R.China

Alleen voor de EU

• The images shown here are for reference. The actual product and quantity are based on delivery.

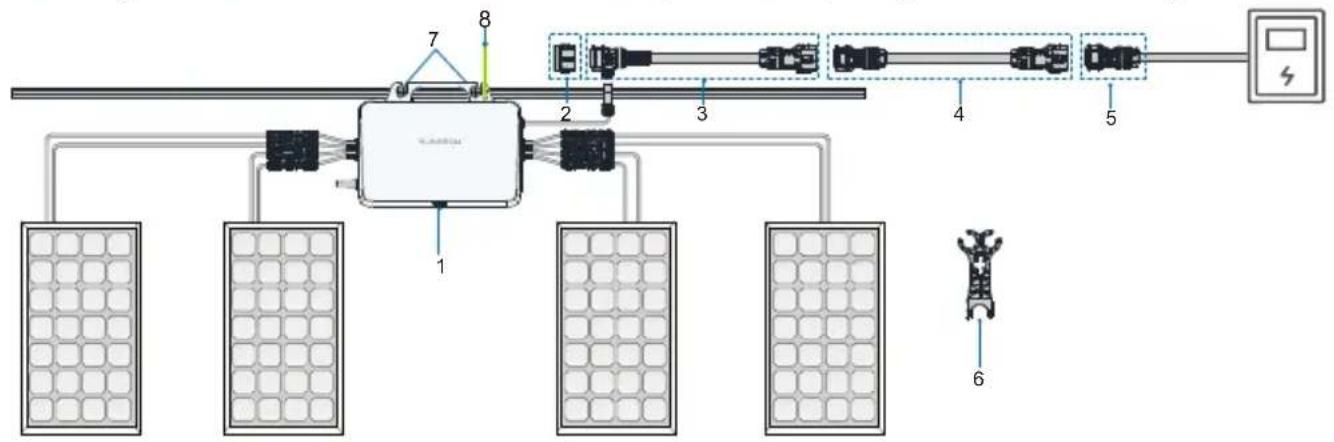

NO.	Definition Model	Description
	Microinverter1	S450S/S800S/S1000S/S1600S	Included in the scope of delivery as standard equipment.
2	Sealing cap for T type connector	-	Users place separate orders. Used to seal off the unused port on the T-type connector.
3	AC cable with T type connector_25	-	Users place separate orders. Used to connect two microinverters.
4	AC extension cable_25	-	Optional. Used when the distance between two microinverters exceeds 2.8m.
5	AC connector_male	-	Users place separate orders. Used to connect the microinverter to the power distribution box.
6	AC connector unlock tool	-	Users place separate orders. Used to disconnect two T-type AC trunk cables, or disconnect the T-type AC trunk cable from the microinverter.
7	M8 fixing screw M8		Prepared by users. Used to fix the microinverter.
8	Grounding cable	Recommended cross-section of the cable:2.5 mm²	Prepared by users. Used for external grounding of Microinverter.
	Grounding screw	M4	Included in the scope of delivery.

• Note: Only the power distribution box is allowed to be connected to the AC grid-connected side.

Installation Tool / Werkzeuge zur Installation / Outil d'installation /Montagegereedschap

Mounting location / Emplacement de montage / Montageort / Montageplaats

The average temperature approximately 20~cm around the microinverter should be taken as its operating temperature. The temperature and humidity should meet the requirements below:

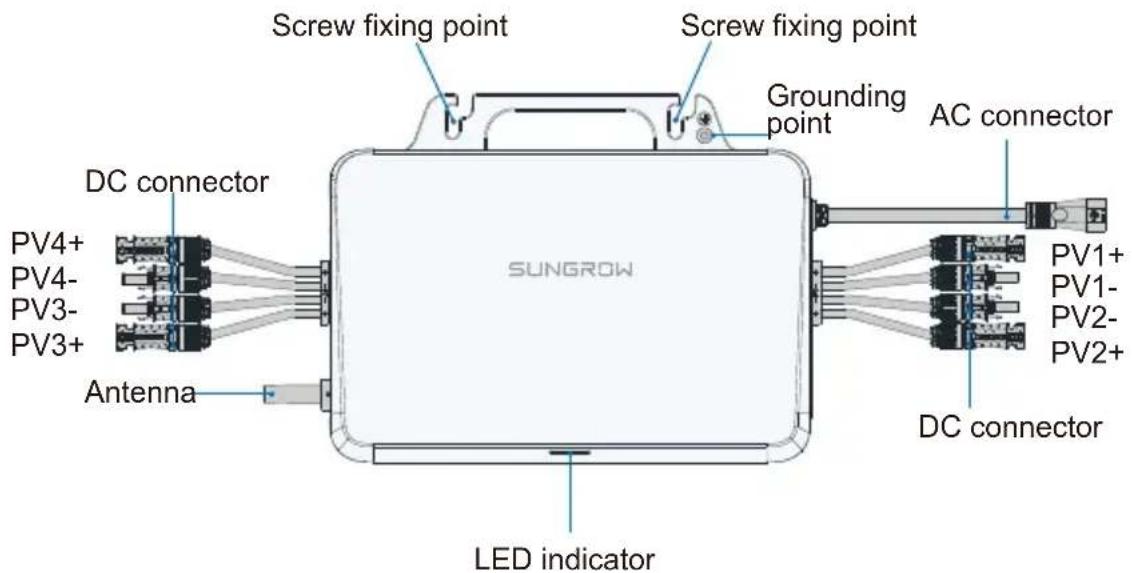

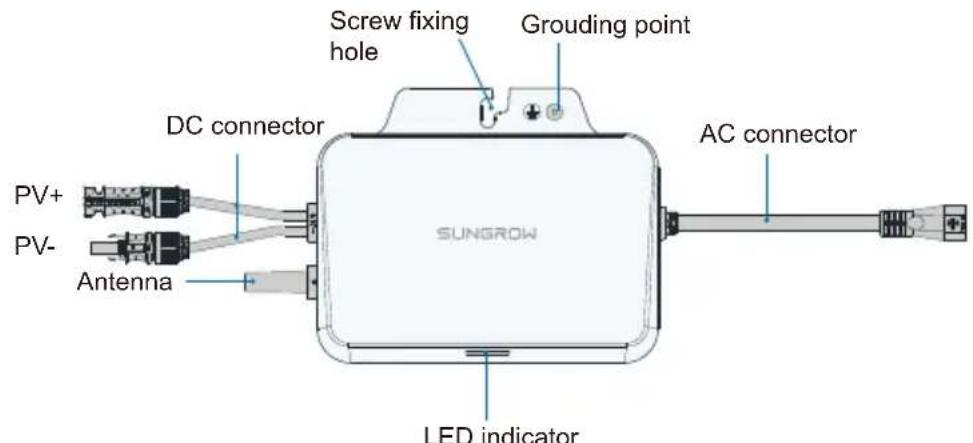

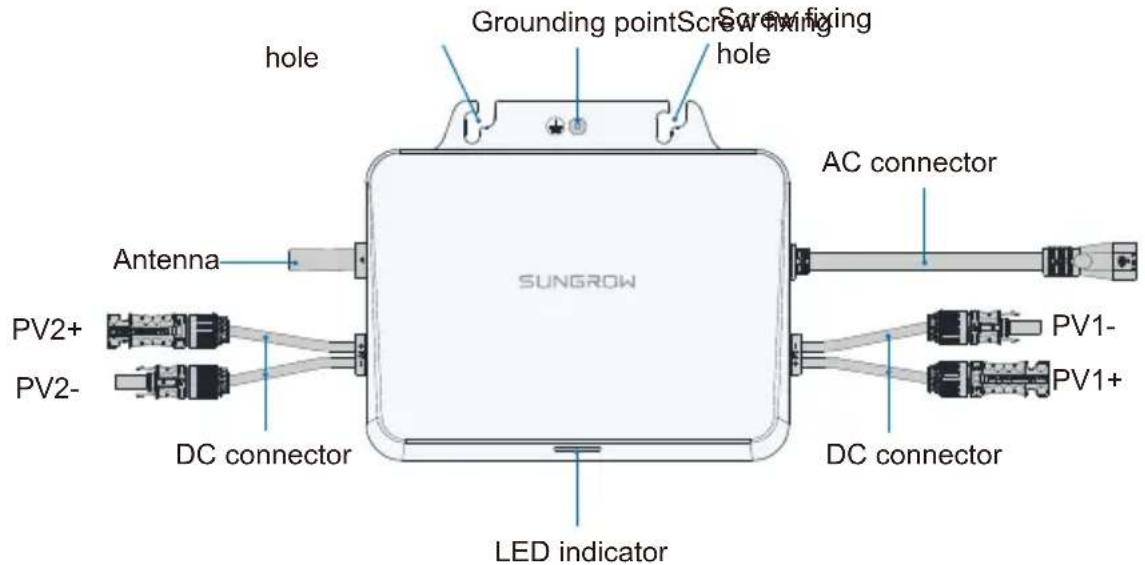

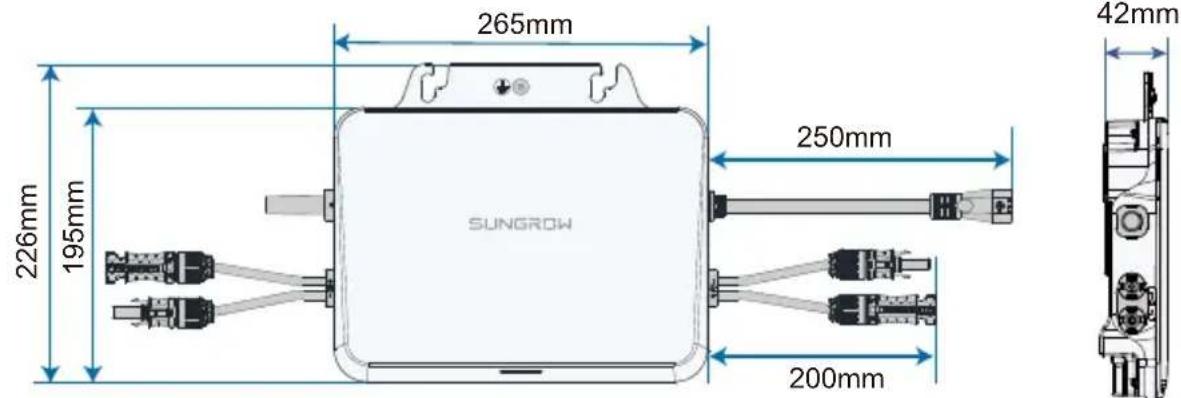

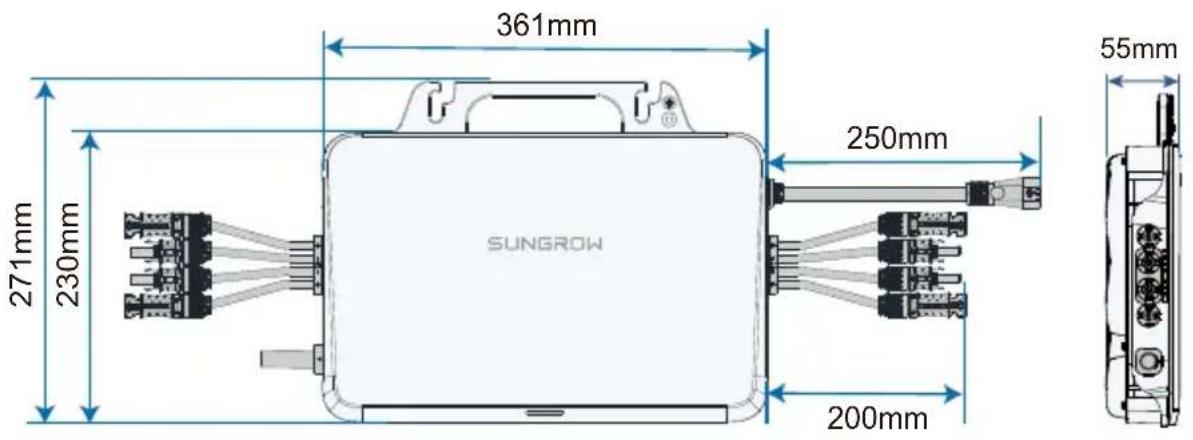

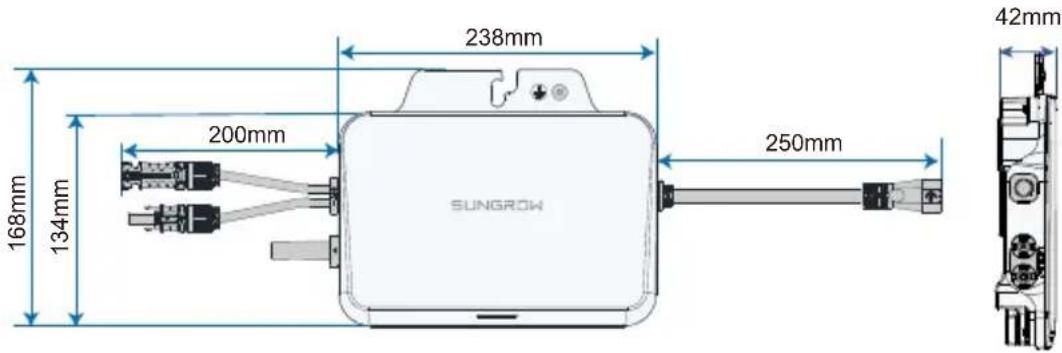

Product Appearance&Dimensions / Apparente et dimensions du produit / Erscheinungsbild und Abmessungen des Produkts / Uiterlijk en afmetingen van product

S450S:

S1600S:

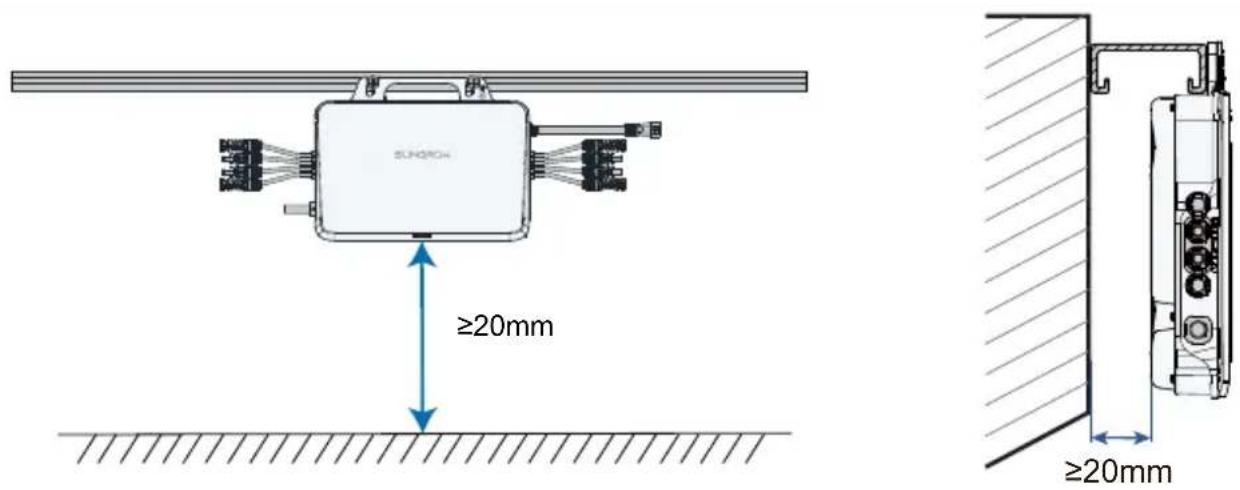

Installation Space Requirements / Espace nécessaire à l'installation / Platzbedarf für die Installation / Vereisten voor de installmentuimte

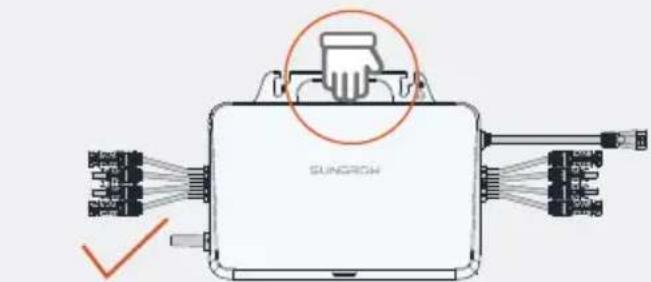

• Do not bump, squeeze, or bend its connectors or Wi-Fi antenna when handling the microinverter. Deformation or damage may impair the device's performance or normal operation.

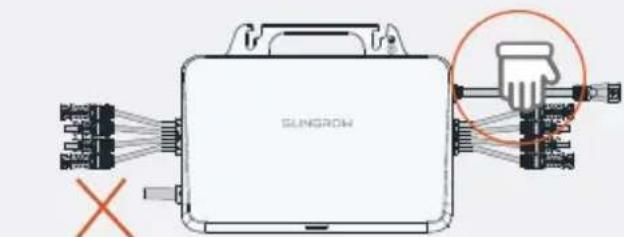

• Do not lift the cable by hand when handling the device. The S450S, S800S and S1000S microinverters do not have handles. You may move the device by gripping the groove on its back.

(Recommended)

(Prohibited)

1

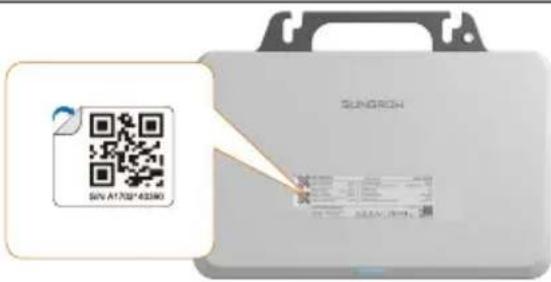

Remove one of the two identical QR code labels on the device enclosure, and stick it inside the dotted box on the left (if multiple microinverters are used, put their QR codes on the blank page before this Guide's back cover). This QR code is used for iSolarCloud related operations.

2
2

Nut
(not included in the scope of delivery)

3

4

M8

9.0N·m

Washers should be added to the M8 screws by the user separately. Washers with an inner diameter of 8.5mm and a thickness of 2.5mm are recommended; while the outer diameter of the washer must be greater than 24mm .

• Avoid placing the device in direct sunlight. It is recommended to install it under the PV module.
• It is recommended that the inverter fixing screws be installed around the roof frame fixing hook.

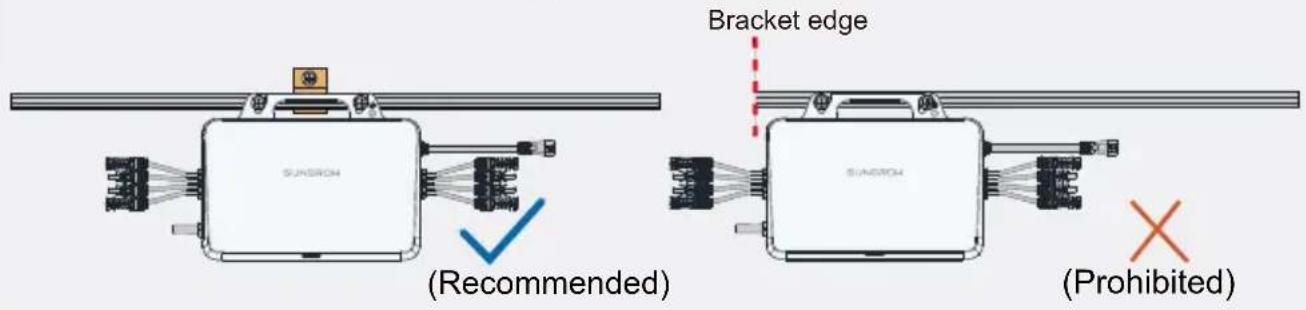

• Do not mount the microinverter on the edge of the bracket.

Observe the marks on the terminals when making cables and ensure the polarity is correct. Otherwise, after connecting to the power distribution box, the microinverter may not operate properly, the house's circuit may trip, and it may even result in personal injuries.

Wiring Steps / Procedure de câblage / Verkabelungsschritte / Bedrangingsprocedure

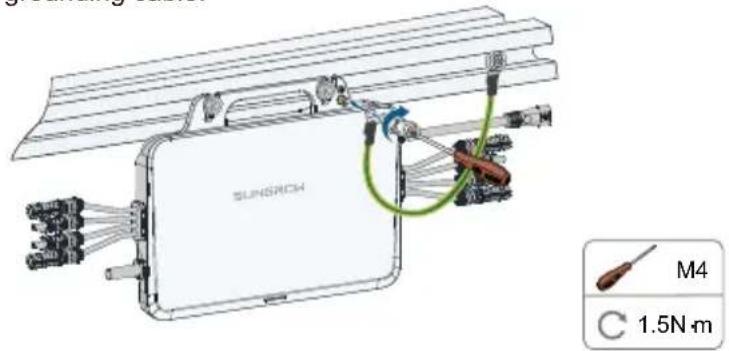

Connect the external grounding cable.

It is recommended to make a protective ground connection. Lack of protective grounding or unreliable grounding may lead to personal injuries.

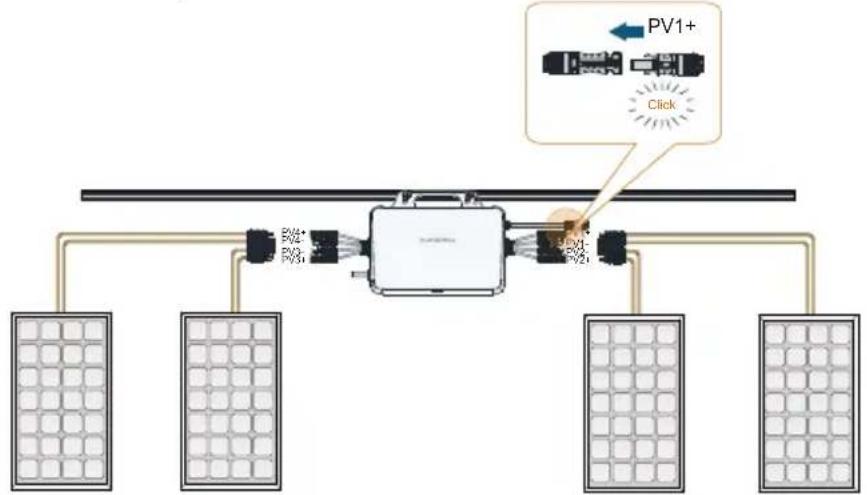

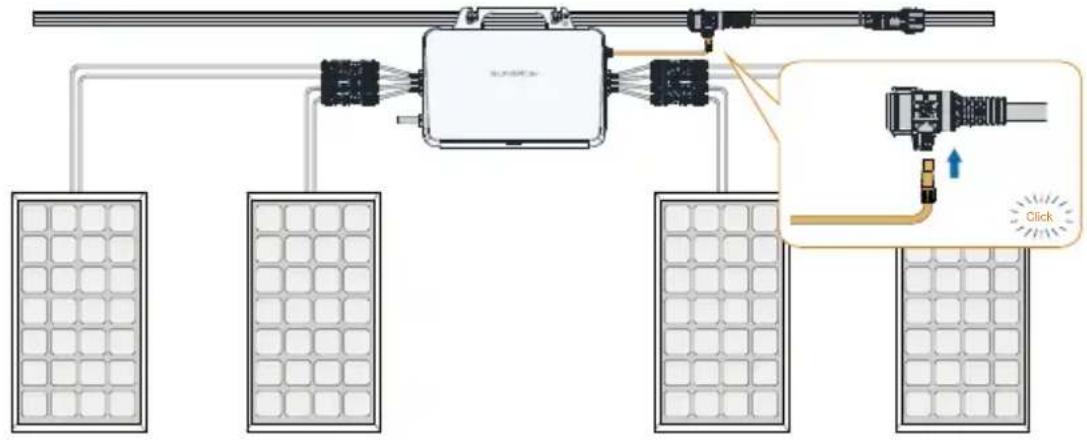

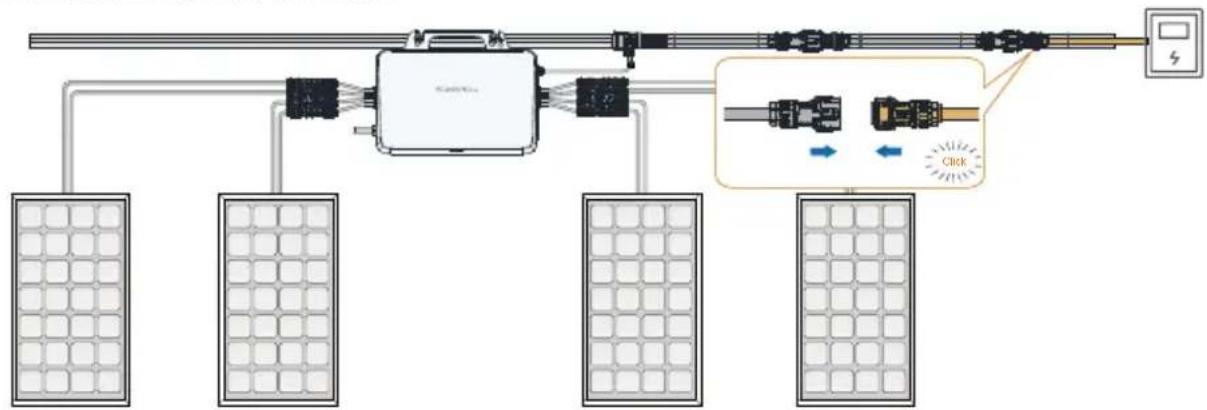

Connect the DC connectors, make sure there is a PV module connected to PV1.

WARNING

The PV1 channel acts as the host and must be connected with PV module. If it is left unconnected, the system may report a fault and cannot operate properly.

CAUTION

• When connecting the DC connectors, make sure the order of the connectors corresponds properly to the actual positions of PV modules at the site, to facilitate the later setup of the physical layout of the plant.

• If not all of the DC connectors of the microinverter are connected to PV modules, use IP67 waterproof plugs to close off the unused connectors. The waterproof plugs should be prepared by the user.

• If the PV module is located too far away from the microinverter, a DC extension cable is needed. The user needs to make the extension cable first.

• Ensure the PV cables are connected with correct polarity. Otherwise, the microinverter may not operate properly.
  PV modules cannot be connected in series.

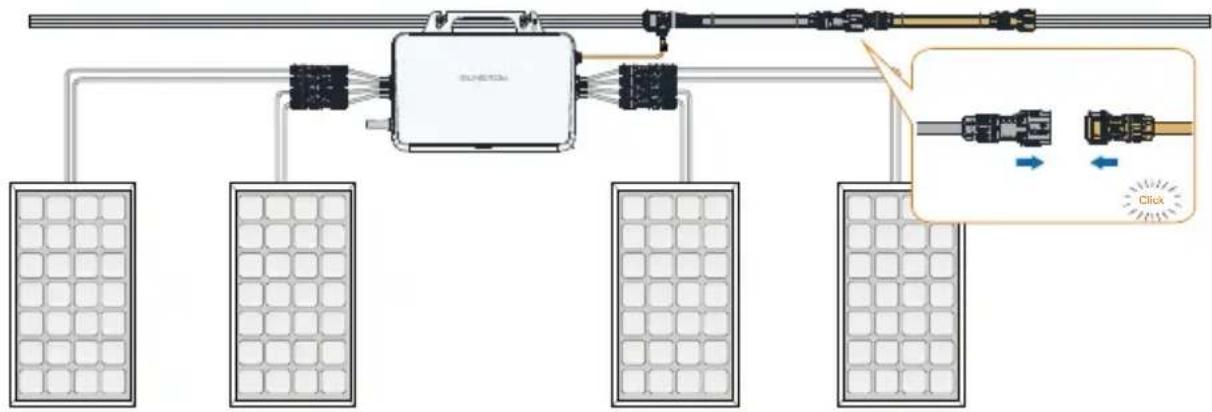

Connect the AC connector.

(Optional) Connecting extension cables.

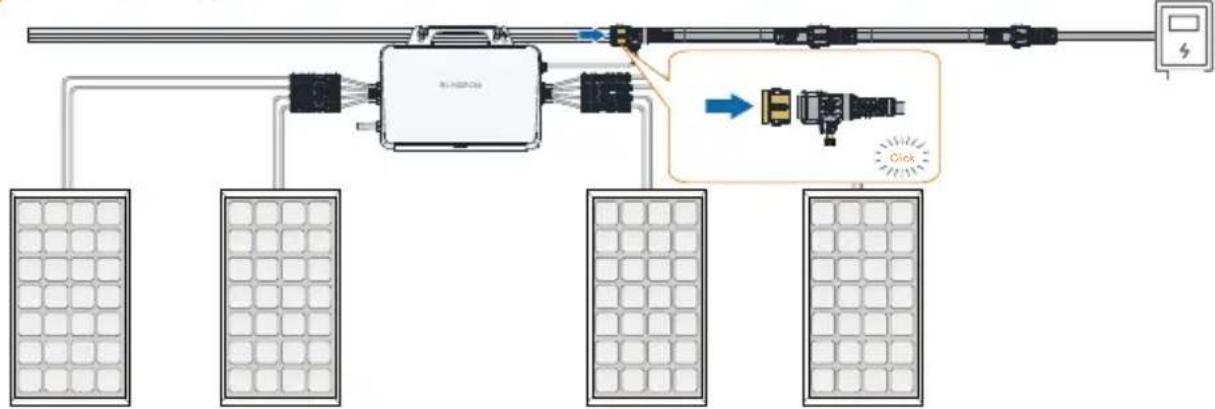

Connect the AC male connector.

Seal off the T-type connector.

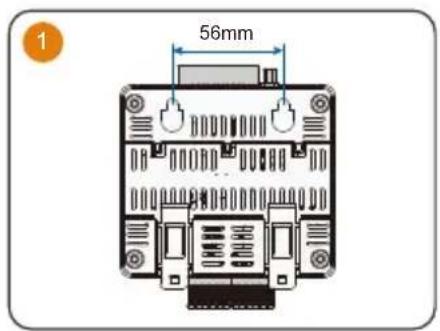

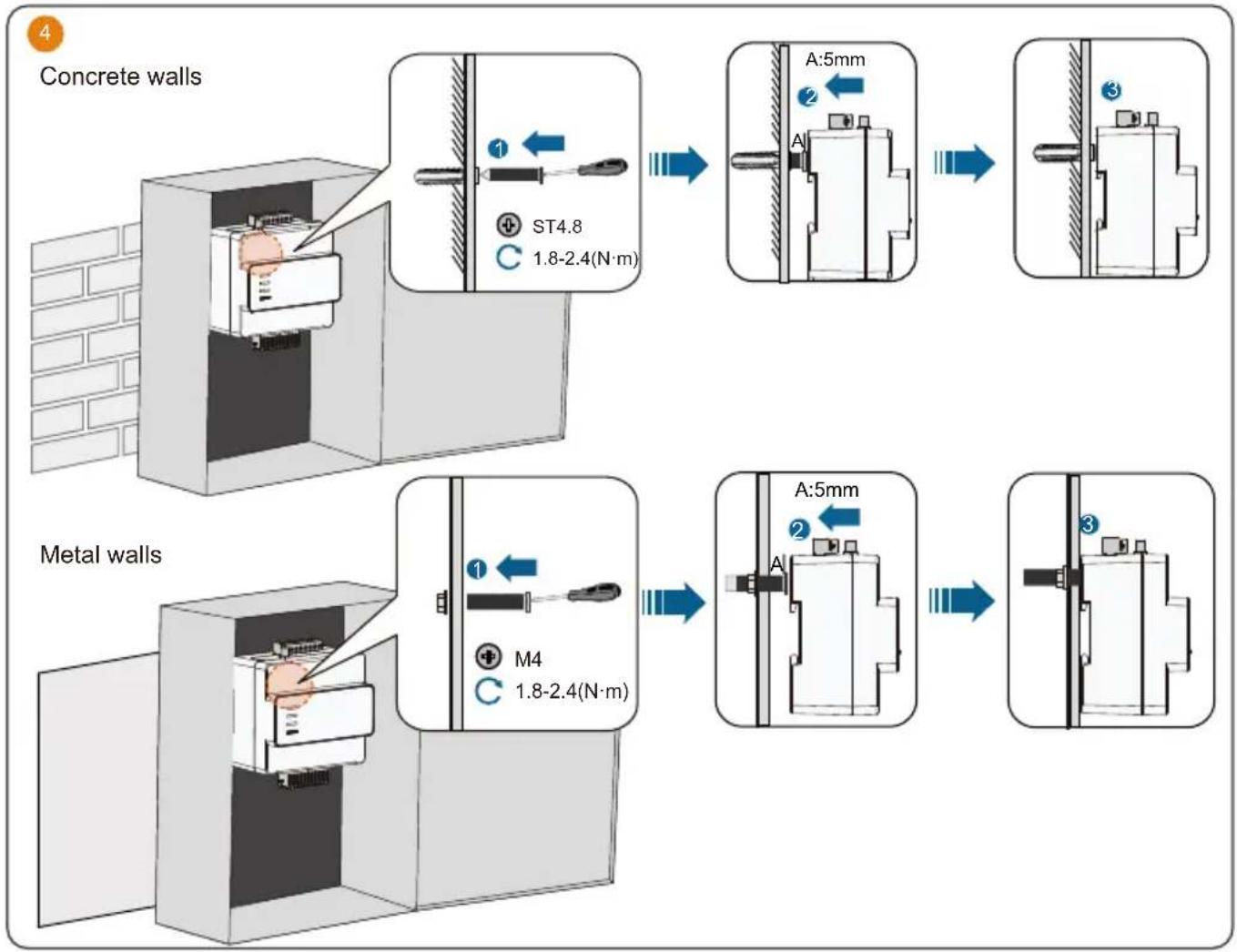

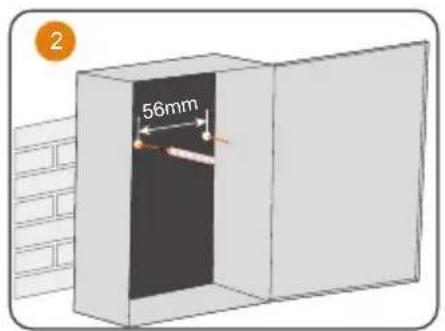

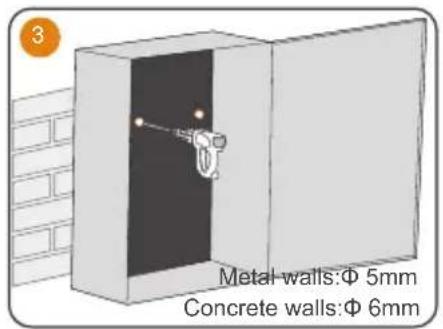

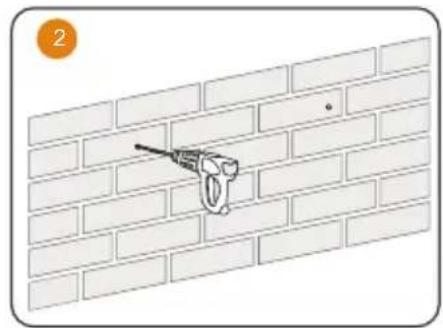

1. Mounted on a Wall

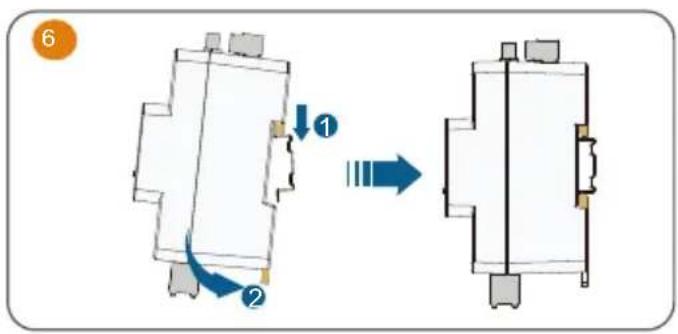

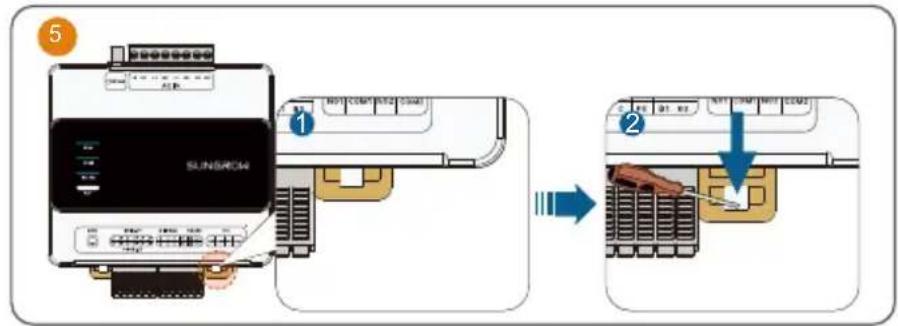

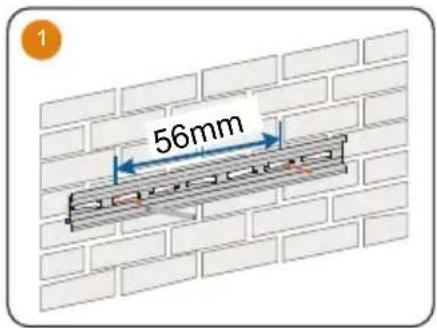

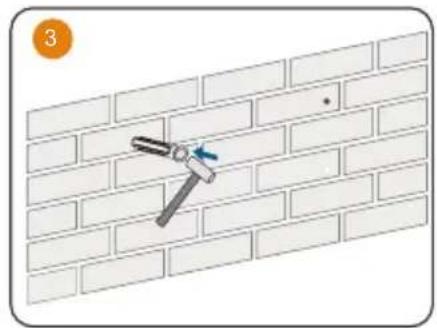

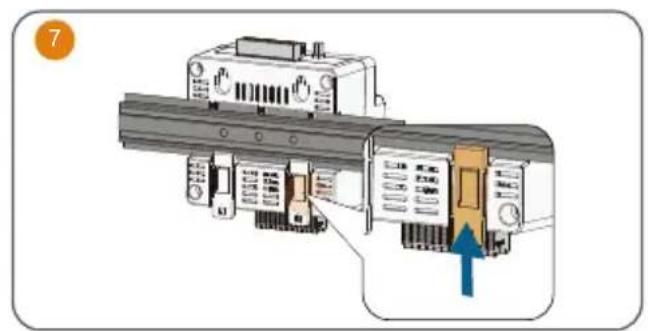

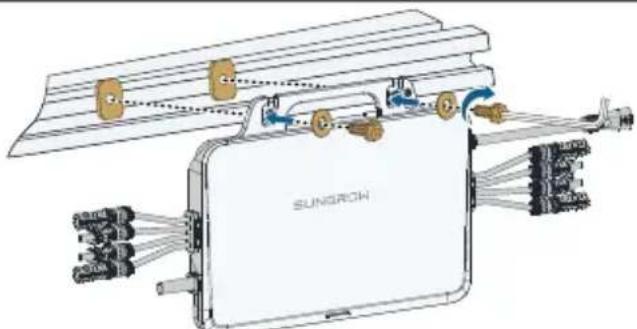

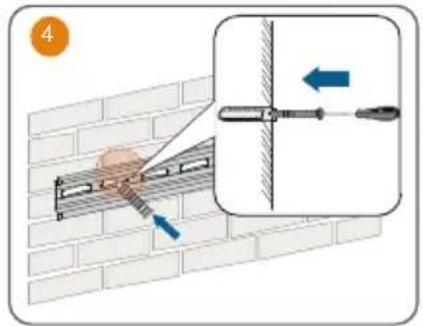

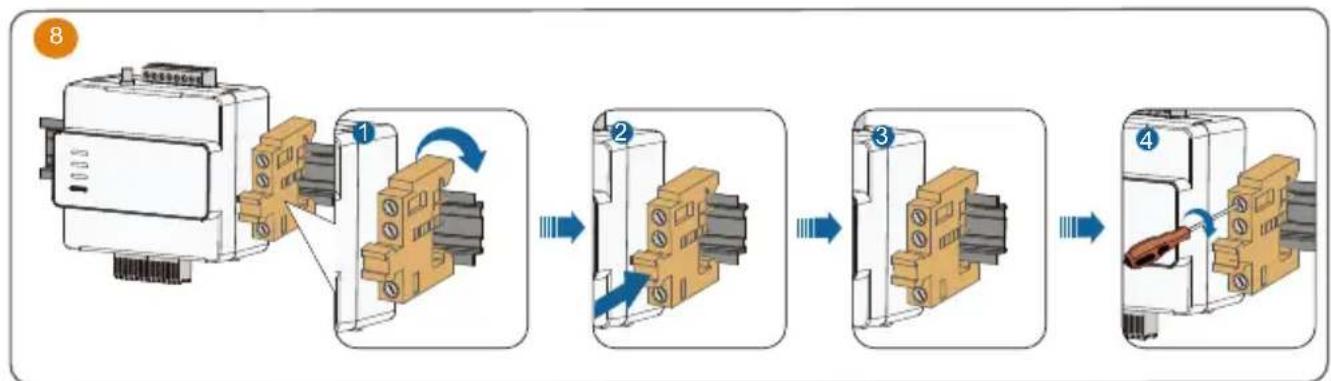

2. Mounted on a Guide Rail

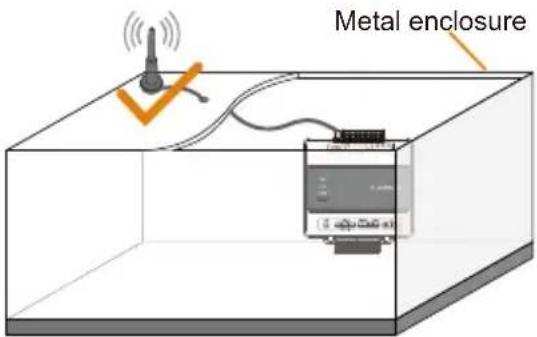

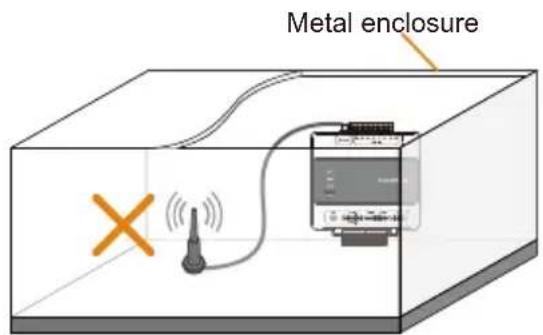

3. Antenna Installation

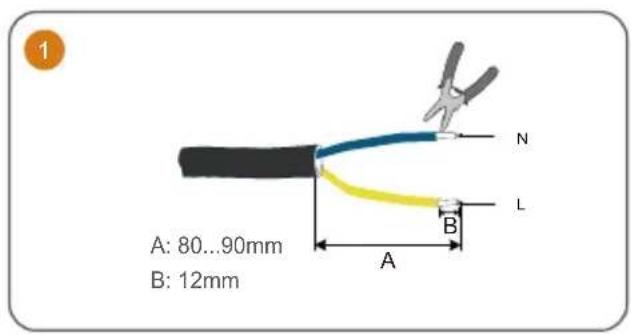

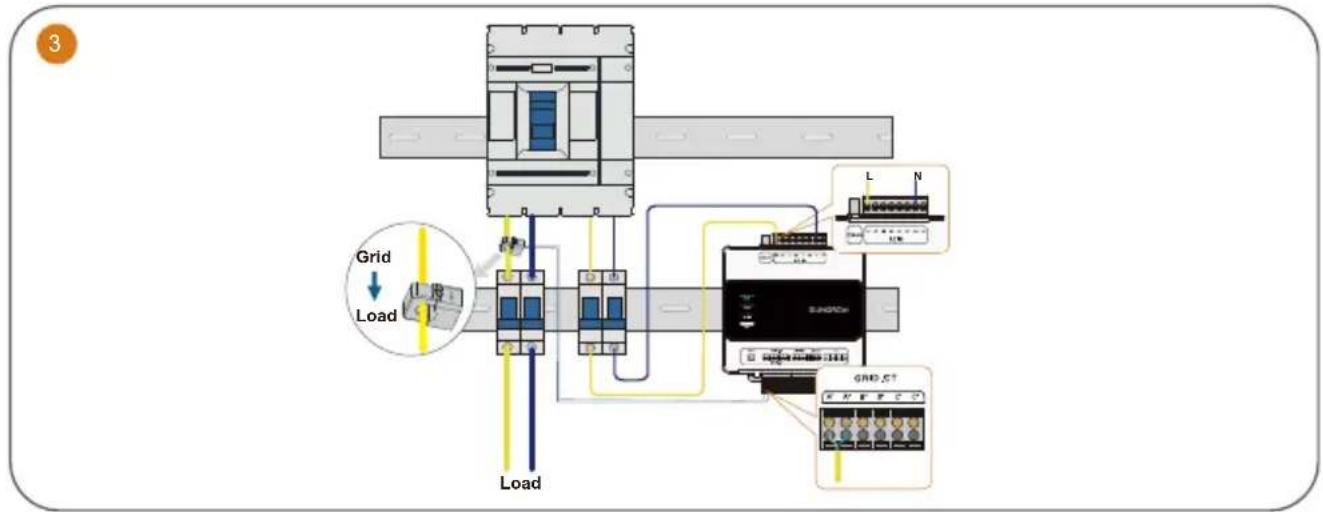

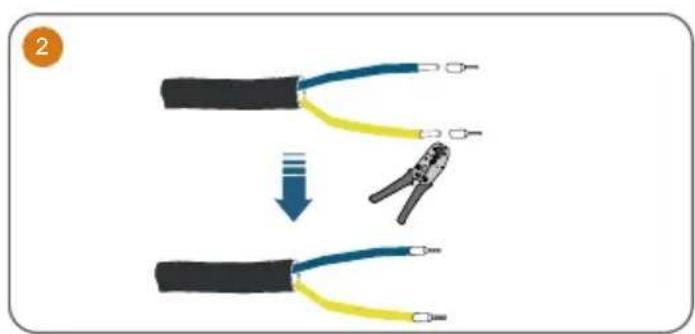

4.AC and GRID.CT connection

The iHomeManager comes with three CTs. Connect only one CT to the microinverter.

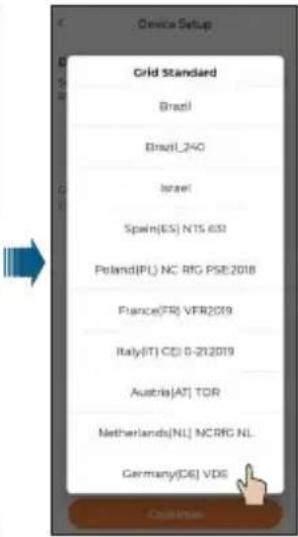

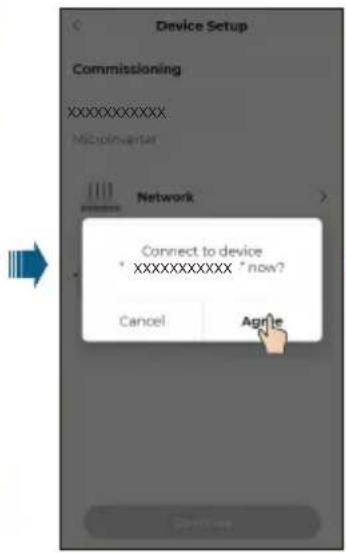

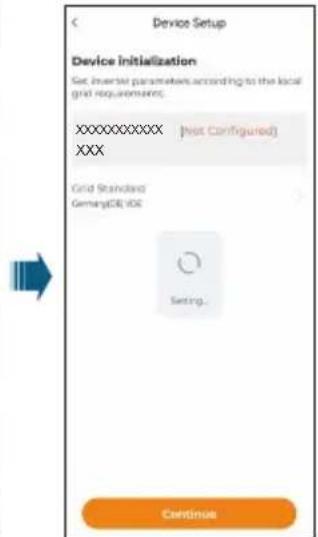

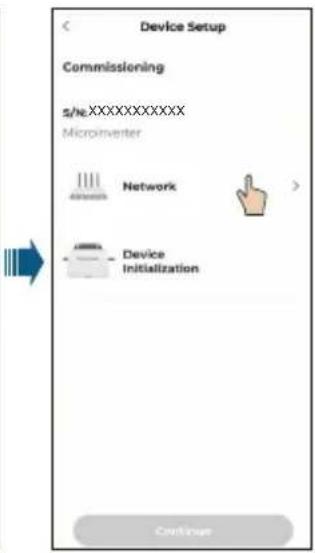

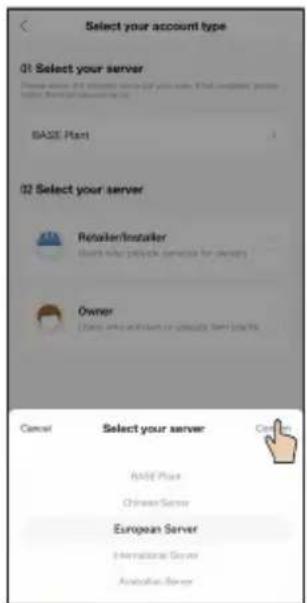

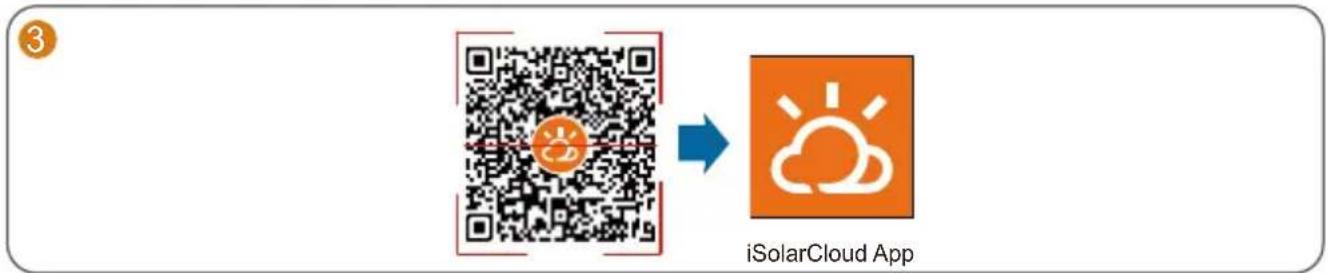

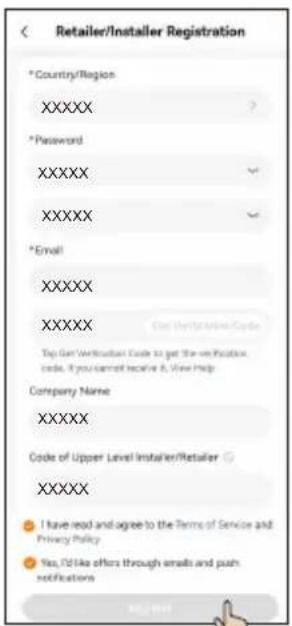

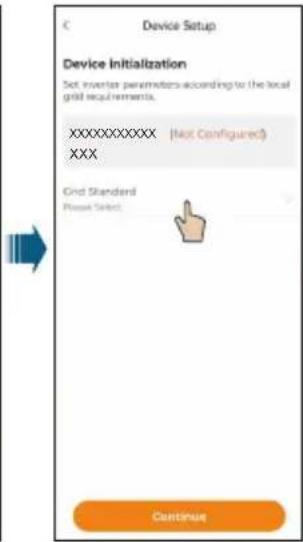

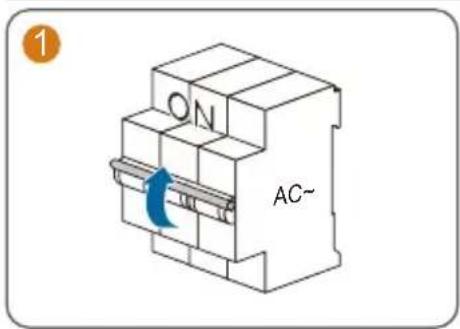

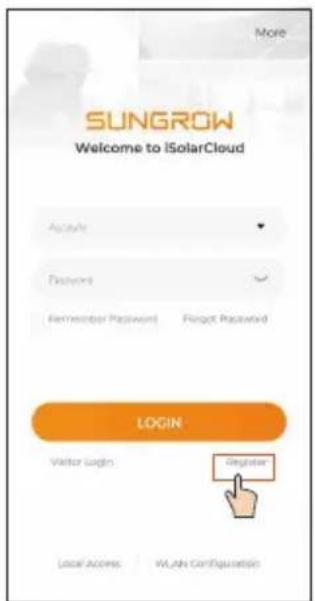

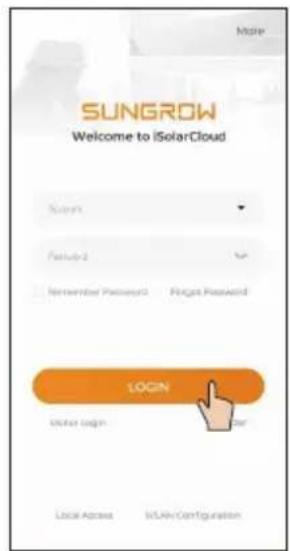

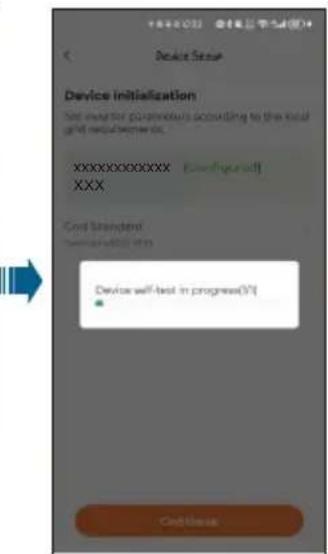

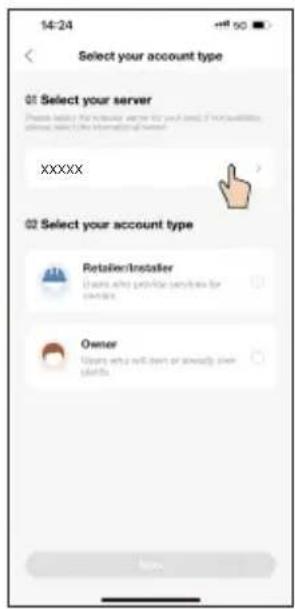

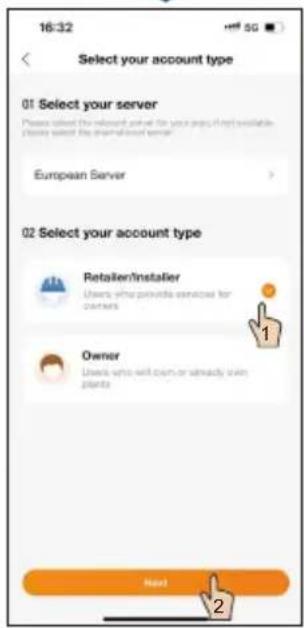

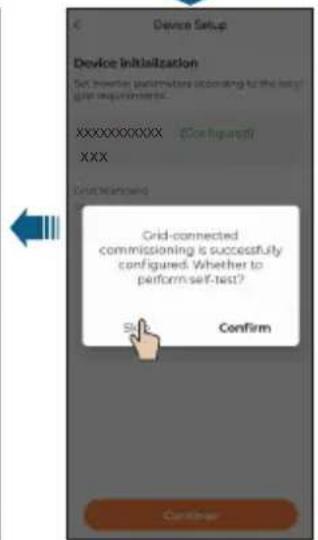

Commissioning / Mise en service / Inbetriebnahme / Inbedrijfstelling

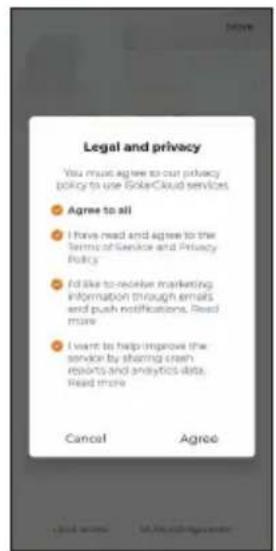

To fully utilize the features of the iSolarCloud App, please grant it access to your camera, location, and network when you first open the App.
- Connect only one mobile phone to the microinverter's hotspot at a time. Otherwise, it may lead to a conflict issue.
- It is suggested to turn off auto network switching on the mobile phone so that it can stay connected to the microinverter's hotspot. Otherwise, the phone may switch to a stronger Wi-Fi signal automatically and its

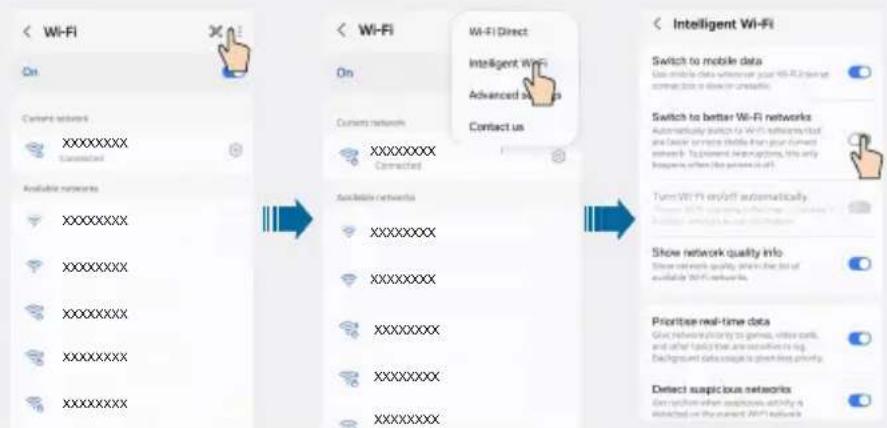

Samsung mobile phone as an example:

4

5

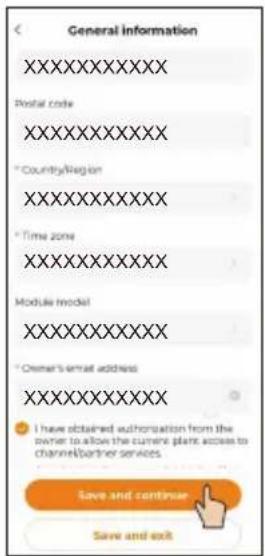

Parameter Description

*Plant Name	Enter the plant name.
*Plant Type	Select the plant type.
*PV Installation Power (kWp)	Enter the installed power.
*Detailed Address	The location of the plant.
*City	The city where the plant is located.
Postal Code	The postal code of the place where the plant is located.
*Country/Region	The country (region) where the plant is located.
*Time Zone	The time zone of the place where the plant is located.
Module Model	The model of the PV module actually used in the plant.
*Owner's Email Address	Enter the owner's email address.
*Grid-connection Type	Set the grid-connection type for the plant.
Grid-connected Date	Shows the current date by default.
Plant Image	Upload an image of the plant.

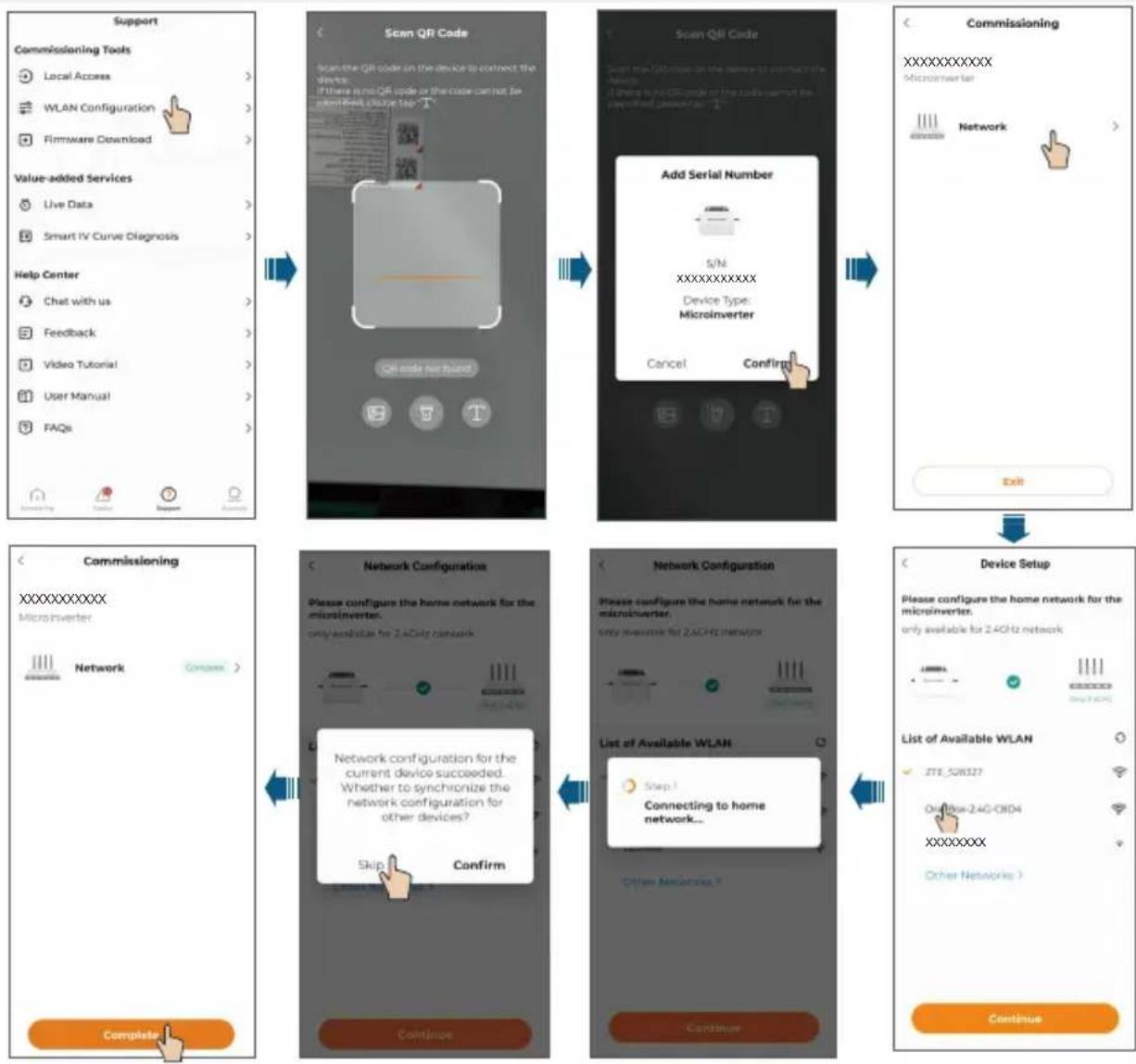

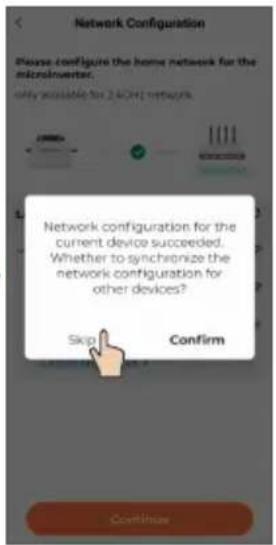

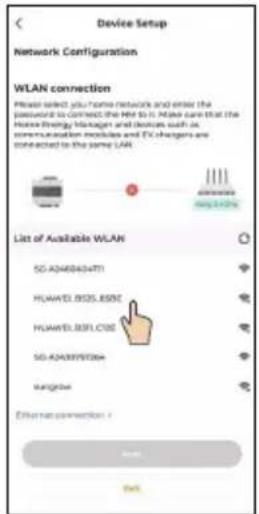

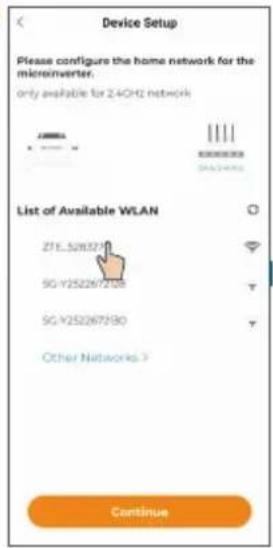

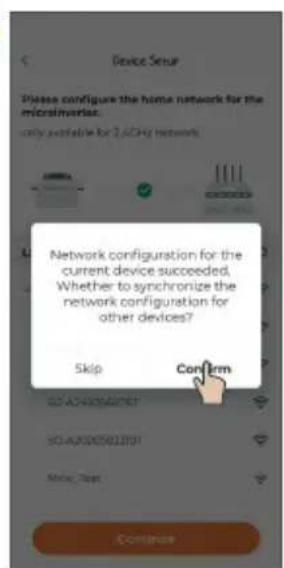

If there is one microinverter only, you can choose "SKIP". The network configuration is then completed.

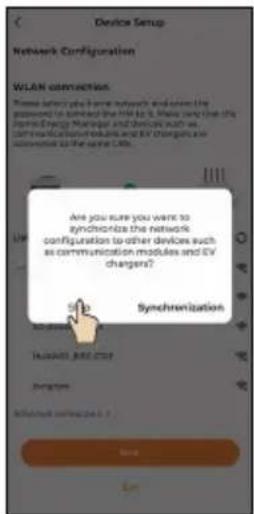

- If there are multiple microinverters, you can choose "CONTINUE" to complete the network configuration for other microinverters. For details, see Step 8.Microinverters for which network settings are synchronized in this step will be added to the plant's device list simultaneously.

When you change the router, please set up the network connection again. The steps are: log in to the iSolarCloud App, tap the WLAN Configuration, and select the home network to connect to it.

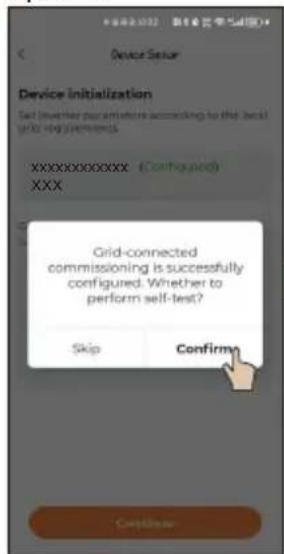

Optional

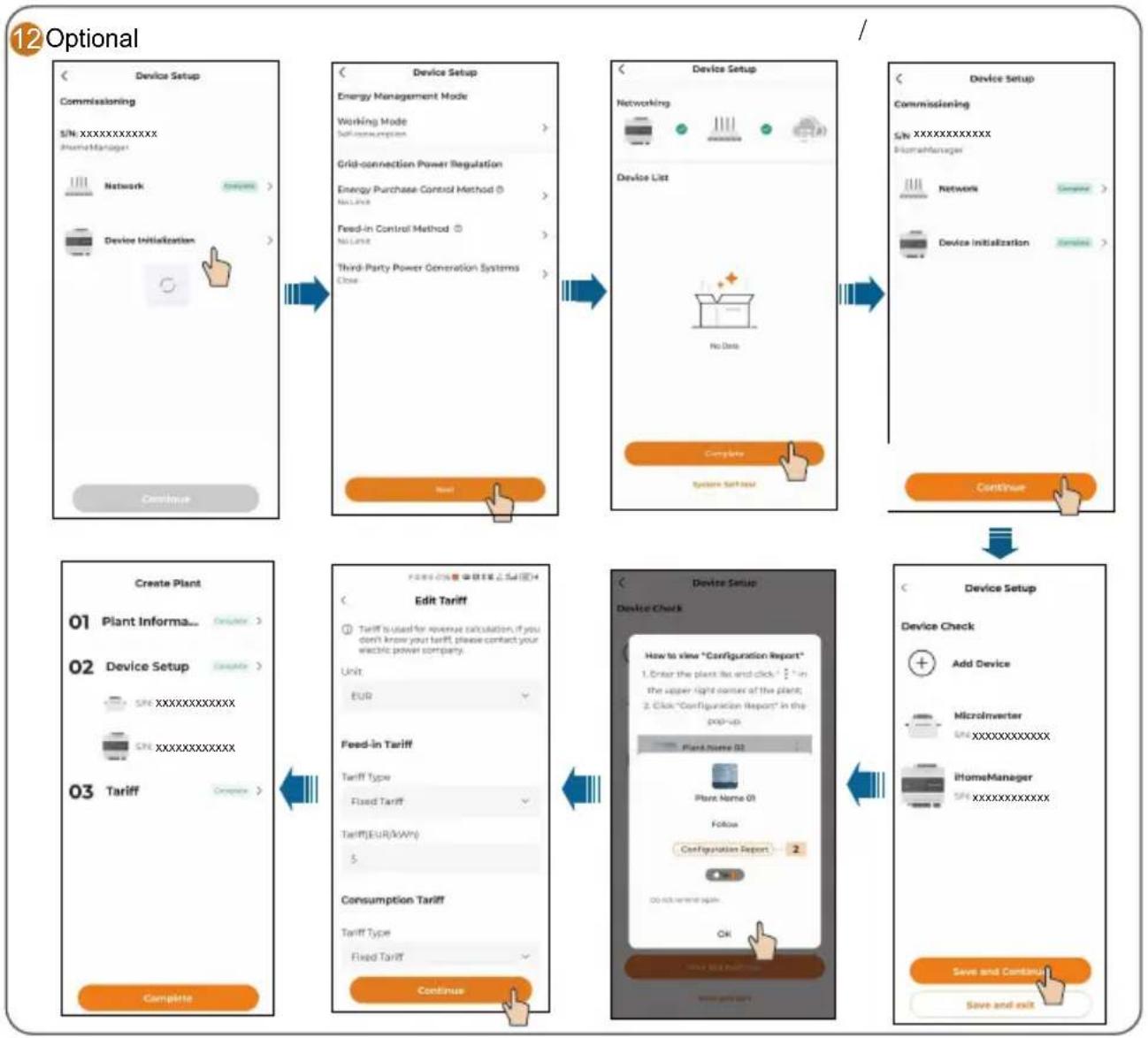

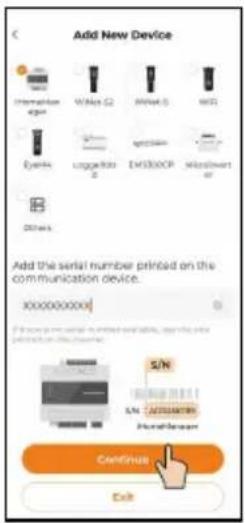

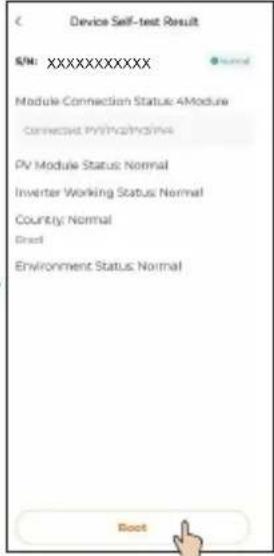

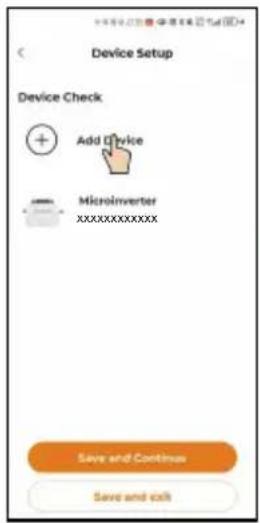

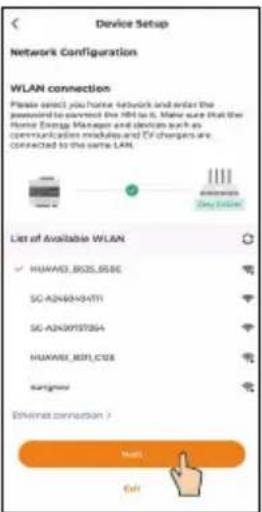

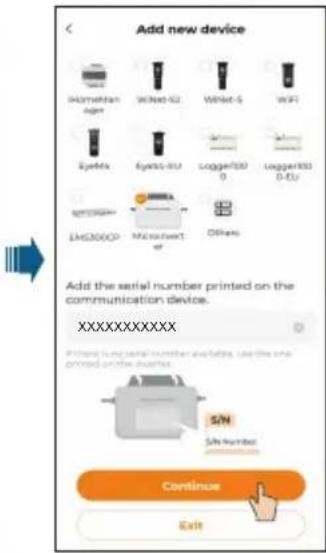

If an iHomeManager is installed, choose "Add Device" at the end of Step 9 to add and configure the iHomeManager. Detailed instructions are provided below.

Optional

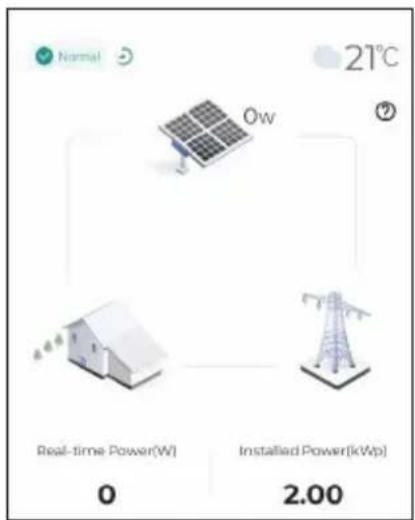

The plant that has been created will be shown on the "Monitoring"screen. You can tap a plant to check the detailed information about the plant and its devices, as shown in the figure below

At night, since there is no light, the microinverter in the plant stops working due to the absence of power source. In this case, it does not communicate with the background and its status shows "offline". However, this does not indicate a fault in the device. Once the light conditions return to normal, with stable power source, the microinverter will start up and work again. It will then communicate with the background normally and its status will be "online". If the device stays offline for a long time or in case of other abnormal symptoms, inspect the device and its network connection.

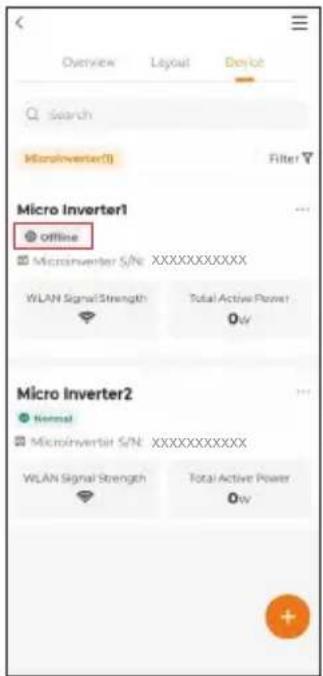

Choose the "Device" tab on the top of the screen to check the devices in the plant and their status.

If a microinverter in the list remains offline for an extended period (excluding the situation that the microinverter goes offline at night, which is normal), follow the troubleshooting steps below.

1. Check that the home router network is functioning properly.
2. Check that the microinverter is using the correct password to connect to the network.
   3.Determine if the signal is weak because the microinverter is too far from the router. If necessary, add a Wi-Fi extender between the microinverter and the router.

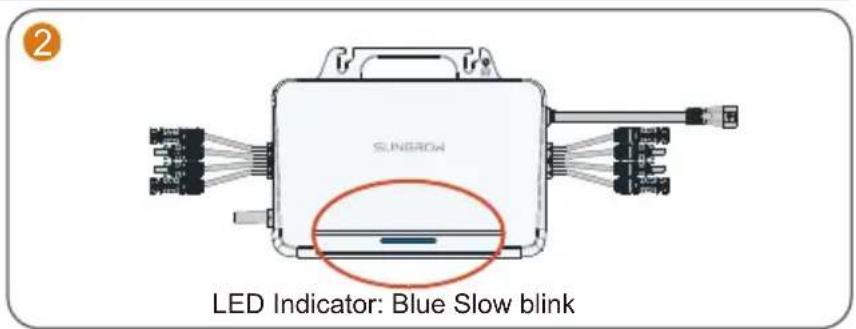

LED Indicator / Voyant DEL / LED-Anzeige / Led-indicator

Status indicator Color Status		Description
	Blue	Steady on	Running in on-grid state
		Blink slow	Standby or starting up
	Red	Steady on	Fault (inverter failure, update failed, etc.)
		Blink slow	Updating
	Grey Off		Powered off

If multiple microinverters are used, paste their QR code labels below.

For more product information, visit

http://support.sungrowpower.com/ or scan the QR code
