USER MANUAL ES-LT3N PANASONIC

Operating Instructions

(Household) Rechargeable Shaver

ES-LT5N

Model No. ES-LT3N

English....3

Français....19

Español.... 37

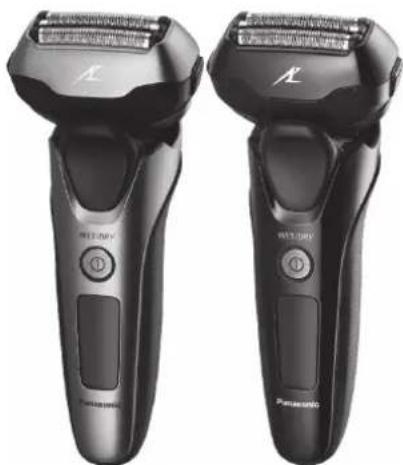

Two black electric shakers with 'HOT-DRY' branding and 'Panasonic' model, no visible text or symbols on the devices themselves.

2

ES-LT5N_3N_US.indb 2 2015/04/17 17:38:32

Panasonic®

Operating Instructions

(Household) Rechargeable Shaver

ES-LT5N

Model No. ES-LT3N

Contents

Safety precautions...... 4

Intended use 8

Parts identification....9

Operation and display of the switch

lock 9

Charging the shaver....10

Using the shaver....12

Cleaning the shaver 14

Troubleshooting 15

Battery life....17

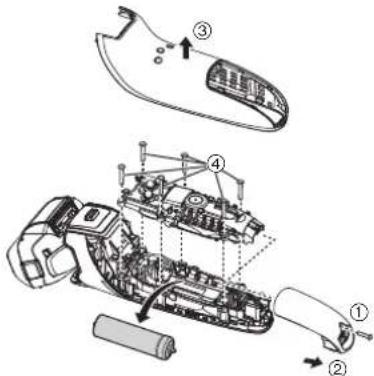

Removing the built-in rechargeable

battery....17

Specifications ......17

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
3. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
4. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

1. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.
2. Keep the cord away from heated surfaces.
3. Never drop or insert any object into any opening.
4. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
5. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.
6. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

WARNING

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand. - Doing so may cause electric shock or injury.

Do not immerse the AC adaptor and the charging stand in water or wash with water.

Do not place the AC adaptor and the charging stand over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet. Do not damage, modify, or forcibly bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

adaptor and the charging stand. Also, do not charge any other product with the supplied AC adaptor and the charging stand.

- Doing so may cause burn or fire due to a short circuit.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

WARNING

▶ In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.


- The main unit, charging stand, adaptor or cord is deformed or abnormally hot.

• The main unit, charging stand, adaptor or cord smells of burning.
• There is abnormal sound during use or charging of the main unit, charging stand, adaptor or cord.
• Immediately request inspection or repair at an authorized service center.

▶This product

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.
- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc).

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

▶ Cleaning

Always unplug the adaptor from a household outlet when cleaning.
- Failure to do so may cause electric shock or injury.

Regularly clean the power plug, the appliance plug and the charging plug to prevent dust from accumulating.

Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- Failure to do so may cause an accident or injury.

▶ Preventing accidents

Do not store within reach of children or infants. Do not let them use it.

- Putting the inner blades in the mouth may cause accidents and injury.

CAUTION

▶ Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face. Do

not apply the system outer foil directly to blemishes or injured skin.

- Doing so may cause injury to the skin.

CAUTION

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

Do not touch the blade section (metallic section) of the inner blade.

- Doing so may cause injury to your hands.

Check the system outer foil for cracks or deformations before use.

- Failure to do so may cause injury to the skin.

Be sure to place the protective cap on the shaver when carrying around or storing.

- Failure to do so may cause injury to skin or reduce the life of the system outer foil.

▶ Note the following precautions

Do not allow pins or trash to adhere to the power plug, the appliance plug or the charging plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not share your shaver with your family or other people.

- Doing so may result in infection or inflammation.

Do not drop or hit against other objects.

- Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

- Failure to do so may cause electric shock or injury.

▶ Disposing of the rechargeable battery

DANGER

The rechargeable battery is exclusively for use with this shaver. Do not use the battery with other products. Do not charge the battery after it has been removed from the product.

- Do not throw into fire or apply heat.

- Do not hit, disassemble, modify, or puncture with a nail.

- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

- Do not carry or store the battery together with metallic jewelry such as necklaces and hairpins.

- Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

- Never peel off the tube.

- Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.
  Do not rub your eyes. Wash immediately with clean water and consult a physician.
• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.
  Wash it off thoroughly with clean water and consult a physician.

Intended use

- This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

Notes

- Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

• Do not bring the system outer foil into contact with hard object. Doing so may damage the blades as they are very thin and deform easily.
• Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.
• Do not leave the shaver exposed to direct sunlight with the foil frame detached.
  Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.
• Store the shaver in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.
• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.

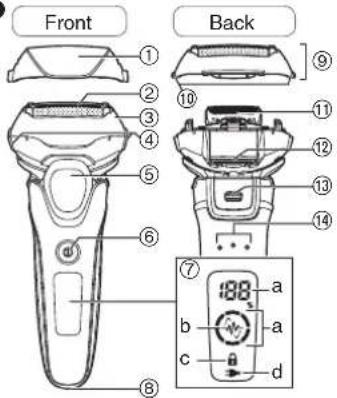

Parts identification

A

Front Back ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ a b c d 188

B

©

D

ES-LT5N

A Main body

① Protective cap
② System outer foil
③ Foil frame
④ Foil frame release buttons
⑤ Thumb rest
⑥ Power switch

To turn the shaver on and off and also lock and

unlock the power switch.

⑦ Lamp display

a. Battery capacity lamp
b. Shaving sensor lamp (50)
c. Switch lock lamp (🔒)
d. Charge status lamp (→)

⑧ Appliance socket
⑨ Outer foil section
⑩ System outer foil release buttons
⑪ Inner blades
⑫ Trimmer
⑬ Trimmer handle
⑭ Main body rear terminals

B AC adaptor (RE7-87)

⑮ Adaptor
⑯ Power plug
⑰ Cord
⑱ Appliance plug

Accessories

© Travel pouch
D Charging stand ES-LT5N
⑲ Charging plug

Operation and display of the switch lock

▶ Locking the power switch

1. Press the power switch once and then release.• The shaver starts operating.	2. Press the power switch for more than 2 seconds when the shaver is operating.• The shaver will stop operating.	3. Release the power switch.
The switch lock lamp is off.	The switch lock lamp will light up.	The switch lock lamp will turn off after 5 seconds.

▶ Unlocking the power switch

1. Press the power switch for more than 2 seconds.

Once the shaver starts operating, release the power switch.

The switch lock lamp will blink. The switch lock lamp will turn off.

• The power switch cannot be unlocked while charging.

▶ Checking the power switch is locked

Press the power switch while it is locked.

The switch lock lamp will blink and then turn off after 5 seconds.

- You can also check this by unplugging the AC adaptor while charging.

Charging the shaver

1 Insert the appliance plug into the shaver.

- Turn the shaver off before inserting.

2 Plug in the adaptor into a household outlet.

• Wipe off any water droplets on the appliance socket.
• Check that the charge status lamp (→) glows.
• Charging is completed after approx. 1 hour.
  The charging time may differ with the charging capacity.

- Charging the appliance after each use will not affect the battery life.

3 Disconnect the adaptor after charging is completed.

• Charging the battery for more than 1 hour will not affect battery performance.
• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

Note

You cannot operate the shaver while charging.

While charging After charging is completed

The charge status lamp (→ glows.

The number of the battery capacity lamp will increase as charging progresses.

The battery capacity lamp and the charge status lamp (→) will light up and then turn off after 5 seconds.

Abnormal charging

The charge status lamp (→will blink twice every second.

• Recommended ambient temperature for charging is 10 – 35 °C (50 – 95 °F). It may take longer to charge or the battery may fail to charge properly in extremely high or low temperatures. Charge the shaver within the recommended ambient temperature range.
• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp (→) may not glow for a few minutes. It will eventually glow if kept connected.
• If there is noise from radio or other source while using the shaver, move to a different location to use the shaver.

Charging with the charging stand ES-LT5N

1. Insert the appliance plug into the charging stand.
2. Place the shaver on the charging stand.
3. Plug in the adaptor into a household outlet.

Diagram of a handheld device with labeled parts and connection points

Using the shaver

1 Press the power switch.

- The power cannot be turned on when the switch lock lamp (a)blinks, as the power switch is locked. Press the power switch for more than 2 seconds to unlock. (See pages 9 and 10.)

2 Hold the shaver as illustrated.

3 Shave by slowly gliding the shaver over your face against the grain of the beard.

- Start shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

Notes

• If you press the power switch for more than 2 seconds, the sonic vibration cleaning mode is activated. (See page 14.) You cannot shave in this mode.
• Do not place your fingers on the power switch while using the shaver. This may cause the shaver to lock the power switch or turn off. Place your fingers on the thumb rest while using the shaver.

• The appliance may not operate in an ambient temperature approximately 5 °C (41 °F) or lower.

• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

• The shaving sensor may not respond depending on the type of the shaving gel and shaving foam, but this is normal.
• The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
• Avoid the following situations to prevent damaging the system outer foil. Applying pressure to any part of the system outer foil or bringing the system outer foil into contact with hard object may cause damage on the system outer foil.
• Shaving with only a part of the system outer foil.
• Finger or nail coming into contact with the system outer foil.

▶ Switching the shaver head

You can change the pivot action.

FREE

You can move the shaver head.

LOCK

You can lock the shaver head.

▶ Using the trimmer

Slide the trimmer handle up to the "mm position so that the trimmer stands upright.

Press and hold the lock release button (®) and slide the trimmer handle down to lower the trimmer.

Trimming sideburns

Slide the trimmer handle up. Turn the shaver on and place at a right angle to your skin and move downwards to trim your sideburns.

Pre-shave

The trimmer can be used for a pre-shave of long beards. Shave your beard with the shaver head after the pre-shave.

Illustration of a person's face with a magnified inset showing a tool interacting with another (no text or symbols)

Reading lamps when using

While using

Approximate amount of battery capacity is displayed.

- It will turn off approximately 5 seconds after operating the power switch.

• The shaving sensor lamp (c) glows.

When the battery capacity is low

"10%" appears and "blinks.

• You can shave 2 to 3 times after "10%" appears. (This will differ depending on usage.)
• The shaver can be used for approximately 2 weeks with a full charge.
  (Based on one 3-minute dry-shave use per day until the battery is exhausted)
• The number of usable days varies depending on the following conditions.
• Beard thickness
• Pressure applied to the skin
• Ambient temperature
• Usage frequency of the sonic vibration cleaning mode

Cleaning the shaver

English

Do not use kitchen, bathroom, or toilet detergents. Also, do not wipe with thinners, benzine, alcohol etc. Doing so may result in malfunction.

1. Turn the power switch OFF, and disconnect the AC adaptor.
2. Unlock the switch lock.
3. Apply some hand soap and some water to the system outer foil.
4. Press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode.

• The battery capacity lamps blink in order.

• After about 20 seconds, it will be automatically turned off.

1. Remove the outer foil section and press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode.
2. Clean the shaver, the outer foil section, and the trimmer with running water. • After rinsing with water, shake the shaver up and down for a few times to remove excess moisture. Hitting the vanity, etc., while shaking the shaver may cause malfunction.
3. Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
4. Wipe off any drops of water with a dry cloth.

Illustration showing four different steps of a medical or laboratory procedure: intact, using a device, performing a test, and holding a tool.

1. Dry the outer foil section, the shaver, and the trimmer completely.

1. Attach the outer foil section to the shaver.

Replacing the system outer foil and the inner blades

system outer foil once every year

inner blades once every two years

▶Removing the outer foil section

Press the foil frame release buttons and lift the outer foil section upwards.

▶ Attaching the outer foil section

After turning the foil frame mark ( ) to the front, securely attach the outer foil section to the shaver until it clicks.

▶ Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.
2. Align the foil frame mark ( ) and the system outer foil mark (△) and securely attach together until it clicks.

• The system outer foil cannot be reversely attached.

• Always insert the system outer foil to the foil frame when attaching to the shaver.
• Do not press the system outer foil release buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

▶ Replacing the inner blades

1. Remove the inner blades one at a time.
2. Insert the inner blades one at a time.

▶ Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-LT5N/ES-LT3N	System outer foil and inner blades	WES9015
	System outer foil WES9089
	Inner blades WES9068

Troubleshooting

Perform the following actions.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Problem Action

The power switch does not turn ON.	► Unlock the switch lock.(See pages 9 and 10.)
Shavings fly out in all directions.	► This can be improved by cleaning every time after shaving.
System outer foil gets hot.	► Replace the system outer foil if it is damaged or deformed.(See this page.)
Operating time is short even after charging.	► When the number of operations per charge starts to decrease, the battery is nearing the end of its life.
The odor is getting stronger.	► This can be improved by cleaning every time after shaving.
The driving sound changes while shaving.	► While the shaving sensor lamp glows, the shaving sensor is operating. The sound changes depending on the beard thickness.

Problem Action		Problem Action
You do not get as close a shave as before.	This can be improved by cleaning every time after shaving.Replace the system outer foil and/or inner blades.Expected life of system outer foil and inner blades:System outer foil:Approximately 1 yearInner blades:Approximately 2 years	The shaving sensor does not respond.	Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change.This is not abnormal.The shaving sensor may not respond depending on the type of the shaving gel and shaving foam, but this is normal.The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
Shaver stopped functioning even after charging.	The appliance may not operate in an ambient temperature approximately 5^ ( 41^ ) or lower.The battery has reached the end of its life.
Makes a loud sound.	The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem.Confirm that the blades are properly attached.	The shaving sensor responds even though the shaver is not in contact with the skin.	Clean the beard trimmings from the shaver.When the shaver is extremely dirty, remove the foil frame and wash with water. (See page 14.)Replace the system outer foil and/or inner blades.Expected life of system outer foil and inner blades:System outer foil:Approximately 1 yearInner blades:Approximately 2 years

FAQ

Question Answer

Will the battery deteriorate if not used for an extended period of time?

Can I charge the shaver after every use?

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.

The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers.

Removing the built-in rechargeable battery

ATTENTION:

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing of the shaver.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

- Remove the shaver from the AC adaptor.

• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ^1 to ④ and lift the battery, and then remove it.
  • Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Technical diagram of a mechanical device with numbered components and exploded view

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Personal Care & Beauty Care Products

FOR USA AND PUERTO RICO ONLY

30-Day Quality

Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Panasonic®

Mode d'emploi

▶ Prévention des accidents

Diagram showing a device with labeled parts and a circular component, likely illustrating a manual or electrical setup.

Français

Illustration showing a hand holding a tool with an arrow indicating direction, alongside a close-up of a person's face with a tool.

Français

Technical diagram of a mechanical device with numbered components and exploded view

Diagram showing a device with labeled parts: a remote control, cable, and a switch, with numbered annotations.

Illustration of a person applying a tool to their face, with an inset showing the same tool (no text or symbols present)

Illustration showing four-step mechanical or electrical process steps with arrows indicating direction of movement.

Technical diagram of a mechanical assembly with numbered components and labeled parts

Especificaciones

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC:

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

EN MEXICO CONTACTE CON:

Panama, Republic of Panama

[phone]

Service • Assistance • Accessories

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

http://www.panasonic.com

⑤ EN, CA, ES

ES-LT5N_3N_US.indb 56 2015/04/17 17:38:44

Printed in Japan

Imprimé au Japon

Impreso en Japón

ES9700LT5N1A Y0515-0
