USER MANUAL HT306SF LG

@ LG Life's Good H2S1N3q SIVONVEA SONVIHIGAN OWNER'S MANUAL DVD Home Theater System Please read this manual carefully before operating your set and retain it for future reference F1 _ Ce HT306SF (HT306SF, SH36SF-S, SH36SU-W)

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

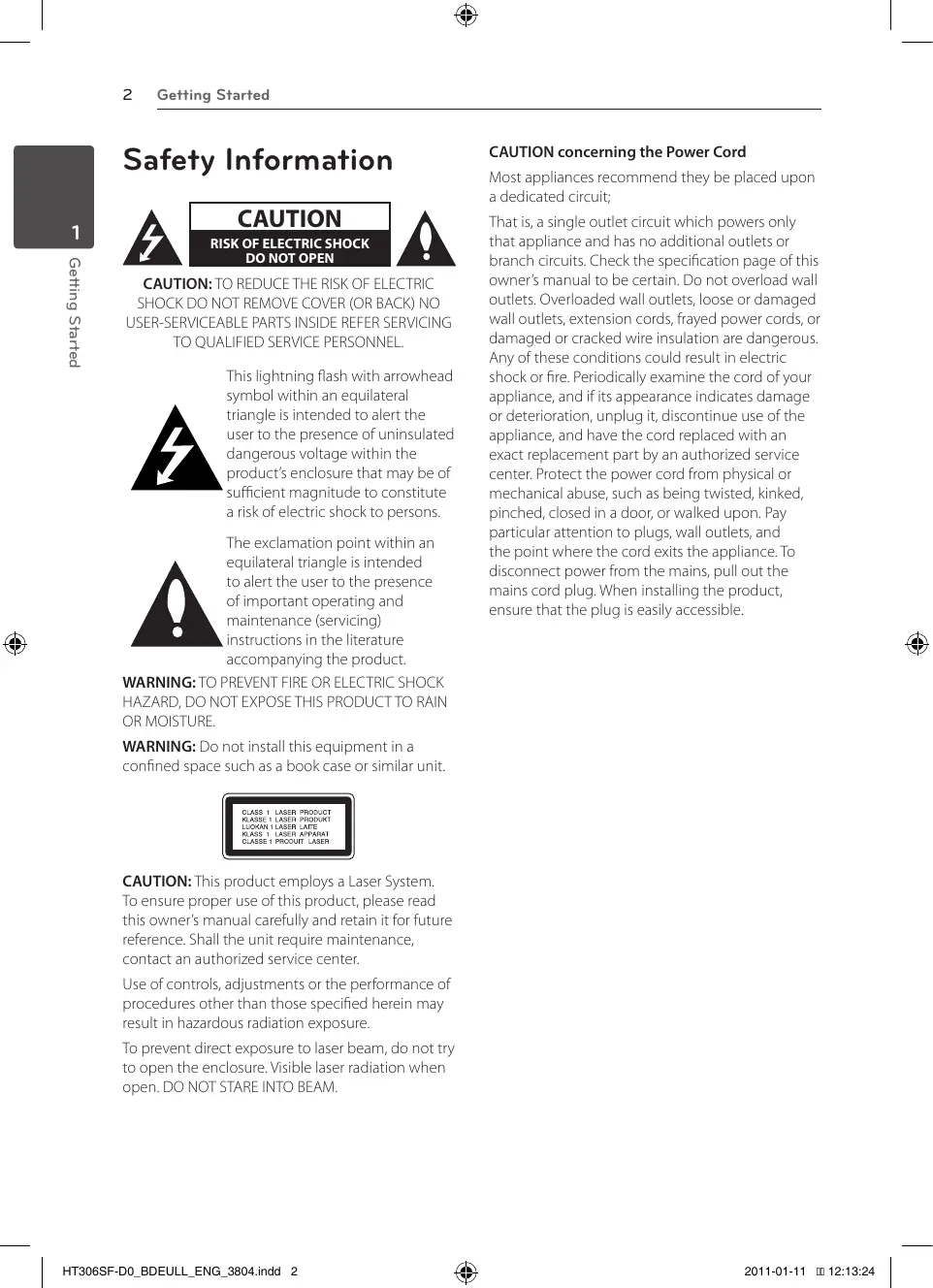

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in à

confined space such as a book case or similar unit. CAUTION: This product employs a Laser System: To ensure proper use of this product, please read this owners manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; Thatis, a single outlet circuit which powers only. that appliance and has no additional outlets or branch circuits. Check the specification page of this owners manual to be certain. Do not overload wall outlets, Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous Any ofthese conditions could result in electric shock or fre. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product ensure that the plug is easily accessible 2011-01-11 m 12:13:24

Getting Started 3 This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. lt is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fre or the like. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquid, such as vases, shall be placed on the apparatus. Copyrights I is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by US. patents and other intellectual property rights. Use ofthis copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited

COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN

DEFINITION OUTPUT. IF THERE ARE QUESTIONS

REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. You have to set the disc format option to [Mastered] in order to make the dises compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. HT306SF-D0_BDEULL ENG 3804indd 3 (Mastered/ Live File System : Disc format system for Windows Vista) Disposal of your old appliance LL |

2. Allelectrical and electronic products

should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the govermment or the local authorities. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

3. The correct disposal of your

old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about

disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product LG Electronics hereby declares that this/ these products) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC. European representative

T7 - About the © Symbol Display 7 Symbol Used in this Manual

8 - Playable file Requirement

10 Front panel 11 Rear panel 12 Remote control 2 Connecting 13 Connecting the speakers 13 Attaching the speakers to the unit

13 - Positioning the System

14 Connections to Your TV

16 - SCART Connection

16 Optional Equipment Connection

16 - AUX IN Connection

18 - OSD Initial language settings -

24 - Selecting a subtitle language

24 - 1.5 times speed playback

25 - Starting play from selected time

25 - Last Scene Memory

25 - Changing the character set to display

26 - Viewing a PHOTO file

26 - Viewing photo files as a slide show

26 - Listening to music during slide show

27 - Displaying file information

(D3 TAG ) 27 Radio Operations

27 - Listening to the Radio

28 - Presetting the Radio Stations

28 - Deleting all the saved stations

28 - Improving poor FM reception

28 - Seeing information about a radio

station 29 Sound adjustment

29 - Setting the surround mode

30 Advanced Operations

30 - Listening to music from your portable

player or external device

30 - Recording to USB

6 Getting Started Unique Features USB Direct Recording Records music from CD to your USB device. Full HD up-scaling Views Full HD picture quality with simple setup peues 6uyeo EM HT306SF-D0_BDEULL ENG 3804indd 6 Accessories Please check and identify the supplied accessories.

Getting Started 7 Introduction Playable Discs This unit plays DVD+R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA and/or JPEG files. Some DVD+RW/DVD+R or CD-RW/ CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics ofthe recording device and authoring software. DVD-VIDEO (8 cm / 12 cm disc) Discs such as movies that can be purchased or rented DVD+R (8 cm / 12 cm disc) + Video mode and finalized only. DVD-RW (8 cm / 12 cm disc) "Video mode and finalized ont. DVD VR format that have been finalized can not be played in this unit DVD+R: Video mode only. Supports the double layer disc also DVD+RW (8 cm / 12 cm disc) Video mode and finalized only. Audio CD: Music CDs or CD-R/CD- RW in music CD format that can be purchased About the © Symbol Display

• © “may appear on your TV display during operation and indicates that the function explained in this owner manual is not available on that disc. HT306SF-D0_BDEULL ENG 3804indd 7 Manual Symbol Used in t DVD-Video, DVD+R/RW in Video mode or VR mode and finalized Audio CDs Video files contained in the USB/Disc Audio files contained in the USB/Disc Photo files © \cte Indicates special notes and operating features. CN Caution Indicates cautions for preventing possible damages from abuse Regional Codes This unit has a regional code printed on the rear of the unit, This unit can play only DVD discs labeled same as the rear of the unit or’ALL' + Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit regional code; or the disc cannot play. +_fyou try to play a DVD with a different regional code from your unit, the message "Check Regional Code’ appears on the TV screen: peuers Suueo [A 2011-01-11 m12:13:25

peues 6uyeo EM HT306SF-D0_BDEULL ENG 3804indd 8 8 Getting Started Playable file Requirement MP3/ WMA music file requirement MP3/ WMA file compatibility with this unit is limited as follows Sampling frequency : within 32 kHz to 48 kHz (MP3), within 32 kHz to 48 kHz (WMA) Bit rate : within 32 kbps to 320 kbps (MP3), 40 kbps to 192 kbps (WMA) Support Version : v2, v7, v8, v9 Maximum files : Under 999 File extensions :‘mp3"/‘wma CD-ROM ile format : 1$09660/ JOLIET We recommend that you use Easy-CD Creator, which creates an 1509660 file system. Photo file requirement JPEG disc compatibility with this unit is limited as follows Max pixel in width : 2 760 x 2 048 pixel Maximum files : Under 999 Some discs may not operate due to a different recording format or the condition of disc. File extensions: "jpg" CD-ROM ile format : 1$09660/ JOLIET Compatible USB Devices +" MP3 Player: Flash type MP3 player. +_ USB Flash Drive : Devices that support USB2.0 or USB1.1 +_ The USB function of this unit does not support some USB devices. USB device requirement + Devices which require additional program installation connected to a computer, are not supported Do not extract the USB device while in operation: For a large capacity USB, it may take longer than à few minute to be searched To prevent data loss, back up all data If you use a USB extension cable or USB hub, the USB device is not recognized Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.) This unit is not supported when the total number of files is 1 000 or more. External HDD, Card readers, Locked devices, or hard type USB devices are not supported USB port ofthe unit cannot be connected to PC. The unit can not be used as a storage device 2011-01-11 m12:13:25

Getting Started 9 DivX file requirement DivX file compatibility with this unit is limited as follows Available resolution: within 720 x 576 (W x H) pixels. The file name of the DivX subtitie should be entered within 45 characters. Ithere is impossible code to express in the DivX fie, it may be displayed as" _* mark on the display. poneys Suyoo [BR Frame rate : less than 30 fps. IFthe video and audio structure of recorded files is not interleaved, either video or audio is outputted Playable DivX file :’avi,‘mpg' ‘mpeg! “divx” Playable Subtitle format : SubRip (*.srt/ *.bct), SAMI (*.smi), SubStation Alpha (*.ssa/ *xt), MicroDVD (*sub/ *txt), SubViewer 2.0 (*.sub/ *bxt), Vobsub (*sub) Playable Codec format :“DIVX3.2x1 "DIVX 40e “DIVX520c! "MPAV3" VX" Playable Audio format :‘AC3! "PCM! "MP3" "WMA" Sampling frequency : within 32 kHz to 48 kHz (MP3), within 32 kHz to 48 kHz (WMA) Bit rate : within 32 kbps to 320 kbps (MP3), 40 kbps to 192 kbps (WMA) For Discs formatted in Live flle system, you can notit on this unit. Ithe name of movie file is different from that of the subtitle file, during playback of a DivX file, subtitle may not be display. If you pley a DivX fill different from the DivXspec, it may not operate normally. HT306SF-D0_BDEULL_ENG_3804.indd 9 & 2011-01-11 m121325

10 Getting Started Front panel GEL

20/00 Disc Drawer 058 port Display window You can play video, image and sound files by connecting the USB device. Open/Close (&) a : A P0RT (Portable) IN port Function You can enjoy music from portable device on Selects the function or input source: your unit Play/Pause (b/I1) Play/Pause (D/1) Æ Volume (VOL) Ge m Power (/1) TUNING (/4)(4/ BB), SKIP/SCAN (+) You can search chapter/ track/file by pressing and holding 4/2»> HT306SF-D0_BDEULL_ENG_3804.indd 10 a 2011-01-11 ID 12:13:25

Getting Started 11 Rear panel El Poner cord Speaker terminal ANTENNA connector (FM) SCART connector E MONITOR (VIDEO OUT) connector Connect to a TV with video inputs HT306SF-D0_BDEULL ENG 3804indd 11 Bi AUX (LR) INPUT connector HDMI OUT connector EI COMPONENT VIDEO (PROGRESSIVE SCAN) OUTPUT (Y Ps Pr) Connect to a TV with Y P8 Pà inputs. peuers Suueo [A 2011-01-11 m12:13:25

peues 6uyeo EM 12 Getting Started Remote control Remove the battery cover on the rear of the Remote Control, and insert one (size AAA) battery with © and @ matched correctly FUNCTION : Selects the function and input source SLEEP : Sets the system to turn off automatically at a specified time. {Dimmer :The display window will be darken by half) HT306SF-D0_BDEULL ENG 3804.indd 12 POWER : Switches the unit ON or OFF. OPEN/CLOSE : Opens and closes the disc Drawer. TITLE : Ifthe current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear. DISPLAY : Accesses On-Screen Display. MENU : Accesses the menu on a DVD disc. SETUP : Accesses or removes setup menu PRESET (A V): Selects programme of Radio. TUN. (-/+) : Tunes in the desire radio station. AIV/</> (up/down/ left/ right): Used to navigate on-screen displays. ENTER (©) : Acknowledges menu selection RETURN (8°) : Moves backwards in the menu or exits the setup menu REC (@) : USB Direct Recording. STOP (M): Stops playback or recording. PLAY (), MO./ST. : Starts playback Selects Mono/ Stereo. PAUSE/STEP (Il) : Pauses playback SKIP (HA / 1) : Goes to next or previous chapter/ track file. SCAN (-44@/p>) : Searches backward or forward. REPEAT/RANDOM : Selects à play mode (Random, repeat) MUTE : Mutes the sound

VOL (Volume) (+/-) : Adjusts speaker volume. LG EQ (P): Selects a Natural or Local Specialization equalizer effect by using LG EQ. EQ D (EQUALIZER effect) : Chooses sound impressions. CLEAR : Removes a track number on the Program List. SUBTITLE : During playback, press SUBTITLE repeatedhy to select a desired subtitle language Oto 9 numerical buttons : Selects numbered options in a menu. TV Control buttons : Controls the TV.(LGTV onby) -_ You can control the sound level, input source, and power switching of LG Ts as well Hold POWER (TV) and press PR/CH (+/—) button repeatedly until the TV turns on or off. PROG./MEMO. : Accesses or removes Program menu. %: This button is not available. RESOLUTION : Sets the output resolution for HDMI and COMPONENT VIDEO OUT jacks. RDS : Radio Data System PTY : Views the various displays of the RDS. 2011-01-11 m 12:13:26

Connecting 13 Connecting the speakers Attaching the speakers to the unit To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad Connect the black stripe of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus) Speaker connection (N Caution +_ Be careful to make sure children not to put their hands or any objects into the “speaker duct “Speaker duct: À hole for plentiful bass sound on speaker cabinet (enclosure) The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor. HT306SF-D0_BDEULL ENG 3804indd 13 Positioning the System The following illustration shows an example of positioning the system. Note that the illustrations in these instructions differ from the actual unit for explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (@). Speaker Positioning ® Front left speaker (L)/® Front right speaker (R) Place the front speakers to the sides ofthe monitor or screen and as flush with the screen surface as possible © Center speaker: Place the center speaker above or below the monitor or screen. © Surround left speaker (L/ © Surround right speaker (R}: Place these speakers behind your listening position, facing slightiy inwards. © Subwoofer: The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But iis better to place the subwoofer near the front speakers. Turn it slightiy toward the center ofthe room to reduce the wall reflections. @Unit Suysouuos [AR 2011-01-11 m12:13:27

Make one of the following connections, depending on the capabilities of your existing equipment. Q Note + Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player Use only one of the connections described in this manual. Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections. LÀ Caution (. Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel +_ Do not connect your player via your VCR. The image could be distorted by the copy protection system. HT306SF-D0_BDEULL ENG 3804indd 14 HDMI OUT Connection If you have a HDMI TV or monitor, you can connect itto this player using a HDMI cable (Type A, High Speed HDMI" Cable). Connect the HDMI OUT jack on the player to the HDMI IN jack on à HDMI compatible TV or monitor. Set the TV source to HDMI (refer to TV Owner's manual). 2011-01-11 m12:13:27

Connecting 15 Resolution Setting Component Video Connection You can change the resolution for component Connect the COMPONENT VIDEO (PROGRESSIVE video and HDMI output. SCAN) OUTPUT jacks on the unit to the Press RESOLUTION repeatedly to select the desired Corfesponding input jacks on the TV using Y Pa PR resolution - 480i (or 576i), 480p (or 576p), 720p, cables. 1080, 1080p. You can hearthe sound through the systems The resolution may not be selected depending on speakers. the connection or TV. Depending on your TV, some ofthe resolution settings may result in the picture disappearing or an abnormal picture appearing. In this case, press RESOLUTION repeatediy until the picture re- appears. You can set 1080p video resolution to enjoy Full HD picture quality. (Full HD up-scaling) —@ Note + Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again. When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, checkthe HDMI connection, or disconnect the HDMI cable. Suysouuos [AR Ithere is noise or lines on the screen, please check the HDMI cable (High Speed HDMI" Cable) +_ When you use HDMI connection, you can change the resolution for the HDMI output Press RESOLUTION repeatedly to select the desired resolution - 480i (or 576), 480p {or 576p), 720p, 1080i, 1080p. HT306SF-D0_BDEULL_ENG_3804indd 15 & 2011-01-11 m1213:27

Guyseuuo 16 Connecting Video Connection Connect the MONITOR jack on the unit to the video in jack on the TV using a video cable You can hear the sound through the systems speakers SCART Connection Connect the SCART jack on the unit to the SCART in jack on the TV using a video cable. You can hear the sound through the systems speakers HT306SF-D0_BDEULL ENG 3804.indd 16 Optional Equipment Connection AUX IN Connection Connect an Output of auxiliary device to the AUX {L/R) INPUT Connector. (your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit. 2011-01-11 m12:13:28

Connecting 17 PORT.(Portable) IN Antenna Connection onnection ‘onnect the supplied FM antenna for listening to C c hi lied FM for li g Connect an OUTPUT of partable device (MP3 or ne radio PMP etc) ta the PORT. IN connector. Connect the FM Wire antenna to the FM antenna connector. MP3 player, etc. Suysouuos [AR USB Connection Connect the USB port ofUSB Memory (or MP3 player, etc) to the USB port on the front of the unit. C1] Note Be sure to fully extend the FM wire antenne. After connecting the FM wire antenna, keep it as horizontal as possible Removing the USB Device from the unit

1. Choose a different function mode or

press STOP (IN) twice in à row.

2. Remove the USB device from the unit.

18 System Setting Adjust the Setup To display and exit the Setup settings Menu

1. Select the DVD/CD or USB function by pressing

FUNCTION By using the Setup menu, you can make various adjustments to items such as picture and sound 2. Press SETUP. Displays the [Setup] Menu

3. Press SETUP or RETURN to exit in the [Setup]

Menu. You can also set a language for the subtities and the Setup menu, among other things. For details on each Setup menu item, see pages 18 to 22 About help menu for Setup OSD Initial language settings Menu | Buttons Grerates - Optional A/Y Moving to another During the first use of this unit, the initial language M AV menu. 3 setup menu appears on your TV screen. You must ve complete initial language selection before using « Moving to previous % theunit English will be selected as the initial < level $ language Prev. ÿ 1. Press POWER to tum the unit on. The language > 5 Moving to next level Es setup menu will appear on the screen. Select or selecting menu

ENTER. The confirm menu will appear.

System Setting 19 LANGUAGE Menu Language Select à language for the Setup menu and then on screen display. Disc Audio / Disc Subtitle / Disc Menu Select the language you prefer for the audio track (disc audio), subtiles, and the disc menu DISPLAY TV Aspect Select which screen aspect to use based on the shape of your TV screen. [4:3] Select when a standard 43 TV is connected: [16:9] Select when a 169 wide TVis connected, [Original] Refers to the original language in which the disc was recorded! [Other] To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 34. If you enter the wrong language code, press CLEAR [Off (for Disc Subtitle)] Turn off Subtitle HT306SF-D0_BDEULL ENG 3804indd 19 Display Mode The Display Mode setting works only when the TV Aspect mode is set to 43 [Letterbox] Displays a wide picture with bands on the upper and lower portions of the screen. [Panscan] Automätically displays the wide picture on the entire screen and cuts off the portions that do not ft. (the disc/fle is not compatible with Pan Scan, the picture is displayed at Letterbox ratio) TV Output Select Select an option according to the TV connection type. [RGB] When your TV is connected with the SCART jack [YP&Pr] When your TV is connected with the COMPONENT/ PROGRESSIVE SCAN jacks on the unit © Note If you change TV Output Select to RGB from YPbPr on the setup menu especially when connecting the unit in the way of component video connection, the screen turns black. In that case, connect the video cable to MONITOR jack and select YPbPr on the setup menu again. Suyes wasts PM 2011-01-11 m12:13:28

20 System Setting AUDIO [Speaker] Select a speaker that you want to adjust. © Note Certain speaker settings are prohibited by the Dolby Digital licensing agreement. 51 Speaker Setup Make the following settings for the built-in 5.1 channel surrounds decoder.

3. Use AV to select [5.1 Speaker setup] menu Since the speaker settings are fixed, you cannot

and then press > change the settings.

res [Volume] The (5.1 Speaker setup] appears. Press > to adjust the output level of the selected speaker. [Distance] lee

& CONCEE c After you connected speakers to your unit, 3 CCE | + © set the Distance between the speakers and gp jen 7 your listening point ifthe distance of Center 5 — or Rear speakers is bigger than the distance ä of Front speakers. This allows the sound from

5. Use <> to select the desired speaker. each speaker to reach the listener at the same

6. Adjust options using A V<> buttons. time. Press <> to adjust the Distance of the

selected speaker This distance is equivalent to à difference of the distance between Center or Rear speaker and Front speakers.

7. Press RETURN to confirm your selection. Return

to the previous menu [Test] Press <> to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system HT306SF-D0_BDEULL_ENG_3804indd 20 & 2011-01-11 m121328

System Setting 21 DRC (Dynamic Range Control) Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect Vocal Select [On] to mix karaoke channels into normal stereo. This function is effective for multi-channel karaoke DVDs only. HD AV Sync Sometimes Digital TV encounters à delay between picture and sound. this happens you can compensate by setting a delay on the sound so that it effectivelywaits for the picture to arrive: this is called HD AV Sync. Use À V_ (on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec. HT306SF-D0_BDEULL ENG 3804indd 21 LOCK (Parental Control) Initial Setting of the Area Code: When you use this unit for the first time, you have to set the Area Code.

To access the [Lock] options, you must input the password you have created. Input a password and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR

3. Select the first character using A V buttons.

4. Press ENTER and select the second character

5. Press ENTER to confirm your Area code

selection. Rating Blocks playback of rated DVDs based on their contents. Not all discs are rated.

1. Select [Rating] on the [Lock menu then press

2. Input a password and press ENTER.

3. Select a rating from 1 to 8 using the A V

buttons. [Rating 1-8] Rating one (1) has the most restrictions and rating eight (8) is the least restrictive [Unlock] you select unlock, parental control is not active and the disc plays in full

4. Press ENTER to confirm your rating selection.

1. Select [Password] on the [Lock] menu and then

press >. Input a password and press ENTER. To change the password, press ENTER when the [Change] option is highlighted. Input à password and press ENTER. Enter it again and press ENTER to verify. Press SETUP to exit the menu. © Note If you forget your password, you can clear it using the following steps:

press ENTER. The password is clearedl Area Code Enter the code ofthe area whose standards were used to rate the DVD video disc, based on the list on page 33.

3. Select the first character using À V buttons.

4. Press ENTER and select the second character

5. Press ENTER to confirm your Area code

selection. OTHERS DivX(R) VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified” device that plays DivX video. Visit www divxcom for more information and software tools to convert your filles into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod divxcom for more information on how to complete your registration. [Register] Displays the registration code of your unit. [Deregister] Deactivate your unit and display the deactivation code © \cte Allthe downloaded videos from Divx VOD can only be played back on this unit. 2011-01-11 m12:13:28

1. Insert the disc by pressing OPEN/CLOSE or Stop Pesu

connect the USB device to the USB port. Playback Press

2. Select the DVD/ CD or USB function by pressing Pause Press H

3. Select a file (or track/ title) you want to play by Frame-by-Frame | Press I repeatediy to play

pressing AV<> playback | title Frame-by-Frame. During playback, press or 1 to go to the next Skipping to the | chapter/ track ar to return to © Note When playing a disc or USB Flash Drive containing with DivX, MP3/ WMA and JPEG files together, you can select menu of files next/ previous | the beginning of the current which you would like to play by pressing chapter/ track/ | chapter/ track MENU). If “This file has non-supported type file Press Hé twice briefly to step on the unit'pops up, select an appropriate file back to the previous chapter/ by pressing MENU track. Locating a | During playback, press or point quickly by | We repeatedly to select the playing a file in | required scan speed 4 fast forward or | To return to normal speed, fastreverse | press PLAY. ? Press REPEAT/RANDOM É repeatedly, and the current a Playing | title, chapter ortrack wi be repeatedly or | played back repeatedly or randomiy | random, - Random play mode : only music files. In the pause mode, press Slowing down | SCAN (44 or >) to the playing _ | select the required speed speed {The reverse playback is not supported on Divx files.) HT306SF-D0_BDEULL_ENG_3804indd 23 & 2011-01-11 m121328

Suyessdo 24 Operating Other Operations Displaying Disc Information on-screen You can display various information about the disc loaded on-screen

1. Press DISPLAY to show various playback

information. The displayed items differ depending on the disc type or playing status.

2. You can select an item by pressing À V and

change or select the setting by pressing <>. Title - Current title number/ total number of titles. Chapter - Current chapter number/total number of chapters. Time - Elapsed playing time Audio - Selected audio language or channel Subtitle - Selected subtile. Angle - Selected angle/total number of angles. Sound - Selected sound mode © \cte If any button is not pressed for a few seconds, the onscreen display disappears. HT306SF-D0_BDEULL ENG 3804indd 24 To display the DVD Menu Duo] When you play a DVD which contains several menus, you can select the menu you want using the menu

The disc's menu appears.

2. Selectthe menu by using AV<>

3. Press PLAY to confirm.

To display the DVD Title Duo] When you play a DVD which contains several titles, you can select the title you want using the menu

The disc title appears.

2. Select the menu by pressing

3. Press PLAY to confirm.

Selecting a subtitle language LovD [MOVIE] During playback, press SUBTITLE( C2) repeatediy to select a desired subtitle language.

1.5 times speed playback

Duo] The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.

1. During playback, press PLAY() to play at 1.5

times speed."BX1.5" appears on the screen.

2. Press PLAY(B) again to exit.

Operating 25 Starting play from selected time LovD [MOVIE] To start playing at any chosen time on the file or title. Press DISPLAY during playback.

2. Press A V to select the time clock icon and

‘ appears. 3._ Input the required start time in hours, minutes, and seconds from left to right. f you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter“11020" by using numerical buttons.

4. Press ENTER to confirm. Playback starts from

the selected time. Last Scene Memory This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off (Stand-by mode) the unit. If you load à disc that has the scene memorized, the scene is automatically recalled! Changing the character set to display DivX° subtitle correctly [MOVIE] Ifthe subtitle does not display properly during playback press and hold SUBTITLE for about 3 seconds then press <> or SUBTITLE to select another language code until the subtitle is displayed properly and then press ENTER HT306SF-D0_BDEULL ENG 3804indd 25 Programmed Playback

The program function enables you to store your favourite files from any disc or USB device A program can contain 30 tracks/ files.

1. Select the DVD/CD or USB function by pressing

PROG./MEMO. to enter the program edit mode (@ mark appears on the menu)

3. Select a desired music on the [List] by using the

AV then press ENTER to add the music to the program list

4. Select music from the program list then press

ENTER to start programmed playback

5. Press PROG./MEMO. to exit the program edit

mode (@ mark disappears on the menu) Erasing a file from Program List

1. Press PROG./MEMO. to enter the program edit

mode (@ mark appears on the menu)

2. Use A V to select the track that you wish to

erase from the Program list.

Erasing the Complete Program List Use À V <> to select [Clear All] then press ENTER. @ \ote The programs are also cleared when the disc or USB device is removed, the unit is switched to power off or the function is switched to others. Suxeiedo [EN 2011-01-11 m12:13:29

Suyessdo 26 Operating Viewing a PHOTO file This unit can play discs with photo files.

ENTER Alistoffiles in the folder appears. Ifyou are in a file list and want to return to the previous folder list, usethe À V. buttons on the remote to highlight£=,.and press ENTER

3. Ifyou want to view a particular file, press À V

tohighlight a file and press ENTER or PLAY. While viewing a file, you can press STOP to move to the previous menu (JPEG menu) Viewing photo files as a slide show PHOTO

<> when (4 icon is highlighted. About help menu for slide show Menu Buttons Operation A/Y Rotating the 90° / 4/90" AMV picture LAS <> Moving to Prev./ Next another file ES Closing the slide Close RETURN | show © Hiding the help Hide ENTER | en HT306SF-D0_BDEULL ENG 3804indd 26 Listening to music during slide show PHOTO You can listen to music during slide shows ifthe disc contain music and photo files together. Use AV<> tohighlight (MF) icon then press ENTER to start slide show © \cte (rsfnen is available only in disc. Sleep Timer Setting Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn off. To check the remaining time, press SLEEP. To cancel the sleep function, press SLEEP repeatedly until"SLEEP 10° appears, and then press SLEEP once again while"SLEEP 10'is displayed. @ \ote You can check the remaining time before the unit turns off. Dimmer Press SLEEP once. The display window will be darken by half To cancel it, press SLEEP repeatedly until dimmer gets off. 2011-01-11 m12:13:29

Operating 27 Turn off the sound temporarily Radio Operations Press MUTE to mute your unit You can mute your unit for example, to answer Be sure that both FM aerials are connected. (Refer the telephone, the*MUTE" displayed in the display tothe page 17) window. Listening to the Radio Screen Saver 1. Press FUNCTION until FM appears in the display The screen saver appears when you leave the unit window. in stop mode for about five minutes. The last received station is tuned in.

2. Press and hold TUN.(-/+) for about two seconds

System Select - Optional until the frequency indication starts to change, then release. Scanning stops when the unit You must select the appropriate system mode for tunes in a station. your TV system. IFNO DISC" appears in the display window, press and hold PAUSE/STEP () for more than five seconds to select a system. Press TUN.(-/+) repeatedily.

3. Adjust the volume by rotating VOL on the front

panel or by pressing VOL + or - on the remote control repeatedly.

Displaying file information (ID3 TAG) While playing an MP3 file containing file information, you can display the information by pressing DISPLAY. Suxeiedo [EN

Suyessdo 28 Operating Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure that you have tumed down the volume.

1. Press FUNCTION until FM appears in the display

2. Select the desired frequency by using TUN.

in the display window.

5. Press PROG./MEMO.

The station is stored

6. Repeat the steps 2 to 5 to store other stations.

Deleting all the saved stations

1. Press and hold PROG./MEMO. for twro seconds.

ERASE ALL will flash up on the unit display.

2. Press PROG./MEMO. to erase all of the saved

radio stations. Improving poor FM reception Press PLAY (>) (MO/ST) on the remote control. This will change the tuner from stereo to mono and usually improve the reception. HT306SF-D0_BDEULL ENG 3804indd 28 Seeing information about a radio station The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types. PS (Programme Service Name) The name of the channel will appear in the display. PTY_ (Programme Type Recognition) The programme type (e.g. Jazz or News) will appear in the display. RT (Radio Text) À text message contains special information from the broadcast station. This text may scroll across the display. CT (Time controlled by the channel) This shows the time and date as broadcast by the station. You can search the radio stations by programme type by pressing RDS. The display will show the last PTY in use. Press PTY one or more times to select your preferred programme type. Press and hold <>. The tuner will search automatically. When à station is found the search wi stop. 2011-01-11 m12:13:29

Operating 29 Sound adjustment @ te +_ In some ofsurround modes, on some . speakers there no sound or low sound.it, Setting the surround mode depends on the mode of surround and the source of audio, it is not defective. This system has à number of pre-set surround sound fields. You can select a desired sound mode You may need to reset the surround mode, by using EQ/ LG EQ. You can change the EQ/ LG after switching the input, sometimes even EQ using <> arrow key while the EQ/ LG EQ afterthe sound track changed information is displayed on. The displayed items for the Equalizer may be different depending on sound sources and effects. On Display Description You can enjoy the natural NAT PLUS sound effect same as à 5.1-channel. You can enjoy comfortable NATURAL | nd natural sound Regionally optimized 4 sound effect. (DANGDUT/ Le] Local 3

Specialization Es REGUETON/ MERENGUE/ 5 equalizer a

AFRO) Realizes the sound equalizer that is the most similar to the AUTOEQ | Genre ofwhich is included in the MP3 ID3 tag of song files. 20 This program lends an enthusiastic atmosphere to CLASSIC | the sound, giving youthe JAZZ feeling you are at an actual Rock rock pop, jazz or classic concert. This function is optimized MP3 OPT for compressible MP3 file. lt improves the treble sound During playback, Reinforces BASS the treble, bass and surround sound effect. You can enjoy more virtual MIRTUAL surround sound, You can enjoy the sound NORMAL without equalizer effect. HT306SF-D0_BDEULL_ENG_3804indd 29 & 2011-01-11 m121329

Suyessdo 30 Operating Advanced Operations Listening to music from your portable player or external device The unit can be used to play the music from many types of portable player or external devices.

1. Connect the portable player to the

PORT. IN(PORTABLE IN) connector of the unit.

Connect the external device to the AUX connector of the unit.

Connect the external device to the SCART connector of the unit.

2. Tumthe power on by pressing POWER.

3. Select the PORTABLE, AUX, TV-AUDIO function

by pressing FUNCTION.

4. Turn the portable player or external device and

start it playing. Recording to USB

1. Connect the USB device to the unit

2. Select a DVD/ CD function by pressing

FUNCTION. One track recording - You can record to USB after playing the file you want. All tracks recording - You can record to USB after stop. Program list recording - After showing the programmed list, you can record it to USB.

3. Startthe recording by pressing @ REC.

4. To stop recording, press M STOP.

HT306SF-D0_BDEULL ENG 3804indd 30 -@ Note + You can check the recording percentage rate for the USB record on the screen during the recording, During recording MP3/ WMA, there is no sound When you stop recording during playback, the file that has been recorded at that time will be stored Do not remove the USB device or turn offthe unit during USB recording. If not, an incomplete file may be made and not deleted on PC. IFUSB recording does not work, the message like‘NO USB: *ERROR:“USB FULL" or*NO REC'is displayed on the display window. Multi card reader device or External HDD can not be used for USB recording A file is recorded by 128Mbyte when you record for a long term When you stop recording during playback, the file will not be stored. You may not store more than 999 files. The numbering ofthe recording file is entered from the lowest number. So if you delete some of the recording files, the next recording flle could be the lowest number among them It'Il be stored as follows. auDoco | mParwma | Tecther source MORE (MMAEREC [RexT EC TR 000 AEG(Fienamo) | AUDIO_000 The making of unauthorized copies of copy- protected material including computer programs, files, broadcasts and sound recordings, may be an infingement of copyrights and constitute a criminel offense. This equipment should not be used for such purposes. Be responsible Respect copyrights 2011-01-11 m12:13:29

Troubleshooting 31 Troubleshooting PROBLEM CORRECTION No power Plug the power cord into the wall outiet securely. Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen No picture Connect the video cables securely to both the TV and unit. Select the correct input mode of the unit so you can hear the sound from the unit. There is little or no sound Connect the audio cables into the connection terminals correctly. Replace with a new audio cable. The DVD picture quality is poor | Clean the disc using à soft cloth with outward strokes. Insert a disc. Insert a playable disc (check the disc type, colour system and l cod A DVD/CD will not play regional code) Place the disc with the label or printed side facing upwards Enter your password or change the rating level Clean the disc using a soft cloth with outward strokes. Humming noise heard while à DVD or CDis playing Move unit and audio components further away from your TV. Check the antenna connection and adjust its position. , Attach an external aerial if necessary. Radio stations can't be tuned in properly Tune to the station manuall. Buyoousojanoul Preset some radio stations, see page 28 for details. The remote is not pointed directly at the unit Point the remote directly at the unit. The remote is too far from the unit. Use the remote within 23 feet (7m) of the unit. The remote control doesn't work well / at all There is an obstacle in the path between the remote control and the unit. Remove the obstacle. The battery in the remote control are flat. Replace the battery with new ones. HT306SF-D0_BDEULLENG_3804indd 31 & 2011-01-11 m121329

xipueddy 32 Appendix Maintenance Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean + Do notuse volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for à long period of time Cleaning the unit To clean the player, use a soft, dry cloth. the surfaces are extremely dirty, use à soft cloth lightiy moistened with a mild detergent solution. Do not use strong solvents such as alcohol benzine, or thinner, as these might demage the surface of the unit. Maintaining the Unit The unit is a high-tech, precision device. IFthe optical pick-up lens and disc drive parts are dirty. or wo, the picture quality could be diminished For details, please contact your nearest authorized service center. HT306SF-D0_BDEULL ENG 3804indd 32 Notes on Discs Handling Discs Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. g Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight. Cleaning Discs Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out Do not use strong solvents such as alcohol, benzine, thinner, commercial available cleaners, or anti-static spray intended for older vinyl records. 2011-01-11 m12:13:29

Trademarks and Licenses HOMmI HDMI the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. VIDEO “DVD Logo‘is a trademark of DVD Format/Logo Licensing Corporation. DIVX. DivX®, DivX Certified? and associaated logos are trademark of DivX, Inc, and are used under license. XIDOLBY DIGITAL | Menufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Brass #7] [Windows (Media HT306SF-D0_BDEULL ENG 3804indd 35 xpueddy 2011-01-11 m 12:13:80

HDMI OUT (video/audio) 19 pin (Type À, HDMI" Connector) ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 N, RCA jack (LR) x 1 PORT. IN 05Vrms (3.5 mm stereo jack) System Laser Semiconductor laser, wavelength: 650 nm Signal system Standard NTSC/ PAL color TV system Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling) Signal-to-noise ratio More than 80 dB Harmonie distortion 005 %at1W > Dynamic range More than 85 dB 3 Bus Power Supply (USB) DC 5 V2 500 mA
