TREADMILL OWNER'S MANUAL

MANUEL D'UTILISATION DU TAPIS ROULANT

MANUAL DEL PROPIETARIO DE LA CAMINADORA

Read the TREADMILL GUIDE before using this OWNER'S MANUAL.

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill's serial number located near the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER:

MODEL NAME: Horizon

TrEADMiLL

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.

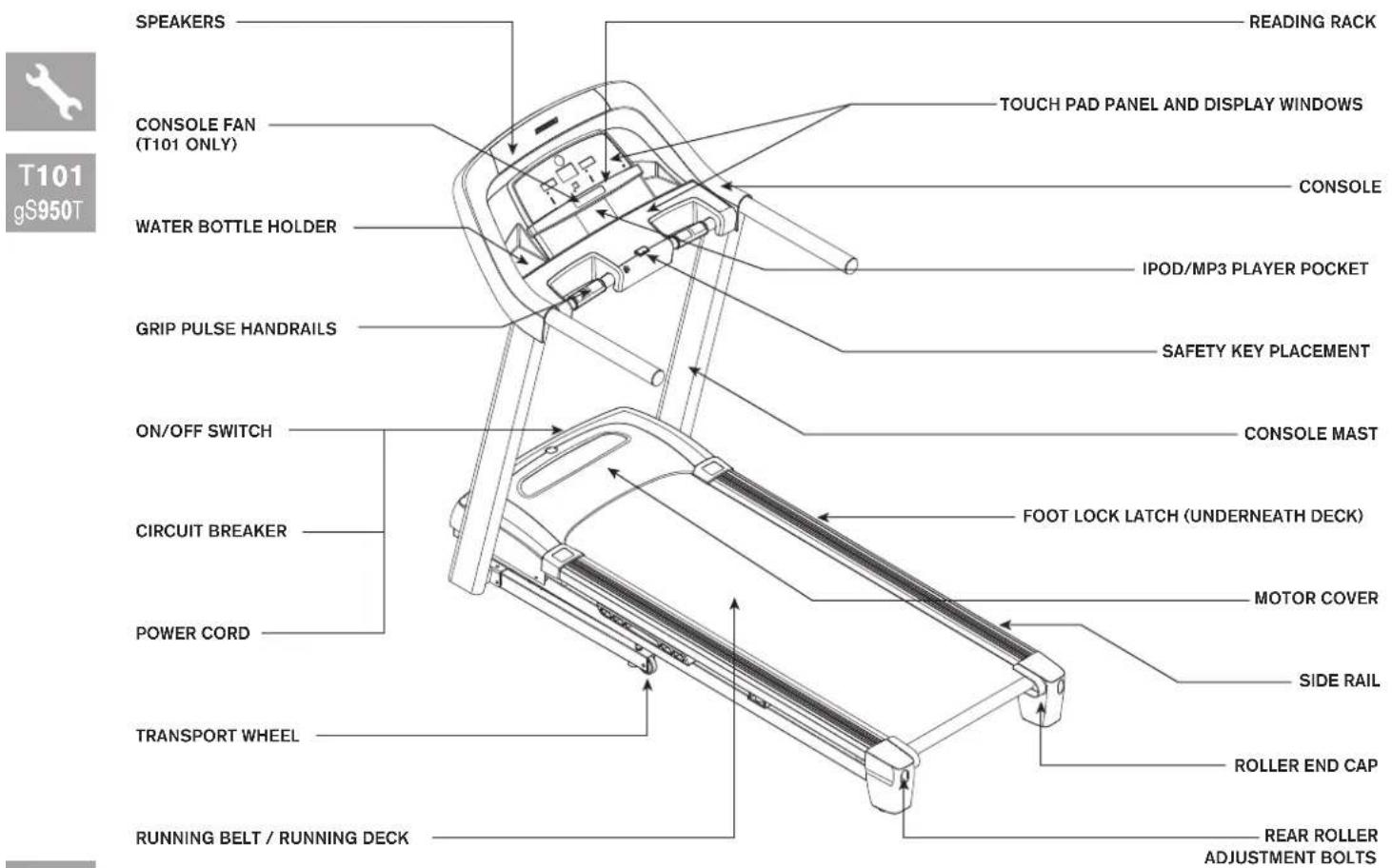

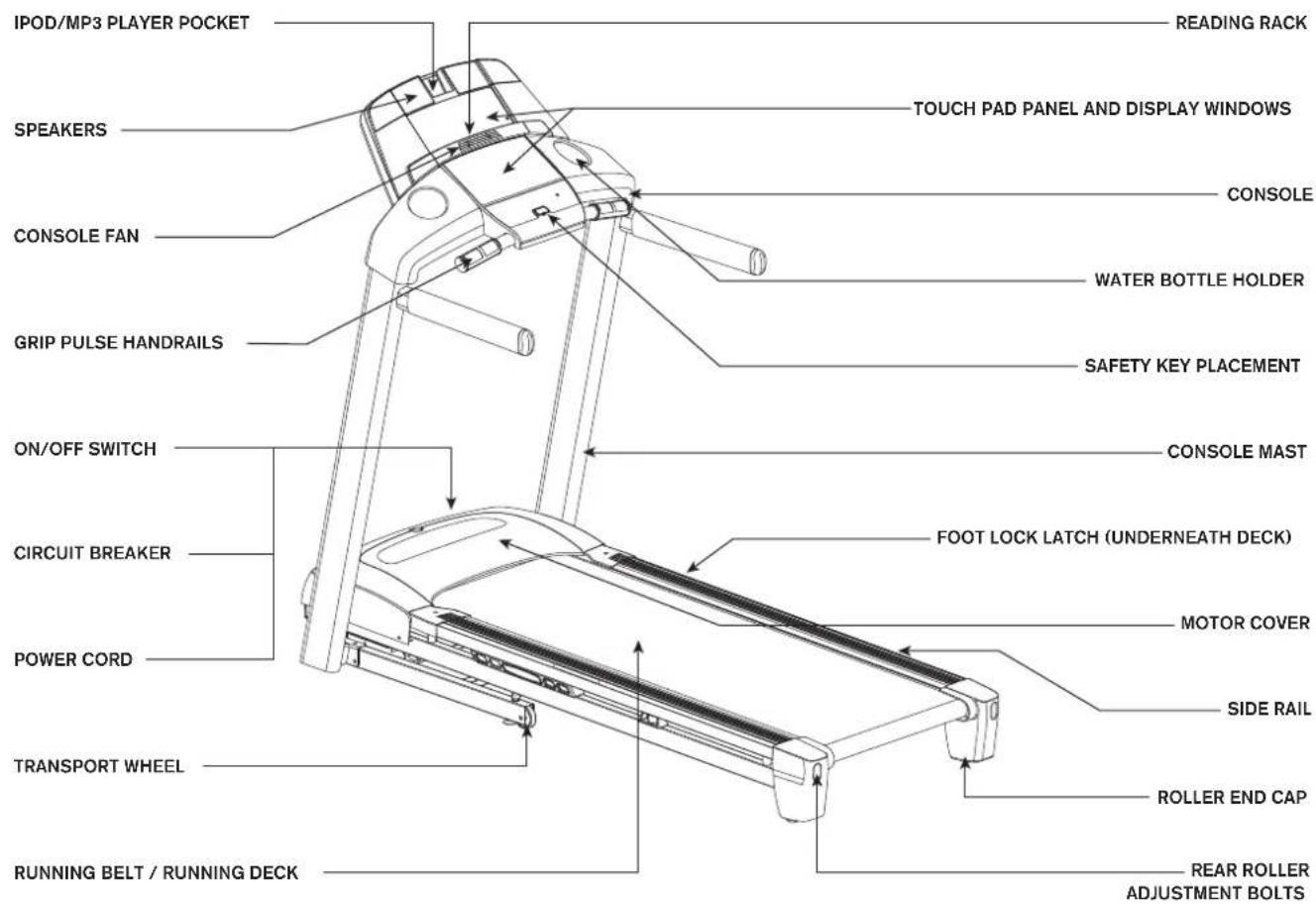

SPEAKERS CONSOLE FAN (T101 ONLY) WATER BOTTLE HOLDER GRIP PULSE HANDRAILS ON/OFF SWITCH CIRCUIT BREAKER POWER CORD TRANSPORT WHEEL RUNNING BELT / RUNNING DECK READING RACK TOUCH PAD PANEL AND DISPLAY WINDOWS CONSOLE IPOD/MP3 PLAYER POCKET SAFETY KEY PLACEMENT CONSOLE MAST FOOT LOCK LATCH (UNDERNEATH DECK) MOTOR COVER SIDE RAIL ROLLER END CAP REAR ROLLER ADJUSTMENT BOLTS

IPOD/MP3 PLAYER POCKET READING RACK SPEAKERS TOUCH PAD PANEL AND DISPLAY WINDOWS CONSOLE CONSOLE FAN WATER BOTTLE HOLDER GRIP PULSE HANDRAILS SAFETY KEY PLACEMENT ON/OFF SWITCH CONSOLE MAST CIRCUIT BREAKER FOOT LOCK LATCH (UNDERNEATH DECK) POWER CORD MOTOR COVER SIDE RAIL TRANSPORT WHEEL ROLLER END CAP RUNNING BELT / RUNNING DECK REAR ROLLER ADJUSTMENT BOLTS

T102 T103 CT7.1

ALL MoDELS

TooLS inCLUDED:

6 mm T-Wrench

5 mm L-Wrench

PArTS inCLUDED:

□ 1 Console Assembly
2 Console Masts
□ 3 Hardware Bags
□ 1 Safety Key
□ 1 Audio Adapter Cable
☐ 1 Bottle of Silicone Lubricant (for 2 applications)
☐ 3 iP Dock Inserts (T103 only)
☐ 1 iPdck Rubber Plug (T103 only)

nEED HELP?

If you have questions or if there are any missing parts, contact Customer Tech Support. Contact information is located on the back panel of this manual.

PrE ASSEMBLY

UnPACKinG

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.

WArninG

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from packaging until specified to do so in the assembly instructions. You may remove the plastic wrap from console masts.

WArninG

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

ASSEMBLY STEP 1

HArDWArE BAG 1 CONTENTS :

BOLT (A) 20 mm Qty: 4

SPRING WASHER (B) 15 mm Qty: 4

FLAT WASHER (C) 15 mm Qty: 4

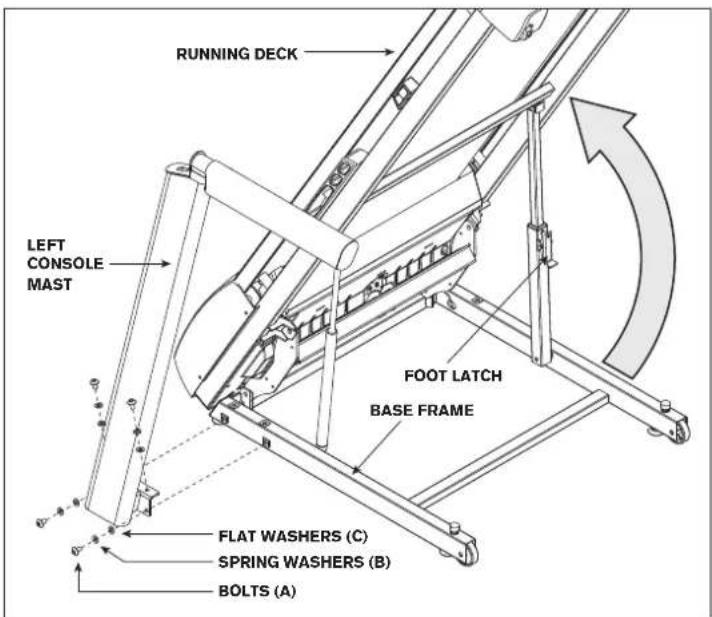

RUNNING DECK LEFT CONSOLE MAST FOOT LATCH BASE FRAME FLAT WASHERS (C) SPRING WASHERS (B) BOLTS (A)

A Cut the yellow banding straps and lift the RUNNING DECK upward until the FOOT LATCH locks. Remove all contents from underneath the running deck.
B Open HARDWARE BAG 1.
C With the RUNNING DECK in the raised position, attach the LEFT CONSOLE MAST to the BASE FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT WASHERS (C).

ALL MoDELS

ALL MoDELS

ASSEMBLY STEP 2

HArDWArE BAG 2 CONTENTS :

BOLT (A) 20 mm Qty: 4

SPRING WASHER (B) 15 mm Qty: 4

FLAT WASHER (C) 15 mm Qty: 4

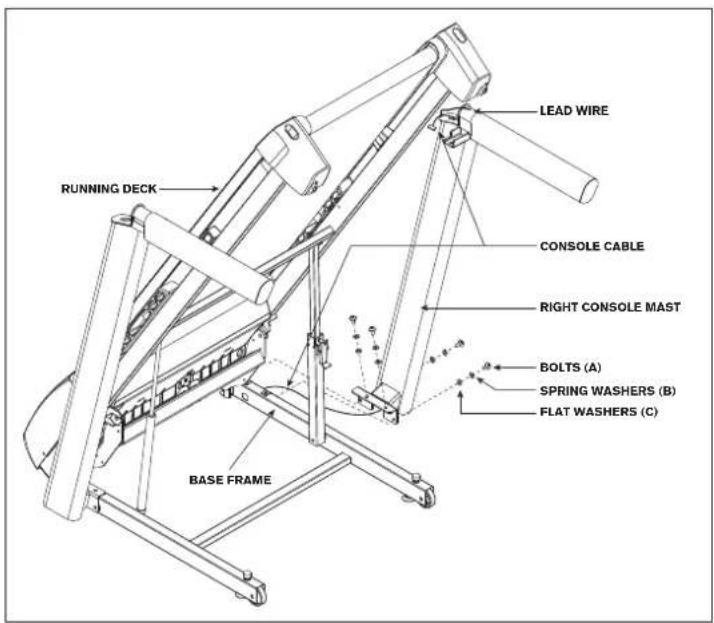

LEAD WIRE RUNNING DECK CONSOLE CABLE RIGHT CONSOLE MAST BOLTS (A) SPRING WASHERS (B) FLAT WASHERS (C) BASE FRAME

A Open HARDWARE BAG 2.

B Pull LEAD WiRE through RiGHT CONSOLE MAST. After pulling the lead wire through the mast, the top of the CONSOLE CABLE should be located at the top of the mast. Detach and discard the lead wire.

C With the RUNNING DECK in the raised position, attach the RIGHT CONSOLE MAST to the BASE FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT WASHERS (C).

NOTE: Be careful not to pinch any wires while assembling the right console mast.

ASSEMBLY STEP 3

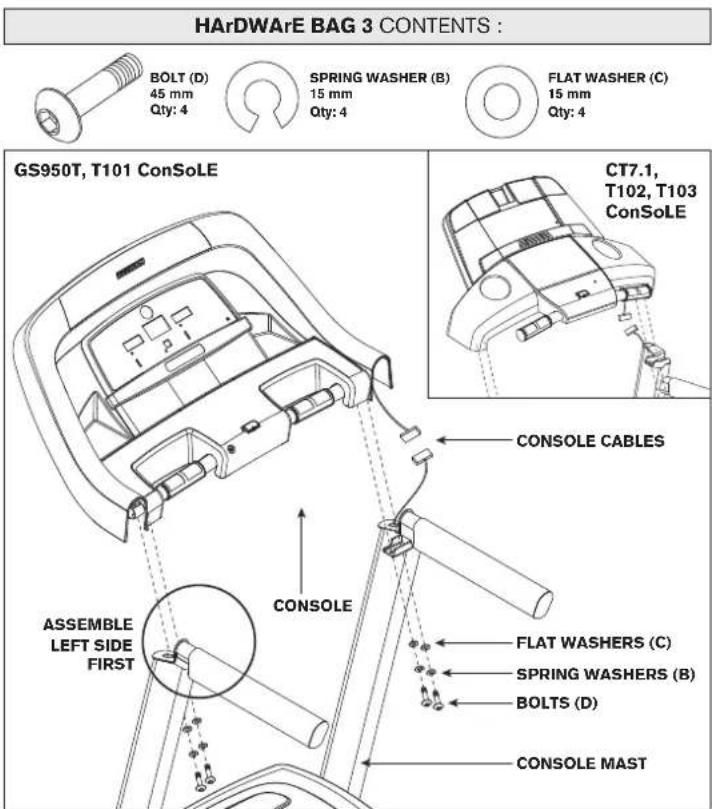

HArDWArE BAG 3 CONTENTS : BOLT (D) 45 mm Qty: 4 SPRING WASHER (B) 15 mm Qty: 4 FLAT WASHER (C) 15 mm Qty: 4 GS950T, T101 ConSoLE CT7.1, T102, T103 ConSoLE ASSEMBLE LEFT SIDE FIRST CONSOLE CABLES CONSOLE FLAT WASHERS (C) SPRING WASHERS (B) BOLTS (D) CONSOLE MAST

A Disengage the DECK LOCK LATCH with your foot to lower the RUNNING DECK.
B Open HARDWARE BAG 3.
C Gently place the CONSOLE on top of the CONSOLE MASTS. Attach the LEFT SiDE first using 2 BOLTS (D), 2 SPRING WASHERS (B) and 2 FLAT WASHERS (C).
D Connect the CONSOLE CABLES, carefully tucking wires in masts to avoid damage.
E Attach the RIGHT SiDE of the CONSOLE using 2 BOLTS (D), 2 SPRING WASHERS (B) and 2 FLAT WASHERS (C).

NOTE: Be careful not to pinch any wires while assembling the masts.

YOU ARE FINISHED!

TREADMILL OPERATION

This section explains how to use your treadmill's console and programming. The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:

• LoCATion of THE TrEADMiLL
• USinG THE SAFETY KEY
• FoLDinG THE TrEADMiLL
• MoVinG THE TrEADMiLL
• LEVELinG THE TrEADMiLL
• TEnSioninG THE rUnninG BELT
• CEnTErinG THE rUnninG BELT
• USinG THE HEArT rATE FUnCTion

T101

K U B A C Q L P HORIZON P TIME 88.88 DISTANCE 88.88 + CALORIES SPEED + flame + exhaust + cracks + incline + REACH RATE INHOLTS REMSETS T S T 1% 2% 3% 4% 5% 6% 7% 8% 9% 10% INCLIN STOP DO S 1 kW 2 kW 3 kW 4 kW 5 kW 6 kW 7 kW 8 kW 9 kW 10 kW I M D H R G V N F E O J SPEED -

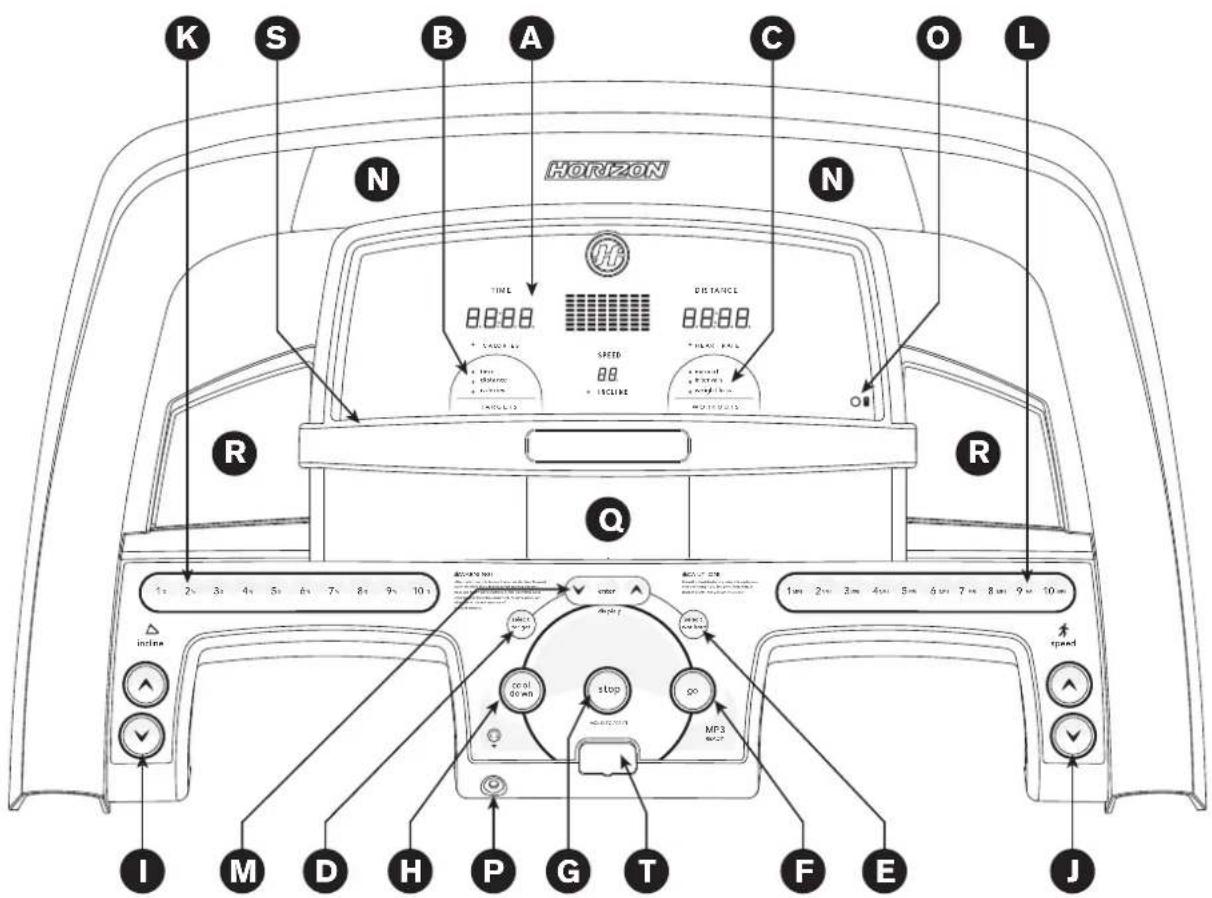

T101 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) LED DiSPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TArGET LED inDiCATorS: indicate what target (if any) is set for the current program.
C) WorKoUT LED inDiCATorS: indicate what workout is set for the current program.
D) SELECT TArGET: press to select your desired target.
E) SELECT WorKoUT: press to select your desired workout.
F) Go: press to begin exercising, start your workout, or resume exercising after pause.
G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) Cool DoWn: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your heart to readjust to decreased demand.

i) inCLinE ▲ / KEYS: used to adjust incline in small increments (0.5% Increments).

J) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph increments).

K) inCLinE qUiCK KEYS: used to reach desired incline more quickly.

L) SPEED qUiCK KEYS: used to reach desired speed more quickly.

M) EnTEr AnD ▼ KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.

n) FAn KEY: press to turn fan on and off.

o) FAn: personal workout fan.

P) SPEAKErS: music plays through speakers when your CD / MP3 player is connected to the console.

q) AUDio in JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.

r) AUDIO OUT / HEADPHonE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.

S) MP3 PLAYER PoCKET: used to store your MP3 player.

T) WATER BoTTLE PoCKETS: holds personal workout equipment.

U) rEADinG rACK: holds reading material.

V) SAFETY KEY PoSiTion: enables treadmill when safety key is inserted.

T101

gS950T

K S B A C O L N HORIZON N TIME 8:00:00 + SCALE 4.5V SPEED 88 + INSUL 13 DISTANCE 8:00:00 + TRACK BALL R Q R 1+ 2+ 3+ 4+ 5+ 6+ 7+ 8+ 9+ 10+ 11+ 12+ 13+ 14+ 15+ 16+ 17+ 18+ 19+ 20+ 21+ 22+ 23+ 24+ 25+ 26+ 27+ 28+ 29+ 30+ 31+ 32+ 33+ 34+ 35+ 36+ 37+ 38+ 39+ 40+ 41+ 42+ 43+ 44+ 45+ 46+ 47+ 48+ 49+ 50+ 51+ 52+ 53+ 54+ 55+ 56+ 57+ 58+ 59+ 60+ 61+ 62+ 63+ 64+ 65+ 66+ 67+ 68+ 69+ 70+ 71+ 72+ 73+ 74+ 75+ 76+ 77+ 78+ 79+ 80+ 81+ 82+ 83+ 84+ 85+ 86+ 87+ 88+ 89+ 90+ 91+ 92+ 93+ 94+ 95+ 96+ 97+ 98+ 99+ 100+ AIR INR OFF-INR STOP MP3 cool 00 mW stop go incline speed I M D H P G T F E J

GS950T ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) LED DiSPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TArGET LED inDiCATorS: indicate what target (if any) is set for the current program.
C) WorKoUT LED inDiCATorS: indicate what workout is set for the current program.
D) SELECT TArGET: press to select your desired target.
E) SELECT WorKoUT: press to select your desired workout.
F) Go: press to begin exercising, start your workout, or resume exercising after pause.
G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) Cool DoWn: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your heart to readjust to decreased demand.

i) inCLinE ▲ / KEYS: used to adjust incline in small increments (0.5% Increments).
J) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph increments).
K) inCLinE qUiCK KEYS: used to reach desired incline more quickly.
L) SPEED qUiCK KEYS: used to reach desired speed more quickly.
M) EnTEr AnD ▼ KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.
n) SPEAKErS: music plays through speakers when your CD / MP3 player is connected to the console.
o) AUDio in JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
P) AUDIO oUT / HEADPHonE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
q) MP3 PLAYER PoCKET: used to store your MP3 player.
r) WATEr BoTTLE PoCKETS: holds personal workout equipment.
S) rEADinG rACK: holds reading material.
T) SAFETY KEY PoSiTion: enables treadmill when safety key is inserted.

GS950T

T102 CT7.1

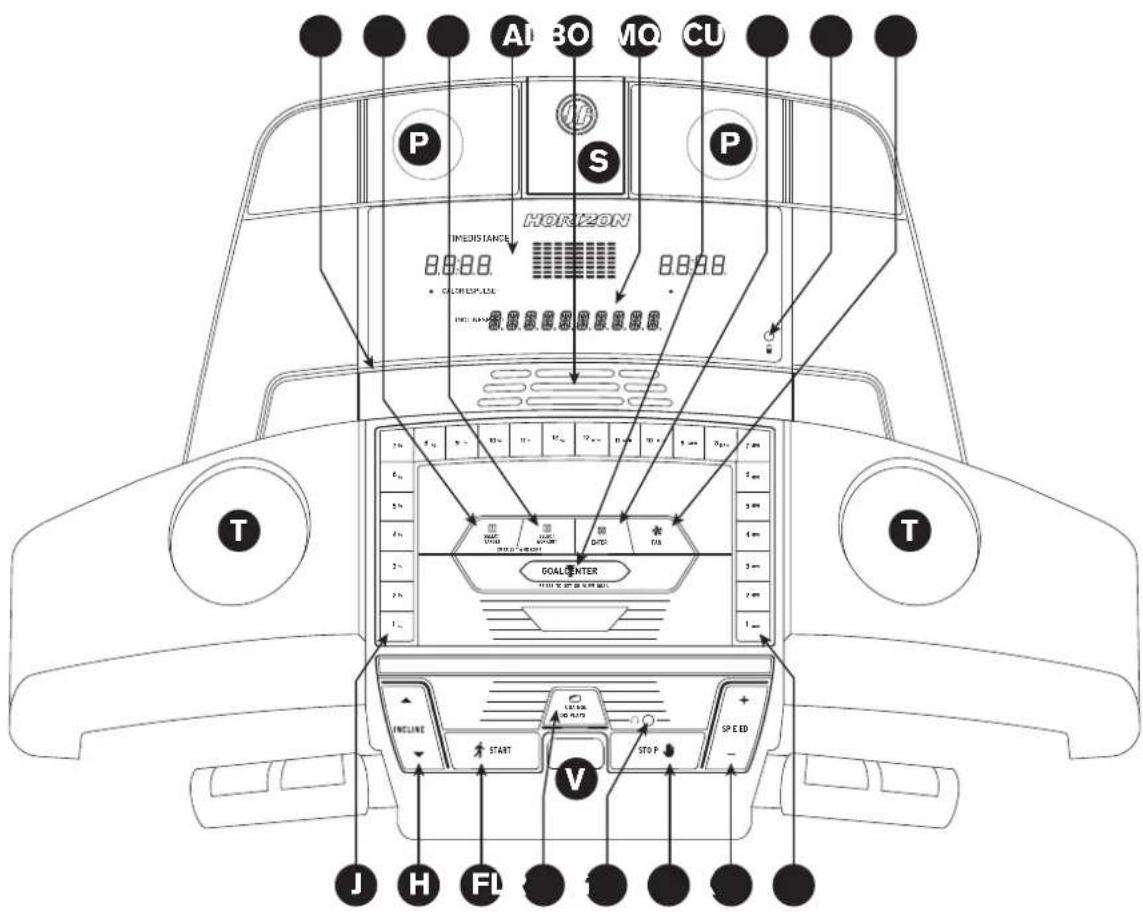

AI 30 MQ CU P S P HORI 20N IMEDISTANCE 8.8.88 COLOR EXE. LOC T GOAL CENTER 100% 50% 100% STOCK RICHEN SPEED 7 min 5 min 3 min 4 min 3 min 2 min 1 min T INCLUDE START STOP SP E ED J H FL

T102, CT7.1 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) DiSPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHAnUMEriC DiSPLAY: displays goal and program information.
C) SELECT TArGET: press to select your desired target.
D) SELECT WorKoUT: press to select your desired workout.
E) GoAL CEnTEr™: press to set or view your goal.
F) STArT: press to begin exercising, start your workout, or resume exercising after pause.
G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) inCLinE ▲ / ▼KEYS: used to adjust incline in small increments (0.5% increments).
i) SPEED + / - KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) inCLinE qUiCK KEYS: used to reach desired incline more quickly.
K) SPEED qUICK KEYS: used to reach desired speed more quickly.
L) CHAnGE DiSPLAY: press to change display feedback during workout.
M) EnTEr: used to confirm target and workout settings.
n) FAn KEY: press to turn fan on and off.
o) FAn: personal workout fan.
P) SPEAKErS: music plays through speakers when your CD / MP3 player is connected to the console.
q) AUDio in JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
r) AUDIO oUT / HEADPHonE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYEr PoCKET: used to store your MP3 player.
T) WATEr BoTTLE PoCKETS: holds personal workout equipment.
U) rEADinG rACK: holds reading material.
V) SAFETY KEY PoSiTion: enables treadmill when safety key is inserted.

T102 CT7.1

T103

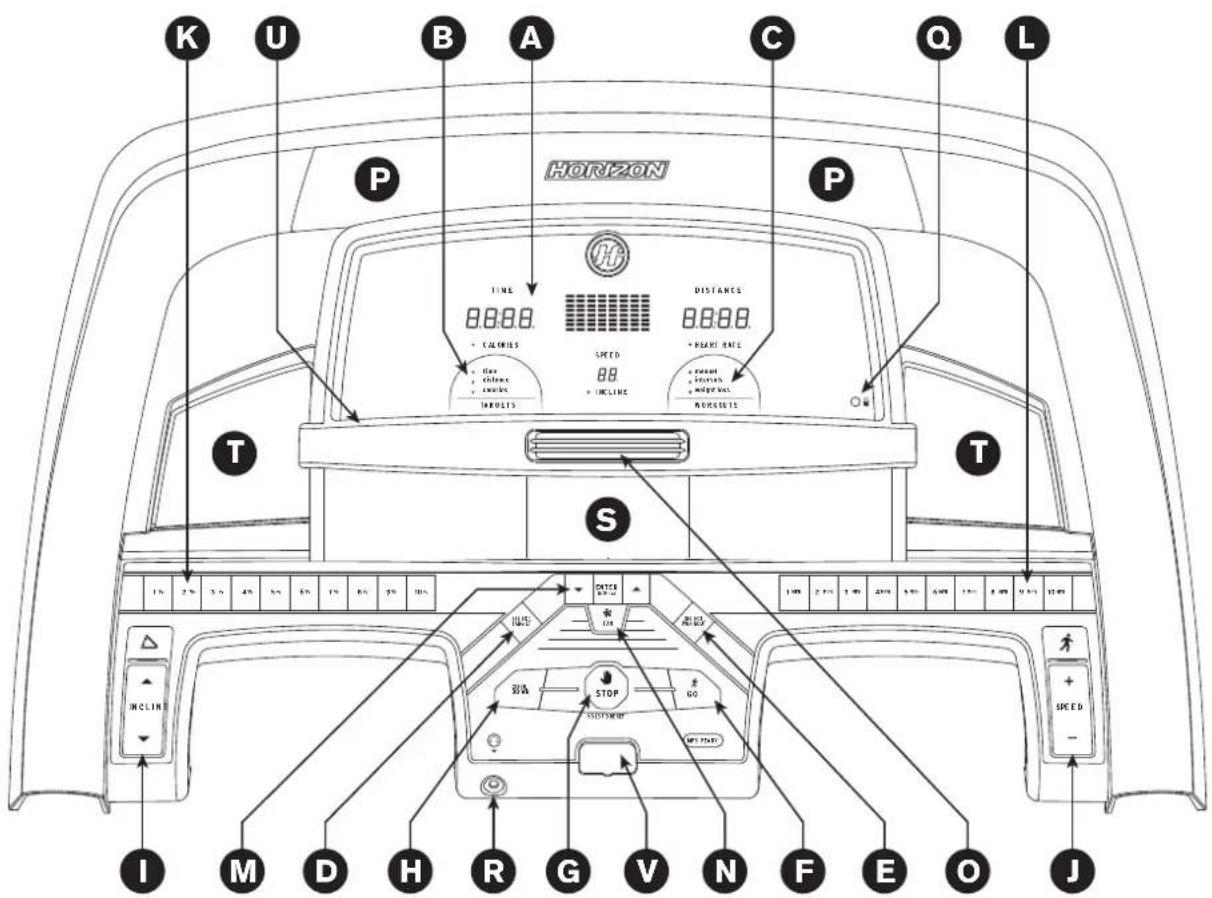

U C D A O B E M Q W P S P HORIZON TIME DISTANCE T103 T T1 E 5 m 5 m 5 m 4 m 3 m 2 m 1 m START STOP V J N H F X R G I L K

T103 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) DiSPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.

B) ALPHAnUMEriC DiSPLAY: displays goal and program information.

C) SELECT TArGET: press to select your desired target.

D) SELECT WorKoUT: press to select your desired workout.

E) GoAL CEnTEr™: press to set or view your goal.

F) STArT: press to begin exercising, start your workout, or resume exercising after pause.

G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.

H) inCLinE ▲ / ▼KEYS: used to adjust incline in small increments (0.5% increments).

i) SPEED + / - KEYS: used to adjust speed in small increments (0.1 MPH increments).

J) inCLinE qUiCK KEYS: used to reach desired incline more quickly.

K) SPEED qUiCK KEYS: used to reach desired speed more quickly.

L) CHAnGE DiSPLAY: press to change display feedback during workout.

M) EnTEr: used to confirm target and workout settings.

n) FAn KEY: press to turn fan on and off.

o) FAn: personal workout fan.

P) SPEAKErS: music plays through speakers when your CD / MP3 player is connected to the console.

q) AUDio in JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.

r) AUDIO oUT / HEADPHonE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.

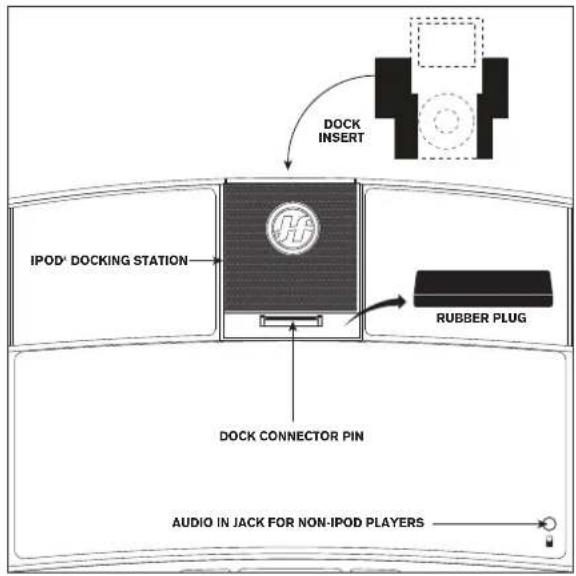

S) iPoD ^® DoCKinG STATION: used to dock and charge your iPod (not included).

T) WATEr BoTTLE PoCKETS: holds personal workout equipment.

U) rEADinG rACK: holds reading material.

V) SAFETY KEY PoSiTion: enables treadmill when safety key is inserted.

W) CUSToM 1 or 2 KEY: press to select Custom 1 or Custom 2 program.

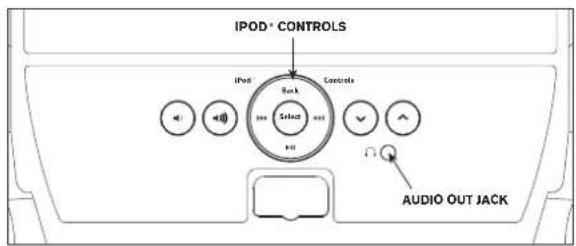

X) iPod ^® ConTroLS: press to adjust your attached iPod audio settings. See page 23 for more info.

DiSPLAY WinDoWS

• TiME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DiSTAnCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.
• SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving.
• inCLinE: Shown as percent. Indicates the incline of your walking or running surface.
  • CALoriES: Total calories burned or calories remaining left to burn during your workout.
• HEArT rATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made with both pulse grips).
  • ProGrAM ProFiLES: Represents the profile of the program being used (speed during speed based programs and incline during incline based programs).
• TArGETS: T101, GS950T: LED lights up next to currently selected target. If no LED is lit, no target is activated. T102, T103, CT7.1: target will be displayed in the alphanumeric window on the bottom of the display.
• WorKoUTS: T101, GS950T: LED lights up next to currently selected workout. T102, T103, CT7.1: workout will be displayed in the alphanumeric window on the bottom of the display.

T101, GS950T DISPLAYS

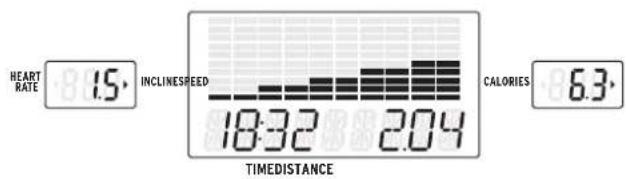

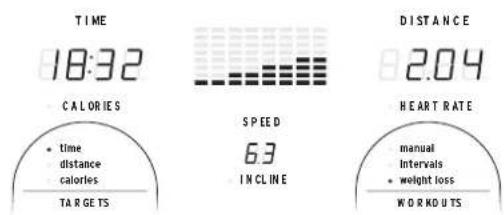

TIME 18:32 CALORIES • time distance calories TA R G E T S SPEED 63 IN CLINE DISTANCE 2.04 HEART RATE manual Intervals • weight loss WORKOUTS

T102, CT7.1 DISPLAYS

TIMEDISTANCE 18:32 CALORIESPULSE INCLINESPEED 15 6.3 2.04

T103 DISPLAYS

HEART RATE 1.5 INCLINESPEED CALORIES 6.3 18:32 204 TIMEDISTANCE

GETTinG STArTED

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:

A) qUiCK STArT UP

Simply press the GO/START key to begin working out. Time, distance, and calories will all count up from zero. OR...

B) SELECT A TArGET AnD WorKoUT

1) Select a TARGET using the SELECT TARGET key.
2) Adjust the TARGET settings using the ARROW keys.
3) Press ENTER to advance.
4) Select a WORKOUT using the SELECT WORKOUT key.
5) Press GO/START to begin workout.

NOTE: If no TARGET or WORKOUT is selected, the program will function as a MANUAL program. All changes in speed and incline will need to be from the user in this setting.

CHAnGinG YoUr TARGET MiD-WorKoUT

You can change your Target "on-the-fly" without losing your current workout stats.

Anytime during your workout, press the SELECT TARGET key until you have selected the new TARGET you would like.

Use the ▲ / ▼or + / - keys to enter in the value of your new TARGET and press ENTER. All previous workout statistics will be rolled into the new TARGET, so you'll never miss a beat.

NOTE: If you accidentally press the SELECT TARGET key during a workout, if no buttons are pressed after 5 seconds, the current target will resume.

CHAnGinG YoUr WorKoUT MiD-WorKoUT

You can change your Workout "on-the-fly".

Anytime during your workout, press the SELECT WORKOUT key until you have selected the new WORKOUT you would like. Press ENTER.

New WORKOUT will begin at the first segment after warm up and all workout statistics will roll over.

NOTE: If you accidentally press the SELECT WORKOUT button during a workout, if no buttons are pressed after 5 seconds the current program will resume.

TArGET ProFiLES

TArGET 1 – TiME: Allows user to set a target based on how long they would like to workout. Time targets can range from 15:00 – 99:00. TIME will count down. DISTANCE and CALORIES will count up from zero.
TArGET 2 - DiSTAnCE: Allows user to set a target based on distance they would like to complete. Distance target can range from 0.25 - 26.25 miles. DISTANCE will count down. TIME and CALORIES will count up from zero.
TArGET 3 - CALoriES: Allows user to set a target based on the number of calories they would like to burn. Calories target can range from 20 - 980 calories. CALORIES will count down. TIME and DISTANCE will count up from zero.
no TArGET: Allows user to select a workout profile that has no specified time, distance, or calorie target. TIME, DISTANCE, and CALORIES will all count up from zero.

WorKoUT ProFiLES

1) MAnUAL - ALL MoDELS: Allows 'on the fly' manual speed and incline changes.
2) inTErVALS - ALL MoDELS: Improves your strength, speed and endurance by increasing and decreasing the speed throughout your workout to involve your heart and other muscles.

Segment Warm Up 1 2					Segments 1 & 2 repeat until target is complete
Time 4:00	Mins 90 sec 30 sec
Speed 1	1.5 2 4
Incline 1	1.5 0.5 1.5

3) HiLLS - T102, T103, CT7.1 MoDELS onLY: Simulates running up and down hills to improve stamina.

Segment W

warm Up 1 2 3 4 5 6 7

8

Segments 1–8 repeat until target is complete

Time 4:00

Mins 30 sec 30 sec

30 sec 30

sec 30 sec

30 sec 30 sec

Level 1 1 1

.5 2 2.5 3

3.5 4 3.5 3

2.5

4) WorKoUT 4 - WEiGHT LoSS - ALL MoDELS: Promotes weight loss by increasing and decreasing the speed, while keeping you in your fat burning zone.

Segment Warm Up 1 2 3 4 5 6 7 8												Segments 1–8 repeat until target is complete
Time 4:00 Mins				30 sec	30 sec	30 sec	30 sec	30 sec	30 sec	30 sec	30 sec
Level 1	Incline	0	0.5	1.5	1.5	1	0.5	0.5	0.5	1	1.5
	Speed	1	1.5	2	2.5	3	3.5	4	3.5	3	2.5

USinG CUSToM WorKoUTS (T103 onLY)

1) Press the CUSTOM 1 OR 2 key to select a custom workout.
2) Press SELECT TARGET key to select a time, distance, or calories target. Press ENTER to select desired target.
3) Set each speed profile by using the ▲ / ▼ or + / - keys and press ENTER. Repeat for all 15 speed profiles.
4) Set each incline profile by using the ▲ / ▼ or + / - keys and press ENTER. Repeat for all 15 incline profiles. In
5) Press START to begin.

GoAL CEnTEr™

(T102, T103, CT7.1 onLY)

Research shows that those who create and track their fitness goals, on average, achieve greater success than those who do not. Because your new treadmill is equipped with Horizon's exclusive GOAL CENTER™ Performance Tracker, you've taken an important step towards achieving your fitness goals. GOAL CENTER™ is innovative new software, integrated into your treadmill console, that will allow you to track your fitness goals over time, without the need for paper journals or logs. Read further to learn about how GOAL CENTER™ can help motivate you to enhance your performance.

GoAL CEnTEr™ SETUP

1) Select USER 1 or USER 2 using the ▲ / ▼or + / - keys and press ENTER.
2) Press and hold GOAL CENTER ^™ for approximately five seconds.
3) Press SELECT TARGET key to select time, distance or calorie goal.
4) Use ▲ / ▼ or + / - keys to select goal value and press ENTER.
5) Use the ▲ / ▼or + / - keys to select the NUMBER OF DAYS to complete the goal.
6) Press ENTER again to exit the setup mode.
NOTE: These steps can also be used to erase an existing goal and set a new one.

ViEWinG GoAL ProGrESS

When logged into your user profile, you can view progress toward your goal by pressing the GOAL CENTER ^™ key. The console will scroll the remaining time, distance or calories, depending on the goal selected and will also scroll the time remaining to achieve that goal.

noTE: For workout data to accumulate towards a user's goal, you MUST first select that user before beginning a workout.

To rESET THE ConSoLE

Hold STOP key for 3 seconds.

CooL DoWn

(T101, GS950T onLY)

Puts treadmill into cool down mode. Cool down lasts for four minutes and reduces speed and incline to allow your heart to readjust to decreased demand.

FiniSHinG YoUr WorKoUT

When your workout is complete, the monitor display will flash "FINISHED" and beep. Your workout information will stay displayed on the console for 30-45 seconds and then reset.

CLEAR CUrrEnT SELECTION

To clear the current program selection or screen, hold the STOP button for 3-5 seconds.

USinG YoUr CD / MP3 PLAYERr

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the top right of the console and the headphone jack on your CD / MP3 player.
2) Use your CD / MP3 player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.
4) If you don't want to use the SPEAKERS, you can plug your headphones into the AUDIO OUT JACK at the bottom of the console.

iPoD ^® DoCKinG STATION (T103 onLY)

The iPod docking station is the entertainment solution for your workouts. Various iPod models with a dock connector can fit this dock. iPhone is not compatible.

USinG THE iPoD DoCKinG STATION (iPoD noT inCLUDED)

1) Remove the rubber plug from bottom of the docking station.
2) Plug in your iPod by matching the dock connector pin on the treadmill with the dock connector on your iPod. NOTE: Once you have connected the iPod to the docking station, please allow 2 minutes for the iPod and docking station to sync up before it will be fully functional.
3) You can use your iPod dial to adjust volume and song settings. Or you can adjust your volume and song settings using the iPod control keys on the treadmill console. NOTE: If you don't want to use the speakers, you can plug your headphones into the audio out jack at the bottom of the console.

Replace the rubber plug into the bottom of the docking station when the station is not in use.

NOTE: iPod audio will not play through speakers if audio adaptor cable is plugged in while iPod is in the docking station.

DOCK INSERT IPOD' DOCKING STATION RUBBER PLUG DOCK CONNECTOR PIN AUDIO IN JACK FOR NON-IPOD PLAYERS

iPod *Dock Inserts Note: Dock insert sizes vary for each iPod.

Universal MP3 Player Dock Insert

IPOD® CONTROLS iPod Rock Controls Select Audio OUT JACK

LIMITED HOME-USE WARRANTY

WEIGHT CAPACITY

T101 = 300 lbs (136 kilograms)

T102 = 325 lbs (147 kilograms)

T103 = 350 lbs (159 kilograms)

GS950T = 300 lbs (136 kilograms)

CT7.1 = 325 lbs (147 kilograms)

FRAME • LIFETIME

Horizon Fitness warrants the frame against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.)

MOTOR • LIFETIME

Horizon Fitness warrants the motor against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner.

ELECTRONICS & PARTS • 1 YEAR (T103 = 2 YEAR)

Horizon Fitness warrants the electronic components, finish and all original parts for a period of one year (T103 = two years) from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR • 1 YEAR

Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.

EXCLUSIONS AND LIMITATIONS

Who IS covered:

• The original owner and is not transferable.

What IS covered:

- Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

- Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

- Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by Horizon Fitness.

- Incidental or consequential damages. Horizon Fitness is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the equipment.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by Horizon Fitness for coverage.
  • Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Horizon Fitness is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and Horizon Fitness shall have no liability for any injury to the person or property arising from such repairs.

SErViCE/rETUrnS

• In-home service is available within 150 miles of the nearest authorized repair center (Mileage beyond 150 miles from an authorized service center is the responsibility of the consumer).
  • All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness' obligation under this warranty is limited to replacing or repairing, at Horizon Fitness' option, the same or comparable model at one of its authorized service centers.
• A Horizon Fitness authorized service center must receive all equipment for which a warranty claim is made. This equipment must be received with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
• Replacement units, parts and electronic components reconditioned to As-new Condition by Horizon Fitness or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from state to state.

FRANÇAIS

ASSEMBLAGE

AVErTiSSEMEnT

K U B A C Q L P HORIZON P TIME 88.88 DISTANCE 88.88 + CALORIES SPEED + flame + exhaust + cracks + incline + REACH RATE INHOLTS REMSETS T S T 1% 2% 3% 4% 5% 6% 7% 8% 9% 10% INCLIN STOP DO S 1 kW 2 kW 3 kW 4 kW 5 kW 6 kW 7 kW 8 kW 9 kW 10 kW I M D H R G V N F E O J SPEED -

FonCTionnEMEnT DE LA ConSoLE DU MoDÈLE T101

AI 30 MQ CU P S P HORI 20N IMEDISTANCE 8.8.88 COLOR EXE. LOC T GOAL CENTER 100% 50% 10% 15% 20% 25% 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90% 95% 100% T E 5 m 5 m 4 m 3 m 2 m 1 m INCLUDE START STOP SPEED J H CFL I K

FonCTionnEMEnT DE LA ConSoLE DES MoDÈLES T102, CT7.1

U C D A O B E M Q W P S P HORIZON TIME DISTANCE T103 T T1 E 5 m 5 m 5 m 4 m 3 m 2 m 1 m START STOP V J N H F X R G I L K

FONCTIONNEMENT DE LA CONSOLE DU MODÈLE T103

AFFICHAGES DES MODÈLES T102, CT7.1

TIMEDISTANCE 18:32 CALORIESPULSE INCLINESPEED 15 6.3 2.04

AFFICHAGES DU MODÈLE T103

HEART RATE 1.5 INCLINESPEED 18:32 2.04 CALORIES 6.3 TIMEDISTANCE

PoUr CoMMEnCEr

(T102, T103, CT7.1 UniqUEMEnT)

Three technical line drawings of mechanical brackets or slots, no text or symbols present

CT7.1 = 147 kg (325 lb)

EXCLUSIONS ET LiMiTATIONS

Qui EST couvert :

K U B A C Q L P HORIZON P TIME 88.88 DISTANCE 88.88 + CALORIES SPEED + flame speed + exhaust speed + carbons weight INHOLTS RESSETS T S T 1% 2% 3% 4% 5% 6% 7% 8% 9% 10% INCLIN STOP DO OFF I M D H R G V N F E O J SPEED -

FUnCionAMiEnTo DE LA ConSoLA En EL MoDELo T101

AI 30 MQ CU P S P HORI 20N IMEDISTANCE 8.8.88 COLOR EXE. LOC T GOAL CENTER 100% 50% 10% 15% 20% 25% 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90% 95% 100% T E 5 m 5 m 4 m 3 m 2 m 1 m INCLUDE START STOP SP E ED J H CFL I K

FUnCionAMiEnTo DE LA ConSoLA En LoS MoDELoS T102 Y CT7.1

U C D A O B E M Q W P S P HORIZON TIME DISTANCE T103 T T1 E 5 m 5 m 5 m 4 m 3 m 2 m 1 m START STOP V J N H F X R G I L K

FUNCIONAMIENTO DE LA CONSOLA EN EL MODELO T103

T102 = 325 lb (147 kg)

T103 = 350 lb (159 kg)

GS950T = 300 lb (136 kg)

CT7.1 = 325 lb (147 kg)

BASTIDOR • DE POR VIDA

if you have any problems during assembly or if parts are missing.

For fast and friendly service, please contact one of our trained customer technicians via phone, email or our website.

We want to know if you have a problem and we want to have an opportunity to correct it for you.

NOTE: Please read the TROUBLESHOOTING section in the TREADMILL GUIDE before contacting Customer Tech Support. Additional product information is available on our website.

[e-mail]

www.horizonfitness.com

Horizon Fitness

1600 Landmark Drive,

Cottage Grove WI, 53527

T101, T102, T103, GS950T, CT7.1 Rev. 1.2 | © 2009 Horizon Fitness
