USER MANUAL HB805PH LG

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

HB805PH (HB805PH, SH85PH-F/S/C/W)

P/NO:MFL63290036

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Cautions andWarnings

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service centre. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the life.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

C E

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/ EC.

European representative :

LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel: [phone])

Notes on Copyrights

• Because AACS (Advanced Access Content System) is approved as content protection system for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.
• Furthermore, BD-ROM Mark and BD + are additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD + protected contents. To obtain additional information on AACs, BD-ROM Mark, BD + , or this product, please contact an authorized Customer Service Centre.
• Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

Important Notice for TV colour system

The colour system of this player differs according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is outputted as a NTSC signal.

Only the multi system colour TV can receive all signals outputted from the player.

• If you have a PAL colour system TV, you will see just distorted images when using discs or video contents recorded in NTSC.
• The multi system colour TV changes the colour system automatically according to input signals. In case that the colour system is not changed automatically, turn it off and then on to see normal images on screen.
• Even if the disc recorded in NTSC colour system are well displayed on your TV, these may not be recorded correctly on your recorder.

Contents

1 Safety Information

3 Cautions andWarnings

2 Preparation

8 Introduction
8 About the "Symbol Display
8 Symbols Used in this Manual
9 Supplied Accessories
9 Playable Discs
11 File compatibility
12 Regional Code
12 AVCHD (Advanced Video Codec High Definition)
12 Certain System Requirements
12 Compatibility Notes
13 Remote control
14 Front panel
15 Rear panel

3 Installation

16 Assembling the speaker stand to the speaker
17 Speaker Connection
17 Attaching the speakers to the player
18 Positioning the system
19 Connecting to Your TV
19 HDMI Connection
20 What is SIMPLINK?
21 Component Video Connection
21 Video Connection
22 Resolution Setting

23 Antenna connection
23 Connections with external device

23 AUX Connection

24 PORT.IN connection
24 OPTICAL IN connection

25 Connecting to your Home Network

25 Wired network connection
26 Wired Network Setup

28 USB device connection
30 Settings

30 Adjust the Setup Settings
30 [DISPLAY] Menu
32 [LANGUAGE] Menu
32 [AUDIO] Menu
34 [LOCK] Menu
35 [NETWORK] Menu
35 [OTHERS] Menu

36 Sound Effect

4

Operation

37 General Playback
37 Playing Discs
38 Using the disc menu
39 Resume playback
40 Advanced Playback
44 On-Screen display
47Enjoying BD-LIVE
48 Playing a movie file and VR disc
50 Viewing a photo
51 Options while viewing a photo
51 Listening to music while slide show
52 Listening to music
53 Audio CD Recording
54 Displaying MP3 music information (ID3 Tag)
55 Radio Operations
56 Using NetCastTM Entertainment Access
56 YouTube
60 Picasa Web Albums
63 Using the AccuWeather

5

Maintenance

65 Notes on Discs
65 Handling the Unit

6

Troubleshooting

66 General
67 Picture
67 Sound
68 Network

7

Appendix

69 Controlling a TV with the Supplied Remote Control
70 Area Code List
71 Language code List
72 Network Software Update
72 Network update notification
72 Software Update
74 Video output resolution
75 Trademarks and Licences
76 Specifications
78 Important Information Relating to Network Services
79 Open source software notice

1
2
3
4
5
6
7

2

Preparation

Introduction

About the "∅" Symbol Display

"O" may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific media.

Symbols Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicates cautions for preventing possible damages from abuse.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

BD	BD-ROM disc
DVD	DVD-Video, DVD±R/RW in Video mode or VR mode and finalized
AVCHD	DVD±R/RW in AVCHD format
ACD	Audio CDs
MOVIE	Movie files
MUSIC	Music files
PHOTO	Photo files

Supplied Accessories

Video cable (1)

Remote control (1)

Battery (1)

FM antenna (1)

Speaker cables (3)

Playable Discs

Blu-ray Disc DVD-VIDEO 8/12 cm disc Discs such as movies that can be purchased or rented.
DVD VIDEO	DVD-VIDEO 8/12 cm disc Discs such as movies that can be purchased or rented.
DVD R	DVD±R 8/12 cm disc
RW DVD+R	Video mode and finalized only Supports the dual layer disc also Finalized AVCHD format DVD±R discs that contain Movie, Music or Photo files
DVD RW	DVD-RW 8/12 cm disc
DVD+RW DVD+RWtable	VR mode, Video mode and finalized only Finalized AVCHD format DVD-RW discs that contain Movie, Music or Photo files.
COMPACT Digital Audio	Audio CD 8/12 cm disc
COMPACT Digital Audio Recordable ReWritable	CD-R/RW 8/12 cm disc CD-R/RW discs that contain audio titles, Movie, Music or Photo files.

NOTE

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
  Depending on the recording software & the finalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.
  BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player's lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
• This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.
• Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback.
• Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
• You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

File compatibility

Overall

Available File extensions:

• Some“.wav”files are not supported on this player.
  The file name is limited to 180 characters.
  Depending on the size and number of the files, it may take several minutes to read the contents on the media.

Maximum Files/Folder: Less than 2000 (total number of files and folders)

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

MOVIE

Available resolution size:

1920 x 1080 (W x H) pixels

Playable subtitle: SubRip (.srt/.txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

Playable Codec format:"DIVX3.xx","DIVX4.xx", "DIVX5.xx","XVID","DIVX6.xx" (Standard playback only), H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS

Playable Audio format: "Dolby Digital", "DTS", "MP3", "WMA", "AAC", "AC3"

• Not all the WMA and AAC Audio format is compatible with this unit.

Sampling frequency:

within 32kHz to 48kHz (WMA), within 16kHz to 48kHz (MP3)

Bit rate:

within 32 kbps to 192 kbps (WMA), within 32 kbps to 320 kbps (MP3)

NOTE

• HD movie files contained on the CD or USB 1.0/1.1 may not played properly. BD, DVD or USB 2.0 are recommended to play back HD movie files.
• This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. For a file with higher level, the warning message will appear on the screen.
• This player does not support the files that are recorded with GMC* or Qpe*2. Those are video encoding techniques in MPEG4 standard, like DivX or XVID have.

1 GMC - Global Motion Compensation 2 Qpel - Quarter pixel

• This player supports UTF-8 files even it contains Unicode subtitle contents. This player can not support the pure Unicode subtitle files.
  Depending on the types of file or ways of recording, it may not play back.
• A disc which was recorded by multi-session on normal PC is not supported on this player.
• To be playback a movie file, movie file name and Subtitle file name must be the same.
• If video codec is MPEG2 TS or MPEG2 PS, subtitle does not play back.

MUSIC

Sampling frequency:

within 32kHz to 48kHz (WMA),

within 11kHz to 48kHz (MP3)

Bit rate:

within 8 kbps to 320 kbps (WMA, MP3),

NOTE

The total playback time indicated on the screen may not correct for VBR files.


Recommended size:

Less than 4000 × 3000 × 24 bit/pixel

Less than 3000 × 3000 × 32 bit/pixel

• Progressive and lossless compression photo image files are not supported.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or "ALL."

AVCHD (Advanced Video Codec High Definition)

• This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format.
  Some AVCHD discs use the "x.v.Color" format.
• This player can playback AVCHD discs using "x.v.Color"format.
  Some AVCHD format discs may not play, depending on the recording condition.
  AVCHD format discs need to be finalized.
• "x.v.Color" offers a wider colour range than normal DVD camcorder discs.

Certain System Requirements

For high definition video playback:

• High definition display that has COMPONENT or HDMI input jacks.
• BD-ROM disc with high definition content.
• HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors).
• For up-conversion of standard definition DVD, a HDMI or HDCP capable DVI input on your display device is required for copy protected content.

Compatibility Notes

• Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Centre.
  Viewing high-definition content and up-converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.
  Some BD-ROM and DVD discs may restrict the use of some operation commands or features.
• You can use a USB device that is used to store some disc related information, including downloaded on-line content. The disc you are using will control how long this information is retained.

Remote control

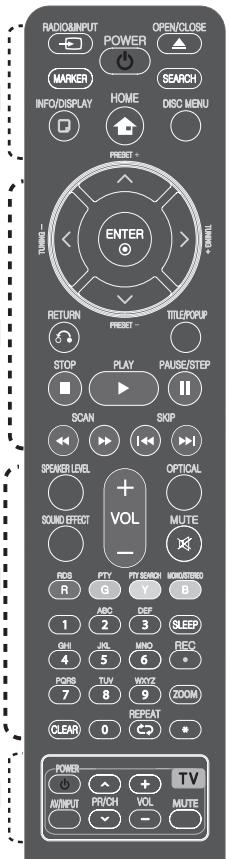

1

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) battery with and matched correctly.

1

一 RADIO&INPUT: Changes input mode.

MARKER: Marks any point during playback.

(POWER): Switches the player ON or OFF.

OPEN/CLOSE: Opens and closes the disc tray.

SEARCH: Displays or exits the search menu.

INFO/DISPLAY: Displays or exits On-Screen Display.

HOME: Displays or exits the [Home Menu].

DISC MENU: Accesses menu on a disc.

2

PRESET (A/V): Selects PROGRAMME of Radio.

TUNING (- / + ) :Tunes in the desired radio station.

/ / < / > (up/down/left/ right):Used to navigate on-screen displays.

ENTER: Acknowledges menu selection.

RETURN: Exits the menu or resumes playback.

TITLE/POPUP: Displays the DVD title menu or BD-ROM's pop-up menu, if available.

STOP: Stops playback.

▶ PLAY: Starts playback.

II PAUSE/STEP: Pauses playback

SCAN: Searches backward or forward.

SKIP: Goes to the next or previous chapter / track / file.

3

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound effect mode.

VOL + / - Adjusts speaker volume.

OPTICAL: Changes input mode to optical directly.

MUTE: Mute the unit.

Coloured (R, G, Y, B) buttons: Use to navigate on menus.

RDS: Radio Data System.

PTY: Views the programme type of the RDS.

PTY SEARCH:

Searches programme type.

MONO/STEREO: Selects mono/stereo in FM mode.

SLEEP: Sets a certain period of time after which the unit will switch to off.

REC: Records an audio CD.

ZOOM: Displays or exits the [Zoom] menu.

0-9 numerical buttons: Selects numbered options in a menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

REPEAT: Repeats a desired section or sequence.

4

TV Control Buttons: See page 69.

*: This button is not available.

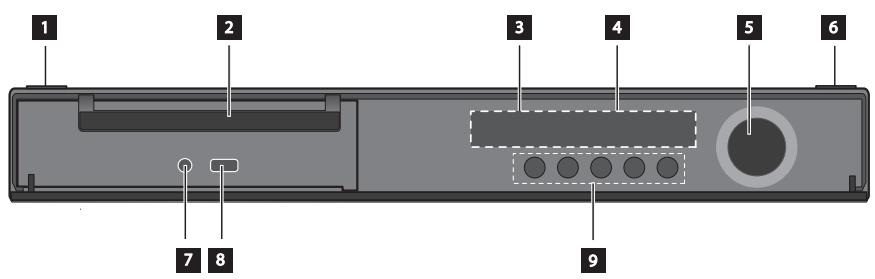

Front panel

1 A / (POW) Button
2 Disc Tray
3 Remote sensor
4 Display window
5 Volume control
6 (OPEN/CLOSE)

7 PORT.IN
USB Port
9 Operation buttons

> /11 (PLAY/PAUSE)

STOP

1<</>>1 (SKIP),<</>> (SCAN)

F (Function)

Changes the input source or function.

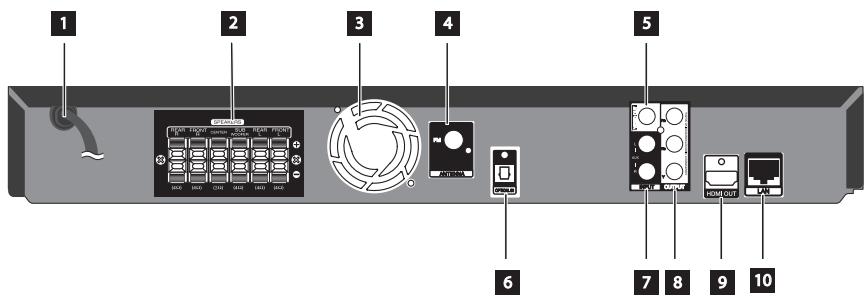

Rear panel

rnnnne

1 AC Power cord Plug into the power source.
2 Speakers connectors
3 Cooling Fan
4 Antenna Connector
VIDEO OUT
6 OPTICAL IN

7 AUX (L/R) INPUT
8 COMPONENTVIDEO (YPBPR) OUTPUT (PROGRESSIVE SCAN)
9 HDMI OUT (type A, Version 1.3) Connect to TV with HDMI inputs.
10 LAN Port

3

Installation

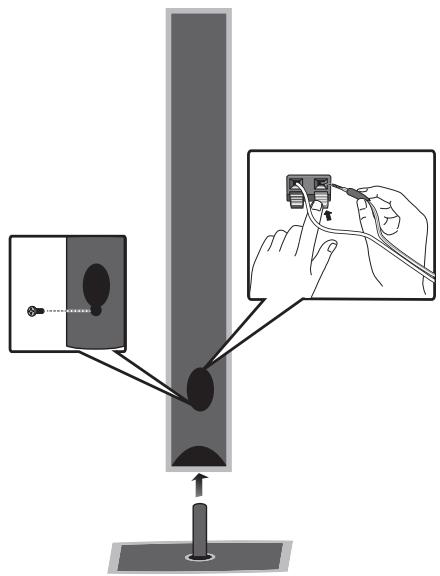

Assembling the speaker stand to the speaker

Before connecting the speakers, assemble the speakers. Please check the items for assembling the speakers.

Pakage contents

Attach the speakers to the speaker stands by rotateing the screws.

Speaker Connection

Attaching the speakers to the player

Connect the wires hooked up to the speaker to the unit.

To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad.

Connect the black end of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

colour	Speaker	Position
Grey	Rear	Rear right
Blue	Rear	Rear left
Green	Centre	Centre
Orange	Subwoofer	Any front position
Red	Front	Front right
White	Front	Front left

CAUTION

• Be careful to make sure children not to put their hands or any objects into the speaker duct. Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).
• Place the centre speaker at a safe distance from the child's reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.
• The speakers contain magnet parts, so colorirregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

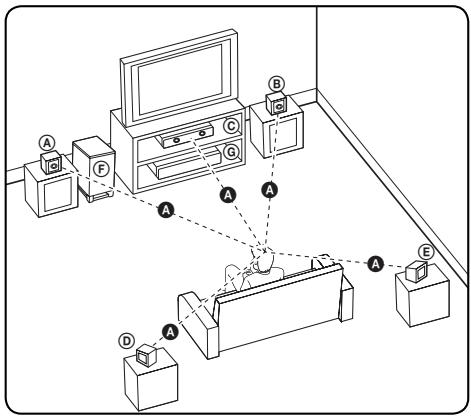

Positioning the system

The following illustration shows an example of positioning the system. Note that the illustrations in these instructions differ from the actual unit for explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A).

④ Front left speaker (L)/
⑧ Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible.

Centre speaker:
Place the centre speaker above or below the monitor or screen.
⑥ Surround left speaker (L)/
⑥ Surround right speaker (R):

Place these speakers behind your listening position, facing slightly inwards.

Subwoofer:

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the centre of the room to reduce the wall reflections.

Unit

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

• HDMI connection (pages 19-20)
• Component Video connection (page 21)
  Video connection (page 21)

NOTE

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.
• Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.
• Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect your player via your VCR. The image could be distorted by the copy protection system.

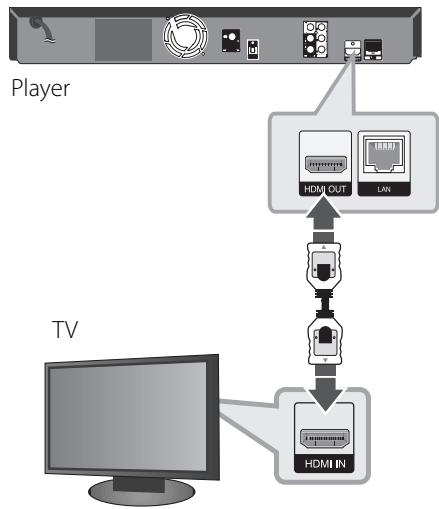

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, Version 1.3). Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.

HDMI Connection

Set the TV's source to HDMI (refer to TV's Owner's manual).

NOTE

• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
• If there is noise or lines on the screen, please check the HDMI cable (length is generally limited to 4.5m and use a high speed HDMI cable (version 1.3).
• If a connected HDMI device does not accept the audio output of the player, the HDMI device's audio sound may be distorted or may not output.
• When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to "Resolution Setting" on page 22.)
• Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 31).

• When you connect a HDMI or DVI compatible device make sure of the following:

• Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

• The connected device's video input is set correctly for this unit.

• The connected device is compatible with 720 × 576p , 1280 × 720p , 1920 × 1080i or 1920 × 1080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this player.

• The picture will not be displayed properly with non-HDCP device.

• This player does not playback and TV screen is changed to black screen.

What is SIMPLINK?

SIMPLINK

Some functions of this unit are controlled by the TV's remote control when this unit and LG TV's with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV's remote control; Play, Pause, Scan, Skip, Stop, Power Off, etc.

Refer to the TV owner's manual for the details of SIMPLINK function.

LG TV's with SIMPLINK function has the logo as shown above.

NOTE

Depending on the disc type or playing status, some SIMPLINK operation may differ from your purpose or not work.
- When you use SIMPLINK function, you have to connect to the OPTICAL IN jack to enjoy TV sound to your speaker system.

Component Video Connection

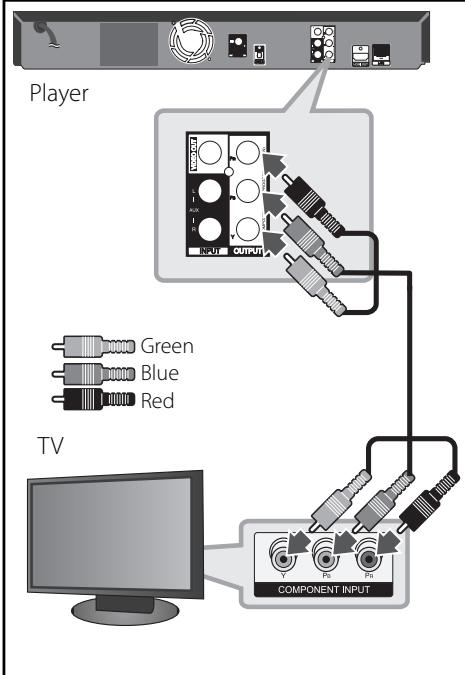

Connect the COMPONENTVIDEO OUT jacks on the player to the corresponding input jacks on the TV using YP_B P_ cables. You can hear the sound the through the system's speaker.

Component Connection

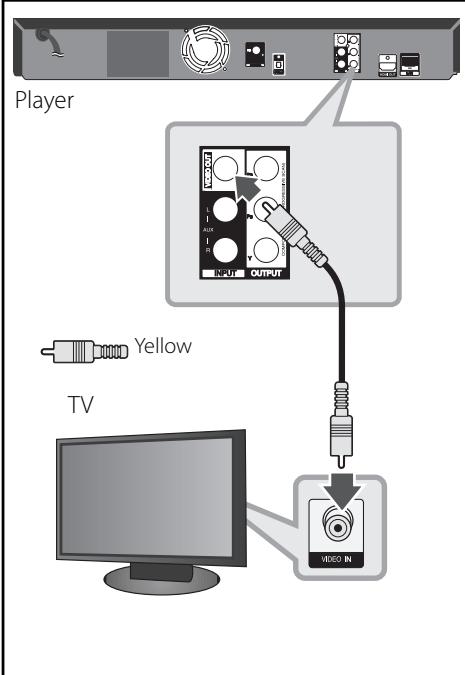

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system's speakers.

Video Connection

NOTE

When you use COMPONENTVIDEO OUT connection, you can change the resolution for the output. (Refer to "Resolution setting" on page 22.)

Resolution Setting

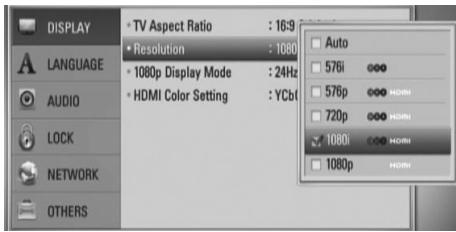

The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu.

1. Press HOME (↑).
2. Use < / > to select the [Setup] and press ENTER (O). The [Setup] menu appears.

1. Use / V to select [DISPLAY] option then press > to move to the second level.
2. Use / V to select the [Resolution] option then press ENTER (O) or > to move to the third level.

1. Use / V to select the desired resolution then press ENTER (⊙) to confirm your selection.

NOTE

• If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:
  Press for more than 5 seconds.
• Since several factors affect the resolution of video output, see "Video Output Resolution" on page 74.

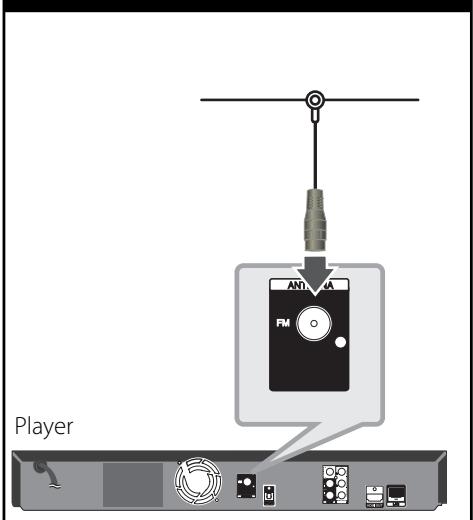

Antenna connection

Connect the supplied antenna for listening to the radio.

Antenna Connection

NOTE

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

Connections with external device

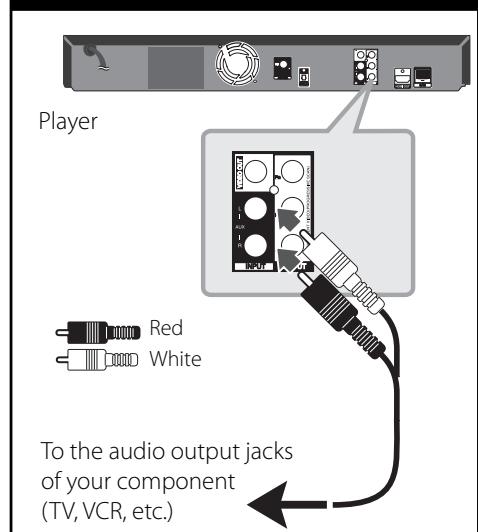

AUX Connection

You can enjoy the sound of your component with the analogue audio output jacks from the speakers of the system.

Connect the analogue audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER (⑥).

You can also use F button on the front panel to select the input mode.

AUX Connection

PORT. IN CONNECTION

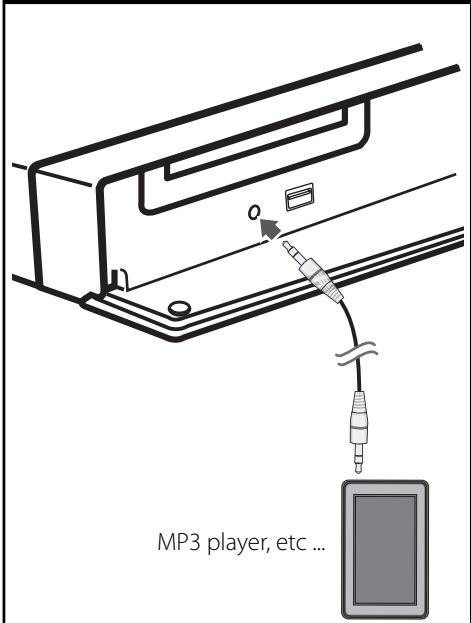

You can enjoy the sound of your portable audio player from the speakers of the system.

Connect the headphones (or line out) jack of the portable audio player into the PORT. IN of this unit. And then select the [PORTABLE] option by pressing RADIO&INPUT and ENTER (⑨).

You can also use F button on the front panel to select the input mode.

PORT.IN Connection

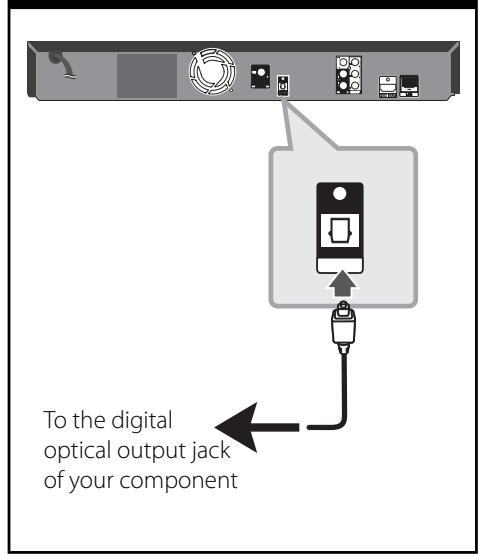

OPTICAL IN CONNECTION

You can enjoy the sound of your component with the digital optical connection from the speakers of the system.

Connect the optical output jack of your component into the OPTICAL IN jacks on the unit. And then select the [OPTICAL IN] option by pressing RADIO&INPUT and ENTER (⊙). Or press OPTICAL to select directly.

You can also use F button on the front panel to select the input mode.

Optical Connection

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel.

By connecting the unit to a broadband home network, you have access to services such as software updates, BD-LIVE interactivity and streaming services.

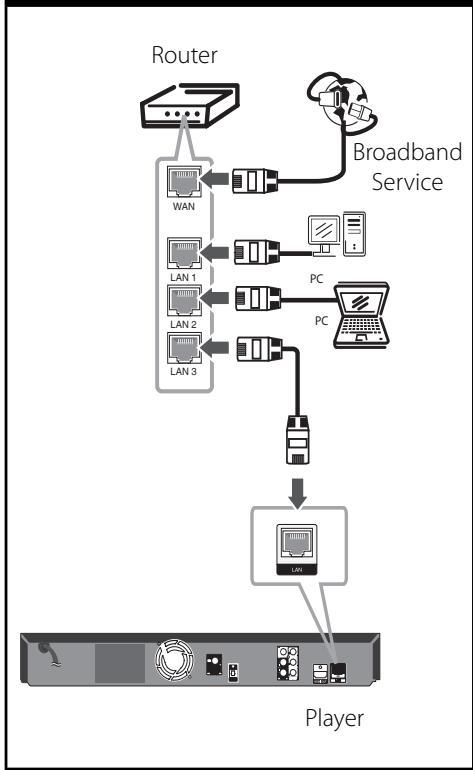

Wired network connection

Connect the player's LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CAT5 or better with RJ45 connector).

Wired Network Connection

NOTE

• When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.
• Do not connect a modular phone cable to the LAN port.
• Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider.

Wired Network Setup

Before setting the wired network, you need to connect the broadband internet to your home network.

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player's network setting to be adjusted. Adjust the [NETWORK] setting as follow.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (⊙).

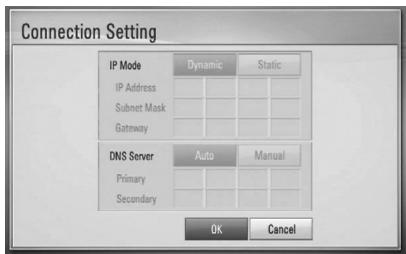

1. Use / < > to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

NOTE

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set the [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using / V / < / > and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

1. Select [OK] and press ENTER (O) to apply network settings.
2. The player will ask you to test the network connection. Select [OK] and press ENTER (C) to complete the network connection.

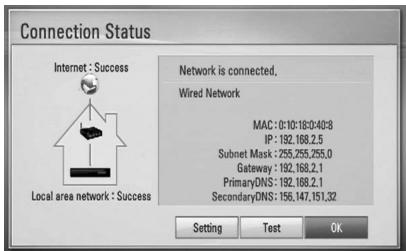

1. If you select [Test] and press ENTER (at step 4 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

Notes on Network Connection:

• Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
• Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.
• Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
• The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.
• Some internet contents may require a higher bandwidth connection.

• Even if the player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

• Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
• A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.
• You must use a Router to use xDSL service.
• A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)
• The use of a "Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.
• Turn off all unused network equipment in your local home network. Some devices may generate network traffic.

USB device connection

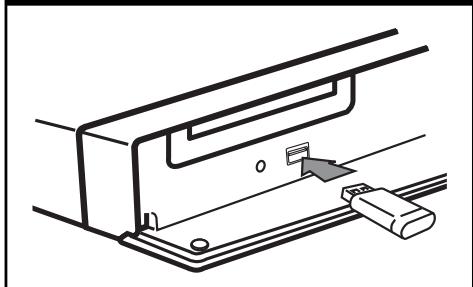

This player can play movie, music and photo files contained in the USB device.

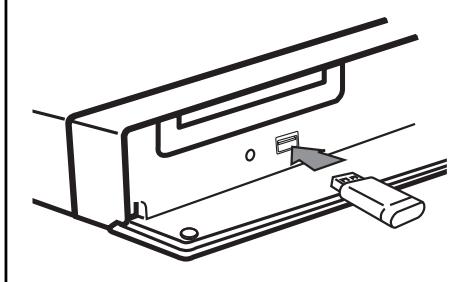

1. Insert a USB device to the USB port until it fits into place.

USB Connection - 1

When you connect the USB device on the HOME menu, the player plays a music file contained in the USB storage device automatically. If the USB storage device is containing various types of files, a menu for the file type selection will appear.

File loading may take few minutes depending on the number of content stored in the USB storage device. Press ENTER (O) while [Cancel] is selected to stop loading.

1. Select [Movie], [Photo] or [Music] using < / > , and press ENTER (O).

2. Select a file using / V < / > and press PLAY or ENTER (O) to play the file. You can check the space of the USB device on the screen.

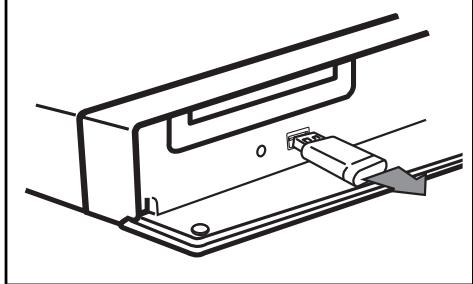

1. Select the other mode. And withdraw the USB device carefully.

USB Connection - 2

NOTE

• This player supports USB flash memory/external HDD formatted in FAT16, FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB flash memory/external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.
• The USB device can be used for the local storage for enjoying BD-LIVE discs with Internet.
• This unit can support up to 4 partitions of the USB device.
• Do not extract the USB device during operation (play, etc.).
• An USB device which requires additional programme installation when you have connected it to a computer, is not supported.
• USB device: USB device that support USB 1.1 and USB 2.0.
• Movie, music and photo files can be played. For details of operations on each file, refer to relevant pages.
• Regular back up is recommended to prevent data loss.
• If you use a USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognised.
• Some USB device may not work with this unit.
• Digital camera and mobile phone are not supported.
• USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Settings

Adjust the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME (↑).

1. Use < / > to select the [Setup] and press ENTER (O). The [Setup] menu appears.

1. Use / to select a first setup option, and press > to move to the second level.

1. Use / V to select a second setup option, and press ENTER (O) to move to the third level.

1. Use / V to select a desired setting, and press > or ENTER (O) to confirm your selection.

[DISPLAY] Menu

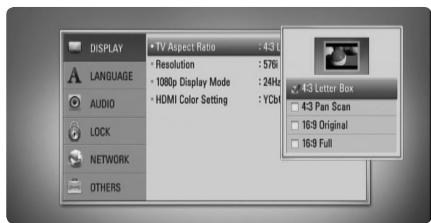

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off.

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to fill the entire screen.

NOTE

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

Resolution

Sets the output resolution of the Component and HDMI video signal. Refer to page 22 and 74 or details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. If the COMPONENT VIDEO OUT is only connected, this changes the resolution to 1080i as default resolution.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[576p]

Outputs 576 lines of progressive video.

[576i]

Outputs 576 lines of interlaced video.

108Op Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of film material (1080p/ 24 Hz) with a HDMI-equipped display compatible with 1080p/ 24 Hz input.

NOTE

• When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material. In this case, select [50 Hz].
• Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with 1080p/ 24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI (RGB) display device.

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and on-screen display.

Disc Menu/ Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER (O) to select another language. Use number buttons then ENTER to enter the corresponding 4-digit number according to the language code list on page 71.

[Off] (for Disc Subtitle only)

Turn off Subtitle.

NOTE

Depending on the disc, your language setting may not work.

[AUDIO] Menu

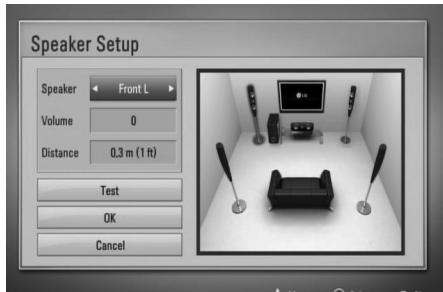

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Confirms the setting.

[Cancel]

Cancelsthe setting.

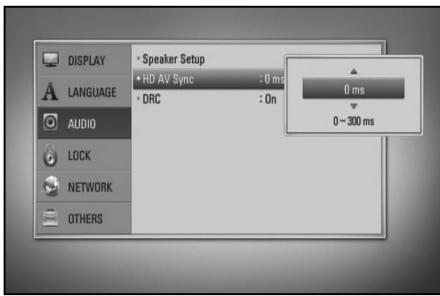

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively 'waits' for the picture to arrive: this is called HD AV Sync. Use to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

The delay will vary depending on which digital TV channel you are on. If you change channel you may need to readjust the HD AV Sync.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[Off]

Turns off this function.

[On]

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specified by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

NOTE

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

[LOCK] Menu

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created.

If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (O) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (⊙) to create a new password.

[Change]

Enter the current password and press ENTER (⊙). Enter a 4-digit password twice, and press ENTER (⊙) to create a new password.

NOTE

If you make a mistake before pressing ENTER (⊙), press CLEAR. Then input the correct password.

If you forget your password,

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.
2. Select [Lock] option in the [Setup] menu.
3. Use number buttons to enter "210499" on the [Password] Menu. The password is cleared.

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select this, parental control is not active and the disc plays in full.

BD Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

NOTE

The [BD Rating] will be applied only for the BD disc that containing the Advanced Rating Control.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 70.

[NETWORK] Menu

The [NETWORK] settings are needed to use the software update, BD Live and NetCast features.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the network connection for network communication. (See "Connecting to your Home Network" on page 25.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press ENTER (⊙) to check whether a connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-LIVE functions are used.

[Permitted]

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BD-LIVE contents which have content owner certificates. Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certificate.

[Prohibited]

Internet access is prohibited for all BD-LIVE contents.

[OTHERS] Menu

DIVX VOD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

NOTE

All the downloaded videos from DivX VOD with this player's registration code can only be played back on this unit.

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about five minutes. If you set this option to [On], the unit automatically turns itself off after the Screen Saver is displayed for 20 minutes. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

Initialize

Factory Set

You can reset the player to its original factory settings.

BD Storage Clear

Initializes the BD contents from the connected USB storage.

NOTE

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

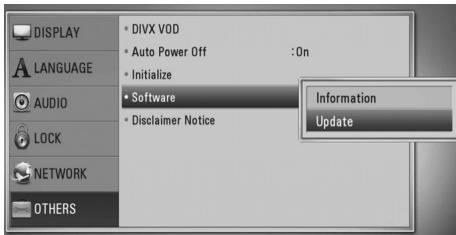

Software

Information

Displays the current software version.

Update

You can update the software by connecting the unit directly to the software update server (see page 72-73).

Disclaimer Notice

Press ENTER (⊙) to view the notice of Network Service Disclaimer on page 78.

Sound Effect

You can select a suitable sound mode. Press SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe different depending on sound sources and effects.

[NATURAL]: You can enjoy comfortable and natural sound.

[BYPASS]: Software with multichannel surround audio signals is played according to the way it was recorded.

[BASS]: Reinforce the bass sound effect from front left and right speaker and subwoofer.

[CLRVOICE]: This mode makes voice sound clear, improving the quality of voice sound.

[VIRTUAL]: You can enjoy more dynamic sound with improved centre channel.

[GAME]: You can enjoy more virtual sound while playing video games.

[NIGHT]: This may be useful when you want to watch movies at low volumes late at night.

[RETOUCH]: When listening to MP3 files or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[LOUNDNESS]: Improves bass and treble sound.

[NAT PLUS]: You can enjoy the natural sound effect same as 5.1 channel.

4

Operation

GeneralPlayback

Playing Discs

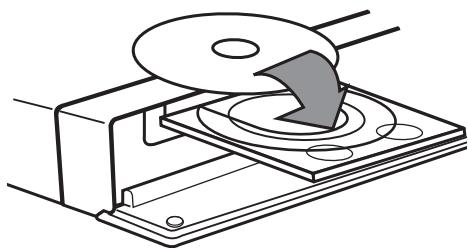

1. Press OPEN/CLOSE (▲), and place a disc on the disc tray.

1. Press OPEN/CLOSE(▲) to close the disc tray.

For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

1. Press HOME (↑).

1. Select [Movie], [Photo] or [Music] using < / > , and press ENTER (⑥).
2. Select the [Disc] option using < / > and press ENTER (O).

When you connect up to two devices, it appears as above.

1. Select a file using / V < / > , and press PLAY) or ENTER (O) to play the file.

NOTE

• Playback functions described in this manual are not always available in every files and medium. Some functions can be restricted depending on many factors.
  Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback.

To stop playback

Press (STOP) while playback.

To pause playback

Press (PAUSE) while playback. Press (PLAY) to resume playback.

To play frame-by-frame

Press PAUSE) while movie playback. Press PAUSE) repeatedly to play Frame-by-Frame playback.

To scan forward or backward

Press or to play fast forward or fast reverse during playback. You can change the various playback speeds by pressing or repeatedly.

To slow down the playing speed

While the playback is paused, press repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press or to go to the next chapter/track/file or to return to the beginning of the current chapter/track/file. Press twice briefly to step back to the previous chapter/track/file.

Using the disc menu

BD DVD AVCHD

To display the disc menu

The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu while playback, press DISC MENU.

Use / V / < / > buttons to navigate through menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that appears while playback.

Press TITLE/POPUP while playback, and use / / < / > buttons to navigate through menu items.

Resume playback

MUSIC

BD

DVD

AVCHD

MOVIE

ACD

The unit records the point where you pressed the (STOP) depending on the disc.

If "Resume Stop") appears on the screen briefly, press (PLAY) to resume playback from the scene point).

If you press (STOP) twice or unload the disc,

"■"(Complete Stop) appears on the screen.

The unit will clear the stopped point.

NOTE

• The resume point may be cleared when a button is pressed (for example; (POWER), (OPEN/CLOSE), etc).
• On BD-Video discs with BD-J, the resume playback function does not work.
• If you press (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode.

AdvancedPlayback

Repeat Playback

BD DVD AVCHD ACD MUSIC

During playback, press REPEAT repeatedly to select a desired repeat mode.

BDs/DVDs

A- Selected portion will be repeated continually.
Chapter - The current chapter will be played back repeatedly.
Title - The current title will be played back repeatedly.

To return to normal playback, press REPEAT repeatedly to select [Off].

Audio CDs/Music files

Track - The current track or file will be played back repeatedly.

All - All the tracks or files will be played back repeatedly.
- The tracks or files will be played back in random order.
A All - All the tracks or files will be played back repeatedly in random order.
A-B - Selected portion will be repeated continually. (Audio CD only)

To return to normal playback, press CLEAR.

NOTE

• If you press once during Repeat Chapter/ Track playback, the repeat playback cancels.
• This function may not work on some disc or title.

Repeating a specific portion

BD DVD AVCHD ACD

This player can repeat a portion you have selected.

1. While playback, press REPEAT to select [A-] at the beginning of the portion you wish to repeat. And then press ENTER (⊙).
2. Press ENTER (⊙) at the end of the portion. Your selected portion will be repeated continually.
3. To return to normal playback, press REPEAT repeatedly to select [OFF] or press CLEAR.

NOTE

You cannot select a portion less than 3 seconds.

Enlarge the playback image

1. During playback or pause mode, press ZOOM to display the [Zoom] menu.
2. Use red (R) or green (G) colored button to zoom out or in the picture. You can move through the zoomed picture using / / < / > buttons.
3. To return to the normal picture size, press yellow (Y) colored button.
4. Press RETURN() to exit the [Zoom] menu.

Marker Search

BD

DVD

AVCHD

MOVIE

You can start playback from up to nine memorized points.

To enter a marker

1. While playback, press MARKER at the desired point. The Marker icon appears on the TV screen briefly.
2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.
2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

To delete a Marker

1. Press SEARCH and the search menu appears on the screen.

1. Press V to highlight a marker number. Use / to select a marked scene that you want to delete.
2. Press CLEAR and the marked scene is erased from the search menu.

NOTE

• This function may not work depending on discs, titles, server ability.
• All marked points are cleared if the title is in complete stop (■) mode, the title is changed or if you unload the disc.
• If the total length of the title is less than 10 seconds, this function is not available.

Using the search menu

BD

DVD

AVCHD

MOVIE

Using search menu, you can easy to find the point where you want to start playback.

To search a point

1. During playback, press SEARCH to display the search menu.

1. Press < / > to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding < / > button.

To start playback from a marked scene

1. Press SEARCH and the search menu appears on the screen.
2. Press V to highlight a marker number. Use / to select a marked scene that you want to start playback from.
3. Press ENTER (⊙) to start playback from the marked scene.

NOTE

This function may not work depending on discs, titles, server ability.

Changing content list view

MOVIE MUSIC PHOTO

On the [Movie], [Music], [Photo] menu, you can change the content list view.

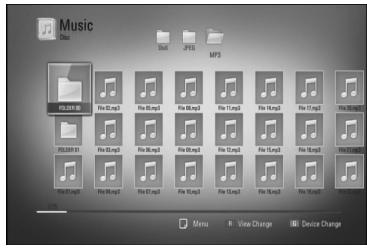

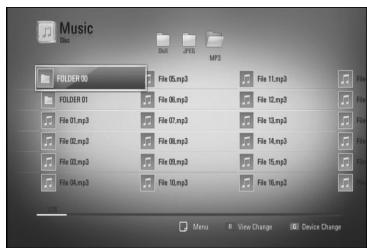

Method 1

Press red (R) coloured button repeatedly.

Method 2

1. On the content list, press INFO/DISPLAY (□) to display the option menu.
2. Use / V to select the [View Change] option.
3. Press ENTER (O) to change the content list view.

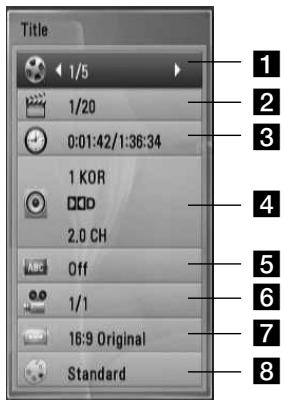

Viewing content information MOVIE

The player can display the content information.

1. Select a file using / < / > .
2. Press INFO/DISPLAY to display the option menu.
3. Select the [Information] option using / V , and press ENTER (⊙).

The file information appears on the screen.

While movie playback, you can display the file information by pressing TITLE/POPUP.

NOTE

The information displayed on the screen may not correct comparing actual content information.

Last Scene Memory

BD DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

NOTE

• Last Scene Memory function for a previous disc is erased once a different disc is played.
• This function may not work depending on the disc.
• This unit does not memorize settings of a disc if you switch off the unit before commencing to play it.

On-Screen display

You can display and adjust various information and settings about the content.

Displaying content information on-screen

BD DVD AVCHD MOVIE

1. While playback, press INFO/DISPLAY (□) to show various playback information.

1 Title - Current title number/total number of titles
Chapter - Current chapter number/total number of chapters
3 Time - Elapsed playing time/Total playback time
4 Audio - Selected audio language or channel
5 Subtitle - Selected subtitle
Angle - Selected angle/total number of angles
TV Aspect Ratio - Selected a TV aspect Ratio
8 Picture Mode - Selected picture mode

1. Select an option using /V
2. Use < / > to adjust the selected option value.
3. Press RETURN (to exit the On-Screen display.

NOTE

• If no button is pressed for a few seconds, the on-screen display disappears.
• A title number cannot be selected on some discs.
• Available items may differ depending on discs or titles.
• If BD interactive title is playing back, some setting information is displayed on the screen but prohibited to be changed.

Playing from selected time

BD

DVD

AVCHD

MOVIE

1. Press INFO/DISPLAY (D) during playback. The time search box shows the elapsed playing time.
2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter "21020".

Press < / > to skip the playback 60 seconds forward or backward.

1. Press ENTER (⊙) to start playback from selected time.

NOTE

This function may not work on some disc or titles.

Hearing a different audio

BD

DVD

AVCHD

MOVIE

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / to select the [Audio] option.
3. Use / to select desired audio language, audio track or audio channel.

NOTE

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.
• Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.
• On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

Selecting a subtitle language

BD

DVD

AVCHD

MOVIE

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / to select the [Subtitle] option.
3. Use / to select desired subtitle language.
4. Press RETURN() to exit the On-Screen display.

NOTE

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

Watching from a different angle

BD

DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / to select the [Angle] option.
3. Use / to select desired angle.
4. Press RETURN (to exit the On-Screen display.

Changing the TV Aspect Ratio

BD

DVD

AVCHD

MOVIE

You can change the TV aspect ratio setting while playback.

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / to select the [TV Aspect Ratio] option.
3. Use / to select desired option.
4. Press RETURN (o) to exit the On-Screen display.

NOTE

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

Changing the Picture Mode

BD

DVD

AVCHD

MOVIE

You can change the [Picture mode] option while playback.

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / V to select the [Picture Mode] option.
3. Use / to select desired option.
4. Press RETURN (to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / V to select the [Picture Mode] option.
3. Use < / > to select the [User setting] option, and press ENTER (⑨).

1. Use / V < / > to adjust the [Picture Mode] options.

Select [Default] option then press ENTER (⊙) to reset the all adjustments.

1. Use / < / > to select the [Close] options, and press ENTER (O) to finish setting.

Enjoying BD-LIVE

This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard Profile).

Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

In addition to the BONUSVIEW function, BDVideo supporting BD-LIVE (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (pages 25-27).
2. Insert a USB storage device to the USB port on the front panel.

A USB storage device is needed to download bonus content.

USB Connection

1. Press Home (▶), and set the [BD-LIVE connection] option on the [Setup] menu (page 35).

Depending on a disc, the BD-LIVE function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

1. Insert a BD-ROM with BD-LIVE.

The operations are differ depending on the disc. Refer to the manual supplied with the disc.

NOTE

• Do not extract the connected USB device while content is being downloaded or a Blu-ray disc is still in the disc tray. Doing so may damage the connected USB device and BD-LIVE features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.
• Some BD-LIVE contents may be restrictively accessed in some territories by contents provider's own decision.
  It may take up to several minutes to load and start enjoying BD-LIVE contents.

Playing a movie file and VR disc

You can play DVD-RW discs that are recorded in Video Recording (VR) format and movie files contained in a disc or USB device.

1. Press HOME (A).

1. Select [Movie] using < / > , and press ENTER (C).
2. Select the device using < / > , and press ENTER (O).

When you connect up to two devices, it appears as above.

1. Select a file using / V / < / > , and press PLAY or ENTE (⊙) R to play the file.

NOTE

The file requirements are described on page 11.
- You can use various playback functions. Refer to pages 37-46.
- Unfinalized DVD VR format discs may not be played in this player.
- Some DVD-VR disc are made with CPRM data by DVD recorder. This unit cannot support these kinds of discs.

What is CPRM?

CPRM is a copy protection system (with scramble system) only allowing the recording of 'copy once' broadcast programmes. CPRM stands for Content Protection for Recordable Media.

Selecting a subtitle file MOVIE

If a movie file name and the subtitle file name are the same, subtitle file is played automatically when playing the movie file.

If the subtitle file name is different with the movie file name, you need to select the subtitle file on the [Movie] menu before playing the movie.

1. Use / < / > to select the subtitle file you wish to play in the [Movie] menu.
2. Press ENTER (O).

Press ENTER (O) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the movie file.

NOTE

If you press (STOP) while playback, the subtitle selection is cancelled.

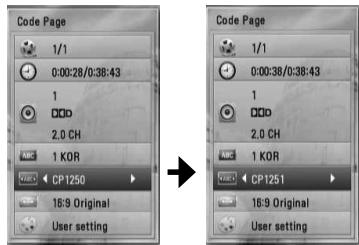

Changing subtitle code page MOVIE

If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle file properly.

1. During playback, press INFO/DISPLAY (□) to display the on-screen display.
2. Use / to select the [Code Page] option.
3. Use / to select desired code option.

1. Press RETURN (to exit the On-Screen display.

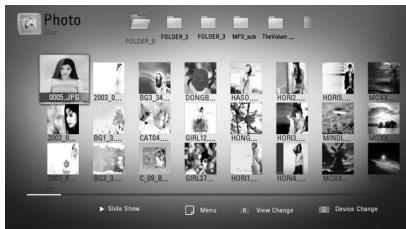

Viewing a photo

You can view photo files using this player.

1. Press HOME (↑).

1. Select [Photo] using < / > , and press ENTER (C).
2. Select the device using < / > , and press ENTER (O).

When you connect up to two devices, it appears as above.

1. Select a file using / V / < / > , and press ENTER (O) to view the photo.

To play a slide show

Press▶(PLAY) to start slide show.

To stop a slide show

Press (STOP) while slide show.

To pause a slide show

Press (PAUSE) while slide show.

Press (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press < or > to go to the previous or next photo.

NOTE

• The file requirements are described on page 11.
• You can use various playback functions. Refer to pages 37-46.

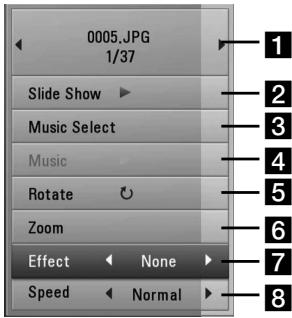

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/DISPLAY (□) to display the option menu.
2. Select an option using /V

1 Current photo/Total number of photos - Use < / > to view previous/next photo.
2 Slide Show - Press ENTER (O) to start or pause slide show.
3 Music Select - Select the background music for the slide show.
4 Music -Press ENTER (⊙) to start or pause background music.
5 Rotate - Press ENTER (O) to rotate the photo clockwise.
6 Zoom - Press ENTER (O) to display the [Zoom] menu.
7 Effect - Use < / > to select a transition effect between photos in a slide show.
8 Speed - Use < / > to select a delaying speed between photos in a slide show.

1. Press RETURN (to exit the option menu.

Listening to music while slide show

You can display photo files while listening to music files.

1. Press HOME (↑).

1. Select [Photo] using < / > , and press ENTER (C).
2. Select the [Disc] or [USB] option using < / > and press ENTER (O).

1. Select a file using / V / < / > , and press ENTER (O) to view the photo.
2. Press INFO/DISPLAY to display the option menu.
3. Use / to select [Music Select] option, and press ENTER (O) to display the [Music Select] menu.

1. Use / to select a device, and press ENTER (C).

Device that you can select are differ depending on the location of the photo file you are displaying in full screen.

Photo location	Available Device
Disc	Disc, USB
USB	Disc, USB

1. Use / V to select a file or a folder you wish to play.

Select a folder and press ENTER (O) to display the lower directory.

Select and press ENTER (O) to display the upper directory.

1. Use > to select [OK], and press ENTER (⊙) to complete music selection.

Listening to music

The player can play Audio CDs and music files

1. Press HOME (↑).

1. Select [Music] using < / > , and press ENTER (C).
2. Select the device using < / > , and press ENTER (O).

When you connect up to two devices, it appears as above.

1. Select a music file or audio track using / V / < / > , and press ENTER (O) to play the music.

NOTE

The file requirements are described on page 11.
- You can use various playback functions. Refer to pages 37-46.

Audio CD Recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.
2. Press (OPEN/CLOSE), and place an Audio CD on the disc tray.

Press (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

1. Press INFO/DISPLAY (□) to display the option menu.

Or

Press REC button on the remote control. You can record all musics in the audio CD.

1. Use / V to select [CD Recording] option, and press ENTER (⊙) to display the [CD Recording] menu.

Repeat this step to select tracks as many as you can.

1. Use / V to select a track you wish to copy on the menu, and press ENTER (O).

Repeat this step to select tracks as many as you can.

Select All	Select all the tracks on an Audio CD.
Option	Selects an encoding option from the pop-up menu (128 kbps, 192 kbps, 320 kbps or Lossless).
Close	Cancels the recording and returns to the previous screen.

1. Use / V < / > to select [Start], and press ENTER (②).
2. Use / / < / > to select the destination folder to be copied.

If you want to create a new folder, use / < / > to select [New Folder] and press ENTER (O).

Enter a folder name using virtual keyboard, and press ENTER (O) while [OK] is selected.

1. Use /V < / > to select [OK], and press ENTER (O) to start Audio CD recording.
   If you want to stop in progressing Audio CD recording, press ENTER (O) while [Cancel] is highlighted.
2. A message appears when Audio CD recording is completed. Press ENTER
   to check the music file created in the destination folder.

NOTE

• The table below shows the average recording time from an audio track with 4 minutes of playback time to a music file with 192 kbps as an example.

stop mode	while playback
1 min.	4 min.

• All times in the above table are approximate.
• Actual recording time for USB storage device varies depending on the USB storage device's ability.
• Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.
• The length of the music should be longer than 20 seconds for the proper recording.
• Do not turn off this player or extract the connected USB storage device during Audio CD recording.

The making of unauthorized copies of
copy-protected material, including computer
programmes, files, broadcasts and sound
recordings, may be an infringement of copyrights.
and constitute a criminal offense. This equipment should not be used for such purposes. Be responsible Respect copyrights

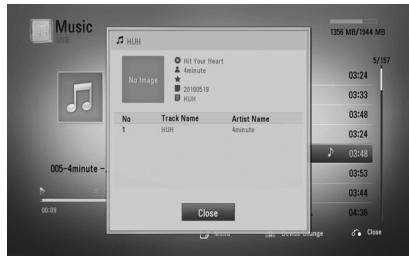

Displaying MP3 music information (ID3 Tag)

1. Select a music file using / < / >
2. Press INFO/DISPLAY (□) to display the option menu.
3. Select [Information] option using / V , and press ENTER (⑨).
4. The music information will be displayed on the screen.

NOTE

Depending on the MP3 files, information may not be displayed on the screen.

Radio Operations

Be sure that the antenna is connected.

(Refer to the page 23)

Listening to the radio

1. Press RADIO&INPUT until TUNER (FM) appears in the display window. The last received station is tuned in.
2. Press and hold TUNING (- / +) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (- / +) repeatedly.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL (+ / - ) on the remote control.

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure that you have turned down the volume.

1. Press RADIO&INPUT until the TUNER (FM) appears in the display window.
2. Select the desired frequency by using TUNING (- + )
3. Press ENTER (C) a preset number will flash in the display window.
4. Press PRESET (- / + ) to select the preset number you want.
5. Press ENTER (O). The station is stored.
6. Repeat the steps 2 to 5 to store other stations.

Deleting all the saved stations

Press and hold CLEAR for two seconds.

"ERASE ALL" will flash up. Then all the saved stations are deleted.

Deleting a saved station

1. Press PRESET (- / + ) to Select a preset number you want to delete.
2. Press CLEAR, the preset number will blink in the display window.
3. Press CLEAR again, to delete the selectd preset number.

Improving poor FM reception

Press B (blue) (MONO/STEREO) coloured button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

See information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types:

PS	(Programme Service Name) The name of the channel will appear in the display
PTY	(Programme Type Recognition) The programme type (e.g. Jazz or News) will appear in the display.
RT	(Radio Text) A text message contains special information from the broadcast station. This text may scroll across the display.
CT	(Time controlled by the channel) This shows the time and date as broadcast by the station.

Using NetCast™ Entertainment Access

You can use various content services via Internet with NetCast Entertainment Access feature.

1. Check the network connection and settings (pages 25-27).
2. Press HOME (↑).
3. Select the [NetCast] using < / > , and press ENTER (⑥).
4. Select an option using < / > , and press ENTER (O).

YouTube - See pages 56-59

Picasa Web Albums - See pages 60-62

AccuWeather - See pages 63-64

1. While enjoying on-line content from NetCast, press blue (B) coloured button to go to NetCast Home screen.

NOTE

• The content of NetCast services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information.
• The background image on the NetCast home indicates the weather of your favorite city in the AccuWeather feature.

YouTube

You can browse, search and watch YouTube videos over the internet to your TV via your LG Blu-ray disc player.

Watch YouTube videos on your TV

1. On the player, select the [YouTube] option in the [NetCast] menu using < / > , and press ENTER (O).
2. Press to select the option menu bar.
3. Use < / > to select an option and press ENTER (O) to search videos.
4. Use < / > to select a video and press ENTER (O) or (play) to play the video.

Button	Operation
▶ or ENTER	Starts playback the video with content detail.
INFO/DISPLAY	Toggle between playback in full screen and playback screen with content detail.
■	To pause a video while it is playing. To resume playing a paused video, press▶ again.
■	Stops the video and displays related videos list.
■/▶	Skip the playback forward or backward.

About the YouTube menu

There are various options on the YouTube menu. Use / V / < / > to select an option and press ENTER (O) to select the options as described below.

Featured - The featured videos list will be displayed.

Recent Videos - The most recently updated videos list will be displayed.

Most Viewed - The most viewed videos list will be displayed. The period option appears at the bottom of the screen.

Top Rated – The best rated videos list from YouTube server will be displayed. The period option appears at the bottom of the screen.

Search - The virtual keyboard will be displayed. See "Searching videos" on page 59 for more detail.

History - The videos list that you previously played on this unit will be displayed. Maximum of 25 videos can be stored.

• Favorites - This option will be appeared only when the unit is in sign-in status. Displays the videos list that is arranged in the YouTube server with your account. Some videos may not appear on the [Favorites] list, even if the videos are arranged in the server.

Sign in (Sign Out) - Displays the virtual keyboard to sign in or returns to the sign-out status. See "Sign in with your YouTube account" on page 59 for more details.

Local site - Choose which country's videos you would like to view. The countries listed on the [Local Site] menu may differ with those listed on the YouTube web site.

NOTE

• The YouTube menu can display 5 videos in the videos list. Press green (G) or yellow (Y) buttons to display previous/next 5 videos.
• If you select the [Most Viewed] or [Top Rated] option in the YouTube menu, the period options appear at the bottom of the screen. Use / < / > to select a period option and press ENTER (O) to display the videos list within the selected period.
• The videos list searched from the player may differ with the list searched from a web browser on PC.
• The playback of YouTube videos may be paused, stopped or buffering occurring often depending on your broadband speed.

We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a connection speed of 4.0 Mbps is required. Sometimes your broadband speed varies based on your ISP's network conditions. Contact your ISP if you have problems maintaining a fast connection that is reliable, or if you want to increase your connection speed. Many ISPs offer a variety of broadband speed options.

Using the virtual keyboard

On the virtual keyboard, there are two input mode for the entering a character. Press the yellow (Y) coloured button to toggle display between keyboard mode and keypad mode.

Keyboard Mode

Use / < / > to select a letter on the screen, and press ENTER (O) to confirm your selection.

[Cancel] - Return to the previous screen.

[Space] - Inserts a space at the cursor position.

[Backspace] - Deletes the previous character at the cursor position.

[ABC / abc / #+-=&] - Changes the virtual keyboard settings to capital letters, small letters or symbols.

Press CLEAR to clear all entered characters.

To enter a letter with an accent mark:

1. Select a letter using / V < / > on the virtual key board.
2. Press INFO/DISPLAY (□) to display the extended character set.
3. Use < / > to select a character then press ENTER (O).

Available languages to enter on the keyboard mode are as follows: English, Spanish, Italian, French, German, Dutch, Portuguese, Swedish, Polish and Czech.

Keypad Mode

This mode allows you to enter letters by pressing the buttons on the remote control. Press the buttons with the required letter once, twice, three or four times until the letter is displayed.

Button	Operation
CLEAR	Deletes the previous character at the cursor position.
REPEAT	Inserts a space at the cursor position.
▲▲/▲▲	Change the character set of the remote control (#+-=&, 123, ABC or abc)

NOTE

The keypad mode is available only in the [YouTube] and [Picasa Web Albums] features.

Searching videos

You can search for videos by entering search words of up to 128 characters.

1. Use < / > to select [Search] option from the menu and press ENTER (O) to display the virtual keyboard.

Refer to "Using the virtual keyboard" on page 58 for using virtual keyboard.

When you entering a character, maximum of 5 suggestion words will be displayed.

1. When you finish entering the search words, select [OK] and press ENTER (O) to display the related video list.

Sign in with your YouTube account

To watch videos from your [Favorites] video list on the YouTube server with your account, you need to sign in with your YouTube account.

1. Use < / > to select [Sign In] option from the menu and press ENTER (O) to display the virtual keyboard.
2. Use / V < / > to select a character then press ENTER (⊙) to confirm your selection on the virtual keyboard.

Refer to "Using the virtual keyboard" on page 58 for using virtual keyboard.

1. When you finish entering the user name and the password, select [OK] and press ENTER (O) to sign in.
2. If you want to sign out, select the [Sign Out] from the YouTube menu and press ENTER (O).

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the [Sign In] option.

Select a stored user name on the list and press ENTER (O) to display the keyboard menu with the selected user name is entered. You will then only need to enter the password to sign in.

Select the [X] symbol and press ENTER (⊙) to delete the stored user name.

Picasa Web Albums

Enjoy photo albums from friends and family on the Picasa Web Albums on-line service.

View Picasa Web Albums on your TV

1. On the player, select the [Picasa Web Albums] option in the [NetCast] menu using < / > , and press ENTER (⑧).
   Featured photos are appeared on the screen.
2. Use / < / > to select a photo and press ENTER (O) to view the photo in full screen.

Button	Operation
►	Starts a slide show.
INFO/DISPLAY	Displays the photo option menu.
■	Pauses a slide show. To resume slide show, press► again.
■	Stops the slide show and return to the Picasa Web Albums menu.
<>/>	Moves to the next or previous photo.

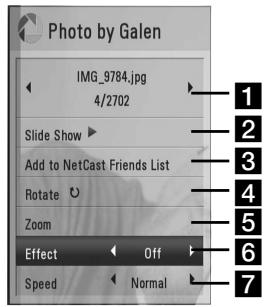

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/DISPLAY to display the option menu.
2. Select an option using /V

1 Current photo/Total number of photos - Use < / > to view previous/next photo.
2 Slide Show - Press ENTER (O) to start or pause slide show.
3 Add to NetCast Friends List - Add the current photo owner to my friend list.
4 Rotate - Press ENTER (O) to rotate the photo clockwise.
5 Zoom - Press ENTER (O) to display the [Zoom] menu.
6 Effect - Use < / > to select a transition effect between photos in a slide show.
7 Speed - Use < / > to select a delaying speed between photos in a slide show.

1. Press RETURN (o) to exit the option menu.

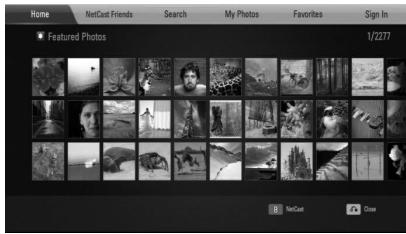

About the Picasa Web Albums menu

There are various options on the Picasa Web Albums menu. Use / V / < / > to select an menu option and press ENTER (⊙) to select the options as described below.

Home - The featured photo list will be displayed.

NetCast Friends - List of your friends will be displayed.

Search - Enter a search word to find related photos. The virtual keyboard will be displayed (page 62).

My Photos - Displays the photos organised in my Picasa Web Albums. This option is available only when the unit is in sign-in status.

• Favorites - Displays up to 50 favorite web albums that are arranged in the Picasa Web Albums server with your account. This option is available only when the unit is in sign-in status.

Sign in (Sign Out) - Displays the virtual keyboard to sign in or returns to the sign-out status (page 62)

NOTE

Photos displayed in [My Photos] and [Favorites] may differ with the photos from a web browser on PC.

Adding friends

If you add your friends on the [NetCast Friends] menu, you can see the photos of your friend's public photos directly.

1. Select the [NetCast Friends] on the Picasa Web Albums menu using / < / > , and press ENTER (⑥).

1. Press ENTER (O) to display the virtual keyboard.
2. Enter a name using the virtual keyboard. Refer to "Using the virtual keyboard" on page 58 for using virtual keyboard.
3. Select [OK] using / V / < / > , and press ENTER (⊙) to display the web album of your friend.

NOTE

• If you want to delete your friend from the list, press green (G) coloured button while the web album is selected.
• If you want to add more friends, press red (R) coloured button on the list.
• You can add more web albums of your friends up to 50.

Searching photos

You can enter a search word to find related photos.

1. Select the [Search] on the Picasa Web Albums menu using / V < / > , and press ENTER (⊙).
2. Enter a search word using the virtual keyboard.

Refer to "Using the virtual keyboard" on page 58 for using virtual keyboard.

1. Select [OK] using / V < / > , and press ENTER (O) to display the search result.

NOTE

The search result from the player may differ with the result searched from a web browser on PC.

Signing in with your account

To display photos in your web album on the screen, you need to sign in with your Picasa Web Albums account.

1. Select the [Sign In] on the Picasa Web Albums menu using / V / < / > , and press ENTER (O).

1. Enter your user name using the virtual keyboard, and press ENTER (O) while [OK] is selected.

Refer to "Using the virtual keyboard" on page 58 for using virtual keyboard.

1. Enter the password using the virtual keyboard, and press ENTER (O) while [OK] is selected.

Your web album is appeared on the screen.

1. If you want to sign out, select the [Sign Out] from the Picasa Web Albums menu and press ENTER (O).

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the [Sign In] option.

Select a stored user name on the list and press ENTER (O) to display the virtual keyboard with the selected user name is entered. You will then only need to enter the password to sign in.

Select the [X] symbol and press ENTER (O) to delete the stored user name.

Using the AccuWeather

See on-line local and global weather forecasts from AccuWeather.com.

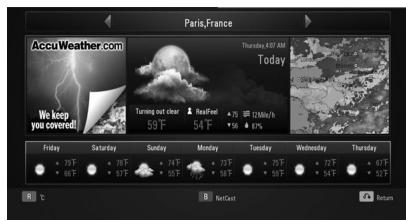

Viewing weather information

1. On the player, select the [AccuWeather] option in the [NetCast] menu using </> , and press ENTER (⑨).

The city selection menu appears on the screen.

1. Press ENTER (O) while [Add City to Favorite City List] is selected.
2. Select a region using / , and press ENTER (C).

1. Select a, country using / V / < / > , and press ENTER (⑨).

2. Select a city using / V < / > , and press ENTER (⊙).

3. Use / < > to select [Home] and press ENTER (O) to display weather information of the selected city.

Press red (R) coloured button to toggle display between Fahrenheit or Celsius thermometre.

1. Use < / > to select previous or next city, and press ENTER (O) to display the weather information.

This step works only when you add more than 1 cities to the [Favorite city List].

NOTE

• The weather information is not always correct.
• The weather information may be displayed in English, if your own language is not available on the AccuWeather service.

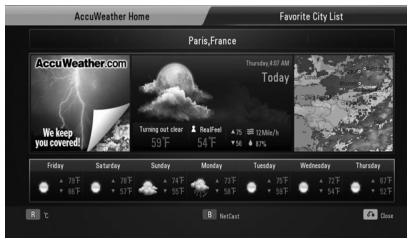

Adding more cities

1. Use < / > to select [Favorite City List] on the AccuWeather menu, and press ENTER (O).

1. Press ENTER (O) while [Add City to Favorite City List] is selected.
2. Select a region, country and city using / V < / > and ENTER (O).
3. Repeats step 2-3 to add up to 5 cities. Select the [X] symbol and press ENTER (O) to delete the stored favorite city.
4. Use / V to select a city from the [Favorite City List], and press ENTER (O) to display the weather information.

5 Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

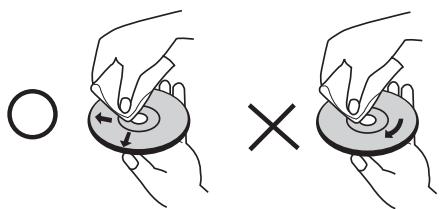

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service centre.

6

Troubleshooting

General

The Power does not turned on.	Plug the power cord into the wall outlet securely.
The unit does not start playback.	Insert a playable disc. (Check the disc type, colour system, and regional code). Place the disc with the playback side down. Place the disc on the disc tray correctly inside the guide. Clean the disc. Cancel the rating function or change the rating level.
The angle cannot be changed.	Multi-angles are not recorded on the DVD Video being played.
The subtitle language cannot be changed or turned off.	Subtitles are not recorded on the DVD Video being played.
Cannot play MP3/WMA/JPEG/DivX files.	The files are not recorded in a format that the unit can play. The unit does not support the codec of the movie file.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the unit. The remote control is too far from the unit. There is an obstacle in the path of the remote control and the unit. The Battery in the remote control is exhausted.


There is no picture.

·Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. ·Connect the video connection securely. ·Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection. ·Your TV may not suppost the resolution you have set on the player. Change the resolution that your TV accepts. ·The player's HDMI OUT jack is connected to a DVI device that does not support copyright protection.

Picture noise appears

·You are playing a disc recorded in a colour system that is different from your TV. ·Set the resolution which your TV accepts.

Sound

There is no sound or the sound is distorted.

·The unit is in scan, slow motion, or pause mode. ·The sound volume is low. ·Check the speaker cable connection. (page 17)

Network

BD-LIVE feature does not work.

·The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space. ·Ensure that the unit is correctly connected to the local area network and can access the internet (see pages 25-27). ·Your broadband speed may not fast enough to use the BD-LIVE features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. ·The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted].

Streaming video services (such as YouTube, etc.) are often stopped or “buffer” during playback.

·Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

Design and specifications are subject to change without notice.

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://lgservice.com or contact LG Electronics customer care centre.

7

Appendix

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below.

Button	Operation
(TV Power)	Turn the TV on or off.
AV/ INPUT	Switch the TV's input source between the TV and other input sources.
VOL +/-	Adjust the volume of the TV.
PR/CH ∧/V	Scan up or down through memorized channels.
MUTE	Mutes the sound.

NOTE

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

Setting up the remote to control your TV

You can operate your LG/GoldStar TV with the supplied remote control.

While holding down TV POWER button, press PR/CH / . Release the TV POWER button to complete setting.

When you replace the Battery of the remote, you may have reset the remote control.

Area Code List

Choose an area code from this list.

Area	Code	Area	Code	Area	Code	Area	Code
Afghanistan	AF	Fiji	FJ	Monaco	MC	Singapore	SG
Argentina	AR	Finland	FI	Mongolia	MN	Slovak Republic	SK
Australia	AU	France	FR	Morocco	MA	Slovenia	SI
Austria	AT	Germany	DE	Nepal	NP	South Africa	ZA
Belgium	BE	Great Britain	GB	Netherlands	NL	South Korea	KR
Bhutan	BT	Greece	GR	Netherlands		Spain	ES
Bolivia	BO	Greenland	GL	Antilles	AN	Sri Lanka	LK
Brazil	BR	Hong Kong	HK	New Zealand	NZ	Sweden	SE
Cambodia	KH	Hungary	HU	Nigeria	NG	Switzerland	CH
Canada	CA	India	IN	Norway	NO	Taiwan	TW
Chile	CL	Indonesia	ID	Oman	OM	Thailand	TH
China	CN	Israel	IL	Pakistan	PK	Turkey	TR
Colombia	CO	Italy	IT	Panama	PA	Uganda	UG
Congo	CG	Jamaica	JM	Paraguay	PY	Ukraine	UA
Costa Rica	CR	Japan	JP	Philippines	PH	United States	US
Croatia	HR	Kenya	KE	Poland	PL	Uruguay	UY
Czech Republic	CZ	Kuwait	KW	Portugal	PT	Uzbekistan	UZ
Denmark	DK	Libya	LY	Romania	RO	Vietnam	VN
Ecuador	EC	Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW
Egypt	EG	Malaysia	MY	Saudi Arabia	SA
El Salvador	SV	Maldives	MV	Senegal	SN
Ethiopia	ET	Mexico	MX

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language	Code	Language	Code	Language	Code	Language	Code
Afar	6565	French	7082	Lithuanian	7684	Sindhi	8368
Afrikaans	6570	Frisian	7089	Macedonian	7775	Singhalese	8373
Albanian	8381	Galician	7176	Malagasy	7771	Slovak	8375
Ameharic	6577	Georgian	7565	Malay	7783	Slovenian	8376
Arabic	6582	German	6869	Malayalam	7776	Spanish	6983
Armenian	7289	Greek	6976	Maori	7773	Sudanese	8385
Assamese	6583	Greenlandic	7576	Marathi	7782	Swahili	8387
Aymara	6588	Guarani	7178	Moldavian	7779	Swedish	8386
Azerbaijani	6590	Gujarati	7185	Mongolian	7778	Tagalog	8476
Bashkir	6665	Hausa	7265	Nauru	7865	Tajik	8471
Basque	6985	Hebrew	7387	Nepali	7869	Tamil	8465
Bengali; Bangla	6678	Hindi	7273	Norwegian	7879	Telugu	8469
Bhutani	6890	Hungarian	7285	Oriya	7982	Thai	8472
Bihari	6672	Icelandic	7383	Panjabi	8065	Tonga	8479
Breton	6682	Indonesian	7378	Pashto, Pushto	8083	Turkish	8482
Bulgarian	6671	Interlingua	7365	Persian	7065	Turkmen	8475
Burmese	7789	Irish	7165	Polish	8076	Twi	8487
Byelorussian	6669	Italian	7384	Portuguese	8084	Ukrainian	8575
Chinese	9072	Japanese	7465	Quechua	8185	Urdu	8582
Croatian	7282	Kannada	7578	Rhaeto-Romance		Uzbek	8590
Czech	6783	Kashmiri	7583		8277	Vietnamese	8673
Danish	6865	Kazakh	7575	Rumanian	8279	Volapük	8679
Dutch	7876	Kirghiz	7589	Russian	8285	Welsh	6789
English	6978	Korean	7579	Samoan	8377	Wolof	8779
Esperanto	6979	Kurdish	7585	Sanskrit	8365	Xhosa	8872
Estonian	6984	Laothian	7679	Scotts Gaelic	7168	Yiddish	7473
Faroeese	7079	Latin	7665	Serbian	8382	Yoruba	8979
Fiji	7074	Latvian, Lettish	7686	Serbo-Croatian	8372	Zulu	9085
Finnish	7073	Lingala	7678	Shona	8378

Network Software Update

Network update notification

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn on the player.
2. Use to select a desired option and then press ENTER (O).

[OK]

Starts the software update.

[Cancel]

Exits the update menu and displays it next booting.

Option 2:

If the software update is available from the update server, the "Update" icon appears at the bottom of the Home menu. Press blue (B) coloured button to start the update procedure.

Software Update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

CAUTION

• Before updating the software in your player, remove any disc and USB Device from the player.
• Before updating the software in your player, turn the player off and then turn it back on.
• During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button.
• If you cancel the update, turn off the power and turn it on for stable performance.

• This unit cannot be updated to previous software version.

• Check the network connection and settings (page 25-27).

• Select [Software] option in the [Setup] menu then press ENTER (O).
• Select [Update] option, and press ENTER (C).

The player will check for the newest update.

NOTE

• Pressing ENTER (⊙) while checking for the update will end the process.

• If there is no update available, the Message, "No update is found." appears. Press ENTER (⊙) to return to the [Home Menu].

• If newer version exists, the message "A new update was found. Do you want to download it?" appears.

1. Select [OK] to download the update. (Selecting [Cancel] will end the update.)
2. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)
3. When downloading is completed, the message, "Download is complete. Do you want to update?" appears.
4. Select [OK] to start updating. (Selecting [Cancel] will end the update and downloaded file will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.)

CAUTION

Do not turn off the power during the software update.

NOTE

If the software includes the driver update, disc tray may open during the process.

1. When update is completed, the message, "Update is complete." will appear, and then power will turn off automatically after 5 seconds.
2. Turn the power back on. The system now operates with the new version.

NOTE

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Centre then update your player. Refer to "Customer Support" on page 68.

Video output resolution

When the non-copy protected media is playing back

Video Out Resolution	HDMI OUT	COMPONENT VIDEO OUT
		HDMI connected	HDMI disconnected
576i	576p	576i
576p	576p	576p
720p	720p	720p
1080i	1080i	1080i
1080p / 24 Hz	1080p / 24 Hz	-	1080i
1080p / 50 Hz	1080p / 50 Hz	1080i

When the copy protected media is playing back

Video Out Resolution	HDMI OUT	COMPONENT VIDEO OUT
		HDMI connected	HDMI disconnected
576i	576p	576i
576p	576p	576i
720p	720p	-	576i
1080i	1080i	-	576i
1080p / 24 Hz	1080p / 24 Hz	-	576i
1080p / 50 Hz	1080p / 50 Hz	-	576i

HDMI OUT connection

For the 576i resolution setting, real output resolution of HDMI OUT will change to 576p.
- If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].
If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

• The 1080p video output frame rate may be automatically set to either 24Hz or 50Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

COMPONENTVIDEOOUT connection

BD or DVD could prevent up-scaling on analogue output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

When you set the HDMI Resolution, over 720p is not outputted to Composit Video.

Trademarks and Licences

"Blu-ray Disc" is a trademark.

"BD-LIVE" logo is a trademark of Blu-ray Disc Association.

"BONUSVIEW" is a trademark of Blu-ray Disc Association.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

TRUEHD

DIGITAL PLUS

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Master Audio | Essential

Manufactured under license under U. S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

"DVD Logo" is a trademark of DVD Format/Logo Licensing Corporation.

DivX, DivX Certified and associated logos are registered trademarks of DivX, Inc. and are used under license.

"x.vColour" is a trademark of Sony Corporation.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

This product is licenced under the AVC patent portfolio licence and VC-1 patent portfolio licence for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard ("AVC/VC-1 Video") and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licenced to provide AVC/VC-1 Video. No licence is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Specifications

General

Power requirements: 200 - 240 V, 50/60 Hz
Power consumption: 110 W
Dimensions (W× H× D) Approx. 360× 313× 62.5mm without foot
Net Weight (Approx.): 2.9 kg
- Operating temperature: 41^ F to 95^ F ( 5^ C to 35^ C )
- Operating humidity: 5% to 90% - Operating temperature: 100^
- Bus Power supply (USB): DC 5 V = 500 mA

Inputs/ Outputs

VIDEO OUT: 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
- COMPONENTVIDEO OUT:
(Y) 1.0V (p-p), 75 , sync negative, RCA jack x 1, (Pb)/(Pr) 0.7V (p-p), 75 , RCA jack x 2
- HDMI OUT (video.audio): 19 pin (HDMI standard, Type A, Version 1.3)
- Analogue AUDIO IN: 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
- DIGITAL IN (OPTICAL IN): 3 V (p-p), Optical jack x 1
- PORT. IN: 0.5 Vrms (3.5 mm stereo jack)

Tuner

FM Tuning Range: 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplifier

• Stereo mode: 136W + 136W (4 Ω at 1 kHz)
• Surround mode:
• Front 136 W + 136 W (4 Ω at 1 kHz)
• Center 136 W (4 Ω at 1 kHz)
• Surround 136 W + 136 W (4 Ω at 1 kHz)
• Subwoofer 170 W (3 Ω at 60 Hz)

System

• Laser: Semiconductor laser Wavelength: 405 nm / 650 nm
• Signal system: Standard NTSC/PAL colour TV system
  Frequency response: 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)
• Signal-to-noise ratio: More than 80 dB
• Total harmonic distortion: 0.05 % at 1 W
  Dynamic range: More than 85 dB
  LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX

Speakers

• Front speaker (Left/Right)

Type: 2 Way 2 speaker

Impedance Rated: 4Ω

Input Power: 136 W

Max. Input power: 272 W

Net Dimensions 270× 1022× 225mm

(WxHxD):

Net Weight: 2.7 kg

Rear speaker (Left/Right)

Type: 1 Way 1 speaker

Impedance 4Ω

Input Power: 136 W

Max. Input power: 272 W

Net Dimensions 100× 186× 100mm

(W× H× D)

Net Weight: 0.4 kg

• Centre speaker

Type: 2 Way 2 speaker

Impedance Rated: 4Ω

Input Power: 136 W

Max. Input power: 272 W

Net Dimensions 200× 103× 88mm

(WxHxD):

Net Weight: 0.48 kg

• Subwoofer

Type: 1 Way 1 speaker

Impedance Rated: 3Ω

Input Power: 170 W

Max. Input power: 340 W

Net Dimensions 190 x385 x 275 mm

(W × H × D):

Net Weight: 4.6 kg

Important Information Relating to Network Services

PLEASE READ CAREFULL. USE OF THE NETWORK SERVICES IS SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS.

Use of the Network Services requires an Internet connection which is sold separately and for which you are solely responsible. The Network Services may be limited or restricted depending upon the quality, capabilities and technical limitations of your Internet service.

The Network Services belong to third parties and may be protected by copyright, patent, trademark and/or other intellectual property laws. The Network Services are provided sol\ely for your personal and noncommercial use. Unless expressly authorized by the respective content owner or service provider, you shall not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services accessible through this product.

LG IS NOT RESPONSIBLE FOR YOUR USE OF THE NETWORK SERVICES. THE NETWORK SERVICES ARE PROVIDED "AS IS."TO THE FULLEST EXTENT PERMISSIBLE BY LAW, LG MAKES NO REPRESENTATIONS OR WARRANTYES OF ANY KIND WHATSOEVER (i) FOR THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY NETWORK SERVICE MADE AVAILABLE THROUGH THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES ARE FREE OF VIRUSES OR OTHER COMPONENTS THAT MAY INECT, HARM, OR CAUSE DAMAGE TO THIS PRODUCT, YOUR COMPUTER, TELEVISION, OTHER EQUIPMENT, OR ANY OTHER PROPERTY. LG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO, WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER IN CONTRACT, TORT, STRICT LIABILITY OR OTHERWISE, SHALL LG BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY, CONSEQUENTIAL OR OTHER DAMAGES OR ATTORNEY FEES OR EXPENSES RELATING TO OR ARISING OUT OF THE NETWORK SERVICES EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR IF SUCH DAMAGES COULD HAVE BEEN REASONABLY FORESEEN.

The Network Services may be terminated or interrupted at any time, and LG makes no representation or warranty that any Network Service will remain available for any period of time. Use of the Network Services may be subject to additional terms and conditions of the respective third party service provider. The Network Services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR ANY INTERRUPION OR SUSPENSION OF ANY NETWORK SERVICE.

LG shall be neither responsible nor liable for customer service related to the Network Services. Any question or request should be made directly to the respective Network Service providers.

"Network Service(s)" means the third party services accessible through this product including but not limited to all data, software, links, messages, video and other content found thereon or used in connection therewith.

"LG" means LG Electronics, Inc. its parent company and all of their respective subsidiaries, affiliates and related companies worldwide.

Open source software notice

The following GPL executables and LGPL libraries used in this product are subject to the GPL2.0/ LGPL2.1 License Agreements:

GPL EXECUTABLES: Linux kernel, busybox, linux IR control package, ntfs-3g, squashfs, u-boot

LGPL LIBRARIES: glibc, libmtp, libusb, libusbcompat

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at: [e-mail] This offer is valid for a period of three(3) years from the date of the distribution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.

This product includes

• curl: copyright © 1996 - 2008, Daniel Stenberg
• expat: copyright © 2006 expat maintainers
• freetype: copyright © 2003 The FreeType Project (www.freetype.org).
  International Components for Unicode: copyright © 1995-2010 International Business Machines Corporation and others
• JPEG: This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.

• OpenSSL:

• cryptographic software written by Eric Young ([e-mail]).

• software written by Tim Hudson ([e-mail]).

• software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssll.org)

• xml2 : copyright © 1998-2003 Daniel Veillard

• WPA Suppliant: Copyright © 2003-2007, Jouni Malinen [e-mail] and contributors
• zlib: copyright © 1995-2002 Jean-Ioup Gailly and Mark Adler.

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

HarfBuzz

Permission is hereby granted, without written agreement and without license or royalty fees, to use, copy, modify, and distribute this software and its documentation for any purpose, provided that the above copyright notice and the following two paragraphs appear in all copies of this software.

IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE TO ANY PARTY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ASING OUT OF THE USE OF THIS SOFTWARE AND ITS DOCUMENTATION, EVEN IF THE COPYRIGHT HOLDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Unicode Bidirectional Algorithm copyright © 1999-2009, ASMUS, Inc. All Rights Reserved. Distributed under the Terms of Use in http://www.unicode.org/copyright.html.

THIS SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE.

LG

Life's Good
