USER MANUAL BTHS-07 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

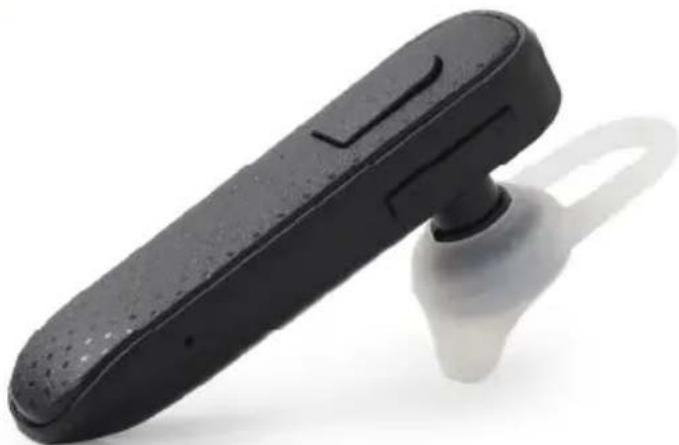

Black and white Bluetooth device with a white ear tag, isolated on white background (no text or symbols visible)

BLUETOOTH HEADSET

BLUETOOTH HEADSET

BLUETOOTH HEADSET

BLUETOOTH HEADSET

• Bluetooth headset: for safe hands free calls
• Compatible with most Bluetooth enabled phones, computers, tablets, etc.
  • One-button-control: all functions at the touch of a button
• Long battery life - up to 120 hours standby and 4 hours talking time
• Up to 10 meter reach

Specifications

• Standard: Bluetooth v.4.1, Class 2
• Power rating: receive sensitivity -90dBm, TX power max 4 dBm
• Frequency band: 2.42GHz—2.48 GHz ISM band
- Talk/standby time: up to 4 hours/ up to 120 hours; 90 days if not paired
• Supporting profile: headset & handsfree
- Power supply: 5 V DC up to 0.1 A, 100-240 VAC adapter, charging time up to 1.5 h
• Rechargeable 55 mAh Li-Polymer battery
• Operation temperature: -10...55 Celsius degrees
• Storing temperature: -20...60 Celsius degrees
- Weight: 6.5 g
• Dimensions: 20 x 10 x 4 mm

1

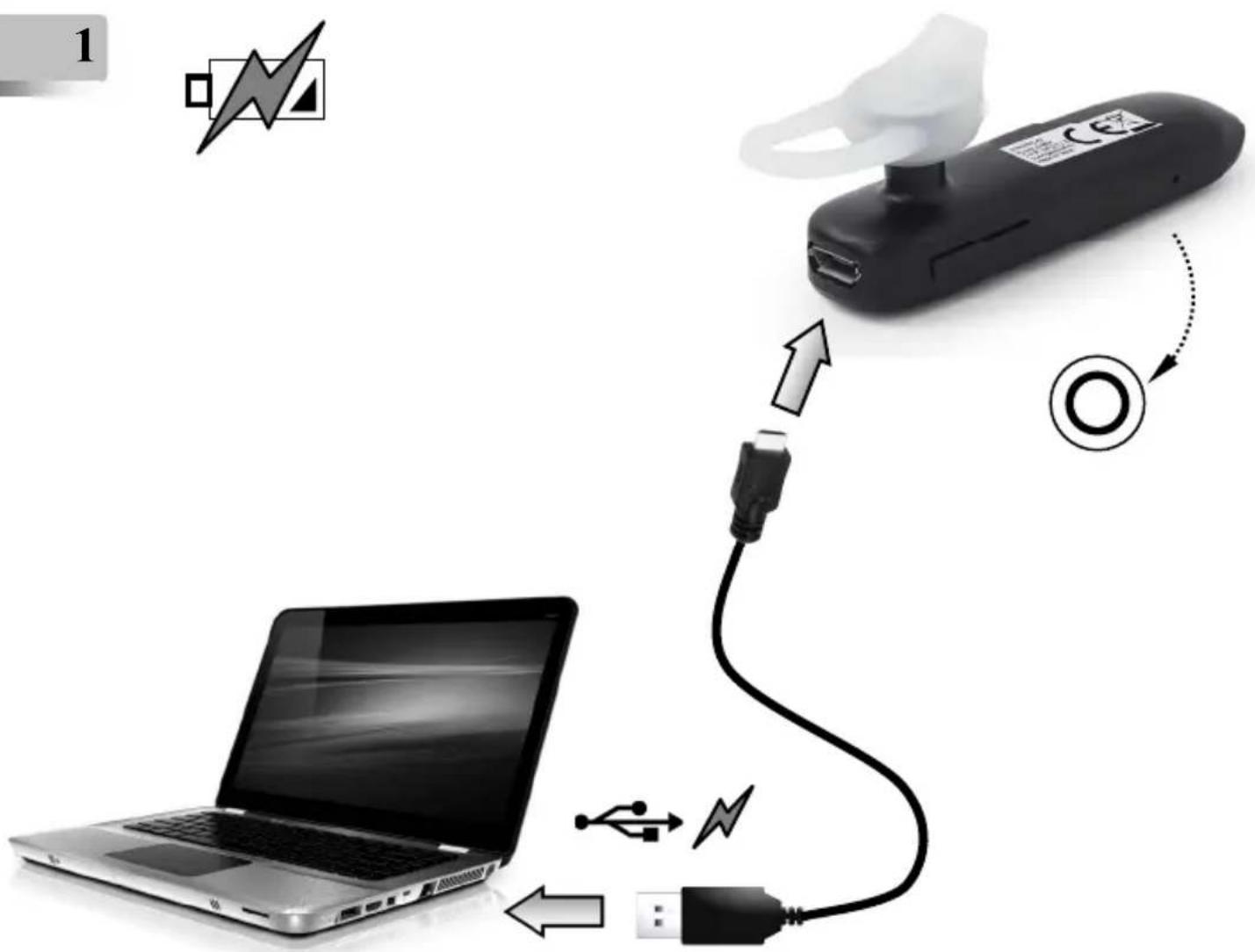

1 Battery USB USB USB

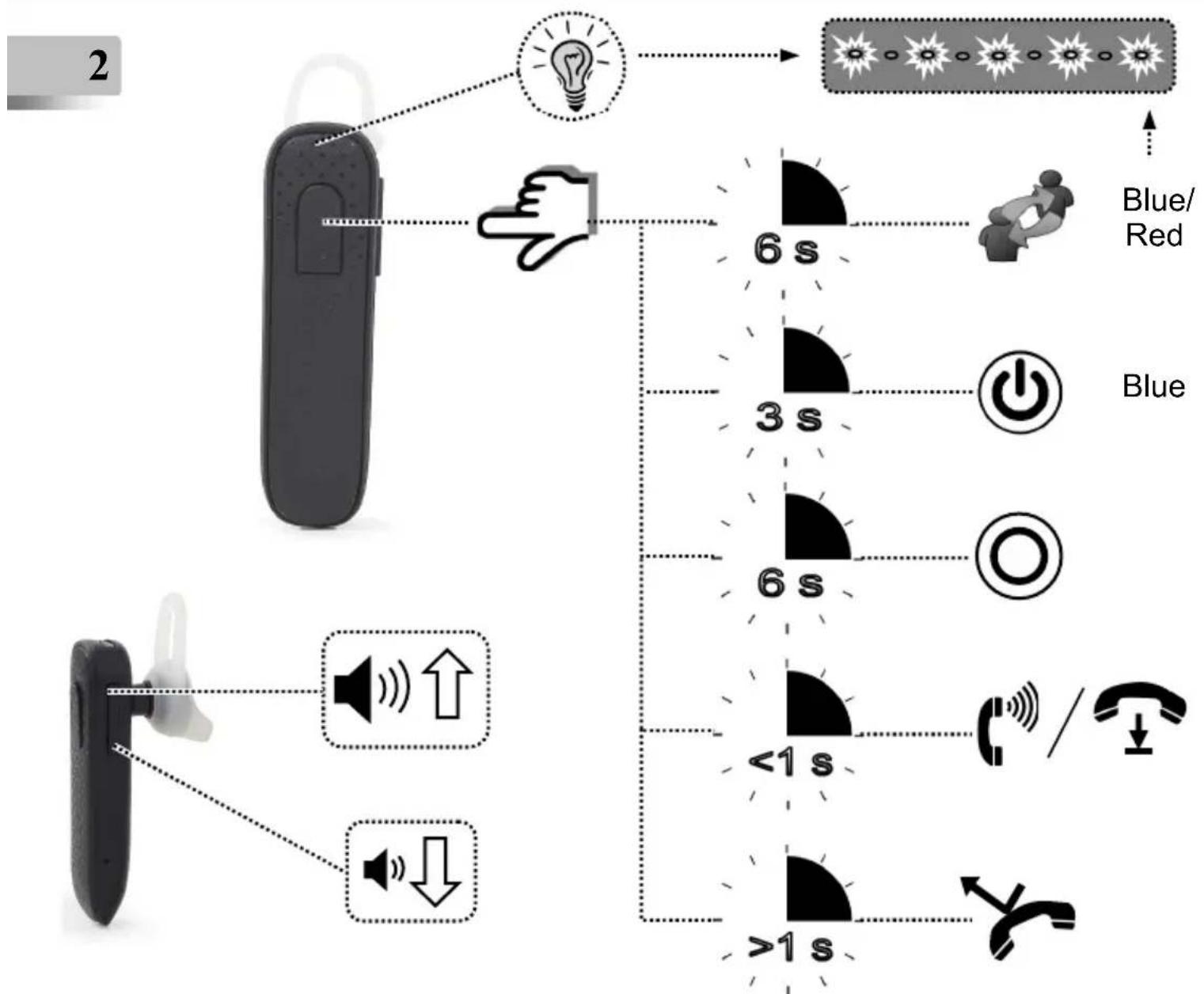


3

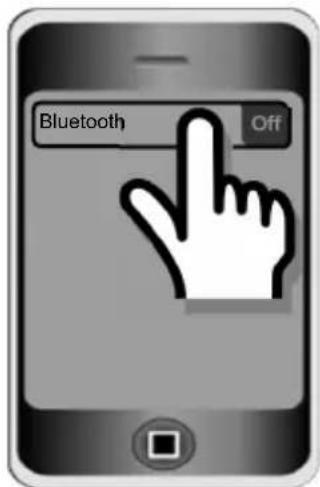

Bluetooth Off

Diagram showing Bluetooth symbol transforming into a lightbulb with radiating lines, indicating wireless communication or illumination.

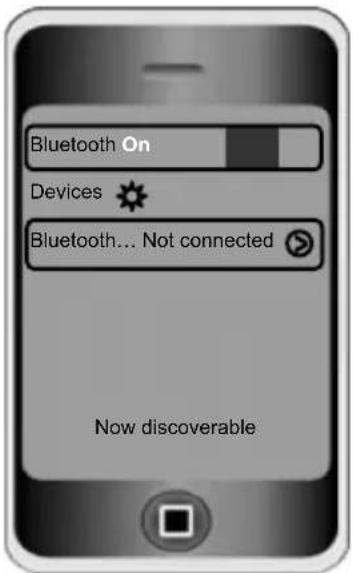

Bluetooth On Devices Bluetooth... Not connected Now discoverable

4

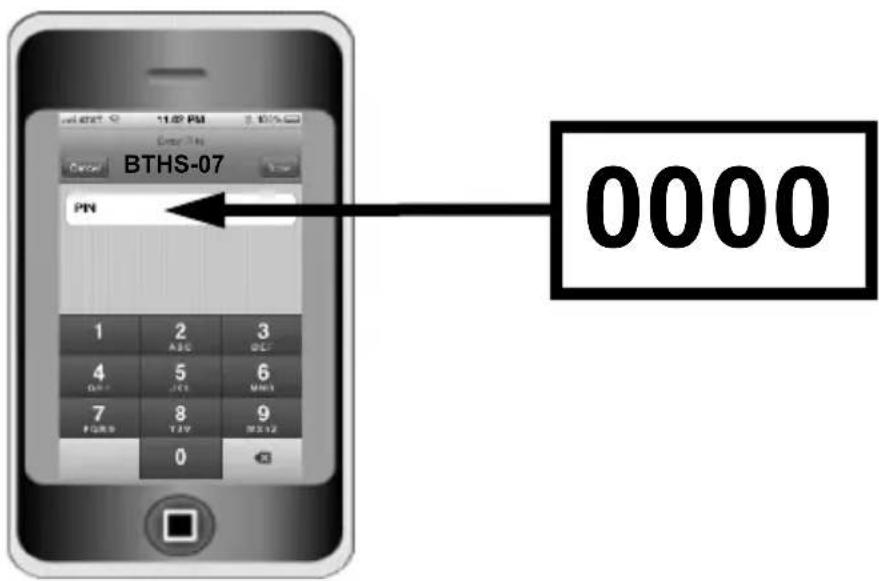

BTHS-07 PIN 1 2 3 ABC DCL 4 5 6 DCT JCI MBD 7 8 9 F123 12 0

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot RED (2014/53/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website: www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive RED (2014/53/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących RED (2014/53/EU). Deklaracja CE znajduje się pod adresem www.gembird.eu

Four-panel cartoon showing different workplace behaviors: crying hands, drying sun, using a screwdriver, and avoiding a bottle with a crossed-out hand.

GEMBIRD EUROPE B.V. http://www.gembird.eu brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
