USER MANUAL DAC-WPC-01-S Gembird
Features
Digital alarm clock with wireless charging function
☐Built-in wireless charging module for easy charging of your iPhone X/XS/XR, iPhone 8, Galaxy S8/S7/S6 and other devices with wireless charging function
Large LCD display shows time, date and temperature
☐Dual alarm function allows to set 2 separate wake-up alarms
Specifications
Input power: 5V/1.5A
☐Wireless Output: 5V/1A 5W
gembird®
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION

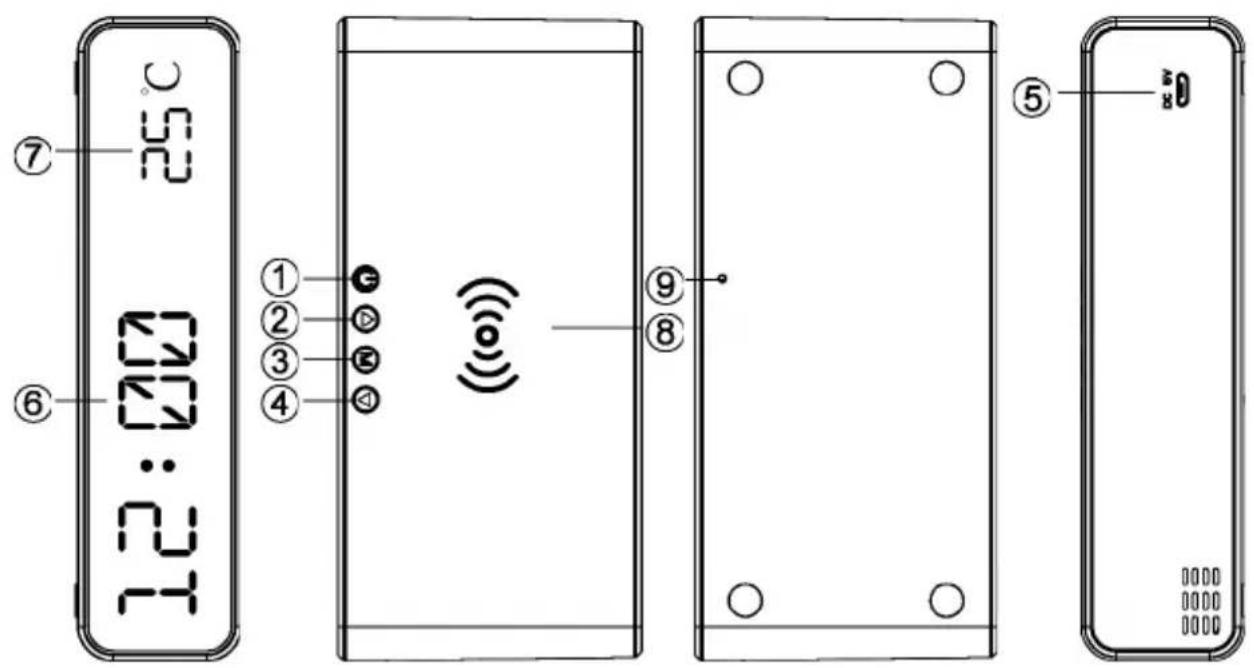

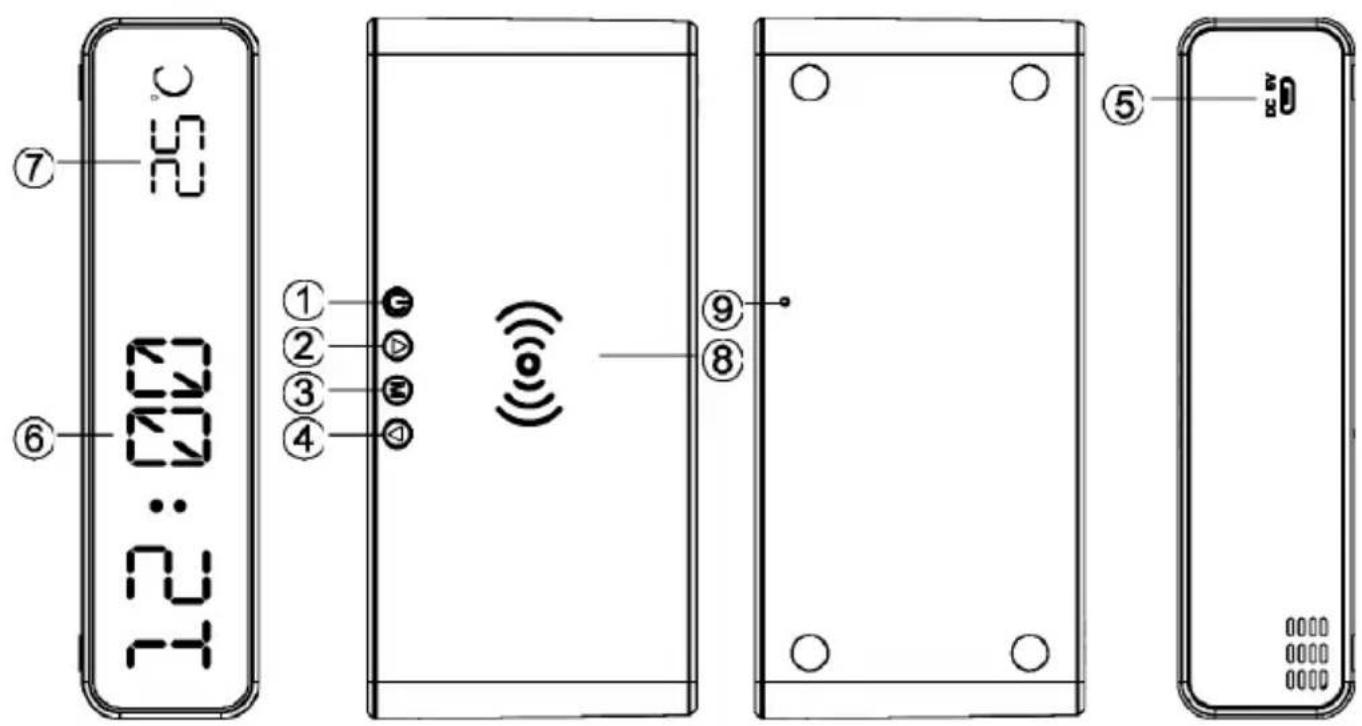

PRODUCT OVERVIEW
English
- UP
- MENU
- DOWN
-
Micro USB Input
-
Time Display
- Temperature Display
- Wireless Charging Pad
- Reset
gembird®
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
POWER
Press to power on. The LED display will show Time and Temperature.
DISPLAY
Press to switch between different display modes (time/date/alarm1/2/3).
SET TIME
Press until the display shows the time.
Long press until the time is blinking. The display panel will shows 12H mode or 24H mode.
Press to select 12H or 24H mode and press to confirm the mode (if 12H mode is selected, then “PM/AM” will light up at the left corner of display).
Press to adjust the Hour first.
Press to confirm the Hour and minutes will blink.
Press to adjust the minutes.
Press to confirm the minutes.
SETDATE
Press until the display shows the date.
Long press until the year is blinking.
Press to change the year.
gembird®
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
Press to confirm the year and month will start blinking.
Press to change the month.
Press to confirm the month and day will start blinking.
Press to change the day.
Press to confirm the date.
SET ALARM
This alarm clock has 3 separate alarm settings, A1, A2 and A3, which can be set individually.
Press until the display shows"--A1", "--A2" or "--A3".
Long press until the alarm time is blinking.
Press to adjust the Hour first.
Press to confirm the Hour and minutes will blink.
Press to adjust the minutes.
Press to confirm the minutes.
Press to determine the clock.
ENABLE or DISABLE ALARM
gembird®
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
Press until the display shows "--A1", "--A2" or "--A3".
"--A1" means alarm 1 is disabled. "0NA1" means alarm 1 is enabled.
Press to enable or disable the selected alarm (1, 2, or 3).
When one of the alarm times is enables, the display will show the alarm icon in the lower left corner of display.
On the set alarm time(s), the alarm buzzer will start beeping and the alarm will be blinking. Press any button to stop the sound. If no button is pressed, the sound will stop after 60 seconds.
TEMPERATURE
Press for 2 seconds to switch between Fahrenheit / Celsius.
POWER-SAVING
When power-saving is enabled, the clock display will automatically turn off after 30 seconds. Press any button to turn it on again.
Short press to turn on/off the power-saving ("ONSd" means the power saving mode is turned on and "—Sd" means it is turned off).
DISPLAY SETTINGS
The display has 3 settings. Depending on the selected setting, the display will show either the time, the date or alternate between date and time.
Press button to select DP--1/DP--2/DP—3.
DP-1: Display will alternate between time and date automatically every 4 seconds.
DP-2: User can fix to show date or time.
DP-3: Display shows time. Press to show date for 4 seconds.
gembird®
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
POWER
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
druk op totdat de display “--A1”, “- A2” of “- A3”.
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
PRÉSENTATION DU PRODUIT
Francais
PUISSANCE
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
LEISTUNG
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
PRZEGLĄD PRODUKTÓW
Polski
MOC
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION
DAC-WPC-01 DIGITAL ALARM CLOCK WITH WIRELESS CHARGING FUNCTION


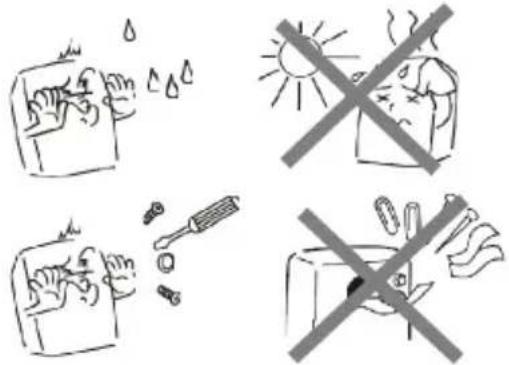

Illustration showing four different behaviors: a hand holding a box with raindrops, a person in a sun with a crossed-out sign, another hand holding a tool, and another hand holding a cup with a crossed-out sign.
(ENG) Waste disposal: The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility. (DE) Entsorgungshinweise: Das Symbol der durchgestrichenen Abfalltonne auf Rädern bedeutet, dass dieses Produkt nicht über den normalen Hausmüll entsorgt werden darf. Elektro- und Elektronikgeräten, die nicht in den selektiven Sortierprozess einbezogen werden, sind aufgrund des Vorhandenseins gefährlicher Stoffe potenziell gefährlich für die Umwelt und die menschliche Gesundheit. Bitte entsorgen Sie sie verantwortungsbewusst bei einer zugelassenen Abfall- oder Recyclinganlage. (NL) Afvalverwijdering: Het symbool van de doorgekruiste vuilniscontainer betekent dat dit product niet met het gewone huisvuil mag worden weggegooid. Elektronische en elektrische apparatuur die niet is opgenomen in het selectieve afvalsorteringsproces is potentieel gevaarlijk voor het milieu en de menselijke gezondheid vanwege de aanwezigheid van gevaarlijke stoffen. Voer deze op verantwoorde wijze af bij een erkend afvalverwerkings- of recyclingbedrijf, de plaatselijke milieustraat, of een inleverpunt in de winkel. (ES) Deposito de basura: El simbolo del contenedor de basura tachado significa que este producto no debe eliminarse con los residuos domésticos normales. Los aparatos electrónicos y eléctricos no incluidos en el proceso de clasificación selectiva son potencialmente peligrosos para el medio ambiente y la salud humana debido a la presencia de sustancias peligrosas. Por favor, deséchelos de forma responsable en una instalación de residuos o de reciclaje autorizada. (CZ) Nakládání s odpady: Symbol přeškrtnuté nádoby na odpad znamená, že tento výrobek nesmí být likvidován společně s běžným domovním odpadem. Elektronická a elektrická zařizení, která nejsou zahrnuta do procesu selektivního trídění, jsou kvůli prítomnosti nebezpečných látek v nich potenciálně nebezpečná pro životní prostředí a lidské zdravi. Odneste je do schváleného zařizení pro nakládání s odpady nebo recyklaci. (FR/BE) Traitement des déchets: Le symbole de la poubelle barrée signifie que ce produit ne peut pas être éliminé avec les déchets ménagers usuels. Les équipements électroniques et électriques non compris dans le processus de tri sélectif sont potentiellement dangereux pour l'environnement et la santé humaine en raison de la présence de substances dangereuses. Veuillez les éliminer de manière responsable dans des centres approuvés de traitement ou recyclage des déchets. (HR) Odlaganje smeća: Simbol prekrižene kante za smeće na kotačima znači da se ovaj proizvod ne smije odlagati s uobičajenim kučním otpadom. Elektronička i električna oprema koja nije uključena u proces selektivnog sortiranja potenojalno je opasna za okoliš i ljudsko zdravlje zbog prisutnosti opasnih tvari. Molimo odgovorno odložite u odobreno postrojenje za otpad ili recikliranje. (IT) Smaltimento dei rifiuti: Il simbolo del cassonetto barrato riportato sull'apparecchiatura indica che questo prodotto non deve essere smaltito con i normali rifiuti domestici. I dispositivi elettronici ed elettrici non inclusi in un processo di smistamento sono potenzialmente pericolosi per l'ambiente e la salute umana a causa della presenza di sostanze pericolose. Si prega di smaltire in modo responsabile presso centri idonei di raccolta differenziata. (PT) Depósito de Iixo: O símbolo do caixote do lixo com uma cruz significa que este produto não deve ser eliminado juntamente com o lixo doméstico normal. Equipamentos eletrônicos e elétricos não incluidos no processo de triagem seletiva são potencialmente perigosos para o meio ambiente e a saúde humana devido à presença de substâncias perigosas. Por favor, elimine de forma responsável em uma instalação de resíduos ou reciclagem aprovada. (PL) Utylizacja odpadów: Symbol przekreślonego kołowego kontenera na odpady oznacza, že tego produktu nie można wyrzucać wraz z innymi odpadami gospodarstwa domowego. Ze względu na obecność niebezpiecznych substancji, mieszanin lub części składowych urządzenia elektryczne i elektroniczne, niepodlegające procesowi selektywnego sortowania są potencjalnie niebezpieczne dla środowiska i zdrowia ludzi. Produkt należy zutylizować w sposób odpowiedzialny w zatwierdzonym zakładzie utylizacji odpadów lub recyklingu. (RO) Eliminarea deșeurilor: Simbolu coşului de gunoi tăiat înseamnă că acest produs nu trebuie aruncat împreună cu deșeurile menajere normale. Echipamentele electronice și electrice care nu sunt incluse în procesul de sortare selectivă sunt potențial periculoase pentru mediu și sănătatea umană din cauza prezenței substanțelor periculoase. Vă rugăm să aruncați în mod responsabil la o unitate de deșeuri sau de reciclare aprobată. (SK) Likvidáda odpadu: Symbol preškrtnutej nádoby na odpad znamená, že tento výrobok sa nesmie likvodovať s bežným komunálnym odpadom. Elektronické a elektrické zariadenia, ktorė nebudú likvidované procesom selektivneho triedenia, predstavujú z dôvodu prítomnosti nebezpečných látok potenciálne nebezpečenstvo pre životné prostredie a ludské zdravie. Zlikvidujte ich zodpovedne cez schválené zariadenia na uloženie alebo recykláciu odpadu. (SL) Odlaganje odpadkov: Simbol prečrtanega smetnjaka na kolesih pomeni, da tega izdelka ne smete odvreči med običajne gospodnjske odpadke. Elektronska in električna oprema, ki ni vključena v postopek selektivnega sortiranja, je zaradi prisotnosti nevarnih snovi potencialno nevarna za okolje in zdravje ljudi. Prosimo, da odgovorno zavrzite v pooblaščeni obrat za odpadke ali recikliranje. (GR) Διαχείριση απορριμάτων: Το σύμβολο του διαγραμμένου κόδου απορριμμάτων, σημαίνει ότι αυτό το προϊόν δεν πρέτει να απορρίπτεται μαζή με τα κανονικό αικιακά απορρίμματα. Нлектроникός και нлектриκός εξοπλισμός, που δεν περιλαμβόνεται στη διαδικοσία επιλεκτικής διαλογής, είναι δυνητικά επικίνδυνος για το περιβάλλον και την ανθρώπινη υγεία λόγω της παρουσίος επικίνδυνων ουσιών. Παρακολούμε απορρίμτε το με υπευθυνότητα σε εγκεκριμένη εγκατάσταση απορριμμάτων ή ανακυκλωσης.
