EE2-U3S9-6 - Storage box Gembird - Free user manual and instructions

Product Type	External storage enclosure for 2.5" hard drive
Brand	Gembird
Model	EE2-U3S9-6
Interface	USB 3.0 (compatible with USB 2.0/1.1)
Disk form factor	2.5 inches
Compatible disk thickness	9.5 mm
Enclosure material	Transparent plastic
Approximate dimensions (L x W x H)	130 x 80 x 13 mm
Approximate weight	50 g
Power supply	Powered by USB port (bus power)
Supported disk type	SATA I/II/III
Main functions	Plug and Play, hot swap, high-speed data transfer
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Short-circuit protection, automatic shutdown in case of overheating
Spare parts and repairability	Not user-repairable. No spare parts available.
Compatible operating systems	Windows, macOS, Linux (driverless)
Color	Transparent
Warranty	2 years (according to manufacturer's conditions)

Frequently Asked Questions - EE2-U3S9-6 Gembird

What types of hard drives are compatible with the Gembird EE2-U3S9-6 enclosure?

This enclosure is designed for internal 2.5-inch hard drives with a thickness of 9.5 mm and a SATA interface (I, II, or III).

Is the enclosure compatible with SSDs?

Yes, 2.5-inch format SSDs (9.5 mm thick) are perfectly compatible with this enclosure.

How do I install a hard drive in the enclosure?

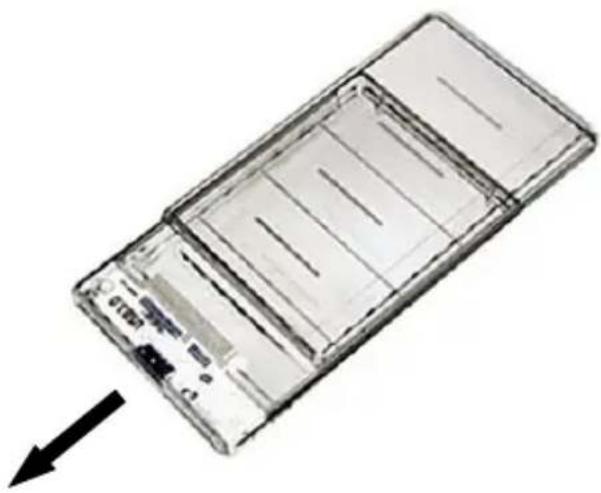

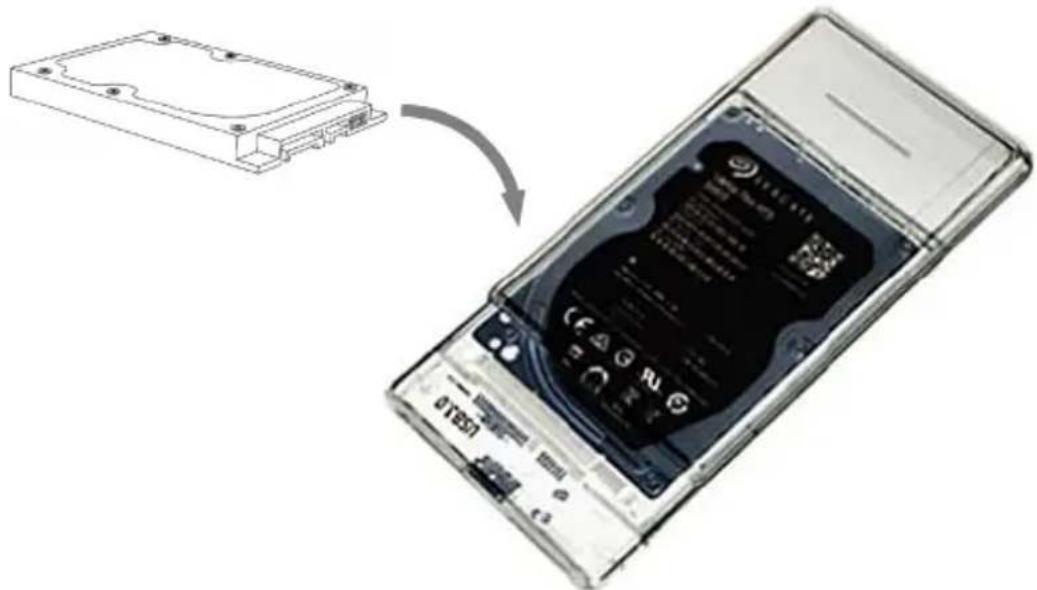

Open the enclosure by sliding the two parts apart. Insert the hard drive into the SATA connector, then close the enclosure. No tools are needed.

Does the enclosure require an external power supply?

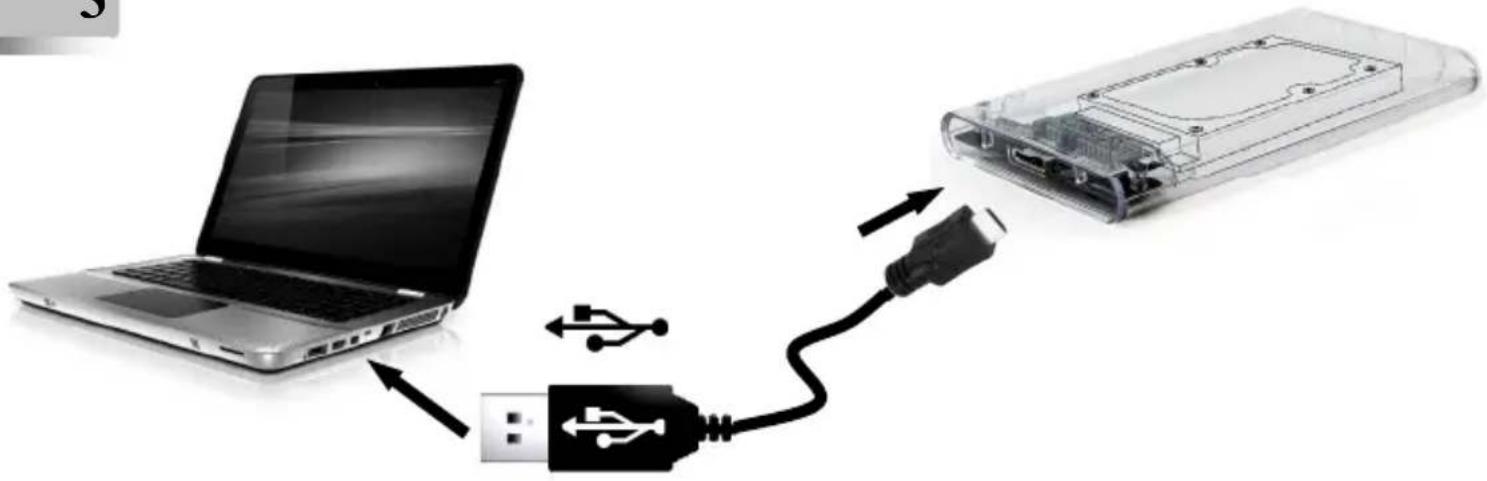

No, the enclosure is powered by the USB port of your computer. No external power supply is required.

What transfer speed can I expect with USB 3.0?

With a USB 3.0 port, the theoretical maximum speed is 5 Gbit/s. Actual speed will depend on your hard drive's performance.

Does the enclosure work under Windows, Mac, and Linux?

Yes, it is automatically recognized under Windows, macOS, and Linux without additional driver installation.

What should I do if my computer does not detect the disk?

Check that the disk is properly inserted and the enclosure is well connected. Try another USB port or another cable. If the disk is new, it may need to be initialized in Disk Management.

Does the enclosure support hot swap?

Yes, you can plug and unplug the enclosure without shutting down the computer. Make sure to safely eject the device before disconnecting.

What is the warranty period of the Gembird enclosure?

The warranty is 2 years from the date of purchase. Keep the receipt or invoice. The warranty does not cover damage due to misuse.

How do I clean the enclosure?

Use a soft, dry cloth to wipe the outside of the enclosure. Avoid chemicals or abrasives that could damage the transparent plastic.

USER MANUAL EE2-U3S9-6 Gembird

• SuperSpeed USB 3.0 HDD access - 10 times faster than USB 2.0
• Backward compatible with USB 2.0
  Supports SATA 2.5" drives of any capacity and 9.5mm thickness

Specifications

• Interface: up to 5 Gbps USB 3.0 mini 10 pin connector, compatible with USB 2.0/1.X
  Supports Serial ATA 2.5" hard drives of 9.5 mm thickness
• Chipset: JMS578
  Material: plastic
  Product net weight: 55 g
  Product dimensions: 131 × 80 × 13 ~mm

gembird

EE2-U3S9-6

USB 3.0 2.5" ENCLOSURE, FOR 9.5 MM DRIVE

TRANSPARENT PLASTIC

1

2

gembird

EE2-U3S9-6

USB 3.0 2.5" ENCLOSURE, FOR 9.5 MM DRIVE

TRANSPARENT PLASTIC

3

4

gembird

EE2-U3S9-6

USB 3.0 2.5" ENCLOSURE, FOR 9.5 MM DRIVE, TRANSPARENT PLASTIC

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

YMOBNI TAPAHINTINHOO OBCJNYTOBYBAHH

1. TapaHTIiHe 06cnyroBvBaHnHaHaTbCnPpTaROM TepMHy rapaTII, npn HauBHOCTI TapaTIIHORo TaHOy, 3aONBHeHOro HAeKHM UHHOM, Ta BINOby B NOBHIN KOMNJIeKTAciII.
   2.「rapantiHe 06cnyroByBaHH He nItpmyeTbC B pa3i npuyenHn npabn ekcnnyatau, 36epirAHn ABO nepeBe3eHHBnpo6y，zo 3a3naeHi BInctpykui no eKnnyatauBnpo6y.
   3.「apaantiHe 06cIyROByBaHHaCKaCOByeTbCaY BnuaKax:
   -HaBHOCTI MExaHUYHX NOUKOJKeHb a6o CJIiDIB CTOpOHbOBOBtpyAHnra;
2. NOUKOJKeHHB NKIIKAnHi CTNXIINHM NIXOM a6o HeuacHMM BnnaKOM, BKJIQUaOuN 6bnckAky, nOpapanHnHm y Bnpi6 CTOPOHHix PpeImTIB, pIDIN, KOMax, TOIO;
3. NOUKOJXeHHB BKNIKAH3acTocyBaHHaM a6o NiKJIIOueHHaM HeCTaHapTHHX a6o HecnpabHnX nepiΦepiHnx npucTpOIB, akcecyapiB;
4. rapaHTiHa NOnuHPOEtbcra Ha BnTpAHi MaTepiAn Ta DoaTkoBi akcecyap;
   3 rapaHTiHMMyMOBaMn 3roDeH.

Пдпс поуц:

TAPAHNTIHHI TAIOH No

ToBap/MoDenb

CepiHnH Homep

TepmiH rapaHii

Дата п的对象
