USER MANUAL SJ-BA05IMXWE-EU SHARP
CHAPTER 2: YOUR FRIDGE FREEZER....6
CHAPTER 3: USING YOUR FRIDGE FREEZER....7
CHAPTER 4: FOOD STORAGE GUIDANCE ....11
CHAPTER 5: DOOR REVERSAL ....12
CHAPTER 6: TROUBLESHOOTING ....12
CHAPTER 7: TIPS FOR SAVING ENERGY ......13
CHAPTER 8: TECHNICAL DATA....14
CHAPTER 9: CUSTOMER CARE AND SERVICE....14
Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage, read this manual carefully before using your fridge freezer for the first time. It contains important safety information on the installation, safety, use, and maintenance of your fridge freezer. Retain this manual for future use.
FIRE
Warning: Risk of fire / flammable materials
CHAPTER 1: GENERAL WARNINGS
WARNING: Keep the ventilation openings of the fridge clear from obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.
WARNING: Do not use other electrical appliances inside the fridge.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: To avoid personal injury or damage, this appliance must be installed in accordance with the manufacturer's instructions.
The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.
* While carrying and positioning the fridge, do not damage the cooler gas circuit. * Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge. * This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household
- farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household
- bed and breakfast type environments which can be equated with ordinary household
catering and similar non-retail applications which can be equated with ordinary household
* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician.
* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
* Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance. Very young children (0-3 years old) are not expected to use appliances. Young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given. Older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
* A damaged power cord/plug can cause fire or give you an electric shock. When damaged, it must be replaced, and this should only be done by qualified personnel.
* This appliance is not intended for use at altitudes exceeding 2000 m.
To avoid contamination of food, please respect the following instructions:
* Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. * Clean regularly surfaces that can come in contact with food and accessible drainage systems. * Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. * Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. * One-, two- and three-star compartments are not suitable for the freezing of fresh food. * If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Disposal
- All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
- When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
- A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.
For Denmark products:
The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.
Disposal of your old appliance
This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.
Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.
Notes:
- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for damage caused by misuse.
- Follow all instructions on your appliance and in the instruction manual, and keep this manual in a safe place to resolve any problems that may occur in the future.
- This appliance is produced for use in homes and can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled, and our company will not be responsible for any losses that may occur.
- This appliance is produced for use in houses and is only suitable for cooling/storing food. It is not suitable for commercial or common use and/or for storing substances other than food. Our company is not responsible for any losses that may occur in the contrary case.
Safety warnings
- Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
- A damaged power cord/plug can cause fire or give you an electric shock. When damaged, it must be replaced, and this should only be done by qualified personnel.
- Do not use a plug adapter.
- Never bend the power cord excessively.
- Never touch the power cord/plug with wet hands, as this could cause a short circuit or electric shock.
- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
- When taking ice made in the freezer department, do not touch it; ice may cause ice burns and/or cuts.
- Do not remove items from the freezer if your hands are damp or wet. This could cause skin abrasions or frost/freezer burns.
- Do not refreeze food once it has thawed out.
Before unpacking and manoeuvring your fridge freezer, please take some time to familiarise yourself with the following points.
- Position away from direct sunlight and away from any heat source such as a radiator.
- Your appliance should be at least 50 cm away from stoves, gas ovens, and heater cores, and should be at least 5 cm away from electrical ovens.
- Do not expose your fridge freezer to moisture or rain.
- Your fridge freezer should be positioned at least 20 mm away from another freezer.
- Clearance of at least 150 mm is required at the top of your fridge freezer. Do not place anything on top of your fridge freezer.
- For safe operation, it is important that your fridge freezer is stable and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.
- We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning, rinse with warm water and dry.
- Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.
- The refrigerator should be placed against a wall with a free distance not exceeding 75 mm.
CHAPTER -1: GENERAL WARNINGS
Before Using Your Fridge
- Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged.
- When using your fridge freezer for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
- You may notice a light odour when using your fridge freezer for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

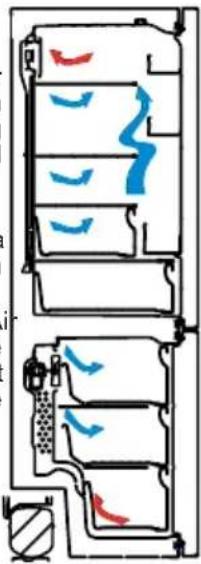

Fridge freezers with new-generation cooling technology have a different working system than static fridge freezers. In normal fridge freezers, humid air entering the freezer and the water vapour emanating from the foods, turns into frost in the freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be unplugged. In order to keep foods cold during the defrosting period, the user must store the food elsewhere and the user must clear the remaining ice and accumulated frost.
The situation is completely different in freezer compartments equipped with new-generation cooling technology. With the aid of fan, cold and dry air is blown throughout the freezer compartment. As a result of the cold air that is blown easily throughout the compartment – even in the spaces between shelves – foods are frozen equally and properly. And there will be no frost.
The configuration in the refrigerator compartment will be nearly same as the freezer compartment. A emitted by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed for even air distribution throughout the compartment.
Since no air passes between the freezer and refrigerator compartment, odours will not mix.
As a result, your fridge with new-generation cooling technology is easy to use and it offers you an access to a huge volume and aesthetic appearance.

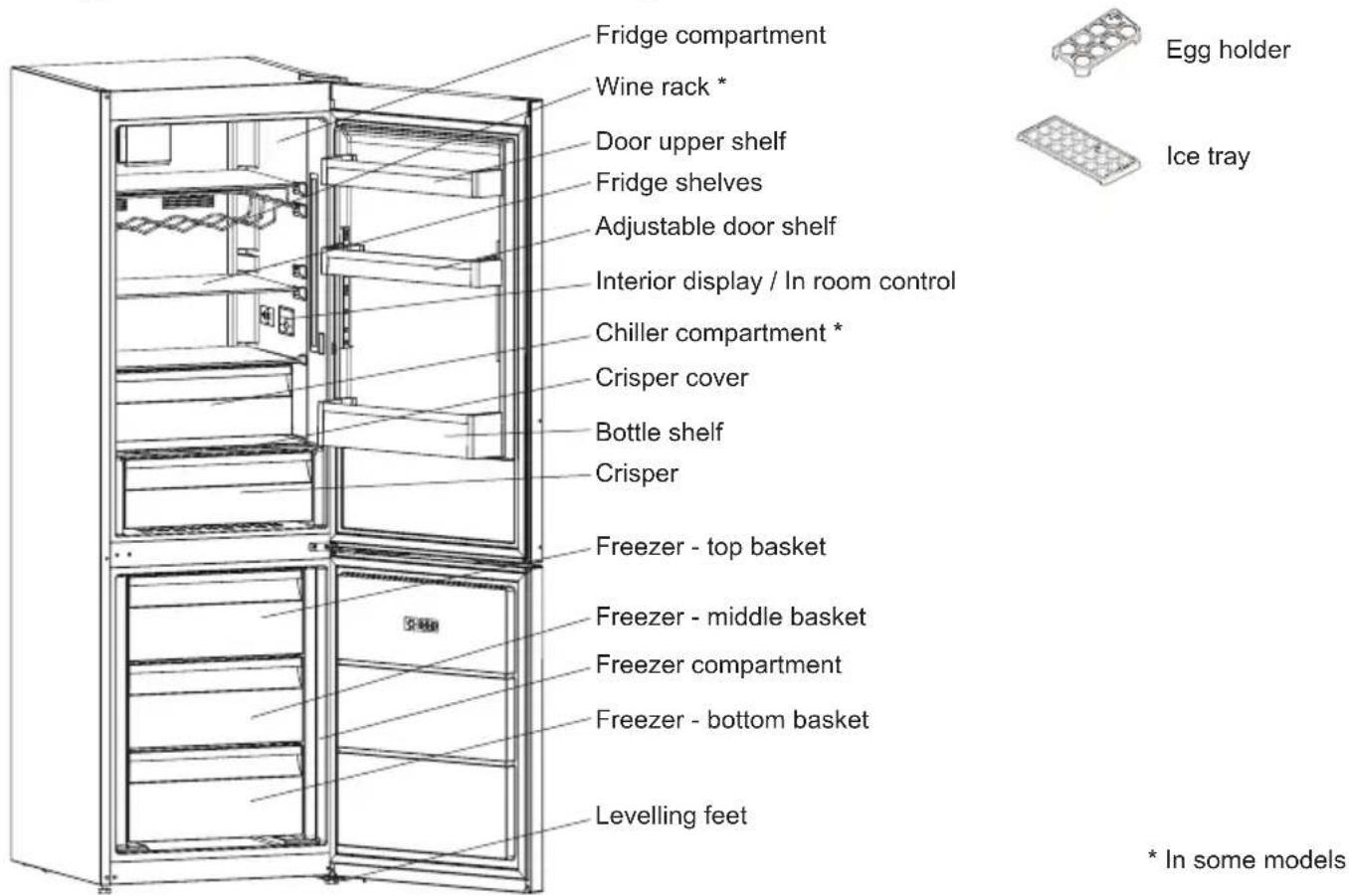

CHAPTER -2: YOUR FRIDGE FREEZER
This appliance is not intended to be used as a built-in appliance.
This figure has been drawn for informational purposes to show the various parts and accessories in the appliance. Parts may vary according to the appliance model.
CHAPTER -3: USING YOUR FRIDGE FREEZER
General notes:
Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.
Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

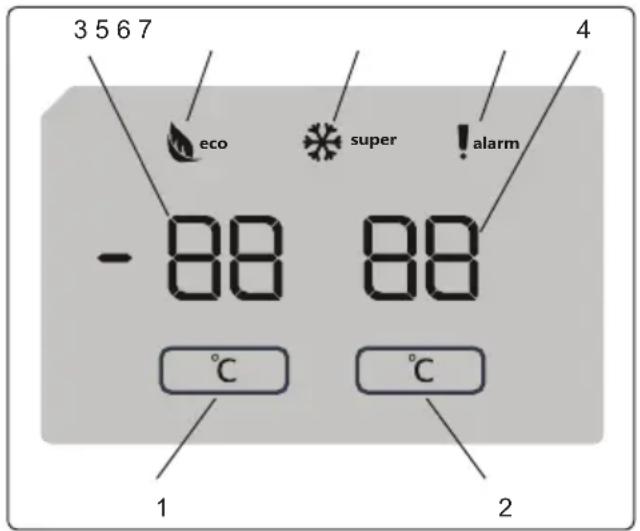

Display and control panel
Display and Control Panel
Using the Control Panel
- Enables the setting of the freezer.
- Enables the setting of the cooler.
- Freezer set value screen.
- Cooler set value screen.
- Economy mode symbol.
- Super freeze symbol.
- Alarm symbol.
Operating your Fridge Freezer
Lighting (If available)
When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests. Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.
Freezer Temperature Settings
- The initial temperature value for the freezer setting indicator is -18 °C.
- Press the freezer set button once.
When you first press the button, the previous value will blink on the screen.
- Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C or -24 °C).
- If you continue to press the button, it will restart from -16 °C.
NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to -18 °C.
Cooler Temperature Settings
- The initial temperature value for the cooler setting indicator is +4 °C.
- Press the cooler button once.
- Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, or +2 °C).
- If you continue to press the button, it will restart from +8 °C.
CHAPTER -3: USING YOUR FRIDGE FREEZER
Super Freeze Mode
Purpose
- To freeze a large quantity of food that cannot fit on the fast freeze shelf. • To freeze prepared foods. • To freeze fresh food quickly to retain freshness.
How to use
To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.
During Super Freeze Mode:
- The temperature of the cooler may be adjusted. In this case, Super Freeze mode will continue. Economy mode cannot be selected.
- Super Freeze mode can be cancelled in the same way it is selected.
Notes:
- The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
- For optimal appliance performance in maximum freezer capacity, activate Super Freeze mode 3 hours before you put fresh food into the freezer.
Super Freeze mode will automatically cancel after 24 hours or when the freezer sensor temperature drops below -32 °C.
Recommended Settings for the Freezer and Cooler Compartment Temperature
Door Open Alarm Function
If the cooler or freezer door is opened for more than 2 minutes, the appliance sounds 'beep beep'.
Warnings About Temperature Adjustments
- It is not recommended that you operate your fridge in environments colder than 10°C.
- Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge, and the ambient temperature of the placement of your fridge.
- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in, so that it is completely cooled. Do not open the doors of your fridge and do not place food inside it during this period.
- A 5-minute delay function is applied to prevent damage to the compressor of your fridge when you take the plug out and then plug it back in again after an energy breakdown has occurred. Your fridge will start to operate normally after 5 minutes.
- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge outside the stated temperature value limits in terms of cooling effectiveness.
- This appliance is designed for use at an ambient temperature within the 16°C - 38°C range.
Climate class and meaning:
T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.
ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.
N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.
SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.
| Climate Class Ambient Temperature | °C |
| T Between | 16 and 43 (°C) | |
| ST Between | 16 and 38 (°C) | |
| N Between | 16 and 32 (°C) | |
| SN Between | 10 and 32 (°C) | |
CHAPTER -3: USING YOUR FRIDGE FREEZER
Important installation instructions
This appliance is designed to work in difficult climate conditions and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15°C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.
Temperature indicator
In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.
To better store the food in your refrigerator, especially in the coldest area, make sure the message "OK" appears on the temperature indicator. If "OK" does not appear, this means temperature has not been set properly.
It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary,
with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.
NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

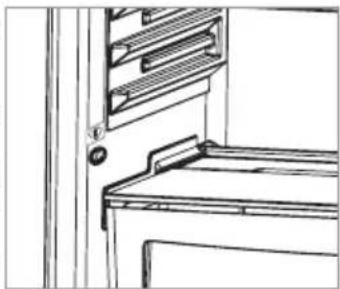

Store food in the coldest area of the refrigerator.
Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.
The following symbol indicates the coldest area of your refrigerator.
To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.
The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.
As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.
Accessories

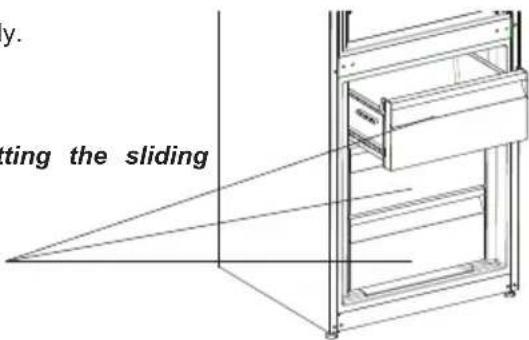

Freezer box
- The freezer box is for foods that need to be accessed more easily.
- Removing the freezer box:
- Pull the box out as far as possible.
- Pull the front of the box up and out. To reset the sliding compartment, perform the same operation in reverse.
Note: Always hold the handle of the box while moving it in or out.
Freezer boxes

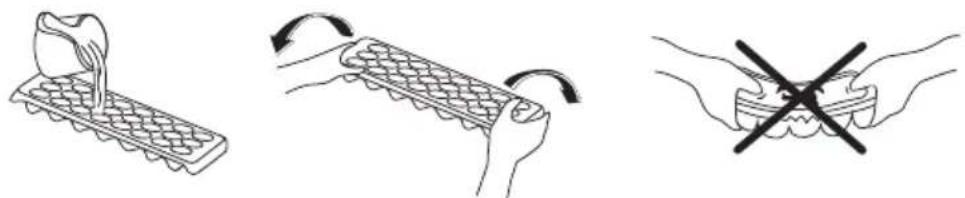

Ice tray
- Fill the ice tray with water and place it in the freezer compartment. After the water has completely turned into ice, you can twist the tray as shown below to get the ice cubes.
CHAPTER 3: USING YOUR FRIDGE FREEZER
Zero Degree Zone (in some models)
Keeping food in the chiller compartment instead of the freezer or refrigerator compartment allows food to retain freshness and flavor longer while preserving its fresh appearance. If the chiller tray becomes dirty, remove it and wash it with water.
(Water freezes at 0 °C, but foods containing salt or sugar require lower temperatures to freeze.)
Normally, people use the chiller compartment for raw fish, rice, etc.
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the chiller shelf
- Pull the chiller shelf out toward you by sliding it on rails. Then, pull the chiller shelf up from the rail to remove it.
After the chiller shelf has been removed, it can support a maximum load of 16 kg.

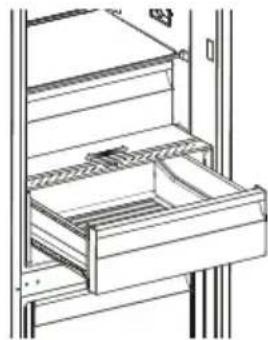

Humidity Controller (in some models)
When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for a longer time.
In the event the crisper is full, the fresh dial located in front of the crisper should be opened. By means of this, the air in the crisper and humidity rate will be controlled, and the shelf life will be extended.
If you see any condensation on the glass shelf, the humidity control should be placed into the open position.

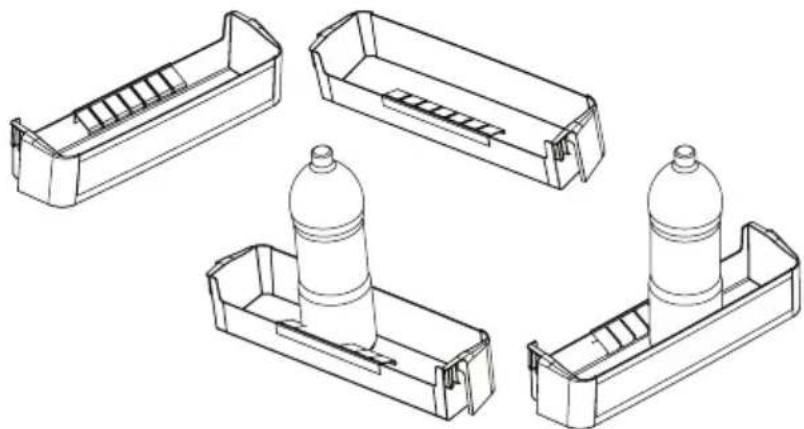

Bottle holder (in some models)
To prevent the bottles from slipping or falling over, you can use the bottle holder. This also helps reduce noise when opening or closing the door.
Adapti-Lift Door Shelf (on some models)
The Adapti-Lift offers six different height adjustments to provide the storage areas you need.
To change the position of the Adapti-Lift:
Hold the bottom of the shelf and pull the buttons on the side of the door shelf in the direction of the arrow (Fig. 1).
Position the door shelf at the height you need by moving it up or down. Once you have the desired position, release the buttons on the side of the door shelf (Fig. 2). Before releasing the door shelf, move it up and down to ensure it is fixed securely.
Fig. 2 Fig. 1
Note: Before moving the door shelf, make sure it is loaded and hold it by supporting the bottom. Otherwise, the door shelf could fall off the rails due to the weight, which may cause damage to the door shelf or rails.
Visual and text descriptions in the accessories section may vary depending on the model you have.
CHAPTER 3: USING YOUR FRIDGE FREEZER
• Make sure to unplug the fridge before starting to clean it. - Do not wash your fridge by pouring water on it. - You can wipe the inner and outer surfaces with a soft cloth or sponge using warm, soapy water. - Remove the parts individually and clean them with soapy water. Do not wash them in a washing machine. - Never use flammable, explosive, or corrosive materials such as thinner, gas, or acid for cleaning. - You should clean the condenser with a broom at least once a year to save energy and increase efficiency.
Make sure your fridge is unplugged while cleaning.
Defrosting
Your refrigerator automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator, and evaporates by itself.
Replacing LED Lighting
If your fridge freezer has LED lighting, contact the Sharp help desk, as this should be changed only by authorized personnel.
CHAPTER 4: FOOD STORAGE GUIDANCE
Refrigerator compartment
- To reduce humidity and consequently increase frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and, over time, will require more frequent defrosting.
- Never place warm food in the refrigerator. Warm food should be allowed to cool to room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
- Nothing should touch the back wall, as this will cause frost and packages may stick to the back wall. Do not open the refrigerator door too frequently.
- Arrange the meat and cleaned fish (wrapped in packages or sheets of plastic) that you will use within 1-2 days in the bottom section of the refrigerator compartment (that is, above the crisper), as this is the coldest section and will ensure the best storing conditions.
- You can put fruits and vegetables into the crisper without packing.
- For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4°C.
- The temperature of the fridge compartment should be in the range of 0-8 °C. Fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
- Do not put hot food in the refrigerator immediately; wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
- Meat, fish, etc. should be stored in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables (if available).
- To prevent cross contamination, meat products and fruit vegetables are not stored together.
- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.
Freezer compartment
- Please use the deep freeze compartment of your refrigerator for storing frozen food for a long time and for producing ice.
- To get maximum capacity for the freezer compartment, please just use glass shelves for the upper and middle sections. For the bottom section, please use the lower basket.
- For optimum appliance performance to reach maximum freezing capacity, set the refrigerator at 4 °C for 24 hours before placing fresh food into the freezer.
- After placing fresh food into the freezer, changing the setting to 2 °C for 24 hours is generally sufficient. After 24 hours, you can reduce the setting if required.
- Please do not place the food that needs to be frozen next to the already frozen food.
- You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing it into portions in such a way that they can be consumed once.
- Please do not refreeze frozen food once it has already thawed. It may pose a danger to your health as it may cause food poisoning.
- Do not place hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
- When you buy frozen food, make sure that it was frozen under appropriate conditions and that the package is not torn.
- While storing frozen food, the storage conditions on the package should certainly be observed. If there is no additional information, the food must be consumed within the shortest time possible.
CHAPTER -4: FOOD STORAGE GUIDANCE
- If the frozen food package was subject to humidity and has a foul smell, it might have been previously stored under unsuitable conditions and gone rotten. Do not purchase this type of food!
- The storage durations of frozen food change depending on the ambient temperature, the frequency of the opening and closing of the doors, thermostat settings, food type, and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always follow the instructions on the package and never exceed the indicated storage duration.
- During long-lasting power failures, do not open the door of the deep freeze compartment. During longer power failures, do not refreeze your food and consume it as soon as possible.
- Please note: if you want to open the freezer door immediately after closing it, it will not open easily. This is a normal occurrence. After reaching equilibrium condition, the door will open easily.
Important note:
- Frozen foods, when thawed, should be cooked just as fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
- The taste of some spices found in cooked dishes (anise, basil, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a stronger taste when they are stored for a long period. Therefore, just a small amount of the spice should be added or the desired spice should be added after the food has been thawed.
- The food storage period is dependent on the oil used. Suitable oils include: margarine, half fat, olive oil and butter and the unsuitable oils include: peanut oil and lard.
- The food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.
CHAPTER -5: DOOR REVERSAL
Repositioning the door
- It depends on which fridge freezer you have as to whether it is possible the reverse the doors.
- It is not possible where handles are attached at the front of the appliance.
- If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.
CHAPTER -6: TROUBLESHOOTING
Check Warnings;
Your fridge warns you if there is/are some part(s) out of order. In this case, LED around the button will blink and buzzer will sound beep.
| MEANING WHY WHAT TO DO |
| "Failure Warning" | There is/are some part(s) Out of order | Contact the Sharp help desk as soon as possible. |
If your fridge is not operating;
- Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator into a known working socket.
If your fridge is not cooling enough;
• Is the temperature adjustment right? - Is the door of your fridge opened frequently and left open for a long while? • Is the door of fridge closed properly? - Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation? • Is your fridge filled excessively? - Is there adequate distance between your fridge and the rear and side walls? - Is the ambient temperature within the range of values specified in the operating manual?
If the food in your refrigerator compartment is over cooled
• Is the temperature adjustment right? - Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.
If your fridge is operating too loudly;
To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;
• Is your appliance stable? Are the legs adjusted? • Is there anything behind your fridge?
CHAPTER -6: TROUBLESHOOTING
- Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
- Are the items placed on your fridge vibrating?
Normal Noises;
Cracking (Ice cracking) Noise:
• During automatic defrosting. - When the appliance is cooled or warmed (due to expansion of appliance material).
Short cracking: Heard when the thermostat switches the compressor on/off.
Compressor noise (Normal motor noise): This noise means that the compressor operates normally. The compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.
Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.
Air blowing noise (Normal fan noise): This noise can be heard in No-Frost fridges during normal operation of the system due to the circulation of air.
If humidity builds up inside the fridge:
- Has the food been properly packaged? Have the containers been well dried before they were put into the refrigerator?
- Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened, the faster will be the humidification.
If the doors are not opened and closed properly:
- Do the food packages prevent closing of the door?
- Are the door compartments, shelves, and drawers placed properly?
- Are door gaskets broken or torn?
- Is your fridge on a level surface?
Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.
IMPORTANT NOTES:
- The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the fridge will restart after 4 or 5 minutes.
- The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.
- If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
- The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
- If the problem persists after you have followed all the instructions above, please consult an authorised service provider.
CHAPTER -7: TIPS FOR SAVING ENERGY
- Always allow foodstuffs to cool before storing in the appliance.
- Thaw food in the fridge compartment, this helps save energy.

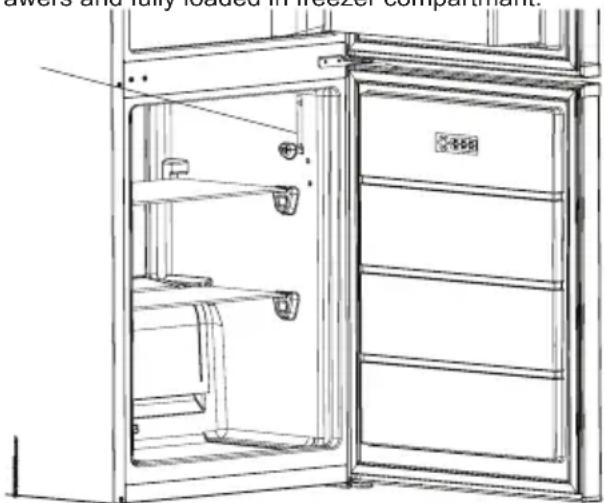

- Energy consumption of your appliance is declared without drawers and fully loaded in freezer compartment.
- For saving energy, do not use volume between the load limit and the door, along the load limit line. Load limit line is also used in energy consumption declaration.
CHAPTER -8: TECHNICAL DATA
The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.
The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.
See the link www.theenergylabel.eu for detailed information about the energy label.
CHAPTER -9: CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.
The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.
The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.
Visit our website to:
www.sharphomeappliances.com
PART 9: CUSTOMER SERVICE AND ASSISTANCE....43
PART 2: PARTS AND PIECES OF YOUR REFRIGERATOR-FREEZER
Super Freeze Mode
Purpose
the ice cube tray;
PART 3: THE DIFFERENT FUNCTIONS AND POSSIBILITIES
Fig.1
Fig.2
Evaporation tray
PART 8: TECHNICAL DATA
CHAPTER 2: PARTS AND PIECES OF YOUR REFRIGERATOR
Ice tray
Zero Degree Zone (In some models)
CHAPTER 3: USING YOUR REFRIGERATOR
Bottle holder (In some models)
Adapti-Lift door shelf (on some models)
Evaporation tray
Replacing the LED lamp
Index
Accessories
CHAPTER 3: USING THE REFRIGERATOR
Cleaning
Contents
CHAPTER -1: GENERAL WARNINGS....73
CHAPTER -2: YOUR REFRIGERATOR....77
CHAPTER -1: GENERAL WARNINGS
CHAPTER -2: YOUR REFRIGERATOR
Accessories
Chest freezer
Fig.1 Fig.2
CHAPTER -8: TECHNICAL DATA
Visit our website at: www.sharphoneappliances.com
Contents
CHAPTER -1: GENERAL WARNINGS....87
CHAPTER -2: YOUR FRIDGE-FREEZER....91
CHAPTER -3: HOW TO USE YOUR FRIDGE-FREEZER 92
CHAPTER -4: FOOD STORAGE GUIDE....96
CHAPTER -5: REVERSING THE DOOR....97
CHAPTER -6: TROUBLESHOOTING 97
CHAPTER -7: ENERGY SAVING TIPS 98
CHAPTER -8: TECHNICAL DATA 99
CHAPTER -9: CUSTOMER CARE AND SERVICE 99
Accessories
Freezer compartment
Ice cube tray
Zero Degree Zone (On certain models)
CHAPTER -3: HOW TO USE YOUR REFRIGERATOR-FREEZER
Bottle holder (On certain models)
Adapti-Lift door shelf (On certain models)
Fig.1 Fig.2
Evaporation tray
CHAPTER -8: TECHNICAL DATA
CHAPTER 2: YOUR COMBI APPLIANCE
Accessories
Freezer compartment
Ice cube tray
Zero Degree Zone (On certain models)
If food is kept in the chiller instead of the freezer or refrigerator, the food will retain freshness and flavor for a longer period and will also maintain a fresh appearance. If the drawer becomes dirty, remove it and wash it with water.
CHAPTER 3: HOW TO USE YOUR COMBI FRIDGE
Bottle holder (In some models)
Adapti-Lift door shelf (In some models)
CHAPTER 8: TECHNICAL DATA
www.sharphomeappliances.com
CHAPTER -1: GENERAL WARNINGS
CHAPTER -2: YOUR FRIDGE AND FREEZER
CHAPTER -3: USING YOUR FRIDGE AND FREEZER
CHAPTER -3: USING YOUR FRIDGE AND FREEZER
CHAPTER -3: USING YOUR FRIDGE AND FREEZER
Temperature indicator
ls-tråg
Zero Degree Zone (In some models)
CHAPTER -3: USING YOUR REFRIGERATOR AND FREEZER
Moisture regulator (On some models)
Adapti-Lift door shelf (On some models)
fig. 1
fig. 2
Evaporation tray
CHAPTER -8: TECHNICAL DATA
www.sharphomeappliances.com
Contents
CHAPTER-1: GENERAL WARNINGS....129
CHAPTER-2: REFRIGERATOR-FREEZER 133
CHAPTER 3: USING THE REFRIGERATOR-FREEZER....134
CHAPTER 4: FOOD STORAGE GUIDE....138
CHAPTER 5: CHANGING THE DOOR OPENING DIRECTION ....139
CHAPTER 6: TROUBLESHOOTING....139
CHAPTER 7: ENERGY SAVING TIPS....140
CHAPTER 8: TECHNICAL DATA ....141
CHAPTER 9: CUSTOMER SERVICE AND MAINTENANCE....141
CHAPTER 2: FRIDGE-FREEZER
Accessories
Freezer drawer
Ice cube tray
Zero Degree Zone (on some models)
CHAPTER 3: USING THE FRIDGE-FREEZER
Humidity control (on some models)
Bottle holder (on some models)
Adapti-Lift door shelf (on some models)
Figure 1
Figure 2
CHAPTER 6: TROUBLESHOOTING
CHAPTER 6: TROUBLESHOOTING
CHAPTER 8: TECHNICAL SPECIFICATIONS
CHAPTER 9: CUSTOMER SERVICE AND MAINTENANCE
www.sharphomeappliances.com
Table of Contents
- CHAPTER: GENERAL WARNINGS....143
- CHAPTER: YOUR FREEZER REFRIGERATOR....147
- CHAPTER: USING YOUR FREEZER REFRIGERATOR 148
- CHAPTER: FOOD STORAGE GUIDELINES....152
- CHAPTER: CHANGING THE DOOR OPENING DIRECTION....153
- CHAPTER: TROUBLESHOOTING....153
- CHAPTER: ENERGY SAVING TIPS ......154
- CHAPTER: TECHNICAL SPECIFICATIONS ....155
- CHAPTER: CUSTOMER SERVICE....155
CHAPTER 2: YOUR FREEZER REFRIGERATOR
Important installation instructions
Accessories
Freezer drawer
Ice tray
Zero Degree Zone (on some models)
CHAPTER 3: USING THE REFRIGERATOR WITH FREEZER
Adapti-Lift door shelf (on some models)
Figure 1
Figure 2
Evaporation tray
Replacing the LED light
CHAPTER 8: TECHNICAL DATA
www.sharphomeappliances.com
Index
CHAPTER -1: GENERAL WARNINGS.... 157
CHAPTER -2: DESCRIPTION OF THE APPARATUS 162
CHAPTER -3: USE OF THE APPARATUS 162
Chiller compartment (zero degrees)
Fig.2 Fig.1
CHAPTER -8: TECHNICAL DATA
sharphomeappliances.com
