D 600 SUR - Loudspeaker JAMO - Free user manual and instructions

Brand	Jamo
Model	D 600 SUR
Category	Bookshelf speaker
Product type	Passive surround speaker
Dimensions (W x H x D)	200 x 350 x 250 mm
Weight	5.5 kg
Nominal impedance	8 Ω
Power handling	100 W (RMS)
Frequency response	55 Hz – 20 kHz
Speaker type	2-way: 165 mm woofer + 25 mm tweeter
Connectivity	Double binding posts (bi-wiring possible)
Power	Passive, powered by external amplifier
Main functions	Surround sound reproduction, home theater compatible
Care and cleaning	Wipe with a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Avoid shocks.
Spare parts and repairability	Contact an authorized Jamo center for speaker replacement.
General information	Digital Class B, complies with ICES-003. Warranty valid upon presentation of purchase receipt.

Frequently Asked Questions - D 600 SUR JAMO

What is the impedance of the Jamo D 600 SUR speaker?

The nominal impedance is 8 Ω.

What maximum power can the speaker handle?

The power handling is 100 W RMS.

What are the dimensions of the speaker?

The approximate dimensions are: 200 x 350 x 250 mm (W x H x D).

Can I bi-wire the D 600 SUR speaker?

Yes, the double binding posts allow bi-wiring.

How to clean the speaker without damaging it?

Use a soft dry cloth. Avoid chemical or abrasive products.

Is the speaker compatible with a home theater amplifier?

Yes, it is a passive surround speaker, ideal for a home theater system.

What types of drivers are integrated?

The speaker is a 2-way with a 165 mm woofer and a 25 mm tweeter.

What is the frequency response?

The frequency response ranges from 55 Hz to 20 kHz.

Is the warranty transferable?

Yes, the warranty applies to any legal owner during the warranty period, upon presentation of the purchase receipt.

Can I repair the speaker myself?

It is recommended to contact an authorized Jamo center for any repairs, otherwise the warranty may be voided.

USER MANUAL D 600 SUR JAMO

THX and the THX logo are trademarks of THX Ltd.

which may be registered in some jurisdictions. All rights reserved.

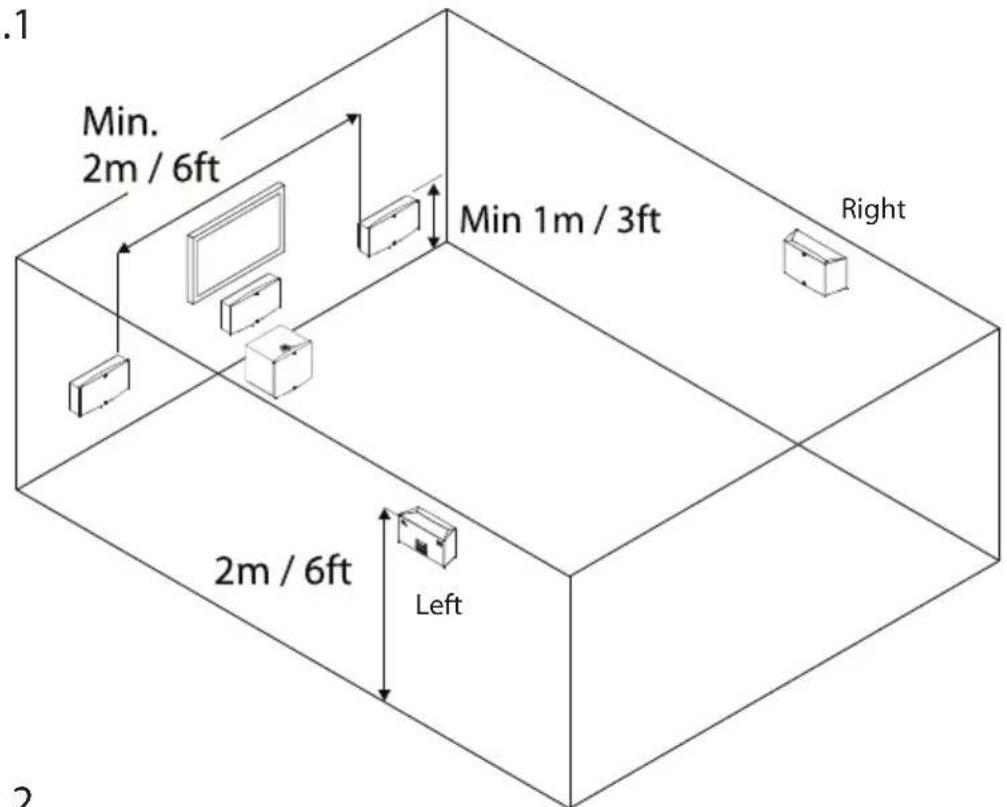

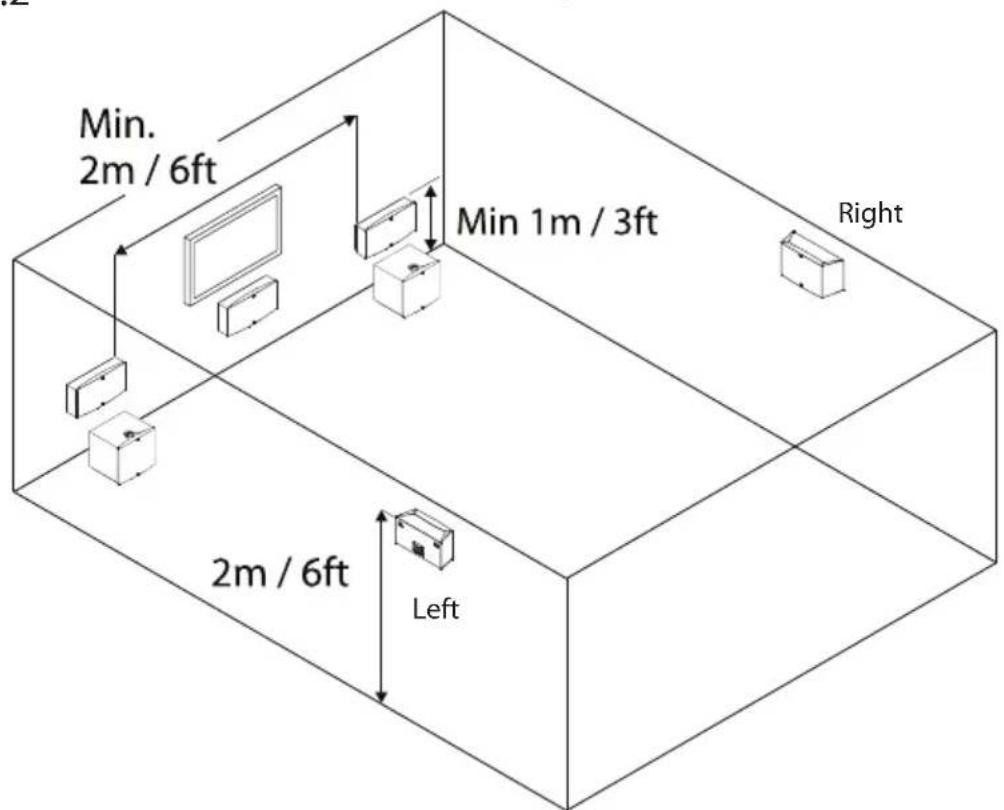

1 D 600 LCR / D 600 SUR Left / D 600 SUR Right

THX 5.1
THX 5.2

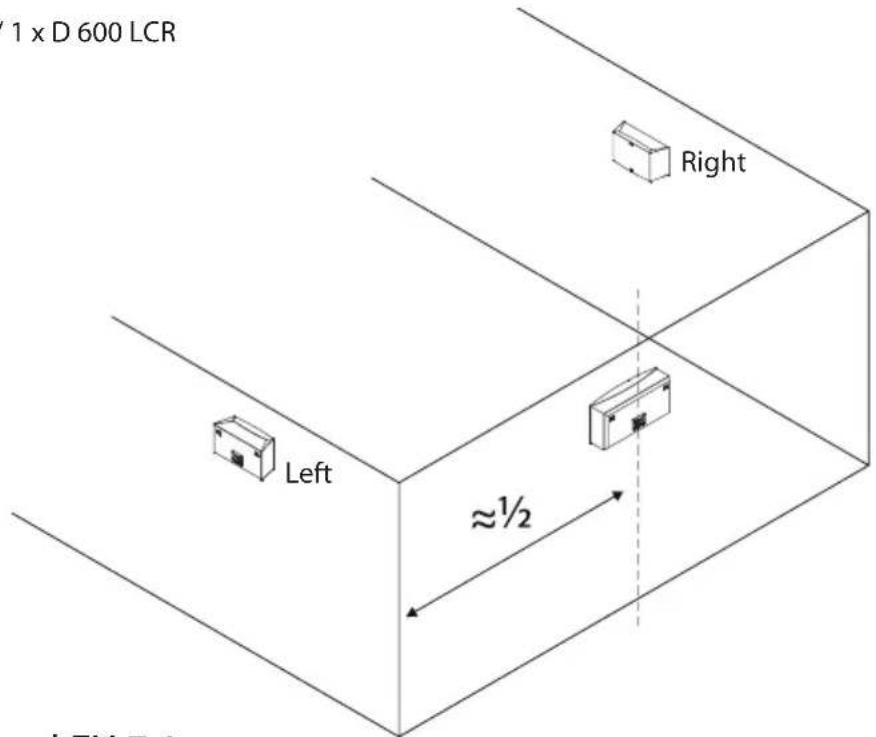

THX Surround EX 6.1

Surround back / 1 x D 600 LCR

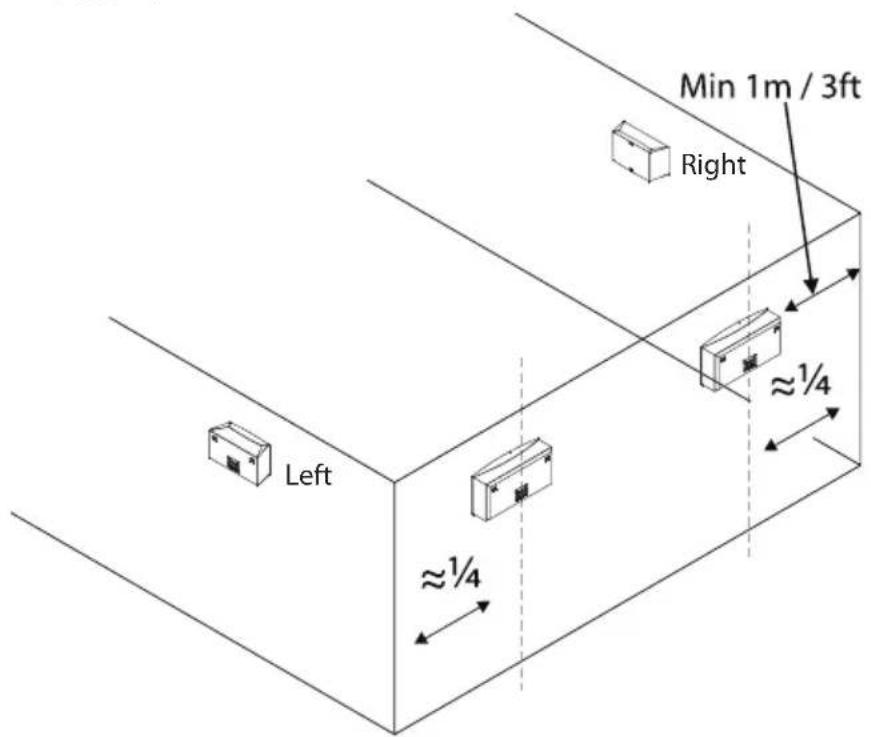

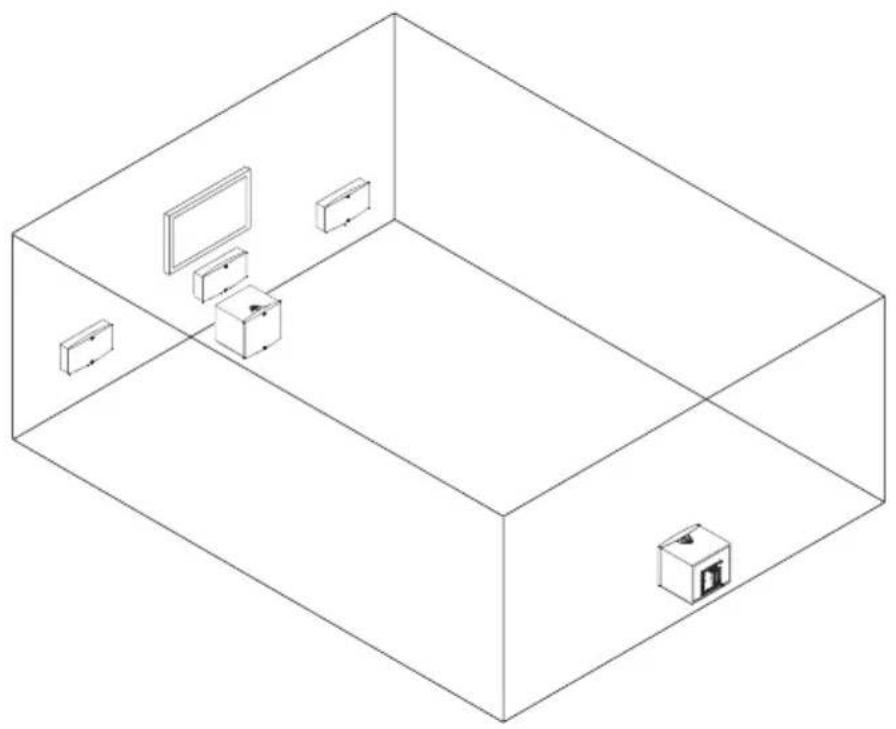

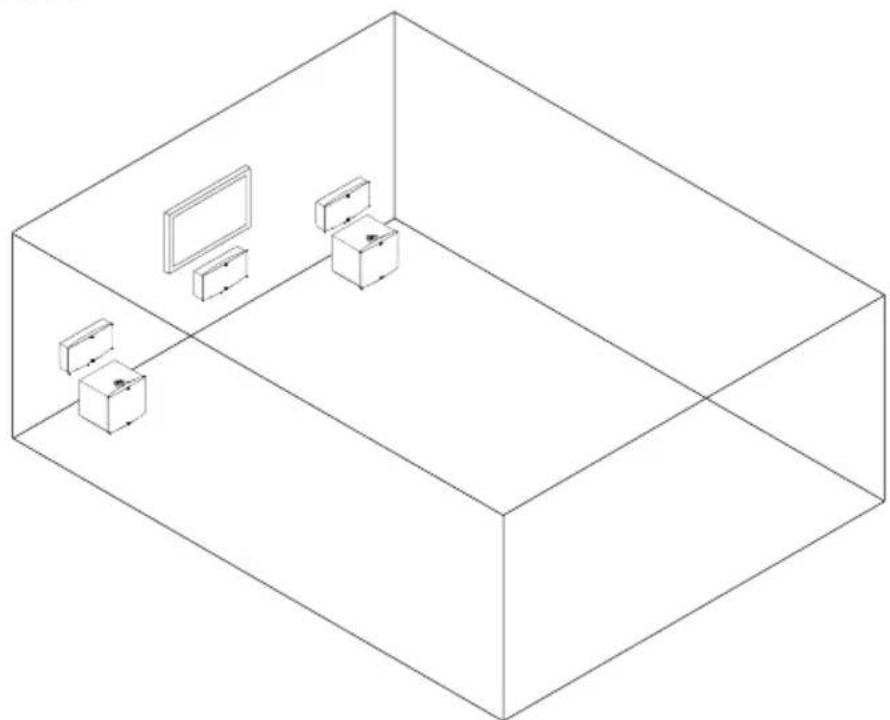

THX Surround EX 7.1

Surround back / 2 x D 600 LCR

D600SUB

1xD600SUB

2 × D 600 SUB

A

2 × D 600 SUB

B

THX Ultra 2
2xD600SUB

ULTRA2

RECOMMENDED USE

All Home Theaters or Living Rooms

THX CERTIFICATION FEATURES

Frequency Response: Low Frequency Extension 25Hz at -3dB

High Output, Low Distortion Design THX Settings and Inputs Conform to Bass Management System

THX PERFORMANCE

Capable of THX Reference Level up to 3000 cubic feet (85 cubic meters) with two subwoofer.

Visit www.ths.com for further technical details.

2

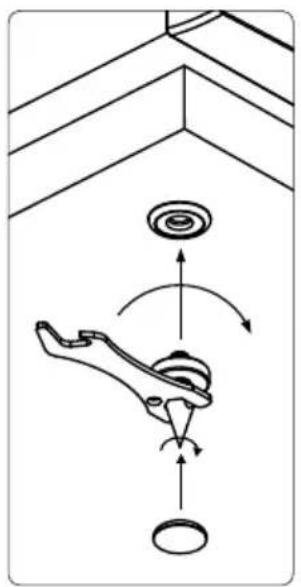

D 600 SUB

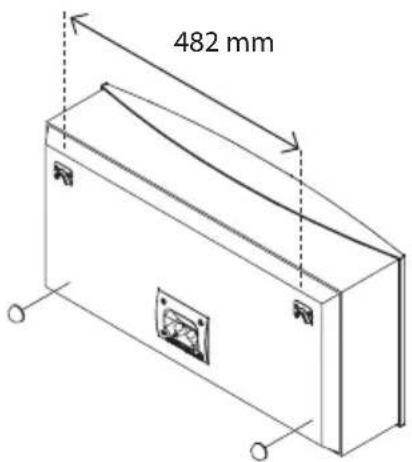

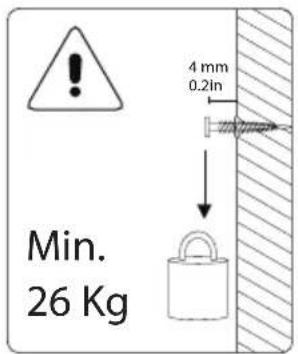

D 600 LCR

This speaker should not be placed close to a CRT display

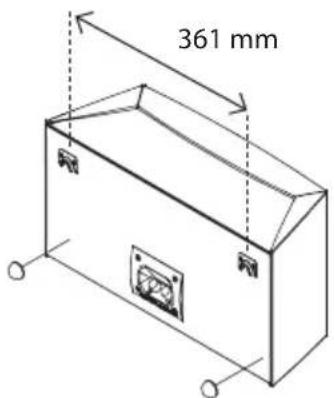

D 600 SUR

This speaker should not be placed close to a CRT display

3

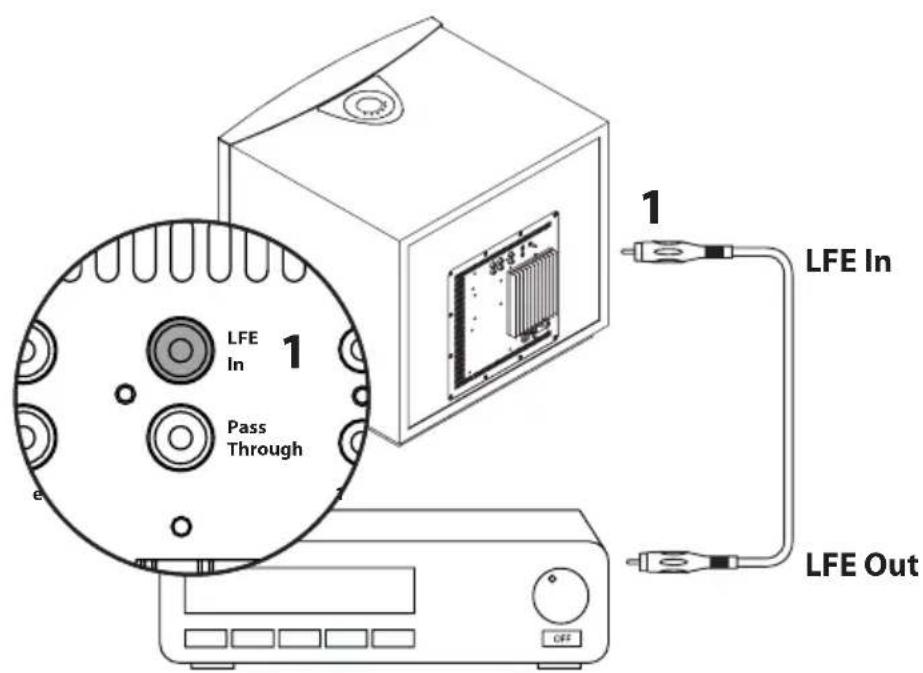

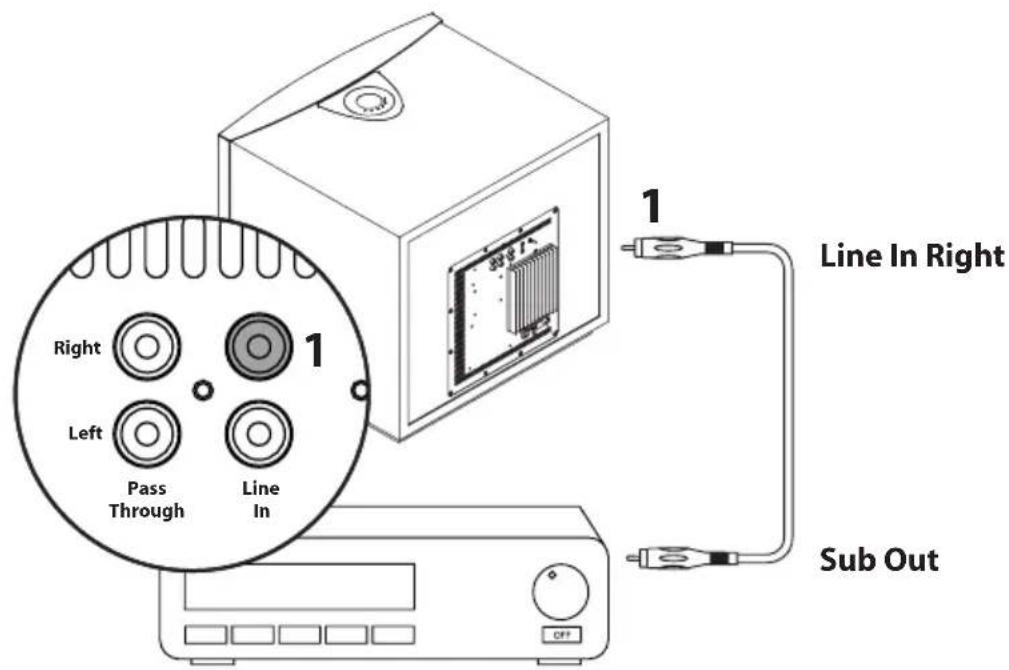

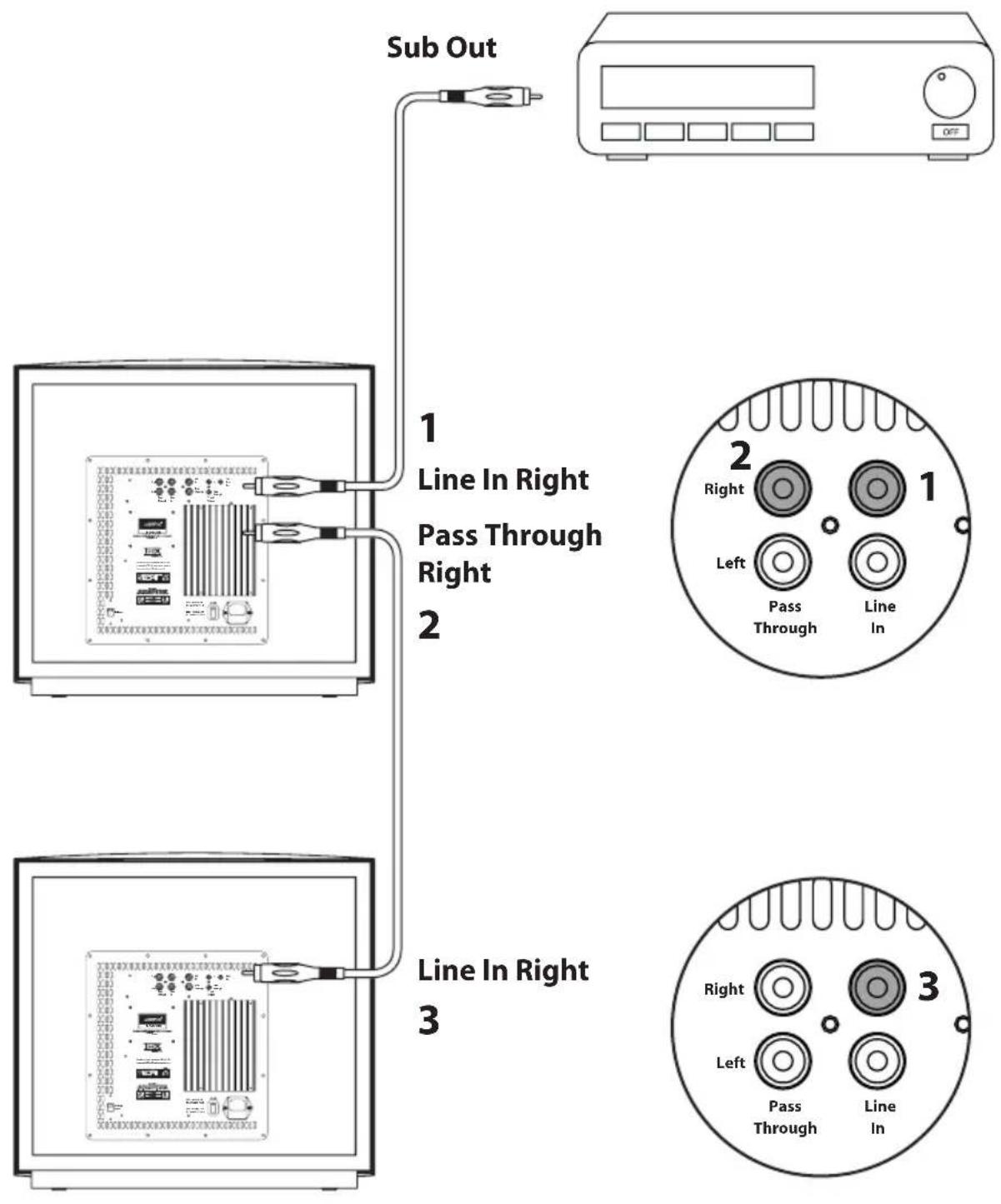

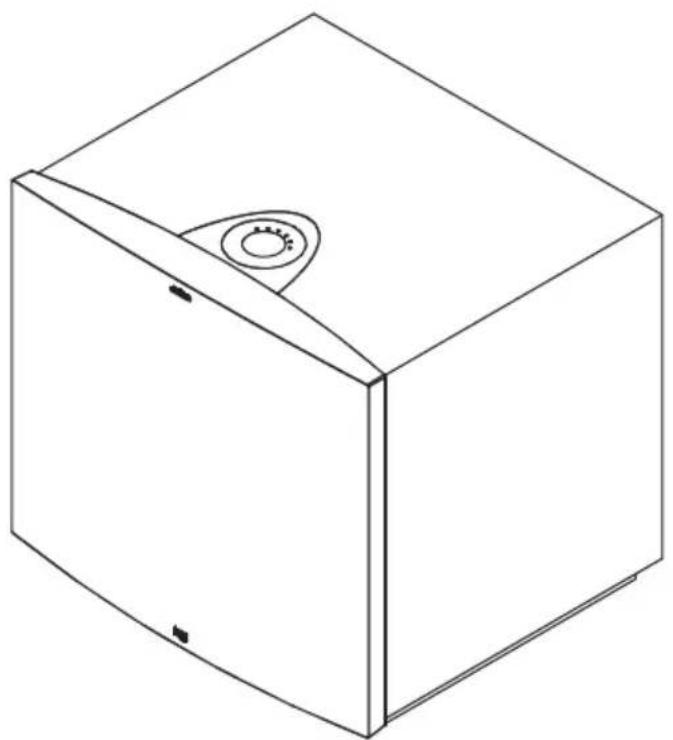

4 D 600 SUB

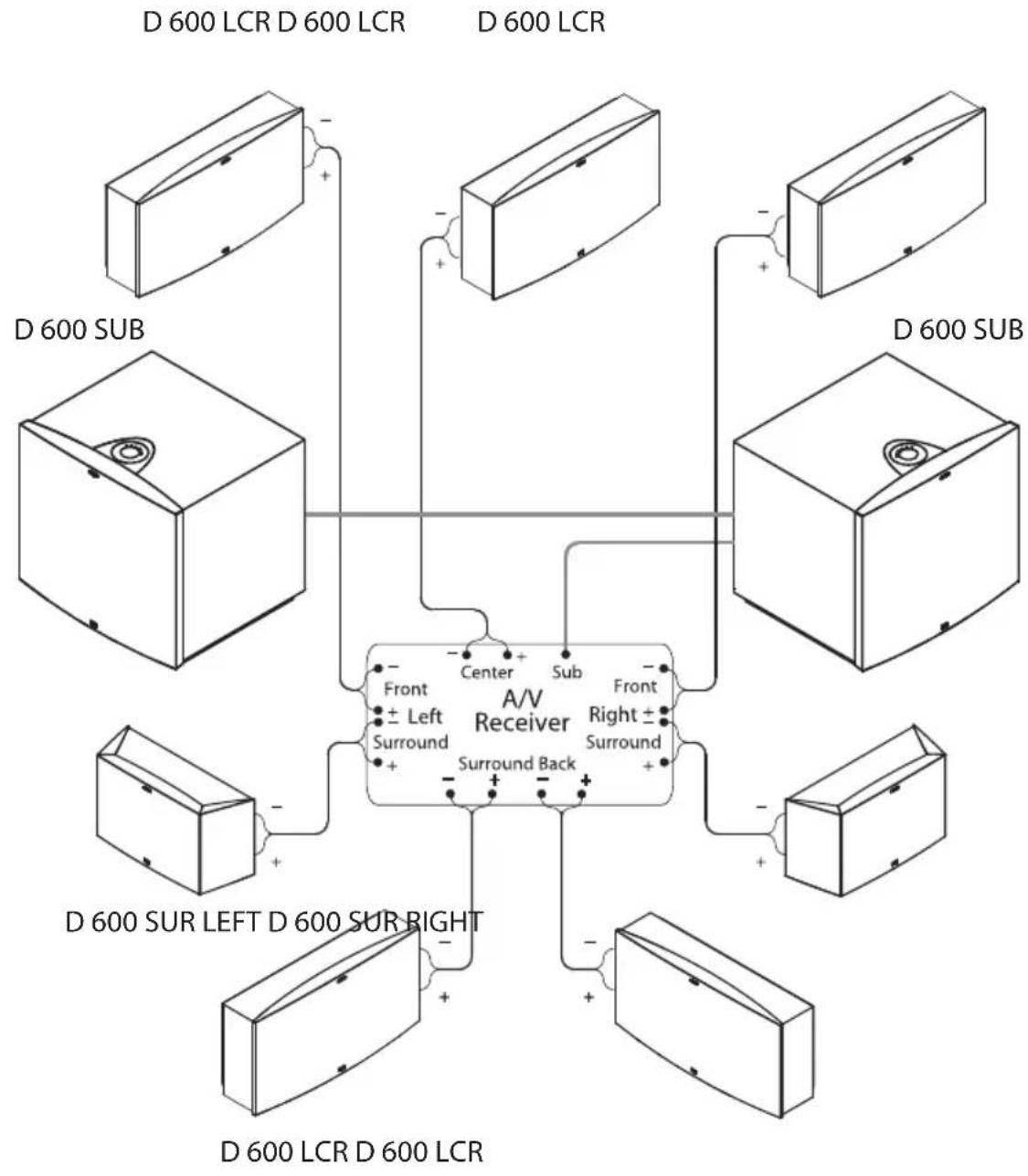

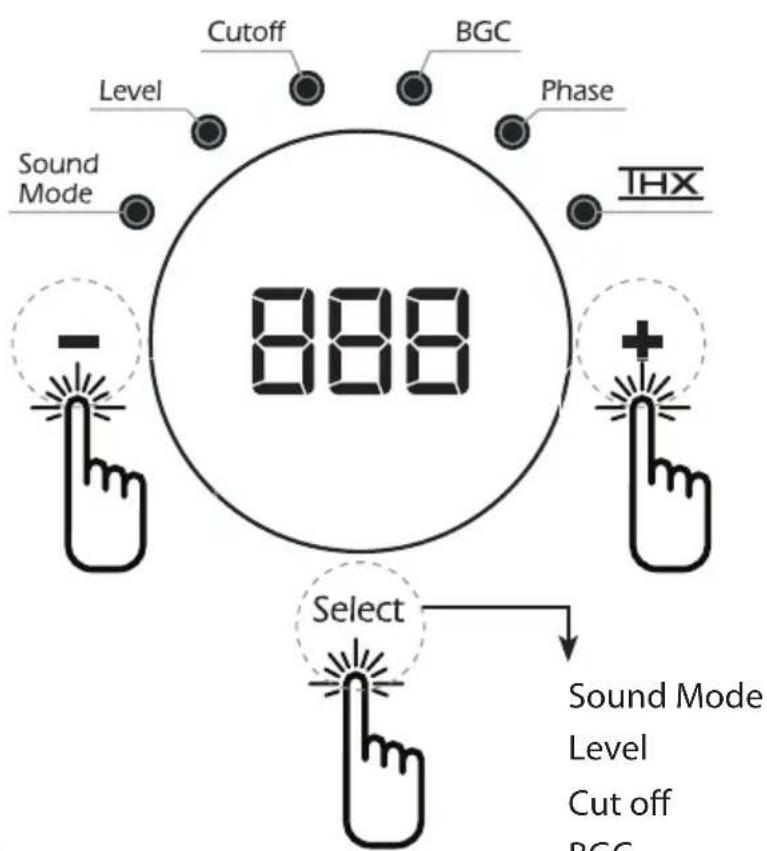

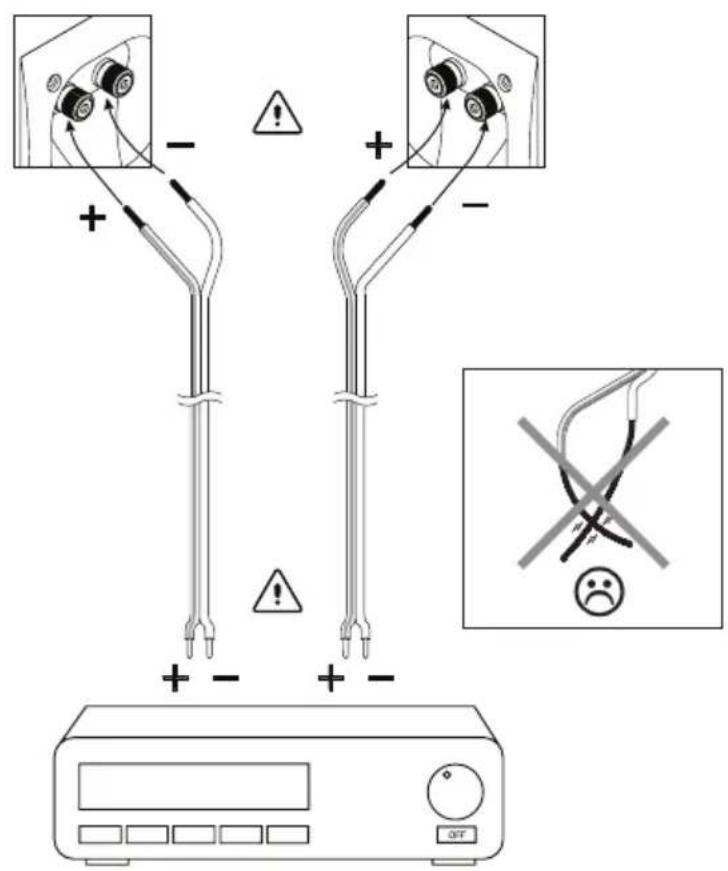

5 System Connection

6

D 600 SUB

D 600 SUB:Sound Mode

Default (DEF)

Level 2
Cut off 80
BGC OFF
Phase 0

Personal (PER)

Level	-20 → 16
Cut off	40 → 200
BGC	OFF → MAX
Phase	0 → -180

THX

Level 0
Cut off 20	0
BGC	0 → MAX
Phase	0 → -180

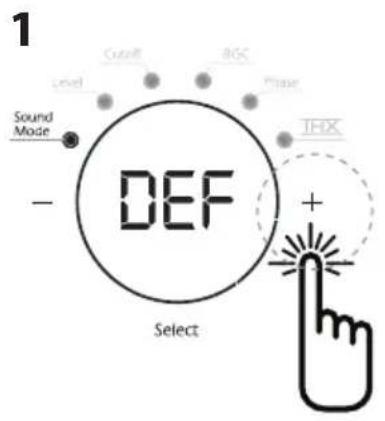

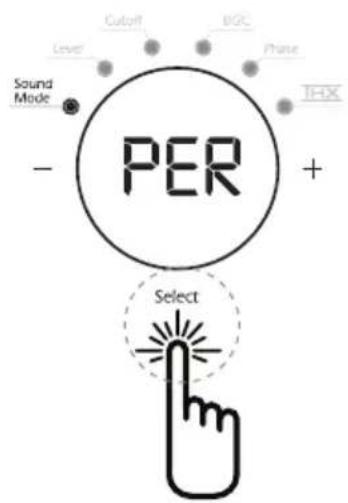

D 600 SUB:Sound Mode PER

2

Adjust:

Level Page 15

Cut off Page 16

BGC Page 17

Phase Page 18

3

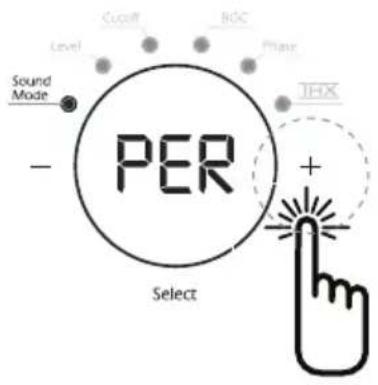

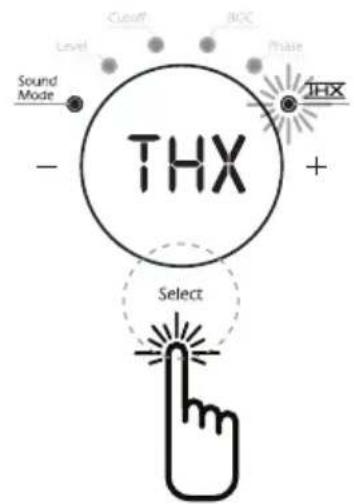

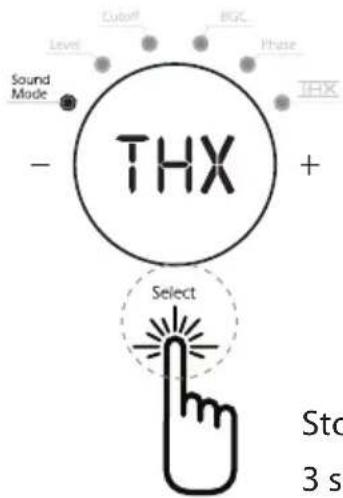

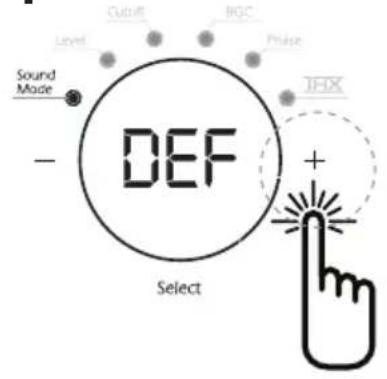

D 600 SUB: Sound Mode THX

1

2

Adjust:

BGC Page 17

Phase Page 18

3

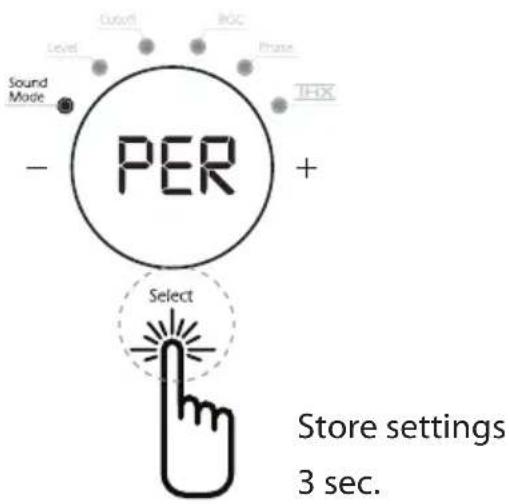

Store settings

3 sec.

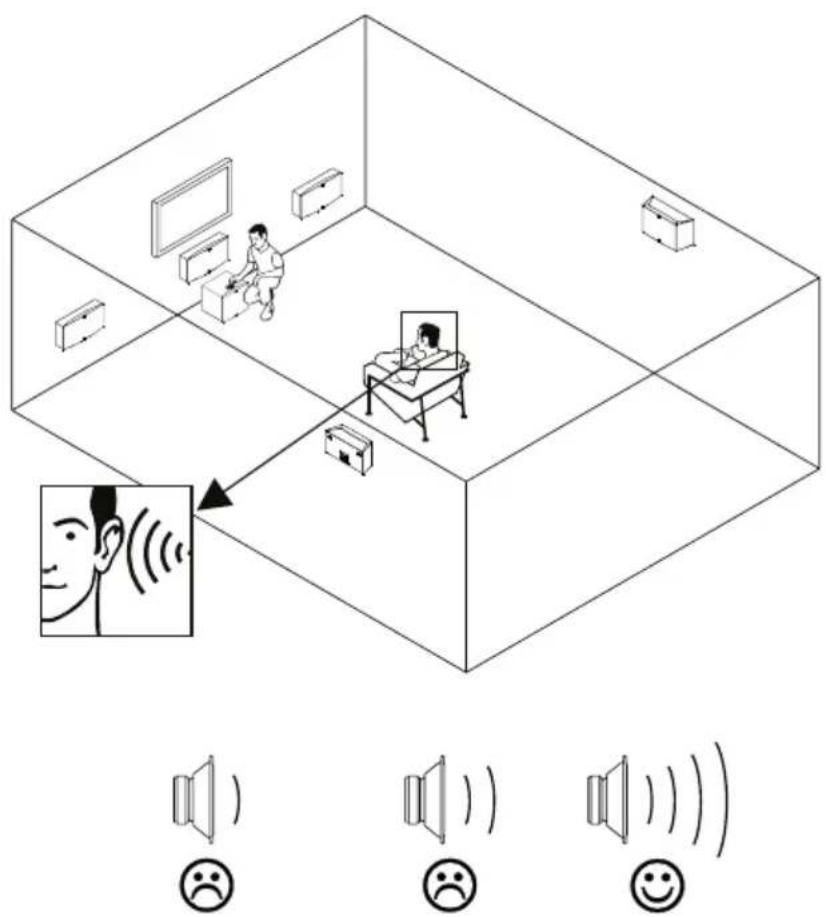

D 600 SUB: Level

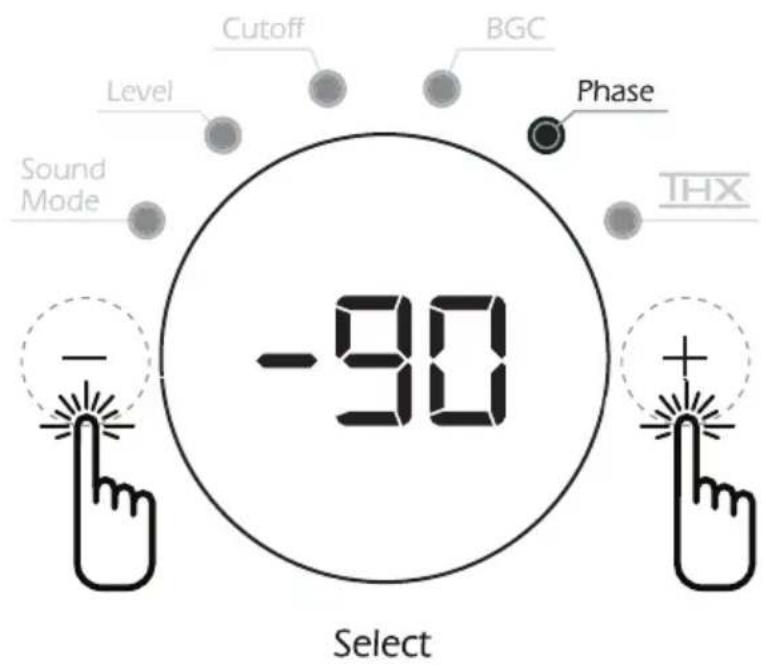

Select

Select

Select

Select

D 600 SUB: Cut off

7 D 600 specifications

Specifications.. D 600 SUB

System. Active DSP based subwoofer, sealed

enclosure. Motional feedback

User interface Touch panel with backlight

Woofer (mm / in) 380/15

Rated power (Wrms) .600 @4QTHD+N < 1%

Dynamic power (Wrms) 800 @4Ω

Peak power (Wpk) 1600 @4Ω

Maximum SPL (dB) 109

Frequency range (Hz) 20-200

Variable cut off (Hz) 40-200

Phase (deg.) 0 to -180

BGC Variable

Line input. Yes, stereo pass through for daisy chain

LFE input . Yes, pass through for daisy chain

Speaker level input.

Sensitivity (mVrms) 100

Sound modes.. Default. Personal. THX

12V trigger. Yes, pass through for daisy chain.

Mains switch. .On/Off

Voltage switch (fuse) 115V/60Hz (6.3A) / 230V/50Hz (3.15 A)

Auto enable switch . Off / Auto / On

Dimension (mm / in) 557 x 587 x 501 / 21.9 x 23.1 x 19.7

Weight (kg / lb) 32 / 70.5

Finish Stone Grey

Specifications D 600 LCR

System 3 Way closed

Woofer (mm / in) 2 x 165 / 6½

Midrange (mm / in) 2 x 76/3

Tweeter (mm / in). 25/1 DTT

Power (W, long / short term) 200/300

Sensitivity (dB/2,8V/1m) 89

Frequency Range (Hz) 80 - 20.000

Cross-over Frequency (Hz) 400/2.500

Impedance (Ohm) 4

Weight (Kg / lb) 13 / 28.6

Dimension HxWxD (mm / in) 315 x 600 x 170 / 12.4 x 23.6 x 6.7

Finish Stone Grey

Specifications. D 600 SUR

System 3 Way closed dipole

Woofer (mm / in) 1 x 165 / 6½

Midrange (mm / in) 2 x 76/3

Tweeter (mm / in) 2 x 25/1 DTT

Power (W, long / short term) 150/200

Sensitivity (dB/2,8V/1m) 87

Frequency Range (Hz) .80 - 20.000

Cross-over Frequency (Hz) 250/2.500

Impedance (Ohm) 4

Weight (Kg / lb) 9/19.8

Dimension HxWxD (mm / in) 255 x 454 x 170 / 10 x 17.8 x 6.7

Finish Stone Grey

Two D 600 SUB will meet THX Ultra2 output levels. THX and theTHX logo are trademarks of THX Ltd.

which may be registered in some jurisdictions. All rights reserved.

8

We

Klipsch Group, Inc.

Of

3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 USA

Declare that

Equipment:

Passive Home Audio Speakers

Model Name:

Jamo D 600 LCR, Jamo D 600 SUR

In accordance with the following Directives:

89/336/EEC & 2004/108/EC

The Electromagnetic Compatibility Directive and its amending Directives

has been designed and manufactured to comply with the following specifications:

EN55013:2001

Sound and television broadcast receivers and associated equipment Radio disturbance characteristics - Limits and methods of measurements

EN55020:2002

Sound and television broadcast receivers and associated equipment - Immunity Characteristics - Limits and methods of measurements

I hereby declare that the equipment named above has been designed to comply with the relative sections of the above reference specifications. The unit complies with all essential requirements of the Directives.

Signature:

Name: Kerry Geist

Position: Vice President of Engineering

Done At: Indianapolis, IN 46268 USA

On date: 6/19/09

KLIPSCH AUDIO TECHNOLOGIES 3502 WOODVIEW TRACE, SUITE 200 INDIANAPOLIS, IN 46268 USA

CE09

KLIPSCH EUROPEBV 40 CHEVENING ROAD LONDON,NW6,6DE ENGLAND

We Kilipsch Group, Inc.

Of 3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 USA

Declare that

Equipment: Powered Subwoofer - Speaker /Audio Amplifier

Model Name: Jamo D 600 SUB

In accordance with the following Directives:

2004/108/EC The Low Voltage Directive and its amending Directives

The Electromagnetic Compatibility Directive 2004/108/EC and its amending Directives

has been designed and manufactured to comply with the following specifications:

EN60065:2002 Audio, Video and Similar Electronic Apparatus - Safety requirements

EN55013:2001 Sound and television broadcast receivers and associated equipment - Radio disturbance characteristics - Limits and methods of measurements

EN55020: 2002 Sound and television broadcast receivers and associated equipment -Immunity Characteristics - Limits and methods of measurements

EN61000-3-2: 2000 Electromagnetic Compatibility Part 3. Limits Section 2. Limits for harmonic current emissions (equipment input current #16A per phase)

EN61000-3-3: 1995 Electromagnetic Compatibility Part 3. Limits Section 3. Limits for voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current #16A

I hereby declare that the equipment named above has been designed to comply with the relative sections of the above reference specifications. The unit complies with all essential requirements of the Directives.

Signature:

Name: Kerry Geist

Position: Vice President of Engineering

Klipsch Group, Inc. 3502 Woodview Trace, Suite 200

Done At: Indianapolis, IN 46268 USA

Revised: 6/19/09

KLIPSCH AUDIO TECHNOLOGIES 3502 WOODVIEW TRACE, SUITE 200 INDIANAPOLIS, IN 46268 USA

KILPSCH EUROPEBV INDUSTRIESTRAAT 1 7041 GD's-HEERENBERG, NETHERLANDS

9

FCC AND CANADA EMC COMPLIANCE INFORMATION:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

The scope of the warranty

Service. In case of warranty enquiries, please contact your dealer/installer. In case of request for service under warranty, please enclose your original receipt and make sure that the serial number on the product is readable. Important: Never send the product to be repaired without the prior agreement of your dealer. The product must always be packed properly. If the product is NOT UNDER WARRANTY, all costs including without limit costs of repair and freight must be paid for by the customer.

Terms of Warranty

1. Nothing in this warranty shall limit your statutory rights.
2. The warranty is only valid on presentation of the original sales receipt or other valid proof of purchase, and provided that the serial number on the product is fully legible.
3. Warranty repairs must be carried out by an authorised Jamo dealer, or an authorised service centre. No payment will be made for repairs performed by unauthorised persons. This warranty does not extend to products which have been repaired or otherwise altered by unauthorised persons, and any damage to the product caused by work by unauthorised persons is not covered by this warranty.
4. This product will not be considered defective, either in materials or in manufacture, to the extent that faults are caused by adaptation to national, local, technical or safety related requirements in countries other than the specific country where the product was purchased.
5. Jamo shall at its option during the relevant warranty period either repair or replace defective components. If the component repair or replacement cannot be performed, the product will be replaced.
6. In no circumstances shall Jamo be liable in contract, tort (including negligence) or breach of statutory duty or otherwise for loss of profits, loss of revenue, loss of data, loss of business or loss of anticipated savings or for any consequential loss whatever.
7. The warranty does not cover the following:
   a) Periodic inspection, maintenance and repair or replacement of parts resulting from normal wear and tear.
   b) Costs connected to delivery to the dealer, disassembly or re-installation of the product.
   c) Misuse, including use for purposes other than was intended, or faulty installation.
   d) Damage caused by lightning, water, fire, natural catastrophes, war, insurrection, incorrect line voltage, insufficient ventilation, transport or other causes outside of the control of Jamo.
8. This warranty applies to every legal owner of the product during the warranty period.
