NORDMÄRKE 604.929.38 - Phone charger IKEA - Free user manual and instructions

Product type	Wireless phone charger
Brand	IKEA
Model	NORDMÄRKE 604.929.38
Charging technology	Qi (standard 1.2.4 BPP)
Output power	5 W (standard charging)
Input	5V DC, 2A, via USB Type-C
Included cable	No (USB Type-C cable not included)
Included power adapter	No
Status indicator	LED (on for 3s at power-up, solid during charging, off when charged, flashing on error)
Safety functions	Temperature control, overload protection
Compatibility	Qi-compatible devices (smartphones, earphones, etc.)
Usage	Indoors only
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 25°C
Transmission frequency	113 - 148 kHz
Minimum user distance	10 cm (RF exposure)
Care and cleaning	Clean with a damp cloth, do not immerse
Repairability	Not user-repairable (do not open)
Recycling	Follow local regulations (crossed-out wheelie bin symbol)

Frequently Asked Questions - NORDMÄRKE 604.929.38 IKEA

How do I charge my phone with NORDMÄRKE?

Connect the charger using a USB Type-C cable (not included) and a 5V 2A power adapter. Place your Qi-compatible phone on the (+) sign of the charger. If needed, enable wireless charging in your phone's settings.

What does the flashing LED indicator mean?

The LED flashes if there is an error. Check that your phone is correctly positioned and is Qi-compatible. If the problem persists, unplug the charger and plug it back in.

My phone is not charging, what should I do?

Make sure your phone is Qi-compatible and wireless charging is enabled. Place it precisely on the (+) sign of the charger. Also check the cable and adapter. If the battery is completely discharged, wait a few minutes.

Can I use a protective case?

Yes, most thin cases are compatible. Thick or metal cases may interfere with charging. Remove the case if charging does not work.

The charger heats up, is that normal?

Yes, it is normal for the charger and phone to heat up during charging. They will cool down after charging is complete. If the heat is excessive, unplug and check the environment.

Which cable and adapter should I use?

Use a good quality USB Type-C cable and a 5V, 2A (at least 10W) power adapter. The length and quality of the cable affect charging speed.

How long does it take to charge?

The time depends on battery capacity, charge level, battery age, and ambient temperature. Wireless charging is slower than wired charging.

Is it compatible with the iPhone 12?

Yes, the iPhone 12 is compatible with the Qi standard. Place it on the charger and enable wireless charging if needed.

Can I clean it with water?

No, never immerse the charger in water. Wipe it with a damp cloth and unplug it before cleaning.

How to recycle the charger at end of life?

Do not dispose of the charger with household waste. Return it to an electronic waste collection point or your IKEA store, according to local regulations.

USER MANUAL NORDMÄRKE 604.929.38 IKEA

Design and Quality IKEA of Sweden

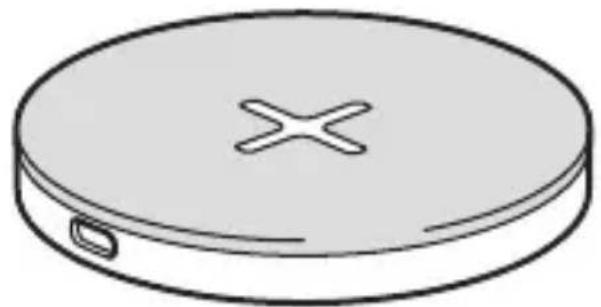

Simple line drawing of a circular object with a cross symbol on top and a small protrusion at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular devices connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Deutsch 10

Français 14

Nederlands 18

Dansk 22

Íslenska 26

Norsk 30

Suomi 34

Svenska 38

Español 42

Português 46

Ελληνικα 50

Türkçe 54

Italiano 62

Charger features

• USB power adapter (5V, 2A) and USB Type-C cable not included.
- Wirelessly charges Qi-compatible devices.
- Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
• LED status indicator.

Instructions for use

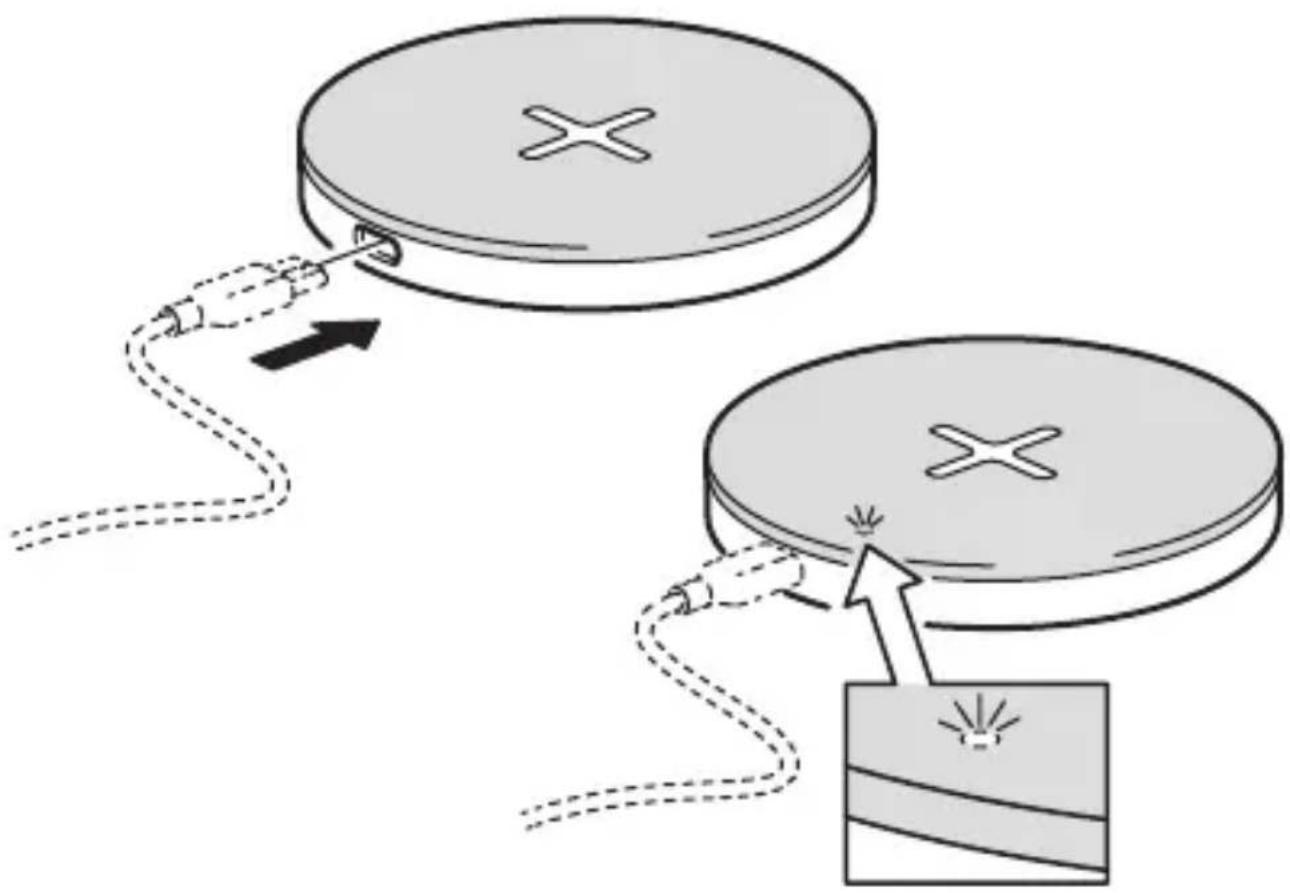

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

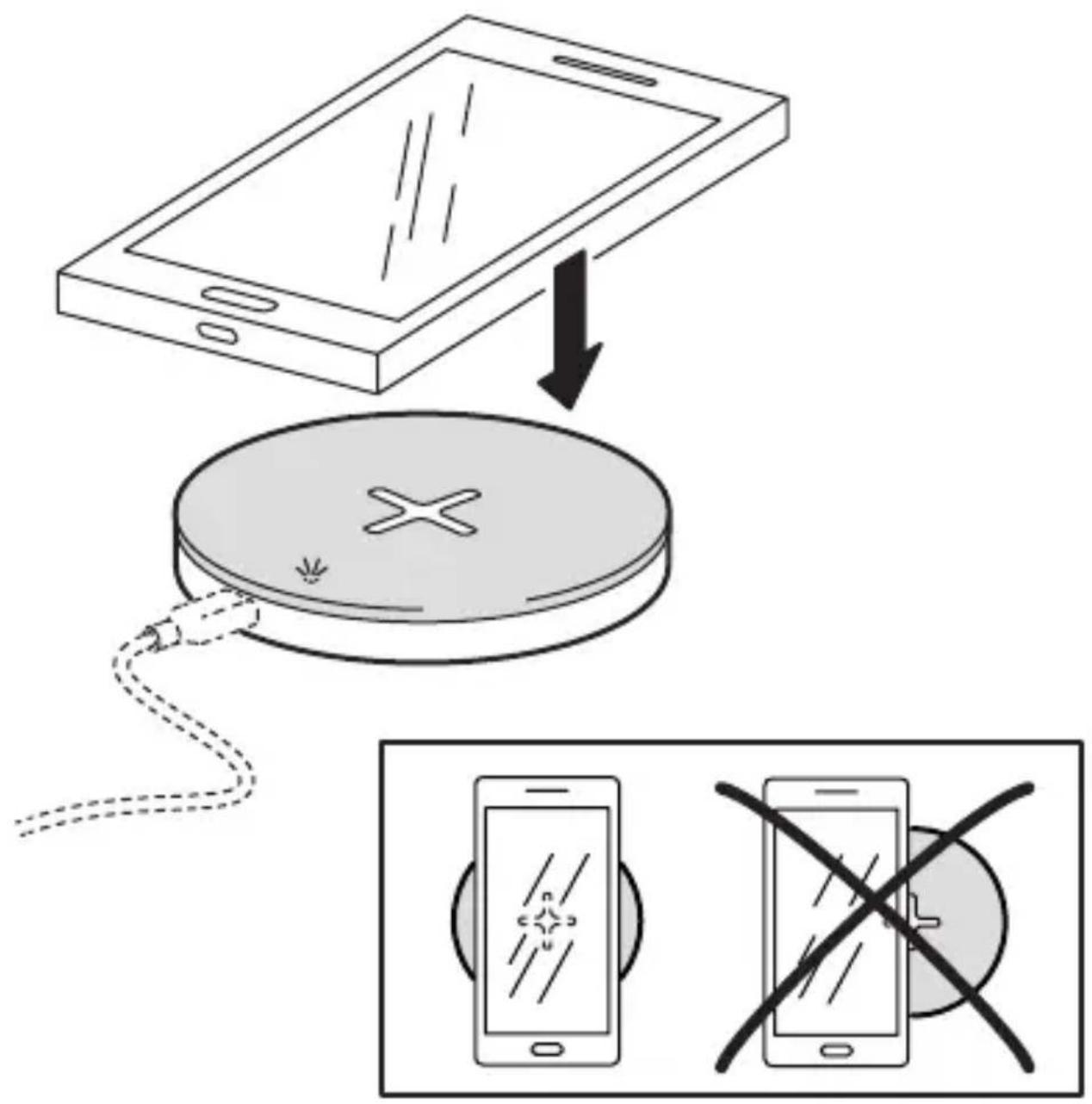

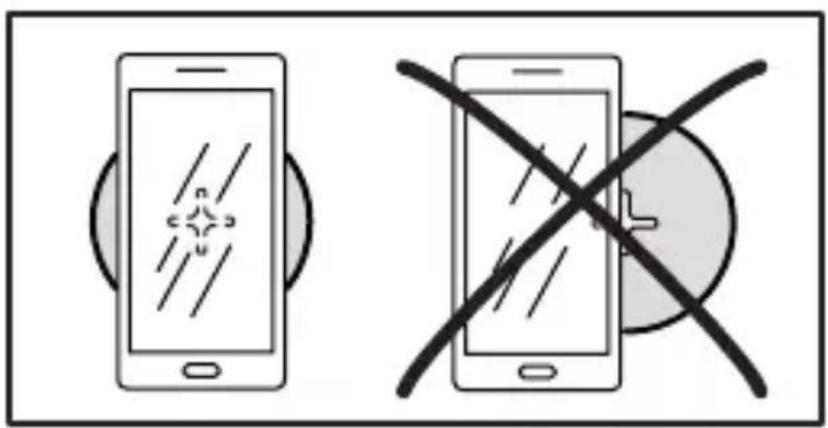

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0^ to 40^ .

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5V DC, 2A USB Type-C

Indoor use only

Operating frequency: 113 - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.

The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Älmhult, SWEDEN

Indicador LED (veja as imagens):

© Inter IKEA Systems B.V. 2020 AA-2241105-2
