Product type	Wireless mobile phone charger
Brand	IKEA
Model	NORDMÄRKE 504.899.98
Power supply	5.0 V DC, 2.0 A (power adapter not included)
Transmission frequency	115 kHz - 148 kHz
Output power	33 dBμA/m at 3 m
Charging technology	Qi (standard 1.2.4 BPP)
Compatibility	Devices compatible with Qi technology
Indicator light	LED: lights up for 3 seconds when powered on, solid while charging, off when fully charged, flashing in case of error
Protection	Temperature and charge control
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 25 °C
Use	Indoor only, dry locations
Maintenance and cleaning	Wipe with a damp cloth; never immerse in water
Safety	Do not repair yourself; do not open the casing; keep away from children; maintain a minimum distance of 10 cm
Spare parts and repairability	Cable not replaceable; if damaged, destroy the device
Recycling	Do not dispose of with household waste; recycle according to local regulations
Approx. dimensions	10 × 10 × 1 cm (estimated)
Approx. weight	100 g (estimated)
Package contents	Wireless charger only (USB cable and adapter not included)

Frequently Asked Questions - NORDMÄRKE 504.899.98 IKEA

How do I charge my phone with the NORDMÄRKE?

Connect the charger using a USB cable and a power adapter (5V, 2A not included). Place your Qi-compatible phone on the (+) sign of the charger. Make sure wireless charging is enabled in your phone's settings.

What does the LED indicator mean?

The LED lights up for 3 seconds when powered on. It stays solid during charging, turns off when charging is complete, and flashes in case of an error.

Can I charge my phone with a case?

Yes, as long as the case is not metallic and does not prevent contact with the charging surface. For optimal charging, place the phone directly on the (+) sign.

Does the charger heat up during use?

It is normal for the device to heat up during charging. It gradually cools down once charging is complete. The charger has temperature control for safety.

Can I use a different power adapter than the recommended one?

Use a 5V, 2A power adapter minimum. A lower power adapter may slow charging or not work properly.

How do I clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never immerse the charger in water.

What should I do if the charger does not work?

Check that the power adapter is plugged in and the USB cable is properly connected. Make sure your phone is Qi-compatible and that wireless charging is enabled. If the light flashes, consult the manual.

Can I repair the charger myself?

No, do not attempt to repair the charger yourself. Opening the casing exposes you to risk of electric shock. If the charger is damaged, it must be destroyed.

Is it compatible with all phones?

The charger is compatible with any device supporting the Qi wireless charging standard. Check your phone's specifications. Some devices require enabling the function in settings.

Can I leave the charger plugged in all the time?

It is recommended to unplug the charger when not in use to save energy and avoid any risk. The charger consumes very little in standby.

USER MANUAL NORDMÄRKE 504.899.98 IKEA

Line drawing of a mobile phone with a plus sign on its screen and a cable attached (no text or symbols)

English 6

Deutsch 9

Français 12

Nederlands 15

Dansk 18

Íslenska 21

Norsk 24

Suomi 27

Svenska 30

Česky 33

Español 36

Italiano 39

Magyar 42

Polski 45

Eesti 48

Latviešu 51

Lietuvių 54

Português 57

Româna 60

Slovensky 63

Български 66

Hrvatski 69

Ελληνικα 72

Русский 75

Українська 78

Srpski 81

Slovenščina 84

Türkçe 87

عربي 90

Charger features

• USB power adapter (5.0V, 2.0A) not included.
• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

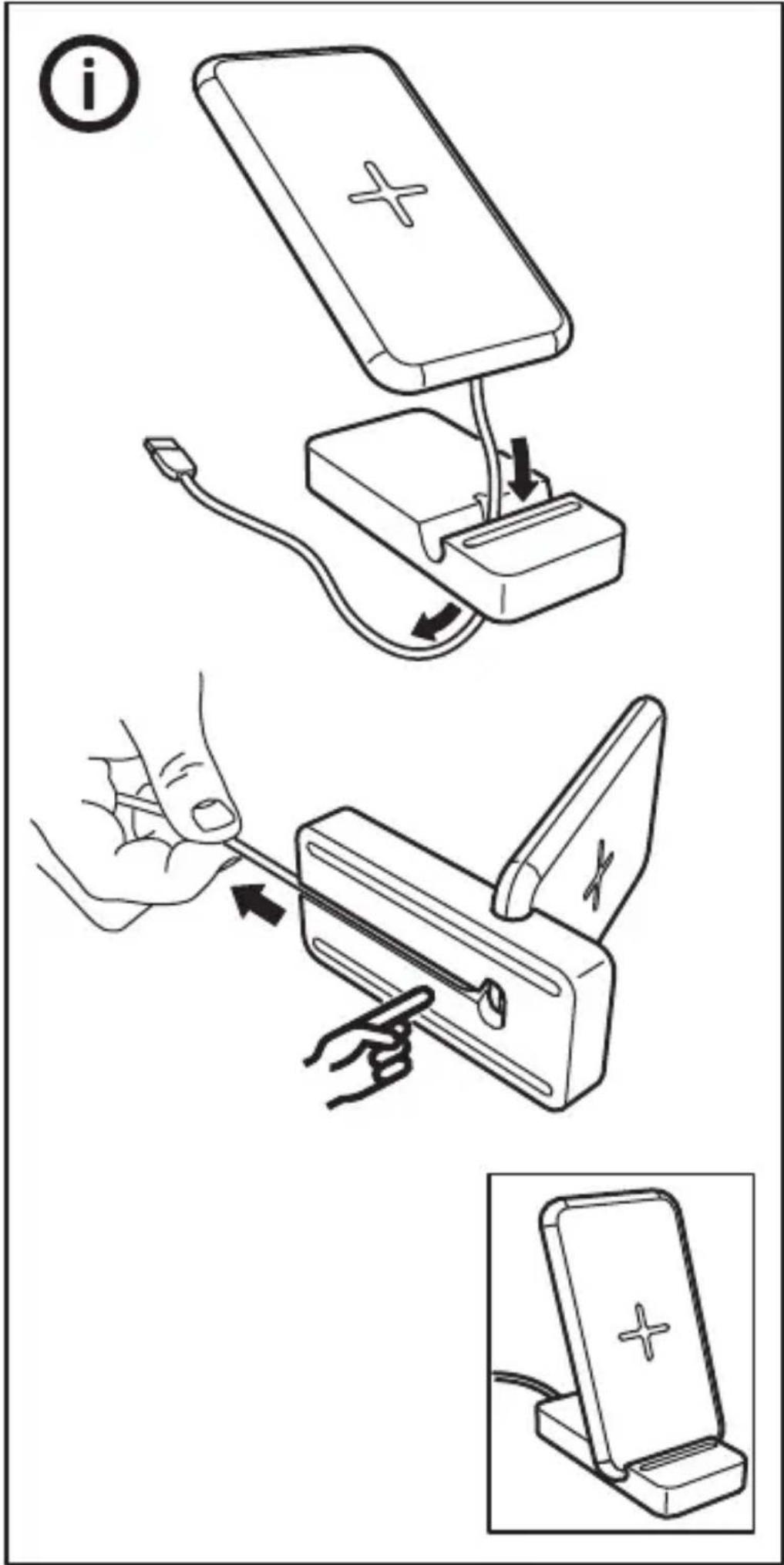

• Connect the USB cable to the power adapter and plug it into the wall socket.

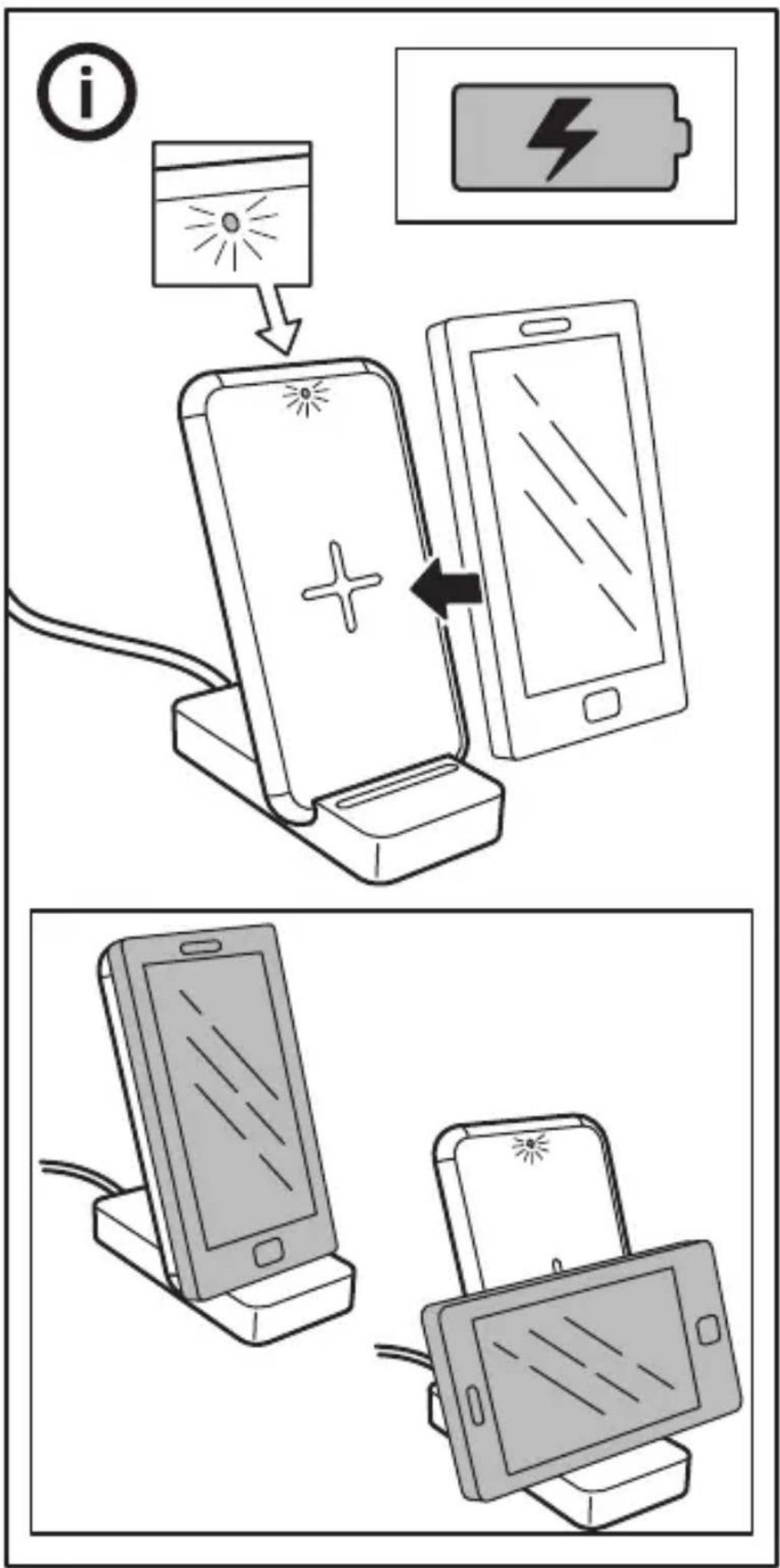

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.

• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0^ to 40^ .
• Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
  • Children should be supervised to ensure they do not play with the product.
• The external flexible cable or cord of this product cannot be replaced; if the cord is damaged, the product shall be destroyed.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2009 NORDMÄRKE

Input: 5.0V DC, 2.0A

Indoor use only

Operating frequency: 115KHZ - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
