DO91334C - Fridge DOMO - Free user manual and instructions

Product type	Fridge-freezer
Dimensions (H x W x D)	115 x 59.5 x 92 cm
Power supply	220-240 V / 50 Hz
Climate class	SN, N, ST, T (10 °C to 43 °C)
Refrigerant	R600a (isobutane)
Refrigerator temperature	2 to 8 °C (adjustable)
Freezer temperature	-16 to -24 °C (adjustable)
Lighting	LED
Freezer defrost	NoFrost (automatic)
Special functions	Super cool, Super freeze, Holiday mode, Child lock, Open door alarm
Control panel	Touch screen
Open door alarm	Yes (after 120 seconds)
Installation type	Freestanding (not built-in)
Adjustable feet	Yes
Refrigerator capacity	Not specified
Freezer capacity	Not specified
Weight	Not specified
Noise level	Not specified
Energy class	Not specified
Warranty	2 years
Customer service	[phone], [e-mail]

Frequently Asked Questions - DO91334C DOMO

How to adjust the refrigerator temperature?

Hold the FRIDGE button until the desired temperature (between 2 and 8 °C) is displayed. Under normal conditions, set to 4 °C.

How to activate super freeze?

Press the functions button until the Super freeze symbol appears. The temperature drops to -24 °C for up to 24 hours. Activate it 24 hours before freezing.

What to do in case of a power failure?

Frozen food remains intact for up to 15 hours if the door stays closed. Do not refreeze fully thawed food. Use dry ice if necessary.

How to defrost the freezer?

This freezer is NoFrost, so it does not normally frost. If a layer of ice appears, unplug the appliance, place a pot of hot water inside, and wipe off condensation. Do not use sharp objects.

How to reverse the door opening direction?

The operation requires a qualified technician. Unplug and empty the appliance. Use a Phillips, flathead screwdriver and a 5/16" socket wrench. Follow the manual steps to move the hinges and connectors. Let it rest for 12 hours before restarting.

What do error codes E1, E2, etc. mean?

E1: defective refrigerator temperature sensor. E2: freezer sensor. E3: fresh drawer sensor. E5: defrost sensor. E6: communication error. E7: ambient sensor. Contact after-sales service.

How to clean the appliance?

Unplug the appliance and remove food. Clean the interior with a soft cloth soaked in warm water and mild detergent. Do not use abrasive products. Wipe the door seal with clear water.

Why does the refrigerator make abnormal noises?

Check that the appliance is level by adjusting the feet. Make sure it is not touching a wall or other object. If the noise persists, contact customer service.

How to use holiday mode?

Hold the FRIDGE button for 3 seconds. The holiday symbol appears. The refrigerator turns off and the freezer goes to -18 °C. Deactivate it by repeating the operation.

What to do if the door does not close properly?

If the gasket is deformed, gently heat it with a hair dryer to soften it. The magnetic strip will reposition after cooling.

USER MANUAL DO91334C DOMO

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

DO91334C

Handleiding Koel-vriescombinatie

Mode d'emploi Combi frigo-congélateur

Gebrauchsanleitung Kühl-Gefrierkombination

Instruction booklet Fridge-Freezer combination

Manual de instrucciones Frigorífico con congelador

Istruzioni per l'uso Frigo-congelatore

Návod k použití Kombinovaná lednice

Návod na použitie Kombinovaná chladnička

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection status.

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Technical line drawing of a refrigerator and its exterior shelf assembly (no text or symbols)

Diagram showing device assembly process with labeled components and directional arrow indicating transformation

Technical line drawing of two mechanical components with mounting holes and a close-up view showing a circular component (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

1. Pas de deur van de koelkast aan.

Diagram showing refrigerator interior and mounting hardware with labeled insert points and a magnified view of the component.

GEBRUIK

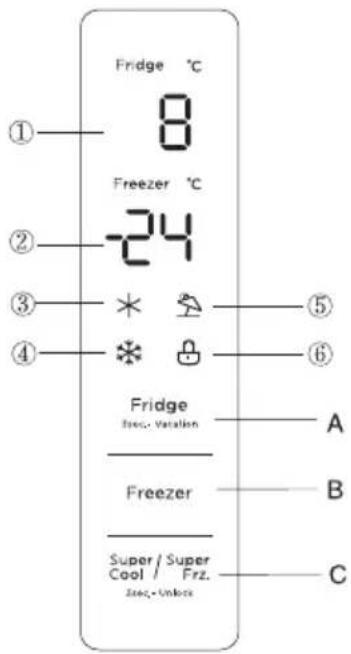

BEDIENINGSPANEEEL

Touchscreen-toetsen

Diagram showing a hand inserting a component into a rack, and a magnified view of the rack with two upward arrows (no text or symbols)

VERLICHTING

APPARAAT VERPLAATSEN

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Technical line drawing of a refrigerator and its exterior shelf assembly (no text or symbols)

Technical diagram showing assembly of a device into two labeled parts, with Chinese annotations indicating component names and assembly steps.

Technical line drawing of two mechanical components with mounting holes and a close-up view showing a circular feature (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Diagram showing a hand holding a shelf and a mechanical device with upward arrows (no text or symbols)

ÉCLAIRAGE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Line drawing of a refrigerator with multiple shelves (no text or symbols)

Technical line drawing of a structural frame or bracket (no text or symbols)

Diagram showing a device assembly process with two views of a rack unit and a close-up view of the internal components (no text or symbols present)

Technical line drawing of two views of a mechanical component with a close-up view showing a circular feature (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Diagram showing refrigerator interior and mounting hardware with labeled insert points and a magnified view of the component.

GEBRAUCH

BEDIENPANEL

Touchscreen-Tasten

ALARM BEI OFFENER TÜR

Diagram showing a hand interacting with a shelf and a mechanical device with upward arrows (no text or symbols)

BELEUCHTUNG

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon (three chasing arrows) inside a rounded square border, no text or labels present.

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g. electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
· In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
  · Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
  · Make sure that children do not touch the cord or appliance.
  · Your appliance uses isobutane (R600a) as a refrigerant.

Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

▲ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
  · Always use the appliance on a steady, dry and level surface.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
  · Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  · This is a heavy appliance. Be careful when moving it.
  · This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
• After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

· Do not use the appliance outdoors.

· Only use the appliance for its intended use.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

- Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.

- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in injury or damage to the appliance.

· Do not use the appliance without a lamp.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Ensure the food in the appliance does not touch the back wall.

- Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

- Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.

· Follow the instructions below to prevent contamination of food:

- Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

- Clean the surfaces that could come into contact with food regularly.

- If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠ CLEANING AND MAINTENANCE

- Never immerse the appliance, the cord or the plug in water or any other liquid.

· Do not place warm or hot objects on top of the appliance.
· Do not clean the appliance with anything made of metal.
- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
- Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

• WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.
  · Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

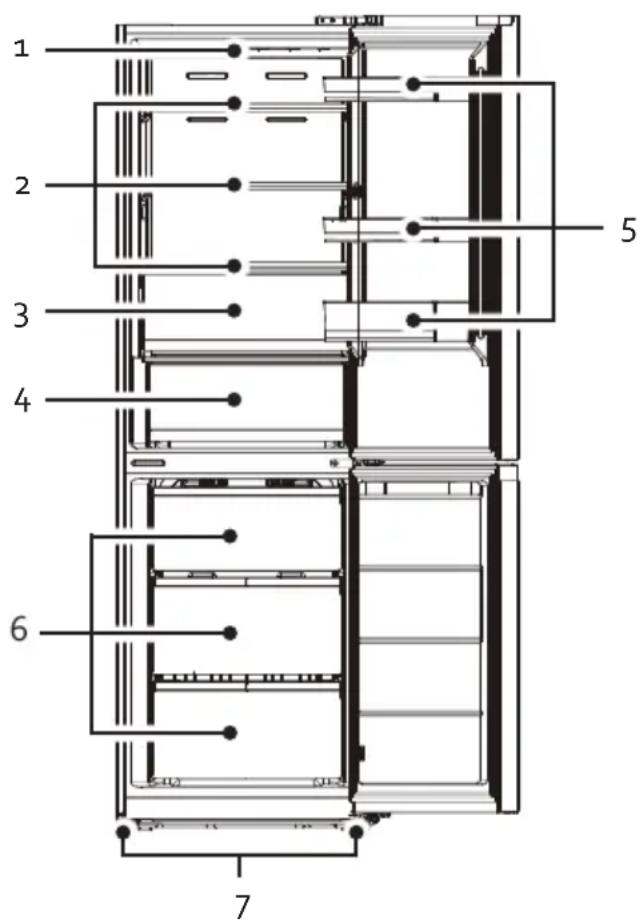

PARTS

1. LED lighting
2. Shelves
3. Vegetable container
4. Extra fresh drawer
5. Door shelves
6. Freezer drawers
7. Levelling feet

1 2 3 4 5 6 7

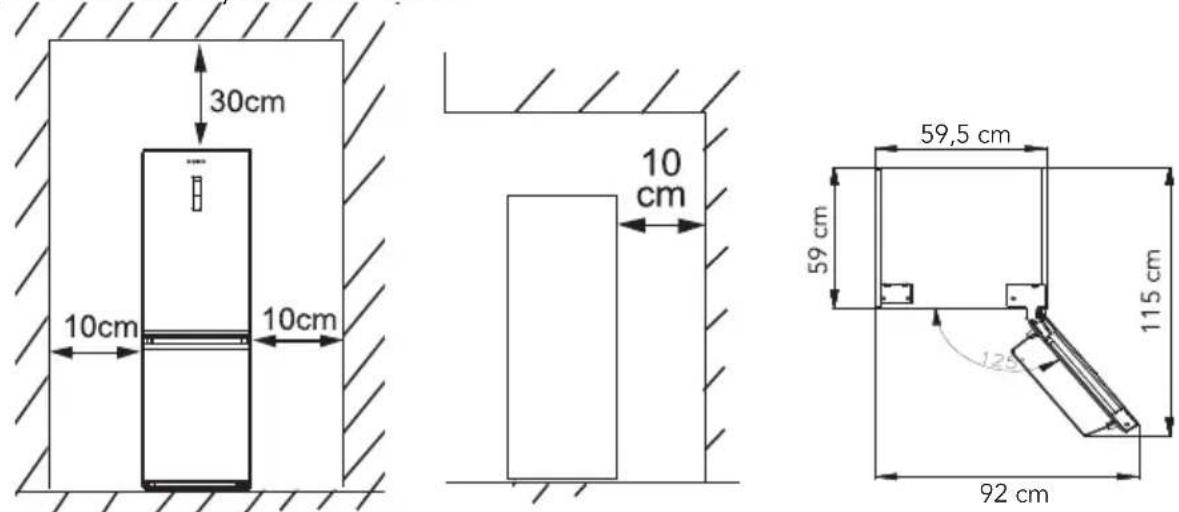

INSTALLATION

- Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

- Let air circulate freely around the cabinet.

• Make sure there is sufficient space to open the door.
  · This cooling unit is not intended for use as a built-in appliance.

• Select a place with a strong, level floor.

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
  · After installation, leave the fridge-freezer for 24 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

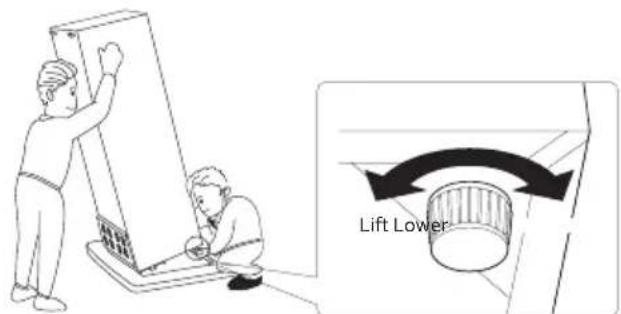

• One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

· SN: Subnormal: ambient temperature between 10°C and 32°C
· N: Normal: ambient temperature between 16°C and 32°C
· ST: Subtropical: ambient temperature between 16°C and 38°C
· T: Tropical: ambient temperature between 16°C and 43°C

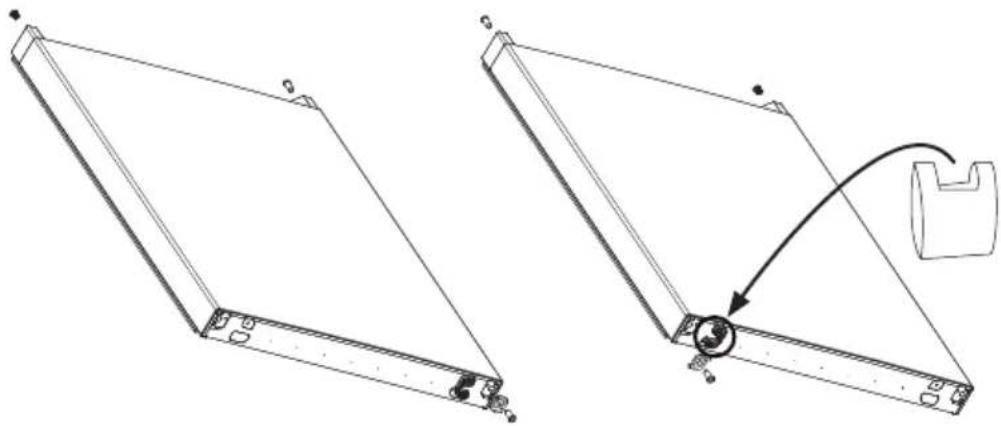

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for 12 hours before switching it on. This allows the coolant to set.

It is recommended to use a crosshead screwdriver, a flathead screw-driver and a socket wrench (5/16" mm) (not supplied).

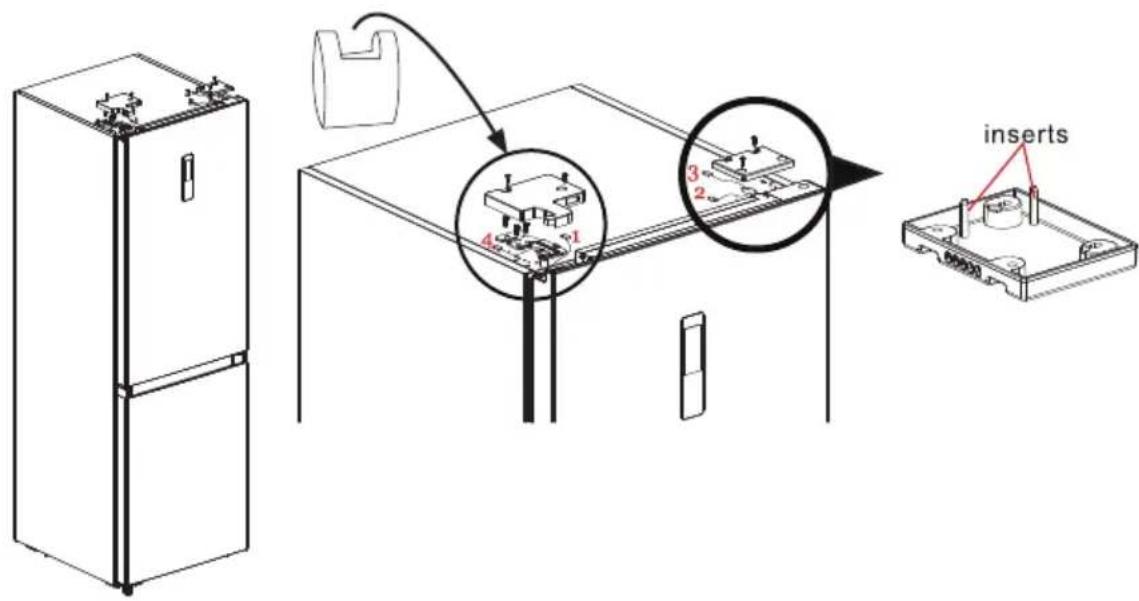

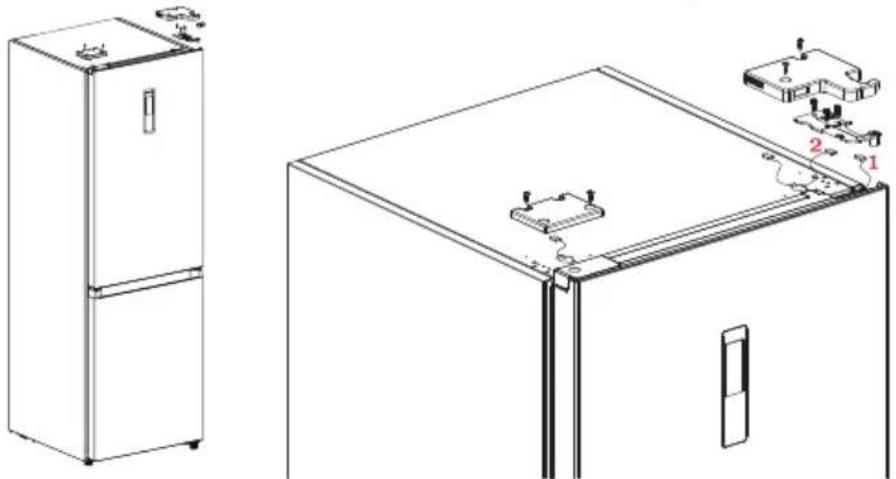

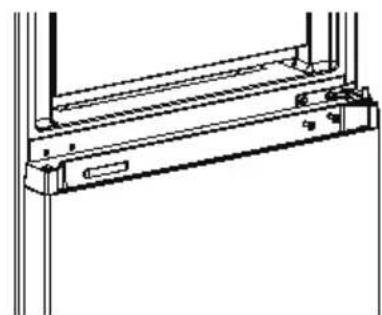

1. Loosen the screws of the left and right hinge cover plates and remove the plates. Disconnect the connector from the cables 1&2. Loosen the screws of the upper hinge and remove the hinge.

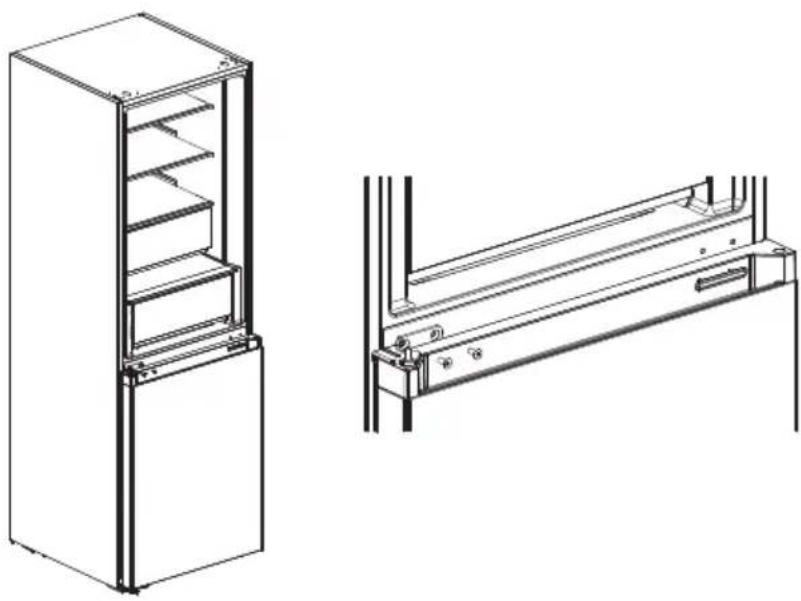

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

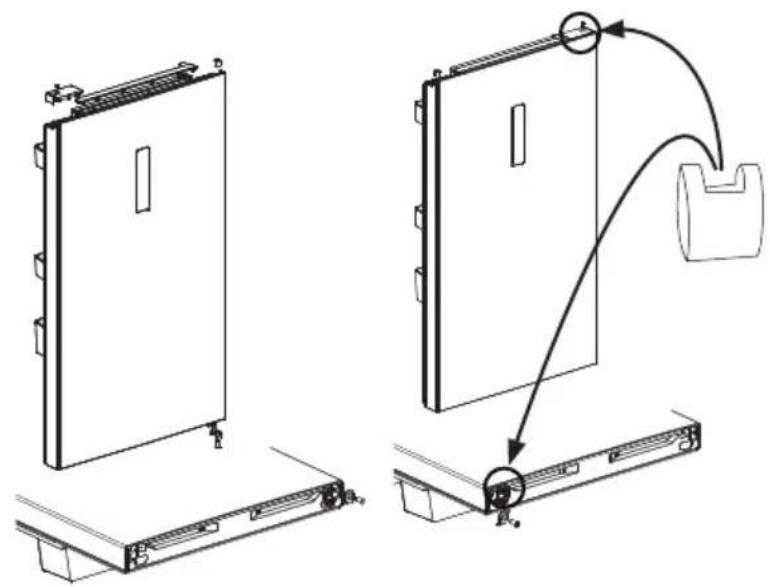

1. Lift the upper door and place it on a padded surface to prevent it from being scratched.

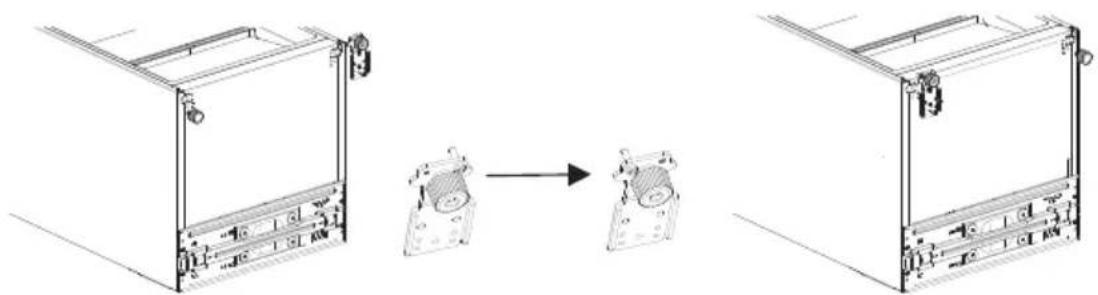

2. Unscrew the bolts of the middle hinge and remove the middle hinge. Remove the lower door and place it on a soft surface to avoid scratching it.

Line drawing of a refrigerator with shelves and top panel (no text or symbols)

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

1. Move the cover caps from one side to the other in the middle of the appliance.
2. Carefully tip the appliance backward. Remove the bottom hinge by unscrewing the screws. Remove the hinge pin from the plate. Remount the pin in the other opening of the hinge plate. Attach the adjusted hinge plate to the left side of the fridge.

Technical diagram showing assembly of a device into two views, with Chinese labels indicating components and directional arrow.

Attention: the inclination of the refrigerator must be less than 45^ so that the compressor oil does not enter the cooling circuit. If you do shut down the unit completely, wait 8 hours before turning it back on.

1. Adjust the door of the freezer.

- Remove the hinge pin holder and cover cap from the top of the door and swap them.

- Remove the hinge pin holder, stop block and door stop from the bottom of the door. You can find the replacement stop block in the packaging. Install this stop block, the hinge pin holder and the door stop on the left.

Technical line drawing of two mechanical components with mounting holes and a central circular component, showing assembly or alignment (no text or symbols)

1. Refit the lower door to the appliance. Attach the middle hinge.

Technical line drawing of a refrigerator with front and side views (no text or symbols)

1. Adjust the fridge door.

2. Remove the finishing panel in the centre and on the left corner of the top of the door. Move the cables and the hinge pin holder from right to left. Remove the replacement finish panel from the packaging and attach it to the top right corner of the door.

3. Remove the hinge pin holder, stop block and door stop from the bottom of the door. You can find the replacement stop block in the packaging. Install this stop block, the hinge pin holder and the door stop on the left.

Technical diagram showing assembly steps of a door panel with labeled components and directional arrows indicating motion.

1. Replace the top door. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides. The packaging contains the replacement hinge cover plate and hinge for the left side. Use this hinge to attach the door and screw it tight. Connect the electrical connector of the cables (4 & 1). Connect the cables (2 & 3) on the right side.

Attach the hinge cover plate. Note: when installing the cover plate on the right side, you must remove the 2 inserts.

Diagram showing refrigerator interior and internal components with labeled parts, including insert instructions

USE

CONTROL PANEL

Touch screen buttons

A. Button temperature of fridge
B. Button temperature of freezer
C. Button functions: super-cooling/super-freezing/child safety lock

Display

1. Temperature of fridge
2. Temperature of freezer
3. Super-cooling
4. Super-freezing
5. Holiday mode
6. Child safety lock

The childproof lock switches on automatically if no button is pressed for 30 seconds. The control panel goes into sleep mode automatically. The display lights up when a button is touched and when the doors are opened.

Fridge °C 8 Freezer °C -24 ① ② ③ ④ * # Fridge Item: Variation A Freezer B Super / Super Cool / Frz. Item: Unlock C

TEMPERATURE CONTROLS

Fridge

The temperature of the fridge can be set between 2 and 8°C. Under normal conditions, it is best to select 4°C. Press the "FRIDGE" button (temperature fridge) and continue to press until the desired temperature is displayed.

Freezer

The freezer can be set between -16 and -24^ . Under normal conditions, it is best to select -18^ . Press the "FREEZER" button (temperature freezer) and continue to press until the desired temperature is displayed.

- The operating time and temperature is influenced by the location of the fridge, the number of times the door is opened and the temperature of the room the fridge is in.

HOLIDAY MODE

• You can turn this function on and off by pressing the 'FRIDGE' button for 3 seconds. You can see the symbol on the display.
• The fridge is then switched off. The display will also not show the fridge temperature. The temperature of the freezer is automatically set to -18^ .
• When you disable this feature, the previously set temperatures will be maintained again.

FUNCTIONS

Supercooling\*

- Select this function if the standard temperature does not cool sufficiently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, etc. Or if you want to cool food quickly.

• By selecting this function, the temperature of the refrigerator is reduced to 2°C for 6 hours.
• This function is switched off automatically after the time has elapsed. The previously set temperature will once again be maintained.
• This function can be turned on and off with the button functions. The order of setting when pressing this button is: super cooling – super freezing – switch off super features. The symbol will be displayed.

Super-freezing\*

• Select this function if the standard temperature does not cool sufficiently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, if a large quantity of uncooled/unfrozen food is placed in the appliance, etc.
• By selecting this function, the freezer temperature is lowered to -24^ for a maximum of 24 hours. It is recommended that this function be selected 24 hours prior to the freezing.
• This function is switched off automatically after the time has elapsed. The previously set temperature will once again be maintained.
  This function can be turned on and off with the button functions. The order of setting when pressing this button is: super cooling – super freezing – switch off super features. The symbol will be displayed.

Child safety lock 🔒

The child safety lock automatically blocks the buttons for safety. Press the features button for 3 seconds to lock/unlock the panel. You will hear a signal and the symbol is then shown on the display.

OPEN DOOR ALARM

If one of the doors remains open for 120 seconds, you will hear a signal. This alarm is a warning so that you do not accidentally leave the door open and spoil your food. The alarm stops as soon as the door is closed again.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc. · Do not store food with a limited shelf life here
Crisper drawer · Fruits, herbs, and vegetables · Do not refrigerate bananas, onions, potatoes, or garlic
Bottom shelf Raw meat, poultry, fish
Middle shelf Dairy and eggs
Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.
Extra fresh drawer Meat and fish
Freezer compartment Type of food
Top drawer Ice cream, frozen fruit,	frozen baked goods
Middle drawer Frozen vegetables and fries
Bottom drawer Raw meat, poultry,	fish

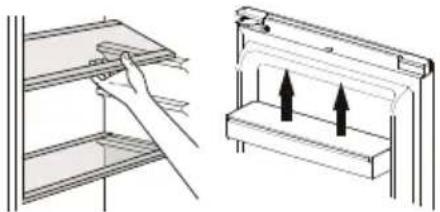

MOVING THE SHELVES AND DOOR RACK

· Empty the fridge before moving the shelves or the door racks.
· To move a shelf, raise it and pull it towards you.
- To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

Diagram showing a hand holding a shelf and a device with upward arrows (no text or symbols)

LIGHTING

The lighting in the freezer and the fridge are LED lights. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.

- Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods. Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
  · Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  · Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

· To store deep-frozen food.
· To make ice cubes.
· To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

· Packaging must not be damaged.

• Use by the 'use by/best before/best by/' date.
  • If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
  · Once defrosted, food should be consumed quickly.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
• Leave door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.
• Frozen food should not be affected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the cabinet.
• Don't overload the cabinet.
• Don't open the door unless necessary.

- Caution: please keep the product away from fire or similar glowing substances before you dispose of the refrigerator.

• Caution: Not for outer camping use (e.g. in a tent).
• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
  · Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Disconnect the mains plug from the mains socket.
  · Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
  · After cleaning, put the plug in the socket and set the desired temperature.
• Put the food back into the appliance.

DEFROSTING THE FREEZER

The freezer is frost-free – NoFrost. If used correctly, there will be no ice formation. If an ice layer does form, defrost the freezer compartment.

1. Remove the frozen food and place temporarily in a cool location.
2. Disconnect the appliance from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Does not work

• Check connection of power cord to power source.
• Plug in unit.
• Use proper voltage.

Cools too frequently

· The temperature setting is too cool.
- Close door securely.
- Be sure that food is cool before inserting.
- Do not keep door open for too long and minimize door openings.
- Use proper voltage.
- Do not place unit close to heat sources or direct sunlight.

Internal temperature not cold enough

• Check connection of power cord to power source.
• Plug in unit.
• Check setting and adjust as needed.
• Close door securely.
• Be sure that food is cool before inserting.
• Do not keep door open for too long and minimize door openings.
• Allow room for air to circulate around unit.
• Use proper voltage.
• Do not place unit close to heat sources or direct sunlight.

Unusual sounds

• The appliance is not level. Readjust the adjusting feet and level the unit.
  · The unit is touching a wall or another object. Gently move the appliance.

The door does not close properly

- The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

An error message is shown on the display.

· E1: The fridge temperature sensor is not working.
· E2: The temperature sensor of the freezer is not working.
· E3: The temperature sensor of the fresh food drawer is not working.
· E5: The freezer defrosting sensor is not working.
· E6: Communication error.
· E7: The ambient temperature sensor is broken.

If you see any of these error messages, please contact our after-sales service.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection actions.

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Technical line drawings of a refrigerator and its exterior shelf assembly (no text or symbols)

Technical diagram showing assembly of a device into two views, with labeled components and directional arrow indicating process flow.

Technical line drawing of two mechanical components with mounting holes and a close-up view showing a circular feature (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Technical diagram showing assembly steps of a door panel with labeled components and directional arrows indicating motion.

Diagram illustrating refrigerator interior and mounting hardware, showing labeled parts and insertion instructions

USO

PANEL DE CONTROL

Diagram showing a hand interacting with a shelf and a mechanical component with upward arrows (no text or symbols)

ILUMINACIÓN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or cancellation.

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Line drawing of a refrigerator with shelves and top panel (no text or symbols)

Technical line drawing of a metal bracket assembly (no text or symbols)

Diagram showing a device assembly process with two views of a rack unit, one before and one after (no text or symbols present)

Technical line drawing of two mechanical components with a circular component inserted, showing assembly and mounting details (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Technical diagram showing two views of a door frame assembly with an arrow indicating motion and label 'P' pointing to a component.

Illustration showing a hand holding a shelf and a close-up of a mechanical component with upward arrows (no text or symbols)

ILLUMINAZIONE

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two identical diagrams showing a checkmark and a cross symbol, likely indicating approval or rejection status.

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Technical line drawing of a refrigerator and its exterior shelf assembly (no text or symbols)

Diagram showing a device assembly process with two views of a server rack (no text or symbols present)

Technical line drawing of two mechanical components with mounting holes and a close-up view showing a circular component (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Technical diagram showing assembly steps of a door panel with labeled components and directional arrows indicating motion.

Diagram showing a hand interacting with a shelf and a mechanical device with upward arrows (no text or symbols)

OSVĚTLENÍ

MANIPULSCE S PŘÍSTROJEM

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with a trash bin crossed out and a blank rectangular base

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmark and cross symbols, likely indicating approval or rejection status

Line drawing of a refrigerator and its exterior view showing internal components (no text or symbols)

Technical line drawing of a refrigerator and its exterior shelf assembly (no text or symbols)

Diagram showing a device being processed into a rack-mounted unit, with no visible text or symbols.

Technical line drawing of two mechanical components with mounting holes and a close-up view showing a circular component (no text or symbols)

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Technical diagram showing assembly steps of a door panel with labeled components and directional arrows indicating motion.

1. Nasadte horné dvere chladničky. Zaistite, aby dvere lícovali a správne dol'ahli po celom svojom obvode. Tesnenie musí správne izolovať. V balení nájdete náhradnú krytku pántu a pánt pre l'avú stranu. Pripevnite dvere týmto pántom a priskrutkujte ich. Pripojte elektrický konektor káblov (4 a 1). Pripojte káble (2 a 3) na pravej strane.

Diagram showing a refrigerator with labeled parts and an insertion of a device, illustrating the assembly process.

POUŽITIE

Dotykové tlačidlá:

Diagram showing a hand interacting with a shelf and a mechanical device with upward arrows (no text or symbols)

OSVETLENIE

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
