USER MANUAL AF-130285.1 Emerio

Black electric air fryer with digital display and open lid, showing fried food inside (no visible text or symbols)

Abstract black spiral logo design on white background (no text or symbols)

Smart Fryer

(EN)

(DE)

(FR)

(IT)

CE

Content – Inhalt – Teneur – Contenuto

Instruction manual – English ...... - 2 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens, offices, farms or other working environments, nor is it intended to be used by clients in hotels or other similar environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. Please prevent the product to be exposed to excessive dirt and humidity.

24. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).

25. Do not place the appliance against a wall or against another appliance. Leave at least 10cm free space on the back and sides and above the appliance. Do not place anything on top of the appliance.

26. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the basket from the appliance.

27. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the basket from the appliance.
28. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.
3. Always remove baking paper from the basket after use and before/ during preheating without food.
4. Before each use, ensure that the heating element and housing are clean and free of food debris to ensure that the appliance functions optimally.
5. Ensure that food prepared in this appliance is golden yellow and not dark or brown. Remove burnt remains. Do not fry fresh potatoes at temperatures higher than 180^ C (to minimise the formation of acrylamide).
6. Be careful when cleaning the upper part of the cooking space: the heating element is hot and the edges of metal parts are sharp.

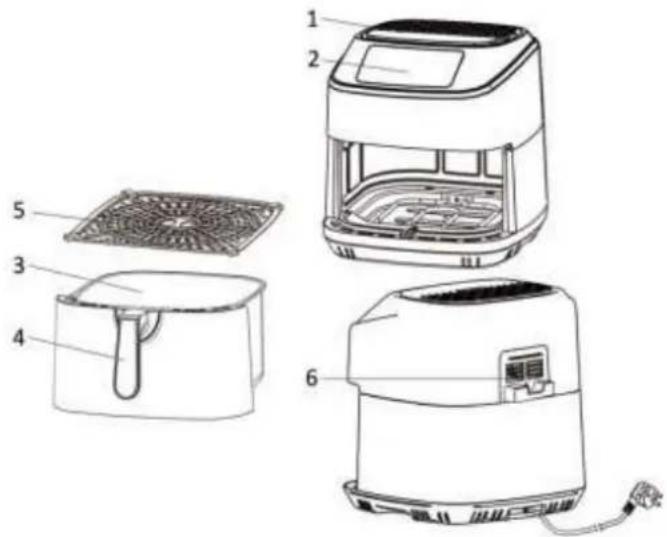

PARTS DESCRIPTION

Exploded diagram of a food air fryer with labeled parts including air filter, fan, and oven

1. Air inlet
2. Control panel and display
3. Basket
4. Basket handle
5. Frying grill
6. Air outlet

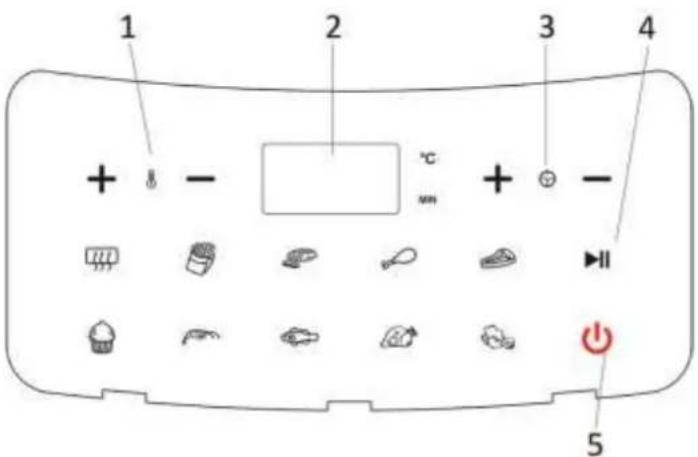

Control penal and display

1. Temperature control (Press "+" or "-" to adjust the temperature from 50°C to 200°C)
2. Timer and temperature display
3. Timer control (Press "+" or "-" to adjust the time from 1 to 60 minutes)
4. Pause / start button
5. Standby / cancel button

1 2 3 4 + - + - °C - + - 5

Menu buttons

Menu		Default time (min)	Default temperature (°C)
	Pre-heat	3	180
	French fries	18	200
	Meat	12	200
	Drumsticks	20	200
	Steak	12	180
	Cake	25	160
	Shrimp	8	180
	Fish	10	180
	Chicken	30	200
	Vegetable	10	160

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See “cleaning and maintenance”) Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.

4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket into the appliance. Make sure they are placed correctly and closed completely.
   Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet. The machine is now standby. Press the Standby / cancel button "💡

6. Press the temperature control buttons “+” or “-” to set the desired temperature (50°C - 200°C). Press the timer control buttons “+” or “-” to set the desired time (1 - 60 minutes), and long pressing will make the time value change for 10 minutes by each press. When the display flashes on the screen, the value can be adjusted; when the display becomes still, the value is settled.

7. You can also press the menu button to directly choose the cooking functions. If you wish to adjust the time and temperature manually, follow the step 6 above.

8. Press the pause/start button; the appliance will start working. During operation, five red lights flash one by one on the control panel.

9. When the cooking process is finished, the appliance will stop working with beep sound. The display will show "00". The inner fan may continue to work for some time to cool the machine. You can also manually turn off the appliance by pressing the button "💡

During operation, you can press the pause/start button to pause the program, and press it again to continue the program.

1. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance. Select the menu to set the temperature and the timer to a few extra minutes. Then press the pause/start button to run the appliance again. NOTE: You can also pull out the basket to check and shake the ingredients during cooking process.

2. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one.

To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the basket.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The optimal amount for crispy fries is 750-1000 grams.
2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.
3. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.
4. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.
5. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.
6. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.

2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.

3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

FRYING TABLE

If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed. Add 3 minutes to the preparation time before you start frying if the appliance is cold.

Food	Time (mins)	Temp (°C)	Notes
Thin frozen chips	12-16	200
Thick frozen chips	12-20	200
Home-made potato chips	18-25	180	Add 1/2 tbsp of oil
Beefsteak	8-12	180
Chicken chops	6-10	200
Hamburger	7-14	180
Sausage rolls	12-15	200
Chicken drumstick	18-22	180
Chicken breast	10-15	180
Spring roll	8-10	200
Vegetable	10	160

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pulling out the basket) with a cleaning brush to remove any food residues.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not pressed the pause / start button to turn on the machine.	Press the button to turn on the appliance.
The ingredients are not baked completely.	The amount of the food in the basket is too high.	Put smaller batches of ingredients in the basket. Smaller batches are baked more evenly.
	The temperature is too low or the time is not enough.	Adjust the temperature to the required temperature or cook for extra time.
Baked snacks are not crispy.	You used a type of snacks which shall be cooked in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	Pay attention that the temperature is well-controlled to be under 180°C, when you fry greasy ingredients in the air fryer.
	The basket still contains grease residues from previous use.	Clean the basket properly after each use.
Fresh fries are baked unevenly.	You have used stale potatoes.	Use fresh potatoes and make sure that they stay firm during frying.
	Haven’t rinsed the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy	The crispness of the fries depends on the amount of oil and water in the fries	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 1800-2150W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.
