USER MANUAL RTT89NE FRIGELUX

MANUEL D'INSTRUCTIONS USE INSTRUCTIONS

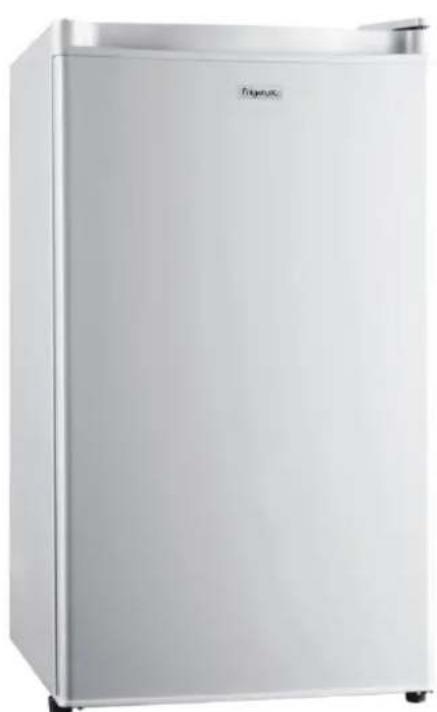

Exterior view of a modern white refrigerator with no visible text or symbols on the cabinet surface.

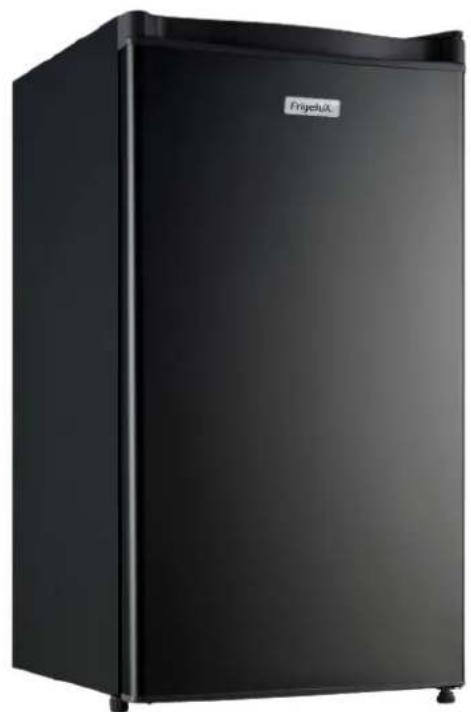

Black refrigerator with 'Frigella' branding on top (no other text or symbols visible)

RÉFRIGÉRATEUR TABLE TOP TABLE TOP FRIDGE

RTT89NE - RTT89BE

FR - MANUEL D'UTILISATION

p. 2

GB - USE INSTRUCTIONS

p. 17

Length Shorten

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

5. CONSERVATION DES ALIMENTS

Before placing your new refrigerator into operation, please read these operating instructions carefully. They contain important information for safe use, for installation and for maintenance of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Notes: which are important for your safety or for the proper functioning of the appliance, are stressed with a warning triangle and or with signal words (Warning! Caution! Important!). Please observe the following carefully.

1. GENERAL SAFETY INSTRUCTIONS

For your own safety and for the proper utilization of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

• This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
• Keep all packaging away from children as there is risk of suffocation.
• Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door's seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Keep the appliance and its power cable out of reach of children less than 8 years old.
• Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.
  • Children from 3 to 8 are allowed to load and unload the appliance.

General safety

CAUTION — This appliance is intended to be used in household and similar applications, such as kitchen staff in shop; offices and other working environments; bed and breakfast; farm houses and clients in hotels, motels and other residential environments; catering and other similar non-retail applications.

CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.

CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.

CAUTION — Keep the ventilation openings well open and ensure that air can circulate by keeping enough space between the appliance and walls. CAUTION — Do not damage the refrigerating circuit.

CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.

CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to fire.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a natural gas respectful of the environment but highly inflammable. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: Fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of heat.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

- We cannot be held responsible for any incident caused by poor electrical installation. The power cord must not be lengthened.

- Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

- Make sure that you can access the main plug of the appliance.

- Do not pull the main cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the interior lighting lamp cover.

- The appliance is only applied with power supply of single-phase alternating current of 220\~240V/50Hz. The device uses a wall socket earthed according to current recommendations.

- If the power cable is damaged, do not proceed with his replacement but contact your after-sales service.

- The socket must be readily accessible but out of reach of children. If unsure, contact your installer.

- When positioning the appliance, ensure that the cord is not trapped or damaged.

Daily use

- WARNING - Refrigerating appliance without 4 stars compartment are not suitable for freezing foodstuffs.

- Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.

- Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).

- Never place bottles or jars containing liquids in the refrigerator unless they are filled at 2/3 of their capacity, freezing expands liquids and the container may explode.

- When unplugging always pull the plug from the mains socket. do not pull on the cable.

- Do not place the appliance in direct sunlight.

- Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.

- This refrigerating appliance is not intended to be used as a built-in appliance.

- The appliance is intended for keeping food stuff.

- The appliance is heavy. Care should be taken when moving it.

- If your machine has wheels, remember that they are only used to facilitate small movements. Do not move it on longer journeys.

- Never use the base, drawers, doors etc. to stand on or as supports.

- To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning

- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

- Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

- For electrical connection, carefully, follow the instructions given in this manual.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.

- It is advisable to wait at least 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

- Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.

- The appliance must not be located close to radiators or cookers.

- Make sure that the mains plug is accessible after the installation of the appliance.

ENERGY SAVINGS

• To reduce the power consumption of your device:
  • Install it in a suitable location (see "Installing your appliance").
• Keep the doors open for as short time as possible.
• Do not put hot food into your device.
• Ensure the optimal functioning of your device by periodically cleaning the condenser (see "Routine maintenance of your appliance").
• Ensure the optimal functioning of your device by not allowing too much frost accumulate in the refrigerator (defrost it when the frost thickness exceeds 5-6 mm).
• Periodically check the door seals and make sure they always close effectively. If this is not the case, please contact your after-sales service.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are available for after sales service network and end users for a maximum period of 7 or 10 years (List on Annex II, point 3.a.1 et 3.a.2) from the date of end of commercialization on the market of the last unit. The list of spare parts and the procedure for ordering them (professional access / end user access) are available on the following website: www.interfroidservices.fr or by post at the following address: Interfroid Services, 123 Route du Chêne - 72230 ARNAGE.

For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 7 years.

The manufacturer's warranty is 1 year for functional parts.

Warning sign depicting a flame symbol in yellow and black on a white background

R600a Safety regulation

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Do not damage the refrigerant circuit.

Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g. unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate.

Warning: Do not use electrical appliances inside the compartments of the appliance, unless they are of th type recommended by the manufacturer.

The appliance meets the requirements of all European Directives and their modifications.

FR + + + +

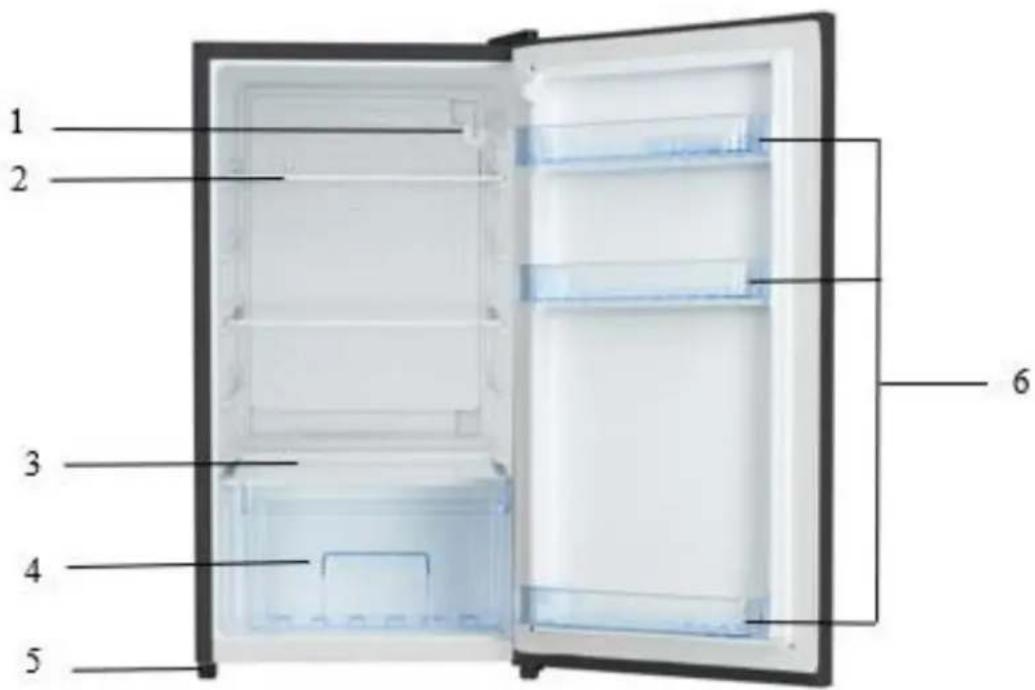

2. PRODUCT DESCRIPTION

1 2 3 4 5 6

1	Thermostat
2	Shelves
3	Crisper drawer
4	Crisper
5	Adjustable foot
6	Door balconies

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance.

You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

3. INSTALLATION INSTRUCTIONS

Location

When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device:

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

- N: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

- ST: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

Avoid location near a heat source, eg, cooker, boiler or radiator. Also, avoid direct sunlight in out-buildings or terraces/outside seating areas. If you are placing your appliance in an out-building such as a garage or annex ensure that it is placed above the damp course, otherwise condensation will occur on the cabinet. Never place the appliance in a wall recessed or into fitted cabinets or furniture when it is working, the metal grid at the back may become hot and the sides warm. This refrigeration appliance is not intended for use as a built-in appliance. Therefore, it must be installed leaving at least 10 cm of free space at the back and 10 cm on the sides.

This refrigerating appliance is not intended to be used as a built-in appliance

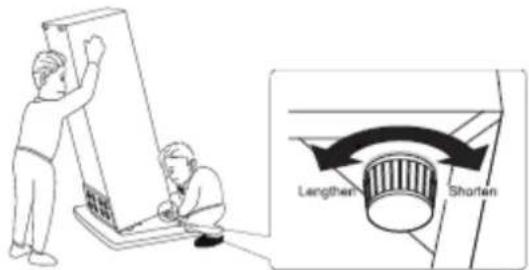

Leveling the appliance

If your appliance is not leveled, the door and magnetic seal alignment will be affected and may cause a malfunction. Once the appliance is placed in its final location, adjust the leveling feet at the front by turning them.

Length Shorten

Cleaning before use

Wipe the inside of the appliance with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing them.

Before plugging in

Check that you have a socket which is compatible with the plug supplied with the appliance. If not, see the section titled ELECTRICAL SAFETY. ONLY TURN ON FOUR HOURS AFTER MOVING THE REFRIGERATOR.

The coolant needs time to settle. If the unit turns off at any time, wait 30 minutes before plugging it back in to allow the cooling fluid to return to its place properly.

Before filling your appliance

Before storing foods in your appliance, turn it on and wait for 24 hours, to make sure it is working properly and to allow it to reach the correct temperature.

Caution! Refrigerating appliance without 4 stars compartment are not suitable for freezing foodstuffs.

4. USE INSTRUCTIONS

Temperature setting :

3 2 4 L 5 0

Your appliance has one control for regulating the temperature. The temperature control is located at the top of the device.

The first time you put your appliance into operation, set the thermostat on 4 and let it run empty for 4 hours before storing food for it to cool sufficiently.

The range of the temperature control is from position "1" the warmest to "7" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting between "4" should be appropriate for home or office refrigerator use. To turn the appliance off, turn the temperature control to "0".

• Settings 1 - 3: Refrigerator average temperature is +6°C\~+8°C.
• Setting 4 - 5: Refrigerator average temperature is +4°C\~+6°C.
• Setting 6 - 7: Refrigerator average temperature is +2°C\~+4°C.

NOTE :

• Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the appliance.
• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before
• Restarting the unit. If you attempt to restart before this time delay, the appliance will not start.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

Do not leave the door open for too long so that the indoor temperature does not rise too much.

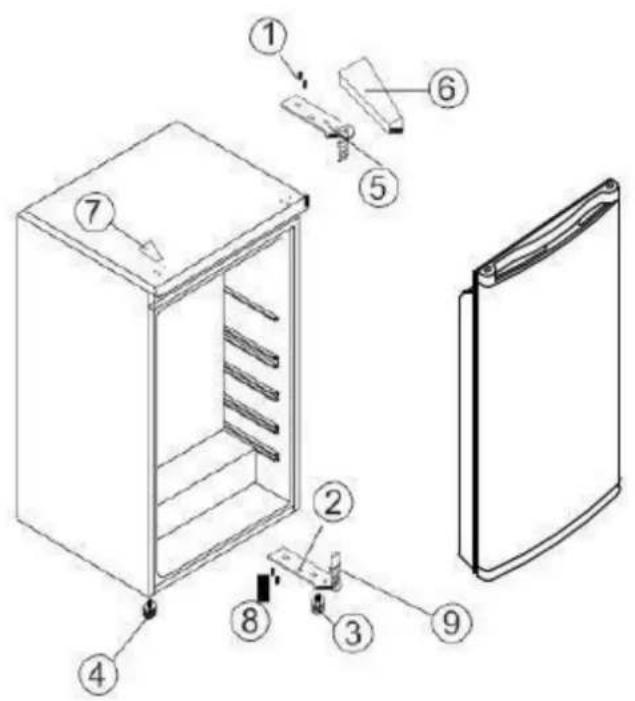

Reversing the door

Tools needed: Phillips screwdriver, Flat screwdriver, adjustable wrench.

Make sure the appliance is unplugged and empty of its accessories.

To remove the door it is necessary to tilt the appliance backwards. Have someone help you hold the device in position or you need to lean the device on something solid so that it does not fall.

Warning: Do not lay the appliance flat so as not to damage the refrigerant circuit.

All parts removed during the reversal operation should be kept. They will all be reused.

1) Remove the screws (6) securing the top cover (7) and remove it.
2) Remove the two screws (1) securing the right upper hinge (5) to the structure and remove.
3) Lift the door and place it on a padded surface to prevent scratching.
4) Remove the two screws (8) securing the lower hinge (2) and remove.

5) Remove the front foot (4) and pass to the right side.

6) Before inserting the lower hinge (2) remove the plug (9) and reverse the direction of the lower hinge. Then install the lower hinge (2) on the left side of the lower structure with two screws (8).

7) Fit the plug (9) in the lower hinge (2).

8) Place the door in the correct position ensuring that this is supported on the lower hinge (2).

9) Keeping the door in the closed position secure the upper hinge (5) on the left side of the upper structure with two screws (1). Remember not to tighten the screws (1) until the top of the door is level with respect to the upper structure.

10) Install the top cover in the part above the apparatus using the screws (6).

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

5. FOOD CONSERVATION

PREPARING FOOD FOR THE REFRIGERATOR

Carefully wrap fresh foods: they will then keep their flavor, color, humidity content and freshness. You also avoid the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed. Let hot dishes and drinks cool down outside the appliance. Remove the

cardboard packs from around yoghurt pots. Check the consume-by dates on the products you have bought. You should not exceed these.

ARRANGING FOOD IN YOUR REFRIGERATOR

The temperature inside your refrigerator is not uniform. Some areas are colder than others and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.

Leave a space between the food items to allow the air to circulate freely and avoid different products contaminating each other.

Do not put packages and food in contact with the wall at the back of the appliance, this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation.

The coldest area, at the bottom of the fridge, is designed for delicate, sensitive and highly perishable food: meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready-to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4°C or below.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.

Under recommended setting, the best storage time of fridge is no more than 3 days The best storage time may reduce other settings.

		Storage conditions
Compartment	Type of compartment	T°C mini	T°C maxi	T°C consigne
Compartment for non-frozen food	Compartment for fresh food	0	8	4
Compartment for highly perishable food	Compartment for highly perishable food	-3	3	2
	No star and ice making	s.o.	0	0
Compartment for frozen food	1 star	s.o.	-6	-6
	2 stars	s.o.	-12	-12
	3 stars	s.o.	-18	-18
	4 stars	s.o.	-18	-18

Food preservation. For optimal conservation of foodstuffs, it is recommended to adjust the temperatures of the compartments as below:

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge	+2≤+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer **	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill	2≤+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food	0≤+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine	+5≤+20	red wine,white wine,sparkling wine etc.

6. CLEANING YOUR APPLIANCE

The storage of foodstuffs must comply with the regulatory conservation temperatures established by the National Agency for Food, Environmental and Occupational Health Safety (ANSES). Failure to comply with these storage temperatures involves risks of poisoning and food waste.

Defrosting

Defrosting of your refrigerator appliance is fully automatic. The defrosting water flows into a collection tray located at the rear of the appliance.

Cleaning the inside

After defrosting you should clean the appliance internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing them. Condensation will form on the back wall of the fridge; however, it will normally run down the back wall and into the drain hole behind the vegetable drawer.

Cleaning the outside

Use standard non-abrasive detergent diluted in warm water to clean the exterior.

The grille of the condenser at the back and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the appliance.

If you're going on vacation

If your appliance is not to be used for several months, remove all food, turn off and unplug the appliance from the outlet. Clean and dry the inside and outside of the appliance thoroughly. Also leave the door open, blocking it if necessary, to prevent condensation, odors, mold.

Moving the unit

- Location

Do not place your appliance near a heat source, for example stove, boiler or radiator. Also, avoid direct sunlight.

- Leveling

Make sure the appliance is level. Use the adjustable feet at the front. If the appliance is not level, the doors and magnetic sealing alignments will be affected and may cause malfunctions.

- Do not turn on the appliance for 4 hours

After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted.

- Installation

Let your device breathe. Heat is released from the walls so it is important to leave a circulation of air around your device.

Energy saving tips

• Install the appliance in an appropriate place.
- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
- Let hot foods cool to room temperature before placing them inside. An overload will force the compressor to run longer. Food that freezes too slowly may lose quality, or deteriorate.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside.

• Storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
• To ensure that the appliance operates properly, clean the condenser regularly (see "Routine servicing of your appliance").
• Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

This refrigeration appliance has been designed by the manufacturer in such a way as to guarantee the most efficient use of energy. If you change to current drawers, baskets and shelves combination you may impact the energy consumption

Changing the light bulb

This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your appliance, the LEDs were defective, please contact your after-sales service for any intervention.

7. MAINTENANCE AND AFTER SALES SERVICE

Maintenance

This product should be serviced by an authorized engineer and only genuine spare parts should be used.

Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Contact the local store where your purchase was made.

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Troubleshooting

You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

Problèmes	Solutions
Unusual noises	√ Check the adjustment of the feet of your appliance and its stability.√ Check that it is not touching a wall.√ Check that all the movable parts (trays, racks, etc..) are securely in place.
The appliance does not get cold enough	√ Check if the temperature is correct. If this is not the case, adjust the temperature appropriately.√ Make sure that you have not placed a large amount of food or hot food in your appliance.√ Be careful not to open the door too often or leave it open.√ Check that the door is closed tightly.√ Keep your device away from heat sources.√ Make sure that the ventilation around the unit is respected.
Your appliance does not get cold at all	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed
Frost forms inside your appliance	√ Be careful not to open your appliance's door too often and not to leave it open.
The door is difficult to open	√ It is normal for the door to offer some resistance to being opened, particularly when you have just shut it: a slight under pressure forms in your appliance to ensure the door seals perfectly. All you have to do is to wait a few seconds before re-opening.
The appliance is not working	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed
The light does not work	√ Check that your appliance is connected to the electrical supply.√ Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed√ Check that the bulb is not burned out and refer to the "Changing the bulb" section.
Condensation appears on the outside of the appliance	√ This may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made.
Special odors in the appliance	√ Check that you do not have spoiled food, if so, throw it away.√ Check that your strong-smelling foods are packed.

8. ENVIRONMENT

This appliance is marked according to the European directive 2019/290/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

9. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for FRIGELUX brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

Estimado cliente,

Length Shorten

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

* S.O. = no applicable
