USER MANUAL 306527 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

IMPORTANT SAFETY INSTRUCTIONS

• Before connecting the appliance, ensure that the mains voltage matches the specification on the nameplate of the appliance!
• This product should not be operated if the cable or plug is damaged or defective!
• When disconnecting from the mains, please hold the plug instead of pulling the power cord.
• The product should not be used if it has fallen down or has been damaged!
• Do not touch any hot surfaces! Always use the knobs or handles provided!
• Never immerse the appliance, plug or cable in water or any other liquid! The product should not be rinsed in water!
• Turn off the appliance after use. Disconnect the mains plug before cleaning it.
• Do not allow the cable and the plug to protrude over an edge or over hot surfaces!
• Use only accessories recommended by the appliance manufacturer! There is a risk of injury!
• Monitor the product constantly, if children or invalid persons are nearby.
• Do not place the product near other hot appliances such as gas, electric or backing ovens.
• During use, the product should not be placed on an unstable, moist surface or on surfaces that are not

heat-resistant. Any damage or malfunction should be avoided.

• Cleaning and maintenance of the appliance should not be carried out by children without supervision. Cleaning may be carried out only by children who are older than 8 years and under supervision.
• Do not cover the appliance during use! Heat and steam should be able to escape. It may result in a fire!
• Use the appliance only for the intended purposes described in this user manual!
• Do not use the appliance outdoors!
• This product is a heating unit with ventilation. During operation, the bottom of the appliance must be free from objects which may block the air inlet, otherwise the product may be damaged or risks may arise.
• The product must be secured during operation. The heat radiation outlet should not be covered during operation. This prevents any hazards.
• The inserted socket must be provided with an earthing protection. The plug must be firmly in place, otherwise the loose connection may cause a fire. Multifunctional sockets should not be used simultaneously with other appliances.
• Disconnect the power cord if you do not intend to use the product for some time. The plug must be disconnected under the following conditions: Failure, cleaning, maintenance.

• Children should not play with the appliance!
- Do not use water as an extinguishing agent if the product catches fire. Please cover the burning food items quickly with a damp cloth.
- This appliance can be used by children above the age of 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and understand the hazards involved.
- Position the appliance only in places which are out of the reach of children.
- Keep the appliance and cable out of the reach of children under the age of 8 years.
- If the power cable is damaged, it should be replaced by the manufacturer, his customer service personnel or an equally qualified person.
- This appliance should not be operated with an external timer or a separate remote control system!
- Never open the housing of the appliance. There is a risk of electric shock!
- This product is intended only for domestic use. The company is not liable for any malfunction or damage caused by commercial use of the product, improper use or unspecified use. Such damage will void the warranty.

Do not use the product if one of the following situation occurs:

• The product or the power cable is damaged.
• The product falls down accidentally, leading to the product being in a non-standard condition.

If any of the above occurs, please contact our customer service department.

CAUTION: This appliance becomes hot during use! There is a risk of burns!

• The maximum time for continuous operation should not exceed 24 hours. Otherwise, the service life of the appliance may be negatively affected.
• Every time the process is complete, set the temperature to the lowest setting and switch off the appliance. Disconnect the mains plug.
• If the product is switched on and is working properly, the white display should be enabled and the fan should be running audibly.

• The food has to be pretreated before drying, for example, by cleaning, cutting, stripping, immersing, etc. This pre-treatment helps in preserving the colour and taste of the food.

• The compartments should not be overloaded with food items. Food items should not be placed one above the other. Different food items have different drying times.

• During operation, the appliance heats up to the set temperature. Arrange the food items properly to achieve a uniform drying effect.
• The dried food items should be enclosed in a container or plastic bag if they are not consumed immediately. It is advisable to put them in a refrigerator.
• After completion, all the trays should be stacked on the product, regardless of whether food is still present in the trays.
• The appliance should be loaded from top to bottom, since the time required is less going downwards owing to the slightly higher temperature.
• All removable parts of the appliance are dishwasher safe.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Dehydrator (automatic food dehydrator)
• 1 Drip pan
• 10 Inlay trays
• User manual

2. Technical data

Power supply 220-240 V AC 50/60Hz
Power consumption 800 W
Dimensions (H x W x D) max. 41 cm x 34.5 cm x 41.5 cm
Weight 10500 g
Product features • 35°C to 90°C in 5°C increments• 0.5-24 hour timer in 30 minute increments• On/Off button• Non-slip base
Ambient temperature 5°C to 40°C

3. Before first use

• Check that the accessories and all parts are complete as per the scope of supply and are not damaged.
• Clean all the parts as described in the chapter "Cleaning and Care" of this user manual.
• Fit the door handle using the screws supplied.

4. Product details

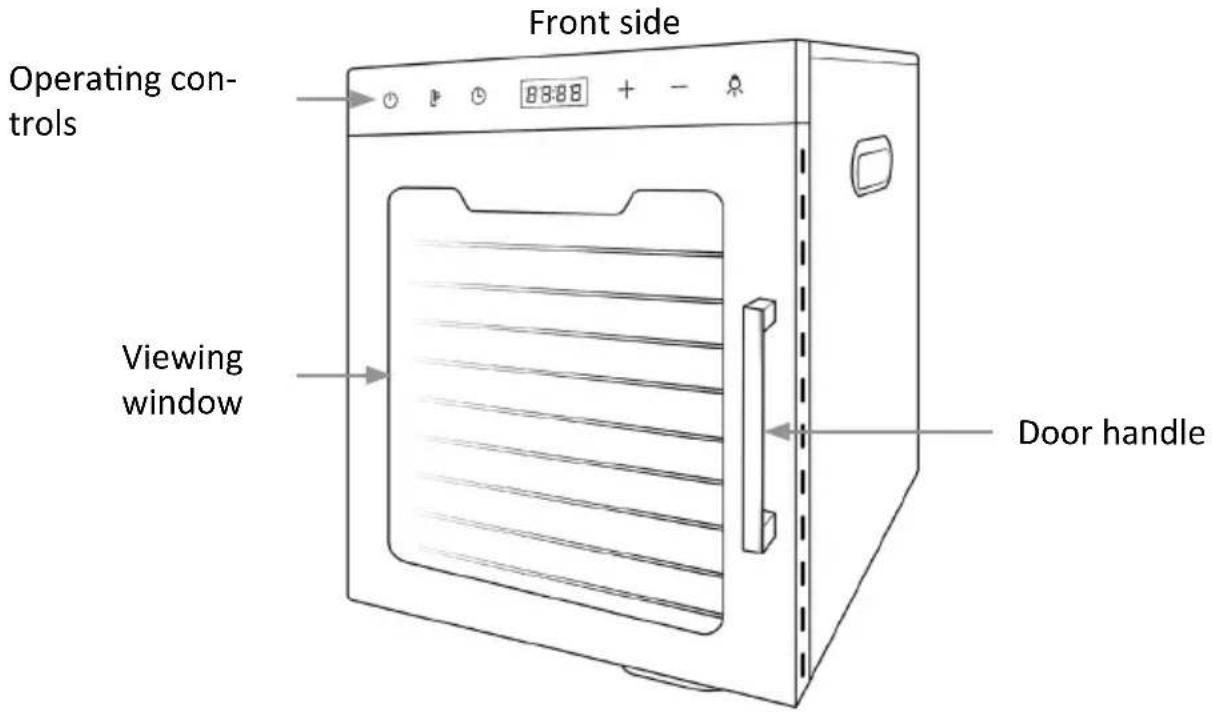

Front side Operating controls 8:3:88 + Viewing window Door handle

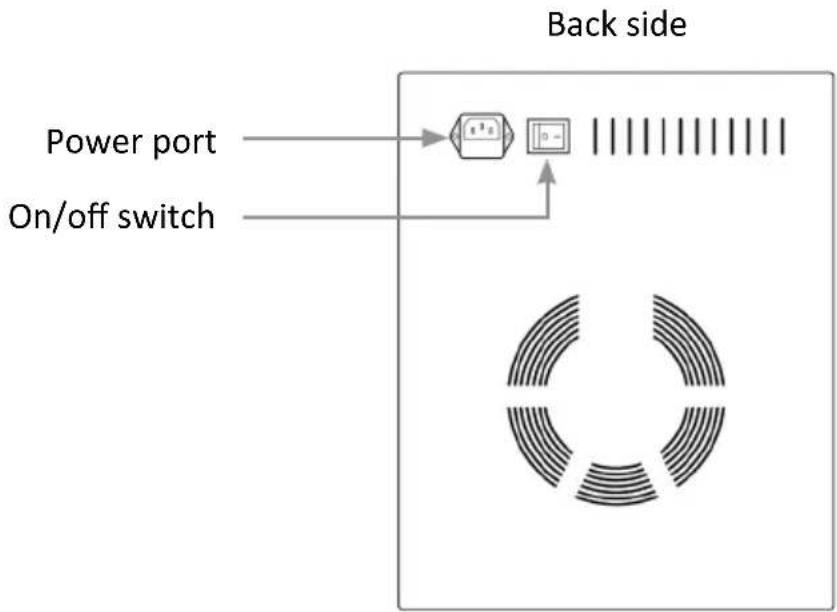

Back side Power port On/off switch

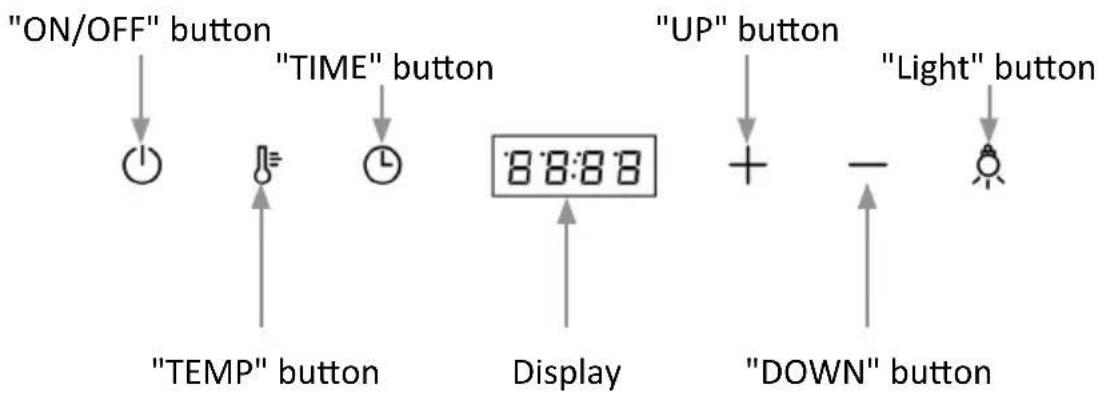

Operating controls

"ON/OFF" button "TIME" button "TEMP" button Display "UP" button "DOWN" button "Light" button

5. Initial use

1. The dehydrator trays must be clean and wiped with a cloth before using them for the first time.
2. Place the prepared food items on the desired trays. Then insert the trays correctly in the dehydrator.
3. Place the drip tray on the bottom of the dehydrator.
4. Connect the power cord to the appliance and switch the on/off switch on the back to position "I" (On).
5. Then press the "ON/OFF button" at the top of the appliance. The appliance switches on.
6. Select the desired temperature by pressing the "TEMP" button and using the "UP" and "DOWN" buttons.
7. Then select the desired time by pressing the "TIME" button and using the "UP" and "DOWN" buttons.
8. As soon as the food has finished drying, the appliance switches to standby mode. Two beeps will sound. Switch the on/off switch on the back to position "0" (off) or unplug the appliance to switch it off completely.
9. Clean the drip tray and the liquid collection chamber after drying.

6. Process of drying food items

(The following examples are for reference only)

Note: Always remember that the values shown here are for reference only.

Fruits

1. Cut the fruit into pieces of your desired size.
2. To improve the taste and optimal appearance (no brown spots), we recommend that you briefly dip all food items to be dried in a glass of apple or lemon juice, depending on your preference.

Fruit Table (Recommended temperature: about 50-60°C)
Temperature and time indicated may vary

Fruit	Preparation Standard	drying	Time (Approximate)
Apple	Remove seeds, cut and/or peel, about 8 mm thick	Elastic 5-6 hours
Almonds	Remove seeds, cut in half or sliced	Elastic 12-38 hours
Banana Peeled, 3-4 mm pieces Crispy 8-38 hours
Cherry Remove seeds (if desired) Chewy 8-34 hours
Cranberry	Sliced or whole Elastic 6-26 hours
Fig Remove seeds, cut Chewy 6-26 hours
Grape	Whole	Elastic 8-72 hours
Nectarine	Remove seeds, sliced	Elastic	8-26 hours
Orange peel	Cut into strips	Elastic 8-16 hours
Peach	Remove seeds, cut into half or quarter	Elastic 10-34 hours
Pear	peeled, cut into slices, about 8 mm thick	Elastic 8-30 hours
Plum	Cut, halved	Elastic 11-13 hours
Strawberries	Cut, halved	Elastic 10-16 hours

Vegetables

Place the prepared vegetables in boiling water for 3-5 minutes. Then drain off the water and place the vegetables in a bowl.

Vegetables Table (Recommended temperature: 50-55°C)

Temperature and time indicated may vary

Vegetables	Preparation Standard	drying	Time (Approximate)
Artichoke	Cut into pieces and pre-cooked for about 10 minutes	Fragile 6-14 hours
Asparagus Cut into strips Fragile 6-14 hours
Beans	Whole beans, cook previously until soft	Fragile 8-26 hours
Cauliflower	Sliced and steamed for 3-5 minutes	Fragile 6-20 hours
Carrot	Peel, 8mm thick pieces can be eaten immediately	6-12 hours
Cauliflower Sliced Chewy 6-16 hours
Celery Cut into 1/4 inch Fragile 6-14 hours
Leeks Blanch, cut into 5-6 cm pieces Fragile 6-10 hours
Cucumber Peeled, cut into 1/2 inch Chewy 6-18 hours
Aubergine	Cut to 1/4 inch and 1/3 inch thickness	Fragile 6-18 hours
Garlic	Peeled and sliced	Fragile 6-16 hours
Pepper	Whole	Fragile 8-14 hours
Mushroom	Sliced or whole, clean well beforehand	Chewy 6-14 hours
Onion	Cut	Fragile 8-14 hours
Peas	Steam for 3-5 minutes	Fragile	8-14 hours
Bell pepper	Cut into strips, approx 7-8 mm thick	Fragile 4-14 hours
Potatoes	steam for 8-10 minutes, sliced	Fragile 6-18 hours
Rhubarb	Peeled, sliced	Dry	8-38 hours
Spinach	Steam till the spinach is moist	Fragile	6-16 hours
Tomato	Peeled, halved or cut into slices 5-6 mm thick	Chewy 8-24 hours
Pumpkin	Cut	Fragile 6-18 hours

Meat (Beef Jerky)

1. Cut the desired meat into 2 cm wide strips.
2. Marinate the meat as desired and keep it in the refrigerator for about 20 hours.
3. Dab off the remaining marinade from the meat using paper towels.
4. Spread the meat strips evenly across the trays of your automatic dehydrator.
5. Set the dehydrator to about 65^ C operating temperature and a duration of about 7 hours.
6. During the process, turn the meat strips if required.

Note: Always remember that the values shown here are for reference only.

7. Cleaning and Care

1. Disconnect the dehydrator from the power supply before cleaning.
2. After drying the food items, wash the dehydrator with warm water and a soft cloth.
3. Clean the appliance if necessary with cleaning agents and wipe it dry. Do not use aggressive cleaning agents, metal brushes or organic solvents. Do not use flowing water to clean the dehydrator or immerse the housing in water or other liquids for cleaning.
4. The base of the dehydrator can be cleaned with a damp cloth if it becomes dirty.
5. Store the appliance in a cool and well-ventilated place.

8. Troubleshooting

Error Error	reason Troubleshooting
The appliance is not working properly	Disconnected or loose connection	Insert the mains plug properly
	Mains socket is faulty	Replace the socket with the help of a trained technician
	Power cord is faulty Contact our customer service team.
The appliance is working but the light is off	The display is faulty Contact our customer service team.
The appliance is working but hot air is off	Temperature setting too low, the room temperature is higher than the temperature setting.	Please set a new temperature for the appliance
	The fuse is faulty Contact our customer service team.
	The heating wire is faulty Contact our customer service team.

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures.

Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

CE

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 306527 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
