USER MANUAL Maki 305532 Arendo

Warning symbols: one warning triangle with exclamation mark and another with steam line inside triangle

Warning symbols: one warning triangle with exclamation mark and another with steam symbol inside triangle

Important safety guidelines for this appliance

• If the power cord is damaged, it should be replaced by the manufacturer, his specialist dealer, or an equally qualified person, so as to prevent any risk.
• Children should use or clean the appliance only under supervision or guidance.
• In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.
• Children should be supervised to ensure that they do not play with the appliance.

• Operate the appliance in accordance with the voltage specified on the appliance label.

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

• Keep it on an suitable surface so that it does not tip over.
• Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).
• The appliance is meant exclusively for your personal use and for the intended purpose. It is not intended for commercial use.
• Never allow the power cord to come into contact with hot surfaces.
• Never immerse the appliance in water or any other liquid so as to prevent the risk of electrical shock!

arenio

• Do not use the product with wet hands.
• Do not move the appliance when it is in operation.
• Stay away from escaping steam.
• Fill the container only up to the top-most mark.
• Please do not place the appliance near objects which can be damaged by the escaping steam.

• This appliance may be used by children above the age of 8 years and by people with limited knowledge with regard to its use or by those with sense organ impairment, under the condition that they are monitored and trained in the safe use of the appliance, and are aware of the associated risks.

• Cleaning and maintenance should not be carried out by children, unless they are at least 8 years old and are monitored.
  • Overheated fats and oils can catch fire. Food items with fats and oils should therefore be prepared under supervision!

• Please do not place the appliance on a flammable or explosive base (e.g., wood, plastic or glass surface).
• Please do not route the cable under carpets or blankets. Keep the power cord away from walking paths in the room.
• Never try to touch, clean or move the metal parts, before the appliance cools down completely to avoid burns. Move the appliance using the handle only.

arenio

• Turn the temperature regulator to the "MIN" position before you turn the appliance on or unplug it.
• The appliance is not intended for operation with an external timer or a separate remote control system.

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Fondue set
• User manual
• 8 fondue forks

2. Technical data

Power supply 230V~(AC), 50/60Hz
Power consumption 1000 W
Capacity max. 2 l
Ambient temperature + 0°C to 40°C
Features • Operating lights	• Stainless steel

3. Before initial use

Use a socket with a rated current of 10 A or more. Do not use the socket simultaneously with other electrical appliances with higher power.

Make sure that the temperature regulator is in "MIN" position before connecting the appliance. Ensure that the supply voltage corresponds to the voltage specified on the type plate.

Add water and / or food items to the bowl and make sure that the total amount of water and / or food item does not exceed 80% of the capacity to avoid any spillage.

This appliance is suitable for melting cheese, chocolate and for heating sauces or broth.

It is not unusual if smoky smells emanate from the surface of the heating element when the appliance is used for the first time.

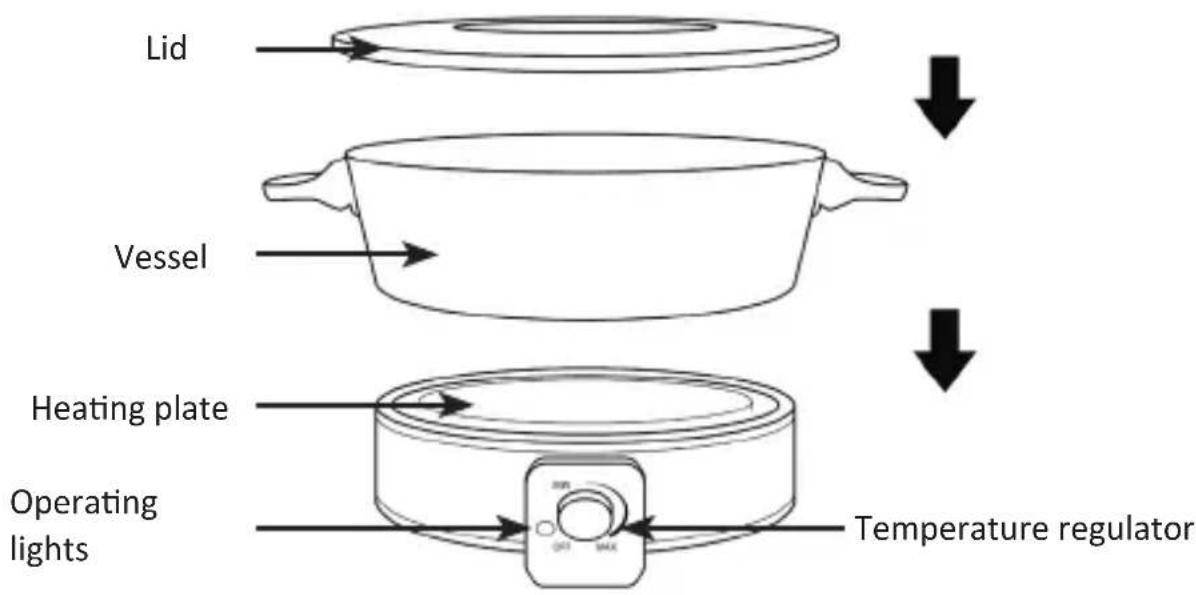

4. Product details

Lid Vessel Heating plate Operating lights Temperature regulator

5. Usage

Heat the heating plate without the vessel for about 5 minutes at the maximum level.

Add the quantity of oil, broth, cheese or chocolate to the vessel according to the desired fondue recipe. Make sure that the capacity of the vessel is not exceeded. Only use the original vessel for fondue. Use only fats and oils that are suitable for deep frying.

Place the vessel on the heating plate and ensure that the base makes complete contact with the heating plate.

Turn the knob to the "MAX" position and the indicator lights up. The appliance starts working.

It is normal for the indicator lamp to switch on and off periodically due to the thermostatic regulator. This cycle controls the temperature of the vessel, till the food item is cooked sufficiently.

Please turn the knob to the "MIN" position after use to switch off the appliance.

Caution! Please do not use the appliance to cook with nothing, as this will reduce the service life of the product.

6. Cleaning and Care

Never try to touch the hot surface of the appliance before it cools down completely. Do not immerse the housing in liquids.

Clean the unit with a mild cleaning agent or a gel cleaner using a soft cloth. To protect the non-stick coating, please do not use any hard brushes, abrasive materials or alcohol, benzine or other organic cleaning agents for cleaning.

Please do not use other vessels or frying pans and use only the originally packed accessories, in order to achieve optimum cooking or frying results.

Make sure that the base of the vessel or frying pan is dry and free of foreign bodies before placing them on the heating plate.

It is not uncommon for metal parts to turn yellowish after prolonged use.

7. Additional note

Make sure that the food item used is not too moist, as this could cause the oil to froth.

You can check the temperature of fat or oil by dipping a wooden stick into it. If bubbles are formed on it, then the temperature necessary for fondue has been reached.

Cut the individual fondue ingredients into roughly equal pieces to obtain a uniform cooking result.

8. Possible recipes

Note! The following recipes are only examples.

Chocolate fondue

• 150 g Dark chocolate
• 50 g Milk chocolate
  • 150 ml milk or cream
• Seasonal fruits
• Marshmallows
• Lemon juice

Preparation: Cut the fruits into bite-sized pieces. Break the chocolate into small pieces and add them to the milk / cream into the vessel. Heat the mixture carefully and stir it from time to time until the chocolate melts completely and the desired consistency is reached.

Cheese fondue

• 300 g Cheese (Gruyère)
• 300 g Cheese (Emmental)
- 4 dl White wine
- 3 tsp. Cornflour
- 1 clove of garlic
- 2 cl cherry brandy
- some pepper
- some nutmeg

Preparation: Cut the garlic clove into two and rub the fondue vessel with it.

Pour some wine into it and let it boil. Add the cheese with a wooden spoon, stir the ingredients regularly to prevent the formation of lumps. If the wine lacks acidity, you can add a little lemon juice so that the cheese dissolves slightly better. Add the cornstarch and cherry brandy to it and mix it.

Allow the ingredients to cook until the fondue reaches the desired consistency. The fondue is now ready for consumption.

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings.

Protect it from high humidity, water and snow. Do not expose the appliance to high outdoor temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification. The appliance should only be used by those who have read and understood this user manual.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305532 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
