USER MANUAL 305525 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Warning symbols for temperature deviation, showing an exclamation mark and a warning symbol with steam.

Important safety guidelines for this appliance

• Please read the following user manual carefully and ensure that you understand the instructions.
• Operate the appliance in accordance with the voltage specified on the appliance identification label.
• Never touch the surface or the interior of the appliance during operation. There is a risk of burns!
• In order to protect against electric shock, please do not immerse the cable, the plug or any part of the appliance in water or in any other liquid.
• Supervision is necessary when the appliance is being used by children or being used in the vicinity of children.
• Remove the plug from the power socket when the appliance is not in use or when you intend to clean it.

- Do not use this appliance with a damaged cable or plug, or when in a faulty condition. If the power cord is damaged, it has to be replaced by the manufacturer, a customer service agency or an adequately qualified person.

- Keep the power cord away from hot surfaces. Do not allow the power cord to hang over the edge of a table.

- The appliance should not be kept or used on or near hot surfaces (such as hotplates) or open gas flames.

- Use the product only for intended applications.

- Use the appliance only for baking waffles, roasting sandwiches or for grilling items.

• Therefore, never place the appliance close to or below flammable materials. It has to be constantly supervised when in operation.
• Using accessories which are not recommended by the manufacturer of the appliance may lead to injuries.
• Always keep the appliance on a flat and heat-resistant surface.
• Immediately remove the power plug from the power socket if you notice smoke or fire!
• Do not use this appliance with external timers or separate remote controls.
• Children should be supervised to ensure that they do not play with the appliance.

- This appliance may be used by children above the age of 8 years and by persons with impaired physical, sensory or mental capabilities or lack of experience and knowledge, only if they are supervised or have been instructed about the use of the appliance and have understood the hazards involved. Cleaning and user maintenances should not be performed by children.

• Keep the appliance and the power cable out of the reach of children below 8 years of age.
• Do not use the product outdoors.
• The appliance should only be operated in the closed condition.

arendo

- This product is intended for domestic use only.

- Do not immerse the product in water.

- Always switch off the appliance when it is not being used! Never allow it to operate unattended.

Caution! Hot surface!

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Sandwich maker
• Sandwich attachment
• User manual

2. Technical data

Power supply 220-240V AC 50/60 Hz
Power consumption 1200 W
Ambient temperature 0-40°C

3. Initial use

Note: When using the appliance for the first time, there may be a burning smell and smoke generation when the heating elements heat up. This is not a hazard or a defect. When using the appliance for the first time, wait until it has heated up and the smell has disappeared. It is advisable to use the appliance without dough.

Take the appliance out of the package and remove all the packaging material. Wipe the heating plates of the sandwich maker using a slightly damp cloth.

Caution! Before cleaning or changing the heating plates, make sure that the appliance is not connected to the mains and has cooled down completely!

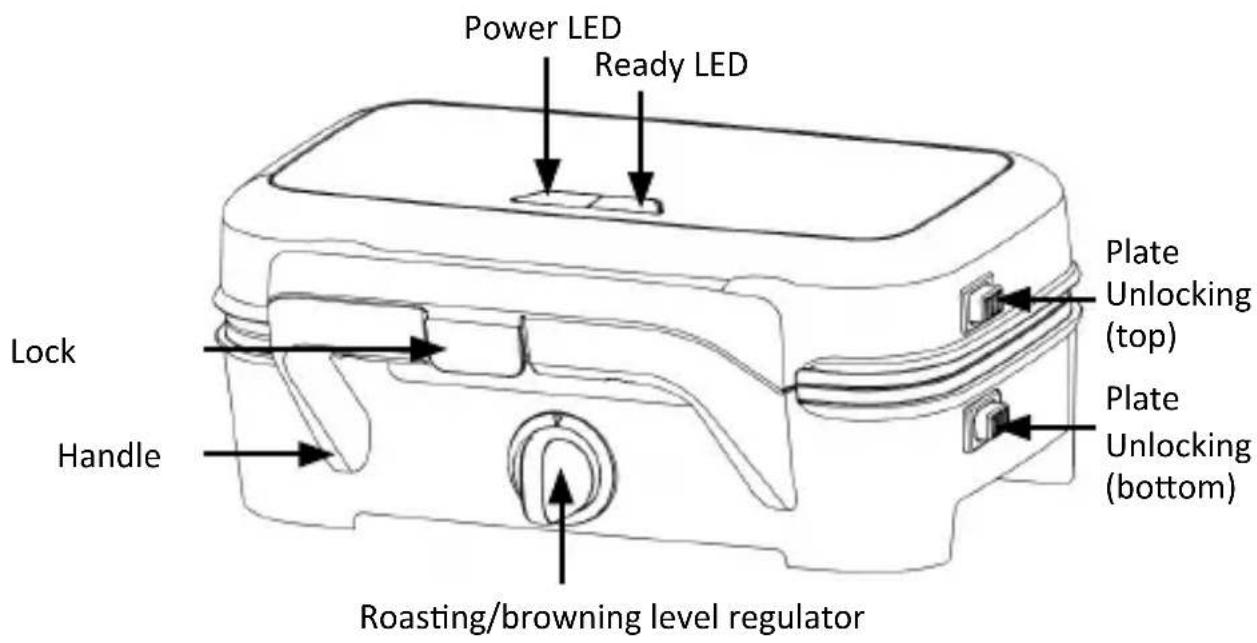

4. Product details

Power LED Ready LED Lock Handle Roasting/browning level regulator Plate Unlocking (top) Plate Unlocking (bottom)

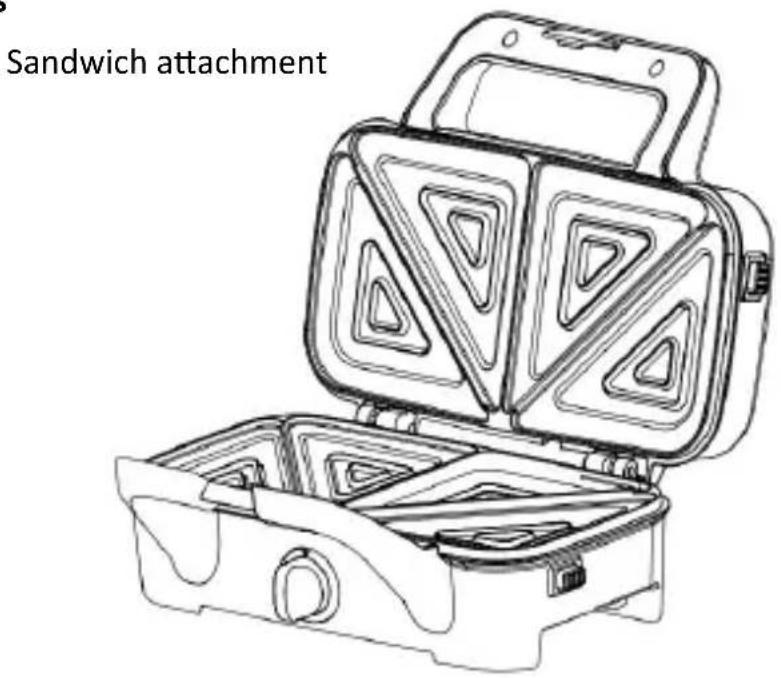

Attachments

Sandwich attachment

5. Removing / inserting the attachment

Disconnect the power plug of the appliance and wait for the appliance to cool completely before assembling or dismantling anything.

Caution! Do not allow the plates to come into contact with metal cutlery or other metal objects to avoid damage to the non-stick coating.

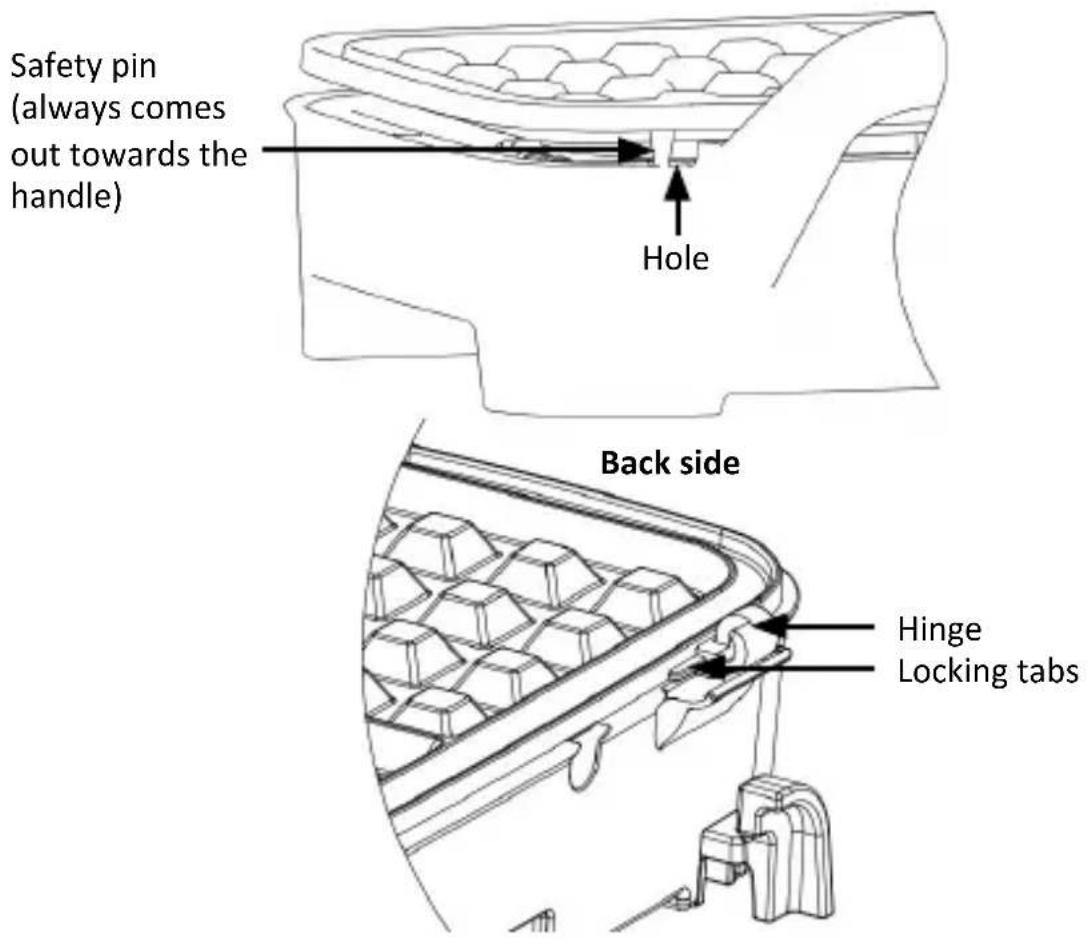

Assemble the plate as follows:

Safety pin (always comes out towards the handle) Hole Back side Hinge Locking tabs

1. Insert the two plates with the locking tabs facing towards the hinge and press the plates down into the holder until they snap into place with an audible sound.

2. To remove the plates, press the button on the sides of the appliance. There are two buttons, one for the upper, and one for the lower plate.

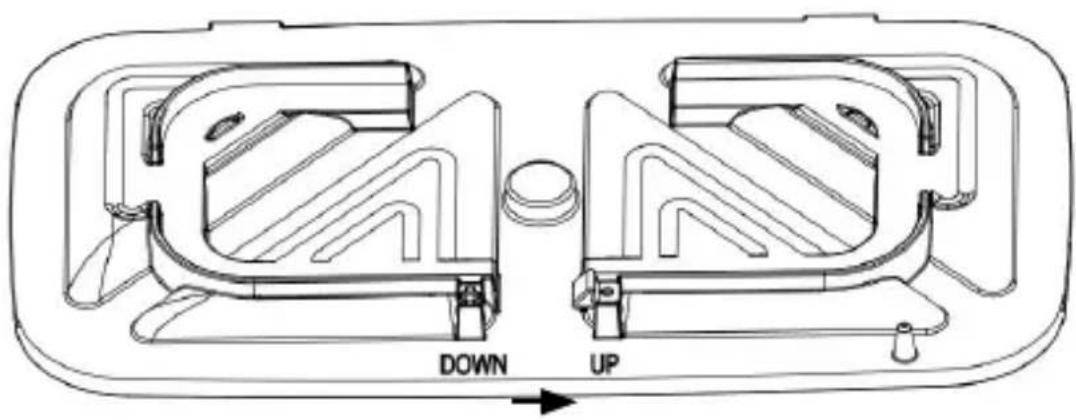

5.1 Installation notes for the removable plates

1. The lock in the "UP" position is for the upper plate.

DOWN UP

1. The lock in the "DOWN" position is for the lower plate.

DOWN UP

6. Commissioning and use

This product is intended for domestic use only.

Caution: Never use the appliance with just one plate. Always make sure that both the plates are inserted.

1. You can apply some vegetable oil to the plates to make sure that you can easily remove the leftovers after baking.
2. Close the lid and then lock the handle.
3. Insert the mains plug of the appliance into the socket. The red "POWER" LED lights up.
4. Switch on the appliance by turning the roasting/browning level regulator and select your preferred level of browning. The appliance then starts to heat up.
5. When the heating elements reach their operating temperature, the green "Ready" LED goes out and the appliance is ready for use.
6. Open the lid using the handle by opening the lock first.
7. Please place the food item to be cooked on the lower plate.
8. Close the lid and then lock the handle.
9. Ensure that you use the handle for pressing down.
10. While the appliance is switched on, the green light will go on and off since the thermostat switches on and off to maintain the desired level of roasting/browning.
11. The baking time depends on your personal taste. Experiment with the baking time and roasting/browning levels to obtain the best results.
12. Stay near the appliance and check regularly to see if the item is ready.

13. Unlock and lift the handle to open the lid once the food item is ready.

14. Remove the food item from the plate. Always use a cloth to remove the food item from the appliance.

15. Close the lid to retain the heat for further use.
16. To switch off the appliance, turn the roasting/ browning level regulator to the „0“ position (left) and disconnect the plug from the socket. The heating elements and thermostat will not function if the roasting/browning level regulator is in "0" position. However, the red "POWER" LED continues to glow until the plug is disconnected from the socket.
17. Allow the appliance to cool down completely.

7. Adjusting the level of roasting/browning

You can use the "Roasting/browning level regulator" to adjust the degree of cooking. The further the roasting/browning level regulator is turned to the right, the longer and more intense is the degree of cooking.

8. Cleaning and Care

Important: Disconnect the power plug and allow the appliance to cool down completely before cleaning it. Never immerse the appliance in water or some other liquid.

Wipe the lid, base and cooking plates with a damp cloth and a non-abrasive soap or dishwashing detergent. Wipe it with a clean, soft, damp cloth and dry it with a towel.

Storage: Store the cleaned appliance in a clean and dry location.

Caution! Never store the appliance when it is still hot or plugged in.

Caution! Never wrap the cable tightly around the appliance, but use the cable winder provided for this purpose. Do not subject the cable to a heavy tension, since it may buckle and be permanently damaged.

Please do not use any aggressive or chemical cleaning agents!

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures.

Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

ATTENTION!

Warning symbols: one warning with exclamation mark, another with steam symbol inside triangle

Warning symbols for temperature deviation, showing an exclamation mark and a warning symbol with steam.

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

www.arendo.de
