Product type	Clock radio
Brand	Geemarc
Model	Wake’n’Shake JUMBO
Power supply	9V DC, 650mA via mains adapter (100-240V AC, 50/60Hz), backup battery (not included)
Main functions	Alarm with vibrator, light flash and ringer; adjustable snooze; screen brightness adjustment (5 levels); volume and tone adjustment; telephone call detection; alarm duration adjustment (1-59 min); 12/24H format; weak/strong vibrator adjustment
Time setting	Long press on the ⏻ button, then H and M buttons
Alarm setting	Long press on the alarm button, then H and M buttons; adjustable duration (1-59 min)
Alarm mode	4 positions: vibrator (V), vibrator+ringer (V+S), flash+vibrator (V+F), flash+vibrator+ringer (V+F+S)
Snooze function	Press the ✗ button during alarm; repeats every 9 min (adjustable 1-30 min)
Volume	Adjustable (VOLUME button)
Tone	Adjustable (TONE button)
Screen brightness	5 levels, adjustment via Snooze button in standby mode
Telephone compatibility	Ring detection; switch A+T (alarm+telephone), T (telephone only), OFF
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products
Safety	TNT-3 (telecommunication network voltage); mains adapter as disconnecting device; do not expose to moisture
Warranty	2 years parts and labor
After-sales service	03 28 58 75 99, Monday to Friday (variable hours)
Recycling	Compliant with WEEE; do not dispose of with household waste; take to collection point

Frequently Asked Questions - Wake’n’Shake JUMBO GEEMARC

How to set the time on the Wake’n’Shake JUMBO?

Press and hold the ⏻ button. While holding, press the H button to set the hour and the M button for minutes. Release the ⏻ button. A PM indicator lights up for afternoon.

How to set the alarm?

Press and hold the alarm button. Press H for hour and M for minutes. Release. You can also set the alarm duration (1 to 59 min) by holding the alarm button for 6 seconds then using M.

How to use the vibrator function?

Select the alarm mode with the 4-position switch. Set it to V (vibrator only), V+S (vibrator+ringer), V+F (flash+vibrator), or V+F+S (all). The vibrator connects to the clock via a cable. You can adjust its strength with the + and - buttons (weak/strong).

How to temporarily stop the alarm (snooze)?

When the alarm sounds, press the ✗ button (snooze). The alarm stops for 9 minutes (adjustable from 1 to 30 min). To set the duration, hold the snooze button for 4 seconds until '9' is displayed, then use M to change.

How to turn off the alarm for 24 hours?

Press the OFF button. The alarm is disabled for the day and will automatically reactivate the next day at the same time.

How to set the time format (12/24h)?

Hold the H button for 6 seconds. The display shows '12H' or '24H'. Release then press H to toggle. After 4 seconds of inactivity, the choice is saved.

How to adjust the screen brightness?

In standby mode, press the Snooze button repeatedly. Each press changes the brightness in a cycle of 5 levels, from brightest to darkest.

Can I use the clock with a landline phone?

Yes, connect your phone to the supplied dual PTT socket. Set the A+T/OFF/T switch to T (phone only) or A+T (alarm+phone). The clock will detect the ring and trigger alerts (vibrator, flash, ringer) according to the selected mode.

What to do in case of a power outage?

The clock operates on mains power. In case of a power cut, a backup battery (not included) retains the time and alarm settings. Replace the battery at least twice a year.

How to clean the Wake’n’Shake JUMBO?

Use a soft, dry cloth. Do not use abrasive products or liquids. Unplug the device before cleaning.

USER MANUAL Wake’n’Shake JUMBO GEEMARC

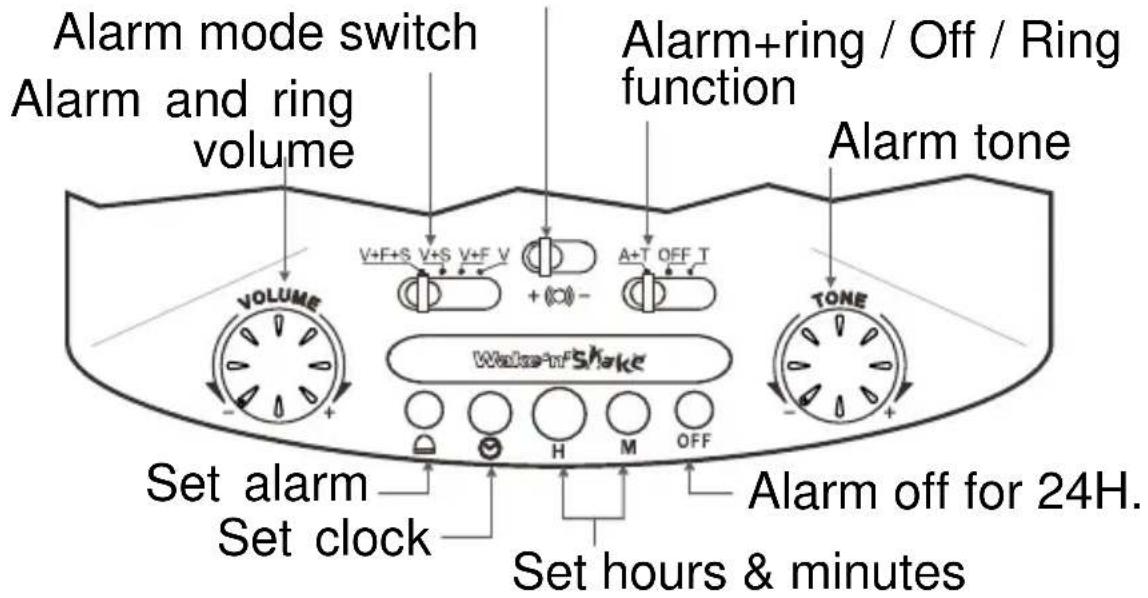

Large display alarm clock with shaker

!!!Please refer to our website: www.geemarc.com for an up to date user guide, as there may be important updates and changes you need to be aware of!!!

Shaker Lo / Hi switch

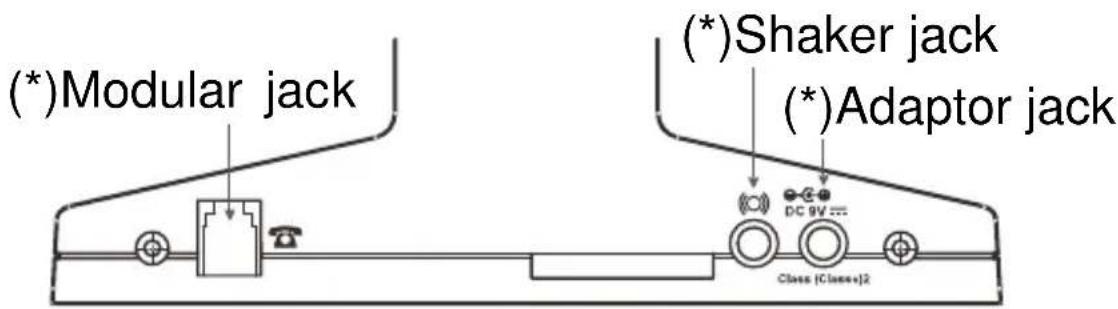

(*) Classified TVN-3 according to EN60950 standard.

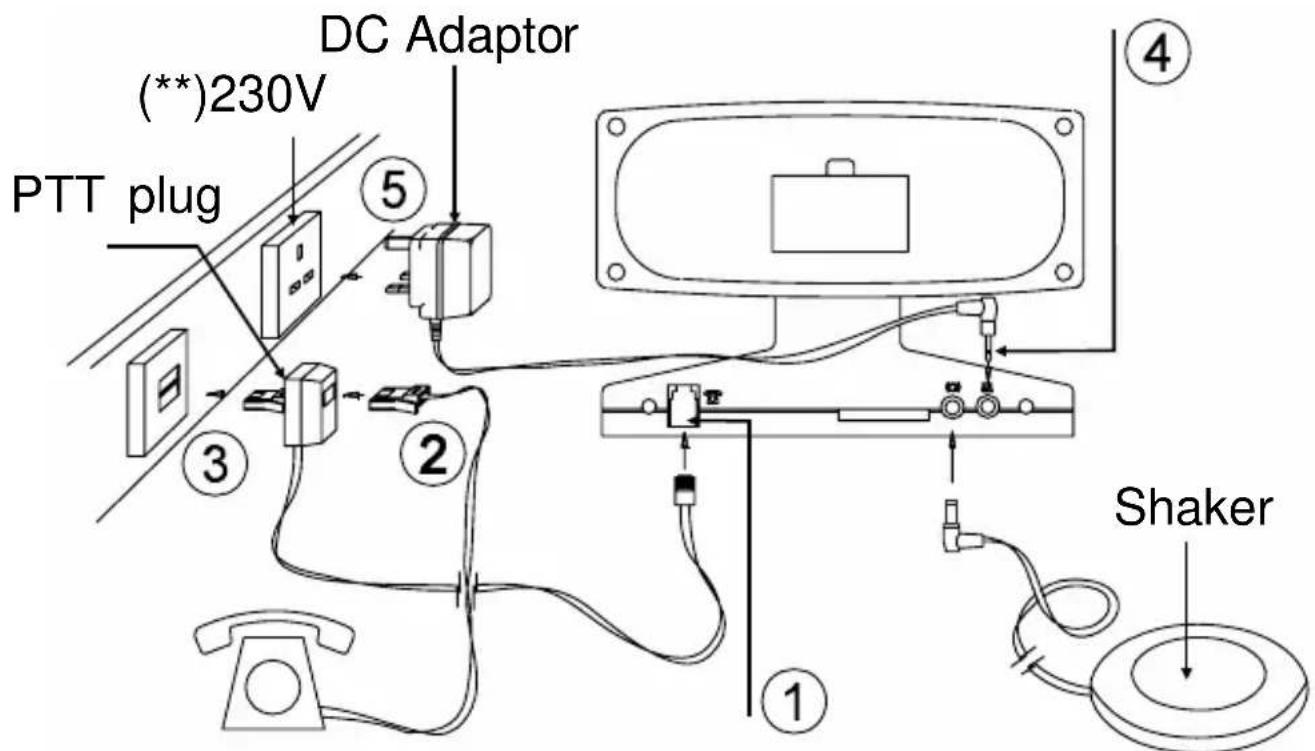

1- CONNECTING THE TELEPHONE

1 - Connect the PTT line cord.
2 - At your option you may connect your telephone in the doubler plug.
3 - Connect the PTT doubler plug in the wall socket.
4 - Connect the adaptor line cord.
5 - Connect the adaptor in the wall socket. (**)

(**)Classified "hazardous voltage" according to EN60950 standard.

Electrical connection: The apparatus is designed to operate at DC9V, 650mA. The power adaptor supplied operate from AC100 – 240V, 50/60Hz input.

The apparatus does not incorporate an integral power on/off switch. To disconnect the power, either switch off supply at the mains power socket or unplug the DC adaptor. When installing the apparatus, ensure that the mains power socket is readily accessible.

Telephone connection: Voltages present on the telecommunication network are classified TNV-3 (Telecommunication Network Voltage) according to the EN60950 standard.

2- SETTING THE TIME ( ⏰ )

• Press and hold (set clock) button.
• Press H (hour) and M (minute) until correct hour and minutes appear on the display.
• Release ⏻ (set clock) button.
• For p.m. hours, the p.m. indicator will appear on the display near the inscription PM.

12 / 24 hour format

User can select which hour format to use. To select:

• Press and hold the H (hour) button for 6 seconds to enter the hour selection mode, the display shows "12H" or "24H", then release the hour button.
• Press the H (hour) button to toggle between 12 or 24 hours.

Note: If no selection made within 4 seconds, the last showed format will be chosen, and the clock will return to normal time mode.

3- SETTING THE ALARM TIME (

• Press and hold (set alarm) button.
• Press H (hour) and M (minute) until correct hour and minutes appear on the display.
• Release (set alarm) button.
• Press 📁, H and M to reset the alarm clock to 12.

4- SETTING THE ALARM MODE

Put the function switch on A+T position.

Choose which alarm mode you wish to be awakened to by moving the alarm mode switch to one of the following selections:

V : only shaker activated

V+S : both sound and shaker alarm activated

V+F : both strobe light and shaker alarm activated

V+F+S: strobe light, sound and shaker alarm activated

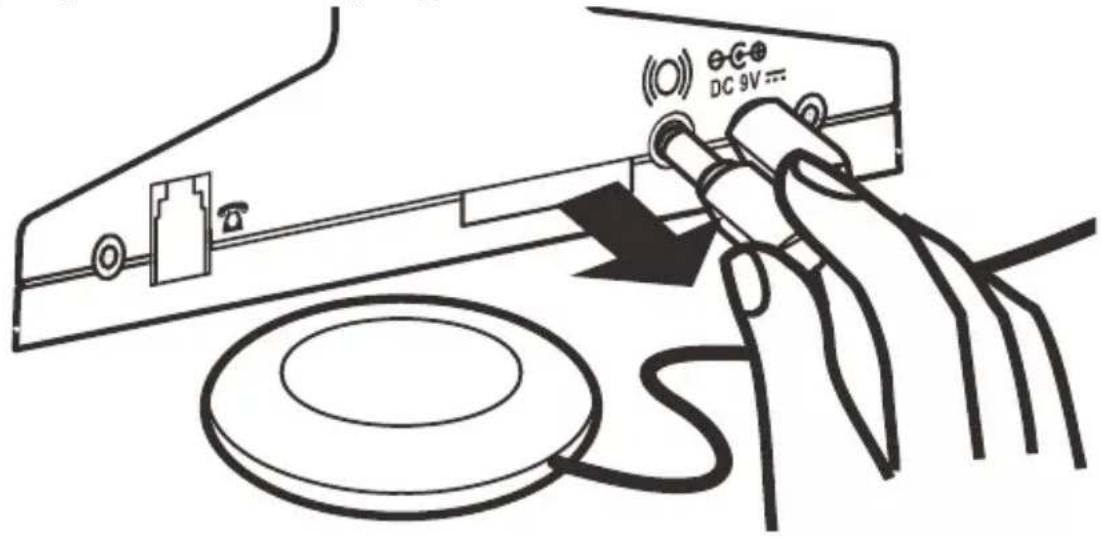

Note: if user doesn't use the V (shaker function), please unplug the shaker plug from the clock.

When the alarm is set to one of the alarm modes, the alarm indicator will appear on the display near the inscription AL.

The table below shows how the alarm modes indicate an incoming call from the alarm clock.

ALARM MODE	ACTION	ALARM CLOCK	INCOMING CALL
SOUND	Buzzer	With pauses With pauses
SHAKER Vibrates	With pauses With pauses
STROBE LIGHT	Flashes With pauses With pauses

The default alarm duration time is 30 minutes. User can adjust the alarm duration time from 1-59 minutes.

To adjust the alarm duration:

• Press and hold the set alarm button for 6 seconds to enter adjust mode. The clock show "30", release the set alarm button.
• Press the M button to adjust the alarm duration time to the desired setting from 1 minute to 59 minutes.
• This new setting will become the new default, until changed by user.
• If no action is take within 3 seconds, then the clock will return to normal time mode.

5- SNOOZE KEY ( ✗ )

When the alarm mode you have chosen is switched on the alarm time setting, pressing the ✗ button will stop the alarm mode for approximately 9 minutes. The alarm will then switch the alarm mode o again for a further 9 minutes. This sequence can be carried out for up to 59 minutes after which the alarm mode will be automatically switched off.

User can adjust the snooze repeat time from 1-30 minutes.

• Press and hold the SNOOZE button for 4 seconds to enter the snooze time adjust mode. When the clock show "9" release the Snooze button.
• Press the M button to adjust the snooze time to the desired setting from 1 minute to 30 minutes.

This new setting will become the new default, until changed by user. If no action is take within 3 seconds, then the clock will return to normal time mode.

6- SWITCHING THE ALARM OFF FOR 24H. (OFF)

Press the alarm off button (OFF), the alarm will then operate at the same time the next day. The alarm if not switched off will continue to sound for up to 59 minutes and then be automatically switched off.

7- RINGER On/Off SWITCH (A+T / OFF / T)

• A+T (alarm + telephone): for the alarm and telephone ring position.
• OFF: alarm and ring off.
• T (telephone): for the telephone ring position.

8- TELEPHONE OPERATION

• Ensure that the telephone has been set up in accordance with the telephone userguide and has been connected as shown in the installation section.
• Select the ringer On/Off switch on the A+T or T position for the ring.
• Choose which of the alarm modes you wish to alert you of your incoming telephone calls (see page 4: V, V+S, V+F, V+S+F).
• When the alarm mode selected indicates there is an incoming telephone call, lift the telephone handset and answer the call. When you have finished the call replace the handset and the alarm will be ready to indicate the next call.

9- Dimmer Function (

There is a 5-level brightness control for the LED display. In normal time model, press the Snooze button once to change the display brightness. The brightness will cycle from bright to dim then from dim to bright (the cycle repeats)

NOTE : The dimmer function will not work when the clock is in snooze mode.

10- VOLUME (VOLUME)

Sets the volume of the ring and the alarm sound.

11- TONE ( TONE )

Sets the tone of the alarm sound.

12- SHAKER SWITCH (+ (○) - )

Sets the motion of the shaker to Lo (-) or Hi (+).

13- BATTERY BACK- UP

It's not necessary to insert a battery for the clock to function. With battery back-up installed, the clock will keep the time and alarm settings in the event of a power cut or the DC adaptor being unplugged.

Check the battery condition after one year, replacing old battery. A leaking battery can destroy your clock.

GUARANTEE

From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of two years.

During this time, all repairs or replacements (at our option) are free of charge. Should you experience a problem then contact our helpline or visit our website at www.geemarc.com. The guarantee does not cover accidents, negligence or breakages to any parts. The product must not be tampered with or taken apart by anyone who is not an authorised Geemarc representative. The Geemarc guarantee in no way limits your legal rights.

IMPORTANT: YOUR RECEIPT IS PART OF YOUR GUARANTEE AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM.

Please note: The guarantee applies to the United Kingdom only.

Declaration: Hereby Geemarc Telecom SA declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 2014/53/UE and in particular article 3 section 1a, 1b and section 2.

The declaration of conformity may be consulted at www.geemarc.com

CE

Caution: Radio frequency interference may cause discernible sound on the unit. The sound will end when the interference stops.

RECYCLING DIRECTIVES

The WEEE (Waste Electrical and Electronic Equipment) has been put in place for the products in end of life are recycled in the best way.

When this product is out of order, please do not put it in your domestic waste bin.

Please use one of the following disposal options:

- Remove the batteries and deposit them in an appropriate WEEE skip.

Deposit the product in in a appropriate WEEE skip.

- Or hand the old product to the retailer. If you purchase a new one, they should accept it.

Thus if you respect these instructions you ensure human health and environmental protection.
