Product Type	Sandwich press for croque monsieur (sandwich cooking appliance)
Brand	Brentwood
Model	TS-240W
Power Supply	120 V, 60 Hz (polarized plug)
Power	Approximately 750 W (estimated)
Dimensions (L x W x H)	Approximately 30 x 20 x 10 cm (estimated)
Weight	Approximately 1.5 kg (estimated)
Plate Material	Non-stick coating
Number of Plates	2 (upper and lower)
Preheating Function	Yes, red preheating indicator and green ready indicator
Safety Lock	Yes
Indicator Lights	Preheating indicator (red) and ready indicator (green)
Power Cord	Short, with storage under the unit
Usage	Household only, for sandwiches and croque monsieur
Maintenance and Cleaning	Clean with a non-abrasive damp cloth; do not immerse
Safety	Non-automatic shut-off (unplug after use); hot surfaces
Spare Parts and Repairability	No user-serviceable parts; contact customer service
Included Accessories	None mentioned

Frequently Asked Questions - TS-240W Brentwood

How to use the Brentwood TS-240W sandwich maker?

Plug in the appliance, close the lid for preheating. Wait for the green light to turn on. Place sandwiches on the plates, close the lid and lock the safety clasp. Let cook for 6 to 9 minutes, then remove sandwiches with a wooden or plastic spoon.

Why does the red light stay on?

The red light indicates the appliance is preheating. It goes off and the green light turns on when cooking temperature is reached. If the red light stays on permanently, check that the appliance is properly plugged in and the lid is closed.

Can I use metal utensils on the non-stick plates?

No, do not use metal utensils as they can scratch and damage the non-stick coating. Use wooden or plastic utensils instead.

How to clean the sandwich maker?

Unplug the appliance and let it cool completely. Clean the non-stick plates with a non-abrasive damp cloth. Never immerse the appliance, cord, or plug in water. Wipe the exterior with a soft damp cloth.

What to do if there is an odor or smoke during first use?

That is normal. It is a chemical reaction from the heating element. Ensure the room is well ventilated and let the appliance heat empty for a few minutes to remove manufacturing residues.

Can I use an extension cord with the TS-240W?

Using an extension cord is not recommended. If you must use one, ensure it has a power rating at least equal to the appliance and that it does not hang over the counter to avoid tripping hazards.

How to store the power cord?

After use and cooling, wrap the cord in the storage space under the appliance. Store the appliance in a cool, dry place, out of reach of children.

Does the appliance turn off automatically?

No, this appliance does not have an automatic shut-off function. To turn it off, unplug it from the wall outlet. Never leave it unattended while in operation.

What types of sandwiches can I make?

You can make classic sandwiches, croque monsieur, paninis, or any other preparation suitable for cooking between two hot plates. Avoid overfilling to prevent overflow.

What to do if the machine does not heat up?

Check that the appliance is plugged into a working outlet. Ensure the safety clasp is properly locked. If the problem persists, contact customer service; do not attempt to repair the appliance yourself.

USER MANUAL TS-240W Brentwood

Brentwood® Appliances

SANDWICH MAKER SANDWICHERA / GRILLE-SANDWICHES

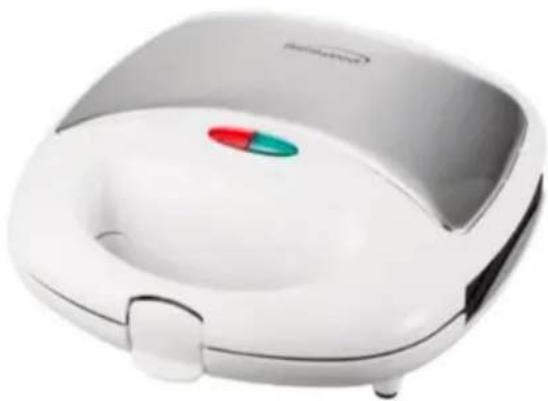

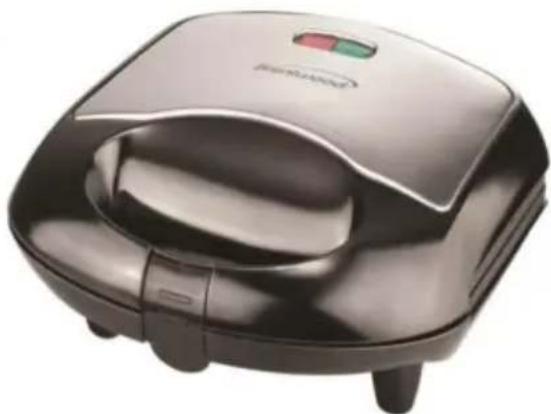

Model No.: TS-240W(White) & TS-240B(Black)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY Instrucciones de Operación y Seguridad SOLO PARA USO DOMESTICO Consignes de Sécurité et de Fonctionnement POUR USAGE DOMESTIQUE INTÉRIEUR SEULEMENT

IMPORTANT SAFEGUARDS

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

• This appliance generates heat and steam during use, do not touch hot surfaces.

- Do not use attachments not recommended or sold by the manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 5.

- Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

- This appliance does not have an "OFF" feature, to shut off please disconnect from power supply.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used;

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety

feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

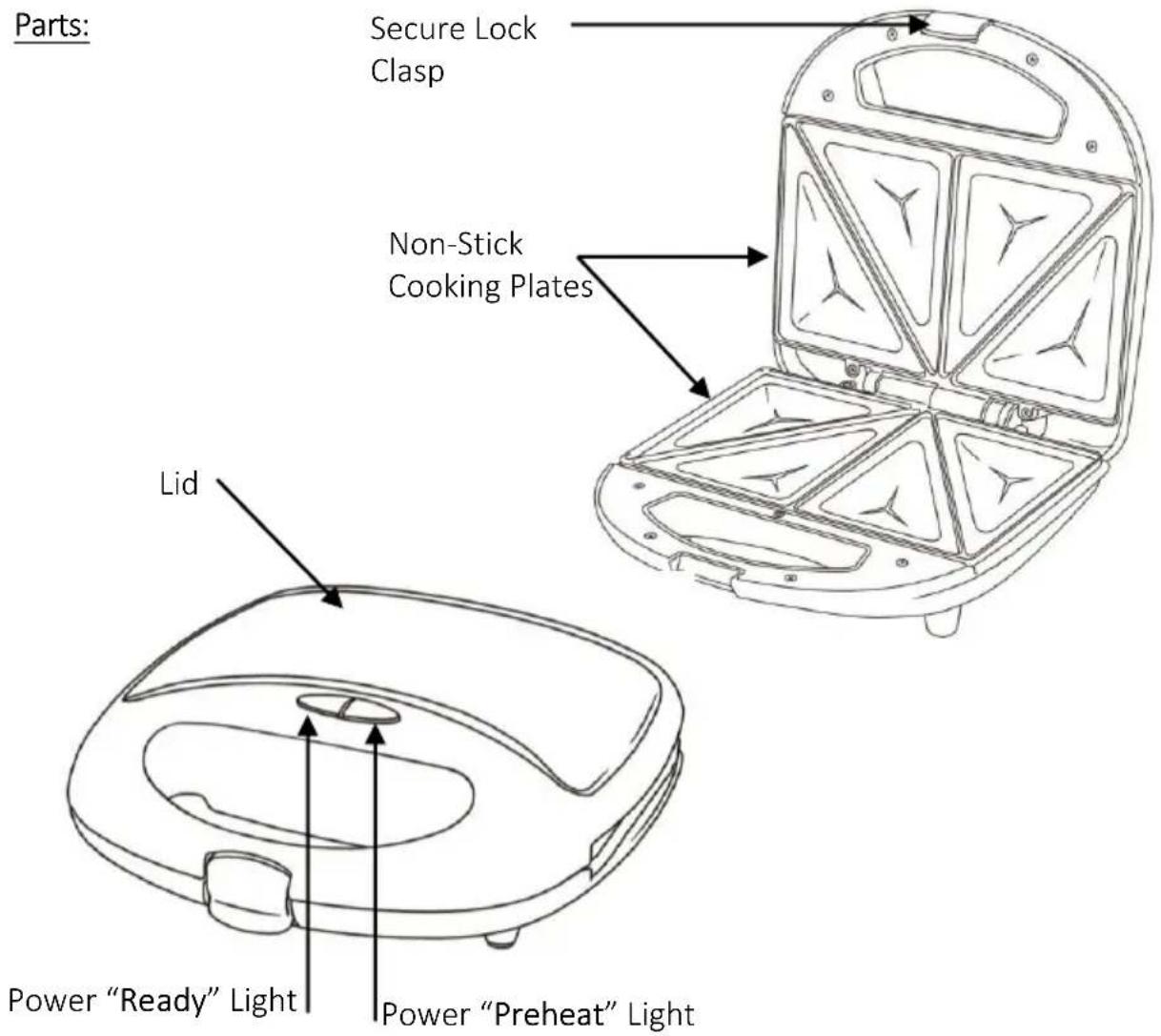

Using Your Sandwich Maker:

WARNING: Avoid contact with hot parts.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Before your first use wipe down all surfaces with a damp cloth and then dry. You can lightly coat the non-stick cooking plates with a small amount of vegetable oil. This helps to prolong the life of your non-stick.
2. Place your sandwich maker on a sturdy and clean flat surface.
3. Plug the product into an electrical outlet and preheat the appliance by closing the lid.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. When the Power is on, the red power light will come on to indicate the appliance is preheating. The green ready light will come on to indicate it is ready to cook.
2. Once the green ready light has come on raise the lid using an oven mitt. Place one sandwich on each side of the nonstick cooking plates. Your sandwich maker will portion sandwiches in half.

CAUTION: Do not overfill the product or operate it when empty.

1. Close the lid using the oven mitt and secure lock clasp in position.

NOTE: Steam may be released from the appliance during cooking. Only handle the appliance using kitchen gloves to avoid burns.

1. Cooking time generally ranges from 6-9 minutes and can vary depending on taste.
2. Once your sandwiches have finished cooking raise the lid with the oven mitt. Remove the sandwiches using a plastic or wooden spoon, do not use metal utensils as they may scratch and damage the non-stick cooking surface.
3. If you are cooking more than one batch of sandwiches in a session, after the first batch lower the lid to maintain the heat level until its ready to cook the next batch.

Cleaning Your Sandwich Maker:

NOTICE: Never immerse the Sandwich maker, plug or cord in water or any other liquid.

• Disconnect the Sandwich maker from the electrical outlet.
• Make sure the appliance is completely cooled before handling.
• Clean the upper and lower non-stick plates using a damp nonabrasive cloth.

NOTE: NEVER IMMERSE THE SANDWICH MAKER

• Exterior of Sandwich maker can be cleaned with a damp cloth as well.
• Dry all parts thoroughly before storing or using again.
• Wrap the cord in the cord storage below the appliance. Store in a cool, dry place. Away from reach of children.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase Store/Dealer

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

Email at [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
