USER MANUAL FP-581 Brentwood

Brentwood® SELECT

© 2021 Brentwood Appliances, Inc.

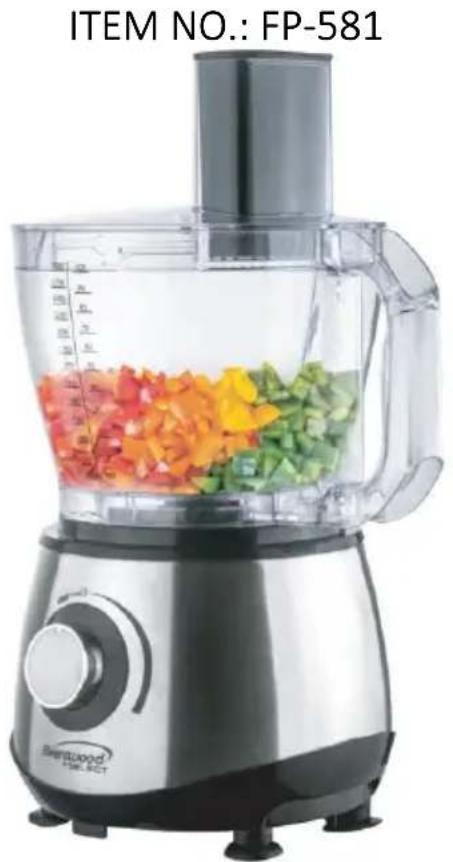

12.5 CUPS / 3 LITERS FOOD PROCESSOR PROCESADOR DE ALIMENTOS / ROBOT CULINAIRE

Exterior view of a modern kitchen blender with colorful chopped ingredients in the center (no text or symbols visible)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY Instrucciones de Operación y Seguridad SOLO PARA USO DOMESTICO Consignes de Sécurité et de Fonctionnement POUR USAGE DOMESTIQUE INTÉRIEUR SEULEMENT

IMPORTANT SAFEGUARDS

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs and use protective oven mitts or gloves when removing the Lid or handling hot containers when handling product.

- Do not use attachments not recommended or sold by the product manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot food, water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not operate the product empty.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

Special Instructions:

- Keep utensils away from the Stainless-Steel Blades to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used only when the chopper is not running

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if on must be used:

• The marked electrical rating must be at least as great as that of the product
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

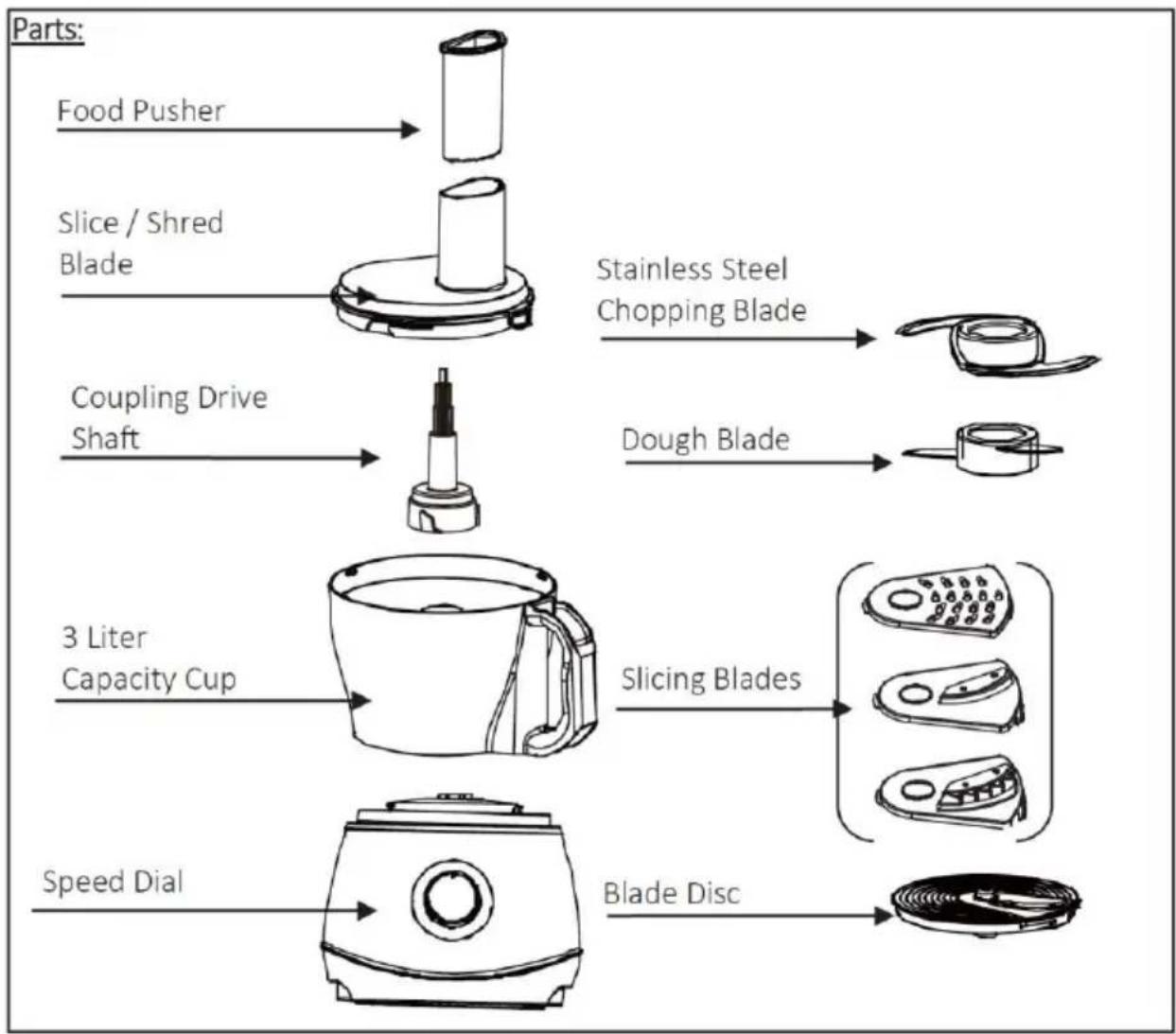


SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

OPERATION:

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

NOTE: Always assemble the product completely before plugging it into an electrical outlet.

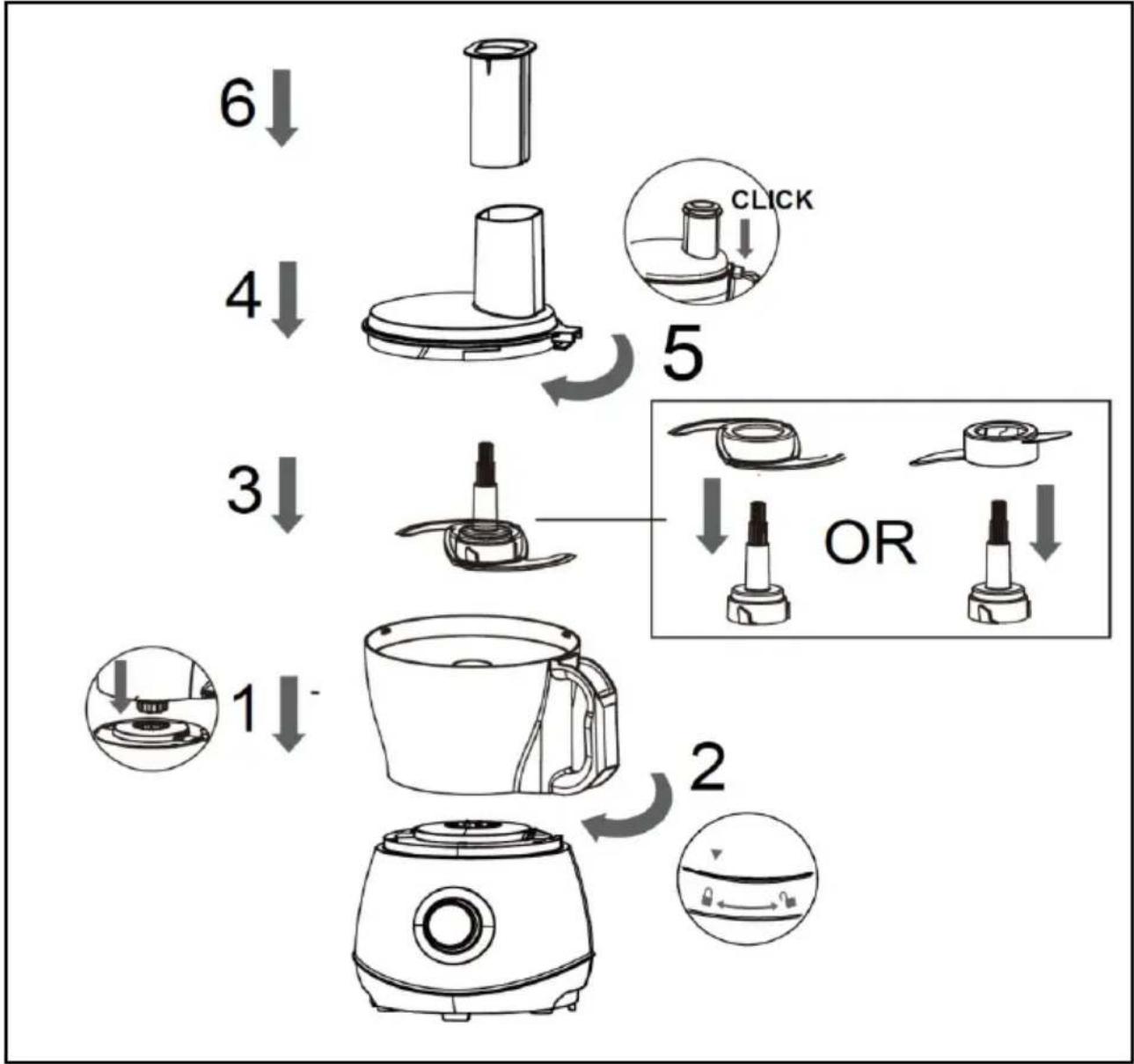

1. Follow the flow pictured step by step to assemble machine.

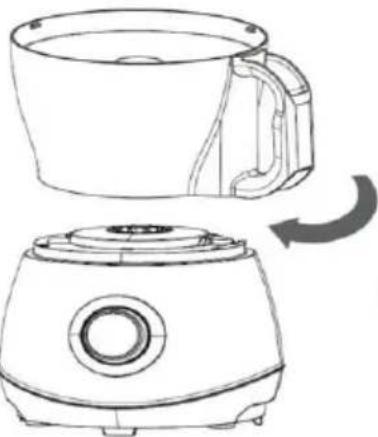

2. Ensure the bowl in step 2 and the lid in step 4 are locked well, or the machine will not work.

**Be certain the Lid is securely locked in place before operating appliance. Do not attempt to defeat the cover interlock mechanism.

1. After operation, you can disassemble machine by opposite flow and direction.

2. Always be careful when handling the stainless-Steel blade as they are very sharp.

3. Only open the lid when blades completely stopped

USING SLICER / JULIENNE / FRENCH FRIED POTATO JULIENNE DISC BLADE

Use for carrots, potatoes, cucumber, zucchini, beetroot and so on vegetables.

You could prepare food for Salad, garnishes, casseroles, stir fries and so on.

• Do not use the machine for more than 2 minutes at a time. Cool down the machine at least 30 minutes before the next operation.
• Please pay attention to the capacity line. Once the food approaches the max line on the container, please stop operation and pour out food.
• Switch on and push down evenly with the Pushers - never put your fingers in the feed tube.

Line drawing of a mechanical component with teeth and circular opening (no text or symbols)

Julienne Disc

Line drawing of a mechanical component with circular and rectangular features (no text or symbols)

Slicer Disc

Line drawing of a remote control device with a circular head and perforated body (no text or symbols)

Grating/Shredding Disc

Assembly:


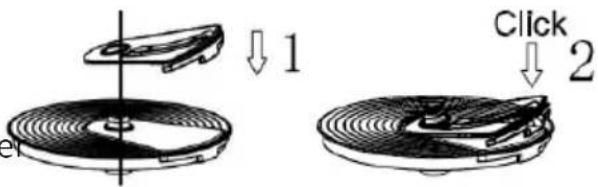

ASSEMBLE THE BLADE DISC:

1. Choose correct blade type you need

2. Press down the head of the disc into the holde

1 Click 2

DISASSEMBLE THE BLADE DISC:

1. Overturn the holder and then press down the head of the disc

2. Ensure the bowl in step 2 and the lid in step 4 are locked well, or the machine will not work.

Click

1. After operation, you can disassemble machine by opposite flow and direction.

2. Always be careful when handling the stainless-Steel blade as they are very sharp.

3. Only open the lid when the blades are completely Stopped. Always take care of blade disc, it is very sharp.

TIPS:

- For Stainless Steel Knife Blade: could be used for chopping raw and cooked meat, vegetables, nuts, pate, dips, pureeing soups and to also make crumbs from biscuits and bread. For coarser foods use the pulse control.

- Do not use continuously for more than 3 minutes. Allow the motor to cool before the next operation.

- Before processing, cut the meat into small pieces. Never put more than 500g of meat into the container.

- Do not use the stainless-steel knife blade for mixing flour.

- If you chop onions, use the pulse function a few times to prevent the onions from being too finely chopped.

- Do not let the appliance run too long when you chop (hard) cheese or chocolate. Otherwise these ingredients become too hot, start to melt and turn lumpy.

- For Plastic Knife Blade: could be used for dough making. Allow the motor to cool before the next operation.

- Plastic Knife Blade for dough 2.0L bowl no more than 500g flour with 300g water, Start machine with min. speed for around 10-20 seconds, and then turn to little bigger and bigger speed. Not exceed 1/3 speed. Cannot work more than 2 min.

CLEANING:

- Always ensure the product is unplugged from the electrical outlet and all the parts stopped before assembling, disassembling, relocating or cleaning it.

- Before cleaning please remove the power cord from the socket.

- Do not immerse the housing with motor in water. Do not use any abrasive detergents.

- Please only use a damp to clean the outside of the housing.

- Components that have come into contact with food can be cleaned in soapy water.

- Allow the parts to dry thoroughly before reassembling the device.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

USO DEL FRICCIONADO JULIENNE

Line drawing of a mechanical component with internal slots and a circular hole (no text or symbols)

Disco de Julienne

Simple line drawing of a mechanical component or tool (no text or symbols)

Disco de Corte

Line drawing of a remote control device with a circular head and perforated body (no text or symbols)

Simple line drawing of a cylindrical object mounted on a circular base (no text or symbols)

CLICK

4↓

6

3↓

OR

OR

1↓

Line drawing of a cup with handle and side panel (no text or symbols)

2

Line drawing of a portable kitchen appliance with a circular vent and lid (no text or symbols)

Line drawing of a mechanical component with slots and a circular end (no text or symbols)

Disque Julienne

Line drawing of a mechanical component with circular and rectangular features (no text or symbols)

Disque Trancheur

Line drawing of a remote control device with buttons and a circular head (no text or symbols)

Simple line drawing of a mechanical component with a circular base and a cylindrical top, no text or symbols present.

CLICK

4↓

OR OR

3↓

1↓

Line drawing of a kitchen blender with a handle and lid, showing the process from top to bottom (no text or symbols)
