USER MANUAL Roomba Combo i8 IROBOT

This owner's guide includes information for Regulatory Model(s): ADE-N2 and RVB-Y2

SAVE THESE INSTRUCTIONS

⚠ WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

⚠ WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Risk of electric shock Class II equipment

Risk of fire For indoor use only

Separate Supply Unit Rated power input, a.c.

Rated power output, d.c.

Rated power input, d.c.

Class III equipment

Read operator's manual

Keep out of reach of children

General symbol for recycling

BFPBackfeed Protection

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

WARNING

• This product is not a toy. Small children and pets should be supervised when the product is operating.
• Do not sit or stand on this product.
• Do not use unauthorised chargers. Use of an unauthorised charger could cause the battery to generate heat, smoke, catch fire, or explode.
• This product comes with a region approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. For replacement cords, please contact Customer Care to ensure proper selection of country specific power supply cord.
• Do not disassemble or open the dirt disposal unless instructed to do so. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
• Risk of electric shock, use indoors in dry location only.
• Do not handle your robot or charging station with wet hands.
• Be aware that floors may be slippery after wet cleaning with your robot.
• If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.

CAUTION

• Do not operate the robot in areas with exposed electrical sockets or gas shut-off valves in the floor.
• If the device passes over a power cord and drags it, there is a chance that an object could be pulled off a table or shelf. Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords and any fragile objects.
• Be aware that the robot moves on its own. Take care when walking in the

area that the robot is operating in to avoid stepping on it.

• Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
• Perform the required maintenance as per the Owner's Guide to ensure safe operation of the robot and charging station.
• Do not flip the robot over with the Combo Bin installed.
• Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.

NOTICE

• This robot is intended for dry floor use only. Do not use this device to pick up spills. Do not allow your robot or charging station to become wet.
• Do not place anything on top of your robot.
• The failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.
• Do not allow your robot or charging station to become wet.

AUTOMATIC DIRT DISPOSAL

WARNING

• To reduce the risk of electric shock, unplug your dirt disposal before cleaning.
• Do not pour any liquids into the device and do not immerse in water.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • Use only as described in this manual.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service centre.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

NOTICE

• Product may not be used with any type of power converter. Use of power converters will immediately void the warranty.
• If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your dirt disposal may be protected with a surge protector in the event of severe electrical storms.
• Do not use without dust bag and/or filters in place.

BATTERY

WARNING

• Do not open, crush, heat above 176°F: 80°C, or incinerate. Follow manufacturer's instructions.
• Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
• Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of safely according to local environmental regulations, or return it to your local authorised iRobot Service Centre for disposal.
• Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to post this product (with the battery included) for service, travel or any other reason, you MUST refer to the Troubleshooting section of your manual or contact Customer Care for postage instructions.

CAUTION

- Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

- The battery pack must be removed from the robot before recycling or disposal.

• For best results, only use the iRobot Lithium Ion Battery that comes with the robot.
• Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.
• Always charge and remove the battery from your robot and accessories before long-term storage.

This symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life battery in your appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or
(2) depositing it in a designated collection point.

The separate collection and recycling of end-of-life batteries at the time of disposal will help to conserve natural resources and to ensure that it is recycled in a manner that protects human health and the environment. For more information, please contact your local recycling office or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of-life batteries may result in the negative potential effects on the environment and human health due to the substances in the batteries and accumulators. Information regarding the effects of problematic substances in the battery waste stream may be found at the following source: http://ec.europa.eu/environment/waste/batteries/

About Your Roomba® Robot Vacuum

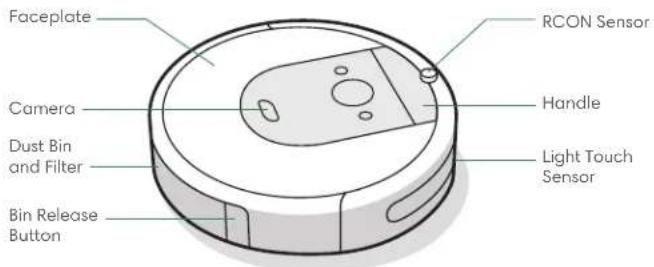

Top View

Faceplate RCON Sensor Camera Handle Dust Bin and Filter Light Touch Sensor Bin Release Button

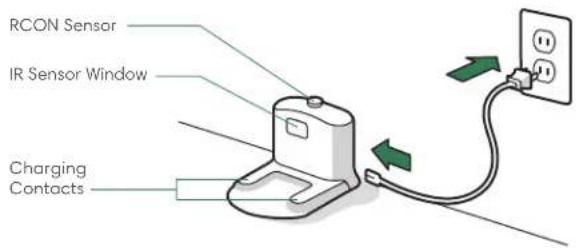

Home Base™ Charging Station

RCON Sensor IR Sensor Window Charging Contacts

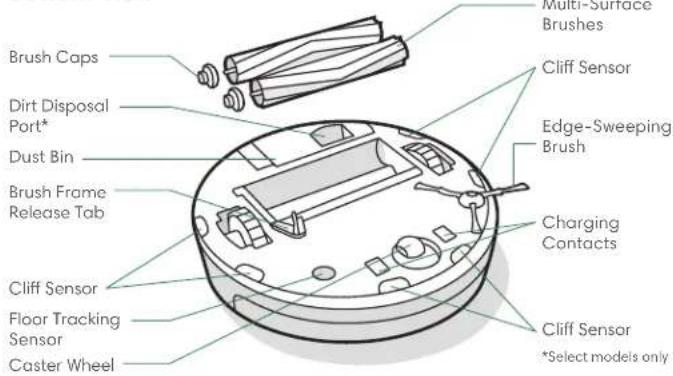

Bottom View

Brush Caps Dirt Disposal Port* Dust Bin Brush Frame Release Tab Cliff Sensor Floor Tracking Sensor Caster Wheel Multi-Surface Brushes Cliff Sensor Edge-Sweeping Brush Charging Contacts Cliff Sensor *Select models only

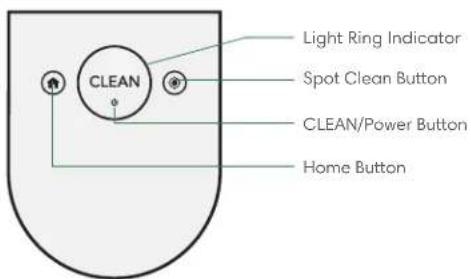

Buttons and Indicators

Light Ring Indicator Spot Clean Button CLEAN/Power Button Home Button

1 For more information, visit global.irobot.com

About Your Clean Base™ Automatic Dirt Disposal

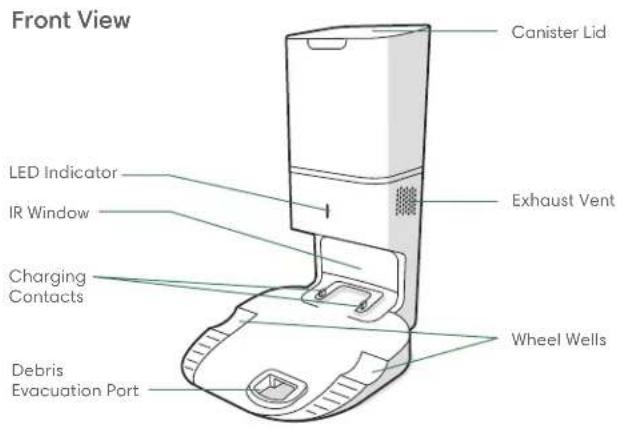

Front View Canister Lid LED Indicator IR Window Charging Contacts Debris Evacuation Port Exhaust Vent Wheel Wells

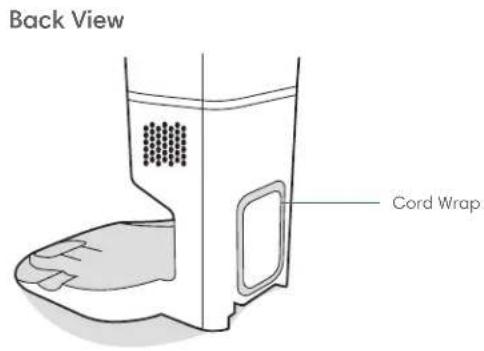

Back View Cord Wrap

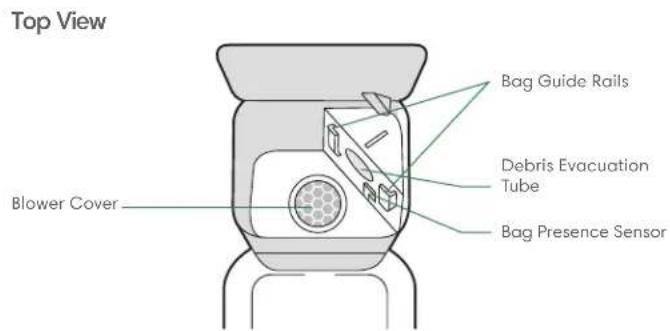

Top View Blower Cover Bag Guide Rails Debris Evacuation Tube Bag Presence Sensor

Bottom View Debris Evacuation Tube

Roomba Combo™ i8+ Owner's Guide

Using your Roomba® Robot Vacuum

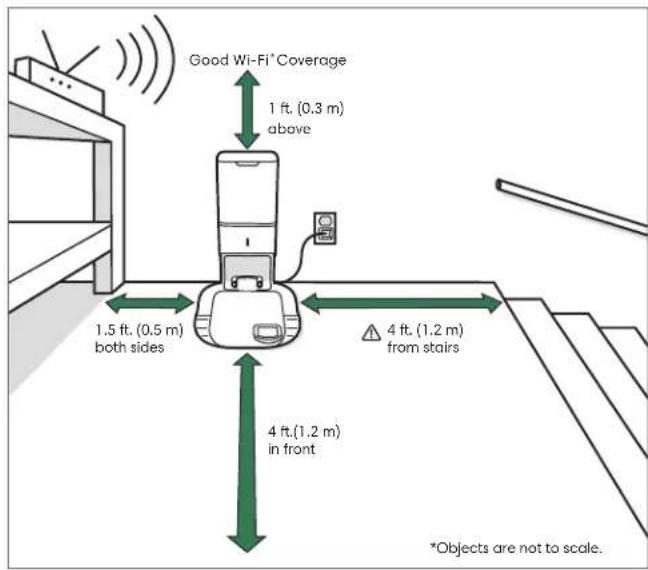

Positioning the Clean Base™ Automatic Dirt Disposal

Good Wi-Fi*Coverage 1 ft. (0.3 m) above 1.5 ft. (0.5 m) both sides 4 ft. (1.2 m) from stairs 4 ft.(1.2 m) in front *Objects are not to scale.

WARNING: To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from stairs.

Download the iRobot Home App and Connect to Wifi

• Follow the step-by-step instructions to set up your Roomba.
• Set up PrecisionVision Navigation to avoid obstacles in real time.
• Set an automatic cleaning schedule and customise cleaning preferences.
  • Create smart maps to tell your robot where and when to clean.

App Store

Google Play

About Your Automatic Dirt Disposal

While cleaning, your robot will automatically return to the dirt disposal to empty its bin and recharge as needed.

The dirt disposal's LED indicator will turn solid red when a new bag is needed. If a clog is detected, the dirt disposal will trigger additional attempts to automatically clear the clog.

Note: If you place your robot on the dirt disposal by hand, it will not empty automatically. In this case, use the iRobot Home App or the 📄 button on your robot to manually empty your robot's bin.

Cleaning

Remove excess clutter from floors before cleaning. Use your robot frequently to maintain well-conditioned floors.

Illustration of a hand holding a circular device with a green sensor or indicator on the screen (no text or symbols)

Just Press CLEAN

Tap to Start/Pause/Resume

Hold for 3 seconds to end a job

• Your robot will automatically explore and clean your Home. It will return to the charging station at the end of a cleaning job and whenever it needs to recharge.
• To send the robot back to its charging station, tap A blue light ring pattern will indicate that the robot is seeking the charging station.
• When your robot detects an especially dirty area, it will engage Dirt Detect™ mode, moving in a forward/backward motion to clean the area more thoroughly. The light ring indicator will flash blue.
• Tap ⚙ to spot clean a designated area. The robot will spiral outward about 3 feet (1 meter) and then spiral inward to end where it started. The light ring indicator will show a blue spiral.

When the robot senses its bin needs to be emptied, the light ring indicator will illuminate in a red sweeping motion toward the rear.

Charging

CLEAN

White Light Ring While Charging

Solid White: fully charged

Pulsing White: charging.

- Place the robot on the charging station to activate the battery.

Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.

• If the "CLEAN" text is pulsing while charging, the robot is in the middle of a cleaning job and will automatically resume where it left.off once recharged.
• The robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot Home App.
• For long-term storage, turn off the robot by removing it from the charging station and holding down for 10 seconds. Store the robot in a cool, dry place.

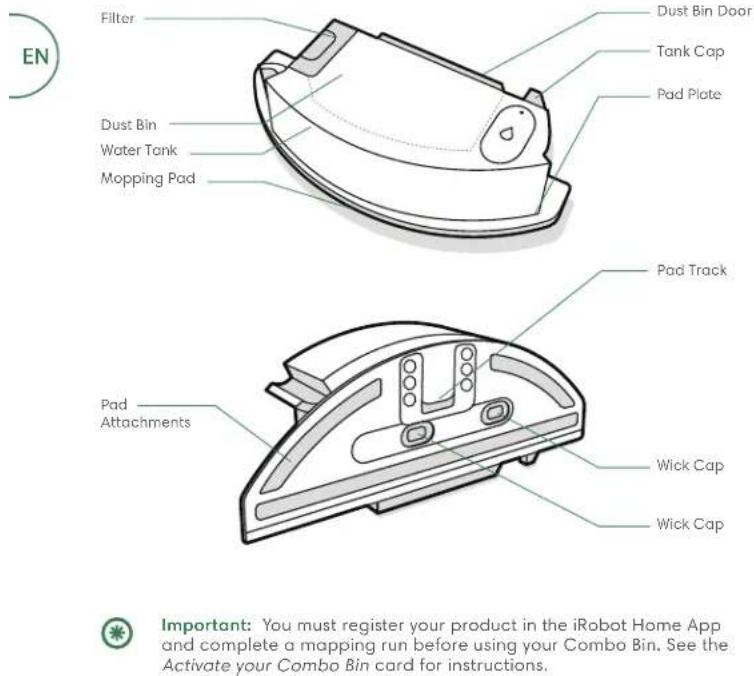

Roomba Combo™ Bin

Important: You must register your product in the iRobot Home App and complete a mapping run before using your Combo Bin. See the Activate your Combo Bin card for instructions.

1

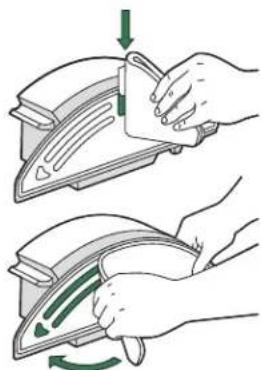

INSTALL THE MOPPING PAD Slide the pad down over the track. Press the pad to the plate to attach.

Illustration of hands using a power tool to clean or adjust a device (no text or symbols present)

2

FILL THE BIN

Fill the Combo Bin with water. You may also use a compatible cleaning solution. Compatible solutions are listed at this answers.irobot.com/s/roomba-combo-cleanser

Illustration of a hand using a tool to press or install a small electronic component (no text or symbols visible)

Note: The product starts wicking as soon as water is put into the tank.

3

SWAP THE BINS

Remove the Dust Bin from the robot, and install the Combo Bin.

Important: Do not flip the robot over with the Combo Bin installed

Illustration of two hands performing a circular device manipulation task (no text or symbols present)

Care and Maintenance

Care and Maintenance Instructions

To keep your robot running at peak performance, perform the procedures on the following pages.

There are additional instructional videos in the iRobot Home App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter, and clean the brushes.

Part Care Frequency Replacement Frequency*
Bin Wash bin as needed -
Filter	Clean once a week (twice a week if you have a pet).Do not wash.	Every 2 months
Full Bin Sensor Clean every 2 weeks -
Front Caster Wheel Clean every 2 weeks Every 12 months
Edge-Sweeping Brush and Multi-Surface Brushes	Clean once a month (twice a month if you have a pet).	Every 12 months
Sensors and Charging Contacts Clean once a month -
Mopping pad Clean after a mopping job	After 30 washes
Wick cap Replace if dirty or shows wear -
Bags -		Bags should be replaced when prompted by the LED indicator/app
Charging Contacts IR Window	Once every month	-
Blower Cover inside conister	Once every month (remove debris from blower cover)	-

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

*Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin

1 Press bin release button to remove bin.

Illustration of a hand inserting a device into a circular device (no text or symbols)

2 Open bin door to empty bin.

3 Place bin back in the robot.

Illustration of a hand holding a robotic vacuum cleaner with green arrows indicating rotation (no text or symbols)

Cleaning the Filter

1 Remove the bin. Remove the filter by grasping both ends and pulling out.

Line drawing of a hand inserting a card into a device (no text or symbols)

2 Remove debris by tapping the filter against your trash container.

Line drawing of a hand pouring liquid into a container (no text or symbols)

3 Reinsert filter with ridged grips facing out. Place bin back in the robot.

Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

Cleaning the Full Bin Sensors

1 Remove and empty the bin.

Illustration of three hands operating a CD or DVD disc, with a paint can and a tool nearby (no text or symbols)

2 Wipe the inner sensors with a clean, dry cloth.

Line drawing of a circular robotic device with ventilation grilles and control knobs (no text or symbols)

3 Wipe the bin door with a clean, dry cloth.

Closed Door

Open Door

Washing the Bin

Important: Do not wash the filter. Remove the filter before washing the bin.

1 Release the bin, remove the filter, and open the bin door.

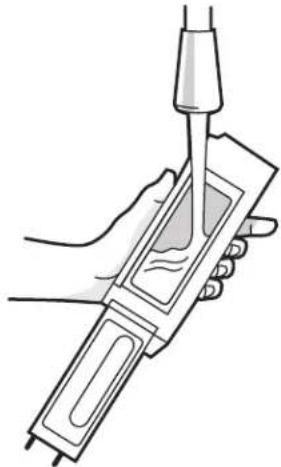

2 Rinse the bin using warm water.

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Note: Bin is not dishwasher safe.

3 Make sure bin is completely dry. Reinsert filter and place bin back in the robot.

Cleaning the Edge-Sweeping Brush

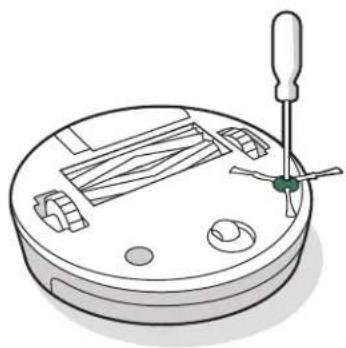

1 Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.
2 Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

Illustration of a circular mechanical device with internal components and a screwdriver inserted (no text or symbols)

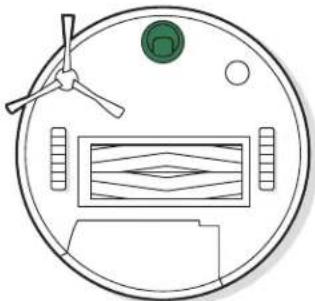

Cleaning the Front Caster Wheel

1 Pull firmly on the front wheel module to remove it from the robot.

Simple line drawing of a circular object with a propeller and window-like elements, no text or symbols present.

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.

2 Pull firmly on the wheel to remove it from its housing

WheelAxle Housing

3 Remove any debris from inside the wheel cavity.
4 Reinstall all parts when finished. Make sure the wheel clicks back into place.

Cleaning the Multi-Surface Brushes

1 Pinch the brush frame release tab, lift the tab, and remove any obstructions.

Technical line drawing of a circular mechanical component with internal components and a green arrow indicating motion (no text or symbols)

2 Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.

3 Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.

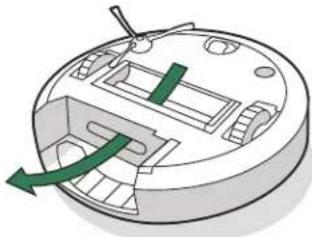

4 Remove the bin from the robot and clear any debris from the vacuum path.

Diagram of a circular device with internal components and a green arrow indicating rotation (no text or symbols)

5 Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module

Diagram showing three cylindrical objects with green arrows indicating movement or force direction (no text or symbols)

9 For more information, visit global.irobot.com

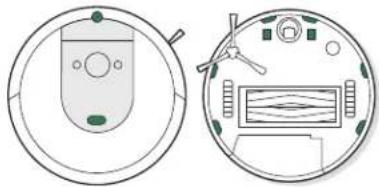

Cleaning the Sensors, IR Window, and Charging Contacts

1 Wipe sensors and charging contacts with a clean dry cloth. You can alternately use a pad of melamine foam to remove built up debris on the robot and CleanBase charging contacts.

Two circular diagrams showing a remote control device and a monitor with a hand gesture (no text or symbols)

2 Inspect the sensors and charging contacts to make sure they are clear of debris. Wipe with a clean, dry cloth.

Line drawing of a mechanical device with a green component and base (no text or symbols)

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Removing Debris from Blower Cover

Inspect blower cover for any lint or debris built-up, and wipe with a clean dry cloth to remove.

Diagram of a device with a green circular component inside a container, no text or symbols present

Cleaning the Mopping Pad Replacing the Wick Cap

HAND WASHING

Thoroughly wash the pad with warm water.

Illustration of a medical procedure with a pipette inserted into a shaded tissue area (no text or symbols)

MACHINE WASHING

Wash using the warm cycle, then air dry. Do not tumble dry. Do not wash with delicates.

1

Remove pad plate

Illustration of two hands holding a smartphone with a green arrow indicating the change (no text or symbols present)

2

Remove the wick cap by pulling on the side rubber tab.

Hand holding a device with green arrows pointing upward (no text or symbols visible)

3

Replace with a new wick cap, pressing firmly into place to create a tight seal to prevent leaking.

4

Reintall pad plate

Replacing the Bag

1 Lift up on the canister lid to open.

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

2 Pull up on the plastic card to remove the bag from the canister.

Note: This will seal the bag so dust and debris cannot escape.

Diagram of a device with an upward arrow and label 'Analog' (no text or symbols on the device itself)

11 For more information, visit global.irobot.com

3 Discord the used bag.

4 Install a new bag, sliding the plastic card into the guide rails.

Label

5 Press down on the lid making sure it is completely closed.

Note: To achieve optimal performance with your robot and automatic dirt disposal, clean and/or replace your robot's filter as needed.

Troubleshooting

Automatic Dirt Disposal

Your dirt disposal will tell you if something is wrong via an LED indicator on the front of the canister and through the iRobot Home App.

LED Indicator Common Error How to Fix
Solid Red Bag full or missing 1. Replace bag if it is full or missing.2. Make sure the bag is securely inserted.3. If problem persists, remove any debris from the port on the bottom of your robot and the dirt disposal.
Blinking Red There is a leak or a clog in the dock evacuation path		1. Make sure the canister lid is pushed down and firmly sealed.Tap the 🔒 button on your robot to manually empty the bin.2. Remove any debris from the port on the bottom of your robot and dirt disposal.3. Unplug the dirt disposal from the wall. Place it on its side and inspect the debris evacuation tube for debris. If necessary, remove the tube to clear any debris.

Robot

- Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN or tap the bumper for details. Further support and instructional videos are available in the iRobot Home App.

Red Light Ring

Low battery. Please charge.

• After 90 minutes of inactivity off the charging station, the robot will automatically end its cleaning job.

Battery Safety & Shipping

For best results, only use the iRobot Lithium Ion Battery that comes with your robot.

WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel, or any other reason, you MUST follow the below shipping instructions.

• Battery MUST be turned off before shipping.
• Turn off the battery by removing the robot from the charging station and holding down nor 10 seconds. All indicators will turn off.
• Package the robot securely for shipping.
• If you need further assistance, contact our Customer Care team or visit global.irobot.com.

Regulatory Information

EN

Hereby, iRobot Corporation declares that this radio equipment device is in compliance with the EU Radio Equipment Directive 2014/53/EU and the RoHS Directive 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.irobot.com/compliance.

Hereby, iRobot Corporation declares that this radio equipment device is in compliance with the Radio Equipment Regulations 2017 and the The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UKCA Declaration of Conformity is available at the following internet address: www.irobot.com/compliance

Regulatory Model RVB-Y2 incorporates the Harpoon radio module model AXE-Y1. The Harpoon radio module is a dual band radio which operates in the WLAN 2.4GHz and WLAN 5GHz bands.

The 2.4 GHz band is limited to operate between 2400 MHz and 2483 MHz with a maximum EIRP output power of 17.56 dBm (57 mW) at 2472 MHz.

The 5 GHz band is limited to operate between 5150 MHz and 5725 MHz with a maximum EIRP output power of 18.23 dBm (66.52 mW) at 5700 MHz.

For Israel, the 5GHz band is limited to operate in the 5150MHz-5350MHz band.

This symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or

(2) depositing it in a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. More information may be found at the following source: https://ec.europa.eu/environment/topics/waste-and-recycling/waste-electrical-and-electronic-equipment-wee_en

Recycle your end-of-life iRobot product responsibly as per local regulations.

The following is a list of the WEEE recycling organisations contracted by

iRobot at the time of product sale.

Location Organisation URL
Austria UFH http://www.elektro-ade.at/elektrogeraete-sammeln/liste-der-sammelstoesterreich/
Belgium Recupel https://www.recupel.be/en/where-to-go/?searchcollectionPoints=&categories=1%2C2%2C3%2C4#
Germany Zentek https://www.ear-system.de/ear verzeichnis/sammel-und-ruecknahmestback
Denmark Elretul https://www.dpa-system.dk/DPAAplications/DPADB.aspx?wf=CollectionPointSearch.as
Spain Ecotic https://punto-limpio.info/
France Eco-systemes https://www.eco-systemes.fr/france
Ireland WEEE Ireland http://www.weeeireland.ie/household-recycling/where-can-i-recycle/
Netherlands Wecycle https://www.watismijnapparaatwaard.nl/
Sweden	El-Kretsen	https://www.sopor.nu/sortera-återvinn/
United Kingdom	Repic	http://www.responsible-recycling.co.uk/contact-us/find-your-local-recy

Manufacturer Address: iRobot Corporation, 8 Crosby

Drive, Bedford MA 01730, USA

iRobot Customer Care

USA & Canada

If you have questions or comments about your dirt disposal, please contact iRobot before contacting a retailer.

You can start by visiting global.irobot.com for support tips, frequently asked questions, and information about accessories. This information can also be found in the iRobot Home App. If you need further assistance, call the US Customer Care team at [phone].

iRobot USA Customer Care Hours

Monday to Friday, 9AM — 9PM Eastern Time

Saturday and Sunday 9AM — 6PM Eastern Time

Outside USA & Canada

Visit global.irobot.com to:

Learn more about iRobot in your country

Get hints and tips to improve your product performance

Get answers to questions

Contact your local support center

The complete owner's guide is available at about.irobot.com/manual#comboi8plus

iRobot

©2022 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved. iRobot, Roomba, and Virtual Wall are registered trademarks of iRobot Corporation. HomeBase+ is a trademark of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

15 For more information, visit global.irobot.com

Illustration of a hand holding a small green object on a circular device (no text or symbols visible)

Appuyez sur CLEAN

Illustration of hands using a power tool to press down an iron, showing motion and rotation (no text or symbols)

2

REMLISSAGE DU BAC

Illustration of a hand using a pipette to lift a small object on a base (no text or symbols)

Illustration of two hands holding circular objects, one with a green clip and the other with a green clip (no text or symbols)

Illustration of a hand holding a CD or DVD disc with a green clip, no text or symbols present

Illustration of a hand pressing down on a robotic vacuum cleaner's side panel with green arrows indicating motion (no text or symbols)

Nettoyage du filtre

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Rofted or video to be done.

Line drawing of a circular robotic device with control panels and a propeller (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Line drawing of a circular mechanical device with internal components and a handle (no text or symbols)

Simple line drawing of a circular object with internal geometric patterns and a small green circle on top (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and a green tool (no text or symbols)

Diagram of a circular device with internal components and green arrows indicating motion or flow (no text or symbols)

Diagram showing green directional arrows pointing to cylindrical and oval components (no text or symbols)

Two circular diagrams showing a device inside and a screen with a handle, no text or symbols present.

Diagram of a mechanical device with a green circular component inside, no text or symbols present

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

NETTOYAGE EN MACHINE À LAVER

Illustration of two hands holding a device with arrows indicating movement (no text or symbols)

Hand holding a small electronic device with green indicator lights and upward arrows (no text or symbols)

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

Diagram of a device with an upward arrow labeled 'Takota' and a green arrow pointing to it, inside a container (no text or symbols beyond label)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

Illustration of a hand holding a circular device with a green sensor or indicator on the surface (no text or symbols)

Simplemente pulse CLEAN

Illustration of hands using a power tool to clean iron, showing step-by-step motion (no text or symbols)

2

Illustration of a hand using a sewing machine to press down fabric or material (no text or symbols visible)

Illustration of two hands holding circular objects, one with a green handle and the other with a green handle (no text or symbols)

Illustration of a hand holding a CD or DVD disc with a green clip, no text or symbols present

Illustration of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Limpieza del filtro

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand pouring liquid into a cylindrical container (no text or symbols)

Illustration of three different cleaning or cleaning tools: a circular device with a handle, a handheld tool, and a bucket (no text or symbols present)

Line drawing of a circular robotic device with control panel and green buttons (no text or symbols)

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Simple line drawing of a circular object with internal geometric shapes and a central green circle (no text or symbols)

Technical line drawing of a circular mechanical component with internal blades and a green arrow indicating direction (no text or symbols)

Diagram of a circular device with internal components and green arrows indicating motion or movement (no text or symbols)

Diagram showing directional arrows between cylindrical and rod-like components (no text or symbols)

Two circular diagrams showing internal components, one with a device and the other with a screen (no text or symbols)

Diagram of a mechanical device with a green circular component and internal components (no text or symbols)

Simple line drawing of a medical or surgical procedure with a tool inserted into a shaded area (no text or symbols)

LAVADO A MÁQUINA

Illustration of two hands holding a device with a green arrow indicating the change (no text or symbols present)

Hand holding a device with green arrows indicating upward movement (no text or symbols)

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

Diagram of a device with an upward arrow and label 'Mall' (no text or symbols on the device itself)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

Illustration of a hand pressing a green circular component on a white circular device (no text or symbols)

Basta premere CLEAN

Illustration of hands using a power tool to lift a metal sheet (no text or symbols present)

2

Illustration of a hand using a sewing machine to cut a shoe (no text or symbols visible)

Illustration of two hands holding circular objects, one with a green clip and the other with a green handle (no text or symbols)

Cura e manutenzione

Illustration of a hand holding a robotic vacuum cleaner with green arrows indicating rotation (no text or symbols)

Pulizia del filtro

Hand inserting a card into a device (no text or symbols visible)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of hands using a device to remove a container from a disc (no text or symbols)

Line drawing of a circular robotic device with internal components and a propeller (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Line drawing of a circular mechanical device with a screwdriver inserted, no text or symbols present

Simple line drawing of a circular object with a propeller and a green circular element, no text or symbols present.

Diagram of a circular device with internal components and green arrows indicating motion or force (no text or symbols)

Diagram of a circular device with internal components and a green arrow indicating rotation (no text or symbols)

Diagram showing directional arrows between cylindrical and rectangular components (no text or symbols)

Two circular diagrams showing internal components with no visible text or symbols

Line drawing of a mechanical device with a green component and a small inset view (no text or symbols)

Diagram of a mechanical device with a green circular component and internal components (no text or symbols)

Illustration of a medical or surgical procedure with a tool inserted into a shaded area (no text or symbols)

LAVAGGIO IN LAVATRICE

Illustration of two hands holding a device with arrows indicating movement (no text or symbols)

Illustration of a hand holding a device with green arrows indicating upward movement (no text or symbols)

Diagram of a device with a green arrow indicating rotation or movement, no text or symbols present

Diagram of a device with an upward arrow and label 'Mood' (no text or symbols on the device itself)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

Illustration of a hand holding a small green object on a circular device (no text or symbols visible)

Illustration of hands using a tool to clean or adjust a machine component, showing green arrows indicating motion (no text or symbols)

2

FÜLLEN DES BEHÄLTERS

Illustration of a hand using a tool to clean or store items, no text or symbols present

Illustration of two hands exchanging a circular object, one with a green label and the other with a green label (no text or symbols present)

Pflege und Wartung

Illustration of a hand holding a CD or DVD disc with a green clip (no text or symbols)

Illustration of a hand pressing down on a circular device with green arrows indicating motion (no text or symbols)

Reinigen des Filters

Line drawing of a hand inserting a small component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Diagram of a circular robotic device with internal components and no visible text or symbols

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Simple line drawing of a circular object with a propeller, a green circular element, and internal geometric shapes (no text or symbols)

Technical illustration of a circular mechanical component with internal components and directional arrows (no text or symbols)

Diagram of a circular device with internal components and a green arrow indicating direction (no text or symbols)

Diagram showing directional arrows between cylindrical and rectangular components (no text or symbols)

Two circular diagrams showing a device inside and a close-up view of a device with a screen (no text or symbols)

Line drawing of a medical device with a green screen and base (no text or symbols)

Diagram of a mechanical device with a green circular component inside, no text or symbols present

Illustration of a hand holding a tool above a shaded curved surface (no text or symbols)

MASCHINENWÄSCHE

Illustration of two hands holding a small object, one with green arrows indicating direction (no text or symbols)

Hand holding a device with green arrows pointing upward (no text or symbols visible)

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

Diagram of a device with an upward arrow and label 'Mood' (no text or symbols on the device itself)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

iRobot® Kundendienst

USA und Kanada

Illustration of a hand holding a small green object on a circular device (no text or symbols visible)

Illustration of hands using a power tool to clean or adjust a device (no text or symbols present)

2

NAPEŁNIJ POJEMNIK

Illustration of a hand using a sewing machine to lift a shoe (no text or symbols visible)

Illustration of two hands exchanging a circular object, one with a green label and the other with a green label (no text or symbols present)

Illustration of a hand holding a device with a green button, no text or symbols present

Illustration of a hand pressing down on a circular device with green arrows indicating motion (no text or symbols)

Czyszczenie filtra

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of a hand holding an open electronic device and a small container, with no visible text or symbols.

Line drawing of a circular robotic device with no visible text or symbols

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Simple line drawing of a circular object with a propeller, window, and rectangular elements (no text or symbols)

Technical line drawing of a circular mechanical component with internal blades and mounting features (no text or symbols)

Diagram of a circular device with internal compartments and a green directional arrow indicating rotation (no text or symbols)

Diagram showing directional arrows and green geometric shapes on a surface, with no visible text or symbols.

Two circular diagrams showing internal components, one with a device and control panel, the other with a screen and toolbar (no text or symbols)

Line drawing of a mechanical device with a green component and base (no text or symbols)

Diagram of a container with a green spherical object inside, showing internal components (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a shaded area (no text or symbols)

PRANIE W PRALCE

Illustration of two hands holding a device with arrows indicating movement (no text or symbols)

Hand holding a device with green arrows pointing upward (no text or symbols)

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

Diagram of a device with an upward arrow and label 'Mood' (no text or symbols on the device itself)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA
