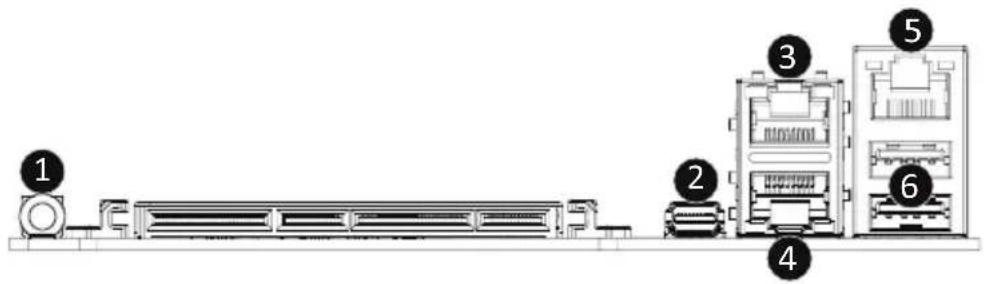

1-6 Back Panel Connectors.... 17

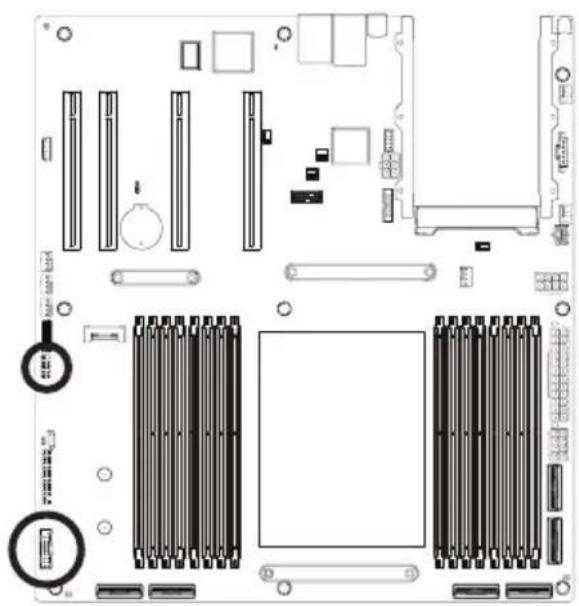

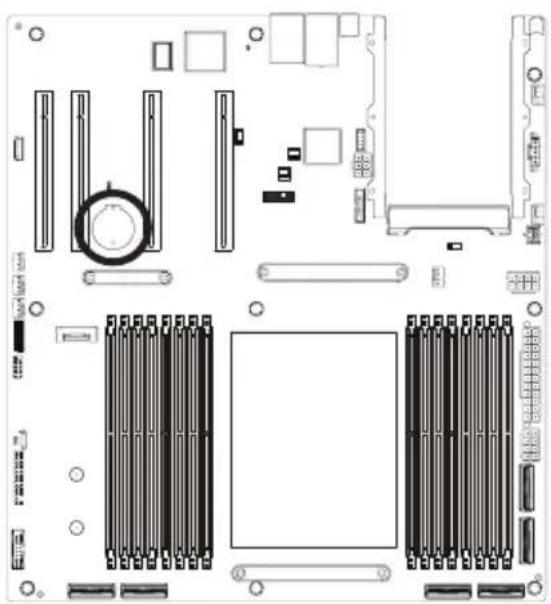

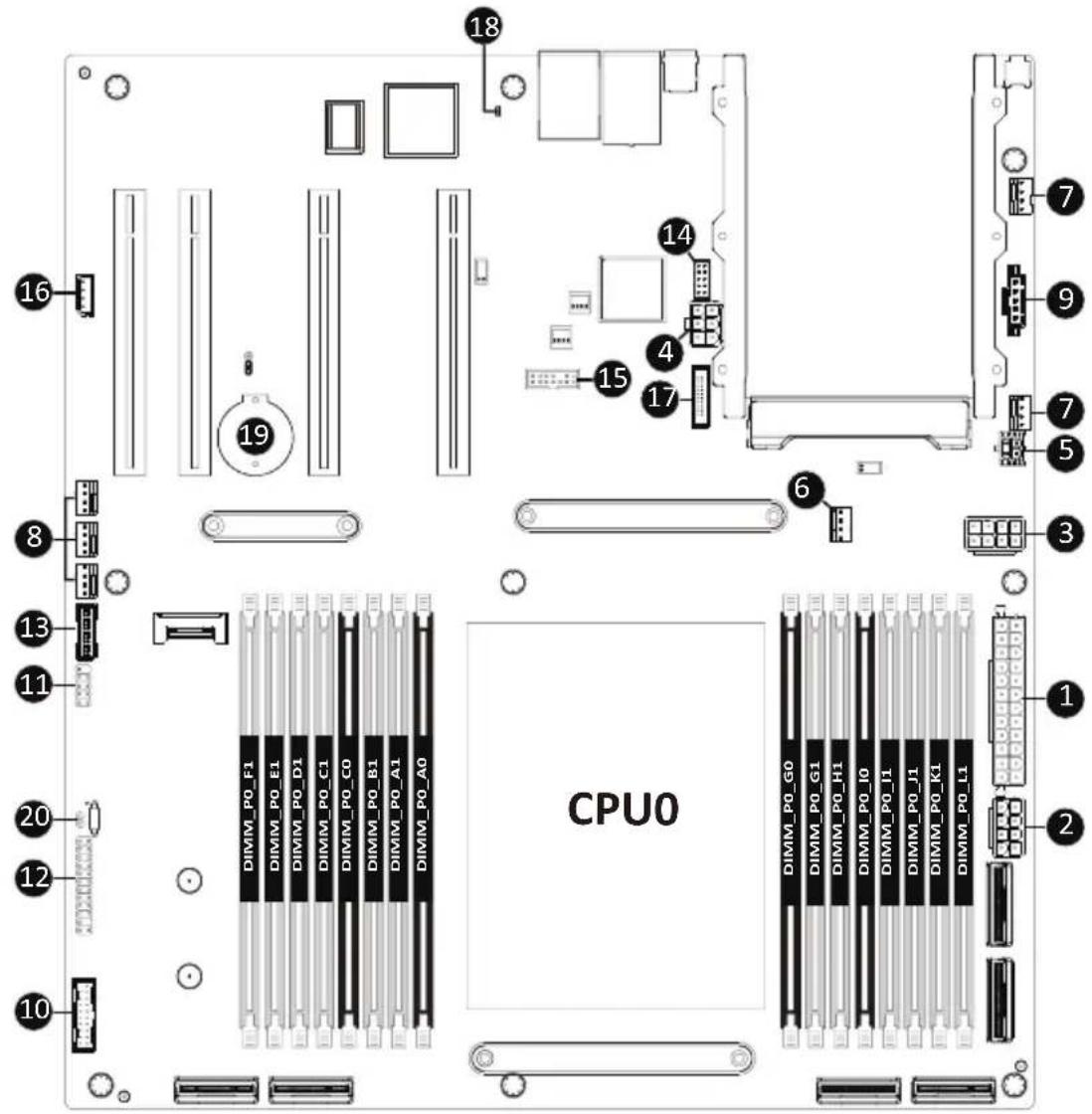

1-7 Internal Connectors.... 18

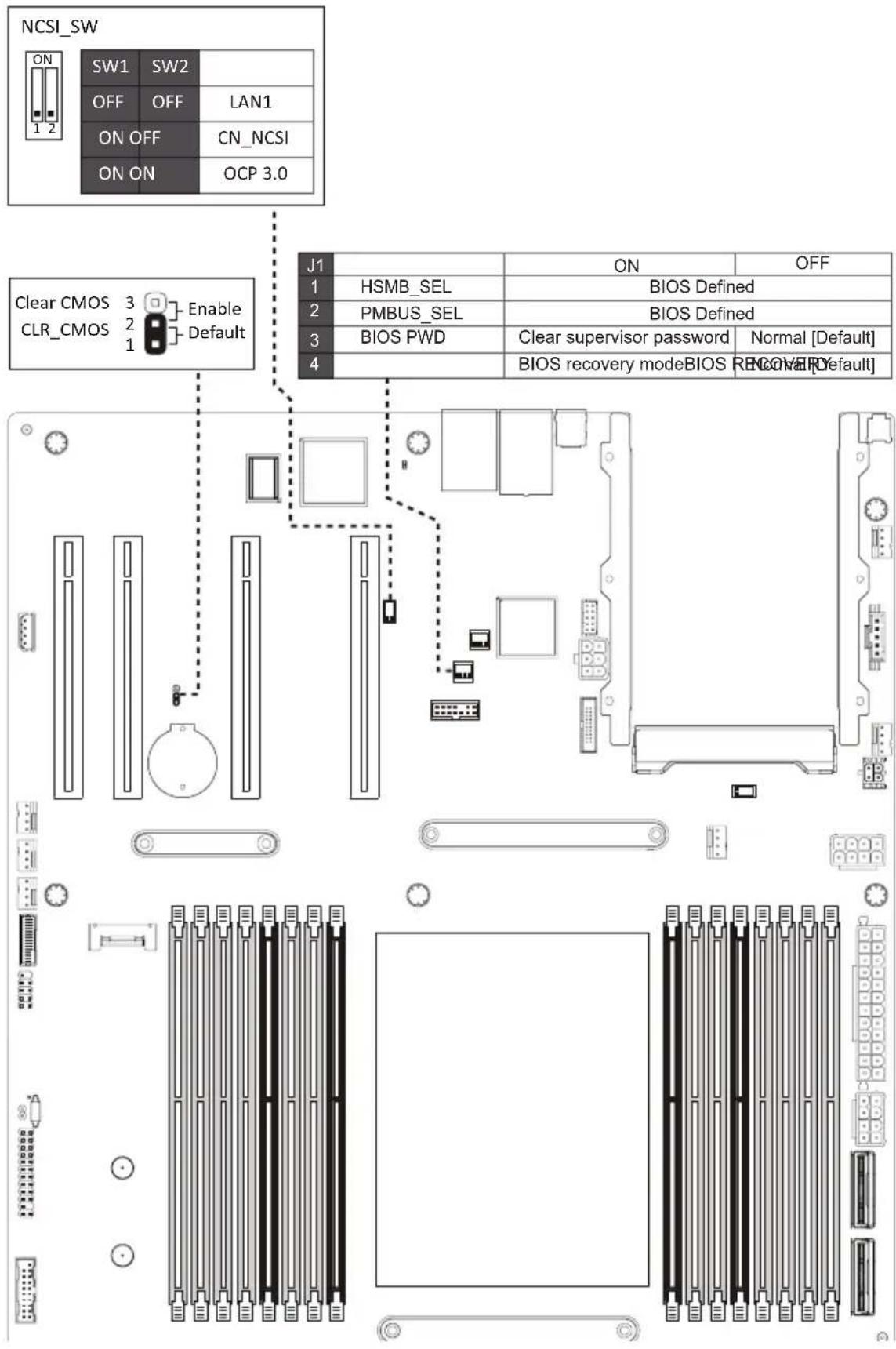

1-8 Jumper Settings 27

Chapter 2 BIOS Setup....28

2-1 The Main Menu 30

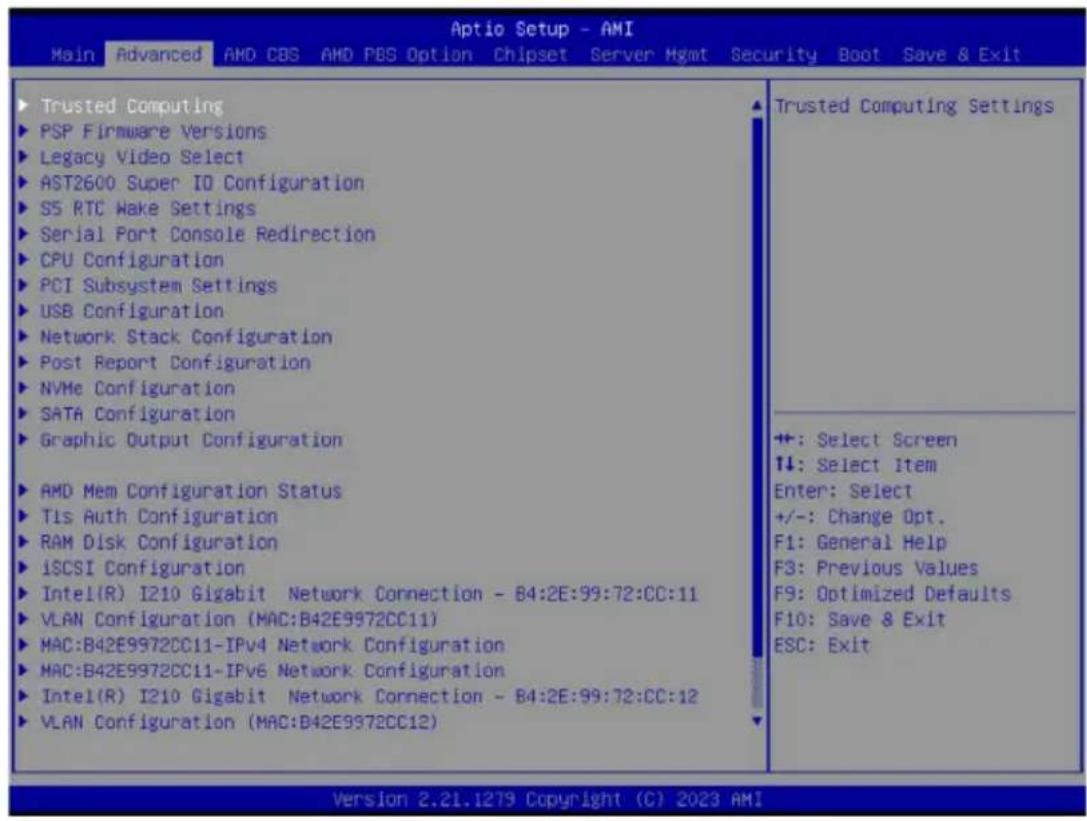

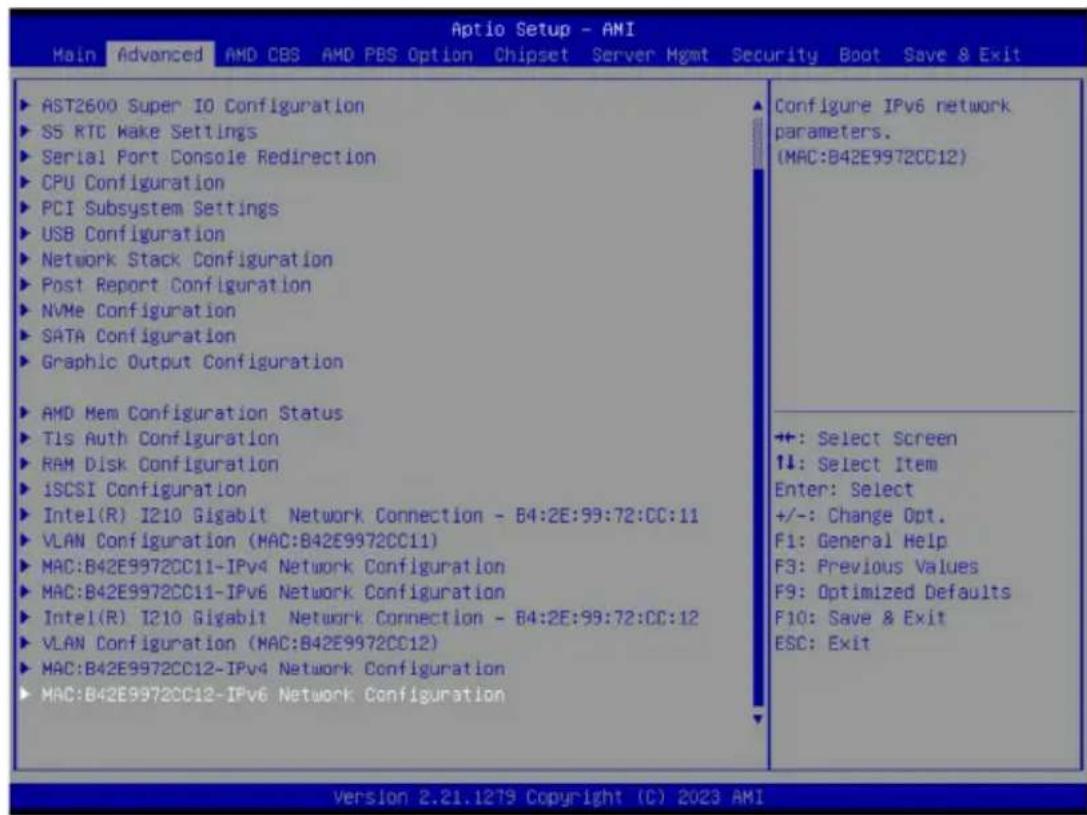

2-2 Advanced Menu 33

2-2-1 Trusted Computing 35
2-2-2 PSP Firmware Versions....36

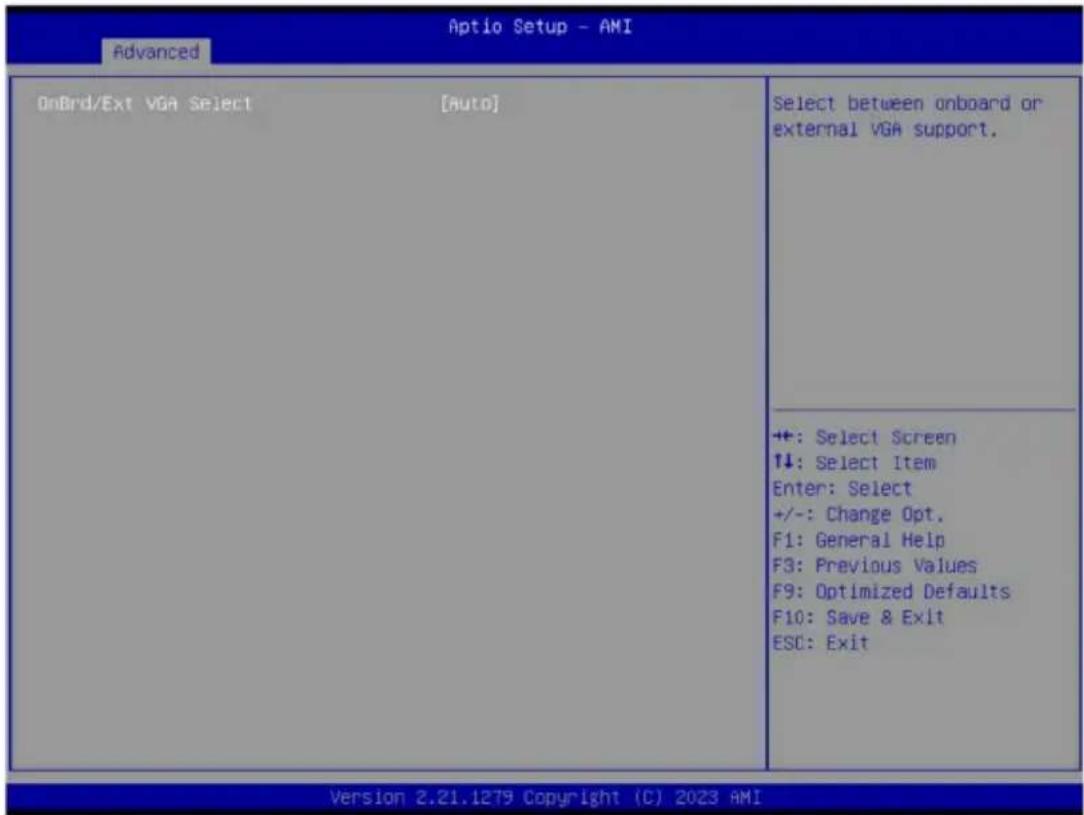

2-2-3 Legacy Video Select....37

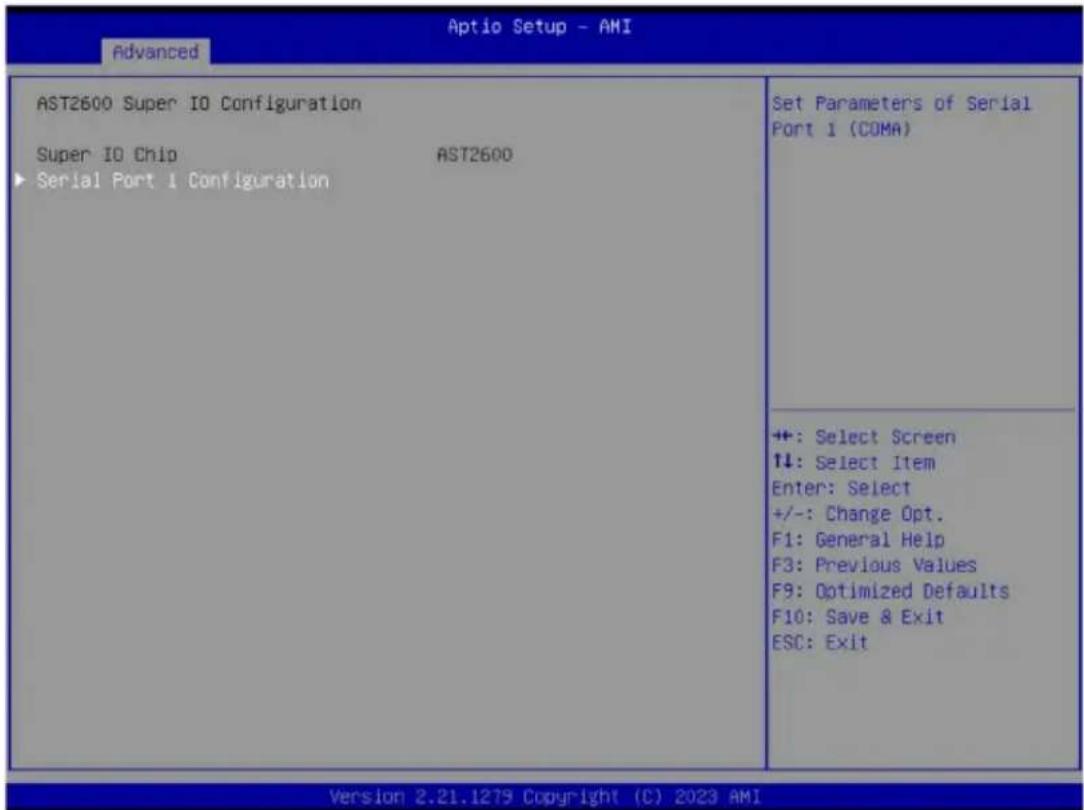

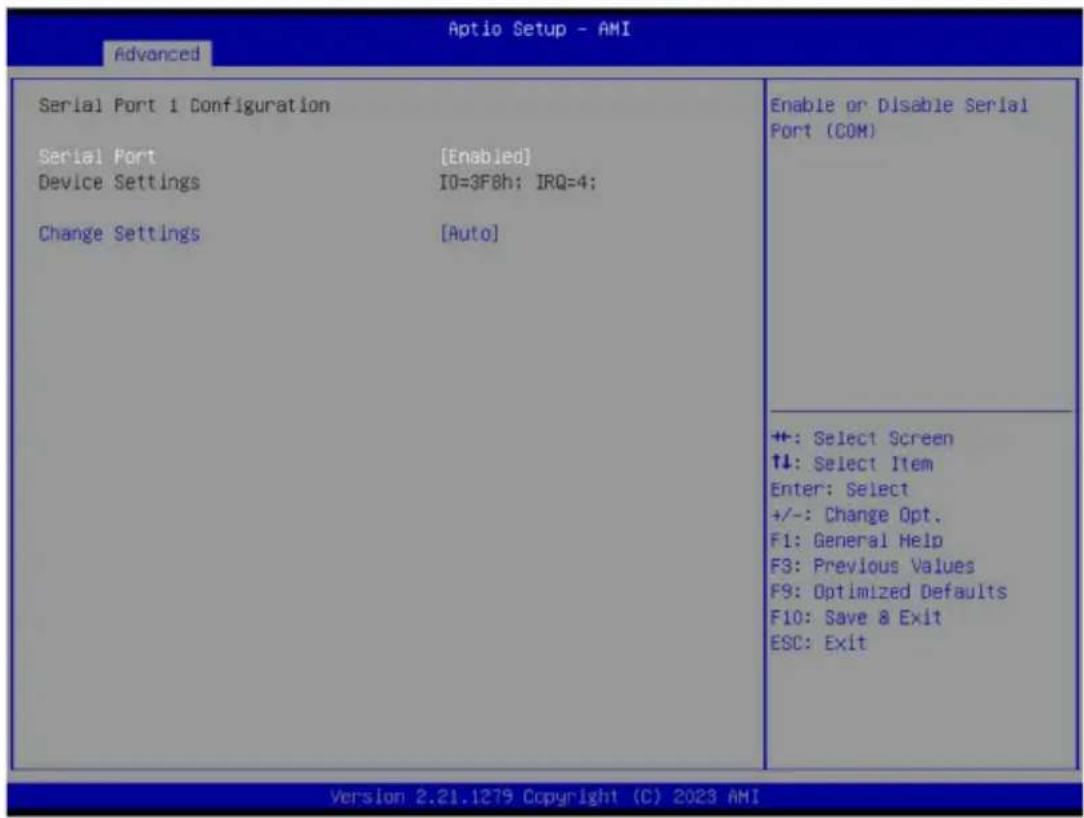

2-2-4 AST2600 Super IO Configuration....38
2-2-5 S5 RTC Wake Settings....40

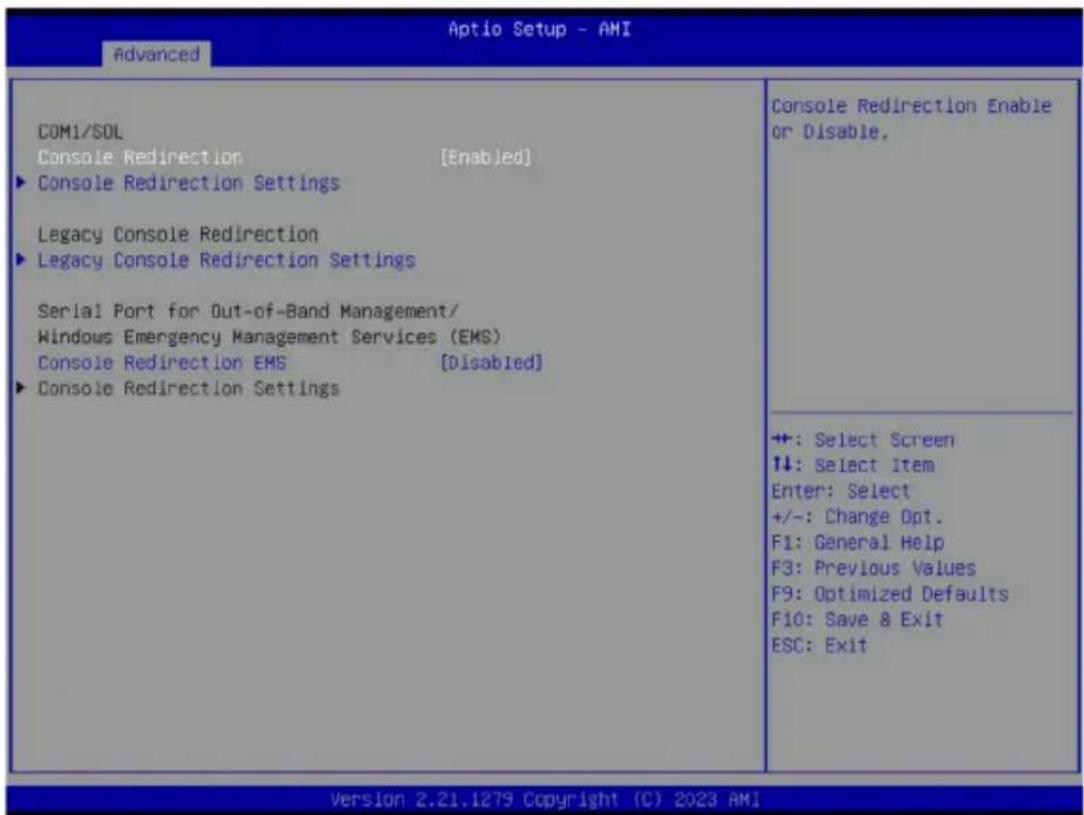

2-2-6 Serial Port Console Redirection 41

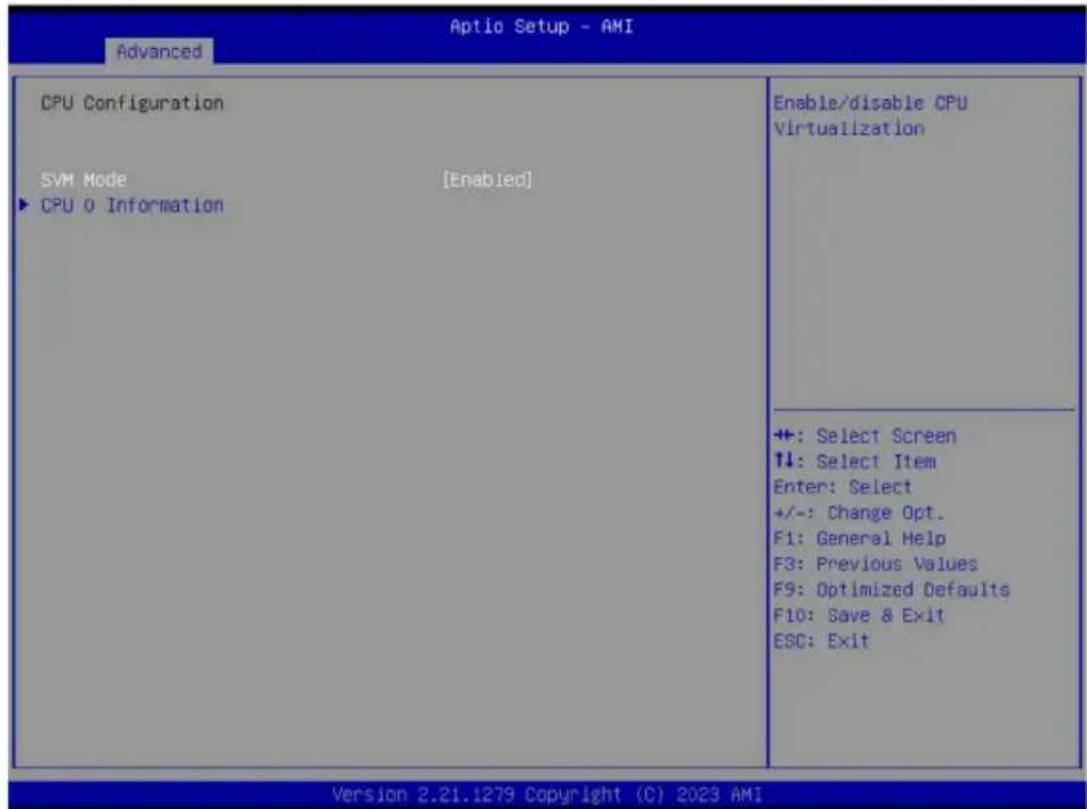

2-2-7 CPU Configuration....45

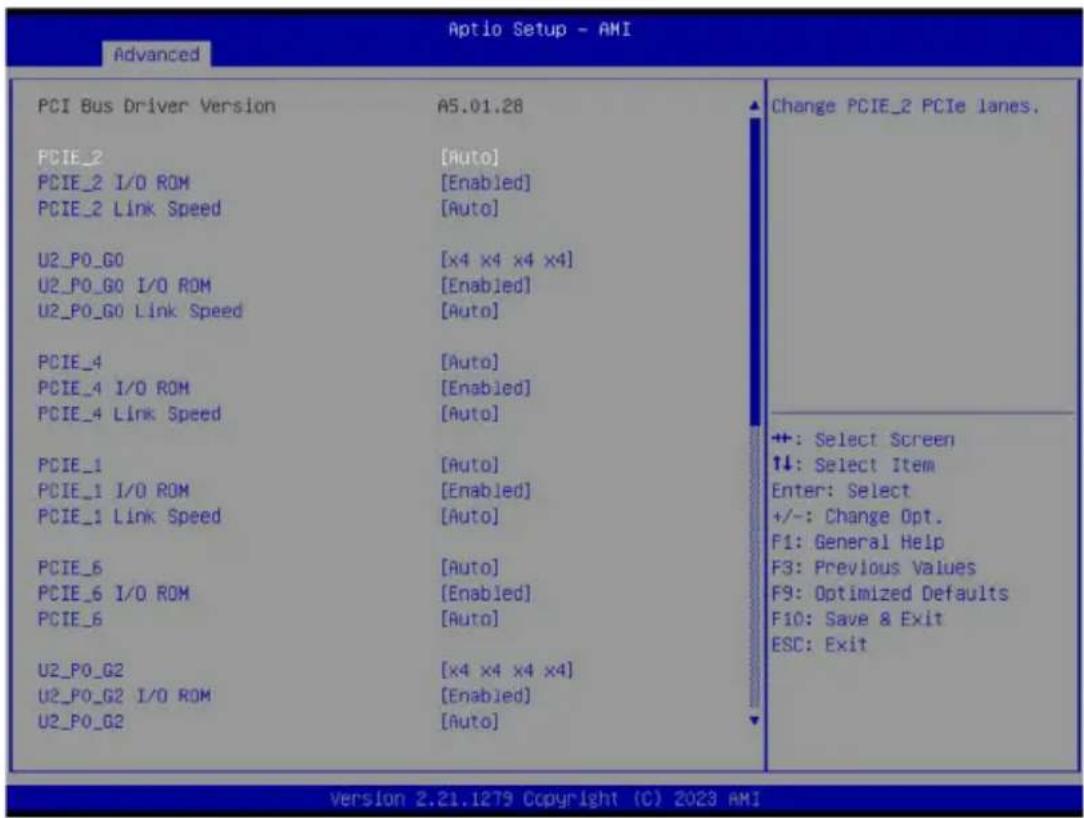

2-2-8 PCI Subsystem Settings....46

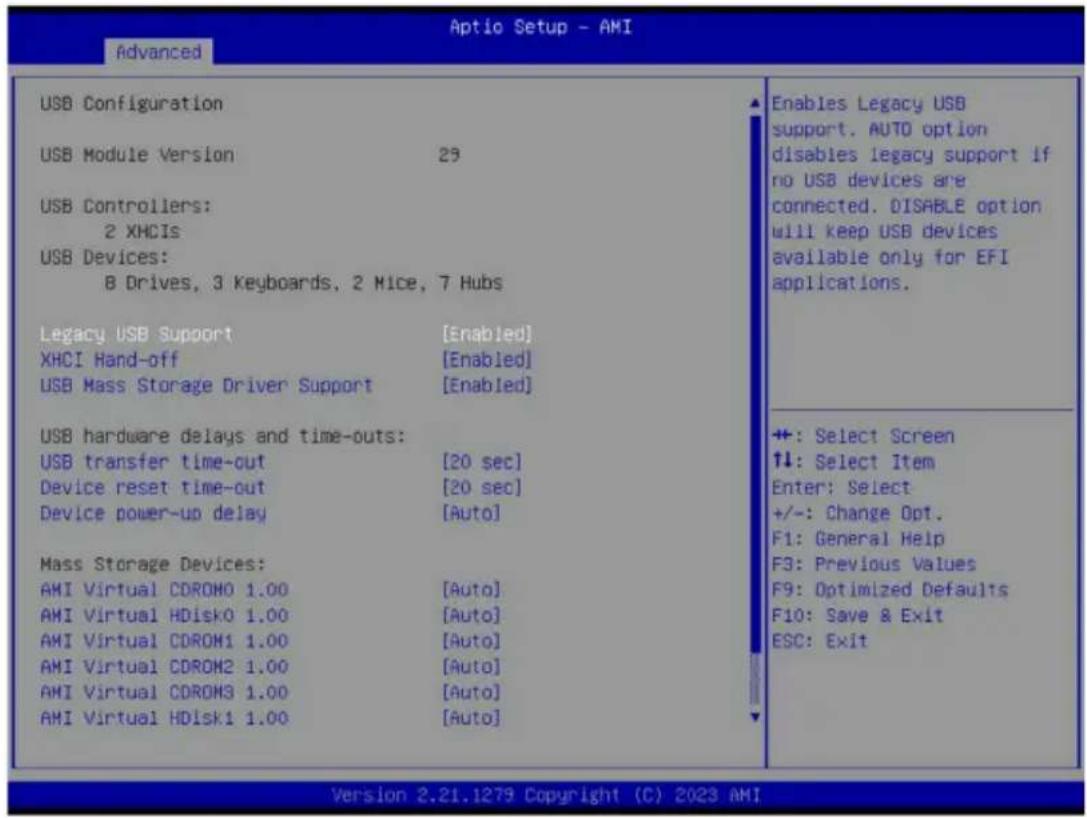

2-2-9 USB Configuration....49

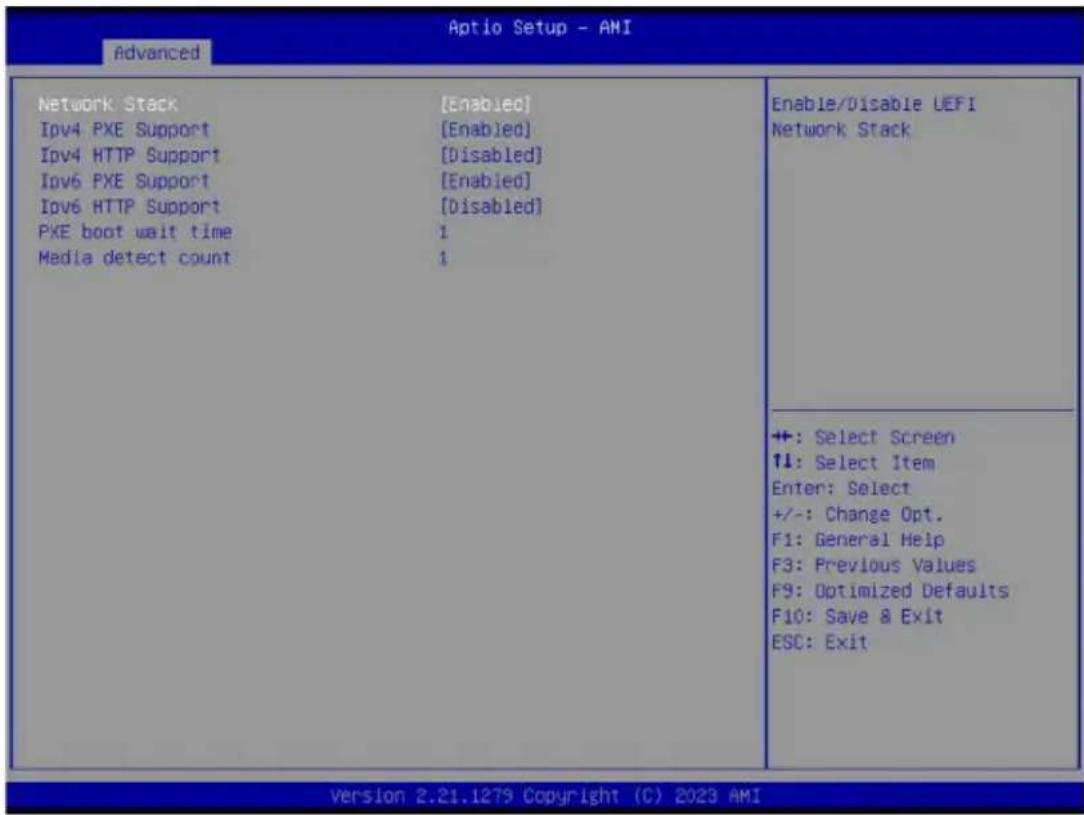

2-2-10 Network Stack Configuration....51

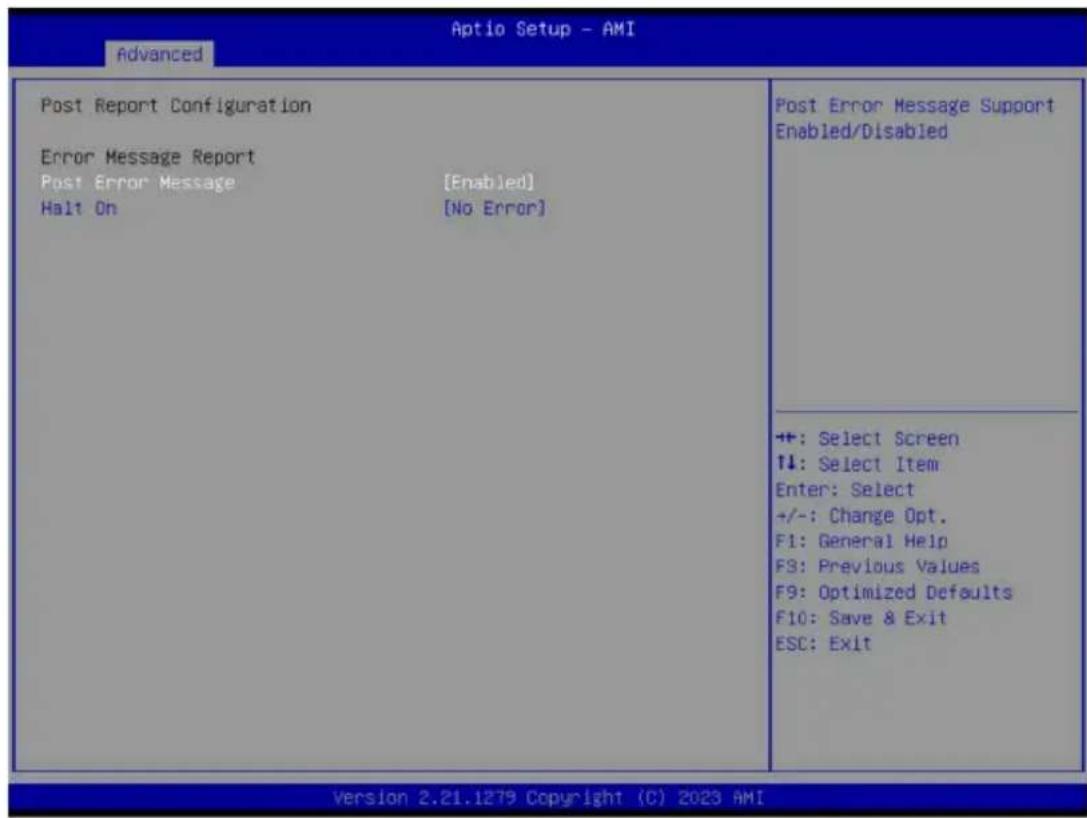

2-2-11 Post Report Configuration 52
2-2-12 NVMe Configuration....53
2-2-13 SATA Configuration....54

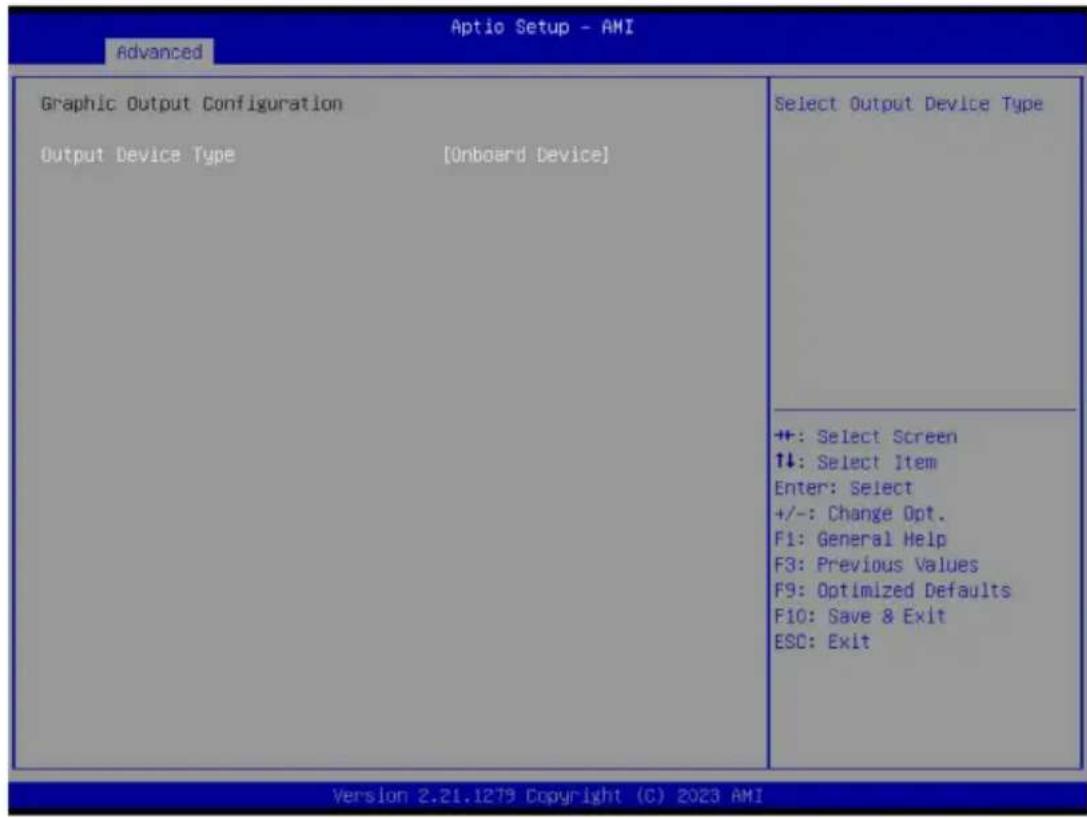

2-2-14 Graphic Output Configuration....55
2-2-15 AMD Mem Configuration Status....56
2-2-16 Tls Auth Configuration ....57
2-2-17 RAM Disk Configuration....58
2-2-18 iSCSI Configuration....59

2-2-19 Intel(R) I210 Gigabit Network Connection....60

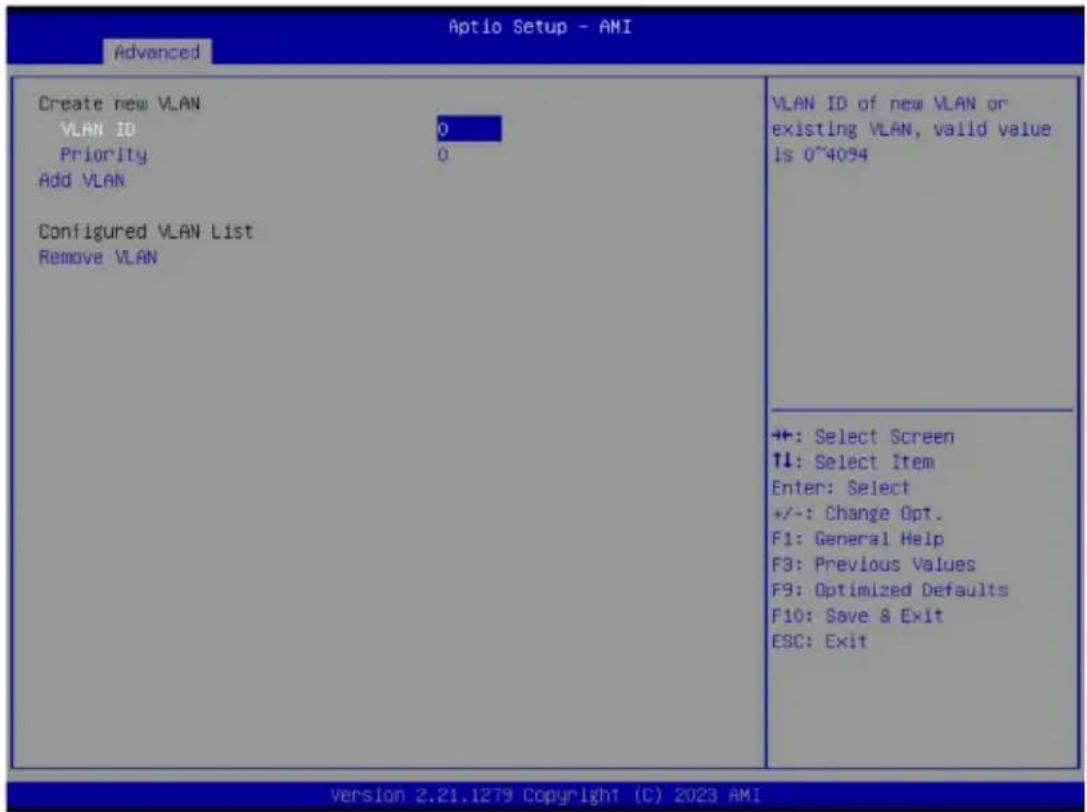

2-2-20 VLAN Configuration....62
2-2-21 MAC IPv4 Network Configuration....63
2-2-22 MAC IPv6 Network Configuration....64

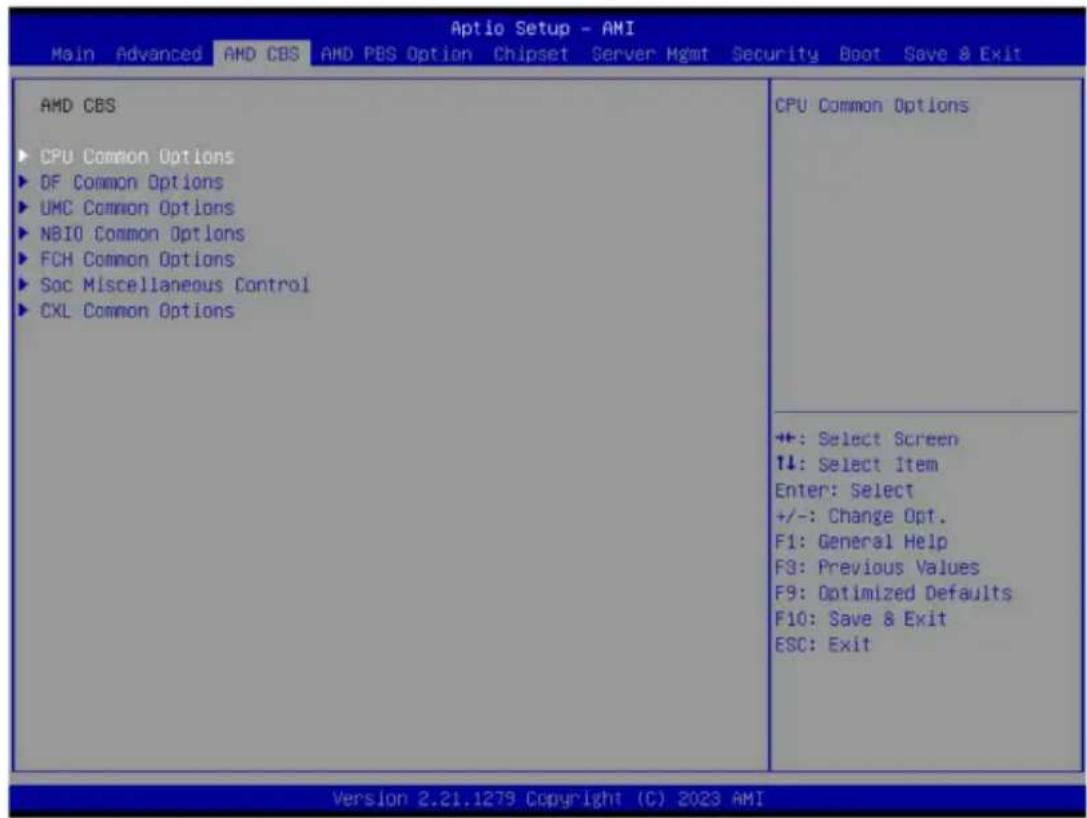

2-3 AMD CBS Menu....65

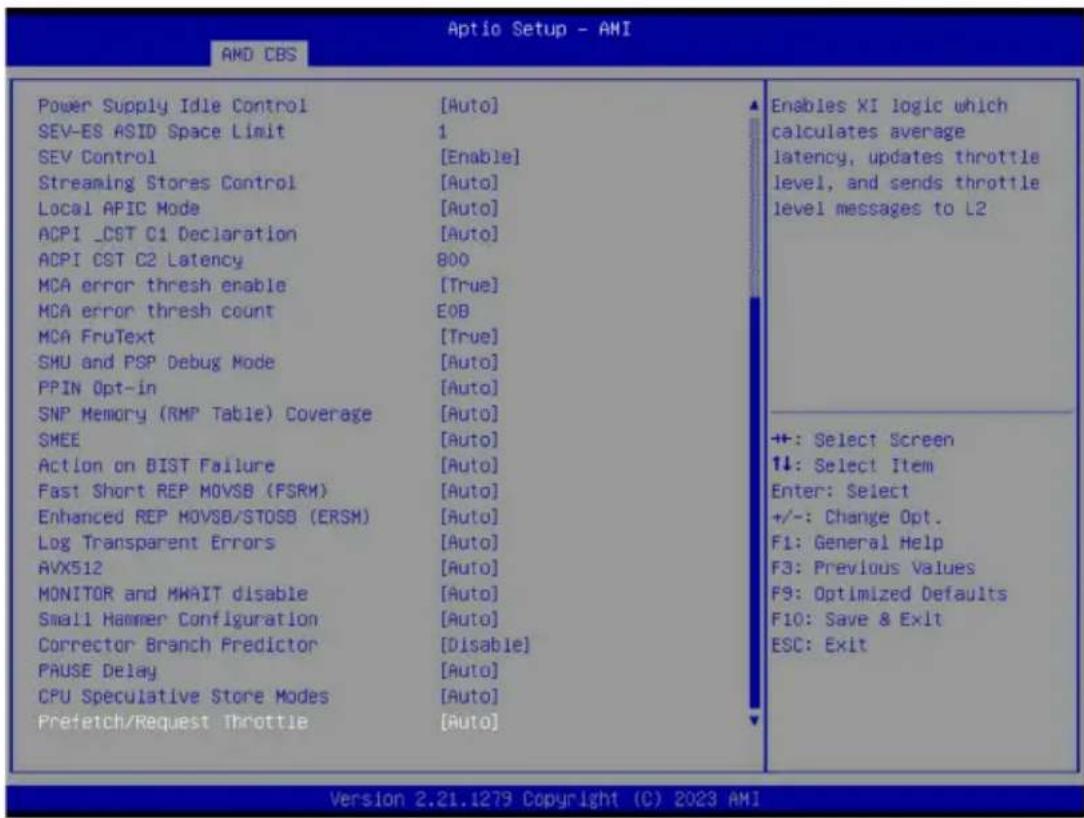

2-3-1 CPU Common Options....66

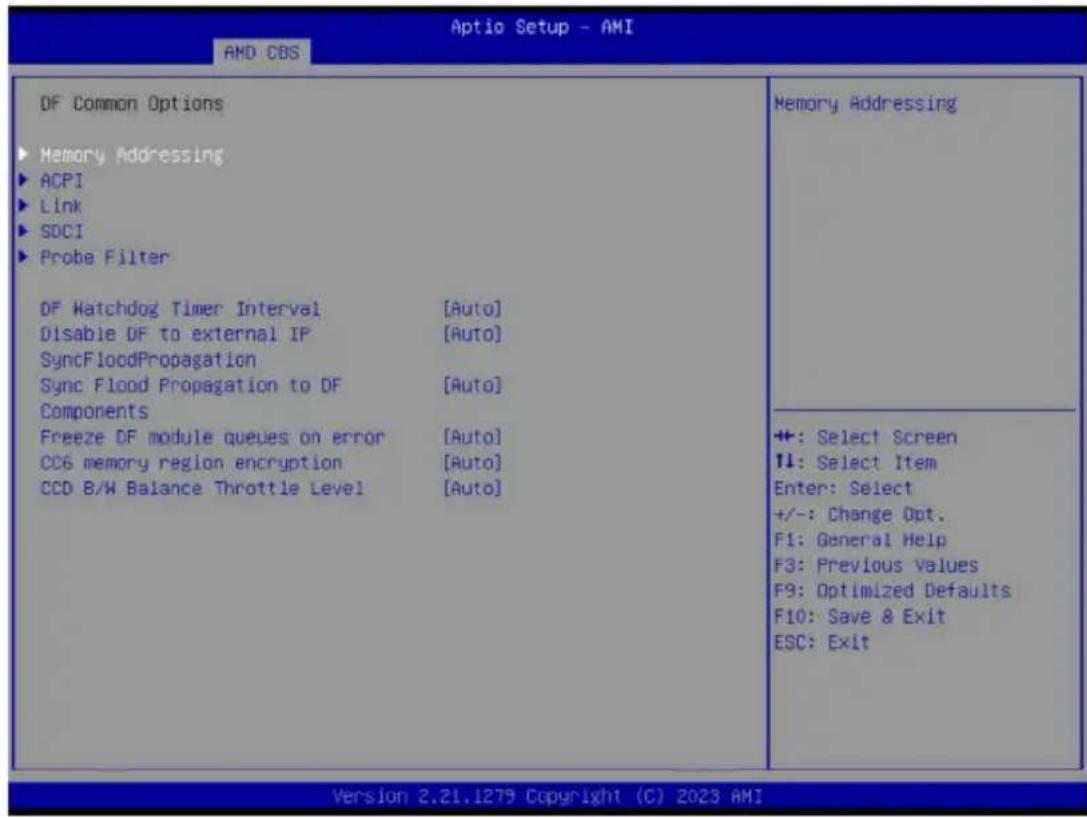

2-3-2 DF Common Options....72

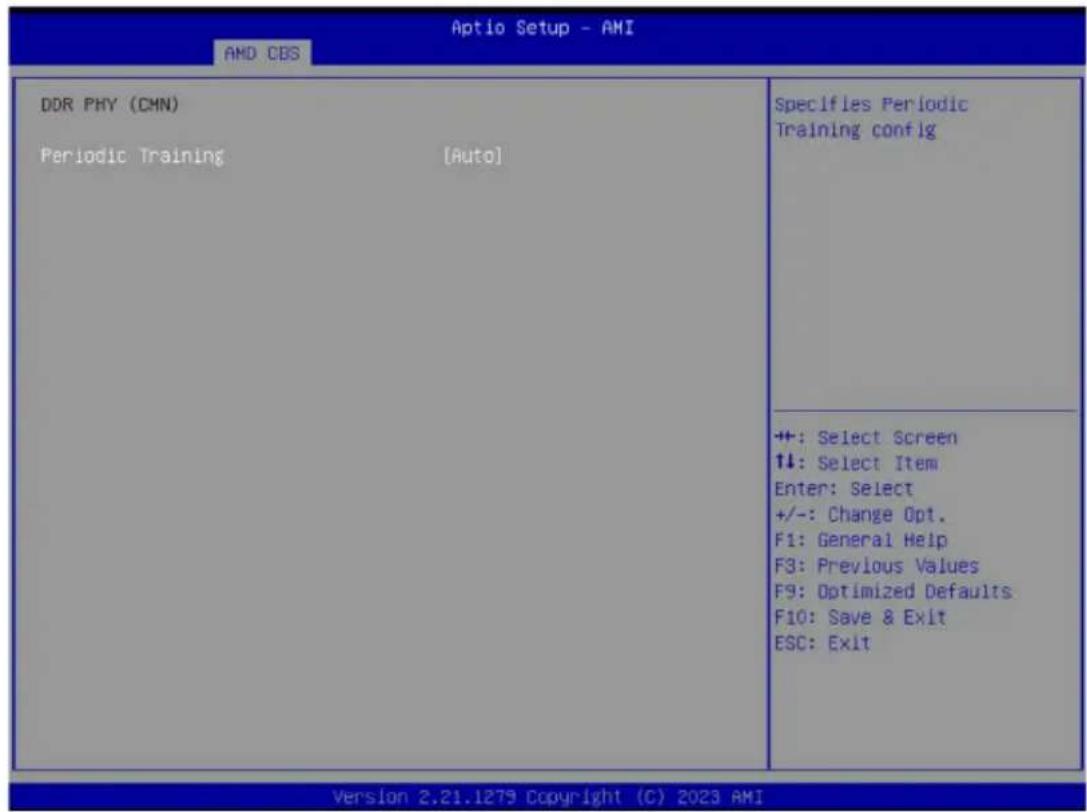

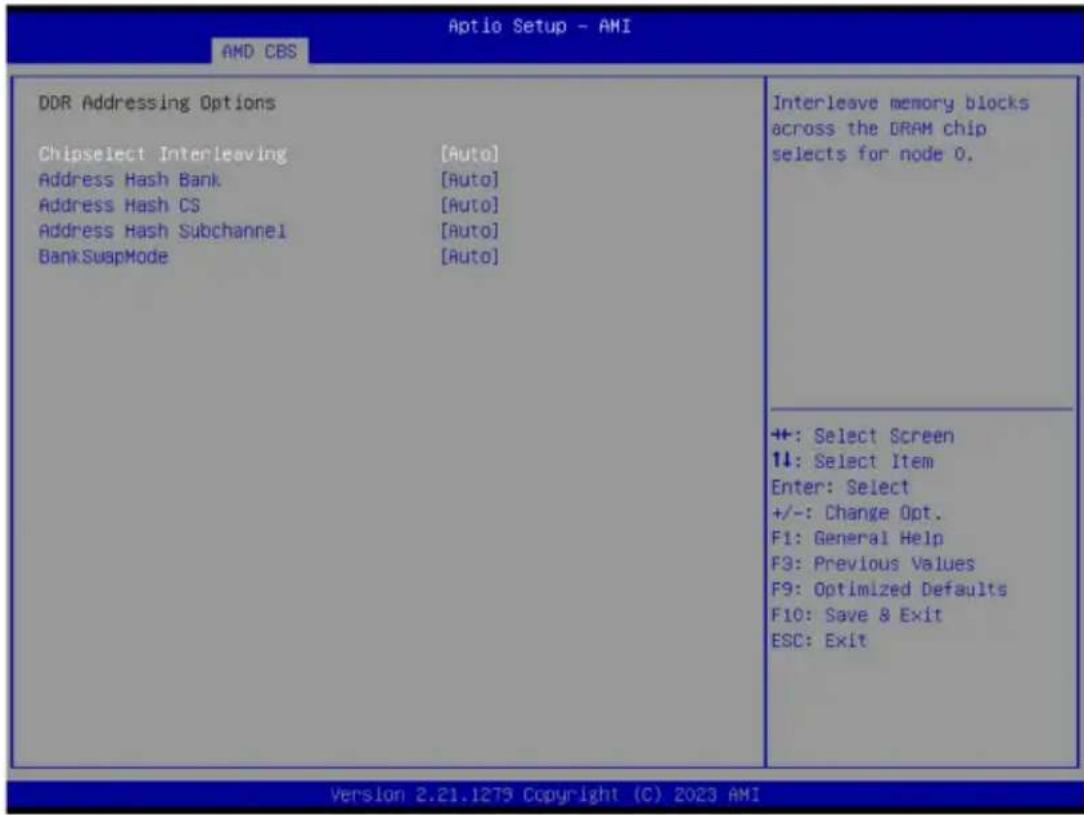

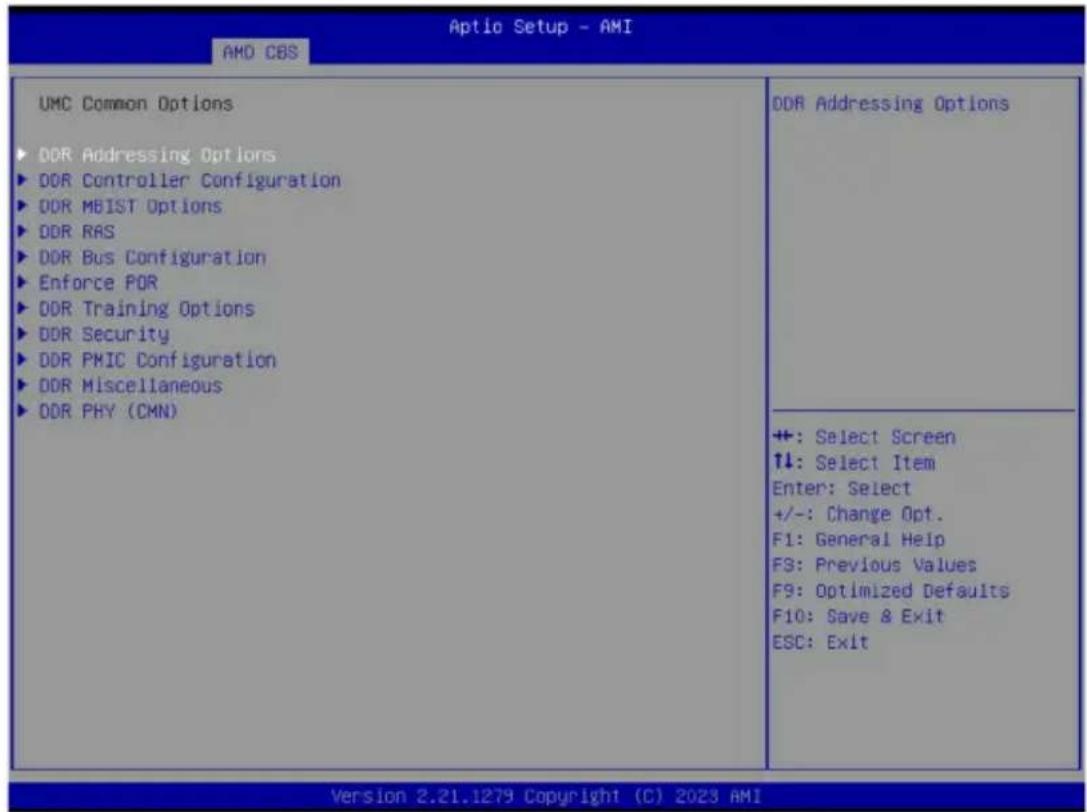

2-3-3 UMC Common Options 79

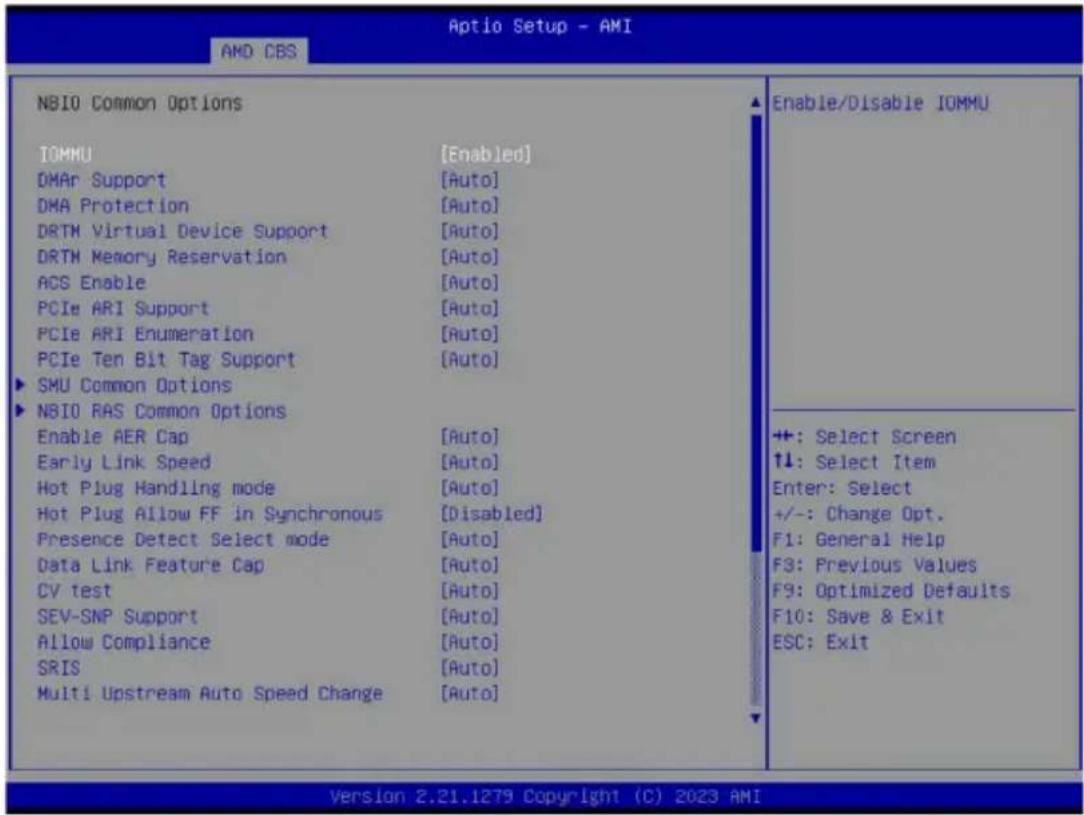

2-3-4 NBIO Common Options....100
2-3-5 FCH Common Options 111

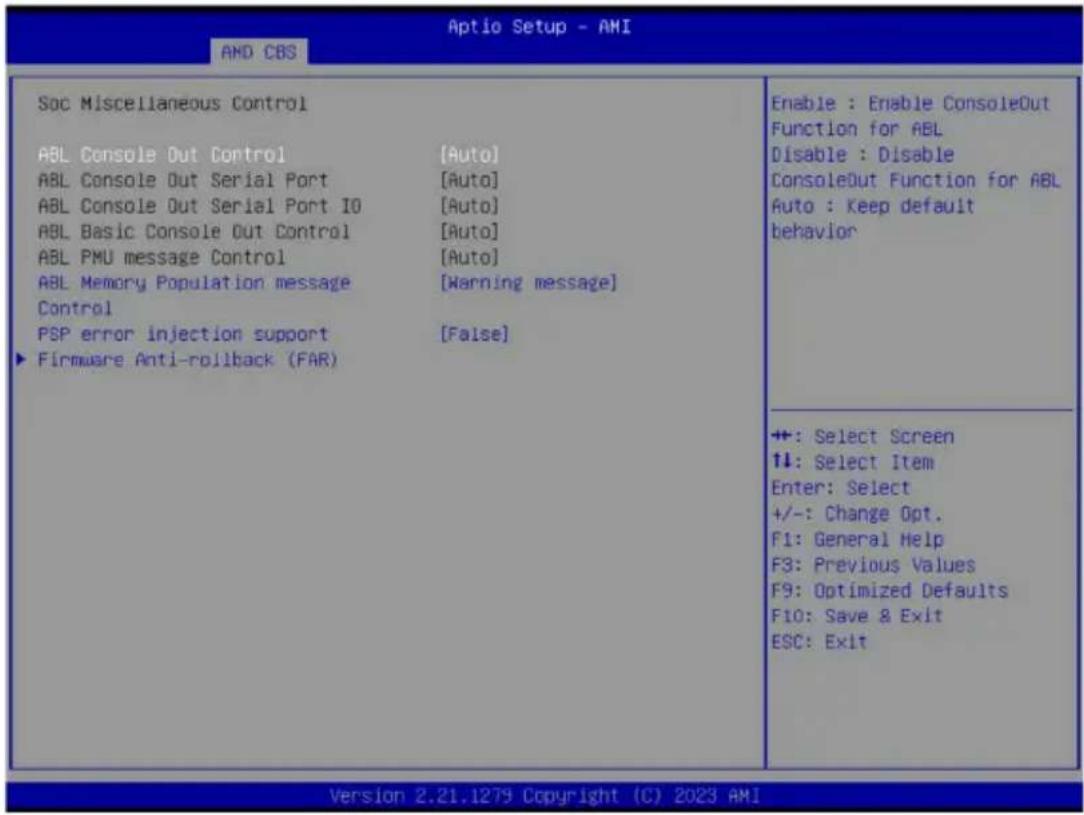

2-3-6 SOC Miscellaneous Control 120

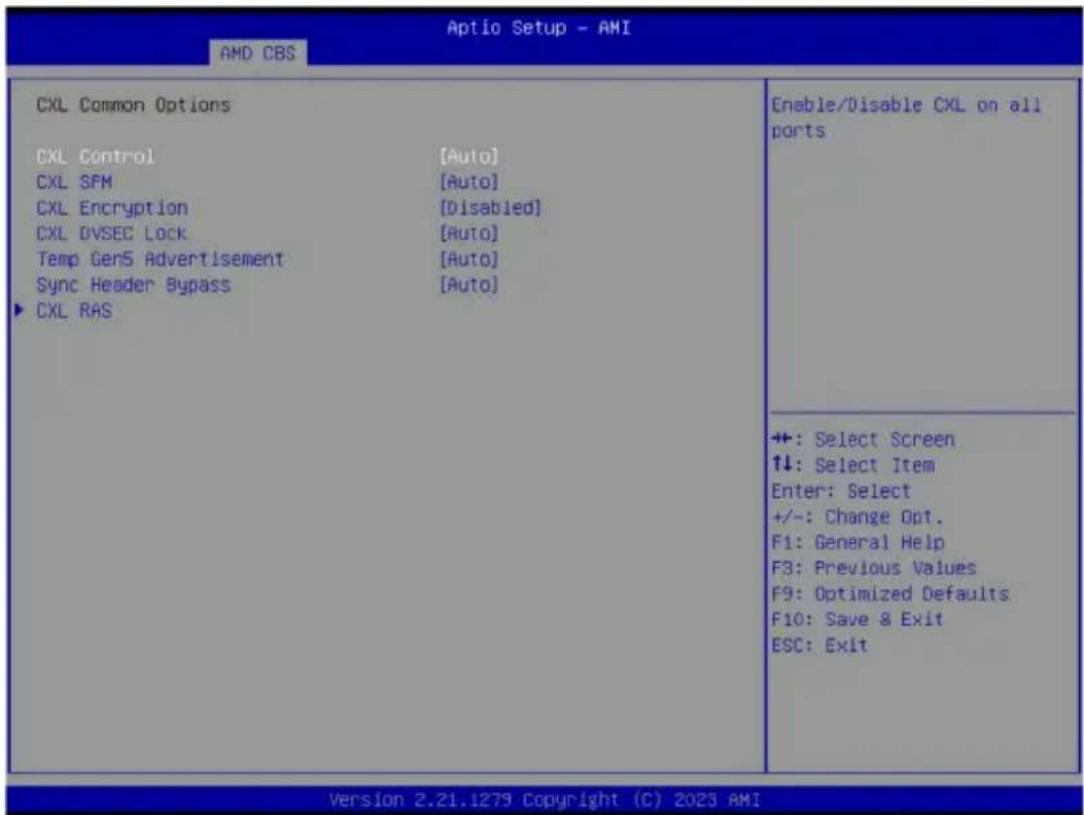

2-3-7 CXL Common Options....122

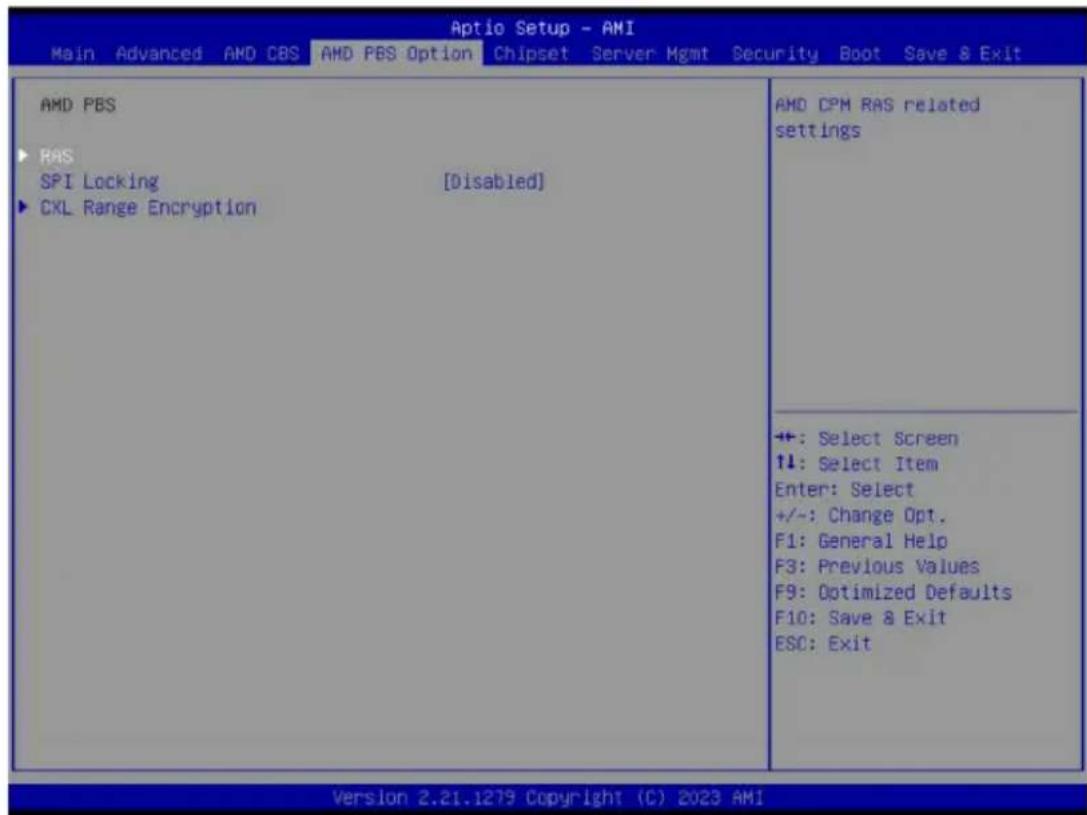

2-4 AMD PBS Menu 123

2-4-1 RAS 124

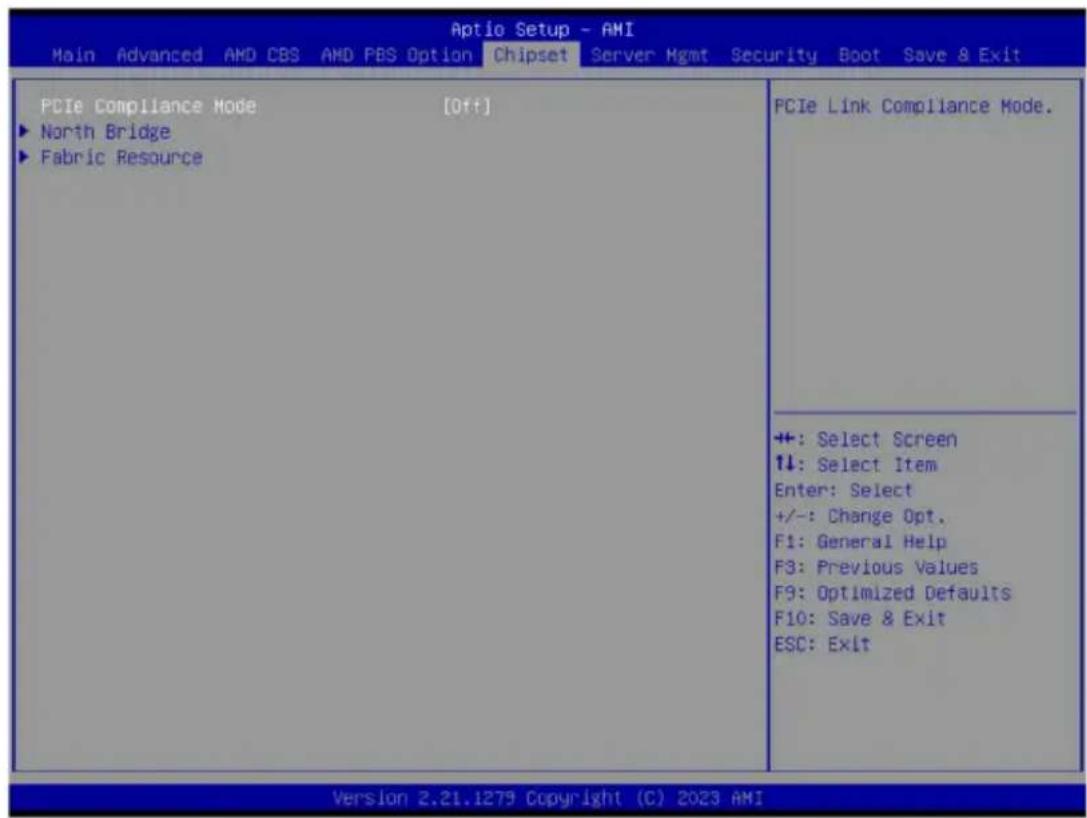

2-5 Chipset Setup Menu....126

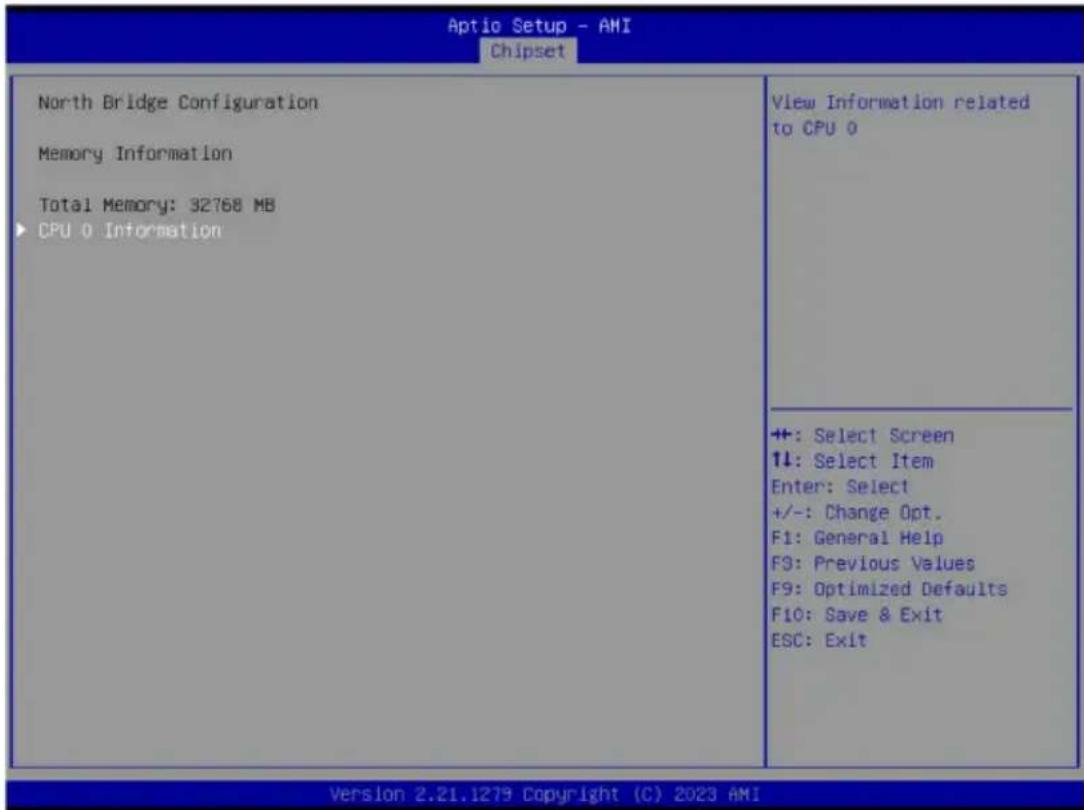

2-5-1 North Bridge 127

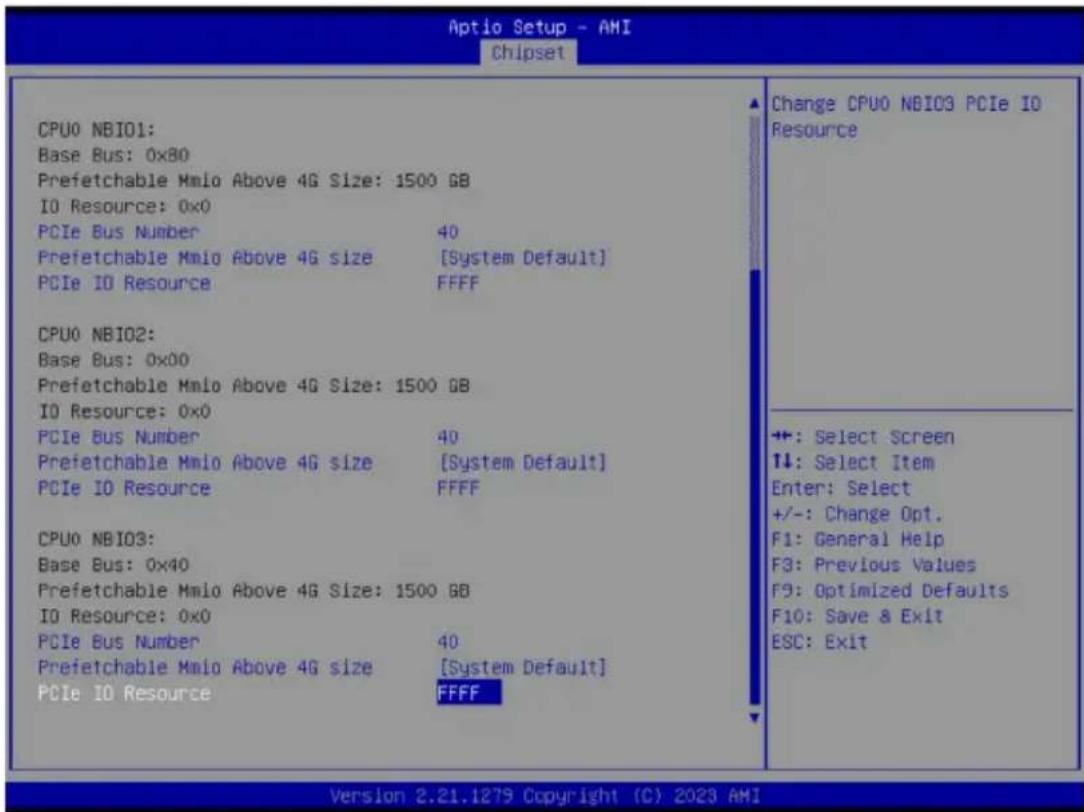

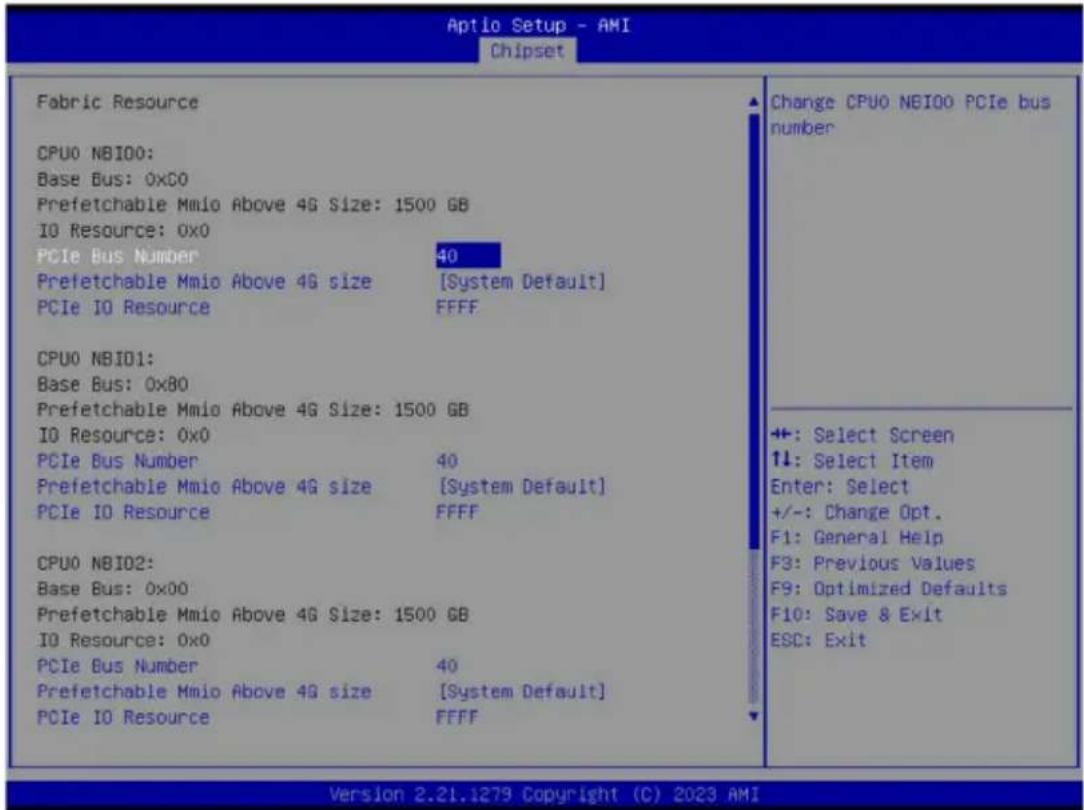

2-5-2 Fabric Resource 128

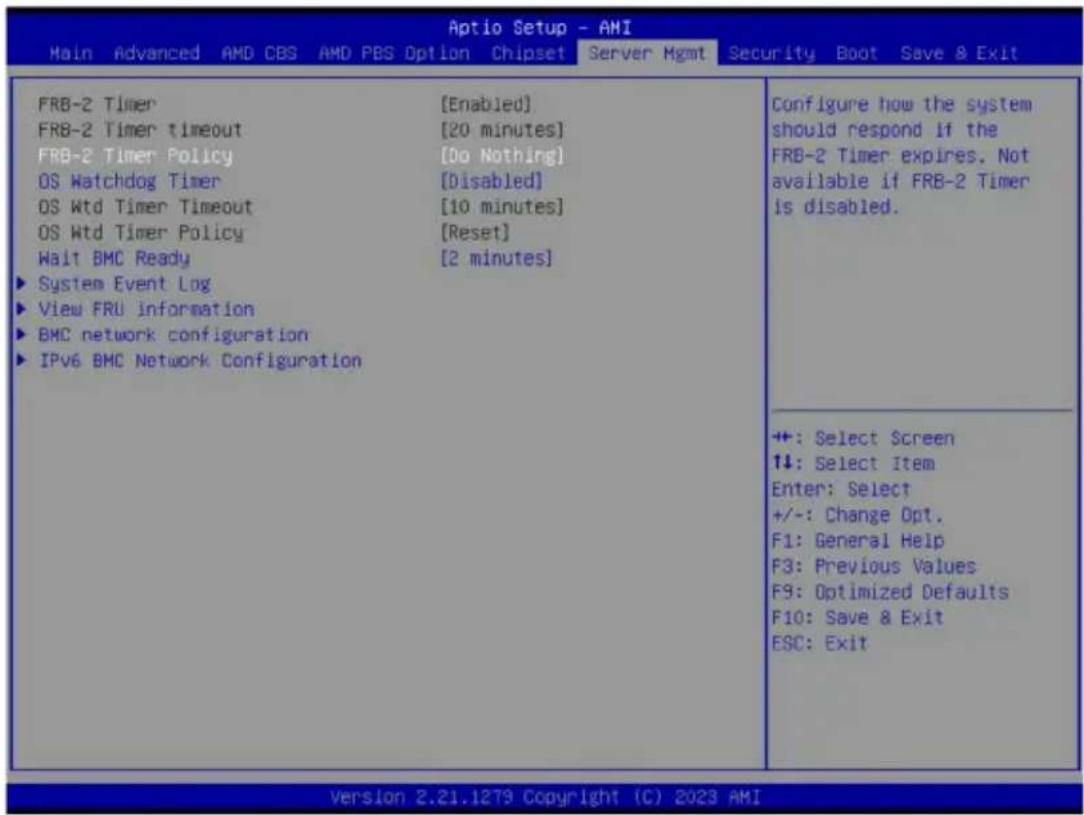

2-6 Server Management Menu....130

2-6-1 System Event Log 132

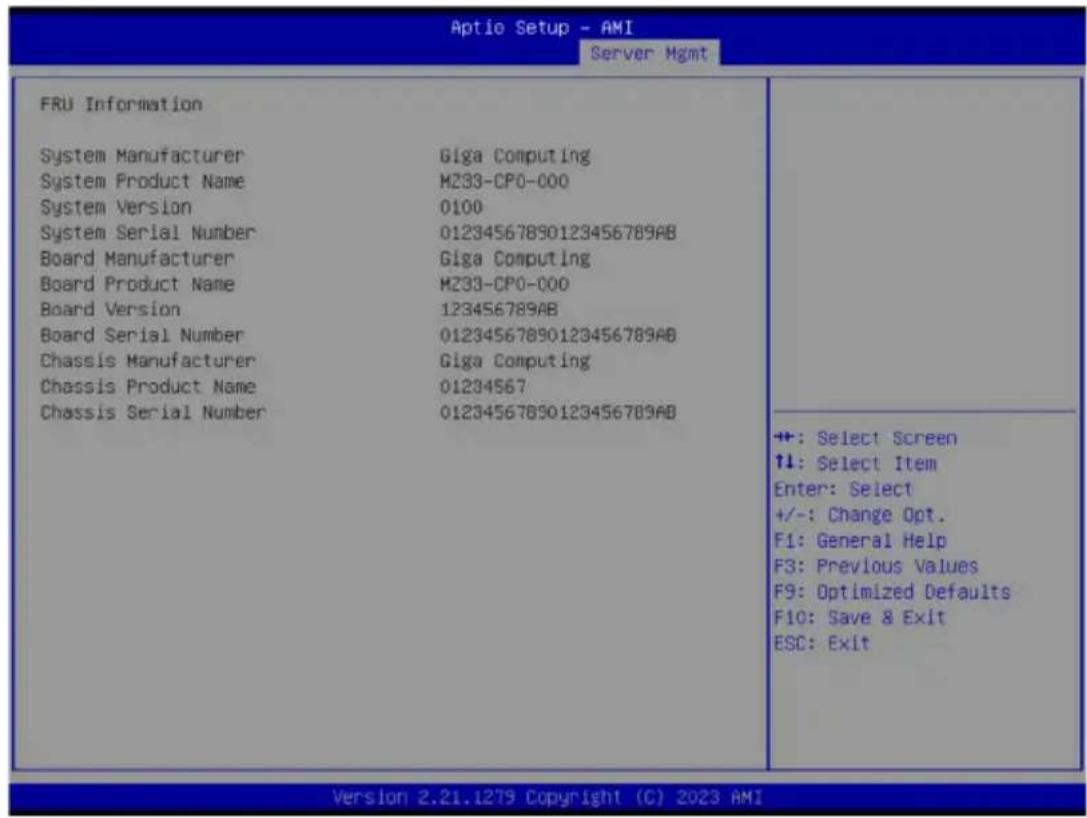

2-6-2 View FRU Information 133

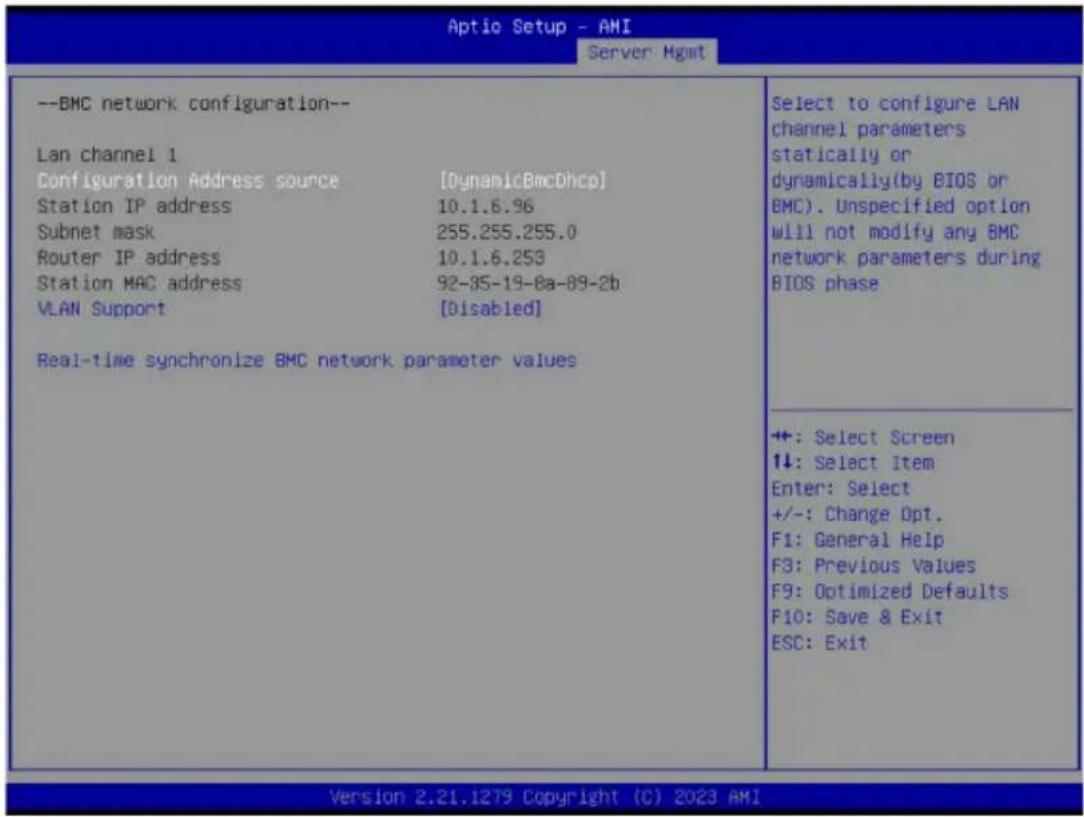

2-6-3 BMC Network Configuration....134

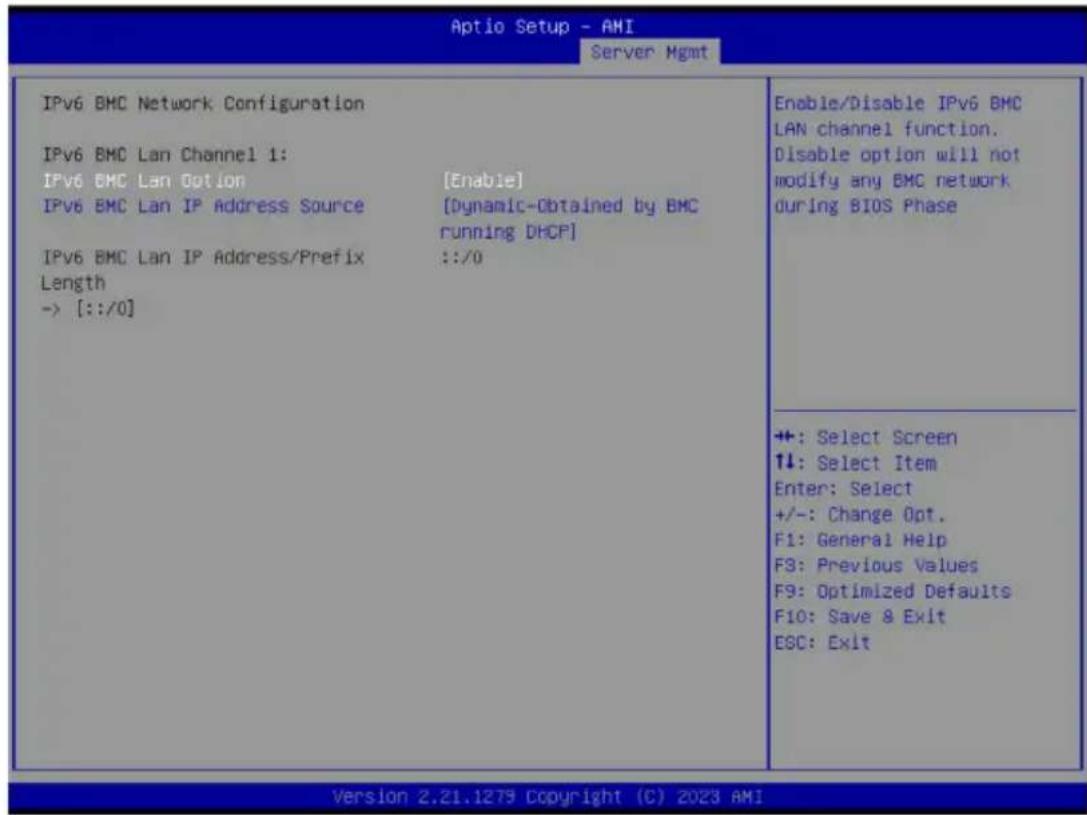

2-6-4 IPv6 BMC Network Configuration....135

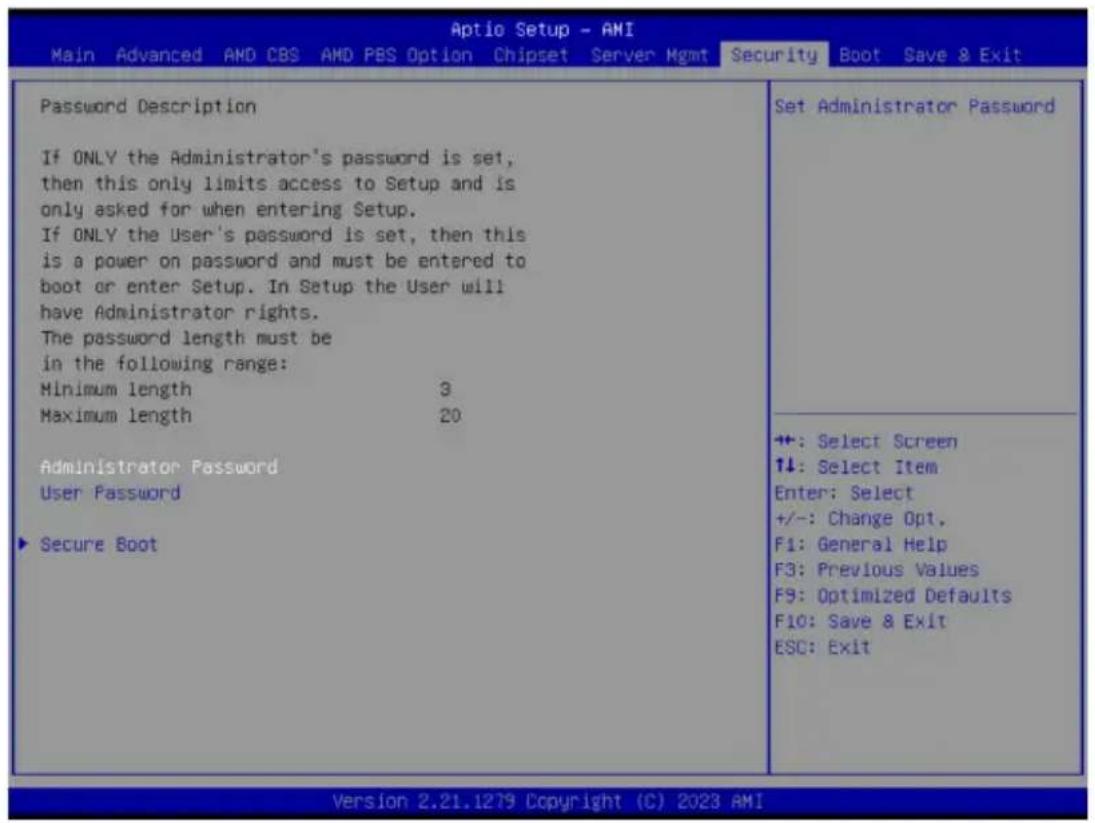

2-7 Security Menu 136

2-7-1 Secure Boot 137

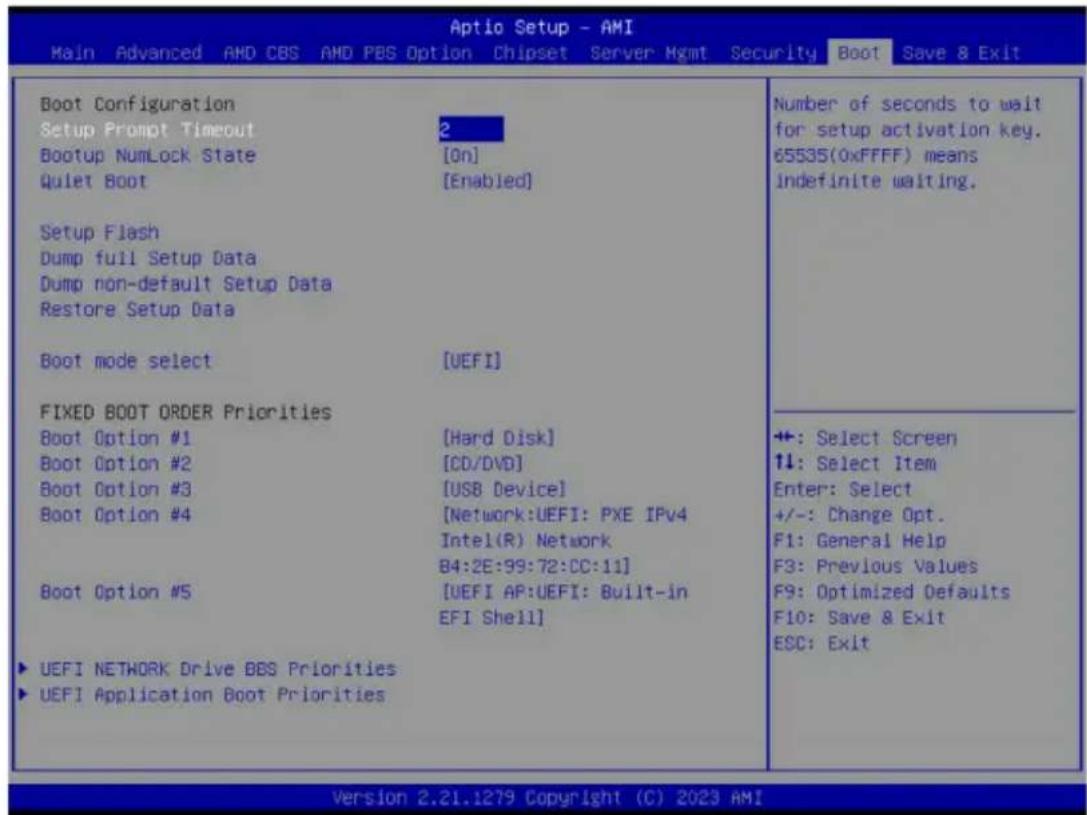

2-8 Boot Menu....139
2-9 Save & Exit Menu....141

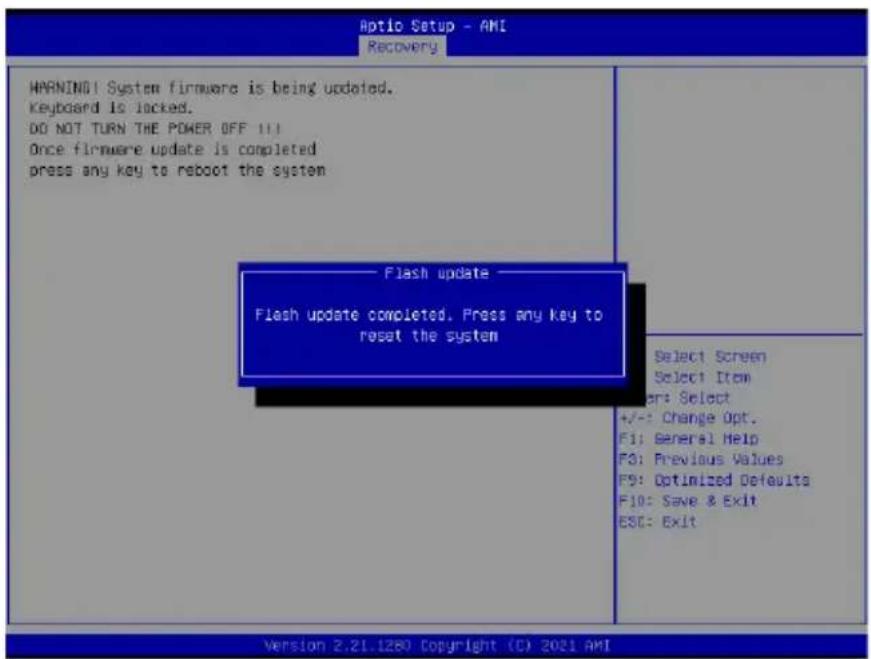

2-10 BIOS Recovery 142
2-11 BIOS POST Beep code (AMI standard).... 143

2-11-1 PEI Beep Codes....143

2-11-2 DXE Beep Codes 143

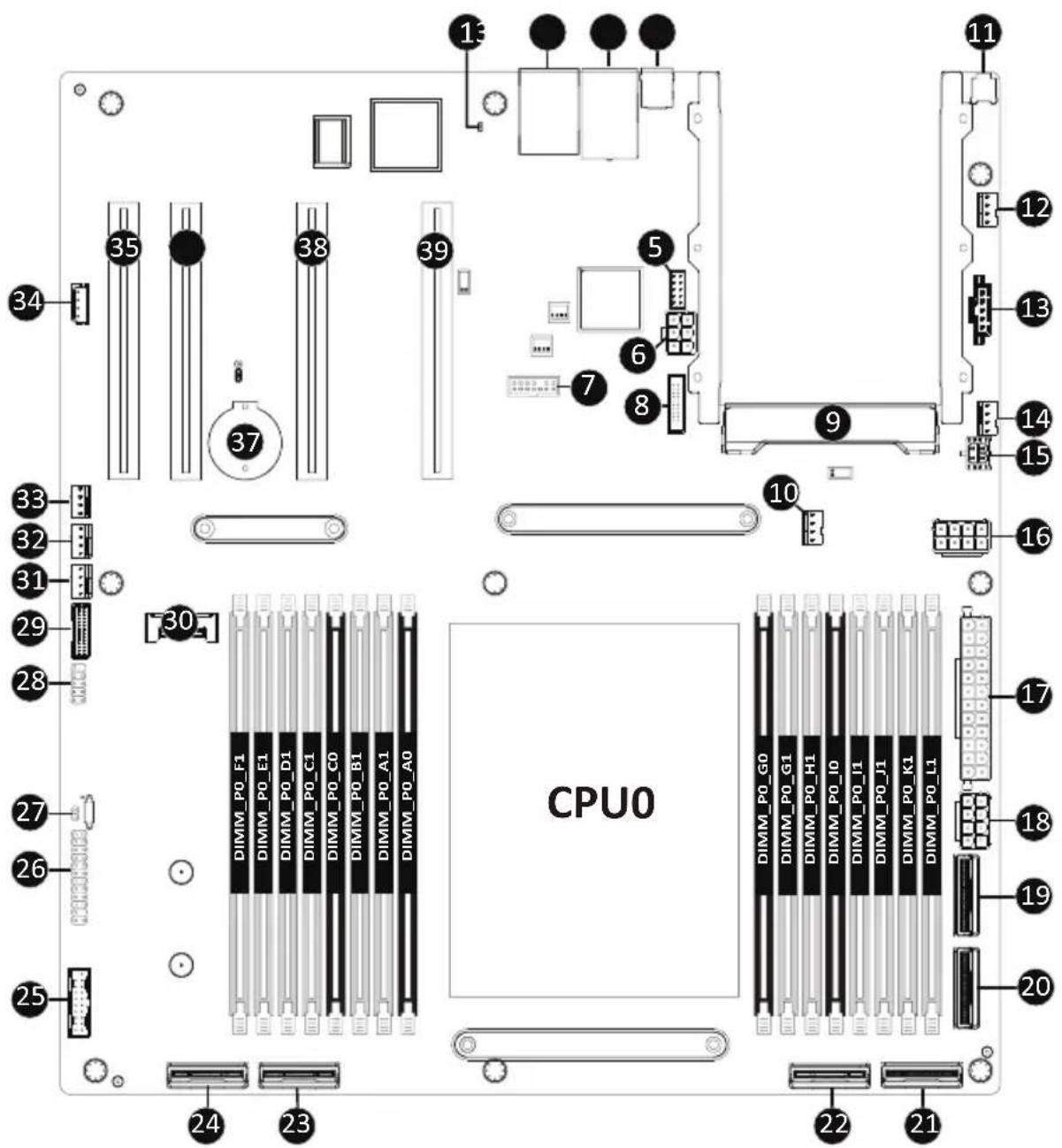

MZ33-CP0 Motherboard Layout

CPU0 13 11 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 DIMM_PO_F1 DIMM_PO_E1 DIMM_PO_D1 DIMM_PO_C1 DIMM_PO_C0 DIMM_PO_B1 DIMM_PO_A1 DIMM_PO_A0

Item Code Description

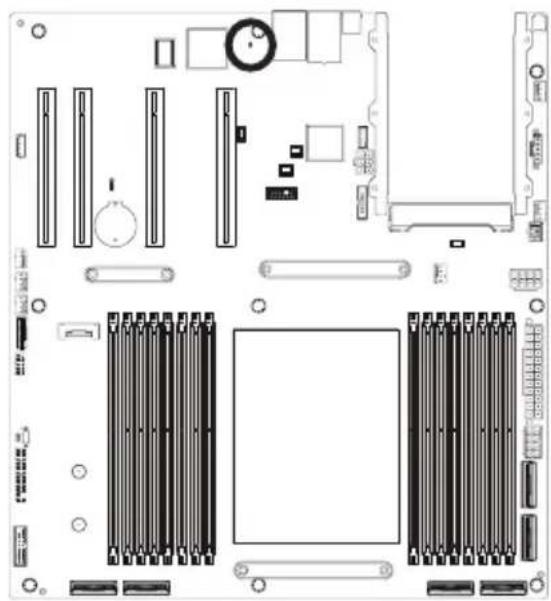

1 LED_BMC BMC Firmware Readiness LED 2 USB3_MLAN Server Management LAN Port (Top)/ USB3.2 Gen1 Ports (Bottom) 3 LAN_1_2 1GbE LAN Port #2 (Top)/ 1GbE LAN Port #1 (Bottom) 4 MINI_DP Mini DisplayPort 5 COM Serial Port Cable Connector 6 P12V_PCIE 2 x 3 Pin 12V PCIE Power Connector 7 SPI_TPM TPM Connector 8 CN_NCSI NCSI Connector 9 OCP OCP 3.0 x16 Slot (Gen5 x16) 10 CPU0_FAN1 CPU Fan Connector 11 SW_ID ID Button with LED 12 SYS_FAN4 System Fan Connector #4 13 PMBUS PMBus Connector 14 SYS_FAN5 System Fan Connector #5 15 12V_STBY1 2 x 2 Pin 12V Standby Power Connector 16 P12V_AUX2 2 x 4 Pin 12V Power Connector 17 ATX1 2 x 12 Pin Main Power Connector 18 P12V_AUX1 2 x 4 Pin 12V Power Connector 19 U2_P0_G3A MCIO Connector (PCIe Gen4/ SATA) 20 U2_P0_G3B MCIO Connector (PCIe Gen4/ SATA) 21 U2_P0_G2A MCIO Connector (PCIe Gen5) 22 U2_P0_G2B MCIO Connector (PCIe Gen5) 23 U2_P0_G0A MCIO Connector (PCIe Gen5) 24 U2_P0_G0B MCIO Connector (PCIe Gen5) 25 F_USB3 Front Panel USB 3.2 Gen1 Connector 26 FP_1 Front Panel Header 27 CASE_OPEN Case Open Intrusion Alert Header 28 F_USB2 Front Panel USB 2.0 Header 29 BP_1 HDD Backplane Board Connector 30 M2_0 M.2 slot (PCIe Gen3 x4, Support NGFF-2280/22110) 31 SYS_FAN1 System Fan Connector #1 32 SYS_FAN2 System Fan Connector #2 33 SYS_FAN3 System Fan Connector #3 34 IPMB IPMB Connector 35 PCIE_1 PCIe x16 Slot #1 (Gen4 x16) 36 PCIE_2 PCIe x16 Slot #2 (Gen5 x16) 37 BAT Battery Socket 38 PCIE_4 PCIe x16 Slot #4 (Gen5 x16) 39 PCIE_6 PCIe x16 Slot #6 (Gen5 x16)

Block Diagram

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.
• Do not place the computer system on an uneven surface.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

1-2 Product Specifications

NOTE:

We reserve the right to make any changes to the product specifications and product-related information without prior notice.

	Form Factor	◆ E-ATX◆ 304.8W x 330.2D mm
	CPU	◆ AMD EPYCTM 9004 series processors◆ AMD EPYCTM 9004 series processors with AMD 3D V-CacheTM Technology◆ Single processor, 5nm technology◆ Up to 128-core, 256 threads per processor◆ cTDP up to 400W
	Socket ◆ 1 x LGA 6096◆ Socket SP5
	Chipset ◆ System on Chip
	Memory ◆ 16 x DIMM slots◆ DDR5 memory supported only◆ 12-Channel memory architecture◆ RDIMM modules up to 96GB supported◆ 3DS RDIMM modules up to 256GB supported◆ Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
	LAN ◆ 2 x 1Gb/s BASE-T LAN ports (2 x Intel® I210-AT)◆ NCSI function supported (by switch)◆ 1 x 10/100/1000 management LAN
	Onboard Graphics	◆ Integrated in Aspeed® AST2600◆ 2D Video Graphic Adapter with PCIe bus interface◆ 1920x1200@60Hz 32bpp, DDR4 SDRAM
	Storage Interface	◆ 2x MCIO 8i with 16 x SATA ports

Expansion Slots ♦ Slot_6: PCIe x16 (Gen5 x16 bus) slot

Slot_4: PCIe x16 (Gen5 x16 bus) slot

Slot_2: PCIe x16 (Gen5 x16 bus) slot

Slot_1: PCIe x16 (Gen4 x16 bus) slot

◆ 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth

- NCSI function supported (by switch)

1 x M.2 slot:

- M-key

- PCIe Gen4 x4

- Supports 2280/22110 cards

*Total 5 x MCIO 8i connectors:

- 4 x MCIO 8i connectors for 8 x Gen5 NVMe

- 2 x MCIO 8i connectors for 4 x Gen4 NVMe or 16 x SATA 6Gb/s

*Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.

Internal I/O

Connectors

◆ 1 x 24-pin ATX main power connector

◆ 2 x 8-pin ATX 12V power connectors

◆ 1 x 6-pin ATX 12V power connector

◆ 1 x Front panel header

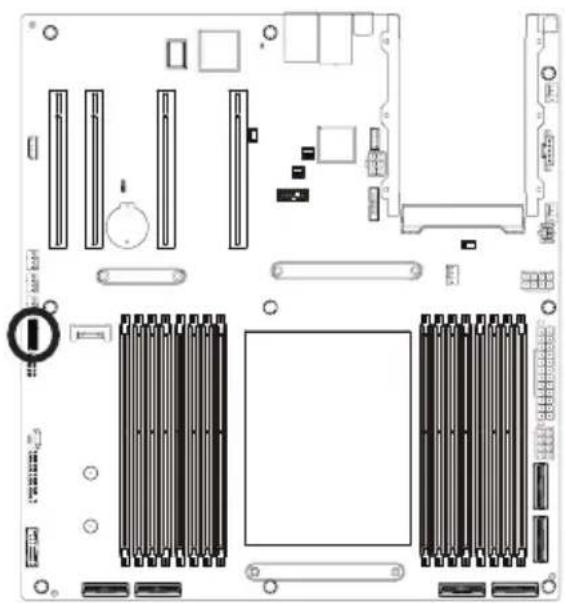

◆ 1 x Backplane board header

◆ 1 x PMBus connector

◆ 1 x IPMB connector

◆ 1 x Clear CMOS jumper

◆ 1 x BIOS recovery jumper

◆ 1 x Buzzer

Rear I/O

Connectors

2 x USB 3.2 Gen1

◆ 1 x Mini-DP

2 x RJ45

1 x MLAN

◆ 1 x ID button with LED

TPM ♦ 1 x TPM header with SPI interface

♦ Optional TPM2.0 kit: CTM010

	BoardManagement	Aspeed® AST2600 management controllerGIGABYTE Management Console (AMI MegaRAC SP-X) web interfaceDashboardHTML5 KVMSensor Monitor (Voltage, RPM, Temperature, CPU Status ...etc.)Sensor Reading History DataFRU InformationSEL Log in Linear Storage / Circular Storage PolicyHardware InventoryFan ProfileSystem FirewallPower ConsumptionPower ControlAdvanced power cappingLDAP / AD / RADIUS SupportBackup & Restore ConfigurationRemote BIOS/BMC/CPLD UpdateEvent Log FilterUser ManagementMedia Redirection SettingsPAM Order SettingsSSL SettingsSMTP Settings
	OperatingProperties	Operating temperature: 10°C to 40°COperating humidity: 8-80% (non-condensing)Non-operating temperature: -40°C to 60°CNon-operating humidity: 20%-95% (non-condensing)

1-3 Installing and Removing the CPU and Heat Sink

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.
• Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
- Unplug all cables from the power outlets.
- Disconnect all telecommunication cables from their ports.
- Place the system unit on a flat and stable surface.
- Open the system according to the instructions.

WARNING!

Failure to properly turn off the server before you start installing components may cause serious damage. Do not attempt the procedures described in the following sections unless you are a qualified service technician.

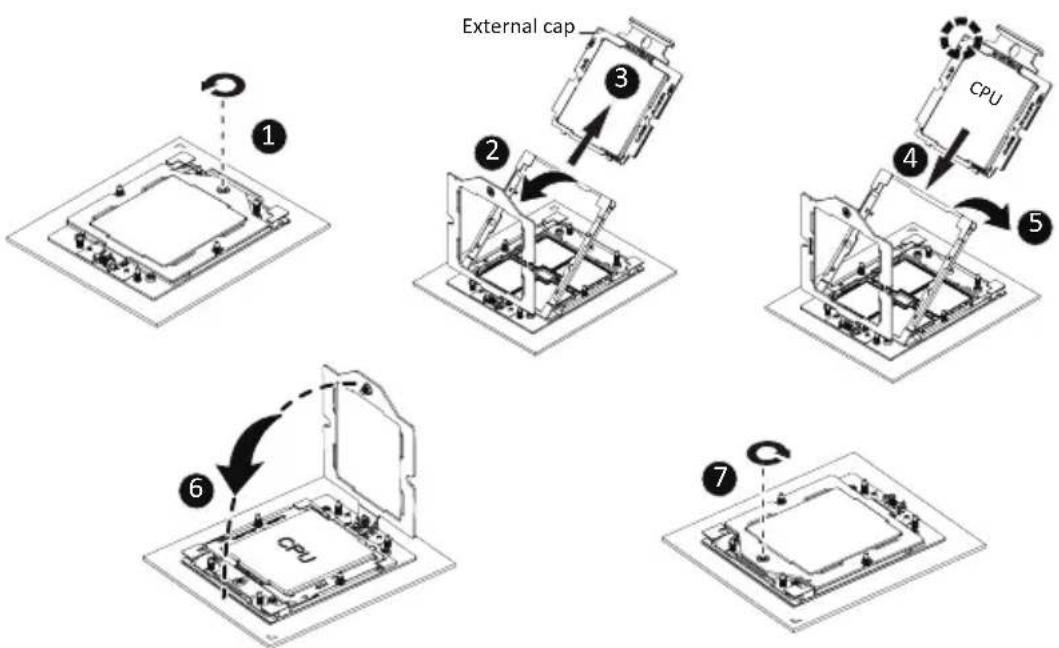

Follow these instructions to Install the CPU:

1. Loosen the captive screw securing the CPU cover.
2. Flip open the CPU cover.
3. Remove the CPU carrier from the CPU frame using the handle on the CPU carrier.

4. Using the handle on the CPU carrier insert the new CPU carrier with CPU installed into the CPU frame.
   NOTE: Ensure the CPU is installed in the CPU carrier in the correct orientation, with the triangle on the CPU aligned to the top left corner of the CPU carrier.

5. Flip the CPU frame with CPU installed into place in the CPU socket.

6. Flip the CPU cover into place over the CPU socket.

7. Tighten the CPU cover screw to secure the CPU cover in place.

Note:

• Lock the CPU by using a Torx T20 screwdriver to tighten screw.
  • The screw tightening torque: 12.5-15.0 kgf-cm.

1-4 Installing and Removing Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.
- Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
- Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

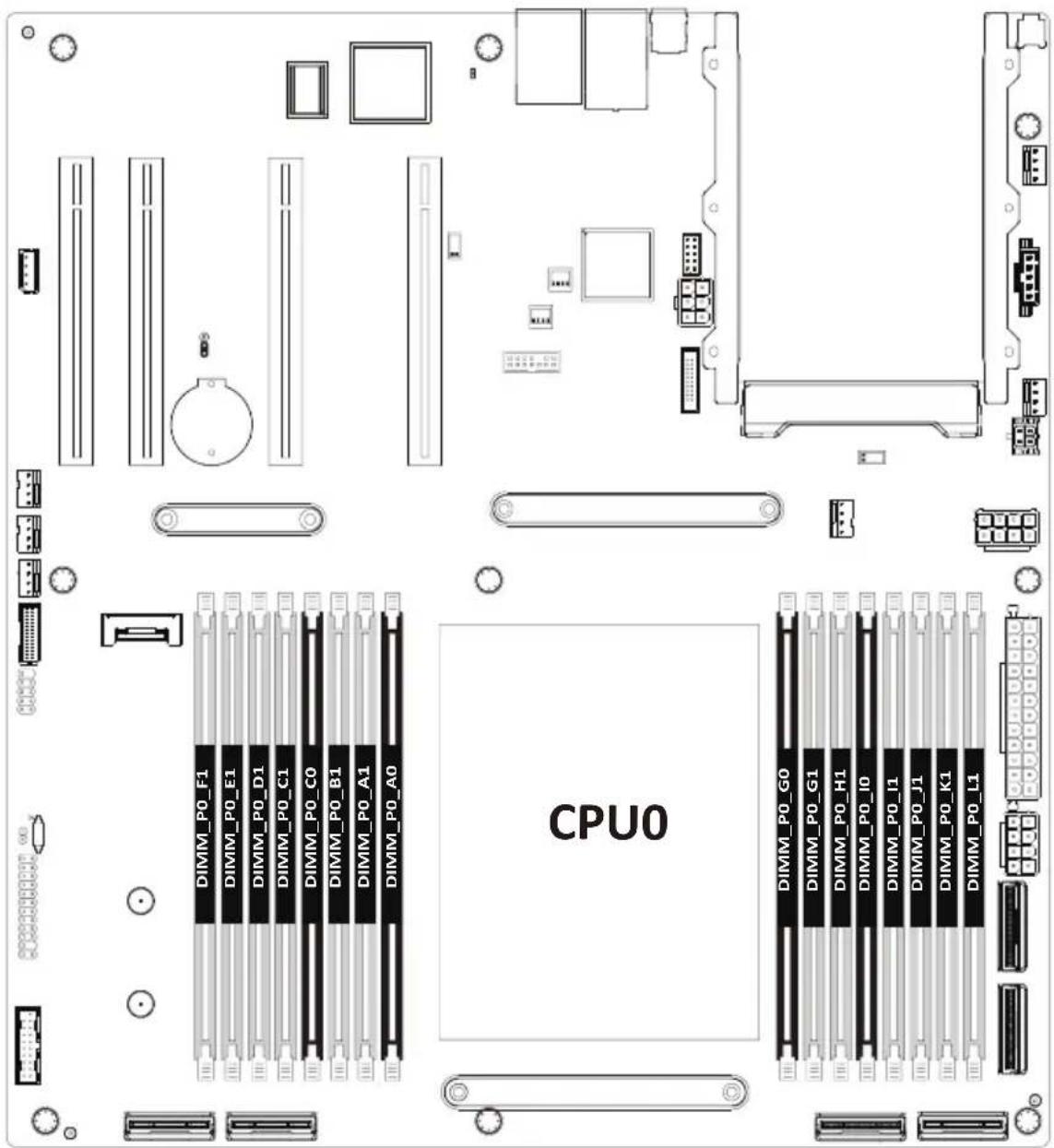

1-4-1 12-Channel Memory Configuration

This motherboard provides 16 DDR5 memory slots and supports 12-Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.

CPU0 DIMM_P0_F1 DIMM_P0_E1 DIMM_P0_D1 DIMM_P0_C1 DIMM_P0_C0 DIMM_P0_B1 DIMM_P0_A1 DIMM_P0_A0

1-4-2 Installing and Removing the Memory Module

Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR5 DIMMs on this motherboard.

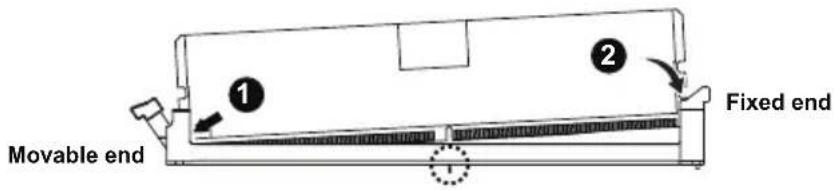

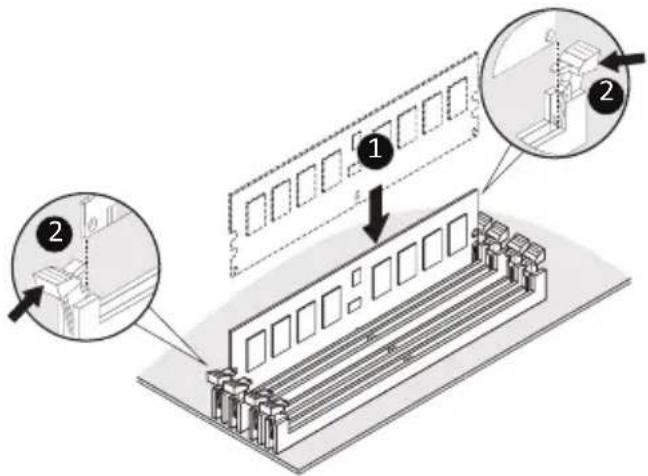

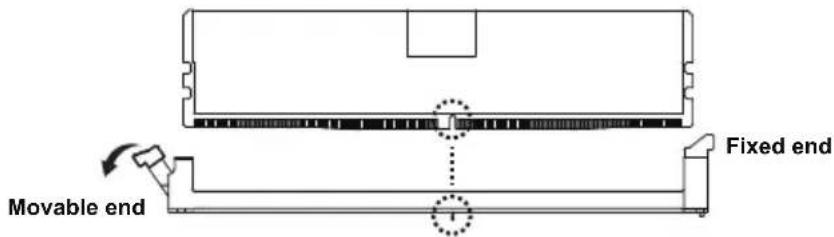

Make sure your DIMM slots have a single latch or a double latch.

Follow these instructions to install a DIMM module with Single Latch :

1. Open the plastic latch of the memory slot, then place the memory module as pre-inserted vertically position.

Fixed end Movable end

1. Hold it with both hands, insert the memory module into the movable end first, and then insert the memory module into the fixed end.

Movable end ① ② Fixed end

1. Then use both hands to insert the memory module vertically into the DIMM slot and push it down. Close the plastic latch at the edge of the DIMM slots to lock the memory module.

Movable end Fixed end

1. Reverse the installation steps when you want to remove the memory module.

Follow these instructions to install a DIMM module with Double Latch:

1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.

Technical diagram showing assembly steps of a memory module with labeled components and structural details

1-4-3 Processor and Memory Module Matrix Table

Memory Q'ty

CPU0

F1

E1

D1

C1

C0

B1

A1

A0

G0

I1H

I1 J1

G1

I0 K1 L1

1 DIMM

V

2 DIMM

V

V

V

V

4 DIMM

V

V

V

V

V

V

V

V

6 DIMM

V

V

V

V

V

V

8 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

10 DIMM

V

V

V

V

V

V

V

V

V

V

12 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

16 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

1-4-4 Memory Population Table

EPYC Memory Speed based on DIMM Population (One DIMM per Channel)

DIMM Type	DIMM Population	Max EPYC 9004 DDR5 Frequency (MT/s)
	DIMM 0
RDIMM	1R (1 Rank) 4800
	2R (2 Ranks) 4800
3DS RDIMM	2S2R (4 Ranks) 4800
	2S4R (8 Ranks) 4800
	2S8R (16 ranks) 4800

1-5 Installing the M.2 Device and Heat Sink

WARNING:

Installation of the thermal pad over the M.2 device is required when installing an M.2 device. Lack of the thermal pad may result in the system overheating and throttle the system performance.

CAUTION

The position of the stand-off screw will depend on the size of the M.2 device. The stand-off screw is pre-installed for 22110 cards as standard. Refer to the size of the M.2 device and change the position of the stand-off screw accordingly.

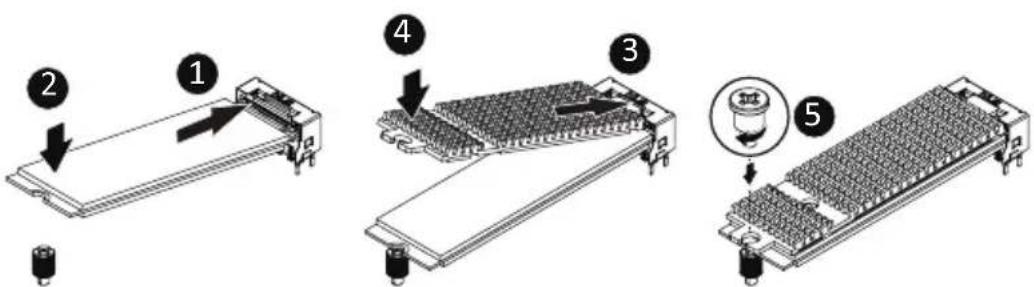

Follow these instructions to install the M.2 device and heat sink:

1. Insert the M.2 device into the M.2 connector.
2. Press down on the M.2 device.
3. Install the thermal pad of the M.2 device to the M.2 device.
4. Press down on the thermal pad.
5. Secure the M.2 device and its thermal pad to the motherboard with a single screw.
6. Reverse steps 1-5 to remove the M.2 device.

Diagram showing five steps of a device assembly or mounting process, labeled 1 to 5 with directional arrows and component details.

1-6 Back Panel Connectors

Technical diagram showing labeled components of a device assembly, including front panel, internal circuit board, and terminal blocks.

1 ID button with LED

When the system identification is active, the ID LED on the front/ back panel glows blue.

2 Mini DisplayPort

Connect to a monitor device.

3 1GbE LAN Port #2

The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. See the section below for a description of the states of the LAN port LEDs.

4 1GbE LAN Port #1

The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. See the section below for a description of the states of the LAN port LEDs.

5 Server Management LAN Port

The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is the dedicated LAN port for Server Management.

6 USB 3.2 Gen1 Ports

The USB port supports the USB 3.2 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive etc.

LAN and ID Button LEDs

Speed LED Link/Activity LED LAN Port

10/100/1000 LAN LED:

State Description

Yellow On 1Gbps data rate

Green On 100Mbps data rate

Off 10Mbps data rate

ID button/LED:

State Description
Blue On	System identification is active
Off System identification is disabled

• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

1-7 Internal Connectors

CPU0 18 16 14 15 17 7 9 7 5 3 6 8 13 11 20 12 10 DIMM_P0_F1 DIMM_P0_E1 DIMM_P0_D1 DIMM_P0_C1 DIMM_P0_C0 DIMM_P0_B1 DIMM_P0_A1 DIMM_P0_A0 DIMM_P0_G0 DIMM_P0_H1 DIMM_P0_I0 DIMM_P0_I1 DIMM_P0_J1 DIMM_P0_K1 DIMM_P0_L1

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

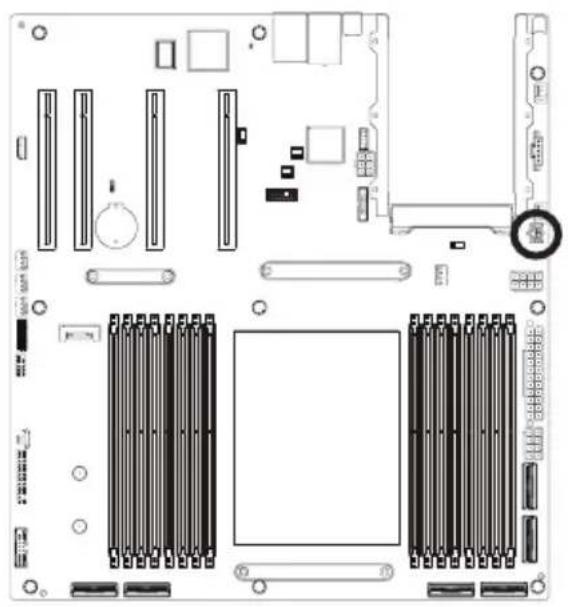

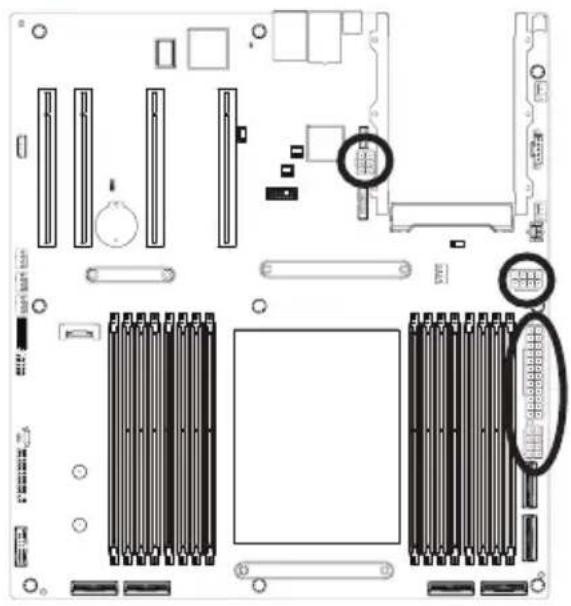

1/2/3/4) ATX1/P12V\_AUX1/P12V\_AUX2/P12V\_PCIE/

(2x12 Main Power Connector and 2x4/2x3 12V Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation. The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption be used (500W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and connectors (no text or labels)

ATX1

Pin No.	Definition	Pin	No. Definition
1 3.3	V 13 3.3V
2 3.3	V 14 -12V
3 GND	15 GND
4 +5V	16 PS_ON
5 GND	17 GND
6 +5V	18 GND
7 GND	19 GND
8 Power Good 20 NC
9 5V	SB 21 +5V
10 +1	2V	22 +5V
11	+12V	23 +5V
12 3.3V	24 GND

P12V_PCIE

Pin No. Definition

1 +12V

2 +12V

3 +12V

4 GND

5 GND

6 GND

P12V_AUX1/P12V_AUX2

Pin No.	Definition
1	GND
2	GND
3	GND
4	GND
5	+12V
6	+12V
7	+12V
8	+12V

5) 12V_STBY1 (Standby Power Connector)

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and drive casing (no text or labels)

Pin No.	Definition
1	GND
2 GND
3 +12 VSB
4 +12 VSB

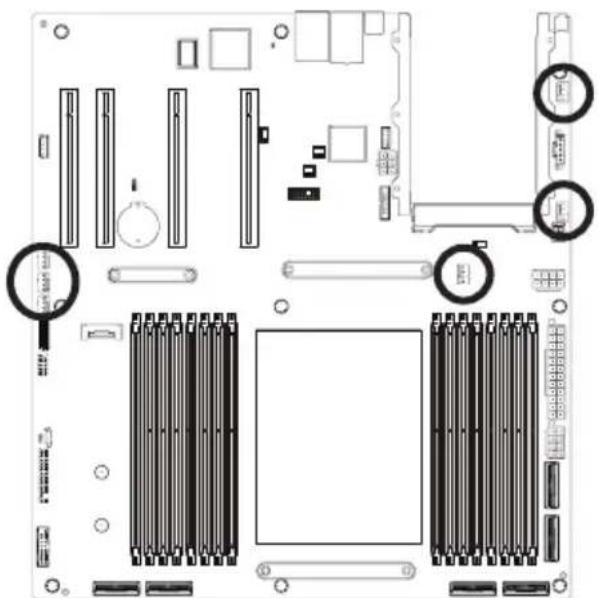

6/7/8) CPU0\_FAN1/SYS\_FAN1/SYS\_FAN2/SYS\_FAN3/SYS\_FAN4/SYS\_FAN5 (FAN Headers)

The motherboard has one 4-pin CPU fan header (CPU_FAN), and five 4-pin (SYS_FAN) system fan headers. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

Pin No.	Definition
1	GND
2	+12V
3	Sense
4 Speed Control

- Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating. Overheating may result in damage to the CPU or the system may hang.

These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.

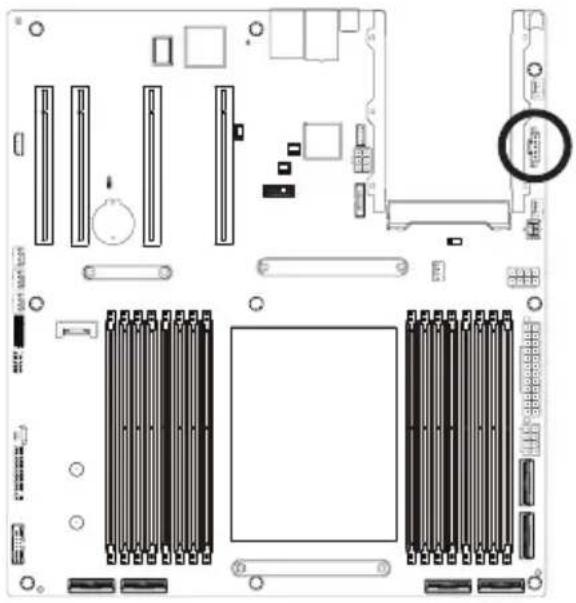

9) PMBus Connector

The Power Management Bus (PMBus) is a variant of the System Management Bus (SMBus) which is targeted at digital management of power supplies.

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and connectors (no text or labels)

Pin No.	Definition
1 PMBus Clock
2 PMBus Data
3 PMBus Alert
4	GND
5 3.3V	Sense

10/11) F\_USB3/F\_USB2 (USB 3.2 Gen1 Connector/2.0 Header)

The connector/header conform to USB 2.0/3.0 specification. Each USB connector/header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

USB 2.0 Header

Exploded view diagram of a computer motherboard showing slots, connectors, and memory layout (no text or labels)

Pin No.	Definition	Pin No.	Definition
1 Power (5V)			6 USB DY+
2 Power (5V)			7 GND
3 USB DX-			8 GND
4 USB DY-			9 No Pin
5 USB DX+			10 No Connect

USB 3.2 Connector

Pin No.	Definition	Pin No	Definition
1	Power 11 IntA_P2_D+
2	IntA_P1_SSRX- 12 IntA_P2_D-
3	IntA_P1_SSRX+ 13 GND
4	GND 14 IntA_P2_SSTX+
5	IntA_P1_SSTX-	15 IntA_P2_SSTX-
6	IntA_P1_SSTX+	16 GND
7	GND 17 IntA_P2_SSRX+
8	IntA_P1_D-	18 IntA_P2_SSRX-
9	IntA_P1_D+	19 Power
10	NC	20 No Pin

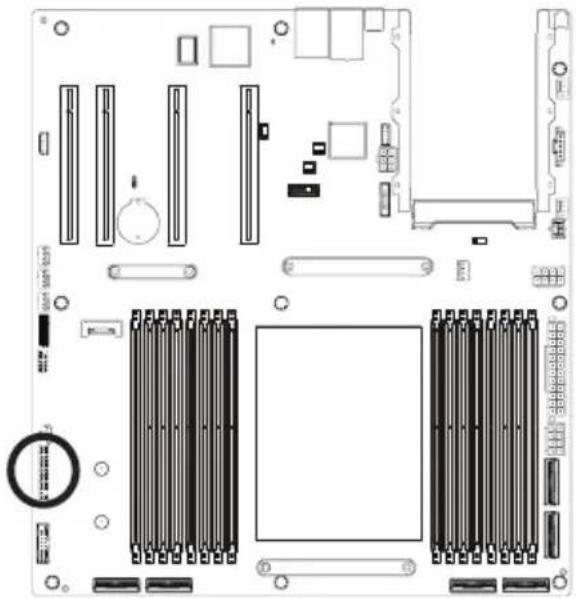

12) FP\_1 (Front Panel Header)

Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

Exploded view diagram of a computer motherboard showing slots, connectors, and memory drive layout (no text or labels)

Pin No.	Definition Pin No.	Definition
1 Power LED+ 2 5V Standby
3 No	Pin 4 ID LED+
5 Power LED- 6 ID LED-
7* HDD LED+ 8 System		Status LED+
9* HDD LED- 10 System		Status LED-
11 Power Button 12 LAN1		Active LED+
13 GND 14 LAN1 Link LED-
15 Reset Button 16 SMBus Data
17 GND 18 SMBus Clock
19 ID Button 20 Case Open
21 GND 22 LAN2 Active LED+
23 NMI Switch 24 LAN2 Link LED-
*Note: Pin 7 & Pin 9 are reserved for Gigabyte systems.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

13) BP\_1 (HDD Backplane Board Header)

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

Pin No.	Definition	Pin No.	Definition
1	Reserved	2	BPMI DIN/OUT
3	GND	4	BPMI DOUT/IN
5	BPMI_LOAD	6	GND
7	BPMI_CLK	8	PLD_Program_EN
9	GLED_AMB_N 10	GRN_N
11	FAN_IRQ_N 12	Reserved
13	BP_SCL	14	GND
15	BP_SDA	16	BP_RST_N
17	SMB_U2_TMP_SCL	18	GND
19	SMB_U2_TMP_SDA 20	2C_DEV_RST
21	PH_HP_SCL0	22	GND
23	PH_HP_SDA0 24	GND
25	Reserved	26	GND
27	Reserved	28	GND
15	P3V3_AUX	30	P3V3_AUX

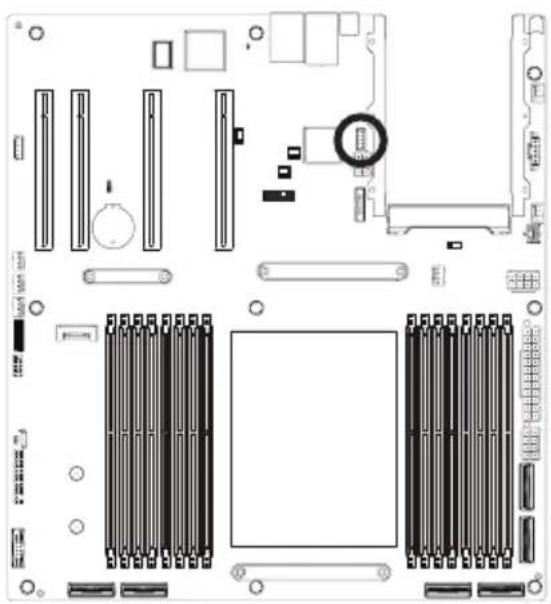

14) COM (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer.

Exploded view diagram of a computer motherboard showing slots, connectors, and memory card layout (no text or labels)

Pin No.	Definition
1	NSINA
2	NDCDA_N
3	NDTRA_N
4	NSOUTA
5	NDSRA_N
6	GND
7	NCTSA_N
8	NRTSA_N
9	NA
10	NRIA_N

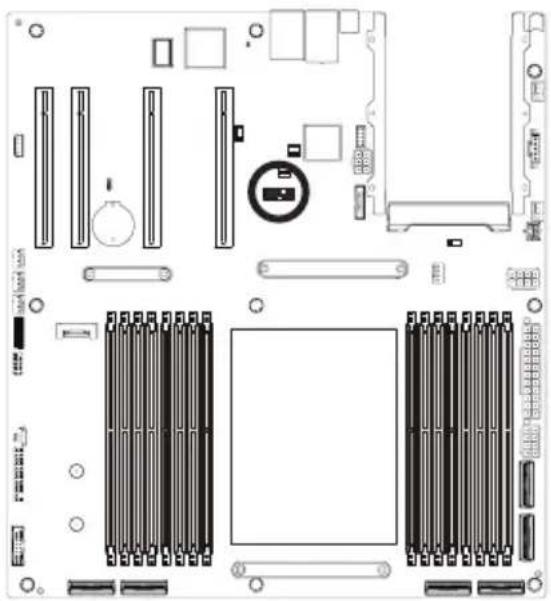

15) SPI\_TPM (Trusted Platform Module Connector)

Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated microcontroller designed to secure hardware through integrated cryptographic keys.

Exploded view diagram of a computer motherboard showing slots, connectors, and memory components (no text or labels)

Diagram showing a component being transferred into a microcontroller, with Chinese labels indicating 'Control' and 'Adjustment'.

Pin No.	Definition	Pin No.	Definition
1	Clock 8 NC
2	P_3V3_AUX 9 NC
3	LPC_RST 10 No Pin
4	NC 11 NC
5	SPI_MISO 12 GND
6	IRQ_SPI 13 SPI_CS_N
7	SPI_MOSI 14 GND

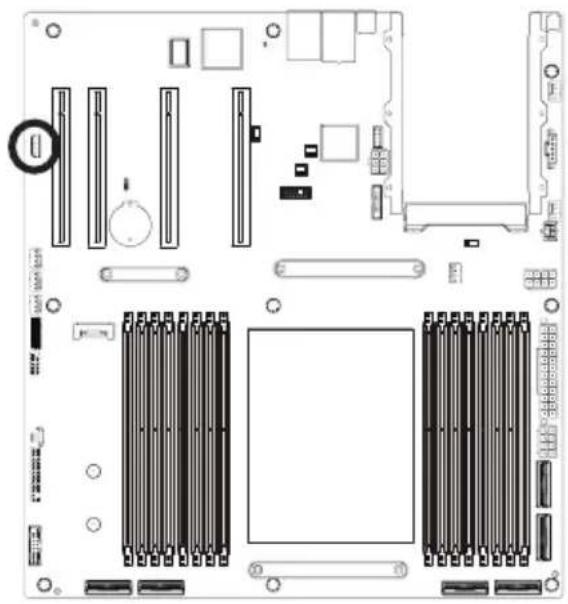

16) IPMB (Intelligent Platform Management Bus) Connector

The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for transferring Intelligent Platform Management Interface Specification (IPMI) messages between intelligent I2C devices.

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

Pin No.	Definition
1	Clock
2	GND
3	Data
4	VCC

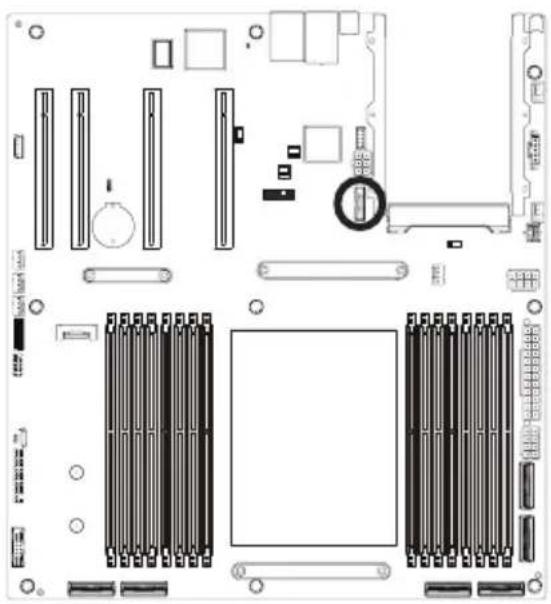

17) CN\_NCSI (NCSI Connector)

Exploded view diagram of a computer motherboard showing slots, connectors, and memory units (no text or labels)

Pin No.	Definition	Pin No.	Definition
1	NCSI_CLK 2 GND
3	NCSI_RX_D0 4 GND
5	NCSI_RX_D1 6 GND
7	NCSI_CRS_DV 8 GND
9	NCSI_RX_ER 10 GND
11	P3V3_AUX 12 GND
13	NCSI_TX_D1 14 GND
15	NCSI_TX_D0 16 GND
17	NCSI_TX_EN 18 GND
19	NCSI_PRESENT 20	P3V3_AUX

18) LED\_BMC (BMC Firmware Readiness LED)

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

State Description
On BMC firmware is initial
Blink BMC firmware is ready
Off AC loss

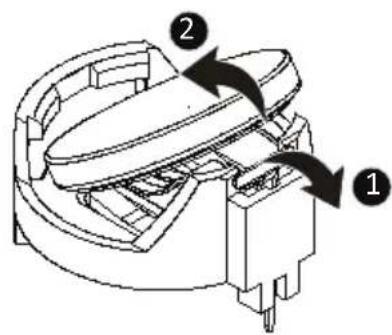

19) BAT (Battery Socket)

The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost.

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and circuit board (no text or labels)

Technical diagram of a mechanical device with numbered annotations indicating directional movement or assembly steps.

• Always turn off your computer and unplug the power cord before replacing the battery.
- Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.
- Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model.
- Used batteries must be handled in accordance with local environmental regulations.

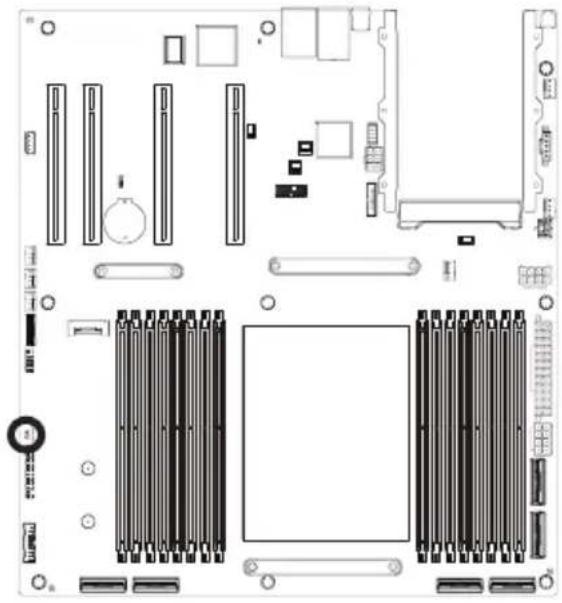

20) CASE\_OPEN (Case Open Intrusion Alert Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been removed. This function requires a chassis with chassis intrusion detection design.

Exploded view diagram of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

Open: Normal Operation (Default)
Closed: Active Chassis Intrusion Alert

1-8 Jumper Settings

NCSI_SW ON SW1 SW2 OFF OFF LAN1 ON OFF CN_NCSI ON ON OCP 3.0 Clear CMOS 3 Enable CLR_CMOS 2 Default J1 ON OFF 1 HSMB_SEL BIOS Defined 2 PMBUS_SEL BIOS Defined 3 BIOS PWD Clear supervisor password Normal [Default] 4 BIOS recovery modeBIOS RECOVER [Default]

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the configuration values in the CMOS.

To access the BIOS Setup program, press the key during the POST when the power is turned on.

• BIOS flashing is potentially risky, if you do not encounter any problems when using the current BIOS version, it is recommended that you don't flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
• It is recommended that you not alter the default settings (unless you need to) to prevent system instability or other unexpected results. Inadequately altering the settings may result in system's failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values. (Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in Chapter 1 for how to clear the CMOS values.)

BIOS Setup Program Function Keys

<←><→>	Move the selection bar to select the screen
<↑><↓>	Move the selection bar to select an item
<+>	Increase the numeric value or make changes
<->	Decrease the numeric value or make changes
	Execute command or enter the submenu
	Main Menu: Exit the BIOS Setup programSubmenus: Exit current submenu
	Show descriptions of general help
	Restore the previous BIOS settings for the current submenus
	Load the Optimized BIOS default settings for the current submenus
	Save all the changes and exit the BIOS Setup program

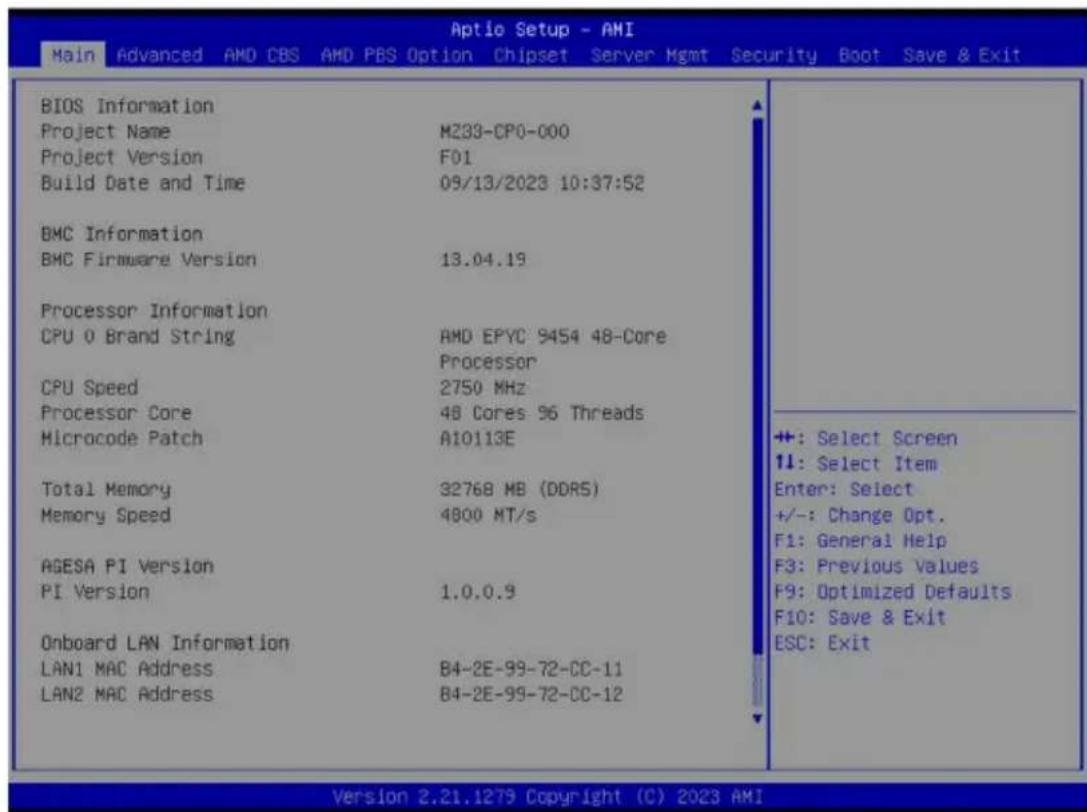

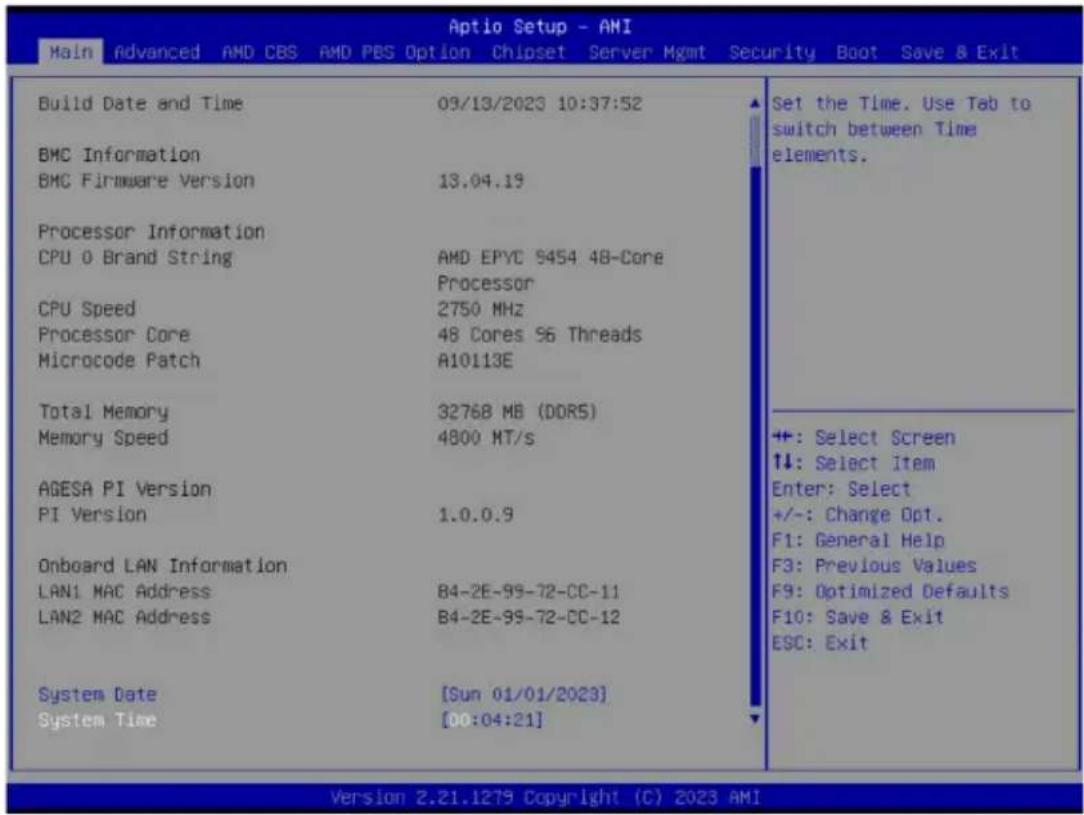

Main

This setup page includes all the items of the standard compatible BIOS.

■ Advanced

This setup page includes all the items of AMI BIOS special enhanced features.

(ex: Auto detect fan and temperature status, automatically configure hard disk parameters.)

AMD CBS

This setup page includes the common items for configuration of AMD motherboard-related information.

AMD PBS Option

This setup page includes the common items for configuration of AMD CPM RAS related settings.

Chipset

This setup page includes all the submenu options for configuring the functions of the North Bridge.

■ Server Management

Server additional features enabled/disabled setup menus.

Security

Change, set, or disable supervisor and user password. Configuration supervisor password allows you to restrict access to the system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

Boot

This setup page provides items for configuration of the boot sequence.

■ Save & Exit

Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing can also carry out this task.)

Abandon all changes and the previous settings remain in effect. Pressing to the confirmation message will exit BIOS Setup. (Pressing can also carry out this task.)

2-1 The Main Menu

Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press to accept or enter other sub-menu.

Main Menu Help

The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

Submenu Help

While in a submenu, press to display a help screen (General Help) of function keys available for the menu. Press to exit the help screen. Help for each item is in the Item Help block on the right side of the submenu.

• When the system is not stable as usual, select the Restore Defaults item to set your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit BIOS Information Project Name M233-CP0-000 Project Version F01 Build Date and Time 09/13/2023 10:37:52 BMC Information BMC Firmware Version 13.04.19 Processor Information CPU 0 Brand String AMD EPYC 9454 48-Core CPU Speed Processor 2750 MHz Processor Core 48 Cores 96 Threads Microcode Patch A10113E Total Memory 32768 MB (DDR5) Memory Speed 4800 MT/s AGESA PI Version PI Version 1.0.0.9 Onboard LAN Information LAN1 MAC Address B4-2E-99-72-CC-11 LAN2 MAC Address B4-2E-99-72-CC-12 +: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit Build Date and Time 09/13/2023 10:37:52 BMC Information BMC Firmware Version 13.04.19 Processor Information CPU 0 Brand String AMD EPYC S454 48-Core CPU Speed Processor 2750 MHz Processor Core 48 Cores S6 Threads Microcode Patch A10113E Total Memory 3276B MB (DOR5) Memory Speed 4800 MT/s AGESA PI Version PI Version 1.0.0.9 Onboard LAN Information LAN1 MAC Address B4-2E-99-72-CC-11 LAN2 MAC Address B4-2E-99-72-CC-12 System Date [Sun 01/01/2023] System Time [00:04:21] Set the Time. Use Tab to switch between Time elements. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
BIOS Information
Project Name	Displays the project name information.
Project Version	Displays version number of the BIOS setup utility.
Build Date and Time	Displays the date and time when the BIOS setup utility was created.
BMC Information^(Note1)
BMC Firmware Version^(Note1)	Displays BMC firmware version information.
Processor Information
CPU Brand String/ CPU Speed / Processor Core / Microcode Patch	Displays the technical specifications for the installed processor(s).
Total Memory^(Note2)	Displays the total memory size of the installed memory.
Memory Speed^(Note2)	Displays the frequency information of the installed memory.
VR Information Version Displays VR version information.
AGESA PI Version
PI Version Displays AGESA PI version information.

(Note1) Functions available on selected models.
(Note2) This section will display capacity and frequency information of the memory that the customer has installed.

Parameter	Description
Onboard LAN Information
LAN1/LAN2 MAC Address ^(Note)	Displays LAN MAC address information.
System Date	Sets the date following the weekday-month-day-year format.
System Time	Sets the system time following the hour-minute-second format.

(Note) The number of LAN ports listed will depend on the motherboard / system model.

2-2 Advanced Menu

The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press to access the related submenu screen.

When Boot Mode Select is set to UEFI (Default)

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Hgmt Security Boot Save & Exit Trusted Computing PSP Firmware Versions Legacy Video Select AST2600 Super IO Configuration S5 RTC Wake Settings Serial Port Console Redirection CPU Configuration PCI Subsystem Settings USB Configuration Network Stack Configuration Post Report Configuration NVMe Configuration SATA Configuration Graphic Output Configuration AMD Mem Configuration Status Tls Auth Configuration RAM Disk Configuration iSCSI Configuration Intel(R) I210 Gigabit Network Connection - B4:2E:99:72:CC:11 VLAN Configuration (MAC:B42E9972CC11) MAC:B42E9972CC11-IPv4 Network Configuration MAC:B42E9972CC11-IPv6 Network Configuration Intel(R) I210 Gigabit Network Connection - B4:2E:99:72:CC:12 VLAN Configuration (MAC:B42E9972CC12) Trusted Computing Settings +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Hgmt Security Boot Save & Exit AST2600 Super IO Configuration S5 RTC Make Settings Serial Port Console Redirection CPU Configuration PCI Subsystem Settings USB Configuration Network Stack Configuration Post Report Configuration NVMe Configuration SATA Configuration Graphic Output Configuration AMD Mem Configuration Status Tls Auth Configuration RAM Disk Configuration ISCSI Configuration Intel(R) I210 Gigabit Network Connection - B4:2E:99:72:CC:11 VLAN Configuration (MAC:B42E9972CC11) MAC:B42E9972CC11-IPv4 Network Configuration MAC:B42E9972CC11-IPv6 Network Configuration Intel(R) I210 Gigabit Network Connection - B4:2E:99:72:CC:12 VLAN Configuration (MAC:B42E9972CC12) MAC:B42E9972CC12-IPv4 Network Configuration MAC:B42E9972CC12-IPv6 Network Configuration Configure IPv6 network parameters. (MAC:B42E9972CC12) +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

When "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit
Trusted Computing PSP Firmware Versions Legacy Video Select AST2600 Super IO Configuration S5 RTC Wake Settings Serial Port Console Redirection CPU Configuration PCI Subsystem Settings USB Configuration Network Stack Configuration Post Report Configuration NVMe Configuration SATA Configuration AMD Mem Configuration Status Tls Auth Configuration RAM Disk Configuration iSCSI Configuration	Trusted Computing Settings +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

2-2-1 Trusted Computing

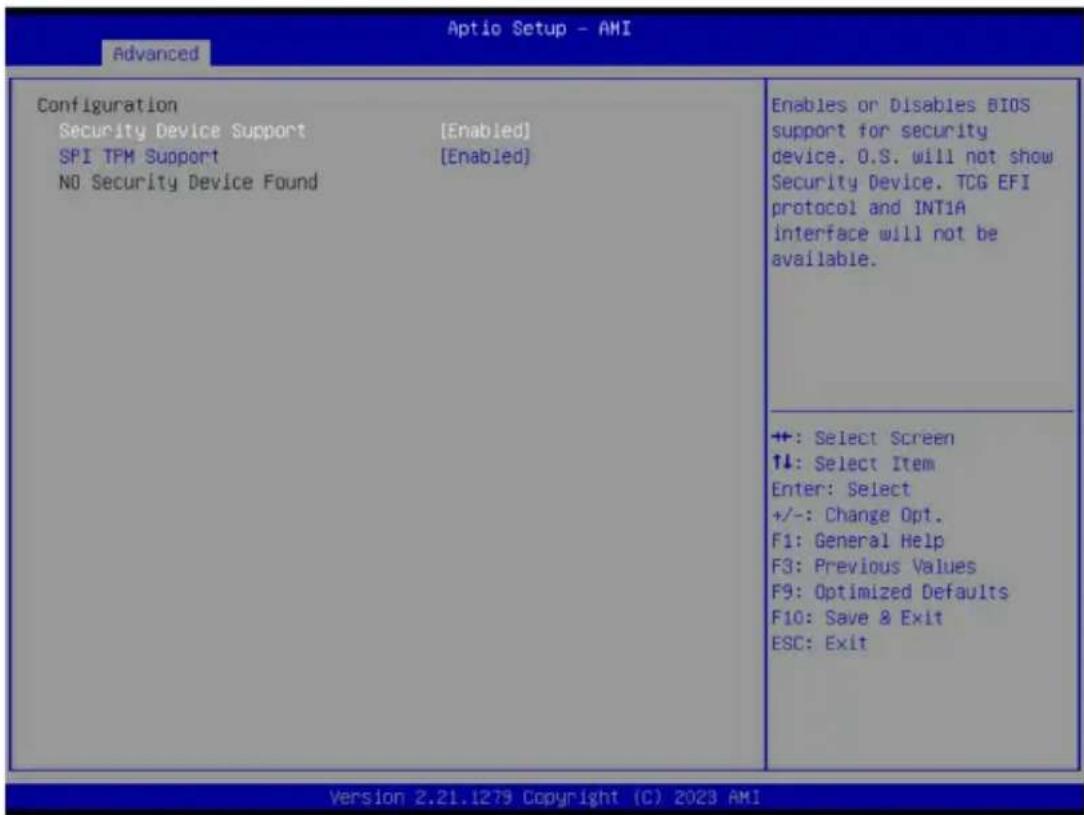

Optio Setup - AMI Advanced Configuration Security Device Support [Enabled] SPI TPM Support [Enabled] NO Security Device Found Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Configuration
Security Device Support	Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be available.Options available: Disabled, Enabled. Default setting is Enabled.
SPI TPM Support	Select Enable to activate TPM support feature.Options available: Disabled, Enabled. Default setting is Enabled.

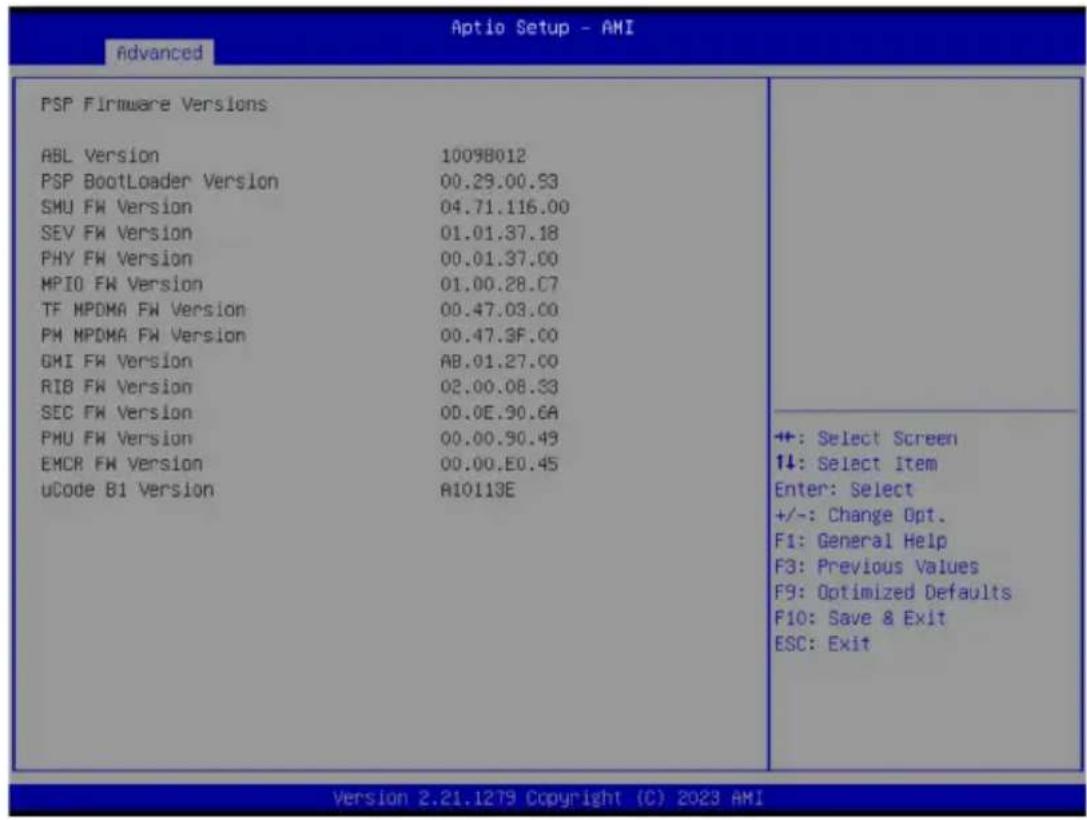

2-2-2 PSP Firmware Versions

The PSP Firmware Versions page displays the basic PSP firmware version information. Items on this window are non-configurable.

PSP Firmware Versions ABL Version 10098012 PSP BootLoader Version 00.29.00.53 SMU FW Version 04.71.116.00 SEV FW Version 01.01.37.18 PHY FW Version 00.01.37.00 MPIO FW Version 01.00.28.07 TF MPDMA FW Version 00.47.03.00 PM MPDMA FW Version 00.47.3F.00 GMI FW Version AB.01.27.00 RIB FW Version 02.00.08.33 SEC FW Version 0D.0E.90.6A PHU FW Version 00.00.90.49 EMCR FW Version 00.00.E0.45 uCode B1 Version A10113E ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

2-2-3 Legacy Video Select

Optio Setup - AMI Advanced OnBrd/Ext VGA Select [Auto] Select between onboard or external VGA support. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
OnBrd/Ext VGA Select	Selects between onboard or external VGA support. Options available: Auto, Onboard, External. Default setting is Auto.

(Note) This configurable option will be displayed when "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section.

2-2-4 AST2600 Super IO Configuration

Aptio Setup - AMI Advanced AST2600 Super IO Configuration Super IO Chip AST2600 ▶ Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA) +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
AST2600 Super IO Configuration
Super IO Chip Displays the super IO chip information
Serial Port 1 Configuration	Press [Enter] for configuration of advanced items.

2-2-4-1 Serial Port 1 Configuration

Advanced Serial Port 1 Configuration Serial Port [Enabled] Device Settings IO=3F8h: IRQ=4; Change Settings [Auto] Enable or Disable Serial Port (COM) +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Serial Port 1 Configuration
Serial Port ^(Note)	Enable/Disable the Serial Port (COM). When set to Enabled allows you to configure the Serial port 1 settings. When set to Disabled, displays no configuration for the serial port.Options available: Disabled, Enabled. Default setting isEnabled.
Devices Settings Displays the Serial Port 1 device settings.
Change Settings	Select an optimal settings for Super IO Device.Options available for Serial Port 1:AutoIO=3F8h; IRQ=4;IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;Default setting isAuto.

(Note) Advanced items prompt when this item is defined.

2-2-5 S5 RTC Wake Settings

Aptio Setup - AMI
Advanced
Wake system from S5 [Disabled]	Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified. Select DynamicTime, System will wake on the current time + Increase minute(s)
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Wake System from S5	Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time, Dynamic Time. When Fixed Time is selected, system will wake on the hr::min::sec specified. Default setting is Disabled.

2-2-6 Serial Port Console Redirection

Aptio Setup - AMI Advanced COM1/SOL Console Redirection [Enabled] ► Console Redirection Settings Legacy Console Redirection ► Legacy Console Redirection Settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection EMS [Disabled] ► Console Redirection Settings Console Redirection Enable or Disable. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
COM1/Serial Over LANConsole Redirection ^(Note)	Select whether to enable console redirection for specified device. Console redirection enables the users to manage the system from a remote location.Options available: Enabled, Disabled. Default setting isDisabled.
COM1/Serial Over LANConsole Redirection Settings	Press [Enter] to configure advanced items.Please note that this item is configurable when COM1/Serial Over LAN Console Redirection is set to Enabled.Terminal Type- Selects a terminal type to be used for console redirection.- Options available: VT100, VT100Plus, ANSI, VT-UTF8. Default setting isVT100Plus.Bits per second- Selects the transfer rate for console redirection.- Options available: 9600, 19200, 38400, 57600, 115200. Default setting is115200.Data Bits- Selects the number of data bits used for console redirection.- Options available: 7, 8. Default setting is8.

(Note) Advanced items prompt when this item is defined.

Parameter	Description
COM1/Serial Over LAN Console Redirection Settings (continued)	Parity– A parity bit can be sent with the data bits to detect some transmission errors.– Even: parity bit is 0 if the num of 1's in the data bits is even.– Odd: parity bit is 0 if num of 1's in the data bits is odd.– Mark: parity bit is always 1. Space: Parity bit is always 0.– Mark and Space Parity do not allow for error detection.– Options available: None, Even, Odd, Mark, Space. Default setting is None.Stop Bits– Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit.Communication with slow devices may require more than 1 stop bit.– Options available: 1, 2. Default setting is 1.Flow Control– Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.– Options available: None, Hardware RTS/CTS. Default setting is None.VT-UTF8 Combo Key Support– Enable/Disable the VT-UTF8 Combo Key Support.– Options available: Enabled, Disabled. Default setting is Enabled.Recorder Mode– When this mode enabled, only texts will be send. This is to capture Terminal data.– Options available: Enabled, Disabled. Default setting is Disabled.Resolution 100x31– Enable/Disable extended terminal resolution.– Options available: Enabled, Disabled. Default setting is Enabled.Putty KeyPad– Selects Function Key and KeyPad on Putty.– Options available: VT100, LINUX, XTERMR6, SC0, ESCN, VT400. Default setting is VT100.
Legacy Console Redirection
Legacy Console Redirection Settings	Press [Enter] to configure advanced items.◆Redirection COM Port-Selects a COM port for Legacy serial redirection.-Default setting isCOM1/SOL.◆Resolution-Selects the number of rows and columns used in Console Redirection for legacy OS support.-Options available: 80x24, 80x25. Default setting is80x24.◆Redirect After POST-When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS.-Options available: Always Enable, BootLoader. Default setting isAlways Enable.
Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS) Console Redirection ^(Note)	EMS console redirection allows the user to configure Console Redirection Settings to support Out-of-Band Serial Port management.Options available: Disabled, Enabled. Default setting isDisabled.
Serial Port for Out-of-Band EMS Console Redirection Settings	Press [Enter] to configure advanced items.Please note that this item is configurable when Serial Port for Out-of-Band Management EMS Console Redirection is set to Enabled.◆Out-of-Band Mgmt Port-Microsoft Windows Emergency Management Service (EMS) allows for remote management of a Windows Server OS through a serial port.-Default setting isCOM1/SOL.◆Terminal Type-Selects a terminal type to be used for console redirection.-Options available: VT100, VT100Plus, ANSI, VT-UTF8. Default setting isANSI.◆Bits per second-Selects the transfer rate for console redirection.-Options available: 9600, 19200, 57600, 115200. Default setting is115200.

(Note) Advanced items prompt when this item is defined.

Parameter

Description

Serial Port for Out-of-Band EMS Console Redirection Settings(continued)

Flow Control– Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.– Options available: None, Hardware RTS/CTS, Software Xon/Xoff. Default setting is None.

2-2-7 CPU Configuration

Advanced CPU Configuration SVM Mode [Enabled] ▶ CPU 0 Information Enable/disable CPU Virtualization +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
SVM Mode	Enable/Disable the CPU Virtualization.Options available: Disabled, Enabled. Default setting is Enabled.
CPU 0 Information	Press [Enter] to view the memory information related to CPU 0.

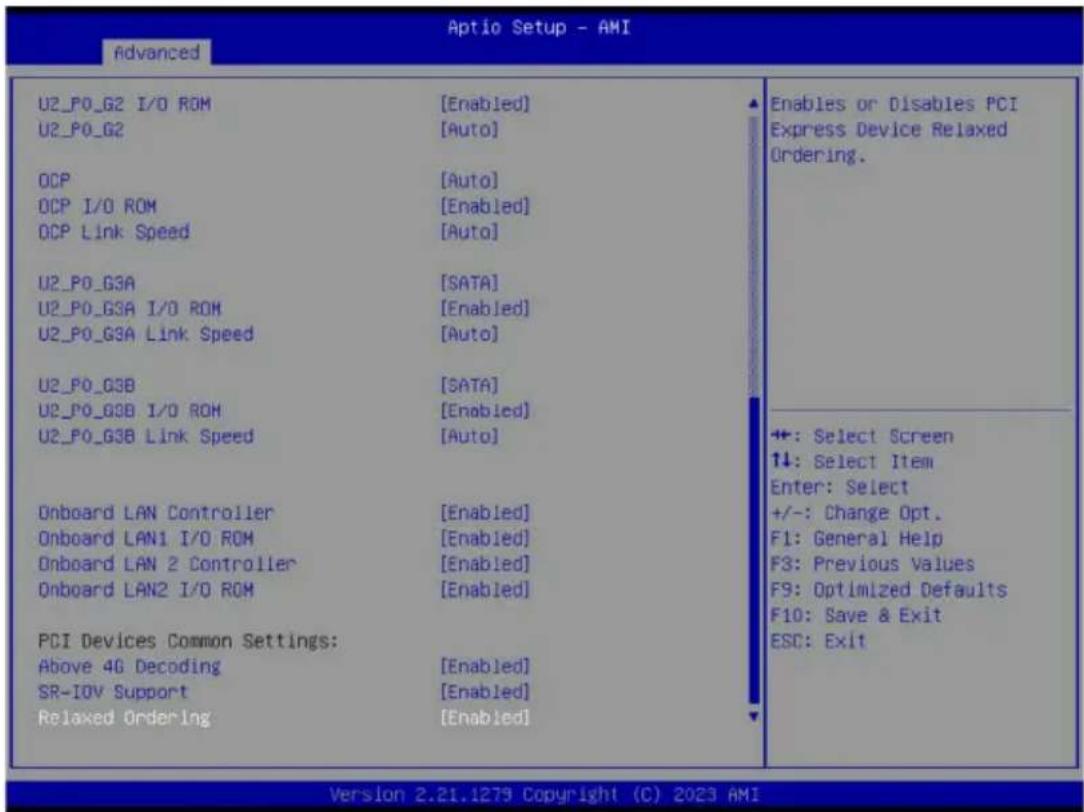

2-2-8 PCI Subsystem Settings

PCI Bus Driver Version PCIE_2 PCIE_2 I/O ROM PCIE_2 Link Speed U2_P0_G0 U2_P0_G0 I/O ROM U2_P0_G0 Link Speed PCIE_4 PCIE_4 I/O ROM PCIE_4 Link Speed PCIE_1 PCIE_1 I/O ROM PCIE_1 Link Speed PCIE_6 PCIE_6 I/O ROM PCIE_6 U2_P0_G2 U2_P0_G2 I/O ROM U2_P0_G2 A5.01.28 [Auto] [Enabled] [Auto] [x4 x4 x4 x4] [Enabled] [Auto] [Auto] [Enabled] [Auto] [Auto] [Auto] [Enabled] [Auto] [x4 x4 x4 x4] [Enabled] [Auto] Change PCIE_2 PCIe lanes. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Advanced U2_P0_G2 I/O ROM [Enabled] U2_P0_G2 [Auto] OCP [Auto] OCP I/O ROM [Enabled] OCP Link Speed [Auto] U2_P0_G3A [SATA] U2_P0_G3A I/O ROM [Enabled] U2_P0_G3A Link Speed [Auto] U2_P0_G3B [SATA] U2_P0_G3B I/O ROM [Enabled] U2_P0_G3B Link Speed [Auto] Onboard LAN Controller [Enabled] Onboard LAN1 I/O ROM [Enabled] Onboard LAN 2 Controller [Enabled] Onboard LAN2 I/O ROM [Enabled] PCI Devices Common Settings: Above 4G Decoding [Enabled] SR-IOV Support [Enabled] Relaxed Ordering [Enabled] Enables or Disables PCI Express Device Relaxed Ordering. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
PCI Bus Driver Version	Displays the PCI Bus Driver version information.
PCIE_\#^(Note1)	Change PCIe lanes.Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, x4x4x4x4. Default setting isAuto.
PCIE_\# I/O ROM^(Note1)	When enabled, this setting will initialize the device expansion ROM for the related devices.Options available: Disabled, Enabled. Default setting isEnabled.
PCIE_\# Link Speed^(Note1)	Configure MCIO slot max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
U2_P0_G0/ U2_P0_G2	Change MCIO PCIe lanes.Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, x4x4x4x4. Default setting isx4x4x4x4.
U2_P0_G0/ U2_P0_G2 I/O ROM	When enabled, this setting will initialize the device expansion ROM for the related devices.Options available: Disabled, Enabled. Default setting isEnabled.
U2_P0_G0/ U2_P0_G2 Link Speed	Configure MCIO slot max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
OCP	Change OCP PCIe lanes.Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, x4x4x4x4. Default setting isAuto.
OCP I/O ROM	When enabled, this setting will initialize the device expansion ROM for the related PCI-E slot.Options available: Disabled, Enabled. Default setting isEnabled.
OCP Link Speed	Configure OCP slot max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
U2_P0_G3A/ U2_P0_G3B	Change MCIO PCIe lanes.Options available: SATA, x4x4. Default setting isx4x4.
U2_P0_G3A/ U2_P0_G3B I/O ROM	When enabled, this setting will initialize the device expansion ROM for the related devices.Options available: Disabled, Enabled. Default setting isEnabled.
U2_P0_G3A/ U2_P0_G3B Link Speed	Configure MCIO slot max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
Onboard LAN# Controller ^(Note2)	Enable/Disable the onboard LAN devices.Options available: Disabled, Enabled. Default setting isEnabled.
Onboard LAN# I/O ROM ^(Note2)	Enable/Disable the onboard LAN devices, and initializes device expansion ROM.Options available: Disabled, Enabled. Default setting isEnabled.

(Note1) This section is dependent on the available MCIO connector.
(Note2) This section is dependent on the available LAN controller.

Parameter	Description
PCI Devices Common Settings
Above 4G Decoding	Enable/Disable memory mapped I/O to 4GB or greater address space (Above 4G Decoding).Options available: Disabled, Enabled. Default setting is Enabled.
SR-IOV Support	If the system has SR-IOV capable PCIe devices, this item Enable/Disable Single Root IO Virtualization Support.Options available: Disabled, Enabled. Default setting is Enabled.
Relaxed Ordering	Enable/Disable PCI express device relaxed ordering.Options available: Disabled, Enabled. Default setting is Enabled.

2-2-9 USB Configuration

Optio Setup - AMI Advanced USB Configuration USB Module Version 29 USB Controllers: 2 XHCIs USB Devices: 8 Drives, 3 Keyboards, 2 Mice, 7 Hubs Legacy USB Support [Enabled] XHCI Hand-off [Enabled] USB Mass Storage Driver Support [Enabled] USB hardware delays and time-outs: USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto] Mass Storage Devices: AMI Virtual CDROM0 1.00 [Auto] AMI Virtual HDisk0 1.00 [Auto] AMI Virtual CDROM1 1.00 [Auto] AMI Virtual CDROM2 1.00 [Auto] AMI Virtual CDROM3 1.00 [Auto] AMI Virtual HDisk1 1.00 [Auto] Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
USB Configuration
USB Module Version	Displays the USB module version information.
USB Controllers	Displays the supported USB controllers.
USB Devices:	Displays the USB devices connected to the system.
Legacy USB Support	Enable/Disable the Legacy USB support function. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.Options available: Enabled, Disabled, Auto. Default setting is Enabled.
XHCI Hand-off	Enable/Disable the XHCI Hand-off support.Options available: Enabled, Disabled. Default setting is Enabled.
USB Mass Storage Driver Support ^(Note)	Enable/Disable the USB Mass Storage Driver Support.Options available: Disabled, Enabled. Default setting is Enabled.
USB hardware delays and time-outs
USB transfer time-out	Selects the time-out value for USB Control/Bulk/Interrupt transfers.Options available: 1 sec, 5 sec, 10 sec, 20 sec.Default setting is 20 sec.

(Note) This item is present only if you attach USB devices.

Parameter	Description
Device reset time-out	Selects the time-out value during a USB mass storage device reset. Options available: 10 sec, 20 sec, 30 sec, 40 sec. Default setting is 20 sec.
Device power-up delay	Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Options available: Auto, Manual. Default setting is Auto.
Mass Storage Devices Displays the mass storage devices available on the system.

2-2-10 Network Stack Configuration

Aptio Setup - AMI Advanced Network Stack [Enabled] IPv4 PXE Support [Enabled] IPv4 HTTP Support [Disabled] IPv6 PXE Support [Enabled] IPv6 HTTP Support [Disabled] PXE boot wait time 1 Media detect count 1 Enable/Disable UEFI Network Stack +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Network Stack	Enable/Disable the UEFI network stack.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 PXE Support^(Note)	Enable/Disable the lpv4 PXE feature.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 HTTP Support^(Note)	Enable/Disable the lpv4 HTTP feature.Options available: Enabled, Disabled. Default setting is Disabled.
Ipv6 PXE Support^(Note)	Enable/Disable the lpv6 PXE feature.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv6 HTTP Support^(Note)	Enable/Disable the lpv6 HTTP feature.Options available: Enabled, Disabled. Default setting is Disabled.
PXE boot wait time^(Note)	Wait time in seconds to press ESC key to abort the PXE boot.Press the <+> / <-> keys to increase or decrease the desired values.
Media detect count^(Note)	Number of times the presence of media will be checked.Press the <+> / <-> keys to increase or decrease the desired values.

(Note) This item appears when Network Stack is set to Enabled.

2-2-11 Post Report Configuration

Aptio Setup - AMI Advanced Post Report Configuration Error Message Report Post Error Message [Enabled] Halt On [No Error] Post Error Message Support Enabled/Disabled ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Post Report Configuration
Error Message Report
Post Error Message	Enable/Disable the POST Error Message support. Options available: Enabled, Disabled. Default setting is Enabled.
Halt On	Options available: No Error, All Error. Default setting is No Error.

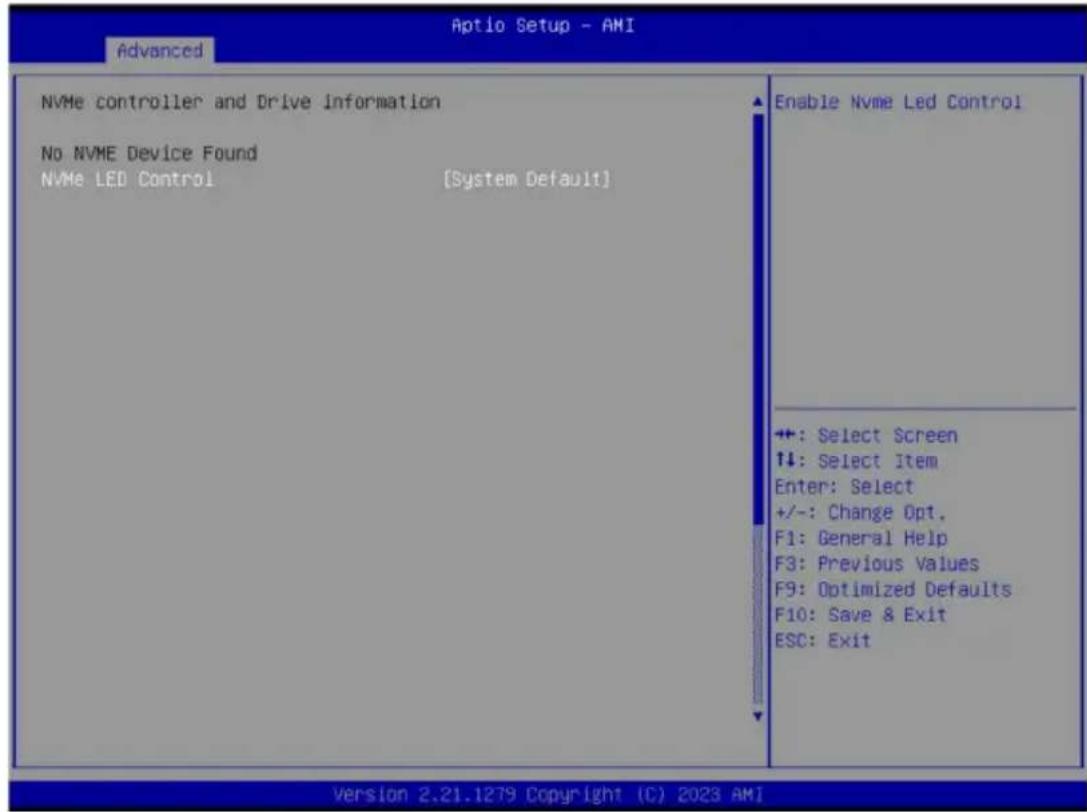

2-2-12 NVMe Configuration

Aptio Setup - AMI Advanced NVMe controller and Drive information No NVME Device Found NVMe LED Control [System Default] Enable NVMe Led Control +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
NVMe Configuration	Displays the NVMe devices connected to the system.
NVMe LED Control	Enable/Disable NVMe LED Control.Options available: System Default, Disabled, Enabled.Default setting is System Default.

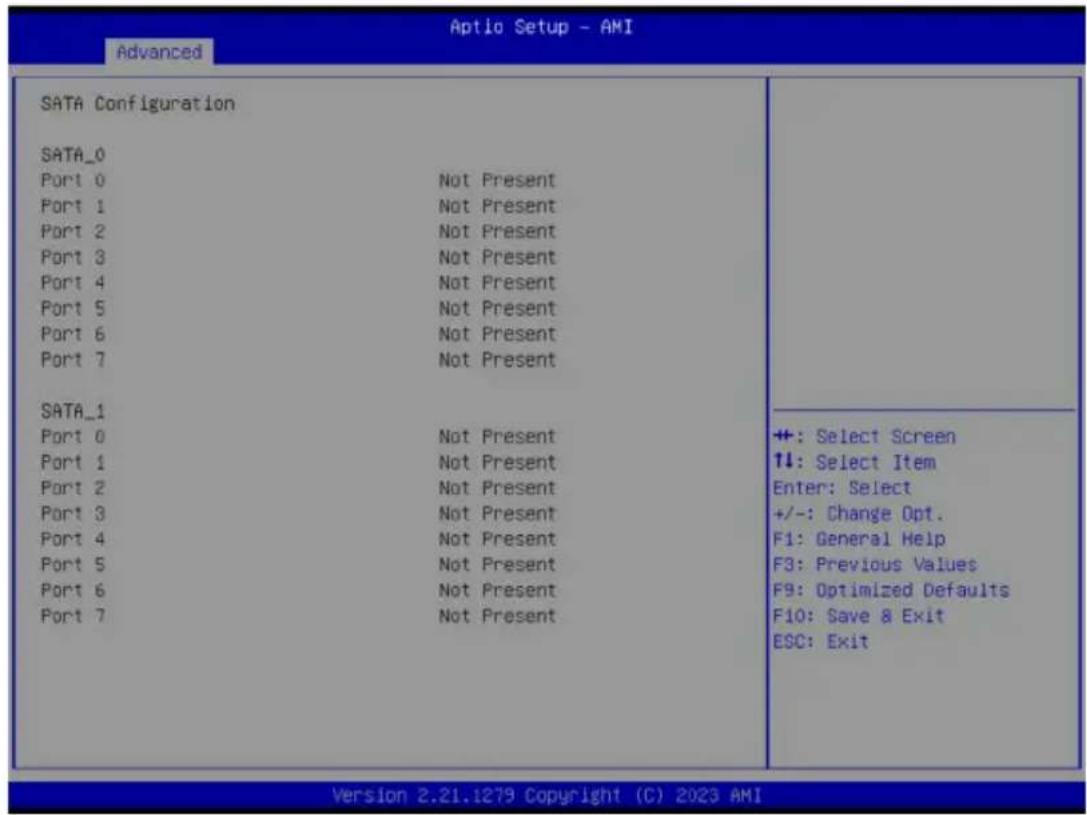

2-2-13 SATA Configuration

Aptio Setup - AMI Advanced SATA Configuration SATA_0 Port 0 Not Present Port 1 Not Present Port 2 Not Present Port 3 Not Present Port 4 Not Present Port 5 Not Present Port 6 Not Present Port 7 Not Present SATA_1 Port 0 Not Present Port 1 Not Present Port 2 Not Present Port 3 Not Present Port 4 Not Present Port 5 Not Present Port 6 Not Present Port 7 Not Present ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
SATA Configuration	Displays the installed HDD devices information. System will automatically detect HDD type.

2-2-14 Graphic Output Configuration

Aptio Setup - AMI Advanced Graphic Output Configuration Output Device Type [Onboard Device] Select Output Device Type +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Output Device Type	Selects output device type. Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device.

2-2-15 AMD Mem Configuration Status

CPU 0 Mbst Test Enable Disabled, 0xC000 Mbst Aggressor Enable Disabled, 0xC000 Mbst Per Bit Slave Die Report 0x00FF, 0xC000 Dram Temp Controlled Refresh Disabled, 0xC001 Enable User Timing Mode Disabled, 0x0000 User Timing Value Disabled, 0x0000 Mem Bus Freq Limit Disabled, 0x0000 Enable Power Down Disabled, 0xC000 Dram Double Refresh Rate Disabled, 0x0000 Pmu Train Mode 0x0000, 0xC000 Ecc Symbol Size 0x0000, 0xC000 Uncorrectable Ecc Retry Disabled, 0xC004 Ignore Spd Checksum Disabled, 0xC000 Enable Bank Group Swap Alt Disabled, 0x0000 Enable Bank Group Swap Disabled, 0xC000 Odr Route Balanced Tee Disabled, 0xC004 Nvdimm Power Source 0x0000, 0xC004 Odts Cmd Throt Enable Disabled, 0xC004 Odts Cmd Throt Cycle Disabled, 0xC004

Socket-specific memory configuration status

+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
CPU 0	Press [Enter] to view the memory configuration status related to CPU 0.

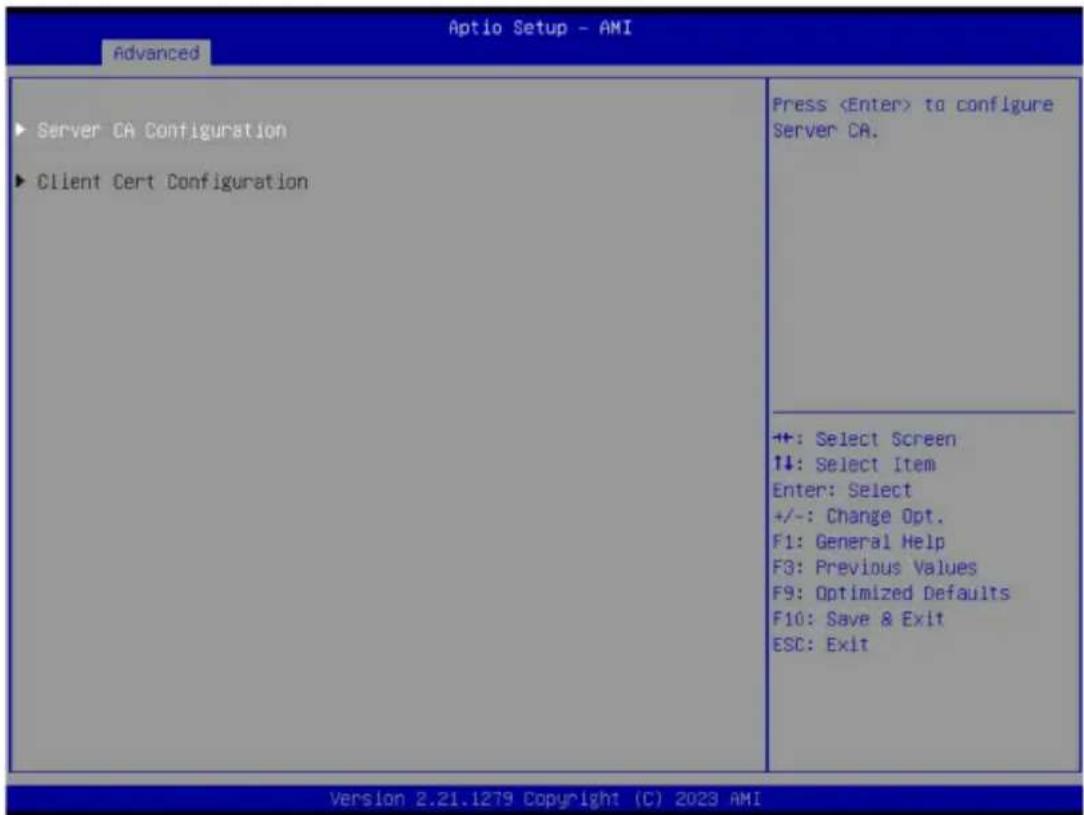

2-2-16 TIs Auth Configuration

Aptio Setup - AMI Advanced ► Server CA Configuration ► Client Cert Configuration Press to configure Server CA. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Server CA Configuration	Press [Enter] for configuration of advanced items.◆ Enroll Cert- Press [Enter] to enroll a certificate• Enroll Cert Using File• Cert GUIDInput digit character in 1111111-2222-3333-4444-1234567890ab format.- Commit Changes and Exit- Discard Changes and Exit◆ Delete Cert
Client Cert Configuration	Press [Enter] for configuration of advanced items.

2-2-17 RAM Disk Configuration

Disk Memory Type: [Boot Service Data] ► Create raw ► Create from file Created RAM disk list: Remove selected RAM disk(s).	Specifies type of memory to use from available memory pool in system to create a disk.
	+: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
Disk Memory Type	Specifies the type of memory to use from available memory pool in system to create a disk.Options available: Boot Service Data, Reserved.Default setting isBoot Service Data.
Create Raw	Creates a raw RAM disk.◆ Size (Hex)– Input a valid RAM disk size that should be multiple of the RAM disk block size.◆ Create & Exit◆ Discard & Exit
Create from file	Creates a RAM disk from a given file.
Created RAM disk list
Remove selected RAM disk(s)	Selects the RAM disk(s) to remove.

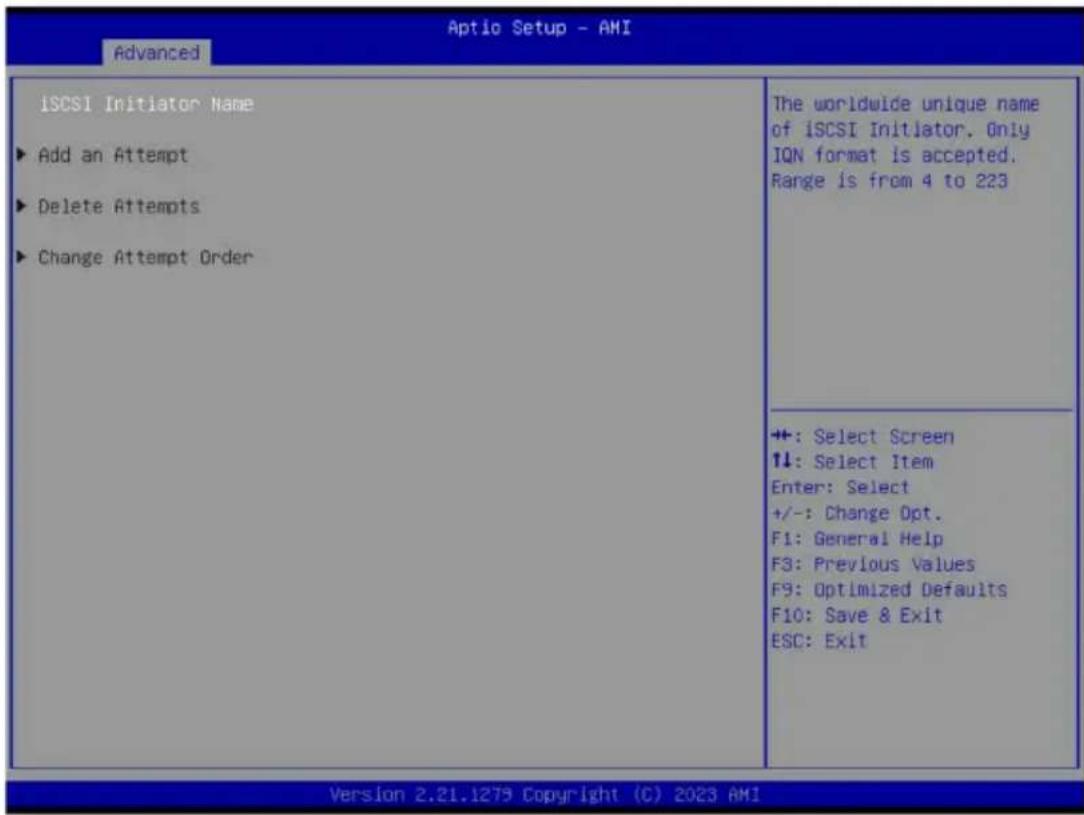

2-2-18 iSCSI Configuration

Aptio Setup - AMI Advanced iSCSI Initiator Name ► Add an Attempt ► Delete Attempts ► Change Attempt Order The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223 +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
iSCSI Initiator Name	Press [Enter] and name iSCSI Initiator. Only IQN format is accepted. Range: from 4 to 223
Add an Attempt	Press [Enter] to configure advanced items.
Delete Attempts	Press [Enter] to configure advanced items.
Change Attempt Order	Press [Enter] to configure advanced items.

2-2-19 Intel(R) I210 Gigabit Network Connection

NIC Configuration		Click to configure the network device port.
Blink LEDs	0
UEFI Driver	Intel(R) PRO/1000 8.5.21 PCI-E
Adapter PBA	140724-006
Device Name	Intel(R) I210 Gigabit Network Connection
Chip Type	Intel I210
PCI Device ID	1533
PCI Address	C5:00:00
Link Status	[Connected]	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
MAC Address	B4:2E:99:72:CC:11
Virtual MAC Address	00:00:00:00:00:00

Aptio Setup - AMI Advanced
Link Speed [Auto Negotiated] Wake On LAN [Enabled]	Specifies the port speed used for the selected boot protocol.
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
NIC Configuration	Press [Enter] to configure advanced items.◆ Link Speed- Allows for automatic link speed adjustment.- Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100 Mbps Full. Default setting isAuto Negotiated.◆ Wake On LAN- Enables power on of the system via LAN. Note that configuring Wake on LAN in the operating system does not change the value of this setting, but does override the behavior of Wake on LAN in OS controlled power states.- Options available: Disabled, Enabled. Default setting isEnabled.
Blink LEDs	Identifies the physical network port by blinking the associated LED. Press the numeric keys to adjust desired values.
UEFI Driver	Displays the technical specifications for the Network Interface Controller.
Adapter PBA	Displays the technical specifications for the Network Interface Controller.
Device Name	Displays the technical specifications for the Network Interface Controller.
Chip Type	Displays the technical specifications for the Network Interface Controller.
PCI Device ID	Displays the technical specifications for the Network Interface Controller.
PCI Address	Displays the technical specifications for the Network Interface Controller.
Link Status	Displays the technical specifications for the Network Interface Controller.
MAC Address	Displays the technical specifications for the Network Interface Controller.
Virtual MAC Address	Displays the technical specifications for the Network Interface Controller.

2-2-20 VLAN Configuration

Aptio Setup - AMI Advanced Create new VLAN VLAN ID 0 Priority 0 Add VLAN Configured VLAN List Remove VLAN VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter

Description

Enter Configuration Menu

Press [Enter] to configure advanced items.◆ Create new VLAN◆ VLAN ID- Sets VLAN ID for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 4094.◆ Priority- Sets 802.1Q Priority for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 7.◆ Add VLAN- Press [Enter] to create a new VLAN or update an existing VLAN.◆ Configured VLAN List◆ Remove VLAN- Press [Enter] to remove an existing VLAN.

2-2-21 MAC IPv4 Network Configuration

Aptio Setup - AMI
Advanced
Configured [Disabled] Save Changes and Exit	Indicate whether network address configured successfully or not.
	+: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Configured	Indicates whether network address is configured successfully or not. Options available: Enabled, Disabled. Default setting is Disabled.
Enable DHCP ^(Note)	Options available: Enabled, Disabled. Default setting is Disabled.
Local IP Address ^(Note)	Press [Enter] to configure local IP address.
Local NetMask ^(Note)	Press [Enter] to configure local NetMask.
Local Gateway ^(Note)	Press [Enter] to configure local Gateway
Local DNS Servers ^(Note)	Press [Enter] to configure local DNS servers
Save Changes and Exit Press [Enter] to save all configurations.

(Note) This item appears when Configured is set to Enabled.

2-2-22 MAC IPv6 Network Configuration

Advanced Aptio Setup - AMI
Interface Name : etho Interface Type : Ethernet MAC address : B4-2E-99-72-CC-11 Host addresses : FE80::B62E:99FF:FE72:CC11/64 Route Table : FE80::/64 >>:: Gateway addresses : DNS addresses : Interface ID B6:2E:99:FF:FE:72:CC:11 DAD Transmit Count 1 Policy [automatic] Save Changes and Exit	The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3
	++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter

Description

Enter Configuration Menu

Press [Enter] to configure advanced items.◆ Displays the MAC Address information.◆ Interface ID- The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3.◆ DAD Transmit Count- The number of consecutive Neighbor solicitation messages sent while performing Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed.◆ Policy- Options available: automatic, manual. Default setting is automatic.◆ Save Changes and Exit- Press [Enter] to save all configurations.

2-3 AMD CBS Menu

AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen.

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Hgmt Security Boot Save & Exit AMD CBS ► CPU Common Options ► DF Common Options ► UMC Common Options ► NBIO Common Options ► FCH Common Options ► Soc Miscellaneous Control ► CXL Common Options CPU Common Options +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

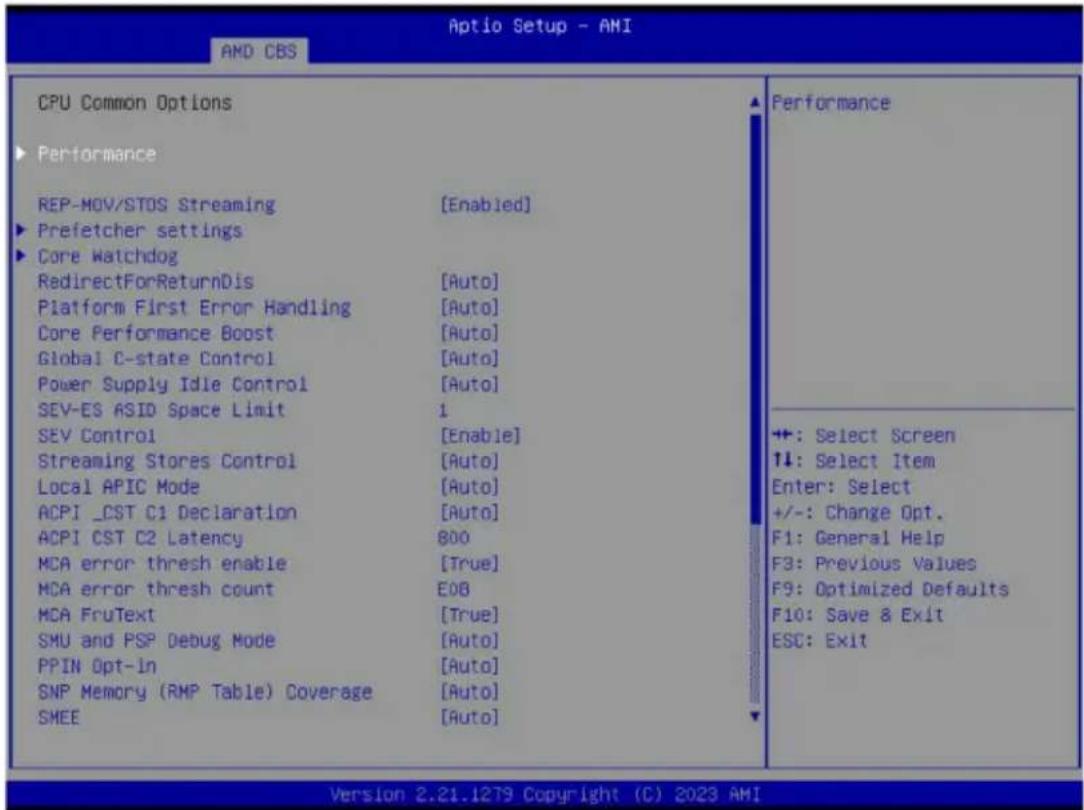

2-3-1 CPU Common Options

Aptio Setup - AMI AMD CBS CPU Common Options ▶ Performance REP-MOV/STOS Streaming [Enabled] ▶ Prefetcher settings ▶ Core Watchdog RedirectForReturnDis [Auto] Platform First Error Handling [Auto] Core Performance Boost [Auto] Global C-state Control [Auto] Power Supply Idle Control [Auto] SEV-ES ASID Space Limit 1 SEV Control [Enable] Streaming Stores Control [Auto] Local APIC Mode [Auto] ACPI _CST C1 Declaration [Auto] ACPI CST C2 Latency 800 MCA error thresh enable [True] MCA error thresh count E0B MCA FruText [True] SMU and PSP Debug Mode [Auto] PPIN Opt-in [Auto] SNP Memory (RMP Table) Coverage [Auto] SMEE [Auto] Performance ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Aptio Setup - AMI AMD CBS Power Supply Idle Control [Auto] SEV-ES ASID Space Limit 1 SEV Control [Enable] Streaming Stores Control [Auto] Local APIC Mode [Auto] ACPI _CST C1 Declaration [Auto] ACPI CST C2 Latency 800 MCA error thresh enable [True] MCA error thresh count EOB MCA FruText [True] SMU and PSP Debug Mode [Auto] PPIN Opt-in [Auto] SNP Memory (RMP Table) Coverage [Auto] SMEE [Auto] Action on BIST Failure [Auto] Fast Short REP MOVSB (FSRM) [Auto] Enhanced REP MOVSB/STOSB (ERSM) [Auto] Log Transparent Errors [Auto] AVX512 [Auto] MONITOR and MWAIT disable [Auto] Small Hammer Configuration [Auto] Corrector Branch Predictor [Disable] PAUSE Delay [Auto] CPU Speculative Store Modes [Auto] Prefetch/Request Throttle [Auto] Enables XI logic which calculates average latency, updates throttle level, and sends throttle level messages to L2 +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
CPU Common Options
Performance Press [Enter] for configuration of advanced items.
REP-MOV/STOS Streaming	Allow REP-MOV/STOS to use non-caching streaming stores for large sizes. Options available: Disabled, Enabled. Default setting is Enabled.
Prefetcher settings Press [Enter] for configuration of advanced items.
Core Watchdog Press [Enter] for configuration of advanced items.
RedirectForReturnDis	From a workaround for GCC/C000005 issue for XV Core on CZ A0, setting MSRC001_1029 Decode Configuration (DE_CFG) bit 14 [DecfgNoRdrctForReturns] to 1. Options available: Auto, 1, 0. Default setting is Auto.
Platform First Error Handling	Enable/Disable PFEH, cloak individual banks, and mask deferred error interrupts from each bank. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Core Performance Boost	Enable/Disable the Core Performance Boost function. Options available: Disabled, Auto. Default setting is Auto.
Global C-state Control	Controls the IO based C-state generation and DF C-states. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Power Supply Idle Control	Configures the Power Supply Idle Control. Options available: Low Current Idle, Typical Current Idle, Auto. Default setting is Auto.
SEV-ES ASID Space Limit	Configures the Space limit for SEV-ES ASIDs. Default setting is 1.
SEV Control	Enable/Disable SEV control. Options available: Enable, Disable. Default setting is Enable.
Streaming Stores Control	Enable/Disable the Streaming Stores functionality. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Local APIC Mode	Sets the Local APIC Mode. Options available: Compatibility, xAPIC, x2APIC, Auto. Default setting is Auto.
ACPI_CST C1 Declaration	Determines whether or not to declare the C1 state to the OS.. Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACPI CST C2 Latency Enter in microseconds (decimal value).
MCA error thresh enable	Enable MCA error thresholding. Options available: False, True, Auto. Default setting is True.
MCA error thresh count	Effective error threshold count = 0xFFFF(4095) -(e.g. the default value of 0xFF5(4085) results in a threshold of 0xA (10)).
MCA FruText	Enable MCA FruText. Options available: False, True. Default setting is True.
SMU and PSP Debug Mode	When this option is enabled, specific uncorrected errors detected by the PSP FW or SMU FW will hand and not reset the system. Options available: Disabled, Enabled, Auto. Default setting is Auto.
PPIN Opt-in	Enable/Disable the PPIN feature. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SNP Memory (RMP Table) Coverage	Enabled: Enter system memory is covered. Options available: Disabled, Enabled, Custom, Auto. Default setting is Auto.
SMEE	Controls the Secure Memory Encryption Enable (SMEE) function. Options available: Disable, Enable, Auto. Default setting is Auto.
Action on BIST Failure	Action to take when a CCD BIST failure is detected. Options available: Do nothing, Down-CCD, Auto. Default setting is Auto.
Fast Short REP MOVSB (FSRM)	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Enhanced REP MOVSB/ STOSB (ERSM)	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Log Transparent Errors	Enable/Disable the log Transparent errors function. Options available: Auto, Disabled, Enabled. Default setting is Auto.
AVX512	Enable/Disable AVX512. Options available: Disabled, Enabled, Auto. Default setting is Auto.
MONITOR and MWAIT disable	The MONITOR, MWAIT, MONITORX and MWAITX opcodes become invalid when enabled. Options available: Enabled, Disabled, Auto. Default setting is Auto
Small Hammer Configuration	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Corrector Branch Predictor Options available: Disable, Enable. Default setting is Disable.
PAUSE Delay	Number a cycles thread will be idle after a PAUSE instruction. Options available: Auto, Disable, 16 cycles, 32 cycles, 64 cycles, 128 cycles. Default setting is Auto.
CPU Speculative Store Modes	Select the CPU speculative store modes. Options available: Balanced, More Speculative, Less Speculative, Auto. Default setting is Auto.
Prefetch/Request Throttle	Enables XI logic which calculates average latency, updates throttle level, and sends throttle level messages to L2. Options available: Disable, Enable, Auto. Default setting is Auto.

2-3-1-1 Performance

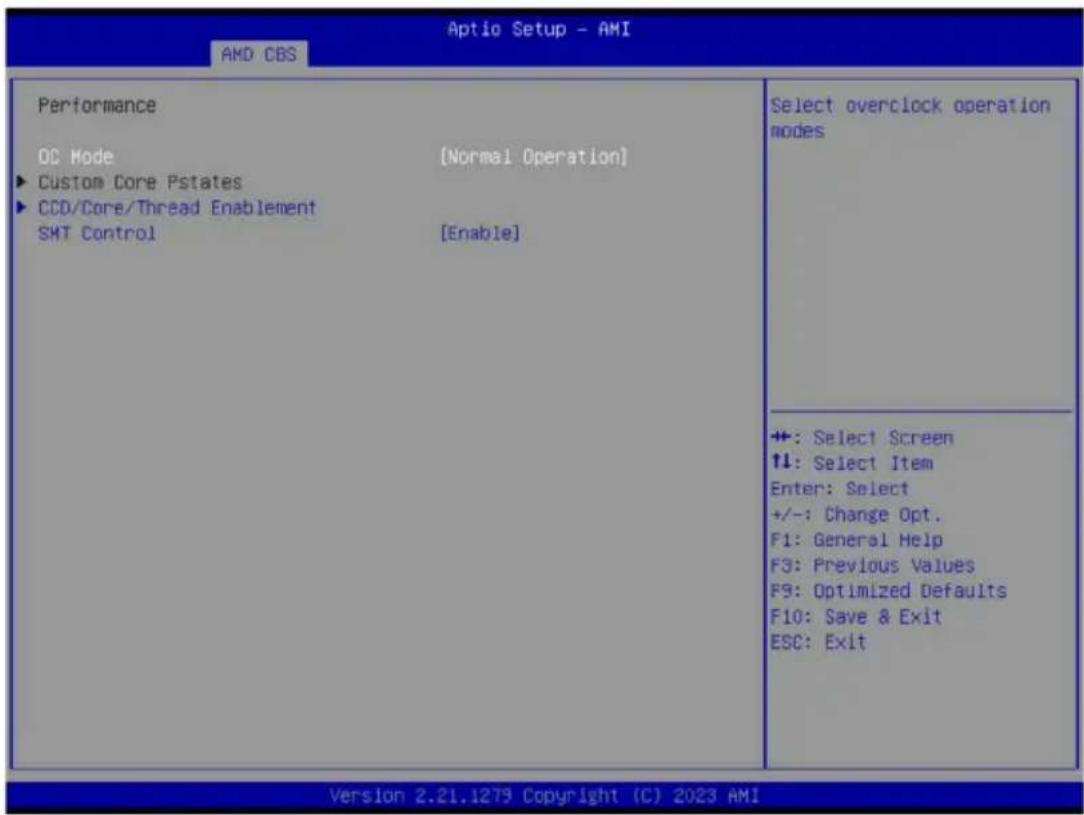

Aptio Setup - AMI AMD CBS Performance OC Mode [Normal Operation] ► Custom Core Pstates ► CCD/Core/Thread Enablement SMT Control [Enable] Select overclock operation modes +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

Performance
OC Mode ^(Note)	Options available: Normal Operation, Customized. Default setting is Normal Operation.
Custom Core Pstates	Allows you to accept or decline enabling Custom Core Pstates. When accepted, you can disable or customize core pstates.
CCD/Core/Thread Enablement	Allows you to accept or decline enabling CCDs, processor cores and threads. When accepted, you can control the number of CCDs to be used, and the number of cores to be used.◆ CCD Control- Options available: Auto, 2 CCDs, 4 CCDs, 6 CCDs. Default setting is Auto.◆ Core Control- Options available: Auto, ONE(1+0), TWO(2+0), THREE(3+0) FOUR(4+0), FIVE(5+0).- Default setting is Auto.
SMT Control	Can be used to disable symmetric multithreading. To re-enable SMT, a POWER CYCLE is needed after select the 'Enable' option. Select 'Auto' base on BIOS PCD. (PcdAmdSmtMode) default setting.Options available: Disable, Enable, Auto. Default setting is Enable.

(Note) Advanced items are configurable when this item is defined.

2-3-1-2 Prefetcher Settings

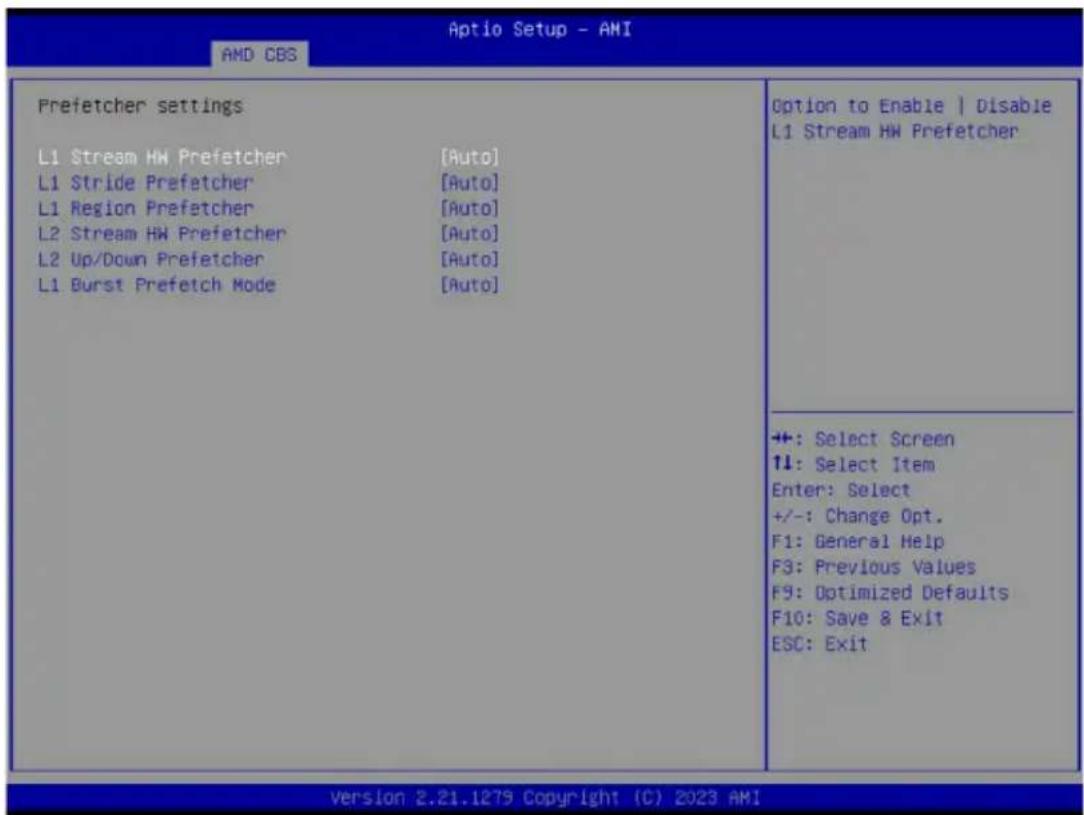

Aptio Setup - AMI AMD CBS Prefetcher settings L1 Stream HW Prefetcher [Auto] L1 Stride Prefetcher [Auto] L1 Region Prefetcher [Auto] L2 Stream HW Prefetcher [Auto] L2 Up/Down Prefetcher [Auto] L1 Burst Prefetch Mode [Auto] Option to Enable | Disable L1 Stream HW Prefetcher +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Prefetcher settings
L1 Stream HW Prefetcher	Enable/Disable L1 Stream HW Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Stride Prefetcher	Use memory access history of individual instructions to fetch additional lines when each access is a constant distance from the previous.Enable/Disable L1 Stride Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Region Prefetcher	Use memory access history to fetch additional lines when the data access for a given instruction tends to be followed by other data accesses.Enable/Disable L1 Region Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L2 Stream HW Prefetcher	Enable/Disable L2 Stream HW Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L2 Up/Down Prefetcher	Use memory access history to determine whether to fetch the next or previous line for all memory accesses.Enable/Disable L2 Up/Down Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Burst Prefetch Mode	Enable/Disable L1 Burst Prefetch Mode.Options available: Disable, Enable, Auto. Default setting isAuto.

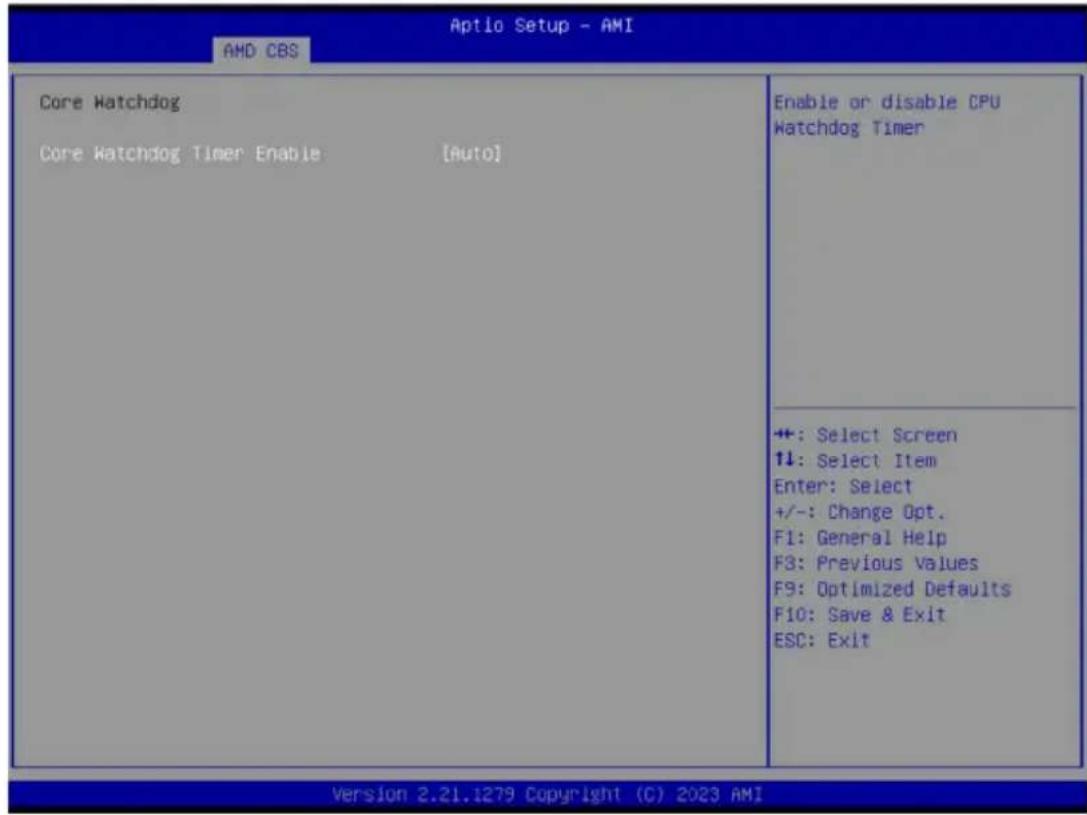

2-3-1-3 Core Watchdog

Aptio Setup - AMI AMD CBS Core Watchdog Core Watchdog Timer Enable [Auto] Enable or disable CPU Watchdog Timer +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

Core Watchdog
Core Watchdog Timer Enable ^(Note)	Enable/Disable CPU Watchdog Timer. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Core Watchdog Timer Interval	Select the CPU Watchdog Timer interval. Options available: 2.681s, 1.340s, 669.41ms, 334.05ms, 166.37ms, 82.53ms, 40.61ms, 20.970ms, 10.484ms,5.241ms, 2.620ms, 1.309ms, 654.08us, 326.4us, 162.56us, 80.64us, 39.68us, Auto. Default setting is Auto.
Core Watchdog Timer Severity	Options available: No Error, Transparent, Corrected, Deferred, Uncorrected, Fatal, Auto. Default setting is Auto.

(Note) Advanced items prompt when this item is defined.

2-3-2 DF Common Options

Aptio Setup - AMI AMD CBS DF Common Options ► Memory Addressing ► ACPI ► Link ► SDCI ► Probe Filter DF Hatchdog Timer Interval [Auto] Disable DF to external IP [Auto] SyncFloodPropagation Sync Flood Propagation to DF [Auto] Components Freeze DF module queues on error [Auto] CD6 memory region encryption [Auto] CCD B/W Balance Throttle Level [Auto] Memory Addressing +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DF Common Options
Memory Addressing Press [Enter] for configuration of advanced items.
ACPI Press [Enter] for configuration of advanced items.
Link Press [Enter] for configuration of advanced items.
SDCI Press [Enter] for configuration of advanced items.
Probe Filter Press [Enter] for configuration of advanced items.
DF Watchdog Timer Interval	Configures the Data Fabric watchdog timer interval. Options available: Auto, 41ms, 166ms, 334ms, 669ms, 1.34 seconds, 2.68 seconds, 5.36 seconds. Default setting is Auto.
Disable DF to external IP sync flood propagation	Enable/Disable SyncFlood to UMC & downstream slaves. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Sync flood propagation to DF Components	Enable/Disable DF Sync Flood propagation. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Freeze DF module queues on error	Options available: Disabled, Enabled, Auto. Default setting is Auto.
CC6 memory region encryption	Controls whether or not the CC6 save/restor memory is encrypted. Options available: Disabled, Enabled, Auto. Default setting is Auto.
CCD B/W Balance Throttle Level	Options available: Auto, Level 0, Level 1, Level 2, Level 3, Level 4. Default setting is Auto.

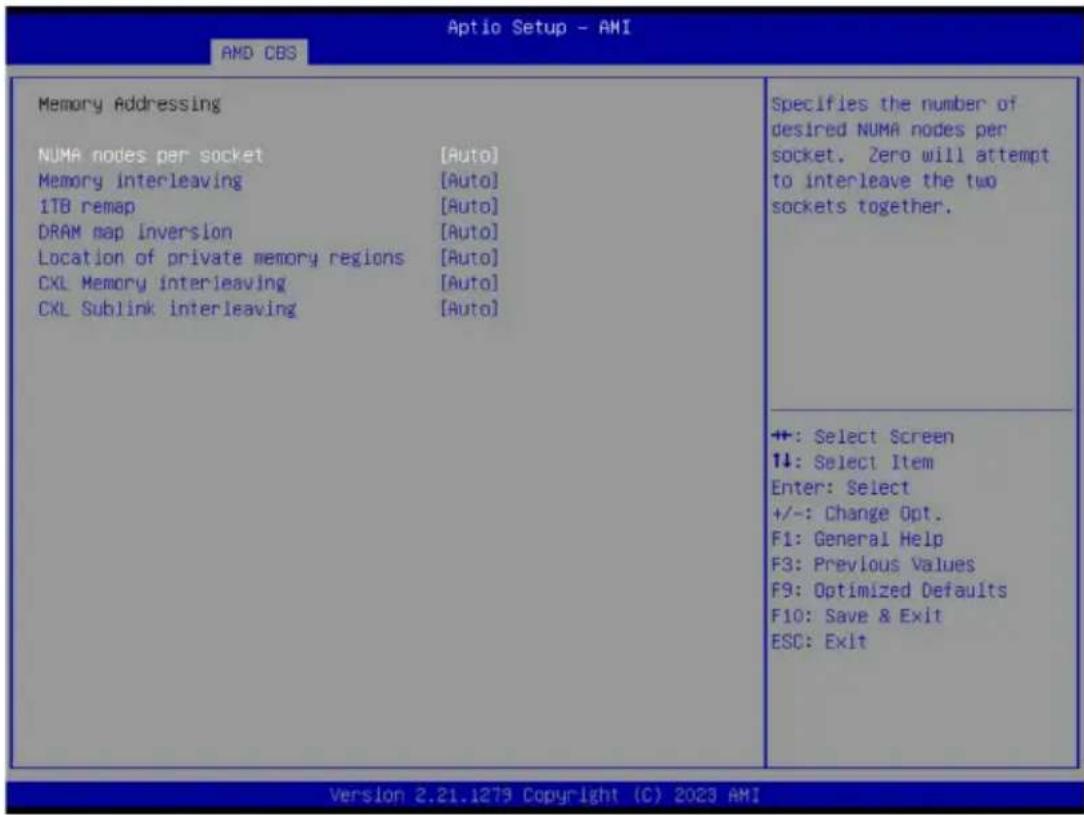

2-3-2-1 Memory Addressing

Aptio Setup - AMI AMD CBS Memory Addressing NUMA nodes per socket [Auto] Memory interleaving [Auto] 1TB remap [Auto] DRAM map inversion [Auto] Location of private memory regions [Auto] CXL Memory interleaving [Auto] CXL Sublink interleaving [Auto] Specifies the number of desired NUMA nodes per socket. Zero will attempt to interleave the two sockets together. +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Memory Addressing
NUMA nodes per socket	Specifies the number of desired NUMA nodes per socket.Options available: NPS0, NPS1, NPS2, NPS4, Auto. Default setting isAuto.NOTE!Available options may vary by system configuration.Only dual processor configuration supports NPS0.
Memory interleaving	Enable/Disable the Memory interleaving feature.Options available: Disabled, Auto, Enabled. Default setting isAuto.
1TB remap	Enable/Disable to remap DRAM out of the space just below the 1TB boundary.The ability to remap depends on DRAM configuration, NPS, and interleaving selection, and may not always be possible.Options available: Do not remap, Attempt to remap, Auto.Default setting isAuto.
DRAM map inversion	Enable/Disable the DRAM map inversion function.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Location of private memory regions	Controls whether or not the private memory regions (PSP, SMU and CC6) are at the top of DRAM or distributed.Options available: Distributed, Consolidated, Auto. Default setting isAuto.
CXL Memory interleaving Options available: Disabled, Enabled, Auto. Default setting isAuto.
CXL Sublink interleaving Options available: Enable, Disable, Auto. Default setting isAuto.

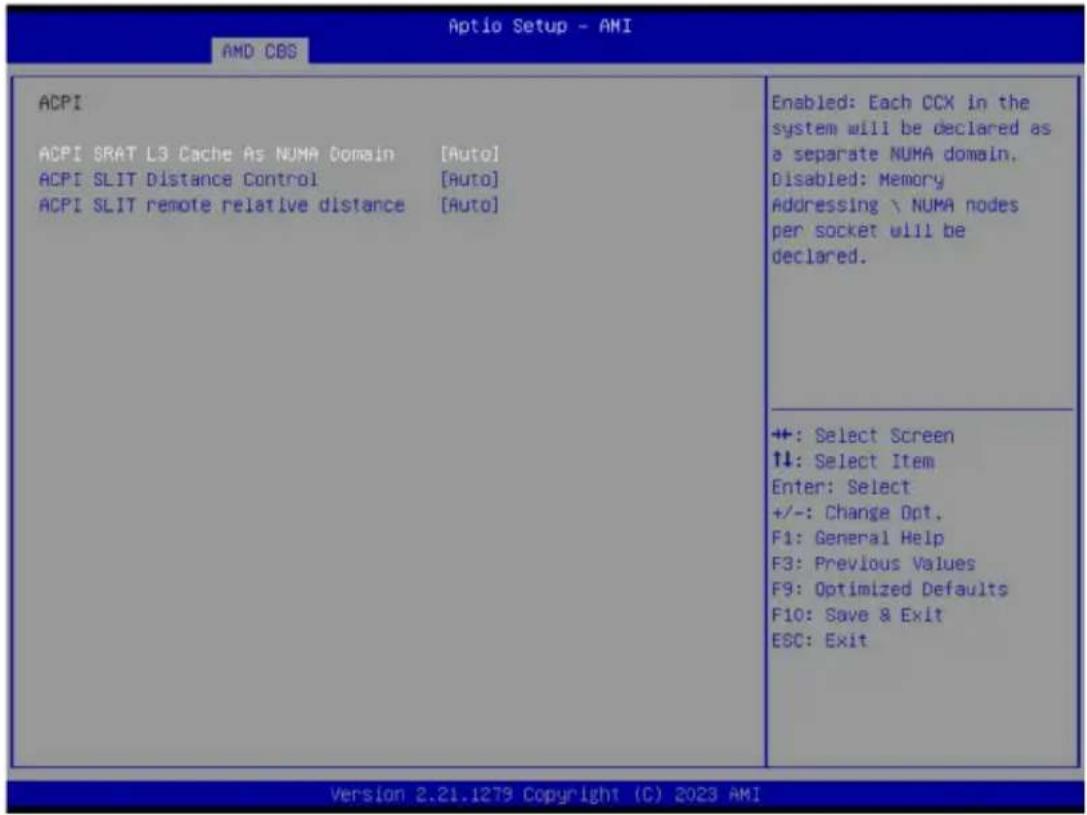

2-3-2-2 ACPI

Aptio Setup - AMI AMD CBS ACPI ACPI SRAT L3 Cache As NUMA Domain [Auto] ACPI SLIT Distance Control [Auto] ACPI SLIT remote relative distance [Auto] Enabled: Each CCX in the system will be declared as a separate NUMA domain. Disabled: Memory Addressing \ NUMA nodes per socket will be declared. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

ACPI
ACPI SRAT L3 Cache As NUMA Domain	Enable/Disable report each L3 cache as a NUMA Domain to the OS. Options available: Disabled, Enabled, Auto. Default setting isAuto.
ACPI SLIT Distance Control	Determines how the SLIT distances are declared. Options available: Manual, Auto. Default setting isAuto.
ACPI SLIT remote relative distance	Sets the remote socket distance for 2P systems as near (2.8) or far (3.2). Options available: Near, Far, Auto. Default setting isAuto.

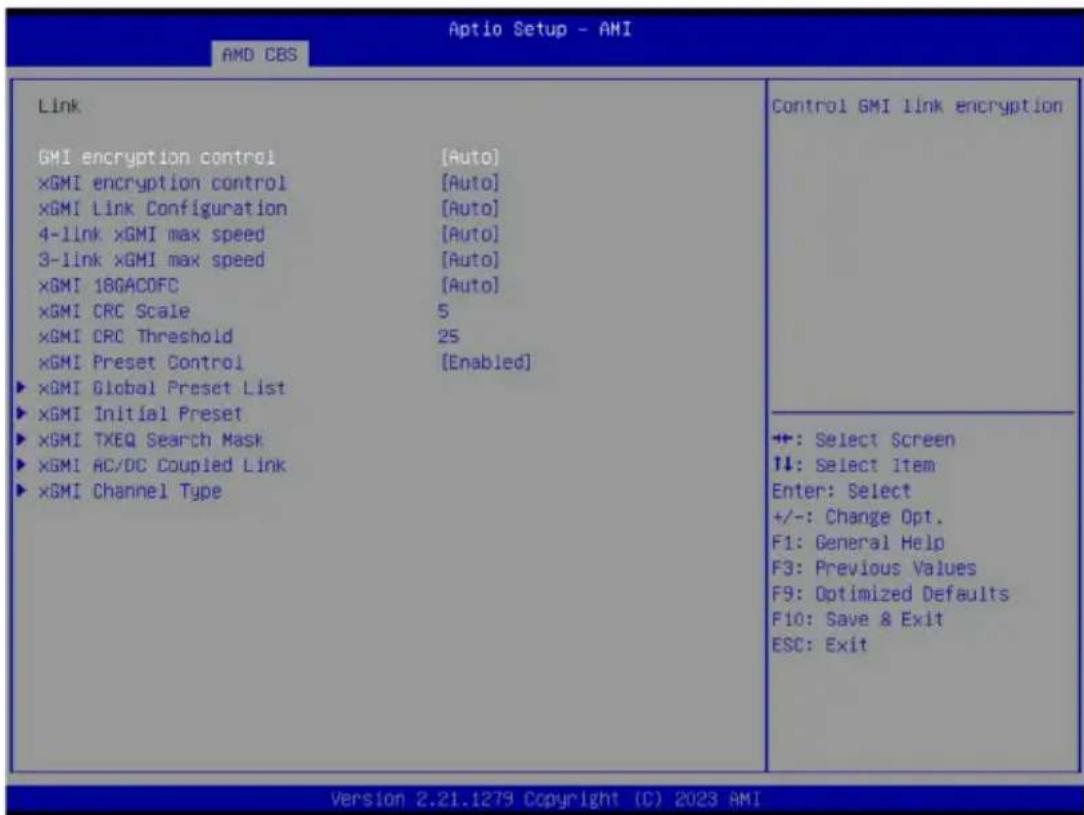

2-3-2-3 Link

Aptio Setup - AMI AMD CBS Link GMI encryption control [Auto] ×GMI encryption control [Auto] ×GMI Link Configuration [Auto] 4-link ×GMI max speed [Auto] 3-link ×GMI max speed [Auto] ×GMI 18GACOFC [Auto] ×GMI CRC Scale 5 ×GMI CRC Threshold 25 ×GMI Preset Control [Enabled] ×GMI Global Preset List ×GMI Initial Preset ×GMI TXEQ Search Mask ×GMI AC/DC Coupled Link ×GMI Channel Type Control GMI link encryption +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
GMI encryption control	Enable/Disable GMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI encryption control	Enable/Disable xGMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI Link Configuration	Configures the number of xGMI2 links used on a multi-socket system. Options available: Auto, 3 xGMI Links, 4 xGMI Links, 2 xGMI Links + 2 PCI Links. Default setting is Auto.
4-link xGMI max speed	Specifies the max speed of 4-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
3-link xGMI max speed	Specifies the max speed of 3-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
xGMI 18GACOFC	Configures xGMI 18GACOFC. Options available: Auto, Enable, Disable. Default setting is Auto.
xGMI CRC Scale	Configures leaky bucket scale for xGMI and WAFL CRC errors. Every scale milliseconds an error will leak from the CRC counter. Default setting is 5.
xGMI CRC Threshold	Configures leaky bucket threshold for xGMI and WAFL CRC errors. If link CRC counter exceeds this threshold, an error will be logged. Default setting is 25.
xGMI Preset Control	Enable/Disable xGMI Preset control. Options available: Disabled, Enabled, Auto. Default setting is Enabled.
xGMI Global Preset List Press [Enter] to configure the xGMI Preset list.
xGMI Initial Preset Press [Enter] to configure the xGMI Initial Preset CPU0/1 link.
xGMI TXEQ Search Mask Press [Enter] to configure the xGMI TXEQ Search Mask CPU0/1 link.
xGMI AC/DC Coupled Link	Press [Enter] to configure the xGMI AC/DC Coupled link.♦ xGMI AC/DC Coupled Link Control ^(Note) – Options available: Manual, Auto. Default setting isAuto.
xGMI Channel Type	Press [Enter] to configure the xGMI Channel Type.♦ xGMI Channel Type Control ^(Note) – Options available: Manual, Auto. Default setting isAuto.

(Note) Advanced items prompt when this item is defined.

2-3-2-4 SDCI

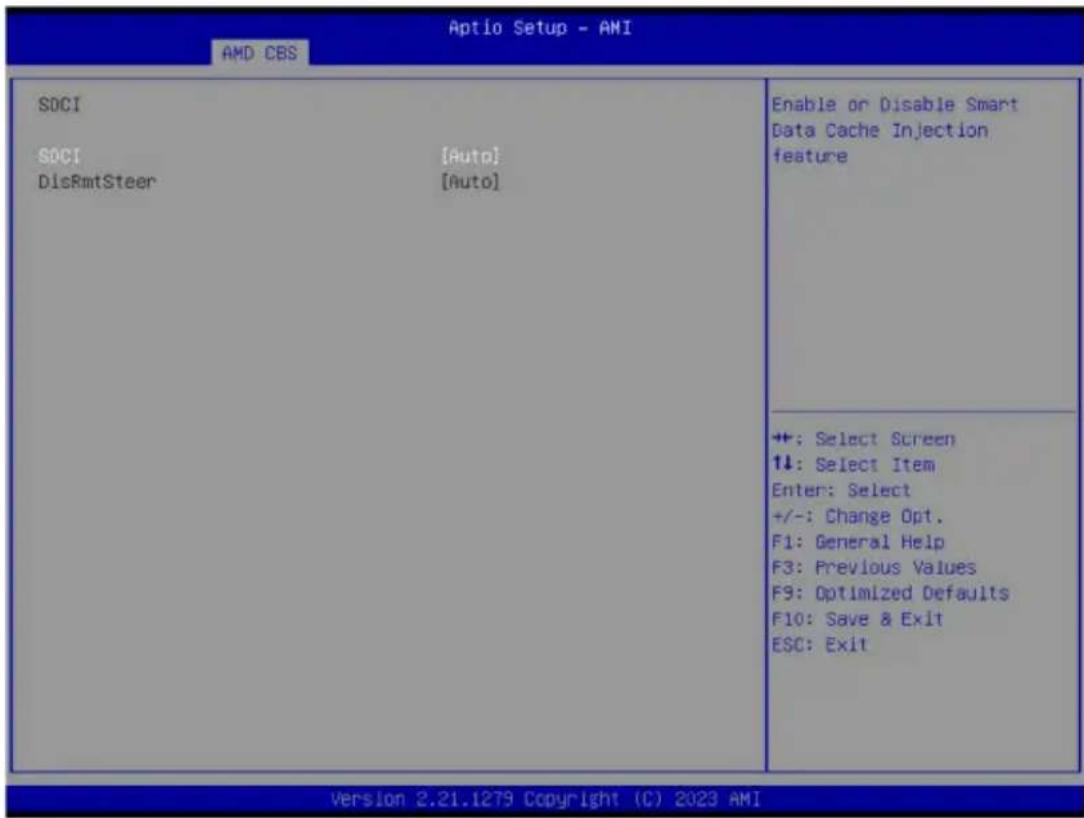

Aptio Setup - AMI AMD CBS SOCI SOCI [Auto] DisRmtSteer [Auto] Enable or Disable Smart Data Cache Injection feature ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

SDCI(Note)

Options available: Disabled, Enabled, Auto. Default setting is Auto.

DisRmSteer Options available: Disabled, Enabled, Auto. Default setting is Auto.

(Note) Advanced items prompt when this item is defined.

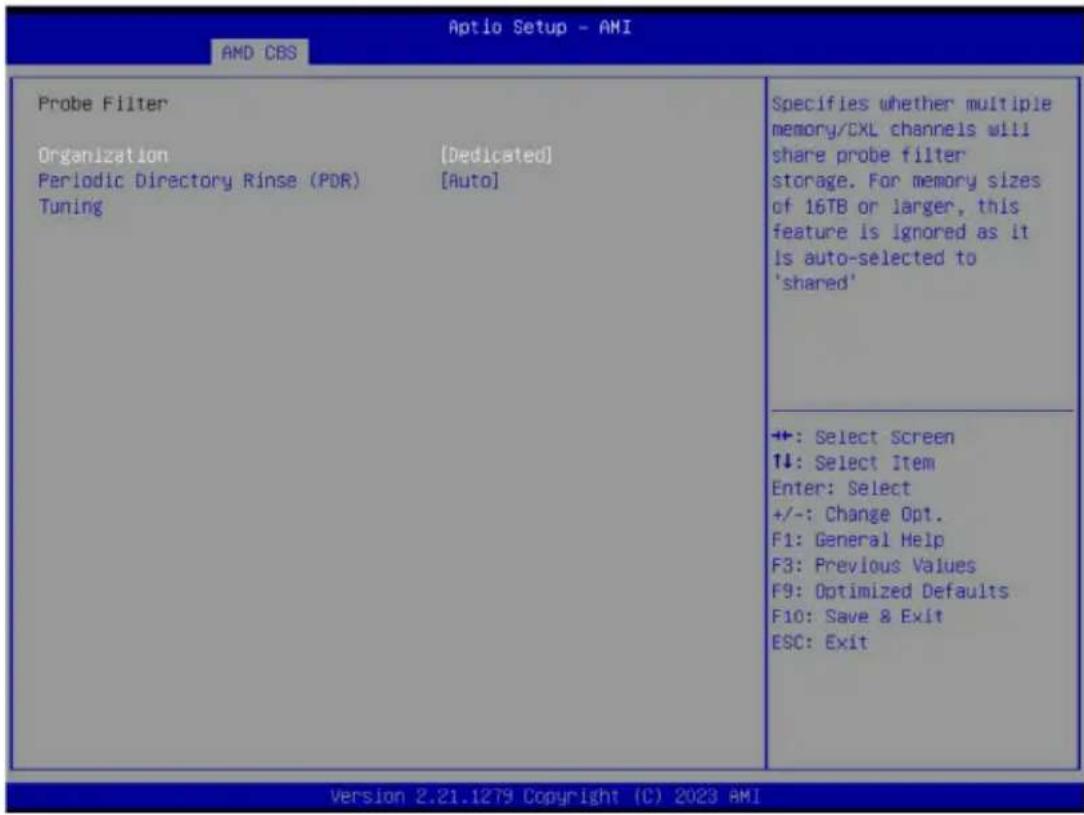

2-3-2-5 Probe Filter

Aptio Setup - AMI AMD CBS Probe Filter Organization [Dedicated] Periodic Directory Rinse (PDR) [Auto] Tuning Specifies whether multiple memory/CXL channels will share probe filter storage. For memory sizes of 16TB or larger, this feature is ignored as it ls auto-selected to 'shared' +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Organization	Specifies whether multiple memory/CXL channels will share probe filter storage. Options available: Auto, Dedicated, Shared. Default setting is Dedicated.
Periodic Directory Rinse (PDR)	Controls PDR settings that may impact performance by workload and/or processor.
Tuning	Options available: Memory-Sensitive, Cache-Bound, Neutral, Adaptive, Auto. Default setting is Auto.

2-3-3 UMC Common Options

Aptio Setup - AMI AMD CBS UMC Common Options DDR Addressing Options DDR Controller Configuration DDR MBIST Options DDR RAS DDR Bus Configuration Enforce PDR DDR Training Options DDR Security DDR PMIC Configuration DDR Miscellaneous DDR PHY (CMN) DDR Addressing Options +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

UMC Common Options

DDR Addressing Options Press [Enter] for configuration of advanced items.

DDR Controller Configuration Press [Enter] for configuration of advanced items.

DDR MBIST Options Press [Enter] for configuration of advanced items.

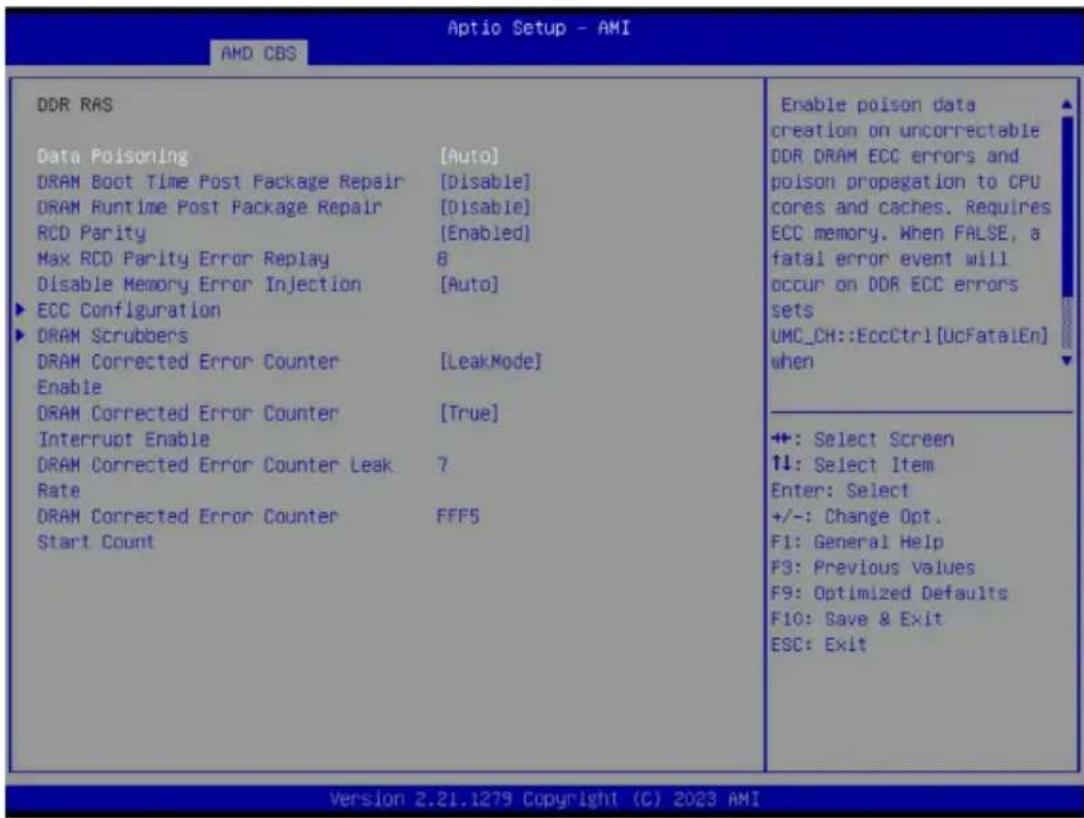

DDR RAS Press [Enter] for configuration of advanced items.

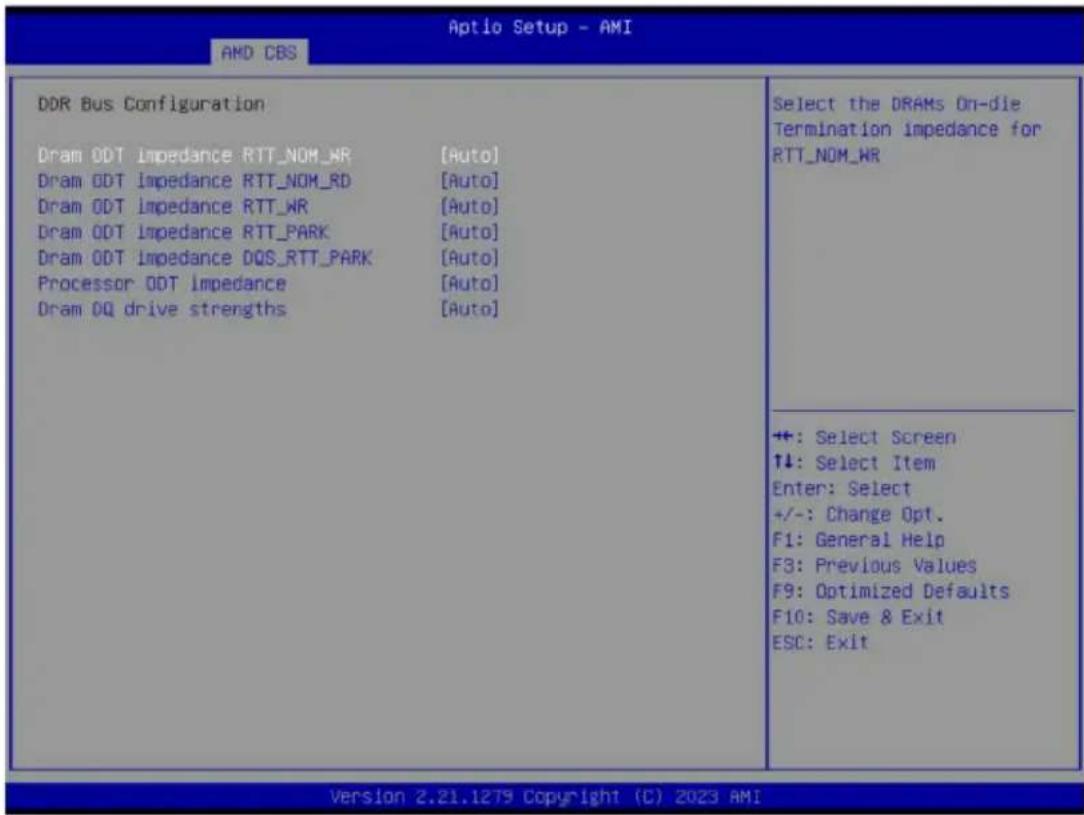

DDR Bus Configuration Press [Enter] for configuration of advanced items.

Enforce POR Press [Enter] for configuration of advanced items.

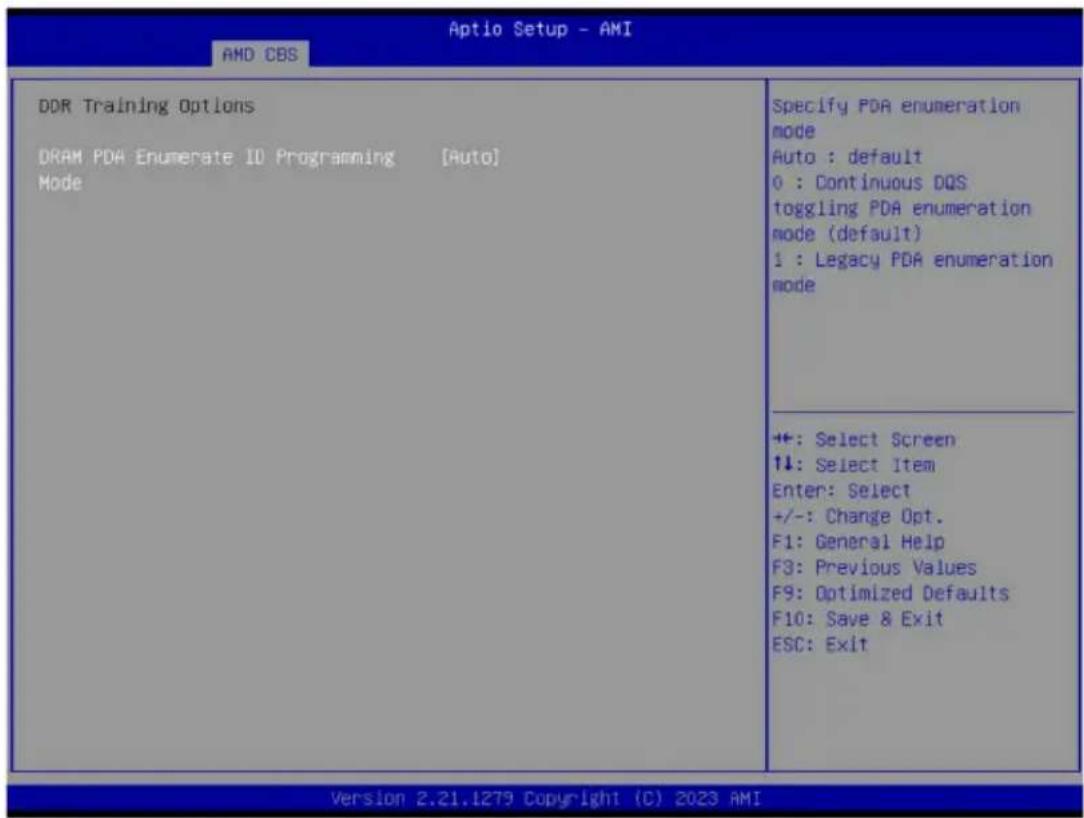

DDR Training Options Press [Enter] for configuration of advanced items.

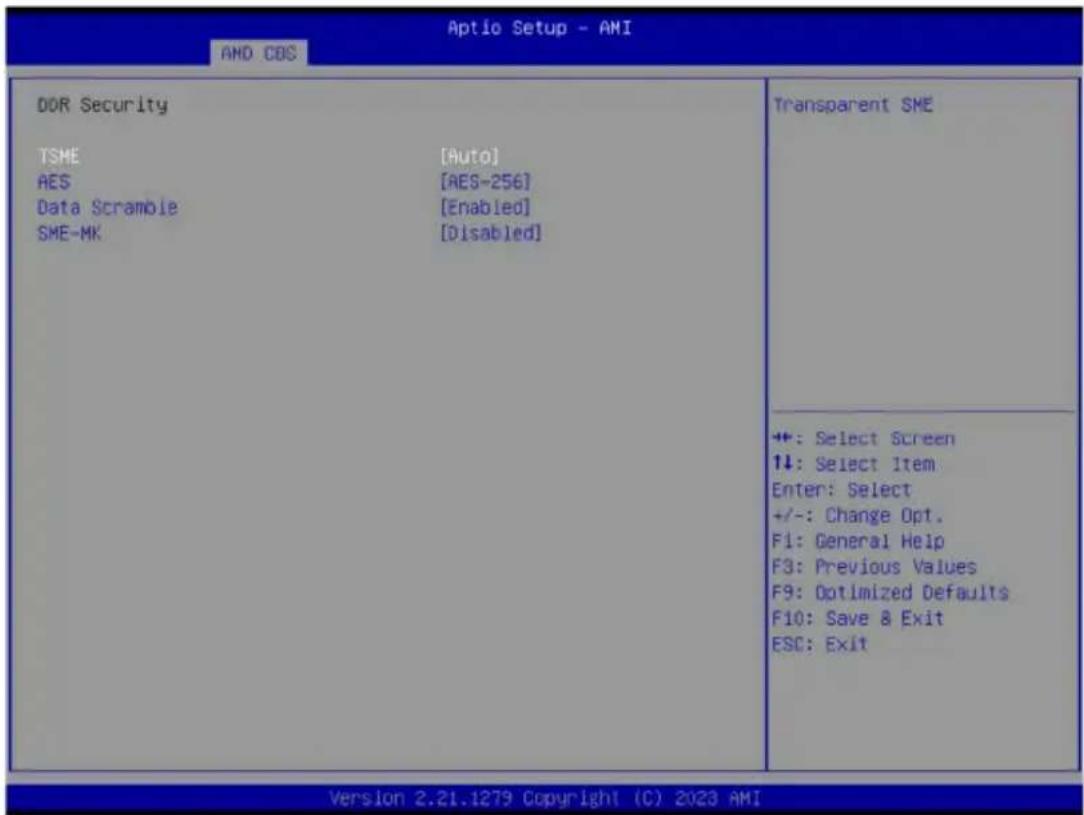

DDR Security Press [Enter] for configuration of advanced items.

DDR PMIC Configuration Press [Enter] for configuration of advanced items.

DDR Miscellaneous Press [Enter] for configuration of advanced items.

DDR PHY (CMN) Press [Enter] for configuration of advanced items.

2-3-3-1 DDR Addressing Options

Aptio Setup - AMI AMD CBS DDR Addressing Options Chipselect Interleaving [Auto] Address Hash Bank. [Auto] Address Hash CS [Auto] Address Hash Subchannel [Auto] Bank SwapMode [Auto] Interleave memory blocks across the DRAM chip selects for node 0. ++: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DDR Addressing Options
Chipselect Interleaving	Interleaves memory blocks across the DRAM chip selects for node 0. Options available: Disabled, Auto. Default setting isAuto.
Address Hash Bank	Enable or disable bank addressing hashing. Options available: Disabled, Enabled, Auto. Default setting isAuto.
Address Hash CS	Enable or disable CS addressing hashing. Options available: Auto, Enabled, Disabled. Default setting isAuto.
Address Hash RM	Enable or disable RM address hashing for 3DS DIMMs. Options available: Auto, Enabled, Disabled. Default setting isAuto.
Address Hash Subchannel	Enable or disable sub-channel addressing hashing. Options available: Auto, Enabled, Disabled. Default setting isAuto.
BankSwapMode Options available: Auto, Disabled, Swap CPU. Default setting isAuto.

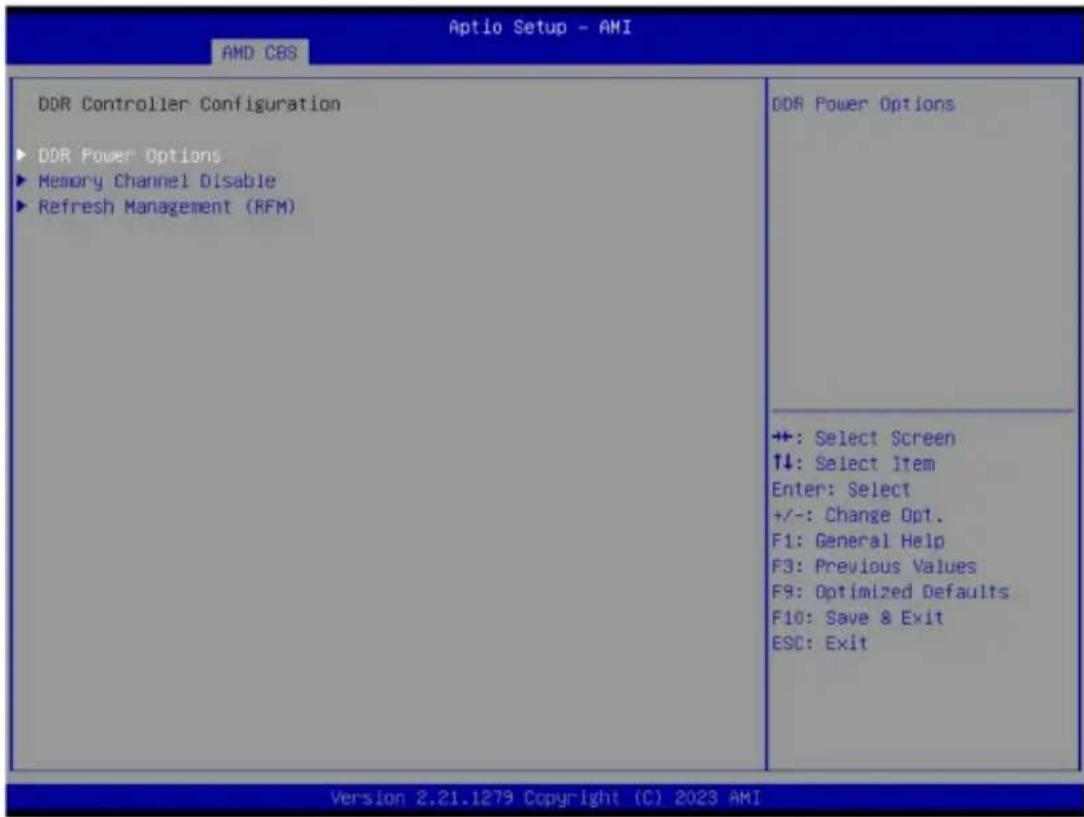

2-3-3-2 DDR Controller Configuration

Aptio Setup - AMI AMD CBS DDR Controller Configuration ▶ DDR Power Options ▶ Memory Channel Disable ▶ Refresh Management (RFM) DDR Power Options +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

DDR Controller Configuration

DDR Power Options Press [Enter] for configuration of advanced items.

Memory Channel Disable Press [Enter] for configuration of advanced items.

Refresh Management (RFM) Press [Enter] for configuration of advanced items.

2-3-3-2-1 DDR Power Options

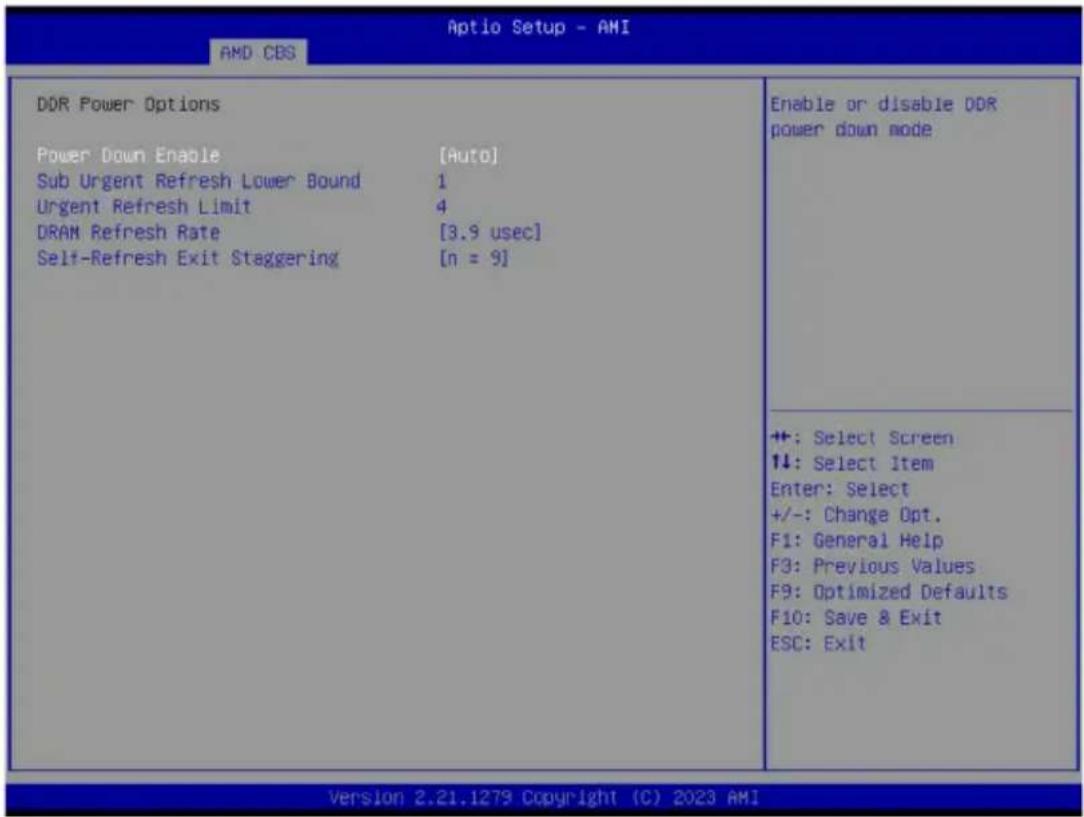

Aptio Setup - AMI AMD CBS DDR Power Options Power Down Enable [Auto] Sub Urgent Refresh Lower Bound 1 Urgent Refresh Limit 4 DRAM Refresh Rate [3.9 usec] Self-Refresh Exit Staggering [n = 9] Enable or disable DDR power down mode +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DDR Power Options
Power Down Enable	Enable or disable DDR power down mode. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sub Urgent Refresh Lower Bound	Specifies the stored refresh limit required to enter sub-urgent refresh mode.
Urgent Refresh Limit Specifies the stored refresh limit required to enter urgent refresh mode.
DRAM Refresh Rate	DRAM refresh rate: 1.95us or 3.9us. Options available: 3.9 usec, 1.95 usec. Default setting is 3.9 usec.
Self-Refresh Exit Staggering Options available: Disabled, n=1~9. Default setting is n=9.

2-3-3-2-2 Memory Channel Disable

Memory Channel Disable Memory Channel Disable Bitmask 0 Socket 0 Channel 0 [Enabled] Socket 0 Channel 1 [Enabled] Socket 0 Channel 2 [Enabled] Socket 0 Channel 3 [Enabled] Socket 0 Channel 4 [Enabled] Socket 0 Channel 5 [Enabled] Socket 0 Channel 6 [Enabled] Socket 0 Channel 7 [Enabled] Socket 0 Channel 8 [Enabled] Socket 0 Channel 9 [Enabled] Socket 0 Channel 10 [Enabled] Socket 0 Channel 11 [Enabled]

SPD reading will be skipped when channel is disabled.

+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter Description

Memory Channel Disable

Memory Channel Disable

Bitmask

CPU0 Channel_# Press [Enter] to enable/disable specific memory channel.

2-3-3-2-3 Refresh Management (RFM)

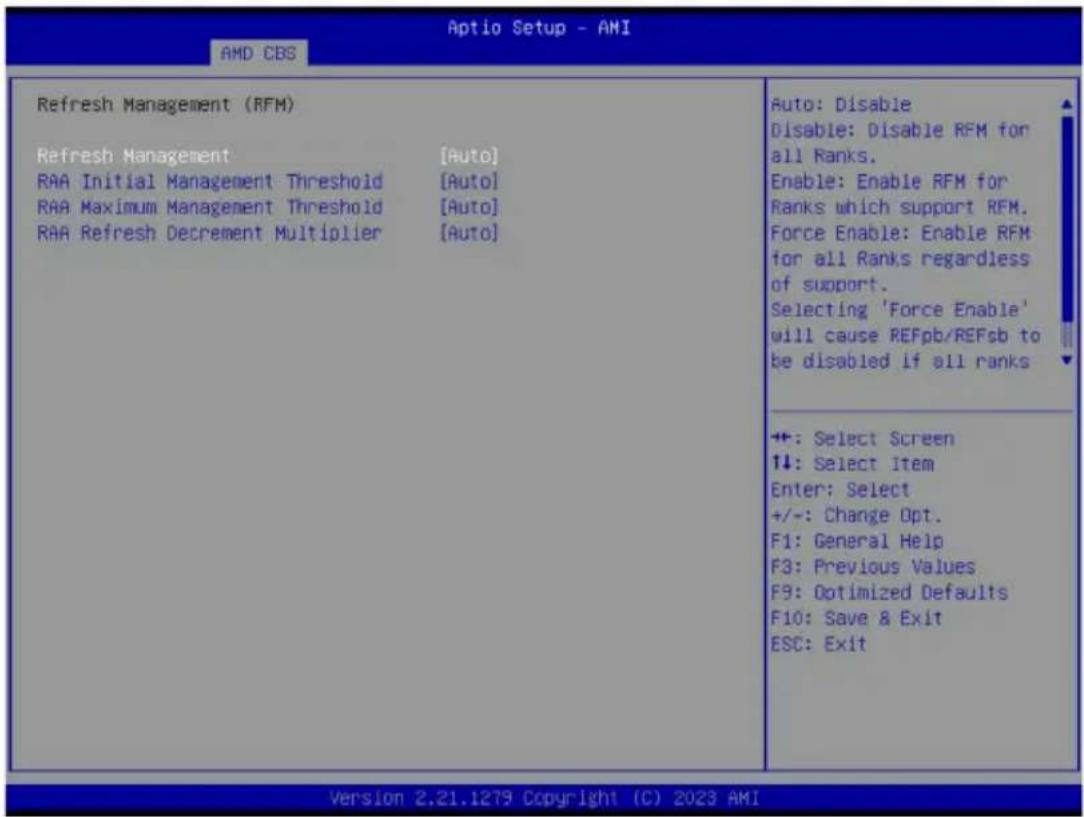

Aptio Setup - AMI AMD CBS Refresh Management (RFM) Refresh Management [Auto] RAA Initial Management Threshold [Auto] RAA Maximum Management Threshold [Auto] RAA Refresh Decrement Multiplier [Auto] Auto: Disable Disable: Disable RFM for all Ranks. Enable: Enable RFM for Ranks which support RFM. Force Enable: Enable RFM for all Ranks regardless of support. Selecting 'Force Enable' will cause REFpb/REFsb to be disabled if all ranks +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
Refresh Management (RFM)
Refresh Management	Configure Refresh Management. Options available: Enable, Disable, Auto, Force Enable. Default setting is Auto.
RAA Initial Management Threshold	Override Rolling Accumulated ACT Initial Management Threshold. Options available: 32, 40, 48, 56, 64, 72, 80, Auto. Default setting is Auto.
RAA Maximum Management Threshold	Override Rolling Accumulated ACT Maximum Management Threshold. Options available: 3X, 4X, 5X, 6X, Auto. Default setting is Auto.
RAA Refresh Decrement Multiplier	Override RAA Refresh Decrement Multiplier. Options available: 0.5, 1, Auto. Default setting is Auto.

2-3-3-3 DDR MBIST Options

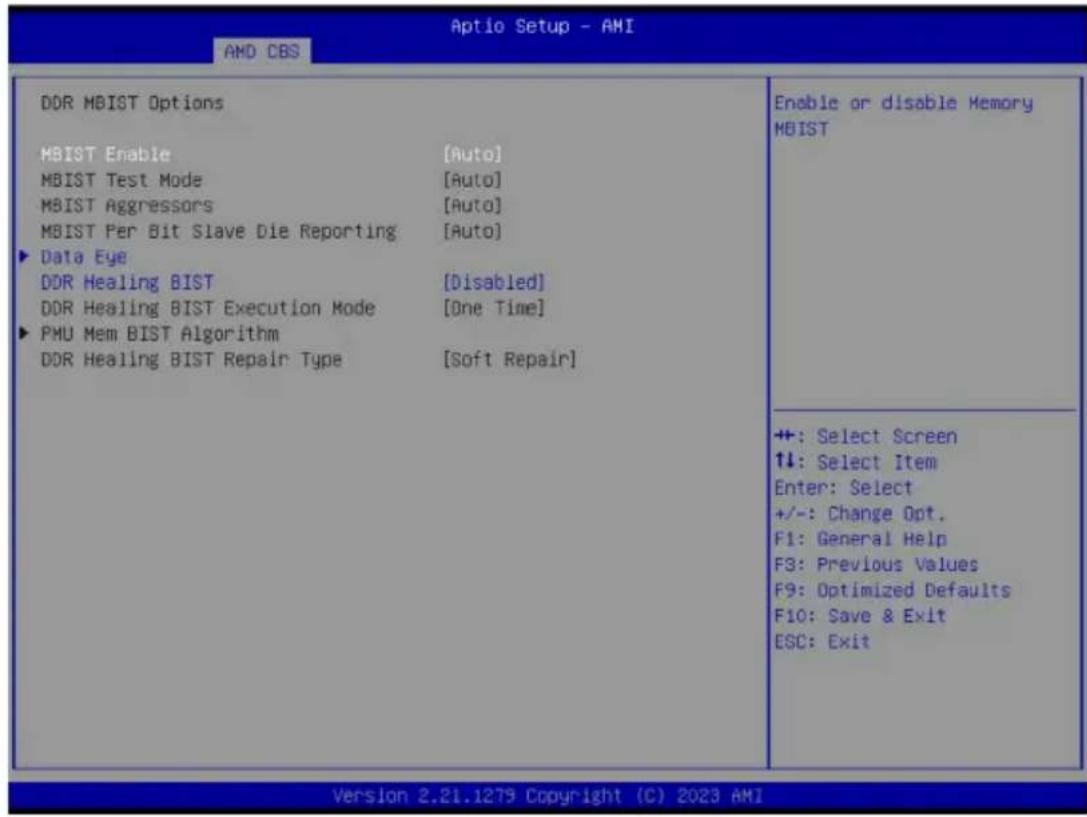

Aptio Setup - AMI AMD CBS DDR MBIST Options MBIST Enable [Auto] MBIST Test Mode [Auto] MBIST Aggressors [Auto] MBIST Per Bit Slave Die Reporting [Auto] ► Data Eye DDR Healing BIST [Disabled] DDR Healing BIST Execution Mode [One Time] ► PMU Mem BIST Algorithm DDR Healing BIST Repair Type [Soft Repair] Enable or disable Memory MBIST +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DDR MBIST Options
MBIST Enable	Enable/Disable the Memory MBIST function.Options available: Disabled, Enabled, Auto. Default setting isAuto.
MBIST Test Mode ^(Note1)	Selects MBIST Test Mode.Interface Mode: Tests Single and Multiple CS transactions and Basic Connectivity.Data Eye Mode: Measures Voltage vs. Timing.Options available: Auto, Both, Interface Mode, Data Eye Mode. Default setting isAuto.
MBIST Aggressors ^(Note1)	Enable/Disable MBIST Aggressor test.Options available: Auto, Enabled, Disabled. Default setting isAuto.
MBIST Per Bit Slave Die Reporting ^(Note1)	Enable/Disable to report 2D data eye results in ABL log for each DQ, Chipselect, and Channel.Options available: Auto, Enabled, Disabled. Default setting isAuto.
Data Eye	Press [Enter] to configure advanced items.
Memory Healing BIST	Enable/Disable memory healing BIST.Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST, PMU and Self-Healing Mem BIST. Default setting isDisabled.

(Note1) This item appears when MBIST Enable is set to Enabled.

Parameter Description
DDR Healing BIST Execution Mode ^(Note2)	Options available: One Time, Every boot.Default setting isOne Time.
PMU Mem BIST Algorithm ^(Note2)	Press [Enter] to enable/disable PMU Mem BIST Algorithm.
DDR Healing BIST Repair Type ^(Note2)	For DRAM errors found in the BIOS memory BIST select the repair type.Options available: Soft Repair, Hard Repair, No Repairs -Test only. Default setting isSoft Repair.

(Note2) This item appears when DDR Healing BIST is defined.

2-3-3-3-1 Data Eye

Data Eye		MBIST Data Eye Pattern Type. 0 - PRBS (default), 1 - SSO, 2 - Both
Pattern Select	[PRBS]
Pattern Length	3
Aggressor Channel	[All Channels]
Aggressor Static Lane Control	[Disabled]
Aggressor Static Lane Select	0
Upper 32 bits
Aggressor Static Lane Select	0
Lower 32 Bits
Aggressor Static Lane Select ECC	0
Aggressor Static Lane Value	0
Target Static Lane Control	[Disabled]
Target Static Lane Select Upper 32 bit	0
Target Static Lane Select Lower 32 Bits	0
Target Static Lane Select ECC	0
Target Static Lane Value	0
Worst Case Margin Granularity Read Voltage Sweep Step Size Read Timing Sweep Step Size Write Voltage Sweep Step Size Write Timing Sweep Step Size Silent Execution	[Per Chip Select] [1] [1] [1] [1] [Disabled]

Parameter	Description
Data Eye
Pattern Select	Options available: PRBS, SSO, Both. Default setting is PRBS.
Pattern Length	Determines the pattern length. The possible options are N=3....12.
Aggressor Channel	This item helps read the aggressors channels. Options available: One Sub-Channel, Half Channels, All Channels. Default setting is All Channels.
Aggressor Static Lane Control	Enable/Disable the Aggressor Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Aggressor Static Lane Select Upper 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select Lower 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select ECC	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Value	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Target Static Lane Control	Enable/Disable the Target Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Target Static Lane Select Upper 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select Lower 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select ECC	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Value	This item is configurable when Target Static Lane Control is set to Enabled.
Worst Case Margin Granularity	Configures Worst Case Margin Granularity.Options available: Per Chip Select, Per Nibble.Default setting is Per Chip Select.
Read Voltage Sweep Step Size	Configures the step size for read Data Eye voltage sweep.Options available: 1, 2, 4. Default setting is 1.
Read Timing Sweep Step Size	Configures the step size for read Data Eye timing sweep.Options available: 1, 2, 4. Default setting is 1.
Write Voltage Sweep Step Size	Configures the step size for write Data Eye voltage sweep.Options available: 1, 2, 4. Default setting is 1.
Write Timing Sweep Step Size	Configures the step size for write Data Eye timing sweep.Options available: 1, 2, 4. Default setting is 1.
Silent Execution	Execute MBIST Data Eye silently without ABL log output.Options available: Enabled, Disabled. Default setting is Disabled.

Aptio Setup - AMI AMD CBS DDR RAS Data Poisoning [Auto] DRAM Boot Time Post Package Repair [Disable] DRAM Runtime Post Package Repair [Disable] RCD Parity [Enabled] Max RCD Parity Error Replay 8 Disable Memory Error Injection [Auto] ▶ ECC Configuration ▶ DRAM Scrubbers DRAM Corrected Error Counter [LeakMode] Enable DRAM Corrected Error Counter [True] Interrupt Enable DRAM Corrected Error Counter Leak 7 Rate DRAM Corrected Error Counter FFF5 Start Count Enable poison data creation on uncorrectable DDR DRAM ECC errors and poison propagation to CPU cores and caches. Requires ECC memory. When FALSE, a fatal error event will occur on DDR ECC errors sets UMC_CH::EccCtrl[UcFatalEn] when +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

DDR RAS
Data Poisoning	Enable/Disable the Data Poisoning function.Options available: Auto, Enabled, Disabled. Default setting isAuto.
DRAM Boot Time Post Package Repair	Enable/Disable the DRAM Boot Time Post Package Repair function.Options available: Enable, Disable. Default setting isDisable.
DRAM Runtime Post Package Repair	Enable/Disable the DRAM Runtime Post Package Repair function.Options available: Enable, Disable. Default setting isDisable.
RCD Parity	Enable/Disable the RCD Parity function.Options available: Auto, Enabled, Disabled. Default setting isEnabled.
Max RCD Parity Error Replay Default setting is 8.
Disable Memory Error Injection	Options available: False, True, Auto. Default setting isAuto.
ECC Configuration	Press [Enter] to configure advanced items.DRAM ECC Symbol Size- Configures the DRAM ECC Symbol Size.- Options available: Auto, x4, x16. Default setting isAuto.DRAM ECC Enable- Enable/Disable DRAM ECC. When set to Auto, it will set ECC to enable.- Options available: Auto, Enabled, Disabled. Default setting isAuto.

Parameter Description

ECC Configuration(continued)	DRAM UECC Retry- Enable/Disable DRAM UECC Retry.- Options available: Auto, Enabled, Disabled. Default setting is Disabled.Max DRAM UECC Error Replay ^(Note) - Default setting is 8.Memory Clear- Options available: Auto, Enabled, Disabled. Default setting is Auto.Address X0R after ECC- Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRAM Scrubbers	Press [Enter] to configure advanced items.DRAM ECS Mode- Options available: Auto, AutoECS, ManualECS, DisableECS. Default setting isAuto.DRAM Redirect Scrubber Enable- Options available: Auto, Enabled, Disabled. Default setting isAuto.DRAM Scrub Redirection Limit- Options available: Auto, 8 Scrubs, 4 Scrubs, 2 Scrubs, 1 Scrub. Default setting isAuto.DRAM Scrub Time- Options available: Disabled, 1 hour, 4 hours, 6 hours, 8 hours, 12 hours, 16 hours, 24 hours, 48 hours. Default setting is24 Hours.DRAM Error Threshold Count- Options available: Auto, ETC_4, ETC_16, ETC_64, ETC_256, ETC_1024, ETC_4096. Default setting isAuto.DRAM ECS Count Mode- Options available: Auto, Row Count Mode, Code Word Count Mode. Default setting isAuto.DRAM AutoEcs during Self Refresh- Options available: Auto, AutoEcs Disabled, AutoEcs Enabled. Default setting isAuto.DRAM ECS WriteBack Suppression- Options available: Auto, Enable, Disable. Default setting isAuto.DRAM X4 WriteBack Suppression- Options available: Auto, Enable, Disable. Default setting isAuto.
Parameter Description
DRAM Corrected Error Counter Enable	Configure DRAM Corrected Error Counter function.Options available: Disable, NoLeakMode, LeakMode. Default setting is LeakMode.
DRAM Corrected Error Counter Interrupt Enable	Enable SMI when DRAM corrected Error Counter count exceeds the threshold value.Options available: False, True. Default setting is True.
DRAM Corrected Counter Leak Rate	Program Rate value for DRAM Corrected Error Counter function. Default setting is 7.
DRAM Corrected Error Counter Start Count	Program starting value for DRAM Corrected Error Counter function. Default setting is FFF5.

2-3-3-5 DDR Bus Configuration

Aptio Setup - AMI AMD CBS DDR Bus Configuration Dram ODT Impedance RTT_NOM_WR [Auto] Dram ODT Impedance RTT_NOM_RD [Auto] Dram ODT Impedance RTT_WR [Auto] Dram ODT Impedance RTT_PARK [Auto] Dram ODT Impedance DQS_RTT_PARK [Auto] Processor ODT Impedance [Auto] Dram DQ drive strengths [Auto] Select the DRAMs On-die Termination impedance for RTT_NOM_WR +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DDR Bus Configuration
Dram ODT impedance RTT_NOM_WR	Select the DRAMs On-die Termination impedance for RTT_NOM_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance RTT_NOM_RD	Select the DRAMs On-die Termination impedance for RTT_NOM_RD. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance RTT_WR	Select the DRAMs On-die Termination impedance for RTT_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance RTT_PARK	Select the DRAMs On-die Termination impedance for RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance DQS_RTT_PARK	Select the DRAMs On-die Termination impedance for DQS_RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.

Parameter Description

Processor ODT impedance	Select the ODT impedance for all DBYTE IOs. Options available: Auto, High Impedance, 480 ohm, 240 ohm, 160 ohm, 120 ohm, 96 ohm, 80 ohm, 68.6 ohm, 60 ohm, 53.3 ohm,48 ohm, 43.6 ohm, 40 ohm, 36.9 ohm, 34.3 ohm, 32 ohm, 30 ohm, 28.2 ohm, 26.7 ohm, 25.3 ohm. Default setting isAuto.
Dram DQ drive strengths	Select the Dram Pull-up and Pull-Down Output Driver Impedance for all DQ and DMI IOs. Options available: Auto, 48 ohm, 40 ohm, 34 ohm, Default setting isAuto.

2-3-3-6 Enforce POR

Enforce POR WARNING - DAMAGE CAUSED BY USE OF YOUR AMD PROCESSOR OUTSIDE OF SPECIFICATION OR IN EXCESS OF FACTORY SETTINGS ARE NOT COVERED UNDER YOUR AMD PRODUCT WARRANTY AND MAY NOT BE COVERED BY YOUR SYSTEM MANUFACTURER'S WARRANTY. Operating your AMD processor outside of specification or in excess of factory settings, including but not limited to overclocking, may damage or shorten the life of your processor or other system components, create system instabilities (e.g., data loss and corrupted images) and in extreme cases may result in total system failure. AMD does not provide support or service for issues or damages related to use of an AMD processor outside of processor specifications or in excess of factory settings. ►Decline ►Accept

Decline

+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter Description

Enforce POR Decline/Accept to configure the advanced items.
Accept
Active Memory Timing Settings ^(Note)	Active memory Timing Settings.Options available: Auto, Enabled. Default setting isAuto.
Memory Target Speed	Specifies the memory target speed in MT/s.Options available: Auto, DDR3200, DDR3600, DDR4000, DDR4400, DDR4800, DDR5200, DDR5600. Default setting isAuto.
SPD Timing Press [Enter] to configure advanced items.
Non-SPD Timing Press [Enter] to configure advanced items.

2-3-3-7 DDR Training Options

Aptio Setup - AMI AMD CBS DDR Training Options DRAM PDA Enumerate ID Programming [Auto] Mode Specify PDA enumeration mode Auto : default 0 : Continuous DQS toggling PDA enumeration mode (default) 1 : Legacy PDA enumeration mode +#: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

DDR Training Options
DRAM PDA Enumerate ID Programming Mode	Specify PDA enumeration mode. Options available: Auto, Toggling PDA enumeration mode, Legacy PDA enumeration mode. Default setting isAuto.

2-3-3-8 DDR Security

Aptio Setup - AMI AND CBS DDR Security TSME [Auto] AES [AES-256] Data Scramble [Enabled] SME-MK [Disabled] Transparent SME +#: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

Security
TSME	Enable/Disable Transparent SME. Options available: Auto, Enabled, Disabled. Default setting is Auto.
AES Options available: AES-128, AES-256. Default setting is AES-256.
Data Scramble	Enable/Disable Data Scrambling. Options available: Enabled, Disabled. Default setting is Enabled.
SME-MK Options available: Enabled, Disabled. Default setting is Disabled.

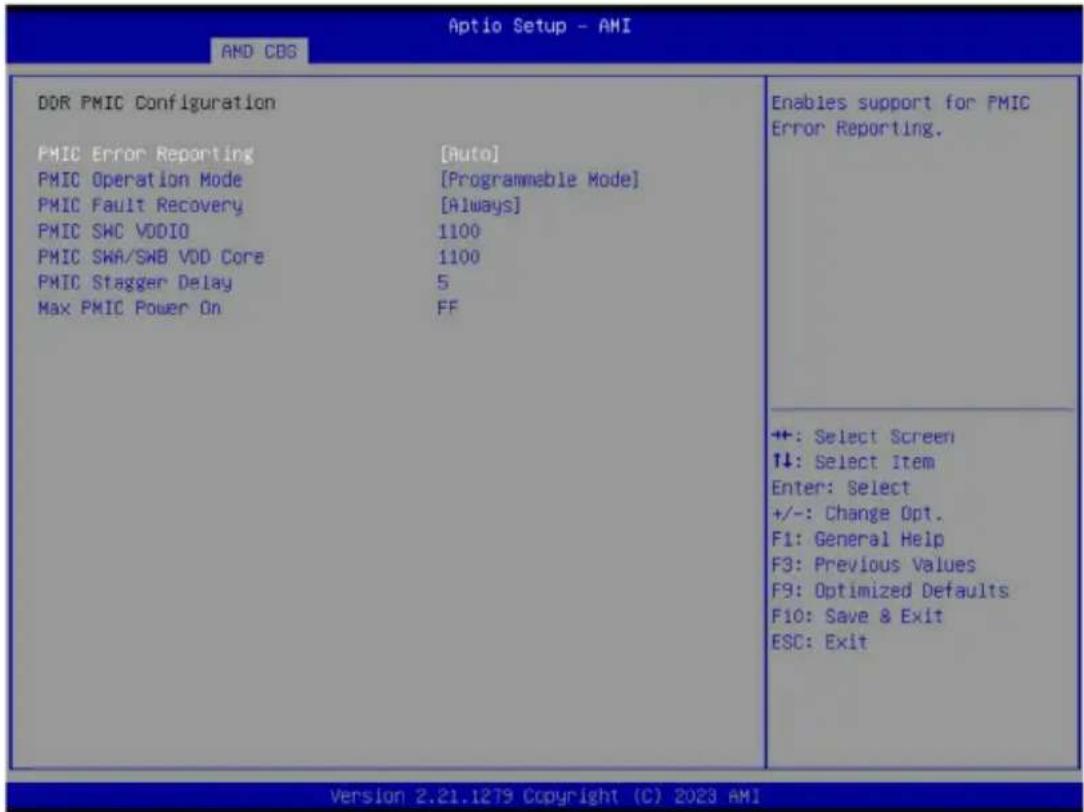

2-3-3-9 DDR PMIC Configuration

Aptio Setup - AMI AMD CBS DOR PMIC Configuration PMIC Error Reporting [Auto] PMIC Operation Mode [Programmable Mode] PMIC Fault Recovery [Always] PMIC SWC VDDIO 1100 PMIC SWA/SWB VDD Core 1100 PMIC Stagger Delay 5 Max PMIC Power On FF Enables support for PMIC Error Reporting. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description
DDR PMIC Configuration
PMIC Error Reporting	Enables support for PMIC Error Reporting. Options available: Auto, False, True. Default setting is Auto.
PMIC Operation Mode	Options available: Secure Mode, Programmable Mode. Default setting is Programmable Mode.
PMIC Fault Recovery Options available: Always, Never, Once. Default setting is Always.
PMIC SWC VDDIO Default setting is 1100.
PMIC SWA/SWB VDD Core Default setting is 1100.
PMIC Stagger Delay Default setting is 5.
Max PMIC Power On Default setting is FF.

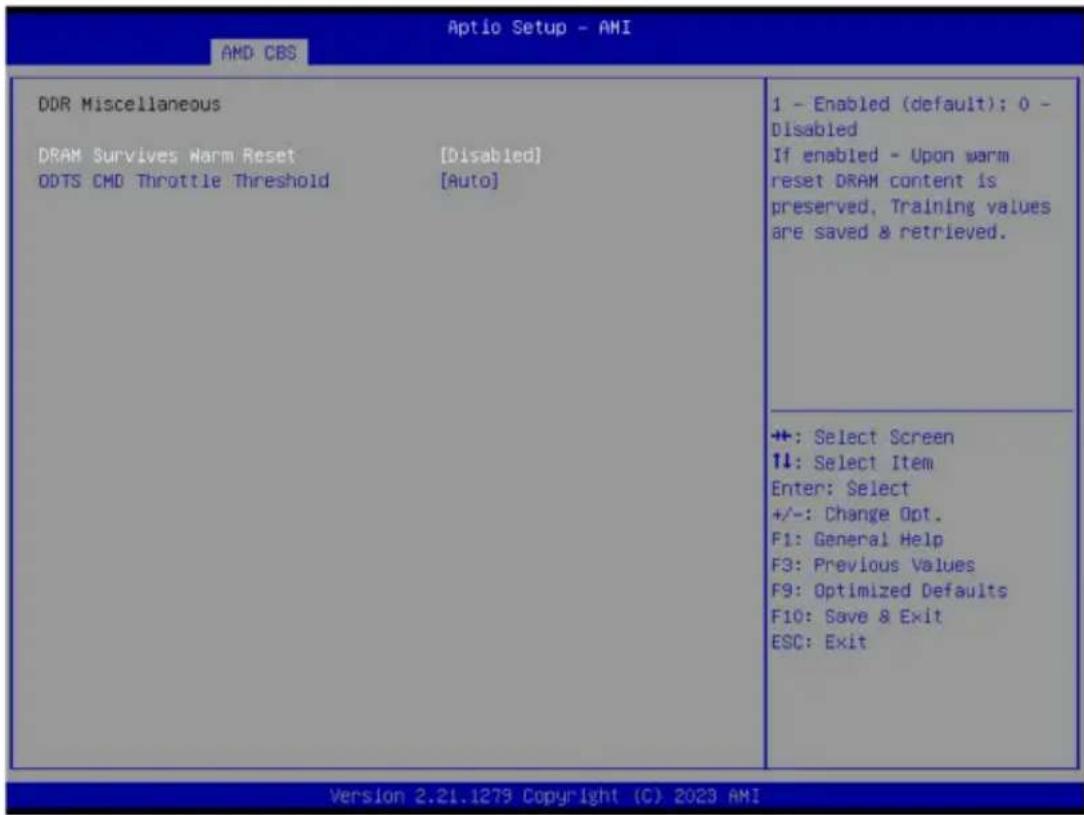

2-3-3-10 DDR Miscellaneous

Aptio Setup - AMI AMD CBS DDR Miscellaneous DRAM Survives Harm Reset [Disabled] ODTS CMD Throttle Threshold [Auto] 1 - Enabled (default); 0 - Disabled If enabled - Upon warm reset DRAM content is preserved, Training values are saved & retrieved. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

DDR Miscellaneous

DRAM Survives Warm Reset Options available: Enabled, Disabled. Default setting is Disabled.

ODTS CMD Throttle Threshold Options available: Auto, > 85'C, > 90'C, > 95'C. Default setting is Auto.

2-3-3-11 DDR PHY (CMN)

Aptio Setup - AMI AMD CBS DDR PHY (CMN) Periodic Training [Auto] Specifies Periodic Training config ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

DDR PHY (CMN)

Periodic Training ^(Note)

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Periodic Training Interval Specifies the Periodic Training interval in millisecond.

(Note) Advanced items prompt when this item is defined.

2-3-4 NBIO Common Options

Aptio Setup - AMI AMD CBS NBIO Common Options IOMMU [Enabled] DMAr Support [Auto] DMA Protection [Auto] DRTM Virtual Device Support [Auto] DRTM Memory Reservation [Auto] ACS Enable [Auto] PCIe ARI Support [Auto] PCIe ARI Enumeration [Auto] PCIe Ten Bit Tag Support [Auto] ► SMU Common Options ► NBIO RAS Common Options Enable AER Cap [Auto] Early Link Speed [Auto] Hot Plug Handling mode [Auto] Hot Plug Allow FF in Synchronous [Disabled] Presence Detect Select mode [Auto] Data Link Feature Cap [Auto] CV test [Auto] SEV-SNP Support [Auto] Allow Compliance [Auto] SRIS [Auto] Multi Upstream Auto Speed Change [Auto] Enable/Disable IOMMU ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

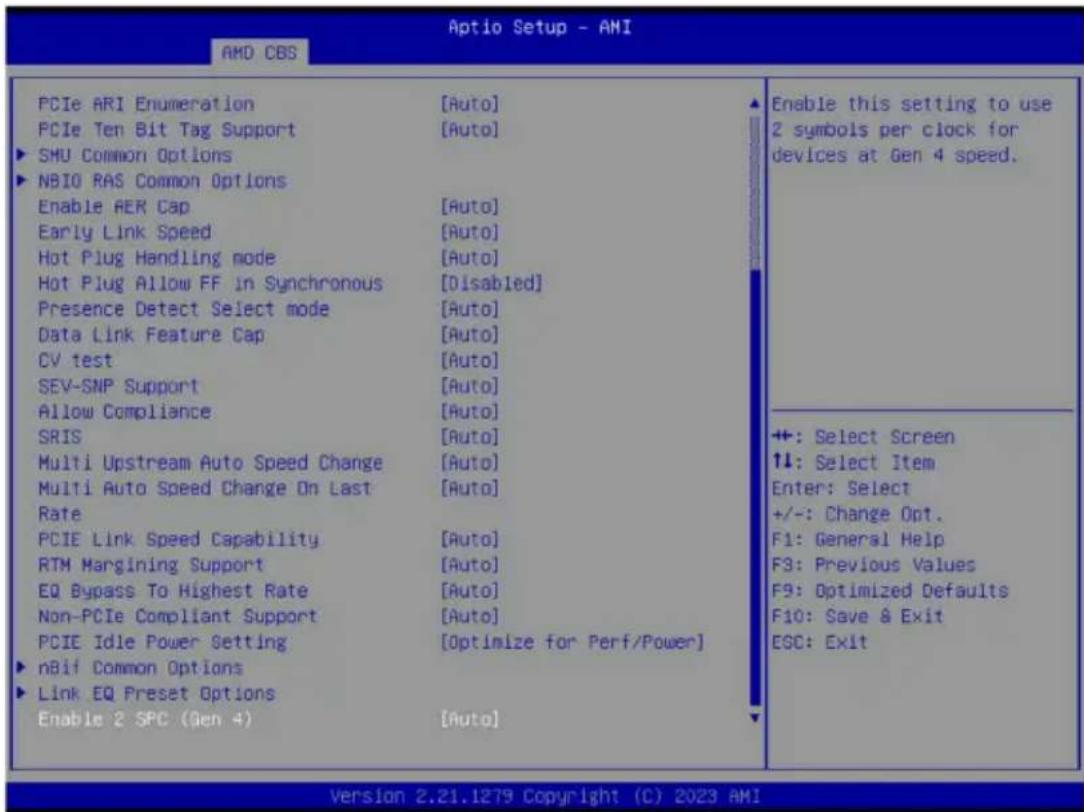

Aptio Setup - AMI AMD CBS PCIe ARI Enumeration [Auto] PCIe Ten Bit Tag Support [Auto] ► SHU Common Options ► NBIO RAS Common Options Enable AER Cap [Auto] Early Link Speed [Auto] Hot Plug Handling mode [Auto] Hot Plug Allow FF in Synchronous [Disabled] Presence Detect Select mode [Auto] Data Link Feature Cap [Auto] CV test [Auto] SEV-SNP Support [Auto] Allow Compliance [Auto] SRIS [Auto] Multi Upstream Auto Speed Change [Auto] Multi Auto Speed Change On Last [Auto] Rate PCIE Link Speed Capability [Auto] RTM Margining Support [Auto] EQ Bypass To Highest Rate [Auto] Non-PCIE Compliant Support [Auto] PCIE Idle Power Setting [Optimize for Perf/Power] ► nBif Common Options ► Link EQ Preset Options Enable 2 SPC (Gen 4) [Auto] Enable this setting to use 2 symbols per clock for devices at Gen 4 speed. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
NBIO Common Options
IOMMU	Enable/Disable the IOMMU function.Options available: Disabled, Enabled. Default setting is Enabled.
DMAr Support	Enable/Disable DMAr system protection during POST.Options available: Disabled, Enabled, Auto. Default setting is Auto.
DMA Protection	Enable/Disable DMA remap support in IVRS IVinfo Field.Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRTM Virtual Device Support	Enable/Disable DRTM ACPI virtual device.Options available: Disabled, Enabled, Auto. Default setting is Auto.
DRTM Memory Reservation	Enable/Disable DRTM Memory reservation.Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACS Enable	Enable/Disable ACS.Options available: Enable, Disabled, Auto. Default setting is Auto.
PCIe ARI Support	Enable/Disable Alternative Routing-ID Interpretation.Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe ARI Enumeration	ARI Forwarding Enable for each downstream port.Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe Ten Bit Tag Support	Enable/Disable PCIe ten bit tags for supported devices. (Auto=Disabled)Options available: Disable, Enable, Auto. Default setting is Auto.
SMU Common Options Press [Enter] for configuration of advanced items.
NBIO RAS Common Options	Press [Enter] for configuration of advanced items.
Enable AER Cap	Enable/Disable Advanced Error Reporting Capability.Options available: Enable, Disabled, Auto. Default setting is Auto.
Early Link Speed	Configures Early Link Speed.Options available: Auto, Gen1, Gen2. Default setting is Auto.
Hot Plug Handling mode	Controls the Hot Plug Handling mode.Options available: OS First, Firmware First/EDR if OS supports, Firmware First but allow OS First, System Firmware Intermediary, Auto. Default setting is Auto.
Hot Plug Allow FF in Synchronous	Allows firmware first hot plug handling mode to operate in mode A and mode B synchronous mappings.Options available: Disabled, Enabled. Default setting is Disabled.
Presence Detect Select mode	Controls the Presence Detect Select mode.Options available: OR, AND, Auto. Default setting is Auto.
Data Link Feature Cap	Enable/Disable the data link feature capability.Options available: Enabled, Disabled, Auto. Default setting isAuto.
CV test	Enable/Disable the running PCIE CV tool support.Options available: Auto, Enabled, Disabled. Default setting isAuto.
SEV-SNP Support	Enable/Disable the SEV-SNP support.Options available: Disable, Enable. Default setting isDisable.
Allow Compliance	When enabled, allows the PCIe RP to enter Polling.Compliance state.Options available: Auto, Disable, Enable. Default setting isAuto.
SRIS Options available: Auto, Disable, Enable. Default setting isAuto.
Multi Upstream Auto Speed Change	Defines the setting of this feature for all PCIe devices.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Multi Auto Speed Change On Last Rate	Options available: Disable, Enable, Auto. Default setting isAuto.
PCIE Link Speed Capability	Options available: Maximum speed, Gen1, Gen2, Gen3, Gen4, Gen5, Auto.Default setting isAuto.
RTM Margining Support Options available: Disable, Enable, Auto. Default setting isAuto.
EQ Bypass To Highest Rate	Options available: Disable, Enable, Auto. Default setting isAuto.
Non-PCIe Compliant Support	Options available: Disable, Enable, Auto. Default setting isAuto.
PCIE Idle Power Setting	Modify PCIE Power Savings Features that can impact lightly loaded latency.Options available: Optimize for Latency, Optimize for Perf/Power.Default setting isOptimize for Latency.
nBif Common Options Press [Enter] for configuration of advanced items.
Link EQ Preset Options Press [Enter] for configuration of advanced items.
Enable 2 SPC (Gen4)	Enable this setting to use 2 symbols per clock for devices at Gen4 speed.Options available: Auto, Enabled. Default setting isAuto.

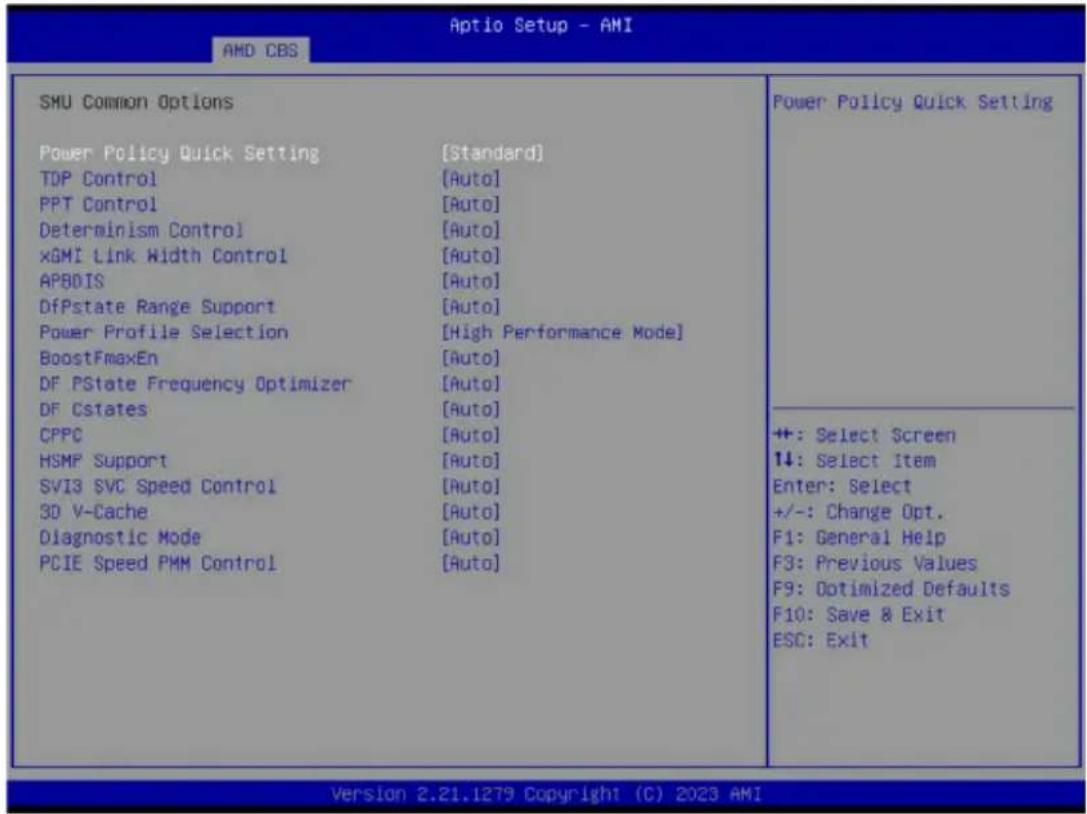

2-3-4-1 SMU Common Options

Aptio Setup - AMI AMD CBS SMU Common Options Power Policy Quick Setting [Standard] TDP Control [Auto] PPT Control [Auto] Determinism Control [Auto] xGMI Link Width Control [Auto] APBDIS [Auto] DfPstate Range Support [Auto] Power Profile Selection [High Performance Mode] BoostFmaxEn [Auto] DF PState Frequency Optimizer [Auto] DF Cstates [Auto] CPPC [Auto] HSMP Support [Auto] SVI3 SVC Speed Control [Auto] 3D V-Cache [Auto] Diagnostic Mode [Auto] PCIE Speed PMM Control [Auto] Power Policy Quick Setting ++: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
SMU Common Options
Power Policy Quick Setting	Options available: Standard, Best Performance, Energy Efficient.Default setting isStandard.
TDP Control	Options available: Manual, Auto. Default setting isAuto.
PPT Control	Options available: Manual, Auto. Default setting isAuto.
Determinism Control	Selects use the fused Determinism or set customized Determinism.Options available: Manual, Auto. Default setting isAuto.
xGMI Link Width Control Options available: Manual, Auto. Default setting isAuto.
APBDIS Options available: 0, 1, Auto. Default setting isAuto.
DfPstate Range Support Options available: Disable, Enable, Auto. Default setting isAuto.
Power Profile Selection	Options available: High Performance Mode, Efficiency Mode, Maximum IO Performance Mode. Default setting isHigh Performance Mode.
BoostFmaxEn Options available: Manual, Auto. Default setting isAuto.
DF PState Frequency Optimizer	Options available: Auto, Enabled, Disabled. Default setting isAuto.
DF Cstates Options available: Disabled, Enabled, Auto. Default setting isDisabled.
CPPC	Enable/Disable the CPPC feature.Options available: Disabled, Enabled, Auto. Default setting isAuto.
HSMP Support	Enable/Disable the HSMP support.Options available: Disabled, Enabled, Auto. Default setting isAuto.
SVI3 SVC Speed Control Options available: Auto, Manual. Default setting isAuto.
3D V-Cache	Options available: Auto, Disable, 1 stack, 2 stack, 4 stack.Default setting isAuto.
Diagnostic Mode Options available: Disabled, Enabled, Auto. Default setting isAuto.
PCIE Speed PMM Control	Options available: Dynamic link speed determined by Power Management functionality, Static Target Link Speed (GEN4),Static Target Link Speed (GEN5), Auto. Default setting isAuto.

2-3-4-2 NBIO RAS Common Options

Aptio Setup - AMI AMD CBS
NBIO RAS Common Options NBIO RAS Control [Auto] Egress Poison Severity High 30011 Egress Poison Severity Low 4 NBIO SyncFlood Generation [Auto] NBIO SyncFlood Reporting [Auto] Egress Poison Mask High FFFCFFFF Egress Poison Mask Low FFFFFFFB Uncorrected Converted to Poison 30000 Enable Mask High Uncorrected Converted to Poison 4 Enable Mask Low System Hub Watchdog Timer 2500 PCIe Aer Reporting Mechanism [Auto] Edpc Control [Auto] ACS RAS Request Value [Auto] NBIO Poison Consumption [Auto] Sync Flood on PCIe Fatal Error [Auto]	(0) Disabled, (1) MCA
	++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
NBIO RAS Common Options
NBIO RAS Control Options available: Disabled, MCA, Auto. Default setting is Auto.
Egress Poison Severity High	Configures the Egress Poison High Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
Egress Poison Severity Low	Configures the Egress Poison Low Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
NBIO SyncFlood Generation	The value may be used to mask SyncFlood caused by NBIO RAS options. Options available: Enabled, Disabled, Auto. Default setting is Auto.
NBIO SyncFlood Reporting	The value may be used to enable SyncFlood reporting to APML. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Egress Poison Mask High	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Egress Poison Mask Low	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Uncorrected Converted to Poison Enable Mask High	Enables mask for masking of uncorrectable parity errors on internal arrays.
Uncorrected Converted to Poison Enable Mask Low	Enables mask for masking of uncorrectable parity errors on internal arrays.
System Hub Watchdog Timer	Specifies the timer interval of the SYSHUB Watchdog timer in milliseconds.
PCIe Aer Reporting Mechanism	Selects the method of reporting AER errors from PCI Express. Options available: Firmware First, Firmware First but allow OS First, OS First, Auto. Default setting isAuto.
Edpc Control Options available: Disabled, Enabled, Auto. Default setting isAuto.
ACS RAS Request Value	Options available: Direct Request Access Enabled, Request Blocking Enabled, Request Redirect Enabled, Auto. Default setting isAuto.
NBIO Poison Consumption Options available: Auto, Enabled, Disabled. Default setting isAuto.
Sync Flood on PCIe Fatal Error	Options available: Auto, True, False. Default setting isAuto.

2-3-4-3 nBif Common Options

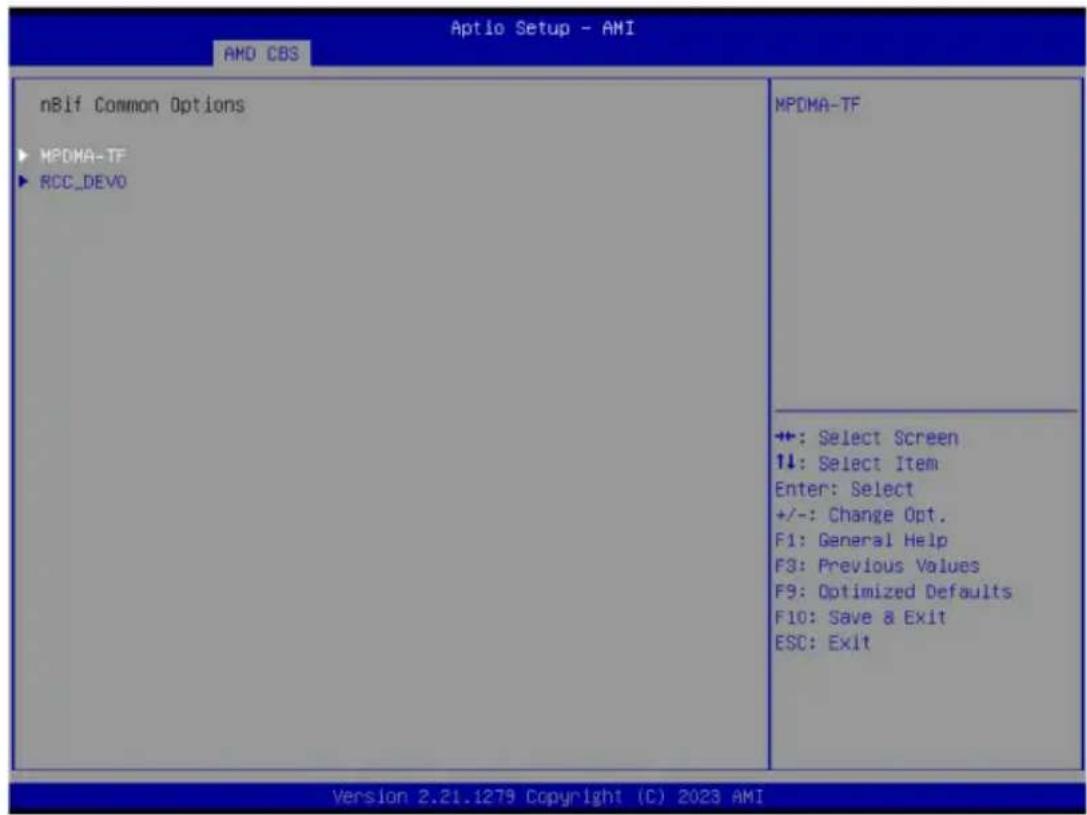

Aptio Setup - AMI AMD CBS nBIf Common Options ► MPDMA-TF ► RCC_DEVO MPDMA-TF +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
MPDMA-TF	SRIOV- Options available: Auto, Disabled, Enabled. Default setting isAuto.ARI- Options available: Auto/Default, Disabled, Enabled. Default setting isAuto/Default.AER- Options available: Auto, Disabled, Enabled. Default setting isAuto.ACS- Options available: Auto, Disabled, Enabled. Default setting isAuto.ATS- Options available: Auto, Disabled, Enabled. Default setting isAuto.PASID- Options available: Auto, Disabled, Enabled. Default setting isAuto.RTR- Options available: Auto, Disabled, Enabled. Default setting isAuto.PAGE_REQ- Options available: Auto, Disabled, Enabled. Default setting isAuto.PWR- Options available: Auto, Disabled, Enabled. Default setting isAuto.ATC_ENABLE- Options available: Auto, Disabled, Enabled. Default setting isAuto.
MPDMA-TF(continued)	SDXI Class CodeOptions available: Auto, Disabled, Enabled. Default setting isAuto.PASID ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.ATOMICOP_REQUESTOptions available: Auto, Disabled, Enabled. Default setting isAuto.
RCC_DEV0	ACS Rcc_Dev0Options available: Auto, Disabled, Enabled. Default setting isAuto.AER Rcc_Dev0Options available: Auto, Disabled, Enabled. Default setting isAuto.DlfEnableStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.Phy16GTStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.MarginEnStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.SourceValStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.TranslationalBlockingStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.P2pReq ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.P2pCompStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.UpstreamFwdStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.P2PEgressStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.DirectTranslatedStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.SsidEnStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.PriEnPageReqOptions available: Auto, Disabled, Enabled. Default setting isAuto.PriResetPageReqOptions available: Auto, Disabled, Enabled. Default setting isAuto.SourceVal ACS cntlOptions available: Auto, Disabled, Enabled. Default setting isAuto.TranslationalBlocking ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.P2pComp ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.UpstreamFwd ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.
RCC_DEV0(continued)	◆ P2PEgress ACS Control- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ P2pReqStrap5- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ E2E_PREFIX- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ EXTENDED_FMT- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ AtomicRoutingStrap5- Options available: Auto, Disabled, Enabled. Default setting isAuto.

2-3-4-4 Link EQ Preset Options

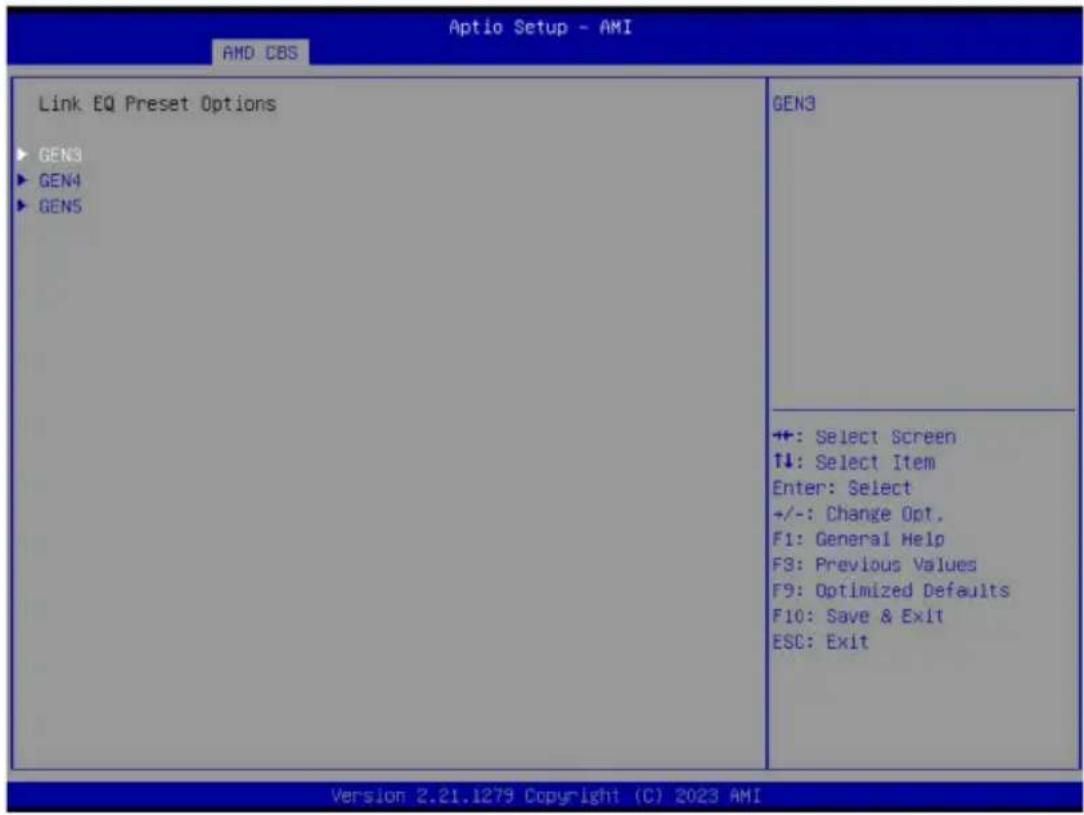

Aptio Setup - AMI AMD CBS Link EQ Preset Options GEN3 GEN4 GEN5 GEN3 +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
GEN3/4/5	Press [Enter] to configure advanced items.◆ Preset Search Mask Configuration- Options available: Custom, Auto. Default setting isAuto.

2-3-5 FCH Common Options

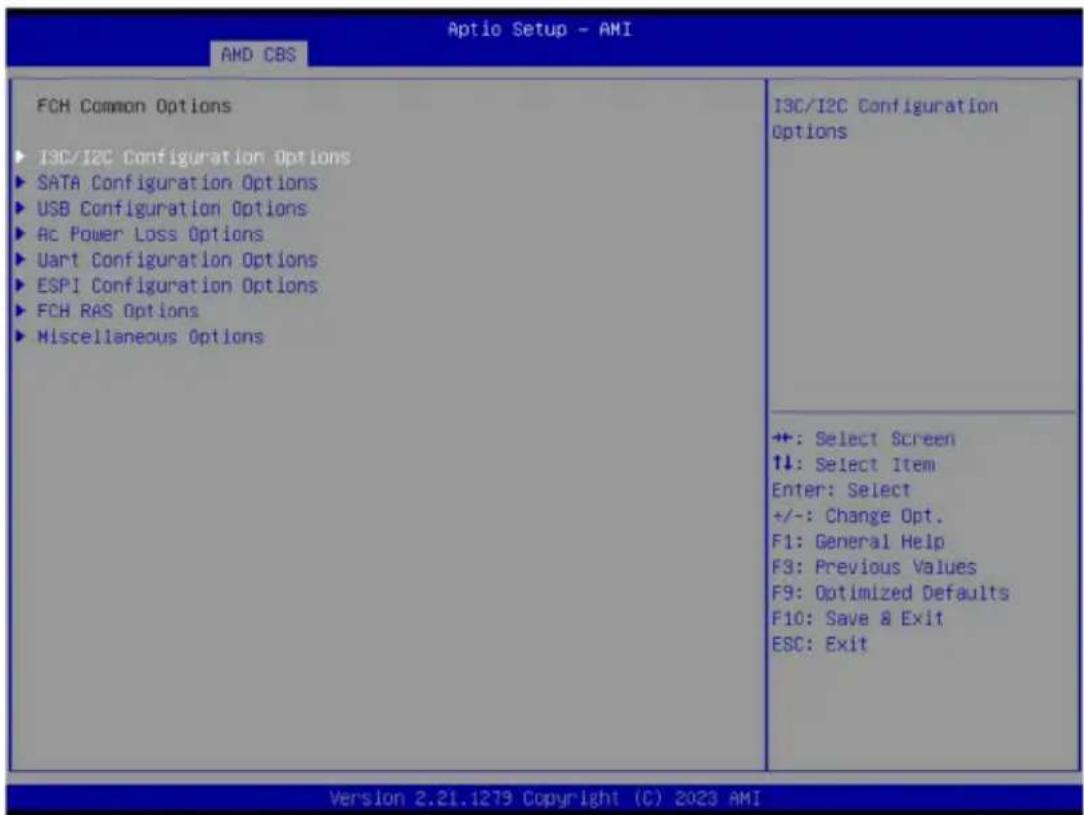

Aptio Setup - AMI AMD CBS FCH Common Options ► I3C/I2C Configuration Options ► SATA Configuration Options ► USB Configuration Options ► Ac Power Loss Options ► Uart Configuration Options ► ESPI Configuration Options ► FCH RAS Options ► Miscellaneous Options I3C/I2C Configuration Options +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

FCH Common Options
I3C/I2C Configuration Options	Press [Enter] for configuration of advanced items.
SATA Configuration Options	Press [Enter] for configuration of advanced items.
USB Configuration Options	Press [Enter] for configuration of advanced items.
AC Power Loss Options Press [Enter] for configuration of advanced items.
Uart Configuration Options	Press [Enter] for configuration of advanced items.
ESPI Configuration Options	Press [Enter] for configuration of advanced items.
FCH RAS Options Press [Enter] for configuration of advanced items.
Miscellaneous Options Press [Enter] for configuration of advanced items.

2-3-5-1 I3C/I2C Configuration Options

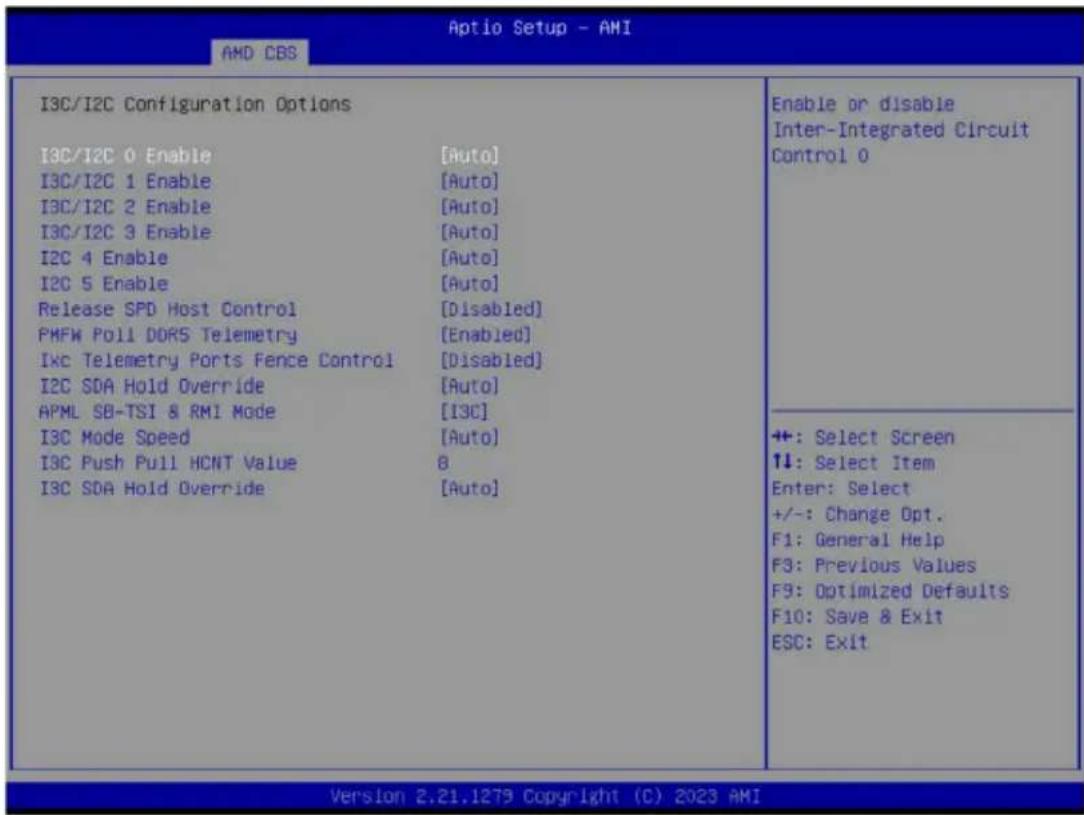

Aptio Setup - AMI AMD CBS I3C/I2C Configuration Options I3C/I2C 0 Enable [Auto] I3C/I2C 1 Enable [Auto] I3C/I2C 2 Enable [Auto] I3C/I2C 3 Enable [Auto] I2C 4 Enable [Auto] I2C 5 Enable [Auto] Release SPD Host Control [Disabled] PMFW Poll DDR5 Telemetry [Enabled] Ixc Telemetry Ports Fence Control [Disabled] I2C SDA Hold Override [Auto] APML SB-TSI & RMI Mode [I3C] I3C Mode Speed [Auto] I3C Push Pull HCNT Value 8 I3C SDA Hold Override [Auto] Enable or disable Inter-Integrated Circuit Control 0 +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
I3C/I2C Configuration Options
I3C/I2C 0/1/2/3 Enable	Options available: Both Disabled, I3C Enabled, I2C Enabled, Auto. Default setting isAuto.
I2C 4/5 Enable	Options available: Disabled, Enabled, Auto. Default setting isAuto.
Release SPD Host Control	Options available: Disabled, Enabled. Default setting isDisabled.
PMFW Poll DDR5 Telemetry	Options available: Disabled, Enabled. Default setting isEnabled.
Ixc Telemetry Ports Fence Control	Options available: Disabled, Enabled. Default setting isDisabled.
I2C SDA Hold Override	Options available: Disabled, Enabled, Auto. Default setting isAuto.
APML SB-TSI $ RMI Mode	Options available: I3C, I2C. Default setting isI3C.
I3C Mode Speed	Options available: SDR2(6MHz), SDR0(12.5MHz), Auto. Default setting isAuto.
I3C Push Pull HCNT Value	SCL push-pull High count for I3C transfers targeted to I3C devices.
I3C SDA Hold Override	Override I3C SDA Hold value. Options available: Disabled, Enabled, Auto. Default setting isAuto.

2-3-5-2 SATA Configuration Options

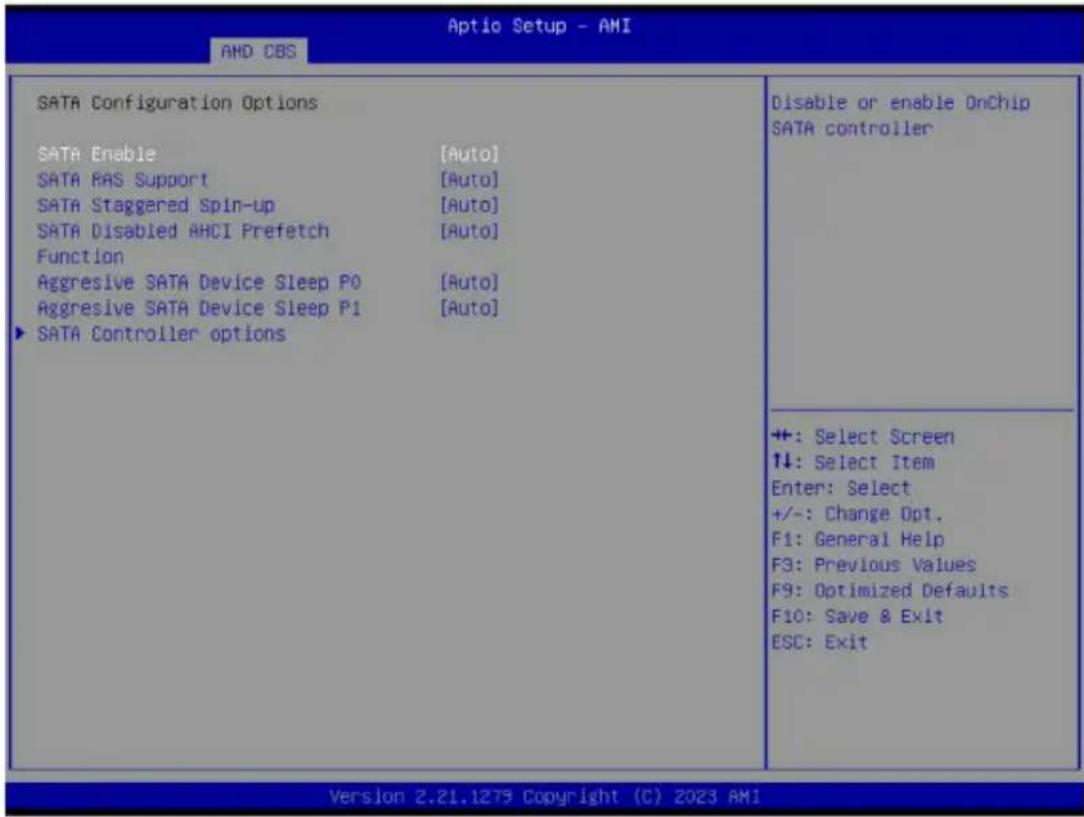

Aptio Setup - AMI AND CBS SATA Configuration Options SATA Enable [Auto] SATA RAS Support [Auto] SATA Staggered Spin-up [Auto] SATA Disabled AHCI Prefetch [Auto] Function Aggressive SATA Device Sleep P0 [Auto] Aggressive SATA Device Sleep P1 [Auto] ▶ SATA Controller options Disable or enable OnChip SATA controller +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
SATA Configuration Options
SATA Enable	Enable/Disable OnChip SATA controller. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA RAS Support	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Staggered Spin-up	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Disabled AHCI Prefetch Function	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Aggressive SATA Device Sleep P0/P1	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Controller options	Press [Enter] for configuration of advanced items. ◆ SATA Controller Enable ◆ SATA Controller eSATA ◆ SATA Controller DevSlp ◆ SATA Controller SGPIO

2-3-5-3 USB Configuration Options

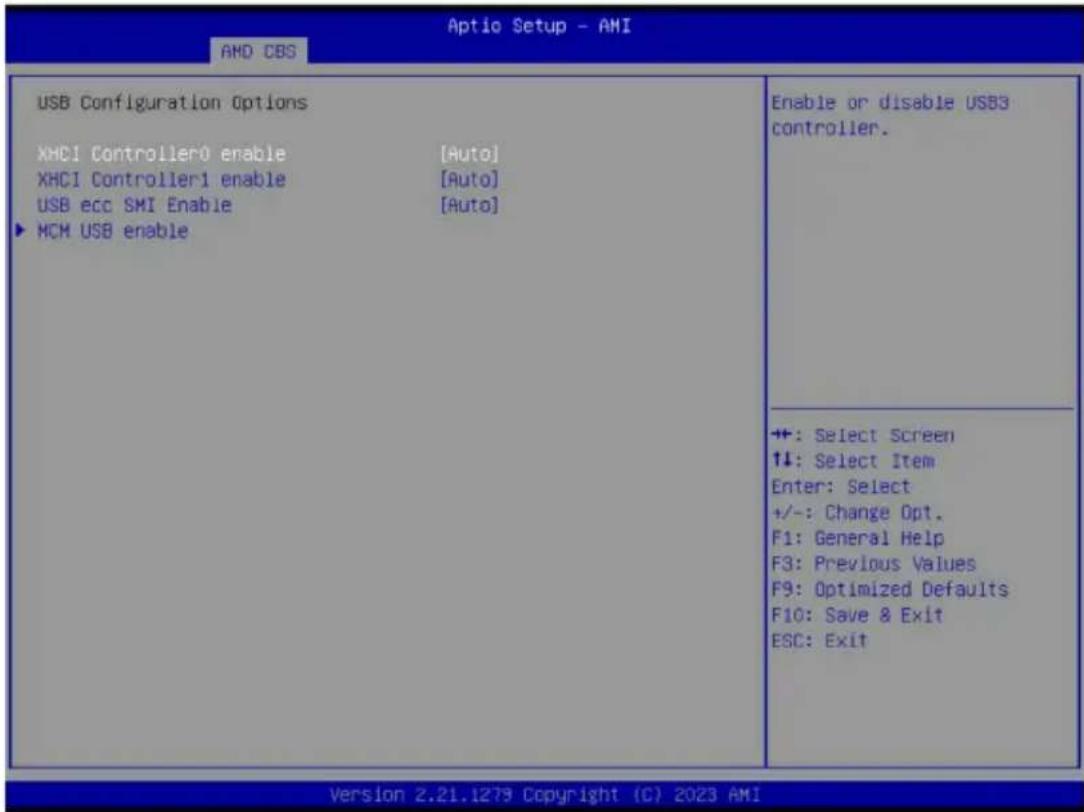

Aptio Setup - AMI AMD CBS USB Configuration Options XHCI Controller0 enable [Auto] XHCI Controller1 enable [Auto] USB ecc SMI Enable [Auto] ▶ MCM USB enable Enable or disable USB3 controller. +:-: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
USB Configuration Options
XHCI Controller0/1 enable	Enable/Disable USB controller.Options available: Enabled, Disabled, Auto. Default setting isAuto.
USB ecc SMI Enable	Options available: Enable, Off, Auto. Default setting isAuto.
MCM USB enable	Press [Enter] for configuration of advanced items.♦ XHCI2/ XHCI3 enable (Socket1)– Options available: Enabled, Disabled, Auto. Default setting isAuto.

2-3-5-4 AC Power Loss Options

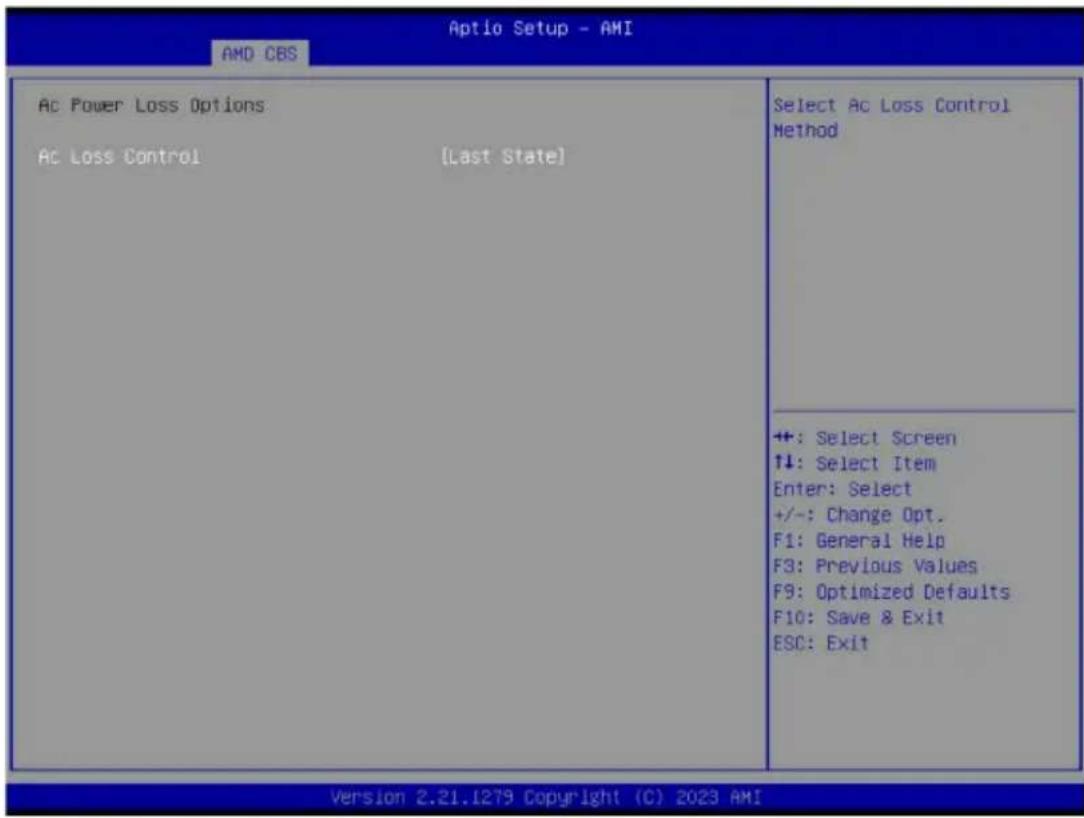

Aptio Setup - AMI AMD CBS Ac Power Loss Options AC Loss Control [Last State] Select Ac Loss Control Method +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
AC Power Loss Options
AC Loss Control	Selects the AC Loss Control Method. Options available: Power Off, Power On, Last State. Default setting is Last State.

2-3-5-5 Uart Configuration Options

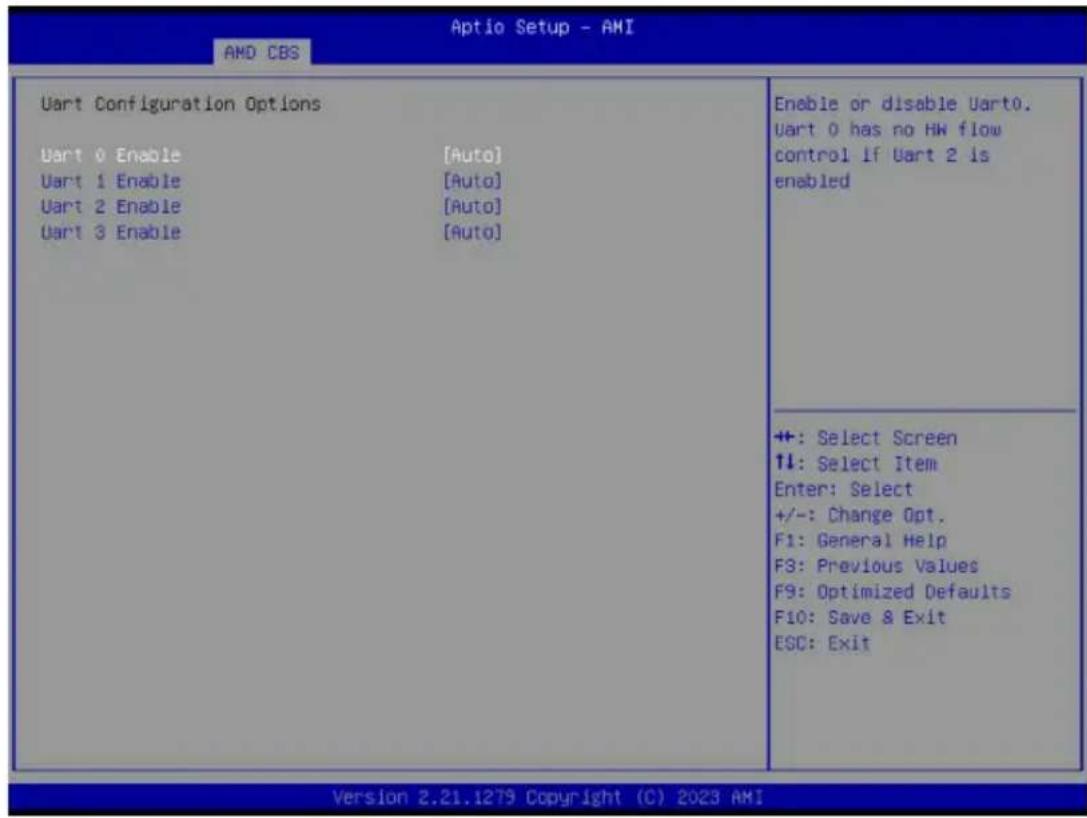

Aptio Setup - AMI AMD CBS Uart Configuration Options Uart 0 Enable [Auto] Uart 1 Enable [Auto] Uart 2 Enable [Auto] Uart 3 Enable [Auto] Enable or disable Uart0. Uart 0 has no HW flow control If Uart 2 is enabled +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Uart Configuration Options
Uart 0/1/2/3 Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

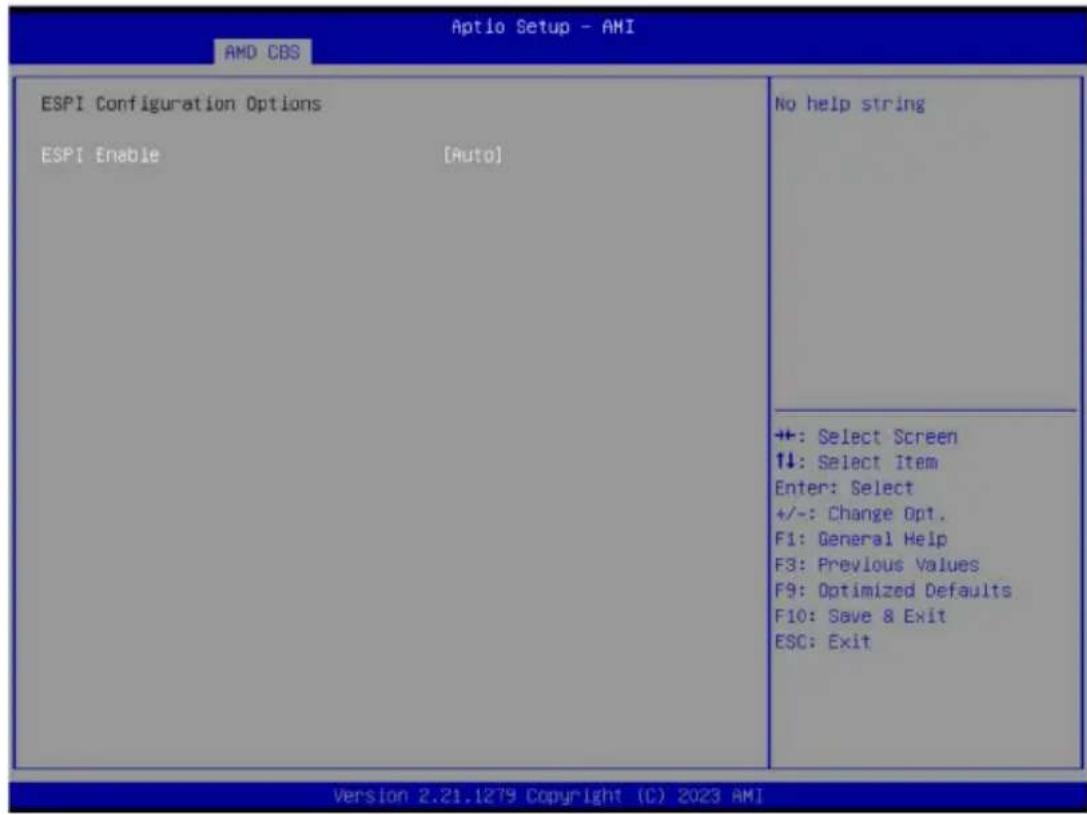

2-3-5-6 ESPI Configuration Options

Aptio Setup - AMI AMD CBS ESPI Configuration Options ESPI Enable [Auto] No help string +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
ESPI Configuration Options
ESPI Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-5-7 FCH RAS Options

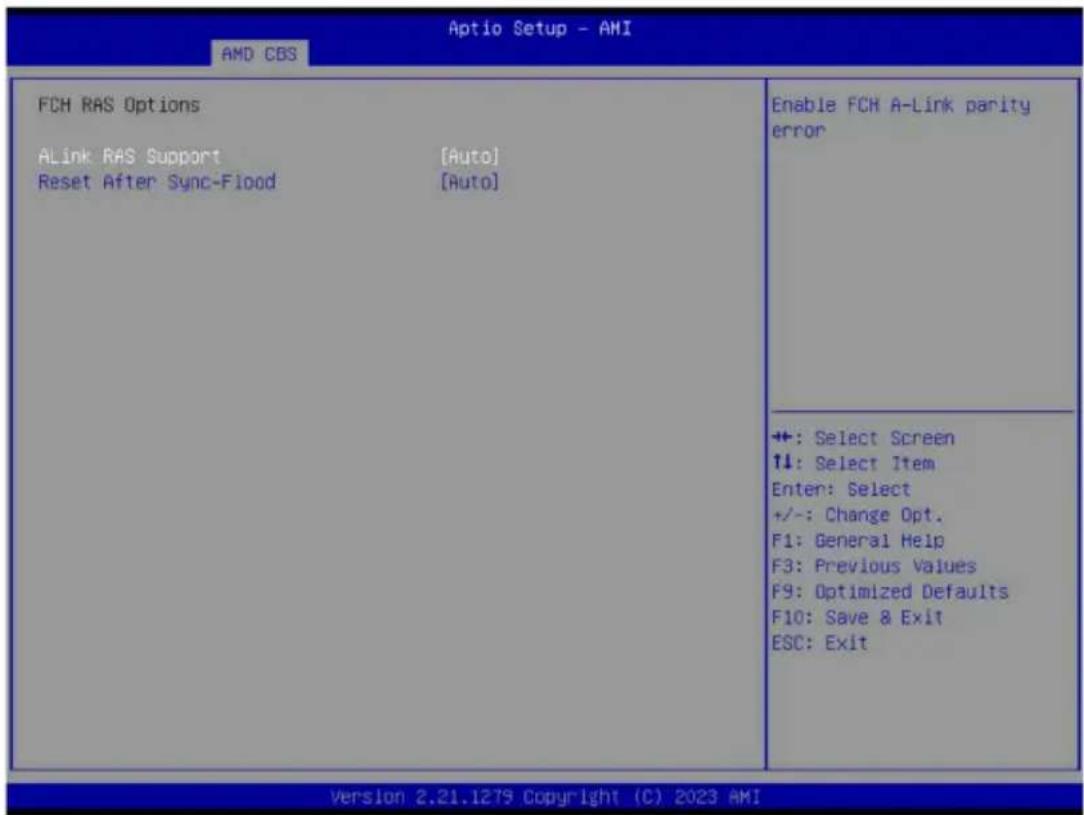

Aptio Setup - AMI AMD CBS FCH RAS Options ALink RAS Support [Auto] Reset After Sync-Flood [Auto] Enable FCH A-Link parity error +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
FCH RAS Options
ALink RAS Support	Enable/Disable the ALink RAS Support.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Reset After Sync-Flood	Enables AB to forward downstream sync-flood message to system controller.Options available: Enable, Disable, Auto. Default setting isAuto.

2-3-5-8 Miscellaneous Options

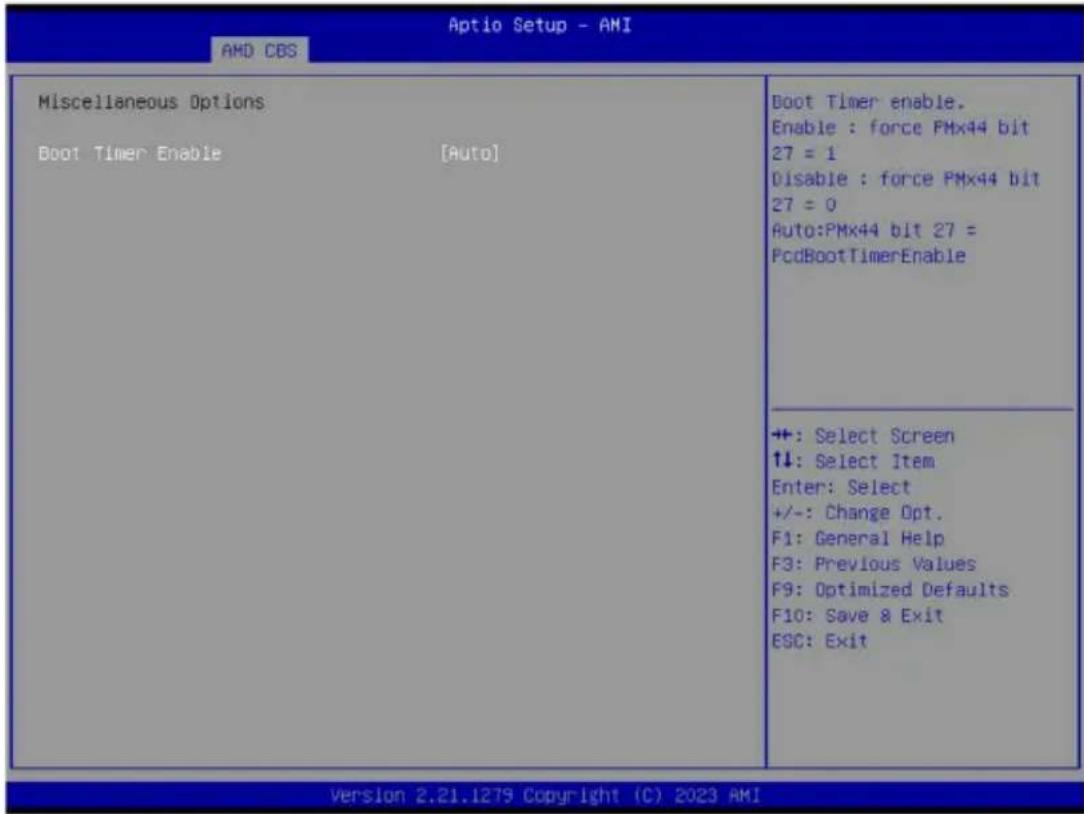

Aptio Setup - AMI AMD CBS Miscellaneous Options Boot Timer Enable [Auto] Boot Timer enable. Enable : force PMx44 bit 27 = 1 Disable : force PMx44 bit 27 = 0 Auto:PMx44 bit 27 = PcdBootTimerEnable +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Miscellaneous Options
Boot Timer Enable	Enable/Disable Boot Timer. Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-6 SOC Miscellaneous Control

Aptio Setup - AMI AMD CBS Soc Miscellaneous Control ABL Console Out Control [Auto] ABL Console Out Serial Port [Auto] ABL Console Out Serial Port IO [Auto] ABL Basic Console Out Control [Auto] ABL PMU message Control [Auto] ABL Memory Population message [Warning message] Control PSP error injection support [False] ► Firmware Anti-rollback (FAR) Enable : Enable ConsoleOut Function for ABL Disable : Disable ConsoleOut Function for ABL Auto : keep default behavior +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
SOC Miscellaneous Control
ABL Console Out Control ^(Note)	Enable/Disable the ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting is Auto.
ABL Console Out Serial Port ^(Note)	Options available: eSPI, SOC UART0, SOC UART1, Auto. Default setting is Auto.
ABL Console Out Serial Port IO	Options available: 0x3F8, 0x2F8, 0x3E8, 0x2E8, Auto. Default setting is Auto.
ABL Basic Console Out Control	Enable/Disable the Basic ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting is Auto.
ABL PMU message Control	To Control the total number of PMU debug messages. Options available: Auto, Detailed debug message, Coarse debug message, Stage completion, Assertion messages, Firmware completion message only. Default setting is Auto.
ABL Memory Population message Control	Options available: Warning message, Fatal error. Default setting is Warning message.
PSP error injection support	Options available: False, True. Default setting is False.

(Note) Advanced items are configurable when this item is defined.

Parameter	Description
Firmware Anti-rollback (FAR)	Press [Enter] for configuration of advanced items.♦ FAR enforcement state– Default setting is Enabled.♦ SPL value in the CPU Fuse♦ SPL value in the SPL table♦ FAR Switch– Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-7 CXL Common Options

Aptio Setup - AMI AMD CBS CXL Common Options CXL Control [Auto] CXL SFM [Auto] CXL Encryption [Disabled] CXL DVSEC Lock [Auto] Temp Gen5 Advertisement [Auto] Sync Header Bypass [Auto] ►CXL RAS Enable/Disable CXL on all ports +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
CXL Common Options
CXL Control Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL SPM Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL Encryption Options available: Enabled, Disabled. Default setting is Disabled.
CXL DVSEC Lock Options available: Auto, Enabled, Disabled. Default setting is Auto.
Temp Gen5 Advertisement	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sync Header Bypass Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL RAS	Press [Enter] for configuration of advanced items.◆ CXL Protocol Error Reporting- Options available: Disabled, SameAsPcieAer,ForceAerFwFirstIfCxIPresent. Default setting is SameAsPcieAer.◆ CXL Component Error Reporting- Options available: OS First, FW-First. Default setting is FW-First.

2-4 AMD PBS Menu

AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a submenu item, then press [Enter] to access the related submenu screen.

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit AMD PBS ▶ RAS SPI Locking [Disabled] ▶ CXL Range Encryption AMD CPM RAS related settings ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter Description

RAS Press [Enter] for configuration of advanced items.

SPI Locking	Enable/Disable SPI Locking for protect ROM part. Options available: Disabled, Enabled. Default setting is Disabled.
CXL Range Encryption	Press [Enter] for configuration of advanced items.◆ Range1/2/3/4/5/6/7- Configure the Range 1/2/3/4/5/6/7 Memory Base.- Configure the Range 1/2/3/4/5/6/7 Memory Limit/Size.◆ Start CXL Range Encryption

RAS Periodic SMI Control	[Enabled]	Enable/ disable Periodic SMI for polling [MCA Threshold] error
SMI Threshold	5
SMI Scale	1000
SMI Scale Unit	[millisecond]
SMI Period	1000
GHES Notify Type	[Polled]
GHES UnCorr Notify Type	[NMI]
PCIe GHES Notify Type	[Polled]
PCIe UnCorr GHES Notify Type	[NMI]
PCIe Root Port Corr Err Mask Reg	0
PCIe Root Port UnCorr Err Mask Reg	0
PCIe Root Port UnCorr Error Sev	7EF6030
Reg
PCIe Device Corr Err Mask Reg	0
PCIe Device UnCorr Err Mask Reg	100000
PCIe Device UnCorr Error Sev Reg	7EF6030
CXL DP CIE Mask Enable	[Enabled]
DRAM Hard Post Package Repair	[Disabled]
HEST DMC Structure Support	[Disabled]
CXL Error Report Support	[Disabled]

Parameter	Description
RAS Periodic SMI Control	Enable/Disable the Periodic SMI for polling [MCA Threshold] error. Options available: Disabled, Enabled. Default setting is Enabled.
SMI Threshold Configures the SMI Threshold value.
SMI Scale Configures the SMI Scale value.
SMI Scale Unit	Defines the unit of time scale. Options available: millisecond, second, minute. Default setting is millisecond.
SMI Period Configures the SMI Period.
GHES Notify Type	Selects the Notification type for deferred/ corrected errors. Options available: Polled, SCI. Default setting is Polled.
GHES UnCorr Notify Type	Selects the Notification type for uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe GHES Notify Type	Selects the Notification type for PCIe corrected errors. Options available: Polled, SCI. Default setting is Polled.
PCIe UnCorr GHES Notify Type	Selects the Notification type for PCIe uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe Root Port Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of Root Port.
PCIe Device Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of PCIe device.
DRAM Hard Post Package Repair	This feature allows spare DRAM rows to replace malfunctioning rows via an in-field repair mechanism.Options available: Disabled, Enabled. Default setting is Disabled.
HEST DMC Structure Support	HEST DMC (Deferred Machine Check) Structure Support.Options available: Disabled, Enabled. Default setting is Disabled.
CXL Error Report Support	Enable/Disable CXL Error Reporting.Options available: Disabled, Enabled. Default setting is Disabled.

2-5 Chipset Setup Menu

Chipset Setup menu displays submenu options for configuring the function of the North Bridge.

Select a submenu item, then press to access the related submenu screen.

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Hgmt Security Boot Save & Exit PCIe Compliance Mode [Off] ► North Bridge ► Fabric Resource PCIe Link Compliance Mode. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
PCIe Compliance Mode Options available: Off, On. Default setting is Off.
North Bridge Press [Enter] for configuration of advanced items.
Fabric Resource Press [Enter] for configuration of advanced items.

2-5-1 North Bridge

Aptio Setup - AMI Chipset North Bridge Configuration Memory Information Total Memory: 32768 MB ▶ CPU 0 Information View Information related to CPU 0 +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F9: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
North Bridge ConfigurationMemory Information
Total Memory Displays the total memory information.
CPU 0 Information Press [Enter] to view information related to CPU 0.

2-5-2 Fabric Resource

Aptio Setup - AMI Chipset Fabric Resource CPU0 NB100: Base Bus: 0x00 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF CPU0 NB101: Base Bus: 0x80 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF CPU0 NB102: Base Bus: 0x00 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF Change CPU0 NB100 PCIe bus number +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Aptio Setup - AMI Chipset CPU0 NBI01: Base Bus: 0x80 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF CPU0 NBI02: Base Bus: 0x00 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF CPU0 NBI03: Base Bus: 0x40 Prefetchable Mmio Above 4G Size: 1500 GB IO Resource: 0x0 PCIe Bus Number 40 Prefetchable Mmio Above 4G size [System Default] PCIe IO Resource FFFF Change CPU0 NBI03 PCIe IO Resource +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Fabric Resource
CPU 0 NBIO_# PCIe Bus Number	Change CPU 0 NBIO_# PCIe Bus Number.
Prefetchable Mmio Above 4G size	Change CPU 0 NBIO_# Prefetchable MMIO Above 4G Size.Options available: System Default, 0, 1G, 2G, 4G, 8G, 16G, 32G, 64G, 128G, 256G, 512G, 1T, 2T, 4T, 8T. Default setting isSystem Default.
PCIe IO Resource Change CPU 0 NBIO_# PCIe IO Resource.

2-6 Server Management Menu

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit FRB-2 Timer [Enabled] FRB-2 Timer timeout [20 minutes] FRB-2 Timer Policy [Do Nothing] OS Watchdog Timer [Disabled] OS Wtd Timer Timeout [10 minutes] OS Wtd Timer Policy [Reset] Wait BMC Ready [2 minutes] ► System Event Log ► View FRU information ► BMC network configuration ► IPv6 BMC Network Configuration Configure how the system should respond if the FRB-2 Timer expires. Not available if FRB-2 Timer is disabled. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
FRB-2 Timer	Enable/Disable FRB-2 timer (POST timer).Default setting is Enabled.
FRB-2 Timer timeout	Configures the FRB-2 Timer timeout.Default setting is 20 minutes.
FRB-2 Timer Policy	Configures the FRB-2 Timer policy.Options available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Do Nothing.
OS Watchdog Timer	Enable/Disable OS Watchdog Timer function.Options available: Enabled, Disabled. Default setting is Disabled.
OS Wtd Timer Timeout ^(Note)	Configures OS Watchdog Timer.Options available: 5 minutes, 10 minutes, 15 minutes, 20 minutes.Default setting is 10 minutes.
OS Wtd Timer Policy ^(Note)	Configure OS Watchdog Timer Policy.Options available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Reset.
Wait BMC Ready	Post wait BMC ready and reboot system.Options available: Disabled, 2 minutes, 4 minutes, 6 minutes. Default setting is 2 minutes.

(Note) This item is configurable when OS Watchdog Timer is set to Enabled.

Parameter	Description
System Event Log	Press [Enter] to configure advanced items.
View FRU Information	Press [Enter] to view the FRU information.
BMC network configuration	Press [Enter] to configure advanced items.
IPv6 BMC Network Configuration	Press [Enter] to configure advanced items.

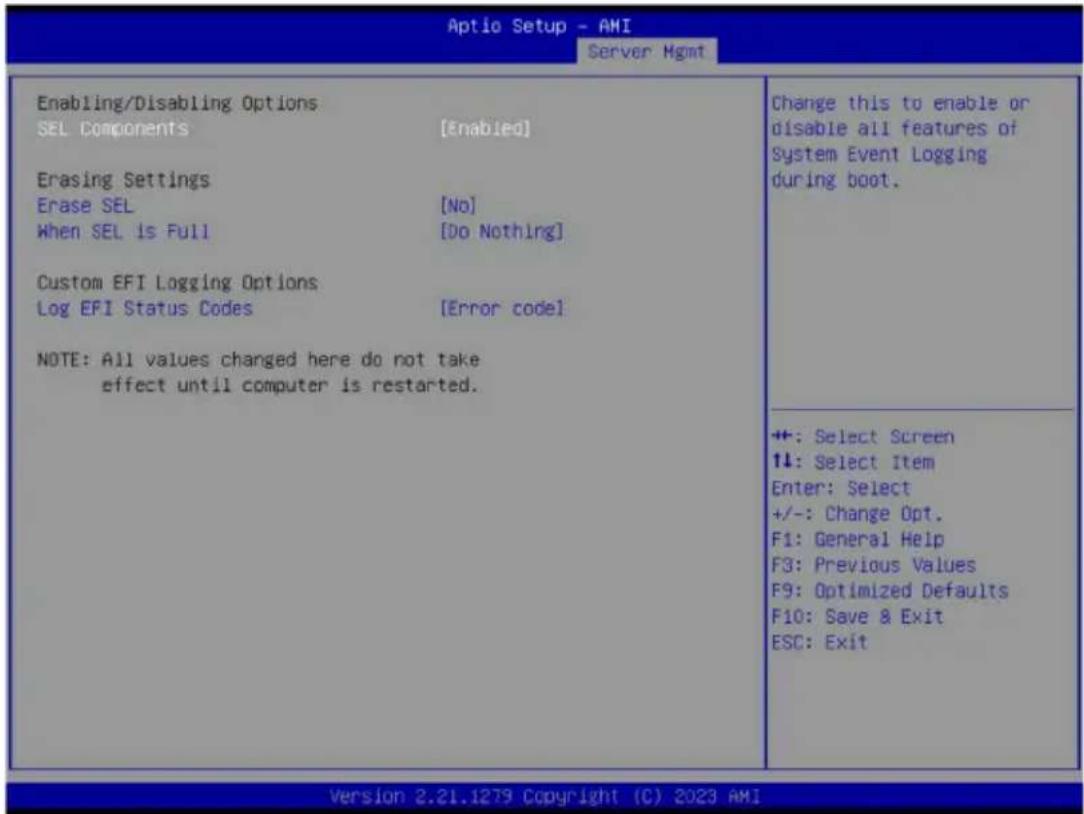

2-6-1 System Event Log

Aptio Setup - AMI Server Hgmt Enabling/Disabling Options SEL Components [Enabled] Erasing Settings Erase SEL [No] When SEL is Full [Do Nothing] Custom EFI Logging Options Log EFI Status Codes [Error code] NOTE: All values changed here do not take effect until computer is restarted. Change this to enable or disable all features of System Event Logging during boot. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Enabling / Disabling Options
SEL Components	Change this item to enable or disable all features of System Event Logging during boot. Options available: Disabled, Enabled. Default setting is Enabled.
Erasing Settings
Erase SEL	Choose options for erasing SEL. Options available: No/Yes, On next reset/Yes, On every reset. Default setting is No.
When SEL is Full	Choose options for reactions to a full SEL. Options available: Do Nothing, Erase Immediately. Default setting is Do Nothing.
Custom EFI Logging Options
Log EFI Status Codes	Enable/Disable the logging of EFI Status Codes (if not already converted to legacy). Options available: Disabled, Both, Error code, Progress code. Default setting is Error code.

2-6-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable.

Aptio Setup - AMI Server Mgmt FRU Information System Manufacturer Giga Computing System Product Name M233-CP0-000 System Version 0100 System Serial Number 01234567890123456789AB Board Manufacturer Giga Computing Board Product Name M233-CP0-000 Board Version 123456789AB Board Serial Number 01234567890123456789AB Chassis Manufacturer Giga Computing Chassis Product Name 01234567 Chassis Serial Number 01234567890123456789AB +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

2-6-3 BMC Network Configuration

Aptio Setup - AMI Server: Hgmt --BMC network configuration-- Lan channel 1 Configuration Address source [DynamicBmcDhcp] Station IP address 10.1.6.96 Subnet mask 255.255.255.0 Router IP address 10.1.6.253 Station MAC address 92-35-19-8a-89-2b VLAN Support [Disabled] Real-time synchronize BMC network parameter values Select to configure LAN channel parameters statically or dynamically(by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
BMC network configuration
Lan Channel 1
Configuration Address source	Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters during BIOS phase. Options available: Unspecified, Static, DynamicBmcDhcp. Default setting is DynamicBmcDhcp.
Station IP address	Displays IP Address information.
Subnet mask	Displays Subnet Mask information. Please note that the IP address must be in three digitals, for example, 192.168.000.001.
Router IP address	Displays the Router IP Address information.
Station MAC address	Displays the MAC Address information.
VLAN Support	Set BMC to enable/disable VLAN support. Options available: Enabled, Disabled. Default setting is Disabled.
Real-time synchronize BMC network parameter values	Press [Enter] will set Address source(Static/DHCP) to BMC and then get Station IP address, Subnet mask and Router IP address from BMC.

2-6-4 IPv6 BMC Network Configuration

Aptio Setup - AMI Server Mgmt IPv6 BMC Network Configuration IPv6 BMC Lan Channel 1: IPv6 BMC Lan Option [Enable] IPv6 EMC Lan IP Address Source [Dynamic-Obtained by BMC running DHCP] IPv6 BMC Lan IP Address/Prefix ::/0 Length -> [::/0] Enable/Disable IPv6 BMC LAN channel function. Disable option will not modify any BMC network during BIOS Phase +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
IPv6 BMC network configuration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option	Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS phase.Options available: Unspecified, Disable, Enable. Default setting is Enable.
IPv6 BMC Lan IP Address Source	Selects to configure LAN channel parameters statically or dynamically (by BIOS or BMC).Options available: Unspecified, Static, Dynamic-Obtained by BMC running DHCP. Default setting is Dynamic-Obtained by BMC running DHCP.
IPv6 BMC Lan IP Address/ Prefix Length	Check if the IPv6 BMC LAN IP address matches those displayed on the screen.

2-7 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords.

Aptio Setup - AMI Main Advanced AND CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Administrator Password User Password Secure Boot Set Administrator Password +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

There are two types of passwords that you can set:

- Administrator Password

Entering this password will allow the user to access and change all settings in the Setup Utility.

- User Password

Entering this password will restrict a user's access to the Setup menus. To enable or disable this field, a Administrator Password must first be set. A user can only access and modify the System Time, System Date, and Set User Password fields.

Parameter	Description
Administrator Password	Press [Enter] to configure the administrator password.
User Password	Press [Enter] to configure the user password.
Secure Boot	Press [Enter] to configure advanced items.

2-7-1 Secure Boot

The Secure Boot submenu is applicable when your device is installed the Windows® 8 (or above) operating system.

System Mode	Setup	Secure Boot feature is Active if Secure Boot is Enabled, Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset
Secure Boot	[Disabled] Not Active
Secure Boot Mode	[Custom]
Restore Factory Keys
Reset To Setup Mode
Enter Audit Mode
Key Management
		+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
System Mode	Displays if the system is in User mode or Setup mode.
Secure Boot	Enable/ Disable the Secure Boot function.Options available: Enabled, Disabled. Default setting is Disabled.
Secure Boot Mode^(Note)	Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates. This way, the system knows all files being loaded before Windows loads to the login screen have not been tampered with.When set to Standard, it will automatically load the Secure Boot keys form the BIOS databases.When set to Custom, you can customize the Secure Boot settings and manually load its keys from the BIOS database.Options available: Standard, Custom. Default setting is Standard.
Restore Factory Keys	Forces the system to user mode and installs factory default Secure Boot key database.
Reset To Setup Mode	Press [Enter] to reset the system mode to Setup mode.
Enter Audit Mode	Press [Enter] to set the system mode to audit mode.

(Note) Advanced items prompt when this item is set to Custom.

Parameter

Description

Key Management

Press [Enter] to configure advanced items.Please note that this item is configurable when Secure Boot Mode is set to Custom.♦ Factory Key Provision- Allows to provision factory default Secure Boot keys when system is in Setup Mode.- Options available: Enabled, Disabled. Default setting is Disabled.♦ Restore Factory Keys- Installs all factory default keys. It will force the system in User Mode.- Options available: Yes, No.♦ Enroll Efi Image- Press [Enter] to enroll SHA256 hash of the binary into Authorized Signature Database (db).♦ Secure Boot variable- Displays the current status of the variables used for secure boot.♦ Platform Key (PK)- Displays the current status of the Platform Key (PK).- Press [Enter] to configure a new PK.- Options available: Update.♦ Key Exchange Keys (KEK)- Displays the current status of the Key Exchange Key Database (KEK).- Press [Enter] to configure a new KEK or load additional KEK from storage devices.- Options available: Update, Append.♦ Authorized Signatures (DB)- Displays the current status of the Authorized Signature Database.- Press [Enter] to configure a new DB or load additional DB from storage devices.- Options available: Update, Append.♦ Forbidden Signatures (DBX)- Displays the current status of the Forbidden Signature Database.- Press [Enter] to configure a new dbx or load additional dbx from storage devices.- Options available: Update, Append.♦ Authorized TimeStamps (DBT)- Displays the current status of the Authorized TimeStamps Database.- Press [Enter] to configure a new DBT or load additional DBT from storage devices.- Options available: Update, Append.♦ OsRecovery Signatures- Displays the current status of the OsRecovery Signature Database.- Press [Enter] to configure a new OsRecovery Signature or load additional OsRecovery Signature from storage devices.- Options available: Update, Append.

2-8 Boot Menu

The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable.

Aptio Setup - AMI Main Advanced AND CBS AND PBS Option Chipset Server Hgmt Security Boot Save & Exit Boot Configuration Setup Prompt Timeout 2 Bootup NumLock State [On] Quiet Boot [Enabled] Setup Flash Dump full Setup Data Dump non-default Setup Data Restore Setup Data Boot mode select [UEFI] FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Device] Boot Option #4 [Network:UEFI: PXE IPv4 Intel(R) Network B4:2E:99:72:CC:11] Boot Option #5 [UEFI AP:UEFI: Built-in EFI Shell] ► UEFI NETWORK Drive BBS Priorities ► UEFI Application Boot Priorities Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Boot Configuration
Setup Prompt Timeout	Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.Press the numeric keys to input the desired values.
Bootup NumLock State	Enable/Disable the Bootup NumLock function.Options available: On, Off. Default setting is On.
Quiet Boot	Enable/Disable showing the logo during POST.Options available: Enabled, Disabled. Default setting is Enabled.
Setup Flash	Press [Enter] to run setup flash.
Dump full Setup Data	Press [Enter] to dump full setup data to file.
Dump non-default Setup Data	Press [Enter] to dump non-default setup data to file.
Restore Setup Data	Press [Enter] to restore setup data from file (cJson format).
Boot mode select	Selects the boot mode.Options available: LEGACY, UEFI. Default setting is UEFI.
FIXED BOOT ORDER Priorities
Boot Option #1 / #2 / #3 / #4 / #5	Press [Enter] to configure the boot priority.By default, the server searches for boot devices in the following sequence:1. Hard drive.2. CD-COM/DVD drive.3. USB device.4. Network.5. UEFI.
UEFI NETWORK Drive BBS Priorities	Press [Enter] to configure the boot priority.
UEFI Application Boot Priorities	Press [Enter] to configure the boot priority.

2-9 Save & Exit Menu

The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press .

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Hgmt Security Boot Save & Exit
Save Options Save Changes and Exit Discard Changes and Exit Save Changes Default Options Restore Defaults Boot Override UEFI: PXE IPv4 Intel(R) Network B4:2E:99:72:CC:11 UEFI: PXE IPv4 Intel(R) Network B4:2E:99:72:CC:12 UEFI: PXE IPv6 Intel(R) Network B4:2E:99:72:CC:11 UEFI: PXE IPv6 Intel(R) Network B4:2E:99:72:CC:12 UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device	Exit system setup after saving the changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
Save Options
Save Changes and Exit	Saves changes made and closes the BIOS setup. Options available: Yes, No.
Discard Changes and Exit	Discards changes made and exits the BIOS setup. Options available: Yes, No.
Save Changes	Saves changes done so far to any of the setup options. Options available: Yes, No.
Default Options
Restore Defaults	Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components and you choose to load these settings, the system might not function properly. Options available: Yes, No.
Boot Override	Press [Enter] to configure the device as the boot-up drive.
Launch EFI Shell from filesystem device	Attempts to Launch EFI Shell application (Shell.efi) from one of the available file system devices.

2-10 BIOS Recovery

The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below:

Recovery Instruction:

1. Copy the XXX.rom to USB diskette.
2. Setting BIOS Recovery jump to enabled status.
3. Boot into BIOS recovery.
4. Run Proceed with flash update.
5. BIOS updated.

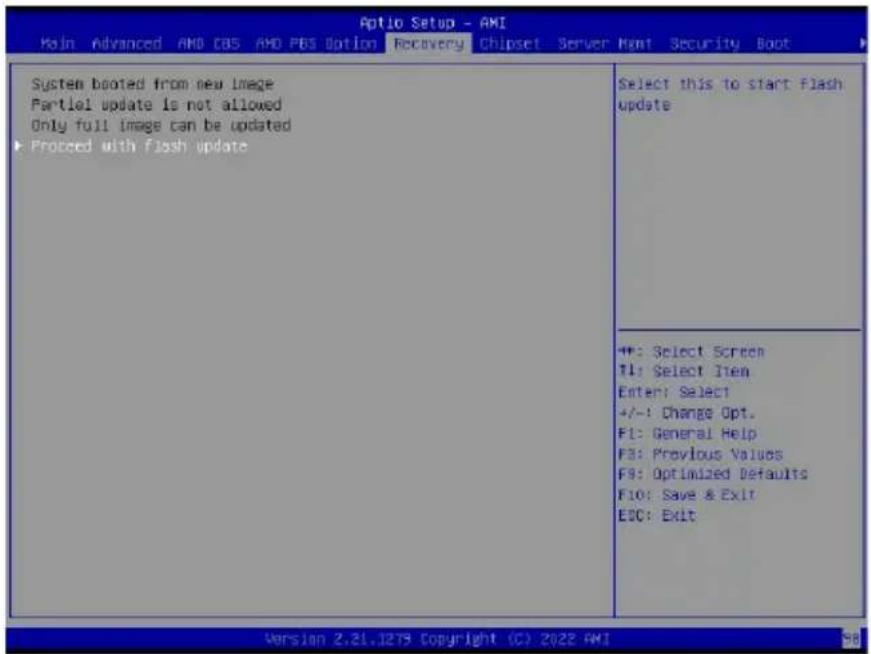

System booted from new Image Partial update is not allowed Only full image can be updated ► Proceed with flash update Select this to start flash update ++: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1279 Copyright (C) 2022 AMI

Aptio Setup - AMI Recovery WARNING! System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system Select Screen Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.21.1280 Copyright (C) 2021 AMI

2-11 BIOS POST Beep code (AMI standard)

2-11-1 PEI Beep Codes

# of Beeps Description
1	Memory not Installed.
1	Memory was installed twice (InstallPeiMemory routine in PEI Core called twice)
2	Recovery started
3 DXEIPL was not found
3 DXE Core Firmware	ware Volume was not found
4 Recovery failed
4	S3 Resume failed
7	Reset PPI is not available

2-11-2 DXE Beep Codes

# of Beeps Description
1 Invalid password
4 Some of the Architectural Protocols are not available
5 No Console Output Devices are found
5 No Console Input Devices are found
6 Flash update is failed
7 Reset protocol is not available
8 Platform PCI resource requirements cannot be met
