USER MANUAL AC Cortina Silent 12K WiFi Wood's

OPERATING INSTRUCTIONS FOR:

AC CORTINA SILENT 12K SMART HOME WAC1202G AC CORTINA SILENT 12K WiFi WAC1203G

Visit woods.se for more information and updated instruction manuals.

For extended warranty, register your product at warranty-woods.com

Visit our website, www.woods.se, for the latest updated owners manual.

GB

Operating Instructions

PL

Instrukja obstugi

SE

Bruksarvisning

RO

Manualutilizare

NO

Bruksanvisning

FI

Kaytöohjeet

DK

Visit our website to:

Get usage advice, updated brochures, troubleshoot and service information

Register your product for additional services:

www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available:

Model number, receipt and serial number.

The refrigerant used in this portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to alternative refrigerants, the R290 is ozone-free.

EU directive :2014/53/EU

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

CONTENTS:PAGE NO.

TABLE OF CONTENTS

OPERATINGINSTRUCTIONS

English 12-20
Swedish 21-29
Norwegian 30-38
Danish 3947
German 48-56
French 57/65
Spanish 66/4
Dutch 75-83
Polish 84-92
Romanian 93-101
Finnish 102-110
tihuanian 111-119
Latvian 120-128
Estonian 129-137
Greek 138-146
iclcic 147-155

2
5

3
6

4
7

8

B.
1

D

F

G.

TIMER

123456

SPEED

UP

DOWN

MODE

POWER

789101112131415

0111213

16171819

88:88

SET TEMP C

H

1
1

J.

K

L

M

Use only 2 x AAA 1.5V batteries

N.

0.
P.

Q

R.

WOOD'S FOR CLEAN AND HEALTHY INDOOR AIR

The brand Wood's was born with the Wood's family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood's began developing and manufacturing dehumidifiers in 1950. Since then Wood's has helped several hundred thousand households to prevent damages from mould damp, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at different temperatures and humidity levels. They are used with good results in premises that become hot such as living rooms, offices or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level, and placement. External weather conditions may also affect the performance of the air conditioner.

Wood's air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING UNIT WORK?

Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process "creates cold", which is transmitted inward, while keeping the warm air out.

A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low.

The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled.

A fan blows the cold air into the room. The gas is passed through a compressor, which increases the pressure and converts the gas into liquid.

In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan.

A thermostat shuts off the unit when the indoor air is cold enough.

1. SECURITYWARNINGS

Flammable material. This appliance contains R290/ Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in households and similar applications such as: Family room, living room, staff kitchen areas in shops, offices, and other working environments. The rating plate is located at the side or back of the Air Conditioner.

Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance shall not be stored in a room with operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents, or metal objects.

If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS Installation ！

Only a qualified person must install this appliance.

Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated, and stored in a room with a floor area larger than 12.5m^2 . Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection ！

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet.

Make sure that the electrical information on the rating plate matches with the power supply. If

not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables.

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

WARNING

Risk of injury, burns, electrical shock or fire.

Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or items that are wet with flammable products near or on the appliance.

Disposal

Disconnect t

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP AIR CONDITIONER FOR INSTALLATION

IMPORTANT:

2. Installation

BEFORE FIRST USE

Let the machine stand up for 4 hours before use

Selecting a Location

Important

1. This air conditioner may be moved around indoor conveniently; keep the unit in an upright position while moving it. The air-conditioner shall be placed at a flat surface.

Do not install or operate this air-conditioner in a bathroom or other wet environment.

Since a portable air conditioner is on wheels, it is easy to change positions. When the heat rises, just move your portable air conditioner into a room you desire, to quickly start cooling the space. The air conditioner must be operated in an enclosed area to be most effective.

Close all doors, windows, and other outside openings to the room. The effectiveness of the Air Conditioner depends on the temperature and humidity level.

1. Place the air conditioner in a location that does not restrict airflow through the front of the unit.
2. An Air Conditioner operating in a room will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. A portable Air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

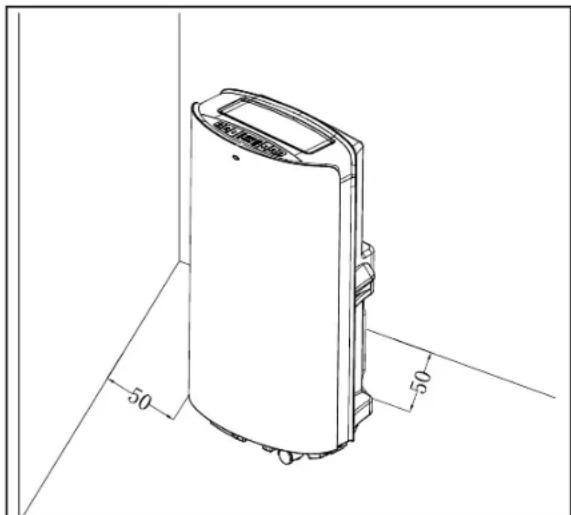

3. There should be a minimum of 50~cm distance between Air Conditioner and closest object. See image for reference.

PRODUCT DESCRIPTION

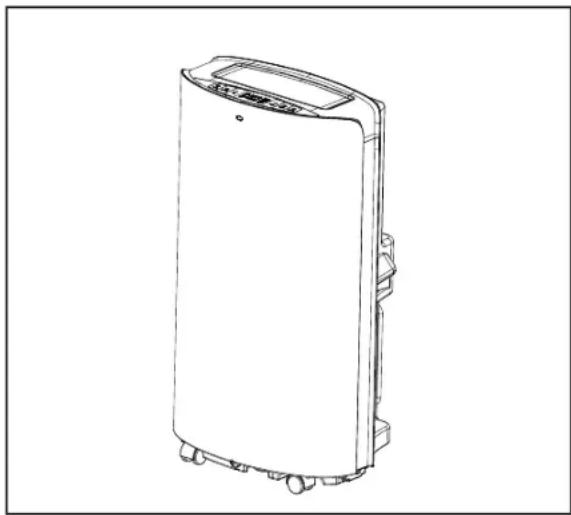

3. Product description

A

1. Main Air Conditioner Unit
2. Remote Control
3. Batteries
4. User manual
5. Round connector
6. Hot-Air exhaust hose
7. Adapter
8. Window kit

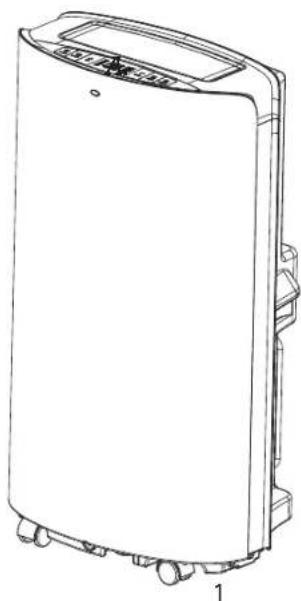

B

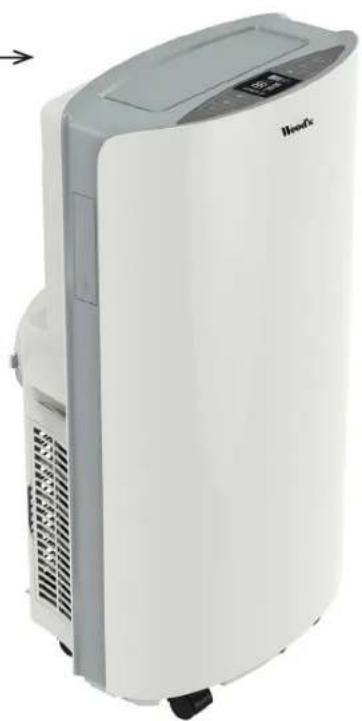

1. Side view of main air conditioner

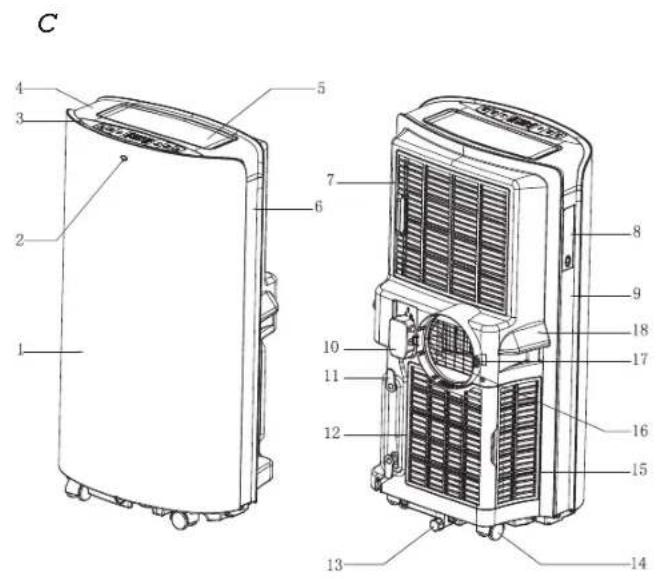

C.

1. Front panel
2. Remote control receiving window
3. Control panel
4. Top panel
5. Horizontal louver
6. Right decoration board
7. Upper filter assembly of back panel
8. Remote control compartment
   9.Left decoration board
9. Power cord with plug
10. Winding-pillar
11. Lower filter assembly of back panel
12. Drain cover
13. Universal wheel
14. Filter assembly of side panel
15. Protective grid
16. Fastener
17. Handle
18. Round connector of exhaust hose
19. Exhaust hose
20. Adapter of exhaust hose
21. Window kits

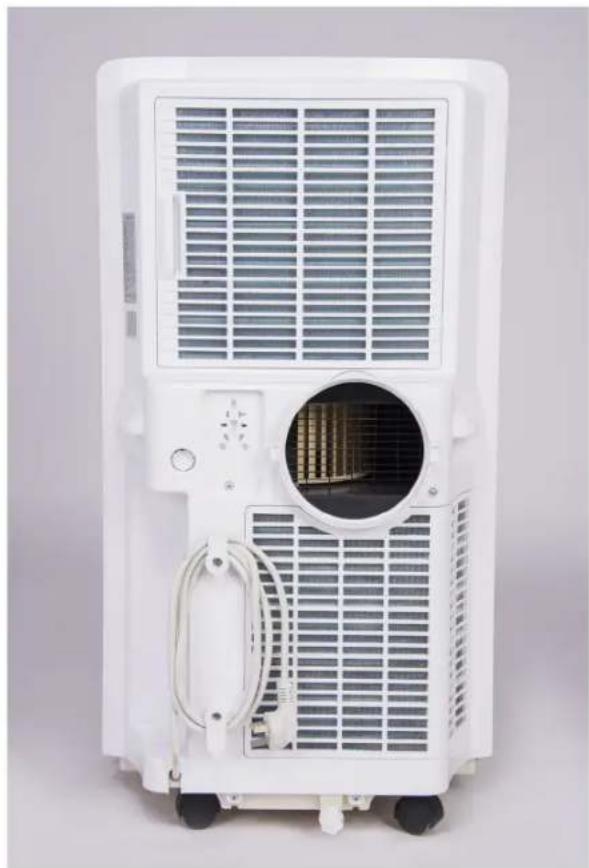

D

1. Back view of main air conditioner

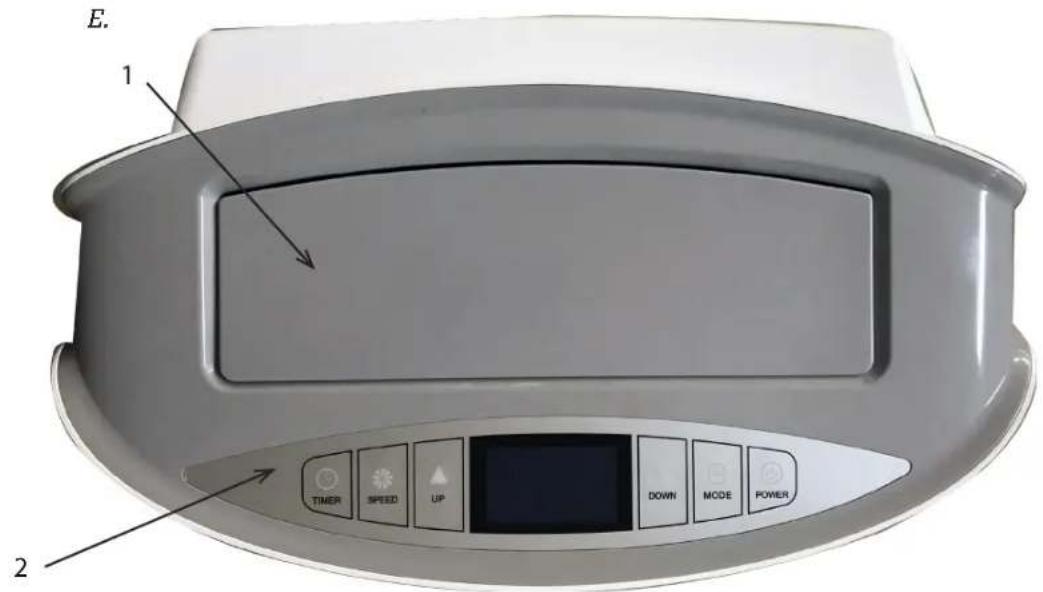

E

1. Air outlet
2. Control panel

F

1. Control panel

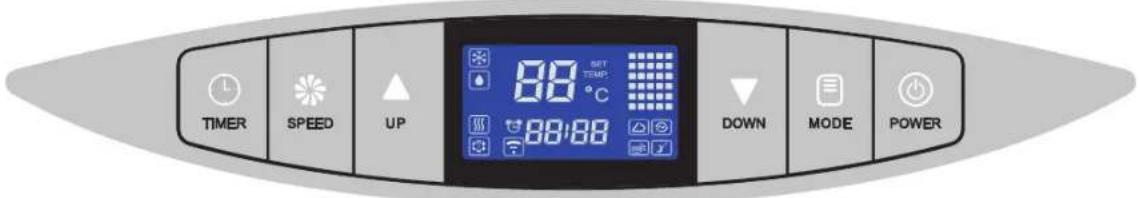

G

1. Timer button
2. Speed button
   3.Up button
3. Down button
   5.Mode button
4. Power button
5. Cool mode indicator
6. Dehumidify mode indicator
7. Fan mode indicator
8. Energy conversation mode indicator
9. WiFi indicator
10. Auto swing function indicator
11. Auto clean function indicator
12. Water full indicator
13. Sleep mode indicator
14. Fan speed indicator
15. Timer indicator
16. Time of timer indicator
17. Temperature indicator

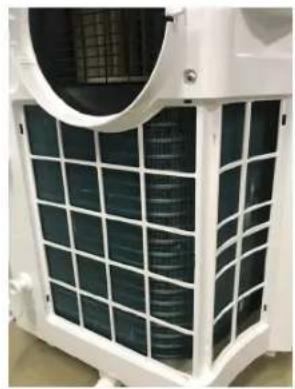

H

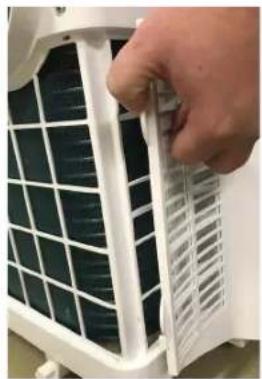

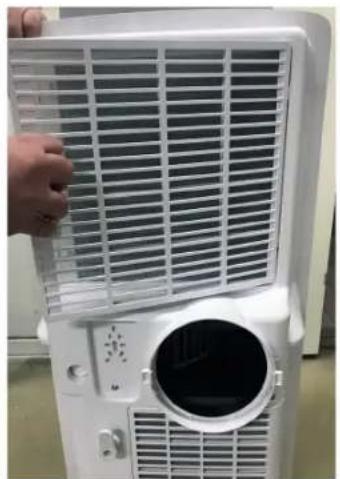

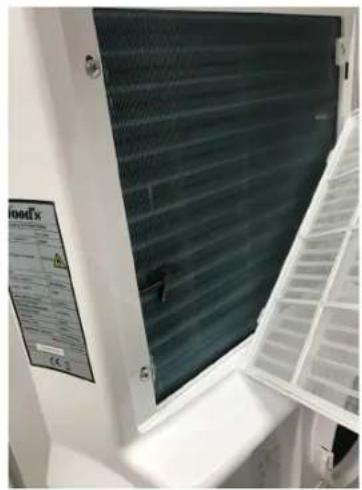

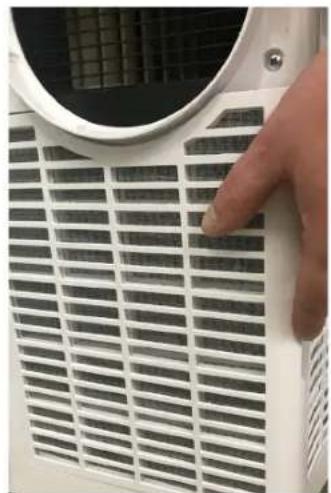

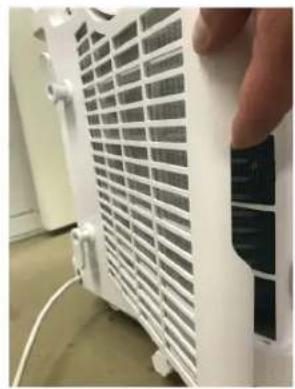

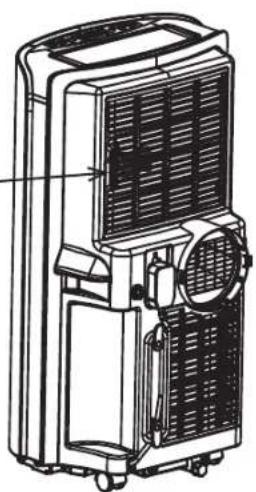

1. How to remove the filters

1

1. Grip the filter handle and pull it out gently in correct direction.
2. Clean the dirty particles in filter by cleaner if it is necessary.
3. Immerse and wash the filter gently into warm water (about 40^ ) mixed with neutral cleaner, and then rinse and dry them thoroughly in the shade.

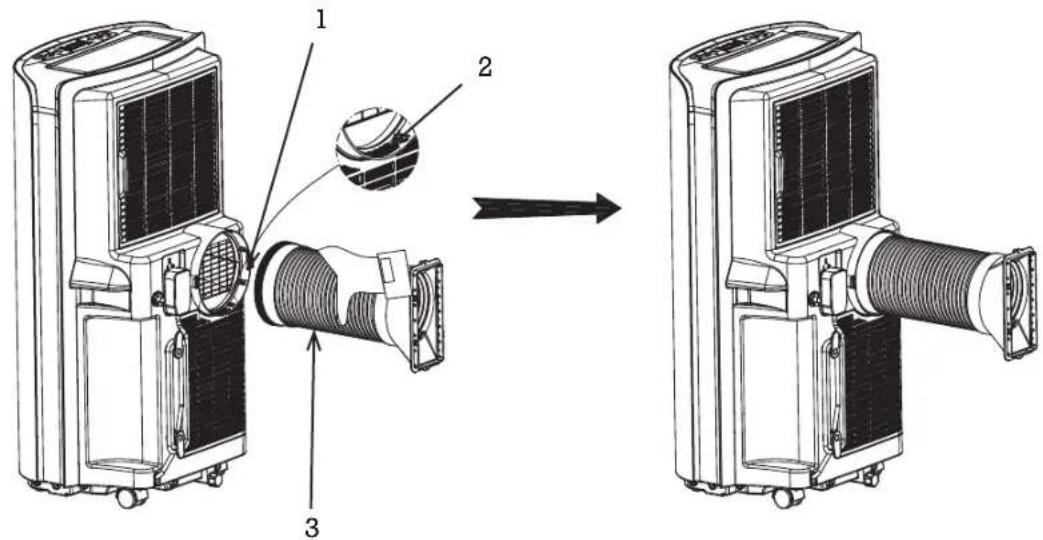

J

1. Fastener
2. Slot
3. Exhaust hose assembly

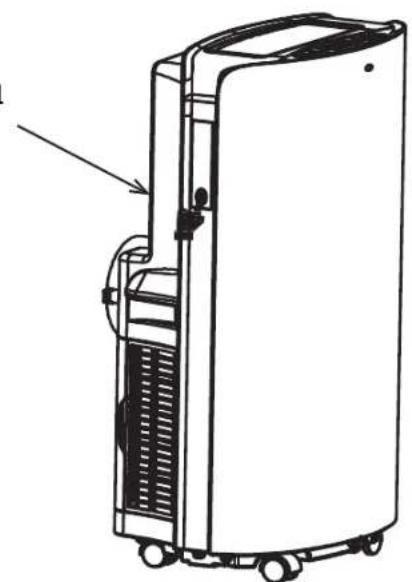

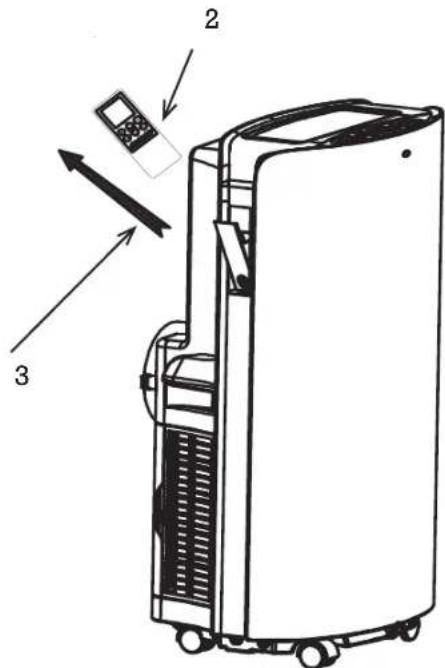

K

1. Remote control box
2. Remote control
3. Remote control hold direction

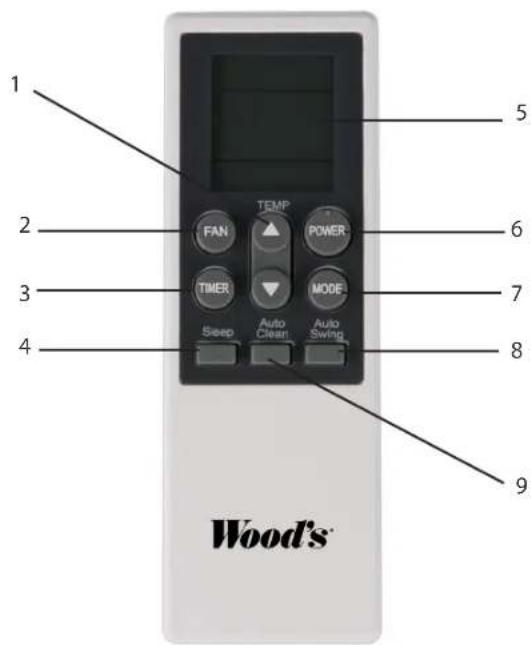

L

1. Up and down button
2. Fan speed button
3. Timer button
4. Sleep button
5. LCD display window
6. Power button
   7.Mode button
7. Auto swing button
8. Auto clean button

M

1. Before using your remote, install the AAA batteries into the remote control.

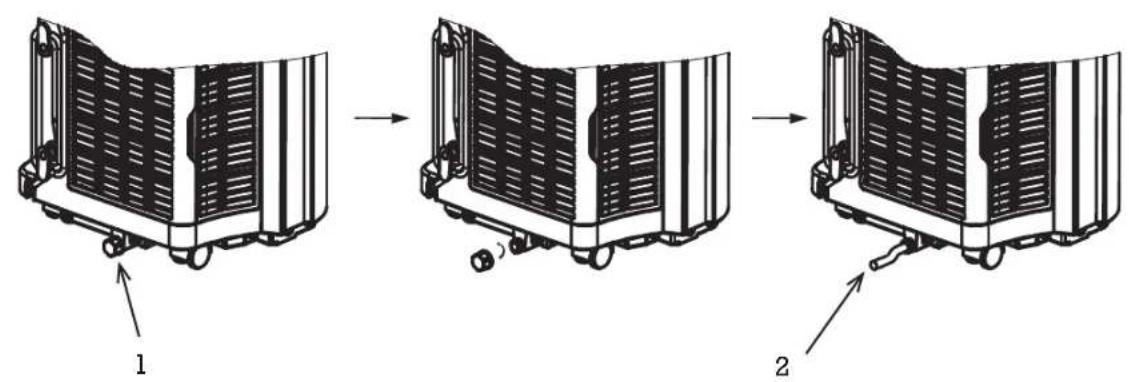

N

1. Drain cover
2. Drain hose

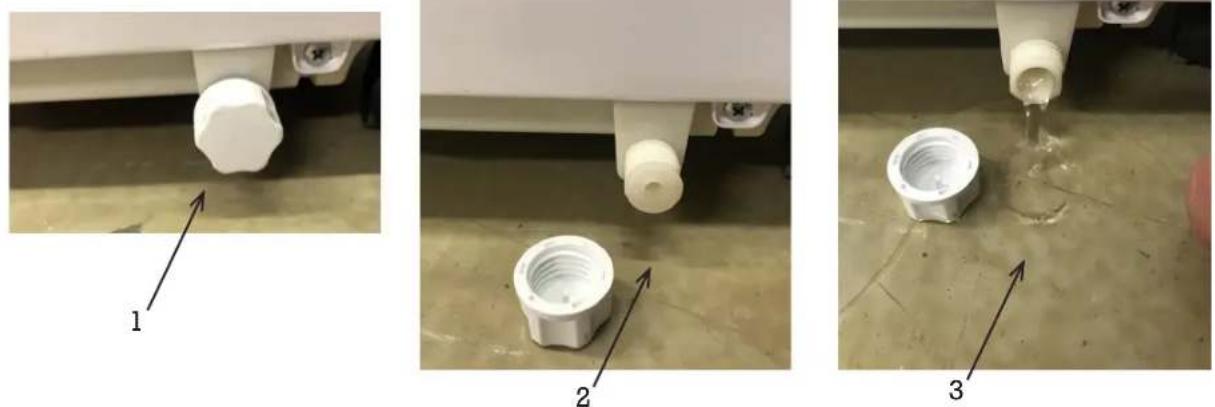

0

1. Drain cover
2. Drain stopper
3. Water out

P

Q

R

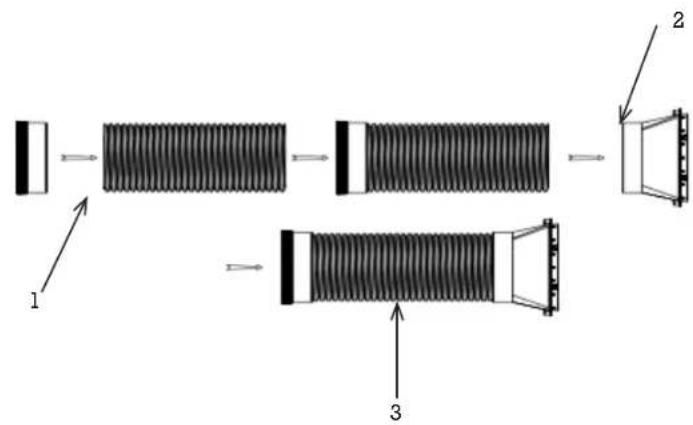

1. Extend one end of the exhaust hose, screw the end without slot of round connector onto it with anticlockwise direction at least 3 laps.
2. Extend another end of exhaust hose, screw the adapter onto it with anticlockwise direction at least 3 laps.
3. Exhaust hose assembly
4. Keep two ends of window seal plates to meet the window edges well, to ensure seal effect.
5. Ready to use air conditioner

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

Installation

If the unit has been transported horizontally, keep it in an upright position for 4 hours before using it.

Place the unit on a flat and solid surface. Do not install the unit in bathrooms or other wet environments.

Make sure that airflow isn't blocked, always keep at least 50~cm distance to surrounding surfaces.

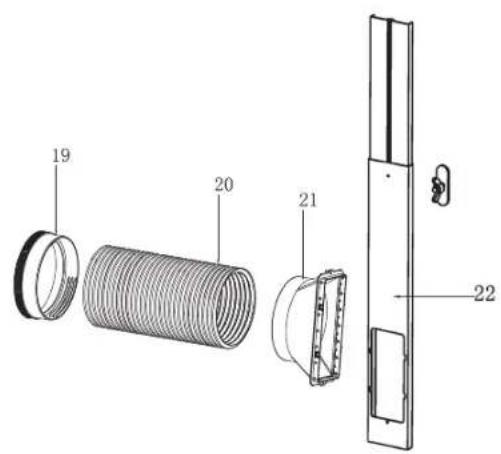

INSTALLING THE EXHAUST HOSE

1. Extend one end of exhaust hose, screw the end without a slot of round connector onto it with anticlockwise direction at least 3 laps.
2. Extend another end of exhaust hose, screw the adapter onto it in a counterclockwise direction at least 3 laps.

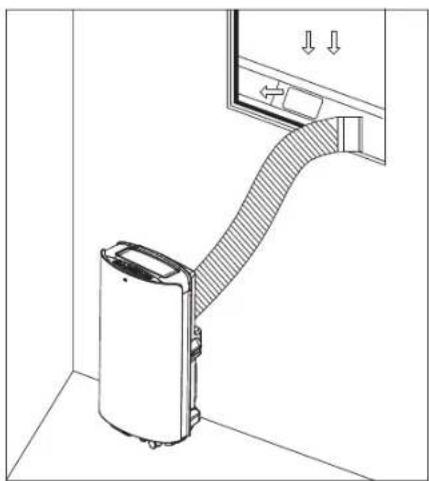

3. Extend the exhaust hose and lead it outside through a door or window.

USING THE WINDOW KIT

1. To use the window kit, open the window and place the window kit either horizontally or vertically, depending on the window.
2. Adjust the length of the window kit and fasten it with the screws.
3. Shut the window and attach the adapter on the exhaust hose to the window kit.

BATTERY INSTRUCTIONS

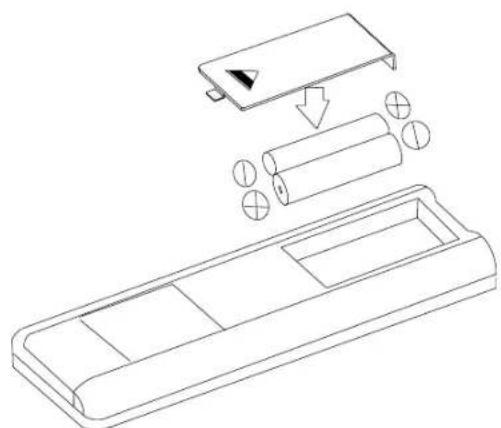

Before using your remote, install the AAA batteries into the remote control.

1. Press and slide the battery cover on the back of the remote control, then you can remove the cover.
2. Insert two new alkaline AAA batteries into the battery compartment, being sure to note the proper polarity.
3. Put back the battery cover, making sure the locking tab clicks into place.

Use alkaline batteries only. Do not use rechargeable batteries.

When replacing batteries, always replace both batteries with new ones. Do not mix old and new batteries.

If the air conditioner will not be used for an extended period of time, remove the batteries from the remote control.

Operating instructions

1. Starting the unit. Press the POWER button to start and stop the unit.
2. Select mode. The unit has 4 different modes: cooling, dehumidify, energy conservation and fan mode. Press MODE on the control panel or remote control to select mode.
3. Cooling mode: the set desired temperature with the arrows on the control panel or the remote control. Set temperature is shown in the display.
4. Dehumidify. In dehumidify mode, the fan will run on low speed only. Temperature cannot be set.
5. Fan mode. The compressor stops and only the fan will run. Temperature cannot be set.

6. Energy conversation mode. Low energy consumption under Energy Conversation mode. When the ambient temperature is higher than the set temperature, the unit operates in cool mode. When the ambient temperature reaches the set temperature, the compressor stops running and the upper fan also stops running. After 2 minutes and 30 seconds, the upper fan will run at low speed for 30 seconds. If the compressor does not start (that is, the ambient temperature is lower than the set temperature), the upper fan will repeatedly operate in this mode (stop for 2 minutes 30 seconds / low wind operation for 30 seconds).

7. Set timer.

8. To set the timer for shut off, press the TIMER button when the unit is operating.

9. To set the timer for start, press the TIMER button when the unit is switched off. Set time with the up and down arrows on the control panel or remote control. When the timer is activated, a light is shown on

the control panel.
4. Set fan speed. Press the SPEED button on the control panel to choose fan speed. On the remote control, press the FAN button to choose fan speed.
5. Celsius/Fahrenheit On the control panel, press the up and down arrows at the same time to switch between Celsius and Fahrenheit.
6. Sleep mode. Use the sleep mode during the night and the unit will not disturb your sleep. When in cooling mode, press the TIMER and UP together to enter sleep mode. On the remote, press the SLEEP button. Press again to deactivate.
7.Auto swing function. Press the TIMER and SPEED buttons at the same time to activate the swing function. On the remote, press the Auto-swing button. Press again to deactivate.
8. Auto clean function. Press the AUTO-CLEAN button on the remote control to clean the unit internally. The unit will clean for 3 minutes before shutting off.

PROTECTION FUNCTIONS

Automatic defrost

The unit will automatically defrost when needed. In defrost mode, the display shows E4 and no buttons except the POWER button are active.

Compressor protection

The unit has a compressor protection function causing a 3-minute start delay after the unit is restarted.

Water full alarm

When the water tank is full, the unit will stop working. A water-full indication light is shown in the display and a warning sound is heard. Empty the water tank and restart the unit.

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

Water drainage instruction

Empty the water tank

Unscrew the drain cover and remove the water stopper. Empty the water tank and reattach the water stopper and drain cover.

Notes:

• Move the unit carefully to avoid leakage.
• Tilt the unit slightly backwards when draining.
• Block the drain hole as soon as possible before the tray is full if it cannot hold all water in the unit to prevent the water leakage and wet the floor or carpet.
  Water stopper and drain cover must be tightly installed, to avoid new condensate to wet the floor or carpet when the unit re-starts working.

Connecting a water hose for continuous drainage

Unscrew the drain cover and remove the water stopper. Attach a 13mm water hose to the pipe on the unit. (Water hose not included). Lead the other end of the water hose to a drain. Make sure that the water can be drained downwards.

Notes:

• Drain hose must be installed when there's no water in the tray.
• It is suggested that not to use continuous drainage when the unit is in COOL mode, to ensure enough water recycle in the unit to enhance the system cooling effects.
• Put the drain hose in an inaccessible place, not higher than drainage hole and keep the drain hose straight without any flexure.
• Keep the drain cover and its stopper properly when continuous drainage is adopted.

The air filter

The air filter prevents dust and dirt from entering the machine, prolonging its life

expectancy. The filter must be cleaned regularly, otherwise, the unit may be seriously damaged. Therefore, clean the filters at least once every two weeks.

Filter cleaning

1. Remove the filter.
2. Wash it with warm water and a mild cleansing agent. Alternatively, the filter may be vacuum cleaned.
3. Let the filter dry and put it back.

Filter installation

Aim the end of the filter toward the slot then push filter gently into slot.

Notes:

• Be sure to install the filter to the side panel and then the filter to the rear panel.
  Install the filter with opposite direction of removal.

When installing the filter, place it gently in, to avoid any damage to it.

It is very important that the filter is cleaned regularly; otherwise the air conditioner might lose capacity and even be seriously damaged.

Storage instructions

Remote Control Storage

1. Insert remote control into the built-in compartment on the left side of the unit.
2. Press the lower part of built-in compartment gently to open it and take out remote controller.

End of Season Storage

1. Screw off the drain cover and pull out the stopper to drain condensate water completely.
2. Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.
3. Turn off the unit, pull out plug then wrap the power cord around the wi

re-winding pillar, insert the plug into the universal fixing hole at the back panel of the unit, install the water stopper and drain cover.
4. Remove the heat exhaust hose assembly, clean and keep it properly.

Notes:

• Hold the exhaust hose assembly with both hands when removal.

• Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.

• Pack the air-conditioner properly with soft plastic bag and put it in a dry place with appropriate dust-proof measures, and keep the unit away from children.

• Take out the batteries from the remote control and keep it properly.

Note:

Assure the unit is stored in a dry place.
- All accessories of the unit shall be protected together properly.

Maintenance

Read more about how to clean your unit at woods.se Clean the unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit.

Service

If the Air Conditioner requires servicing, you must first contact your local retailer. Proof of purchase is required for all warranty claims.

PROBLEM CAUSE REMEDY
The unit fails to start up	Power supply failureWater-full and its icon lightingAmbient temperature too low or low highThe room temperature is lower than the set temperature in cooling mode or higher temperature in heating mode	Connect the unit to a live electrical socket and turn it onDrain the water stored in the unitIt is recommended to use this unit between 8-35 Change the set temperature
Insufficient cooling There is direct sunlightThe doors and windows are open, the room is crowded or there are other heat sourcesDirty filterAir inlet or air outlet is clogged	Close the window curtainClose the door and window, remove other heat sourcesClean or replace the filter meshRemove the obstruction
High noise level	The unit is being placed on an uneven surface.	Place the unit at a flat and firm surface (may reduce noise)
The compressor does not work	Initiation of overheat protection	Wait until the temperature decrease, the unit will re-start automatically
The remote control does not work	Too long distanceThe remote control didn't aim at signal receptor on unit.The batteries have no electricity	Get closer to the air conditioner with the remote control and point it at the signal receiver on the unit.Replace the batteries
If you are having trouble with your air conditioner, please refer to below troubleshooting. If nothing from below works, please contact your retailer for servicing of your Air Conditioner.

Error Codes
CH01	Room temperature sensor failure	Check the room temperature sensor and related circuits
CH02 Tube temperature sensor failure Check the tube temperature sensor and related circuitis
E4 Anti-freeze protection	Restore the functions automatically once anti-freeze protection is over.
FL Water tank in chassis	is full Drain the condensate and re-start the unit

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit.

NOTEI

Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

The best operating ambient temperature for cooling is 17 - 35^. The unit runs up to +43^ .Fuse Parameter: 5.0× 20mm 3.15A_s250Vac

TECHNICAL DATA
	AC Cortina Silent 12K Smart Home AC Cortina Silent 12K WiFi
Cooling capacity 3.520 W
Power consumption 1.350 W
Air flow:	420m³/h
Energy class	A
Dehumidification	33,6 L / 24h
Temperature setting	17-30°C
Working temperatur	17-43 °C
EER	2,6
Exhaust hose lenght	1,5 m
Diameter of the exhaust hose	15 cm
Refrigerant gas	R290/260g
Noise level in decibels	56dB / 64dB
Weight	33,4 kg
Dimensions in mm, L x B x H	850x471x355

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation, and humidity.

*Used batteries must not be disposed of through household garbage,since they might contain toxic elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility.

*This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WiFi function

1. Download and Install APP

Download Woods Connect app from App Store or Google Play

1. Register/Login/Forgot password

Register

If you don't have an App account, register an account or sign in with a verification code by SMS.

This page describes the registration process.

1.Tap to enter registration page.

2.The system automatically recognises your country / area. You can also select your country code. Enter the mobile number/E-mail and tap "Next".

3.If you enter the mobile number, then enter the verification code in the message and enter the password. tap "Confirm" to finish your registration.

1. Enter your e-mail and password. Then tap "Confirm" to finish your registration.

2. Sign in with username and password or verification code via SMS

Sign in with username and password

1.The system automatically recognises your country / area. You can also select your country code. Enter the mobile number/E-mail and tap "Next"

1. Enter your registered mobile number or Email, and password to login.

Sign in with verification code

1.Tap"Sign in with SMS verification to new page

2.The system automatically recognises your country / area.

You can also select your country code by yourself.

Forgot password

If you forgot your password, please

follow these procedures:

1.Tap"Forgot password"

2.The system automatically recognises your country / area.You can also select your country code by yourself. Enter the mobile number/E-mail and tap "Next"

1. Enter the verification code in the message/E-mail and enter the new password tap"Confirm" to finish.

WiFi Woods Connect supports below functions:

Power on/Power off

Cool Mode

Dehum Mode

Fan Mode

Eco Mode

Temperature settings

Speed: Low, Medium and High

Timer: 1-24 h

Sleep: On/Off

Auto clean: On/Off

Celsius/Fahrenheit

Swing: On/Off

3. Follow the procedures in the APP to enjoy WiFi.

Smart Home

If you have a Smart Home product, please finish step 1 to 3.

Third-party Access Service: Tap a third-party voice service icon to see how to connect to the service.

Smart Home Woods Connect supports below functions by voice command:

Power on/Power off

Temperature settings

For more information visit:

https://woods.se/en/

WOOD'S FOR REN OCH HÄLSOSAM INOMHUSLUFT

https://woods.se/en/

WOOD'S SORGER FOR REN OG SUND INDELUFT

INSTALLATION AF KLIMAANLæGGET

VIGTIGT:

2. Installation

INDEN BRUG FØRSTE GANG

Installation WARNING

Operating instructions

https://woods.se/en/

ELIJA WOOD'S SI QUIERE DISFRUTAR DE UN AIRE INTERIOR LIMPIO Y SALUDABLE

1. VEILIGHEIDSWAARSCHUWINGEN

BESCHERMINGSFUNCTIES

https://woods.se/en/

WOOD'S PUHDISTAA SISÄILMAN

https://woods.se/en/

LV

WOOD'S TIRAM UN VESELIGAM IEKŠTELPU GAI SAM

Wood's zimols kopa ar Wood's saimi radas pirms vairak neka 65 gadiem Kanadas pilseta Guelph (Ontario). Seit Wood's 1950. gad saka izstradat un razot gaisa sausinatajus. Kopst laika Wood's palidzibu izmantoju so majsaimniecibu skaits sasniedz vairakus simtus tukstosu, noverotsmitra pelejuma izraisitos zaudejumus un elpojot tiraku gaisu. Musuparnesajamie gaisa kondcionetaji ir piemeroi lietoisanai vairum a klimatu, kur jauda ir laba pat dazados temperatas un mitruma limenos. Tie nodrosina labus rezultatus uzkarsusis telpas, piemeram, dzivojamas istabas, birojos un gulamistabas. Gaisa kondcionetaja izvadita karsta gaisa daudzums ir atkarigs no temperatas, mitruma limena un novietojuma. Gaisa kondcionetaja veiktspeju var ietekmet ari areji laikapatksti

Wood's gaisa kondcionetaju ekspluatacija ir drosa, un tiek ir paredzeti pastavigai lietoisanai daudzu gadu garuma.

KÄ DARBOJAS GAISA KONDICIONÉSANAS IERICE?

OHUTUSALASED JUHISED

Paigaldus HOIATUS

ExaTov KwOIO npOaONc EAV Exoate Tov KwOIO npOaONc OAC, aKoAouHOTe Ta napakatw:

1. NathotE «ÉxaaTov Kωδiko προβαοnc
   2.To ouotnma avayvwpic
   autouata tn xwpa / nepioxnoac.
   Mnopeite enionc va eniEeTe o i
   idoi tov kwdiok tcxwpcacoc.
   Inktpoloynoe tov apioKivntou
   tneupovu / tn dieuvon E-mail kai
   natote 一 E e 0
   3.Eoayayete tov kwdiok
   enalneuaon nou laabe OTO
   mnua / otn dieuvon E-mail kai
   Inktpoloynoe tov veo kwdiok
   npoaanc nathe 一 E Baiwan
   yia va oakpanwoete.

H ouvdeon meoWi-Fi tnc Woods uootnpiciTic napakatw aetoupyiec:

Evepyooinan / Anevepyooinon
Aeitoupyia uEnc
Aeioupyia aupyavoc
Aeioupyia avmuotnpa
Aeioupyia Eco
Puoiiaic eepuokpaoiac
Taxutnta: Xaunn, meoaia kui npn
Xpvovdiakontc: 1-24 wpc
Ytvou: On/Off
Autouatoc kaqapiooc;On/Off
Keaiou/apevait
Taavteuon:On/Off

3.AkoIouoIOTc
deltakaioic,otnvEapuoyn
yia va aOlaovTe T
ouv8eonmuewWi-Fi.

Smart Home

Eav exeEv a Tpoiov Smart Home, olokAnpwoTe to 1 eWc3.

Ytnpeia TpOaBaoNc aalou kataaKeuaat: Ntnte eva EIKoVIO qWvNTiKns Utnpeoiac aaou kataoKeuaot yia va deite TTwS mTopeTe va ouvDcTe OTy UTnpoia. Oa Bpeite auta ta Eikovidia

H utnpoeia Smart Home Woods Connect uTooTnpiEi Tc napakatw Aetoupyies eosw qwntikwv Evtoaw:

EvpyoToin/ATevpyoToin Ppuiaic 0epokpaia

Tia TepiooTepeC TAnpOPOpiec
ETIOKEPTEITE TNV NAEKTPOVIKNI
DIEUUVON:
https://woods.se/en/

WOOD FYRIR HREINT OG HEILBRIGT INNANHUSLOFT

Vorumerki Wood fæddist meo Woodfjolskyldunni fyir rumum 65 arum i kanadisku borginni Guelph, Ontario. Par hof Wood a o proa og framleið rakaeyəa ari 1950. Sioan pa hefur Wood aostodok nokkur hundred uusund heimila vi a koma i veg fyir skemmdir vegna myglu og and a ser hreinu lofti. Færanlegi loftkaelirinn okkar er hentugur til notkunar if flestum tegundum loftslags, par sem afkastageta hans er mikil, einnig vi mismunandi hita- og rakastig. Pau eru notuo meo goum arangri a stodum par sem raki er, s.s. i dagstofum, skrifstofum og svefnherbergjum. Pa magn heits lofts sem loftkaelirinn fjarlagir fer eftir hitastigi, rakastigi og staosettingu taeksins. Ytri veurdskilyr i geta einnig haftahrif a afkost loftkaelisins.

Loftkaelarnir fra Wood eru oruggir i notkun og endast arum saman vio stoguga notkun.

HVERNIG VINNUR LOFTKELINGARBUNADUR?

Lagur brystingur framleidir kalt loft
Aaal bunaour loftkaelisins er kaelivokvi
sem undir lagum brystingi er breytt i gas. Ferliobyr til kulda",sem er sendur inn
samtims sem ao heitu lofti er haldio uti. Fljotandi kaelivokvi fer i gegnum
pensulventil og iror bar sem brystingur
er lagur.
Kaelivokvinn gufar upp og verour ao gasi. Ferliogagar o ser hitsra umhverfinu og roirdaelist.
Viftur blasa koldu loftin un in herbergio. Gasifergnum pressu sem eykur prystinginn og breytir gasinu vokva. I pessu ferli, er hitsa slept ut, hann leiddur iror yfir gagnstaoa hloigosida er hann blasinn ut meo viftu.
Hitastillir slekkur a taekinupegar
innanhusshitinn hefur kolad nagilega.

1.ÖRYGGISVIDVARANIR

Eldfim efni. Petta taki inniheldur R290/ propan sem er eldfint kaeliefni.

1. Nyskraning/Innskraning/gleymt lykilor

Skrá

Efpuertekki meApp-reikning skaltuskräbiga reikning eαskra biginnmedstaofestingarkoaaedSMS. Pessi siola lysir skraningarferlinu.

1.Snertu til aopna skräningarsiou
2.Kerfi pekir sjalfkrafa land pitt/ svaei. Einnig er hegt ao velja landskoa. Slau inn farsimanumerio/ netfangi og yttu a, Next".
3.Efpu slero inn farsimanumerio, slaou painn staofestingarkoanni skilaboounum ogytua Confirm"til aoIjuka skraningunni.
4.Ef bu slerao inn tolvupostinn, slaou ba inn lykiloroiog yttu a,Confirm" til ao klara skraninguna.

Wood's is marketed and distributed by:

Woods Production Sweden AB

Box 356

441 27, Alingsa

Sweden.

woods.se

[e-mail]

[phone]

Wood's
