RN1 - Fan Fantech - Free user manual and instructions

Product Type	In-line Radon Fan
Brand	Fantech
Model	RN1
Use	Radon Mitigation (only)
Housing Material	Reinforced Polymer (double insulated)
Duct Type	Schedule 40 PVC, 3" or 4" diameter (with LDVI™ sleeve)
Power Supply	120 V, 60 Hz (check nameplate)
Power Consumption	Varies by model (check label)
Warranty	5 years (parts and labor)
Weight	Approximately 2.5 kg
Dimensions (L x W x H)	Approximately 25 x 20 x 20 cm
Airflow	Varies by installation
Sound Level	Low (data not provided)
Installation	Indoors, connected to an exterior duct
Maintenance	Regular cleaning of blades and housing
Repairability	Spare parts available from manufacturer
Safety	Do not use with speed control; double insulated
Certification	UL 507, UL 1097
Operating Temperature	Outdoor use possible (per UL standards)

Frequently Asked Questions - RN1 Fantech

What type of duct should I use with the Fantech RN1?

Use a Schedule 40 PVC duct of 3 or 4 inches with the appropriate LDVI™ sleeve. Avoid ducts smaller than recommended.

Can I use a speed control with this fan?

No, never use a semiconductor speed control. This could damage the motor and void the warranty.

How to safely install the fan?

Turn off power at the service panel before installation. Ensure the fan is properly connected and ducts exhaust outdoors.

Is the RN1 fan suitable for outdoor use?

Yes, it is UL certified for outdoor use, but must be installed per instructions.

What to do if the fan does not start?

First check power supply and connections. Ensure voltage matches that on the nameplate. If problem persists, contact Fantech support.

How to clean the Fantech RN1 fan?

Disconnect power. Use a damp cloth to clean the exterior and blades. Do not immerse in water.

What is the warranty period?

The warranty is 5 years from date of purchase. It covers manufacturing defects. Keep your proof of purchase.

Can I use this fan to exhaust dangerous fumes?

No, it is designed only for radon mitigation. Do not use for explosive or harmful vapors.

Does the fan require grounding?

No, due to double insulation (UL 1097), no grounding conductor is needed.

How to get spare parts?

Contact Fantech customer service or an authorized distributor. You will need the model number and proof of purchase.

USER MANUAL RN1 Fantech

Inline Radon Fan Rn, 1 pc Operation and Installation Manual, 1 pc

CETTE BOÎTE COMPREND:

Two white industrial air duct components labeled Rn1, Rn2, and Rn3, showing internal chambers and mounting flanges (no text beyond labels)

REGISTER* THIS PRODUCT TO INCREASE YOUR PRODUCT WARRANTY BY AN EXTRA YEAR

registration.fantech.app

QR code image containing encoded data, no visible human-readable text

* in USA only

Note Warning / Important note Information Technical information Practical tip

DO NOT CONNECT POWER SUPPLY until fan is completely installed. Make sure electrical service to the fan is in the locked "OFF" position.

1. These fans have rotating parts and safety precaution should be exercised during installation, operation and maintenance.
2. WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS - OBSERVE THE FOLLOWING:

a. Use this unit in the manner intended by the manufacturer. If you have any questions, contact your manufacturer's representative or contact us directly.
b. CAUTION: Before installation, servicing or cleaning unit, switch power off at service panel and lock the service disconnection means to prevent power from being switched on accidentally. When the service disconnection means cannot be locked, securely fasten a prominent warning device, such as tag, to the panel.
c. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
d. The combustion airflow needed for safe operation of fuel burning equipment may be affected by this unit's operation. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society of Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE) and the local code authorities.
e. When cutting or drilling into wall and ceiling, do not damage electrical wiring and other hidden utilities.

f. Ducted fans must always be vented to the outdoors.

1. WARNING! Check voltage at the fan to see if it corresponds to the motor name plate.
2. For radon mitigation use only. DO NOT use to exhaust hazardous or explosive materials and vapors.
3. Do not use these fans with any solid state speed control device.

GUARDS MUST BE INSTALLED WHEN FAN IS WITHIN REACH OF PERSONNEL OR WITHIN SEVEN (7) FEET OF WORKING LEVEL OR WHEN DEEMED ADVISABLE FOR SAFETY.

The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow.

DIMENSIONS

B A C D

Model/Modèle A	B C D
Rn1 4	^15/_32 (114) 10 (254) 1		^1/_4 (32) 9	^1/_4 (235)
Rn2 4	^15/_32 (114) 10 (254) 1		^1/_4 (32) 9	^1/_4 (235)
Rn3 5	^7/_8 (149) 11	^1/_2 (292) 1	^1/_4 (32) 9	^1/_4 (235)

Dimensions in inches (mm). Dimensions en pouces (mm)

INSTALLATION

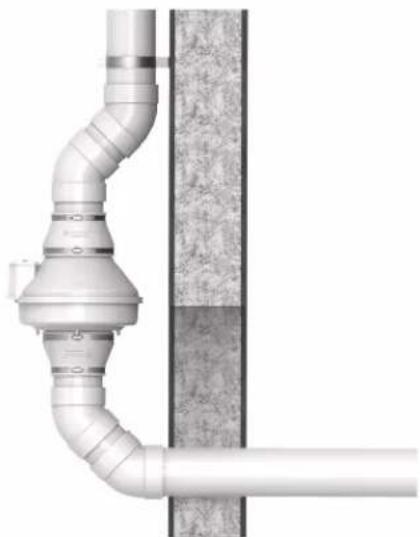

The Rn1, Rn2, and Rn3 are designed for use with 3" and 4" schedule 40 PVC pipe, when appropriate LDVI™ coupling is used.

Prior to installation, the suction pipe should be terminated at the exterior wall. The suction pipe should be installed with slight incline to drain water from the fan.

Pure diagram of pipe fittings and a vertical panel, no text or symbols present

DO NOT connect fan directly to building structure

WIRING DIAGRAM

Motor Leads Blue N (White) Black L (Black) Brown Supply Voltage Capacitor

There are typically three wires to be connected to an electrical fan; Load, Neutral and Ground. Load provides power to the fan, Neutral is for returning current and closing the electrical circuit, and Ground is for an additional path to safely return current to the ground, in case of an accidental electrical short in the fan and/or discharging of fan metal components.

Fantech radon fans are permanently connected appliances employing a reinforced polymeric construction. The non-conductive construction functions as a "Double Insulated" protective System (Complies with Standard for Double Insulation Systems for Use in Electrical Equipment, UL 1097), thus eliminating the need for a grounding conductor. All Fantech radon fans are tested and reviewed by Underwriter Laboratories, a 3rd party independent safety governing body, and deemed suitable for outdoor use (Standard for Safety-Electric Fans, UL 507).

Please contact Fantech Technical Support if additional information is needed regarding this matter.

	Voltage	Max Amp	Max Watts	Phase	RPM	CFM/Watts	Energy Star	0.00	0.20	0.50	1.00	1.50	2.00	Max
Rn1	120	0.17	19.7	1	3100	7.30	Yes	160	130	80	-	-	-	0.89
Rn2	120	0.48	58.0	1	2700	2.59	No	160	150	120	80	40	-	1.97
Rn3	120	1.20	141.2	1	2700	2.42	No	370	340	280	180	120	50	2.36

fantech

WARRANTY

Five (5) Year Warranty

This warranty supersedes all prior warranties

DURING ENTIRE WARRANTY PERIOD:

Fantech will repair or replace any part which has a factory defect in workmanship or material. Product may need to be returned to the Fantech factory, together with a copy of the bill of sale and identified with RMA number.

• Have a Return Materials Authorization (RMA) number. This may be obtained by calling Fantech either in the USA at 1.800.747.1762 or in CANADA at 1.800.565.3548. Please have bill of sale available.
• The RMA number must be clearly written on the outside of the carton, or the carton will be refused.
• All parts and/or product will be repaired/replaced and shipped back to buyer; no credit will be issued.

OR

The Distributor may place an order for the warranty part and/or product and is invoiced. The Distributor will receive a credit equal to the invoice only after product is returned prepaid and verified to be defective.

FANTECH WARRANTY TERMS DO NOT PROVIDE FOR REPLACEMENT WITHOUT CHARGE PRIOR TO INSPECTION FOR A DEFECT. REPLACEMENTS ISSUED IN ADVANCE OF DEFECT INSPECTION ARE INVOICED, AND CREDIT IS PENDING INSPECTION OF RETURNED MATERIAL. DEFECTIVE MATERIAL RETURNED BY END USERS SHOULD NOT BE REPLACED BY THE DISTRIBUTOR WITHOUT CHARGE TO THE

Limitation of Warranty and Liability

This warranty does not apply to any Fantech product or part which has failed as a result of faulty installation or abuse, incorrect electrical connections or alterations made by others, or use under abnormal operating conditions or misapplication of the product or parts. We will not approve for payment any repair not made by us or our authorized agent without prior written consent. The foregoing shall constitute our sole and exclusive warranty and our sole exclusive liability, and is in lieu of any other warranties, whether written, oral, implied or statutory. There are no warranties which extend beyond the description on the page hereof. In no event, whether as a result of breach of contract, or warranty or alleged

Warning

Fantech products are designed and manufactured to provide reliable performance, but they are not guaranteed to be 100% free from defects. Even reliable products will experience occasional failures and this possibility should be recognized by the user. If these products are used in a END USER, AS CREDIT TO DISTRIBUTOR'S ACCOUNT WILL BE PENDING INSPECTION AND VERIFICATION OF ACTUAL DEFECT BY FANTECH.

THE FOLLOWING WARRANTIES DO NOT APPLY:

• Damages from shipping, either concealed or visible. Claim must be filed with freight company.
• Damages resulting from improper wiring or installation.

• Damages or failure caused by acts of God, or resulting from improper consumer procedures, such as:

• Improper maintenance

• Misuse, abuse, abnormal use, or accident, and

• Incorrect electrical voltage or current.

- Removal or any alteration made on the Fantech label control number or date of manufacture.

- Any other warranty, expressed, implied or written, and to any consequential or incidental damages, loss or property, revenues, or profit, or costs of removal, installation or reinstallation, for any breach of warranty.

WARRANTY VALIDATION

- The user must keep a copy of the bill of sale to verify purchase date.

- These warranties give you specific legal rights, and are subject to an applicable consumer protection legislation. You may have additional rights which vary from state to state.

negligence, defect incorrect advice or other causes, shall Fantech be liable for special or consequential damages, including, but not limited to, loss of profits or revenue, loss of use of equipment or any other associated equipment, cost of capital, cost of substitute equipment, facilities or services, downtime costs, or claims of customers of purchase for such damages. Fantech neither assumes or authorizes any person to assume for it any other liability in connection with the sale of product(s) or part(s). Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages so the above limitations and exclusions may not apply to you.

life support ventilation system where failure could result in loss or injury, the user should provide adequate backup ventilation, supplementary natural ventilation, failure alarm system, or acknowledge willingness to accept the risk of such loss or injury.

Note Aventissement / Note importante		Information Information technique		Conseil pratique

Close-up of a white PVC pipe fitting with a flanged outlet, adjacent to a textured concrete wall (no text or symbols visible)

Fantech reserves the right to make technical changes. For updated documentation please refer to www.fantech.net
