USER MANUAL Punch PM2T-S Rockford Fosgate

Installation assistance available at: RFTECH www.rockfordfosgate.com/rftech

PUNCH®

P2 ADD ON TWEETER

PM2T-S

Serial Number: Date of Purchase:__________________

South Rockford Drive • Tempe, Arizona 85281 United States Direct: [phone] • Toll Free: [phone] ROCKFORDFOSGATE.COM

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products; www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Content

2 Introduction

3 Specifications

4-5 Installation

Installation Considerations

Mounting

Wiring

6-7 Additional Languages

French

Spanish

German

Italian

8 Limited Warranty Information

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

PRATIQUEZ UNE ÉCOUTE SANS RISQUES

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

WARNING

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Model	PM2T-S
Nominal Diameter - inch (mm)	1.0(25)
Description	1-Way
Nominal Impedance (Ohms)	4Ω
Frequency Response (Hz)	1425-20kHz
Voice Coil Diameter - inch (mm)	1.0(25)
*Power Handling - Watts (RMS/Peak)	100/200
Fs - Free Air Resonance (Hz)	1900
Qts	1.15
**Sensitivity (1W/1M)	97dB
**Sensitivity (2.83V/1M)	100dB
Xmax - inch (mm)	0.04(1)
Grille/Trim Ring	YES

* With Crossover
** With Horn Mounting Loading Flange

Flush Mount

2.1" (54mm) 0.4" (9mm) 1.8" (44mm)

2.4" Dia. (60mm) 0.9" (23mm)

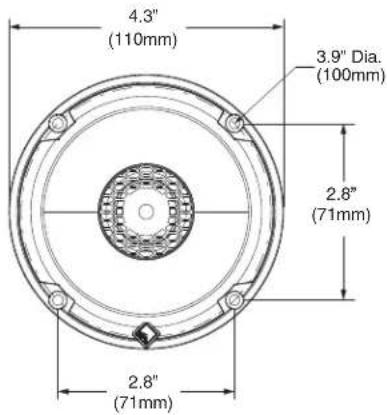

Optional Horn Loading Mounting Flange

4.3" (110mm) 3.9" Dia. (100mm) 2.8" (71mm) 2.8" (71mm)

3.6" (91mm) 0.3" (6mm) 1.4" (37mm)

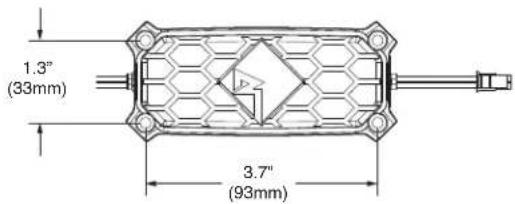

Crossover

1.3" (33mm) 3.7" (93mm)

1.5" (39mm) 4.3" (108mm)

Contents

• (1) Pair PM2 Tweeters
• (1) Pair External 18dB/Oct Crossover
• (1) Pair Flush Mount Clamps
• (1) Pair Horn Loading Mounting Flange w/ O-rings
• Stainless Steel Mounting Hardware

Installation Considerations

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers in place.
4. Use high quality connectors for a reliable installation and to minimize signal or power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

Mounting

Flush Mount Option

1. Determine where the tweeter will be mounted. Ensure an area large enough for the tweeter to mount evenly. Be sure that the mounting location is deep enough for the tweeter to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. Mark the location for the mounting hole. Drill the hole with a standard 1.75 inch (45mm) hole saw.
3. With a single center screw secure the inner cup from the front of the door panel to the outer cup from back of the door panel. Tighten the screw until balanced pressure is applied to both faces of the mounting surface.
4. Feed the speaker wires through the cutout. Be sure to observe proper polarity when connecting the wires. The speaker's lead wires are indicated with a WHITE wire "+" and a BLACK wire "-"
5. Simply snap the tweeter into place and secure with a snap-on trim ring. Removal is easy if needed. The protective grille on the tweeter is non-removable and an integral part of the design.

Optional Horn Loading Mounting

1. Determine where the tweeter will be mounted. Ensure an area large enough for the speaker to mount evenly. Be sure that the mounting location is deep enough for the speaker to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. Mark the location for the mounting hole.

3. Cut or use a hole saw to drill a 3-5/8" (91mm) hole for the flange to fit.

4. Once you have the hole cut, insert the flange and mark the locations for the mounting screws. Predrill your mounting screw holes.

5. Assemble the horn flange, o-ring, tweeter and retaining ring together. Pay close attention to the alignment tab on both the tweeter and flange. These need to be lined up for proper tweeter orientation in the flange.
6. Feed the speaker wires through the cutout. Be sure to observe proper polarity when connecting the wires. The speaker's lead wires are indicated with a WHITE wire "+" and a BLACK wire "-"
7. Secure the flange with the included stainless steel mounting hardware.

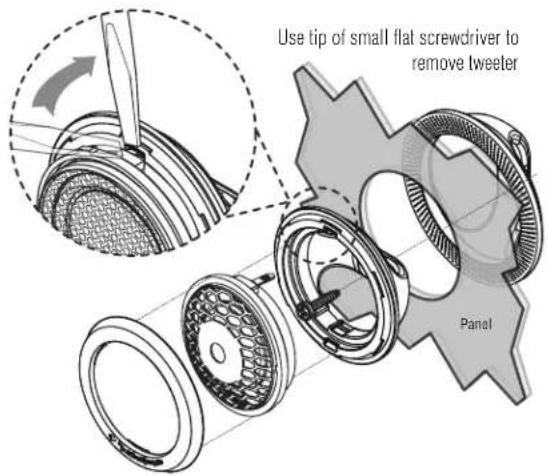

Flush Mount Clamp

Use tip of small flat screwdriver to remove tweeter Panel

Illus.-2.1

Optional Horn Loading Mounting Flange

Flange 0-ring Tweeter Retainer

llus.-2.1

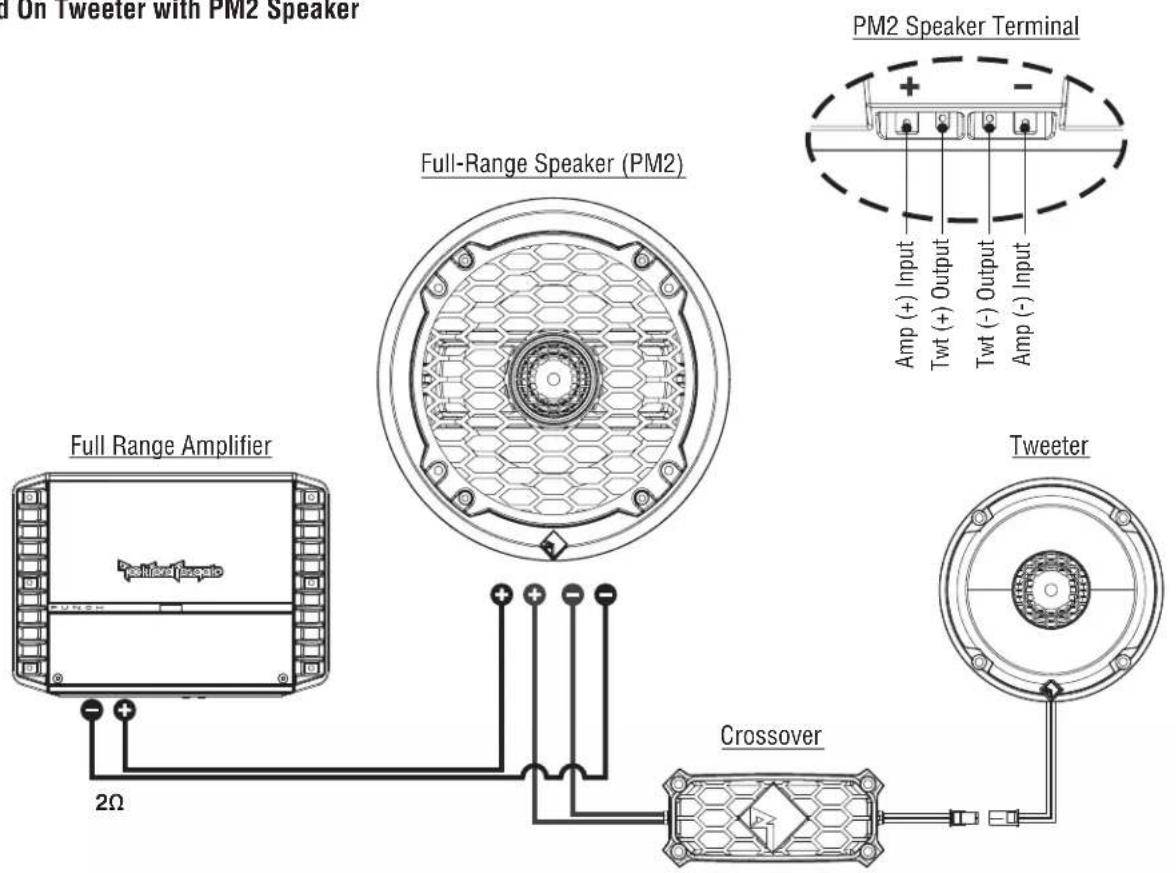

Add On Tweeter with PM2 Speaker

On Tweeter with PM2 Speaker Full-Range Speaker (PM2) Full Range Amplifier 2Ω Crossover Tweeter PM2 Speaker Terminal Amp (+) Input Twt (+) Output Twt (-) Output Amp (-) Input

NOTE: Your amplifier needs to be 2Ω stable per channel when wired in this configuration.

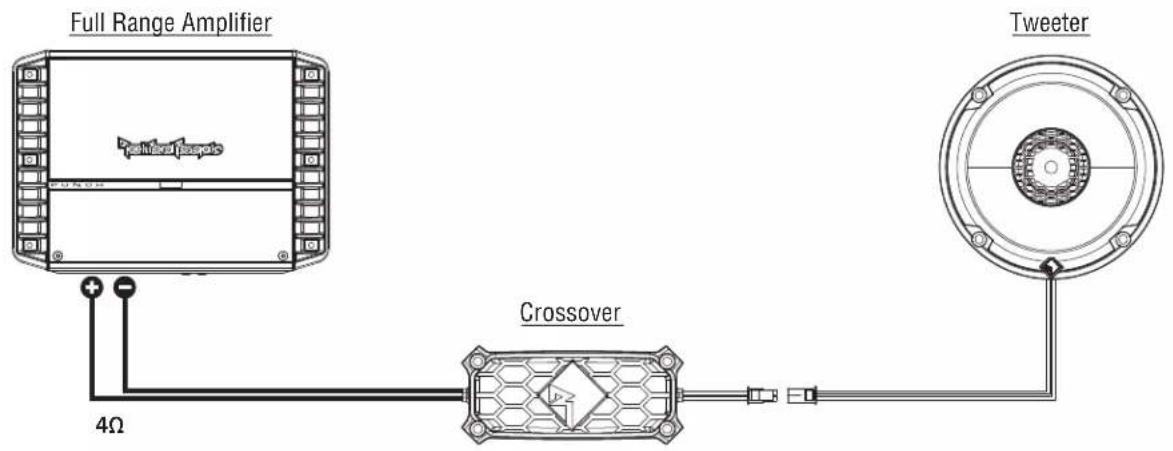

Individual Tweeter

Full Range Amplifier Crossover Tweeter 4Ω

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

POWER Amplifiers – 2 Years

BMW® Direct Fit Speakers – 2 Years

All other products - 1 Year

Any Factory Refurbished Product - 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.
