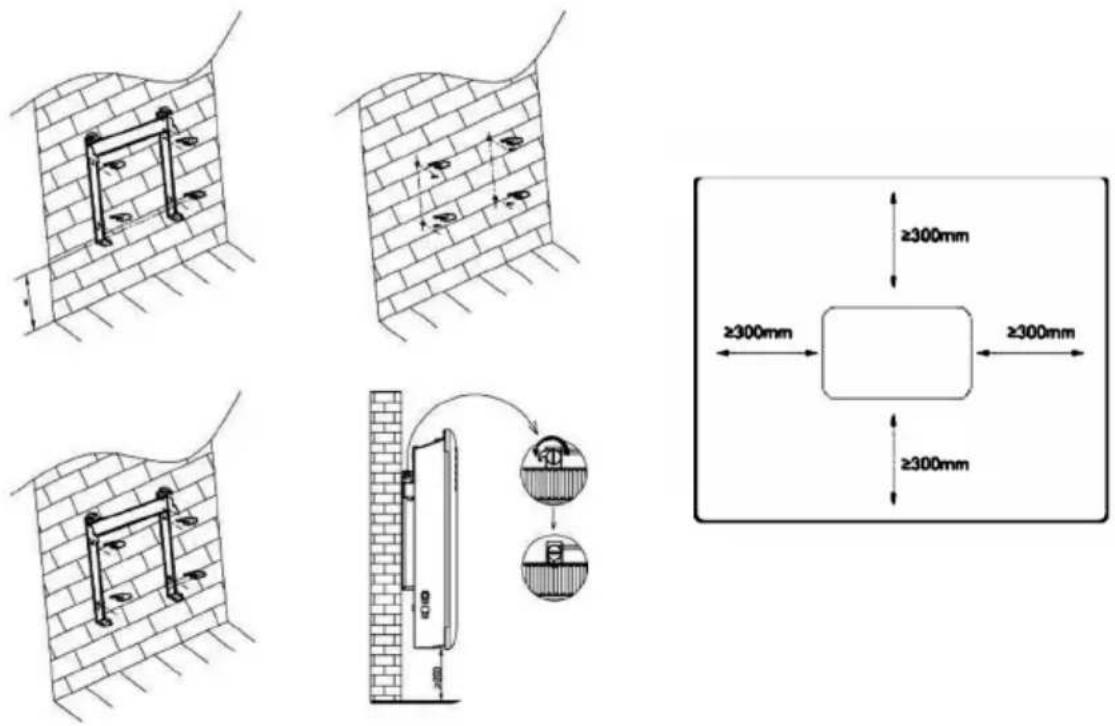

Fig.1 Instalación

Fig.2

Illustration of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of two identical figures standing on a rectangular platform, emitting steam or smoke (no text or symbols)

Español

Convector de pared

CHTA500

CHTA1000

CHTA1500

CHTA2000

DESCRIPCIÓN

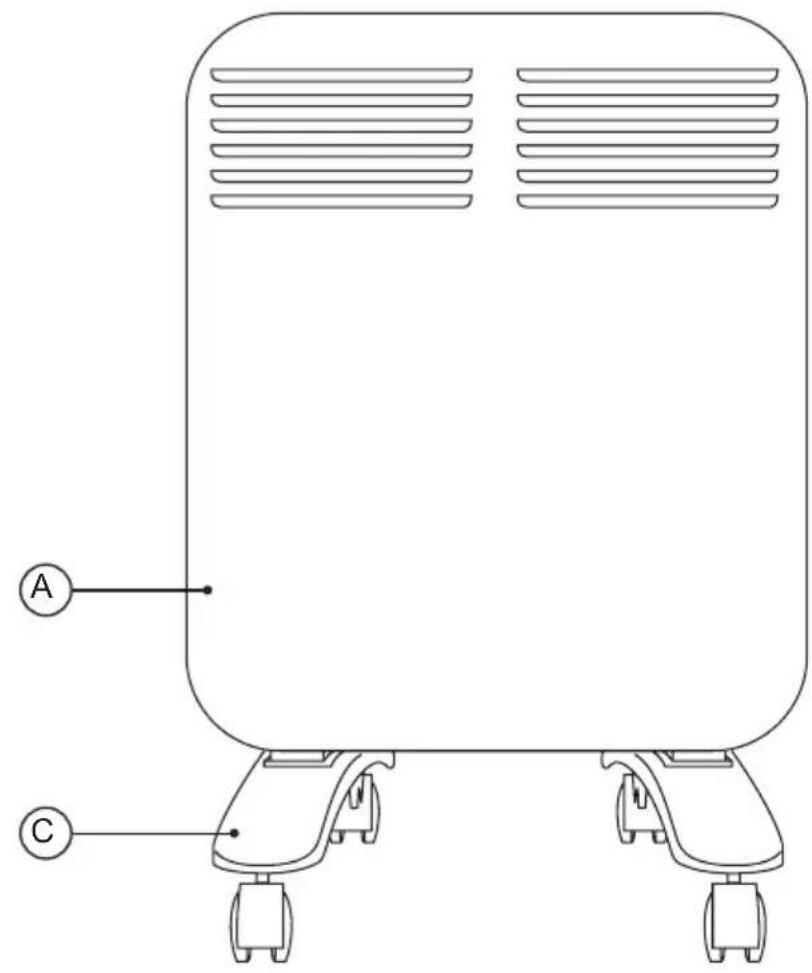

A Panel frontal

B Display digital

C Pies

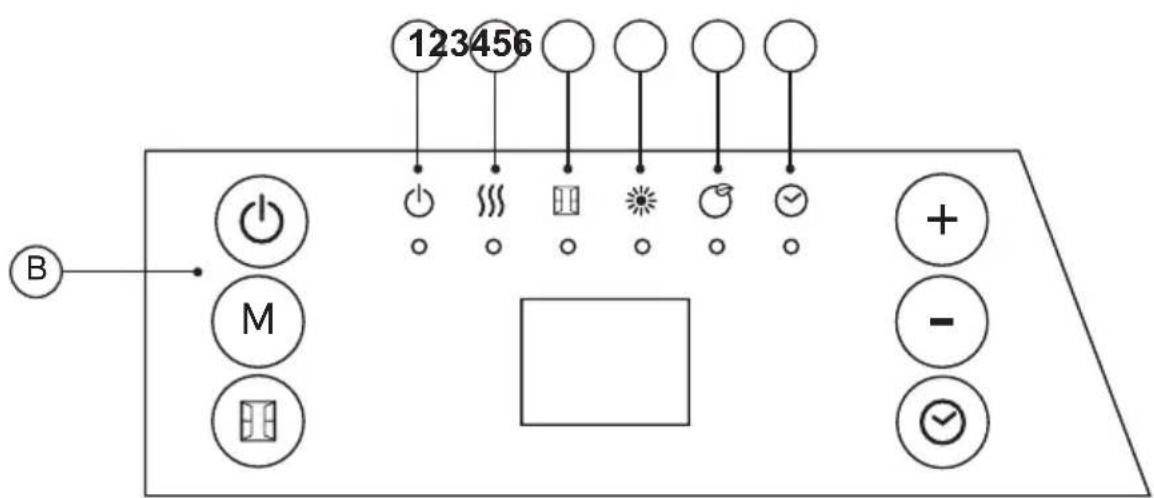

PANEL DE MANDOS

Wall panel convector

CHTA500

CHTA1000

CHTA1500

CHTA2000

DESCRIPTION

A Front panel

B Control panel

C Feet

CONTROL PANEL

	Standby
	Mode selection
	Open window function
	Increase function
	Decrease function
	Timer

1 Standby: on/off
2 Heating condition
3 Open window function
4 Comfort mode
5 ECO mode
6 Timer

FITTING THE BASE FEET (WHEELS):

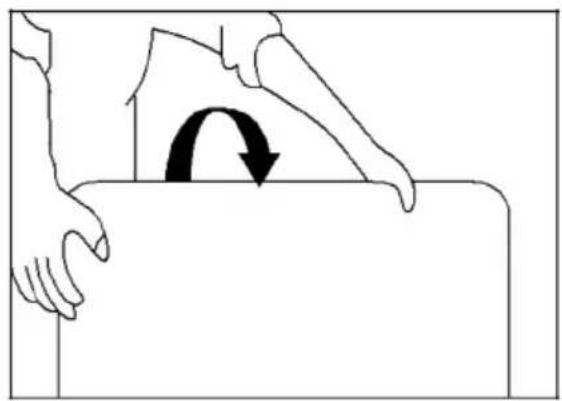

• To assemble the base feet, place the appliance face down (fig2)

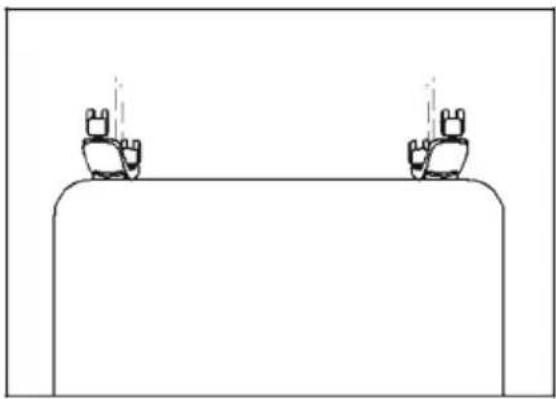

• Position the base feet on the body of the appliance.
• Position the base feet on the body of the appliance using the screws. (Provided with the appliance).

• Stand the appliance up again so as to check that the base feet work properly.

• Instructions for use

• Before use:
• Make sure that all products' packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
• Prepare the appliance according to the function you wish to use.

HOW TO USE:

• Connect the appliance to the mains.
• The indicator light is on.
• Press to turn on the heater, which is in state of factory default when first time use.
• Factory default:
• Heating mode: comfort mode
• Target temperature setting: 22 °C
• Date: 1(Monday); Time: 00:00 (Off)
• Window open function: Off
• Timer: Off
• To stop the heater working, press ⏻ to turn off the heater,
• Unplug the product when it's not in use.
• Clock and day of week setting:
• Press down 3 secs to enter clock and day of week setting
• The screen displayd, press + and - to choose day from 1-7.

1 Monday

2 Tuesday

3 Wednesday

4 Thursday

5 Friday

6 Saturday

7 Sunday

• Press ☑ during few seconds to confirm day setting and enter the clock hour setting, with the screen display: H
• Press + and - to set the current hour
• Press during few seconds to confirm hour setting and enter the minute setting, with the screen display:
• Press + and - to set the current minute
• Press ☑ to confirm all settings
• Note: The clock and calendar will be reset to factory default if without power supply.

HEATING MODE:

- Press M to enter mode selection. By pressing M, heating mode runs in a continuous cycle as below:

- Comfort mode: Press + and - to set the temperature from 5-35°C.

ECO mode: Press + and - to set the temperature from 1-31°C.

• Note: ECO mode=Comfort mode - 4°C
• Anti-frost mode: the screen display FRThe target temperature is 7°C. The temperature can't be adjusted.
• P1/P2/P3: Pre-set heating program.
• Note: If the clock and day setting are not finished, the first time to enter P1/P2/P3 program setting, it is requested to set day and clock setting in advance.

P1: (Monday-Sunday) unadjustable program

P8 0 3 6 9 12 15 18 21 24h

P2:(Monday-Friday) unadjustable program

B2 0 3 6 9 12 15 18 21 24h

P2:(Saturday-Sunday) unadjustable program

B2 0 3 6 9 12 15 18 21 24h

P3:(Monday-Friday) Adjustable program

P3* 0 3 6 9 12 15 18 21 24h

P3:(Saturday-Sunday) Adjustable program

BB 0 3 6 9 12 15 18 21 24h

P3 adjustable program setting

• 1. When under P3 mode, press Ⓜ over 3 secs to enter day setting.
• 1. The screen displaysd, press + and - to set from d(monday-Sunday). Press M to confirm and enter hour setting
• 1. The screen displays press + and - to set from 00-24). Press M to choose heating mode for every hour (Comfort mode or ECO mode of anti-frost mode for no indicators on)
• 1. Repeat the operation until you have completed the schedule of every hour and every day.
• Note: After setting heating mode for hour 23, press + to come back to day setting.
• Note: when screen displays press finish all setting with display of P3

TIMER OFF FUNCTION

- Press one time, the screen display "OH" and keeps flashing. press + and - to set timer from 0-24 hours. Press again to confirm setting, then the indicator light is on.

OPEN WINDOW FUNCTION

• Press one time and the indicator light is on. If open window function is activated, the indicator light keeps flashing and stops heating.
• Press again to quit open window function and back to previous working situation.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.
• Safety thermal protector:

- The appliance has a safety device, which protects the appliance from overheating.

- When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

- Remark: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning dust deposits which have accumulated on the heating element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.
