GG900 - UV sanitizer Guardian - Free user manual and instructions

USER MANUAL GG900 Guardian

IMPORTANT The UV-C bulb is specifically excluded from this warranty. The product contains no serviceable parts. Due to the technology of the GG900, all repairs must be performed by Guardian Technologies. Any unauthorized repair or tampering with the GG900 VOIDS this warranty.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty does not cover Guardian Technologies products that are used outside of the US and Canada as the appliance must be plugged directly into a 120V AC electrical outlet without the use of an adapter.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Repair Department, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900 • www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

USE & CARE INSTRUCTIONS

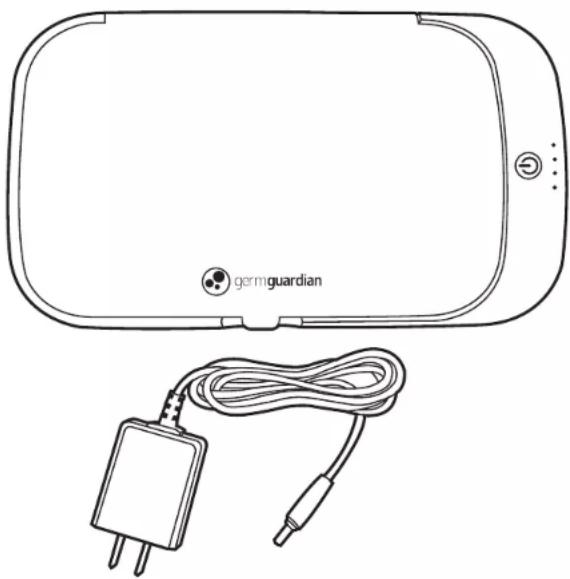

Line drawing of a germguardian remote device with cable and power plug (no text or symbols on body)

UV-C Light Sanitizer

Model No. GG900

1-Year Limited Warranty

Customer Service 1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____ Keep Receipt

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

EPA Est. 98580-CHN-001 • REV0821

IMPORTANT SAFETY INSTRUCTION: READ AND SAVE THESE INSTRUCTIONS WARNINGS

When using this product basic precautions should be followed to reduce the risk of fire, electric shock and injury. This product is intended for indoor use only.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Use this product only as described in this manual.
  • Power adapter supports 100-240V 50/60Hz inputs.
• This product is provided with a safety mechanism to reduce the risk of exposure to ultraviolet radiation. Do not defeat its purpose. Use the device with the lid completely closed.
• Do not operate with an extension cord.
• Do not operate this product if there is any physical damage to the unit.
• Do not operate this product in any area where there is a risk of the unit falling into or being exposed to water.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink. WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
• This device should not be used in the presence of oxygen or any flammable materials or gases.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do NOT play with the appliance.
• Do not handle the unit or plug with wet hands.
• Keep the product away from heated surfaces.
• DO NOT attempt to look directly at the UV LEDs while the unit is on. UV light can be irritating to the eyes and skin.
  • DO NOT attempt to modify this product. It has been designed to contain UV exposure.
• DO NOT expose the device to fire or excessive temperature. Exposure to fire or temperature above 265^ may cause explosion.

WARNING: Cancer or Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

This device complies with Part 18 of the FCC Rules. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

NOTE: This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

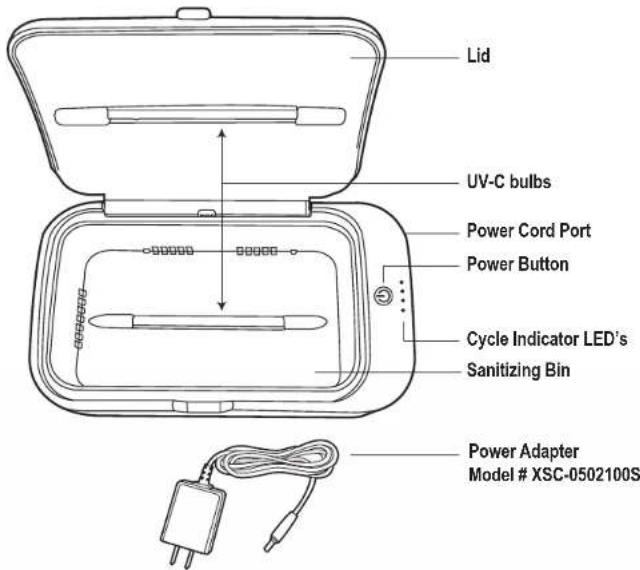

PRODUCT SPECIFICATIONS AND PARTS

Lid UV-C bulbs Power Cord Port Power Button Cycle Indicator LED's Sanitizing Bin Power Adapter Model # XSC-0502100S

Line drawing of a device with circular arrows indicating rotation or cycle (no text or symbols)

How it works:

2 powerful UV-C bulbs provide front to back coverage sanitizing without the use of chemicals or liquids. It's safe for a variety of items including cell phones, keys, earphones, make-up tools, eye glasses and more!

UV-C technology reduces the growth and development of microbiological organisms such as fungi, bacteria or viruses. UV-C light works by killing the DNA of germs, reducing their ability to reproduce.

OPERATING INSTRUCTIONS

IMPORTANT: Lights will not turn on when lid is open.

1. Find a dry, flat location for the sanitizer.

Simple line drawing of a device with a power outlet and cable, no text or symbols present

1. Plug into a power outlet.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1. Place item(s) in sanitizing bin.

Simple line drawing of a battery cell with an open casing and internal circuit (no text or symbols)

1. Close lid completely.

Press power button

Simple line drawing of a U-shaped container with an arrow pointing to the bottom (no text or symbols)

E-4

Simple line drawing of a mechanical component with an upward arrow and internal shaft (no text or symbols)

1. When there are no more LED's lit, your items are sanitized.

CLEANING

Clean the inside and outside of the unit by dusting it off with a dry microfiber cloth.

WARNING

ULTRAVIOLET-C LIGHT IS EMITTED FROM THE BULB WHEN THE UNIT IS ELECTRIFIED, EYE INJURY OR IRRITATION COULD RESULT. NEVER ATTEMPT TO OPERATE THE UNIT WITHOUT THE LID CLOSED.

WARNING

ALWAYS UNPLUG THE UNIT FROM AN ELECTRICAL OUTLET WHEN CLEANING. THERE ARE NO SERVICEABLE PARTS ON THIS UNIT. UNDER NO CIRCUMSTANCES SHOULD YOU CLEAN THE BULB, BULB HOLDER OR CYLINDER WITH WATER OR WET SOLUTIONS. THIS COULD CAUSE ELECTRICAL SHOCK.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit Won't Run.	Check to confirm lid is completely shut.Unit will not run with lid open.Check if the power socket is the issue. Try testing the socket with a lamp or other household items to ensure it is working.Check to be sure cord is plugged in correctly to the unit and the power outlet.
	Bulb is burnt out. Contact Customer Service team. Light flickers

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a germguardian remote device with cable and power plug (no text or symbols on body)

Line drawing of a medical device with curved arrows indicating rotation or feedback (no text or symbols)

Simple line drawing of a device with a power outlet and cable (no text or symbols)

Simple line drawing of a mechanical component with a central shaft and downward arrow (no text or symbols)

Simple line drawing of a container with an arrow indicating flow or movement (no text or symbols)

Simple line drawing of a U-shaped container with an arrow pointing to the bottom (no text or symbols)

Pure mechanical diagram showing a shaft and housing with an upward arrow, no text or symbols present

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a germguardian remote device with cable and power plug (no text or symbols on body)

Sanitizante con foco de luz UV-C

NÚMERO DE MODELO: GG900

Line drawing of a medical device with curved arrows indicating rotation or cycle (no text or symbols)

Cómo funciona:

Simple line drawing of a device with a power outlet and cable, no text or symbols present

Simple line drawing of a device with a handle and base, no text or symbols present

Simple line drawing of a U-shaped container with a small circular button inside, no text or symbols present.

Simple line drawing of a mechanical component with a central shaft and downward arrow, no text or symbols present.

Simple line drawing of a mechanical component with an upward arrow and internal shaft (no text or symbols)
