USER MANUAL SLS32DZBLACK LA SOMMELIERE

Symmetrical geometric pattern with four circles arranged in a diamond shape (no text or symbols)

La Sommelière

VOS VINS SONT BIEN CHEZ VOUS

NOTICE D'UTILISATION

USE INSTRUCTIONS - MANUAL DE UTILIZACION - GEBRUIKSAANWIJZING MANUALE D'USO - BENUTZERHANDBUCH

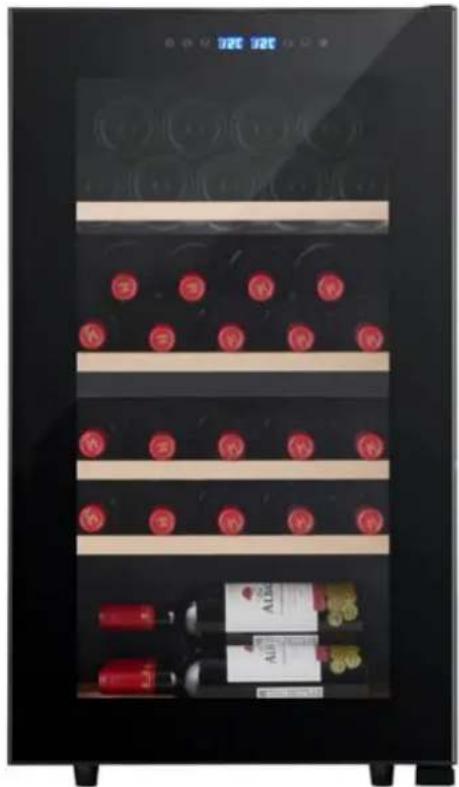

Black double-harper refrigerator with red wine rings and a white label (no visible text or symbols on the main body)

SLS32DZBLACK

FR – MANUEL D'UTILISATION p. 1 GB – USE INSTRUCTIONS p. 19

SP - MANUAL DE UTILIZACION p. 33 NL - GEBRUIKSAANWIJZING p. 55

IT - MANUEL D' USO p. 74

Technical line drawing of a multi-level rack cabinet or enclosure with no visible text or symbols

Dépannage

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

R600A

Empty rectangular frame with black border (no text or symbols)

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments or features.

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

7. CHARGEMENT

Illustration of multiple wine bottles with green and red labels, arranged in rows (no text or symbols)

Three identical green plastic bottles with red caps, arranged in a row (no text or symbols visible)

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for choosing our products and hope that this appliance will fully live up to your expectations.

This appliance enables you to store your bottles or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.

1. GENERAL SAFETY INSTRUCTIONS

For your own safety and for the proper utilization of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.

Keep all packaging out of the reach of children, as there is a risk of suffocation.

If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside. If an appliance with a magnetic door seal is being replaced by

another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.

Keep the appliance and its power cable out of reach of children less than 8 years old.

NOTE: children between 3 and 8 can load and unload the appliance.

General safety

CAUTION — This appliance is designed for home use.

CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.

CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.

CAUTION — Do not damage the refrigerating circuit.

CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.

CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to fire.

Plastic bags can be dangerous. To avoid danger of suffocation, keep this wrapper away from children

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: Fire rise

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated. It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.

• Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.

• Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.

• Check that the wall socket used for the appliance is properly accessible.
  ■ Never pull on the main power cable.
• Ensure that the appliance is always electrically earthed.
• If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.
• Do not use the appliance if the interior lighting cover is not installed.
• Disconnect the appliance before replacing the lighting bulb.
• The appliance operates on a single phase 220\~240 V / 50 Hz powersupply.
• The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.
• Do not attempt to replace a damaged power cable, contact your after-sales service.
• The power socket must be easily accessible but out of reach of children.
• In case of doubt, contact your installation technician.

Daily utilisation

• Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.
• Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).
• When disconnecting the appliance, grip the plug firmly and do not pull on the cable.
• Do not expose the appliance to direct sunlight.
• Keep the appliance away from candles, luminaries and open flames, in order to avoid fire risk.
• This appliance is only designed to store wines and drinks.
• The appliance is heavy. Be careful when moving it.
• If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Do not lean or climb on the appliance or its elements.
• In order to avoid falling objects and to prevent damage to the appliance, do not overload the compartments of the appliance.

Caution! Cleaning and servicing

- Before carrying out servicing, switch off the power supply and disconnect the appliance.

- When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.

- Do not use sharp or pointed objects to remove ice. Use a plastic Scraper.

Important information concerning installation!

- To ensure proper electrical connection, follow the recommendations given in the present manual.

- Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.

- It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.

- Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations Provided.

- In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.

- The appliance should not be placed close to radiators or cooking hot plates or gas rings.

- Check that electrical sockets remain accessible when the appliance is installed.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Your device is not designed to be placed in a garage, basement, or similar location.

Power saving

To limit the electricity consumption of your appliance:

- Install it in an appropriate place (see "Installing your appliance").

- Leave the doors open as little time as possible.

- To ensure that the appliance operates properly, clean the condenser regularly (see "Routine servicing of your appliance").

- Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

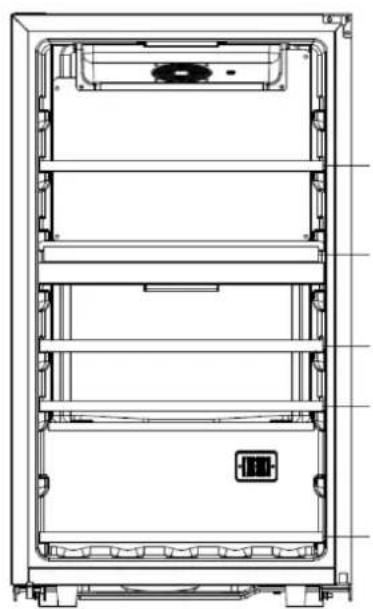

Layout recommendations:

The following layout of your appliance's equipment (shelves, etc.) is recommended so that energy is used as rationally as possible for the appliance.

Technical line drawing of a multi-level electronic device chassis (no text or symbols)

Trouble shooting

- Any electrical work should be carried out by a qualified and skilled technician.

- The appliance should be repaired by an accredited repair centre, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilization.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

R600a

Safety instructions

Caution: Do not obstruct the ventilation grills on the appliance.

Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

Caution: Do not damage the refrigerating circuit in the appliance.

Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.

Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments.

CE FR + + + + + + +

2. TECHNICAL DATA

Below is an example of the nameplate:

The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).

Empty rectangular frame with black border (no text or symbols)

Once the appliance is installed and loaded, access to it is not so easy.

CAUTION: no assistance can be provided without this information.

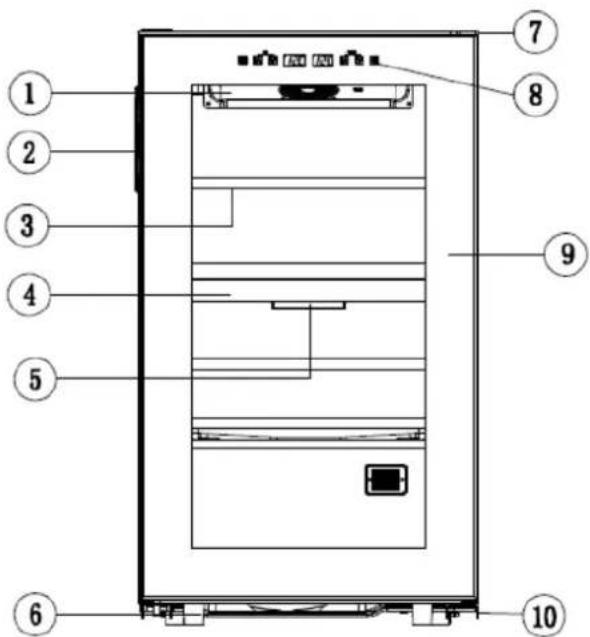

3. DESCRIPTION OF THE APPLIANCE

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

The temperature of the device is adjustable between 5^ C and 18^ C. Temperature regulation is carried out by a thermostat. Changing the temperature generates higher energy consumption.

When the ambient temperature is 25^ C and the device has no bottle charged, it will take about 50 minutes to increase the temperature of the device from 5^ C to 12^ C.

Under the same circumstances, it will take about one hour to decrease the temperature of the device from 12^ C to 5^ C.

The setting temperature of the upper zone should be lower than that of the lower zone. The device guarantees that the temperature is maintained as long as it is in operation and used under normal conditions of use. The temperature inside the appliance and its energy consumption can be influenced by many factors: ambient temperature, exposure to sunlight, number of door openings and quantity stored... Slight changes in temperature are perfectly normal.

EPREL

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

4. INSTALLATION INSTRUCTIONS

Before using this appliance

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

- When disposing your appliance, please choose an authorized disposal site.

- Place your wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the wine cooler.

- Adequate ventilation is required, do not block the front air outlet.

- This wine cellar is designed for free-standing only, in no case it must be installed in a built-in or embeddable way. For a good functionality of the device it is imperative to leave a good air circulation all around the device. We do not take responsibility for failure to comply with the installation instructions.

- Connect the appliance to a single socket, leaving enough space for ventilation around the appliance. Be careful to support it, so that your wine cellar is perfectly level (use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

- This appliance is intended to be used exclusively for the storage of wine.

- This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation.

Caution

• Store wine in sealed bottles.
• Do not overload the cabinet.
• Do not open the door unless necessary.

- Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.

- Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming.

CAUTION: please keep the appliance away from substance, which can cause ignition.

- This refrigerating appliance is not intended to be used as a built-in appliance

- This appliance is intended exclusively for the storage of wine. It is recommended to set the wine cellar to 12 °C.

Ambient temperature ranges and climate class of the device:

When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. This device is suitable for operation in rooms with a very specific ambient temperature, this climatic class is indicated on the nameplate. The ambient temperature affects the interior temperature and humidity of your cellar. For optimal operation, your cellar settings are made for ambient temperatures of 23^ C to 25^ C.

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

5. USE INSTRUCTIONS

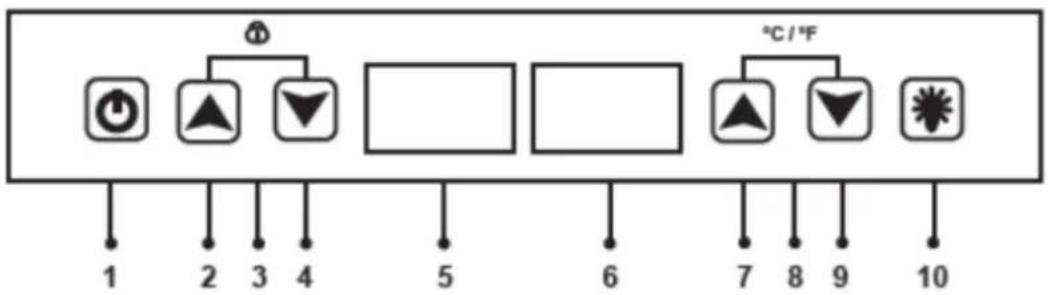

Control panel

1 2 3 4 5 6 7 8 9 10 ① °C / °F

Temperature range: 5-18°C.

1. ON / OFF key (keep pressed for 3 seconds)
2. Key to increase the set temperature by 1°C (upper zone)
3. Combined button for activating (automatic) / deactivating (keep both
4. buttons pressed for 3 seconds) child safety
5. Key to decrease the set temperature by 1°C (upper zone)
6. Display of the real temperature (upper zone)
7. Display of the real temperature (lower zone)

8. Key to increase the set temperature by 1°C (lower zone)

9. Combined button to set the temperature unit ^ C / ^ F (keep both buttons pressed for 3 seconds)

10. Key to decrease the set temperature by 1^ C (lower zone)
11. Lighting activation / deactivation button

IMPORTANT: to optimize the operation of the appliance, it is important to set the temperatures respecting a difference of 10^ C maximum between the upper and lower compartment (18 and 8^ C for example).

Door Reverse:

Please the door is not reversible as control is put on the door.

6. EQUIPMENT

The climate control system

According to advice from specialists, the ideal temperature for storing wine is around 12^ C, within a bracket of 10 to 14^ C. Do not confuse this with service temperature, which varies between 5 and 20^ C, depending on the specific nature of the wine.

It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.

The anti-vibration system

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.

Defrosting

Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

Shelves

• To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.
• For easier access to the contents of the shelves, slide the shelf out approximately one third of the way. The shelves are, however, fitted with a stop

to prevent the bottles falling out.

- To remove or reposition the shelves, incline the shelf as indicated in the diagram, then push or pull as required.

Simple line drawing of a door with an arrow indicating upward motion (no text or symbols)

7. LOADING

The advertised capacity is measured according to the EN62552 standard. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottle format as well as the addition of shelves will considerably reduce the storage capacity. The maximum capacity is calculated with a defined number of shelves which vary according to the models.

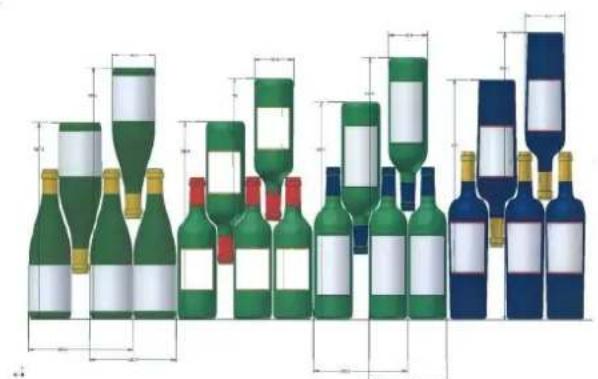

Types of bottle:

Illustration of multiple wine bottles with green and white labels, arranged in rows with dimension lines (no text or symbols)

We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. You will note the storage differences depending on bottle heights, diameters and alternating position method.

For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

Criss-crossing types

Top-to-bottom neck-to-neck:

Note the difference in depth!

Top-to-bottom neck between bottle bodies:

Increased loading.

Two green plastic bottles with red caps, connected by a line (no text or symbols)

Top-down view of three green wine bottles with red caps, arranged in a staggered layout (no text or symbols visible)

Examples of serving temperatures

Opinions vary, and the ambient temperature too, but many people agree on the following:

Prestigious Bordeaux wines – Reds 16 – 17°C

Prestigious Burgundy wines – Reds 15 – 16°C

Prestigious dry white vintages 14 – 16°C

Light, young, fruity reds 11 – 12°C

Provence rosés, primeur wines 10 – 12°C

Dry whites and vin de pays reds 10 – 12°C

Vin de pays whites 8 – 10°C

Champagnes 7 – 8°C

Sweet wines 6°C

8. CARE AND MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow drying before reconnecting. Do not use solvents or abrasives.

When the appliance is switched on for the first time, there may be a residual odor. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odors.

In case of a power cut

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

- If the appliance is disconnected or if there is a power cut, you must wait three to five

minutes before re-starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).

- When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilize.

Vacation time

• Short vacations: leave the wine cooler operating during vacations of less than three weeks.
• Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving your wine cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• The appliance is properly plugged in
• There is not a power cut in progress
• The breakdown is not one of those described in the table at the end of this manual

IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are made available to professional repairers and end users for a period of 7 years or 10 years (List in Annex II, point 3.a.1 and 3.a.2) from the time the last unit of the model is placed on the market. The list of spare parts and the procedure for ordering them (professional access / special access) are available on the following website: www.interfroidservices.fr or by post at the following address: FRIO - Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 10 years. The manufacturer's warranty is 1 year for functional parts.

10. PROBLEMS AND SOLUTIONS

You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your after-sales department. Try the following suggestions.

Error code Description

L1: Open circuit of temperature probe

L2: Short circuit of temperature probe

F1: Open circuit of fan in upper zone

F2: Open circuit of fan in lower zone

HOO: High temperature alarm: When temperature is over 25^ C for over 6 hours

LOO: Low temperature alarm: When temperautre is below 2°C for over 6 hours

Replacing light

This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your wine cellar, the LEDs were defective, please contact your after-sales service for any intervention.

Problem and possible causes

PROBLEM	POSSIBLE CAUSES
Appliance is not running	Appliance is not plugged inAppliance is not turned onCheck if voltage of the installationCheck the circuit breaker or if fuse has blown
Appliance is not cold enough	Check the temperature control settingCheck if ambient temperature is beyond appliance operating temperatureThe door is opened too frequentlyThe door is not closed properlyThe door is not sealing properlyInsufficient free space around the appliance
The compressor starts and stops frequently	The external temperature is high.A large quantity of bottles has been put into the cellar.The appliance is opened frequently.The door is not properly closed.The cellar has not been correctly set.
LED lights do not operate	The appliance is not plugged inThe fuse has blownLED lights are not brokenThe light switch is off
Vibration	Check and ensure that the appliance is level
The appliance makes a lot of noise	A noise resembling circulating water is produced by the coolant gas and this is normal.At the end of a cooling cycle, you can hear the noise of water circulating.Expansion and contraction of the internal walls may cause a cracking sound.The appliance is not levelCheck if fan is in good condition
The door does not close properly	The appliance is not level.The door seal is dirty or damaged.The shelves are not positioned correctly.A part of the contents is preventing the door from closing.
LED display is not working properly	Control panel failedPower PCB has brokenThe appliance is not plugged inThe probe is not working

11. ENVIRONMENT

This appliance is marked according to the European directive UE 2019/290/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

12. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers.

No part of these instructions may be considered as a supplementary guarantee.

FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document.

Technical line drawing of a multi-level rack cabinet or enclosure with no visible text or symbols

Warning sign depicting a flame symbol in a yellow triangle with black border

R600a

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments or features.

Simple line drawing of a door frame with an arrow indicating upward motion (no text or symbols)

7. CARGA

Illustration of multiple wine bottles with colored labels and white outlines, no text or symbols present

Three green plastic bottles with red caps, arranged in a row (no text or symbols visible)

Technical line drawing of a multi-level rack cabinet or storage unit (no text or symbols visible)

Reparatie

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

R600a

Made in PRC

FRIO Entreprise - La Sommeliere

143 Bld Pierre Lefaucheux

72230 Arnage (France)

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments or features.

Simple line drawing of a door frame with an arrow indicating upward motion (no text or symbols)

7. LADEN

Illustration of various wine bottles with green and blue labels, arranged in rows (no text or symbols)

Three identical green plastic bottles with red caps, arranged in a row (no text or symbols visible)

Technical line drawing of a multi-level rack cabinet or enclosure with no visible text or symbols

Warning sign depicting a flame symbol in yellow and black on a triangle, indicating hazardous hazard or hazard status.

R600a

Empty rectangular frame with black border (no text or symbols)

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments or features.

Simple line drawing of a mechanical device with a handle and load, no text or symbols present

7. CARICO

Illustration of multiple wine bottles with green and blue colors, some labeled with white and red labels (no text or symbols present)

Tipi di bottiglie:

Three identical green plastic bottles with red caps, arranged in a row (no text or symbols visible)
