Silk-épil 5-513 - Epilator BRAUN - Free user manual and instructions

Product type	Cordless electric epilator
Brand	Braun
Model	Silk-épil 5-513
Use	On dry or wet skin, in the shower
Power supply	Rechargeable battery, special cable included
Charging time	Approximately 1 hour
Battery life	Approximately 30 minutes
Charging indicator	Blinks while charging, stays on when charged
Speeds	2 (speed I and II)
Included accessories	Skin contact accessory, massage accessory, beginner cap (depending on model)
Epilation head	Removable, with tweezers
Cleaning	Head and accessories washable under water
Waterproof	Yes, usable in water
On/off button	Yes, with speed selection
Warranty	2 years
Operating conditions	Ambient temperature 15-35 °C
Battery type	Integrated rechargeable battery
Battery replacement	By a Braun authorized service center
Beginner cap	For first uses, combines epilation and shaving
Epilation tips	Hairs of 2 to 5 mm recommended
Special cable length	Not specified

Frequently Asked Questions - Silk-épil 5-513 BRAUN

How to charge the epilator?

Connect the special cable (6) to the switched-off device and to a power outlet. The charging indicator blinks. Full charging takes about 1 hour. The indicator stops blinking and stays on when the battery is full.

Can I use the epilator in the shower?

Yes, the device is waterproof and can be used in the shower, cordless. Make sure your skin is well moistened and you can use a shower gel to improve glide.

How long does the battery last?

Fully charged, the battery life is about 30 minutes. Use under water may reduce this life. Recharge after each use for optimal performance.

How to clean the epilation head?

First remove the accessory (1, 7 or 8) and rinse it under water. To remove the epilation head, press the ejection button (5). On dry skin, clean the tweezers with the provided brush. On wet skin, rinse the head under water.

What to do if epilation is painful?

Pain decreases with regular use. Start with speed I, especially for sensitive areas (underarms, bikini line). Use the massage accessory to stimulate the skin and reduce discomfort. Epilate in the evening to let redness fade.

How to use the beginner cap?

The beginner cap (8) combines epilation and shaving, to be used on wet skin with shaving foam or gel, only on legs. Use it once a week for the first 4 weeks, then switch to normal accessories. Replace after 12 uses.

What is the ideal hair length for epilation?

Epilation is easier and more comfortable when hairs are between 2 and 5 mm. If they are longer, shave first and let them grow back for 3 to 5 days.

Is the device under warranty?

Braun offers a 2-year warranty from the date of purchase, covering manufacturing defects. It does not cover damage due to improper use or normal wear. For any claim, return the device with proof of purchase to an authorized service center.

Can I replace the battery myself?

No, the rechargeable battery is integrated and can only be replaced by a Braun authorized service center at the end of its life.

How to turn off the device?

Press the on/off button (4) until the device turns off. There are two speeds: press once for speed I, a second time for speed II, and a third time to turn off.

USER MANUAL Silk-épil 5-513 BRAUN

3D rendered diagram of a white plastic object with a curved top and internal structure, labeled with number 1 (no text or symbols on the object itself)

	5-513	5-514
7		√
-ZW22]	√

* INGREDIENTS: PEG-115M, PEG-7M, PEG-100, SILICA, ALOE BARBADENSIS LEAF JUICE, PENTAERYTHRITYL TETRA-DI-T-BUTYL HYDROXYHYDROCINNAMATE, TOCOPHERYL ACETATE, TRIS(DI-T-BUTYL)PHOSPHITE, VITIS VINIFERA (GRAPE) SEED OIL, PERSEA GRATISSIMA (AVOCADO) OIL, BHT, GLYCOL

Deutsch

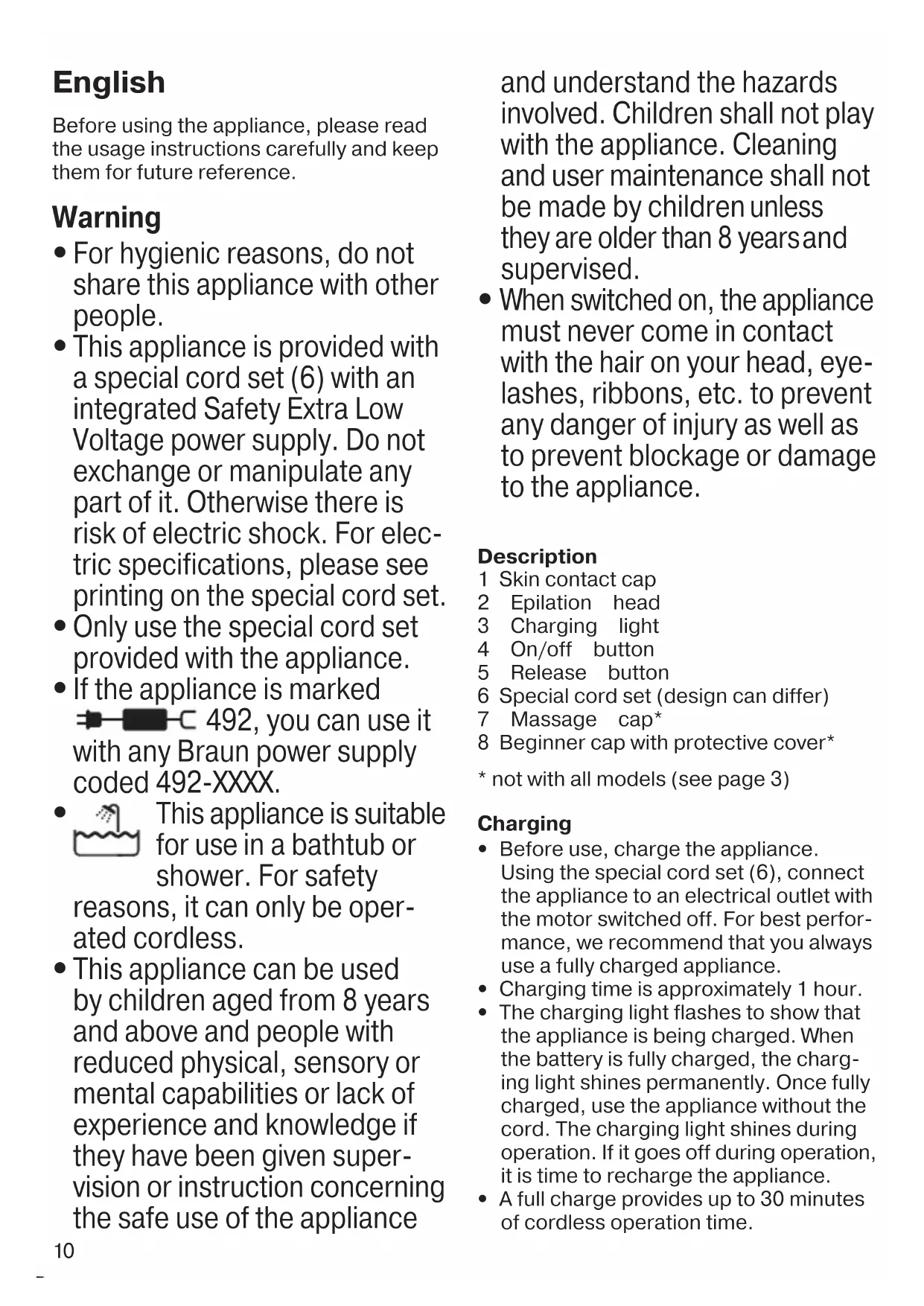

Before using the appliance, please read the usage instructions carefully and keep them for future reference.

Warning

• For hygienic reasons, do not share this appliance with other people.
• This appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. For electric specifications, please see printing on the special cord set.

- Only use the special cord set provided with the appliance.

- If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

• This appliance is suitable for use in a bathtub or shower. For safety reasons, it can only be operated cordless.

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance

and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

- When switched on, the appliance must never come in contact with the hair on your head, eye-lashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

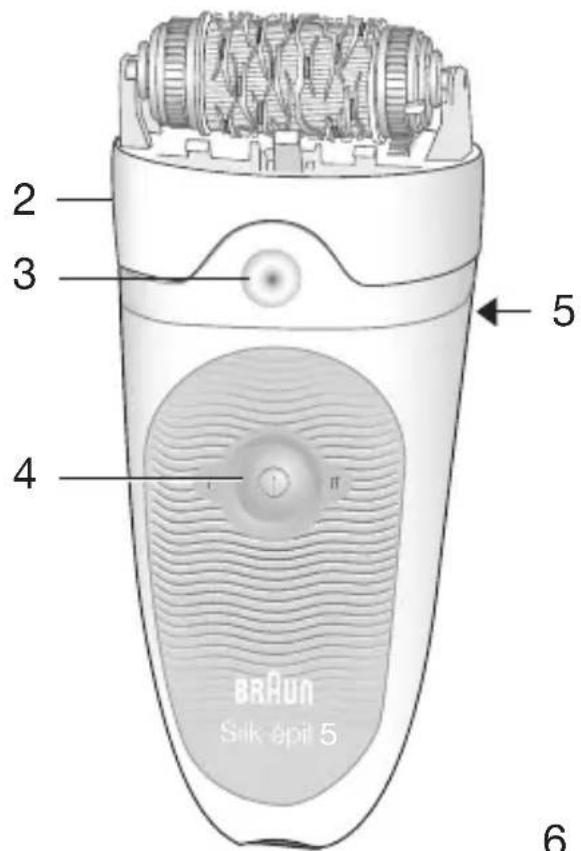

Description

1 Skin contact cap
2 Epilation head
3 Charging light
4 On/off button
5 Release button
6 Special cord set (design can differ)
7 Massage cap*
8 Beginner cap with protective cover*

* not with all models (see page 3)

Charging

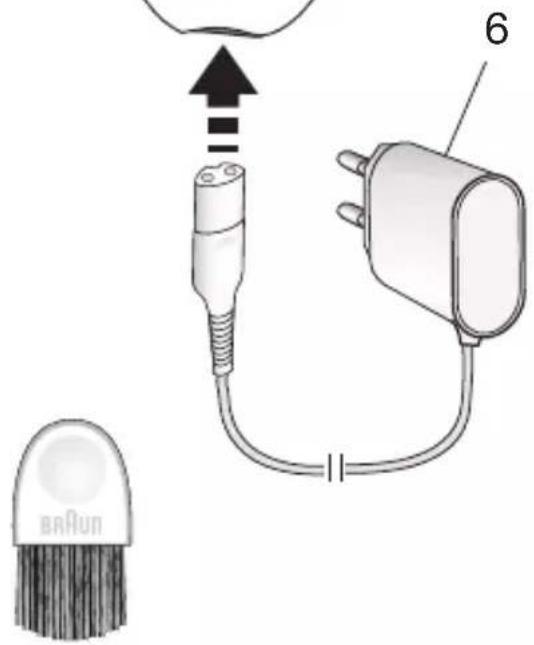

• Before use, charge the appliance. Using the special cord set (6), connect the appliance to an electrical outlet with the motor switched off. For best performance, we recommend that you always use a fully charged appliance.
• Charging time is approximately 1 hour.
• The charging light flashes to show that the appliance is being charged. When the battery is fully charged, the charging light shines permanently. Once fully charged, use the appliance without the cord. The charging light shines during operation. If it goes off during operation, it is time to recharge the appliance.

• A full charge provides up to 30 minutes of cordless operation time.

• The best environmental temperature for charging, using and storing the appliance is between 15 °C and 35 °C. In case the temperature is beyond this range, the charging time might be longer whereas the cordless operation time might be reduced.

• At the end of its lifetime, the rechargeable battery can be replaced at an authorized Braun Service Centre.

Switching on

Push the on/off button (4) to switch on (speed 1).

Push a second time to switch to speed 2. Push one more time to turn off the appliance.

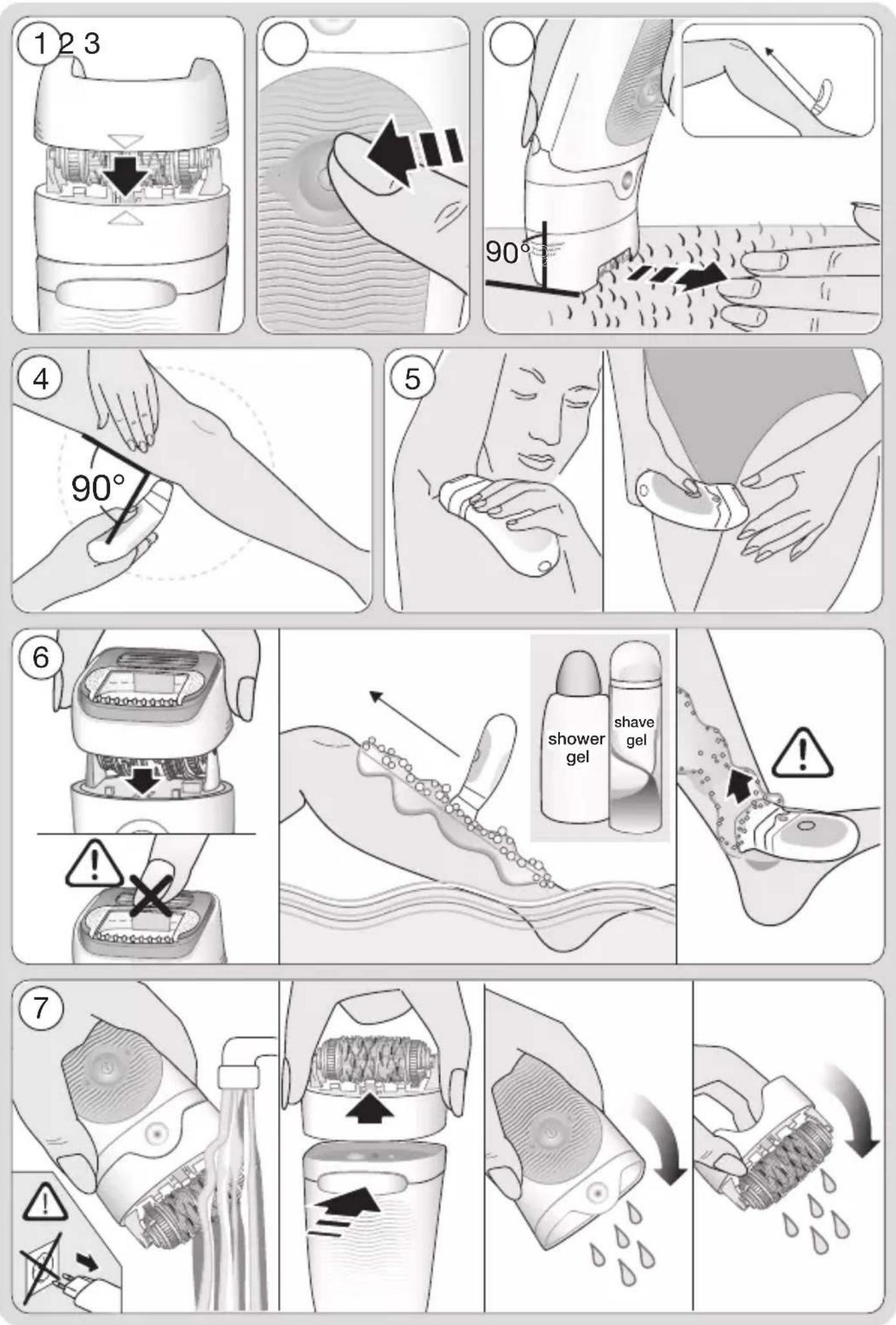

Epilation

• When epilating on dry skin, your skin must be free from grease or cream.
• The appliance can be used on wet skin, even under running water. Make sure that the skin is very moist. In order to achieve optimum gliding conditions for the appliance, you may use a shower gel while epilating.

The epilation head (2) is equipped with different caps (1, 7 or 8 depending on model). Choose the cap according to your needs:

Skin contact cap (1): provides a close skin contact and adapts to all body areas.

Massage cap (7): can be used instead of the skin contact cap (1). It stimulates the skin to make the epilation process more comfortable.

Always stretch your skin while epilating. Hold the appliance at a right angle (90°) against your skin and guide it in a slow, continuous motion against the hair growth in the direction of the switch.

Use on legs: Epilate your legs in an upward direction. When epilating behind the knee, keep the leg stretched out straight. Keep your leg stretched out straight when removing hair in the area behind the knee.

Use on underarm and bikini zone: Since these areas are sensitive to pain, start with speed I. With repeated usage, the pain sensation will diminish. Before epilating, thoroughly clean the respective area to remove residues (like deodorant). When epilating the underarm, keep your arm raised up and guide the appliance in different directions in order to catch all hairs that might grow in various directions.

Beginner cap (8) for first time users: combines epilation and shaving to help getting used to hair removal from the root. It has been designed for wet usage on legs only. Always apply shave foam or gel on your wet skin when using the beginner cap.

In the beginning phase (first 4 weeks), use the epilator with the beginner cap once a week to epilate and shave. Take special care on bony, uneven skin areas in order to avoid injuries caused by the blades. Between usages, rinse off the foam built up on the beginner cap. After 4 weeks, you will be used to hair removal and can switch to epilation using the skin contact (1) or massage cap (7). If you want to continue to use the beginner cap, make sure to replace it after 12 usages (or in case the blade shows signs of wear, kinks, or damage). Replacement caps (reference #771WD) are available from the retailer where the appliance was bought, from Braun Service Centres or via www.service.braun.com.

Epilation tips

• If you have not used an epilator before, or if you have not epilated for a long period of time, it may take a short time for your skin to adapt to epilation.
  The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process.
• When epilating for the first time, it is advisable to epilate in the evening, so

that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisturizing cream after epilating.

• Epilation is easier and more comfortable when the hair is at the optimum length of 2 to 5 mm. If hairs are longer, we recommend that you first shave and epilate the shorter, re-growing hairs after 3 to 5 days.
• Fine, re-growing hairs might not grow up to the skin surface. Exfoliation helps preventing in-grown hairs by scrubbing/removing the upper skin layer so that fine hairs can get through to the skin surface.

Cleaning the epilation head

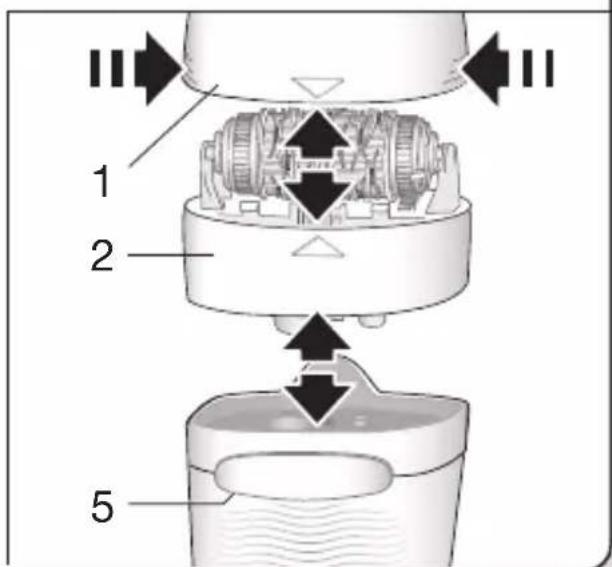

Regularly cleaning the epilation head ensures good hygienic conditions. First remove the cap used (1, 7 or 8) and rinse it under running water. To remove the epilation head, press the release button (5).

Dry: Thoroughly clean the tweezers element using the cleaning brush.

Wet: After each wet usage (especially with gel), clean the epilation head under running water. During cleaning, turn on the epilator for a few seconds. Re-attach one of the caps only when the epilation head is completely dry.

General information on epilation

All methods of hair removal from the root can lead to in-grown hairs and irritation (e.g. itching, discomfort or reddening of the skin), depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair from the root for the first few times or if you have sensitive skin.

If after 36 hours the skin still shows irritation, we recommend that you contact your physician.

In general, the skin reaction and the sensation of pain tend to diminish considerably with repeated use of Silk-épil.

In some cases inflammation of the skin

could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimize the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles), varicose veins, around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, immune deficiency or candida.

Disposal

The products contain batteries and recyclable electronic waste.

To protect the environment, do not dispose of them in the household waste, but take them to appropriate local collection points.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français
