AF-130646.1 - Deep fryer Emerio - Free user manual and instructions

Product Type	Air Fryer
Brand	Emerio
Model	AF-130646.1
Power Supply	220-240 V ~ 50/60 Hz
Power	1000 W
Maximum French Fry Capacity	250 g
Temperature Control	Yes, mechanical (range not specified)
Timer	Yes, mechanical with auto shut-off
Indicator Lights	Power and heating indicator lights
Basket Material	Steel with non-stick coating
Removable Cooking Rack	Yes, with silicone feet
Basket Handle	Heat-insulated (cool-touch handle)
Non-slip Feet	Yes, silicone
Dishwasher Safe	Basket and rack compatible
Maintenance	Regular cleaning of heating element with a brush
Safety	Auto shut-off after cooking, overheat protection (according to standards)
Safety Distance	10 cm around and above
Usage	Household use only
Warranty	2 years

Frequently Asked Questions - AF-130646.1 Emerio

How to preheat the fryer?

Turn the temperature dial to the desired temperature and set the timer for 3 minutes without ingredients. Once preheating is complete, add the food and set the cooking time.

Can I use oil in the fryer?

Yes, a small amount of oil can be added to food for extra crispiness, but never pour oil into the empty basket. The fryer mainly uses hot air.

Why is my fryer emitting white smoke?

White smoke is normal when cooking fatty foods (e.g., sausages). Fat drips into the basket and produces smoke. Clean the basket after each use to avoid residue.

How to clean the basket and rack?

Wash the basket and rack with warm soapy water or in the dishwasher. Dry them completely before reusing. Do not use abrasive cleaners.

The fries are not crispy, what to do?

Make sure to dry the fries well after rinsing. Cut them thinner for more crispiness. Add a little oil and shake halfway through cooking.

What is the maximum capacity for fries?

The optimal amount is 250 grams of fries per batch. Do not exceed this limit for even cooking.

Can I reheat food with this fryer?

Yes, set the temperature to 150 °C and the time to 10 minutes to reheat food. The fryer is not designed to reheat liquids.

The appliance does not turn on, what to check?

Check that the cord is plugged into a power outlet. Ensure that the timer is set to a duration (at least 1 minute). If the problem persists, contact customer service.

Food cooks unevenly, why?

Shake the basket halfway through cooking to stir the food. Make sure not to overfill the basket.

Can I use parchment paper in the fryer?

Yes, you can place parchment paper in the basket, but always remove it after use. Do not use it during preheating without food.

USER MANUAL AF-130646.1 Emerio

Black air fryer with control knobs and lid, no visible text or symbols

Abstract black logo design with three curved shapes and a registered trademark symbol (no text or labels)

Smart Fryer

(EN)

(DE)

(FR)

(NL)

(PL)

CE

Content – Inhalt – Teneur – Inhoud – Treść

Instruction manual – English ...... - 2 -

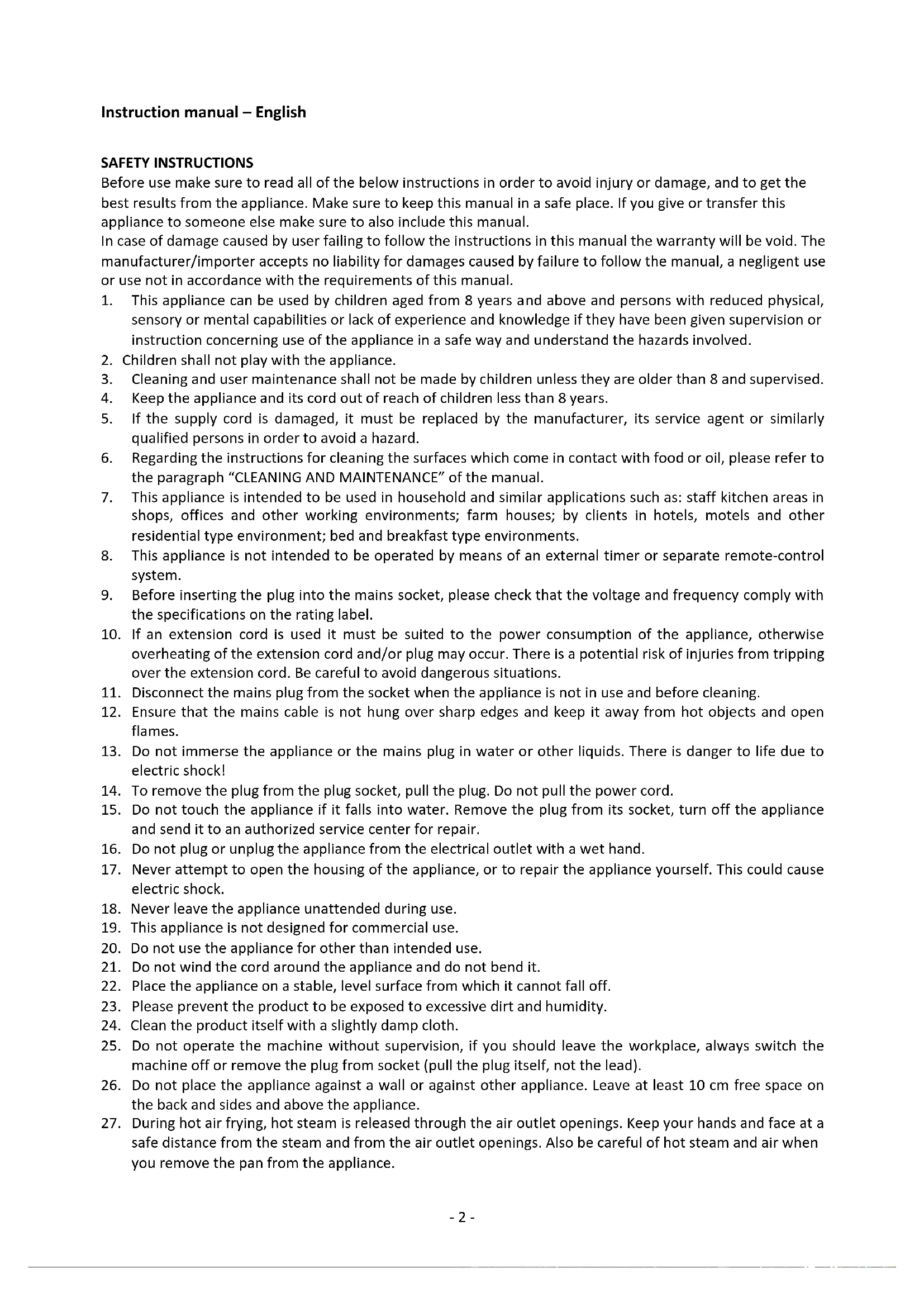

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.

7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

8. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. Please prevent the product to be exposed to excessive dirt and humidity.

24. Clean the product itself with a slightly damp cloth.

25. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).

26. Do not place the appliance against a wall or against other appliance. Leave at least 10 cm free space on the back and sides and above the appliance.

27. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

28. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

29. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

30. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.

31. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Always remove baking paper from the basket after use and before/ during preheating without food.

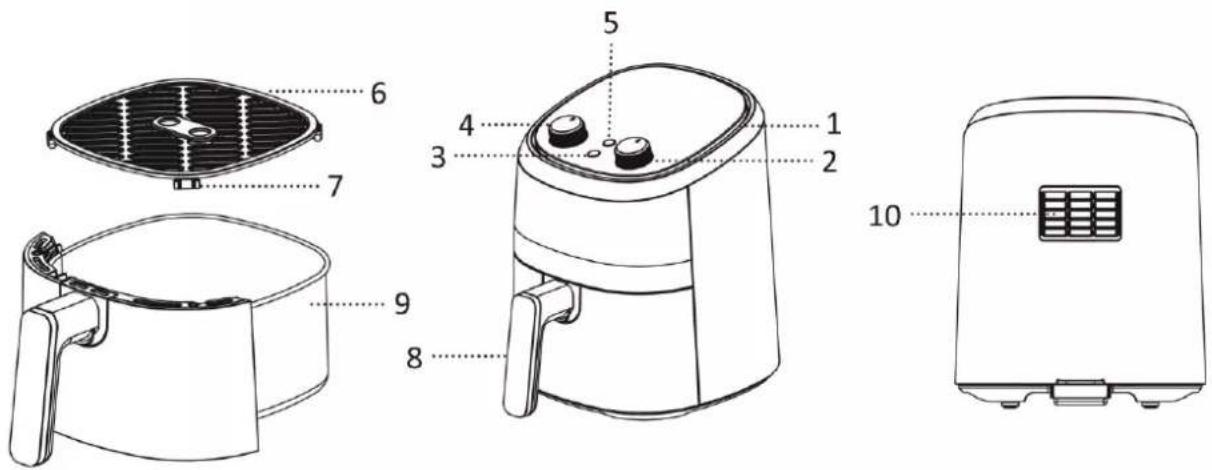

PARTS DESCRIPTION

1. Air inlet
2. Temperature control knob
3. Heating light
4. Timer knob
5. Power light
6. Frying grill
7. Silicone feet
8. Basket handle
9. Basket
10. Air outlet

BEFORE USE

First read all instructions before use and retain for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See “CLEANING AND MAINTENANCE”) Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable surface.

2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.

3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.

4. Place the ingredients into the basket. Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Caution: Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet.

6. Set the temperature control knob to the required temperature setting, which is suitable for what you are frying. Consult the temperature table.

7. Turn the timer knob to choose the appropriate frying time. The appliance is switched on.

8. The power light illuminates when the appliance is switched on. The heating light comes on and goes out from time to time during the hot air frying process. This indicates that the heating element is switched on and off to maintain the set temperature.

9. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "OFF".

10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance and set the timer to a few extra minutes.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the basket.

1. To remove ingredients (e.g. beef, chicken, meat) with original oil and which will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one.,

To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The optimal amount for crispy fries is 250 grams.

2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also preheat the appliance without any ingredients inside.

3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.

4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.

5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.

6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.

7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.

2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.

3. Keep all ingredients in the basket to prevent any contact with heating elements.

4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10 cm free space around and above the appliance.

5. Filling the basket with oil may cause a fire hazard!

6. Do not touch the inside of the appliance when it is in operation.

7. Be careful of the hot steam and air when you remove the basket from the appliance.

8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.

9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed.

Type	Food ingredient amount	Time (minutes)	Temperature (°C)	Additional information
Chips	250 g	18-20	200	Shake once
Meat	250 – 300 g	15-20	200	Turn over once
Chicken wings	4 – 6 pieces	13-16	200	Turn over once
Cake	4 cups	16-18	160
Drumstick	4 – 6 pieces	18-22	200	Turn over once
Beef steak	250 – 300 g	12-15	200	Turn over once
Fish	250 – 300 g	18-20	180	Turn over once

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pulling out the basket) with a cleaning brush to remove any food residues.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is over.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The temperature is too low.	Turn the temperature control knob to the required temperature.
	The cooking time is too short.	Turn the timer knob to the required time for cooking.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway.	Shake food halfway.
White smoke comes out from the appliance.	You are preparing greasy ingredients.The basket still contains grease residue from previous use.	When you fry greasy ingredients, oil will leak into the basket. The oil produces white smoke and the basket may heat up. This does not affect the cooking result or hurt the appliance.Clean the basket properly after each use.
Fried snacks are not crispy.	You used a type of snacks which shall be cooked in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
Fresh fries are fried unevenly.	You haven’t used the right potato type.	Use fresh potatoes.
	You haven’t rinsed the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands

1. Attention, surface chaude

ROZWIAZYWANIE PROBLEMÓ W
