Product type	Canister vacuum cleaner, with bag, without bag
Brand	Eureka
Model	PowerSpeed NEU202C
Power supply	Mains, 120 V, 60 Hz
Power	12 A
Dust cup type	Bagless, transparent
Dust cup capacity	Approximately 1.5 L
Filtration type	Washable foam filter and filter receptacle
Weight	Approximately 5.4 kg
Dimensions (L x W x H)	Approximately 30 x 30 x 107 cm
Cord length	Approximately 7.6 m
Height adjustment	Yes, mechanical
Cord rewinding	Yes, by foot pedal
Included accessories	Turbo brush, crevice tool, furniture brush, dusting brush
Brush roll	Rotating, replaceable
Belt	Replaceable
Warranty	2 years limited
Customer service	1-800-282-2886
Country of manufacture	China

Frequently Asked Questions - PowerSpeed NEU202C EUREKA

How to assemble the Eureka PowerSpeed NEU202C vacuum cleaner?

Place the main body upright. Insert the wand into the upper part and push until you hear a click. Then, route the hose under the retainer and firmly push the free end onto the hose inlet. Finally, store the accessories on the back.

How to empty the dust cup?

Press the release latch and lift the dust cup. Hold it over a trash can, press the lever to open the bottom lid and empty the debris. Close the lid until it clicks.

How often to clean the filters?

Washable filters should be cleaned every month. Lift the foam filter, shake it, rinse it and let it dry completely. Similarly, remove the filter receptacle, turn it counterclockwise, shake off dust, rinse and dry.

What to do if there is no suction?

First check that the dust cup is not full and that the filters are clean. Then inspect the hose and wand for blockages. Use a blunt rod to dislodge debris. Bend the hose to release blockages.

How to replace the belt?

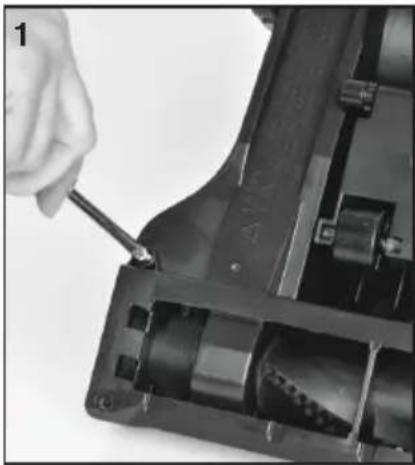

Unplug the vacuum. Lower the handle and turn the unit over. Remove the six screws of the brush roll cover with a Phillips screwdriver. Lift out the brush roll, place the new belt around the motor shaft and wrap it around the brush roll axle. Reinsert the brush roll aligning the end cap.

The vacuum stops suddenly, what to do?

This is a thermal cut-off due to overheating. Turn the switch to OFF and unplug. Check that the cup is not full, the hose is not clogged and the filters are clean. Wait at least 30 minutes, then plug back in and turn on. If the problem persists, contact customer service.

How to use the accessories?

Place the vacuum in upright position. Turn the height adjustment to the highest setting. Pull the hose to release it from the inlet, push it into the top of the handle and turn clockwise. Press the release latch to remove the handle. Attach the desired accessory to the wand or directly to the hose.

How to store the power cord?

To rewind the cord, press the rewinding pedal located at the back. If the cord does not retract, pull it slightly and press again. Make sure there are no obstacles and the cord is not twisted.

What is the warranty of this vacuum?

Eureka offers a 2-year limited warranty from the original date of purchase, covering defects in materials and workmanship. It is valid only for the original purchaser in normal household use. Wear parts (filters, belts, brush roll) are not covered.

Where to find the serial number?

The serial number is on the label on the center back of the vacuum. Write it down along with the model and type for any parts order or service call.

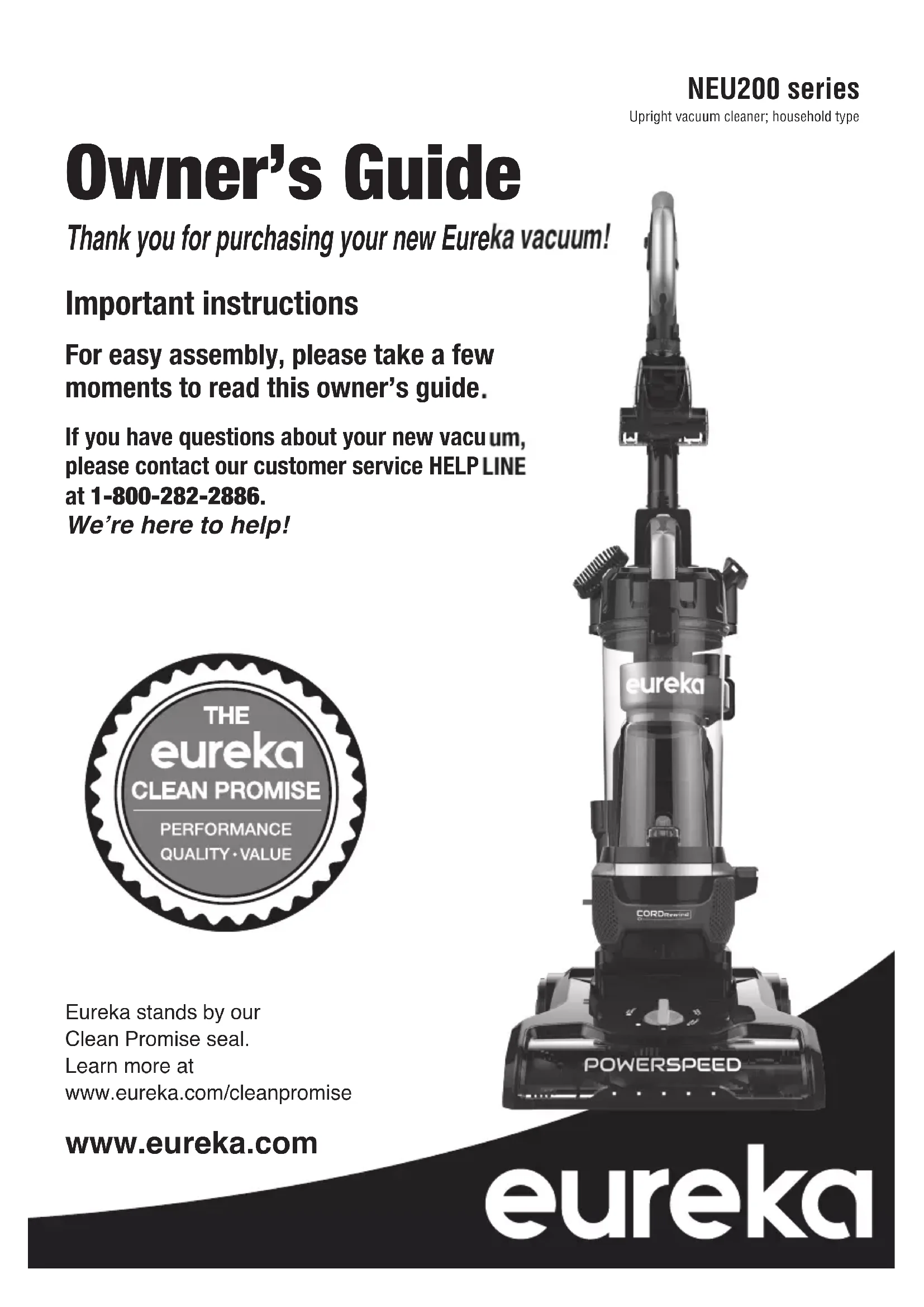

USER MANUAL PowerSpeed NEU202C EUREKA

Thank you for purchasing your new Eureka vacuum!

Important instructions

For easy assembly, please take a few moments to read this owner's guide.

If you have questions about your new vacuum, please contact our customer service HELP LINE at 1-800-282-2886.

We're here to help!

Eureka stands by our

Clean Promise seal.

Learn more at

www.eureka.com/cleanpromise

www.eureka.com

eureka

Where to find important vacuum information

Keep this information

Write the model, type and serial number here:

Date of purchase (keep your receipt) ____

Model number and type

Serial number

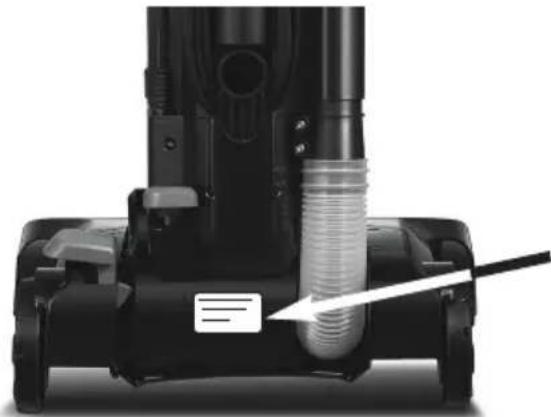

Find these numbers on a label on the middle back side of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed.

Close-up of a black industrial vacuum cleaner with a coiled hose and pipe, showing mechanical components without any text or symbols.

This Owner's Guide provides important instructions to prolong the life of your Eureka vacuum cleaner.

Registration: To register your product visit www.eureka.com and click on the ‘Register Your Product’ link in the top right corner.

Inspection: Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka Customer Service HELPLINE at 1-800-282-2886 immediately.

Contents

Important safeguards....3

What comes in the carton 4

How to assemble your vacuum cleaner. 5

How to identify parts of your vacuum cleaner . . . . . . . . . . . . . . 6

How to use your vacuum cleaner 7

How to use accessories....8

How to maintain dust cup and filters 9

How to clear a blockage 10

How to maintain brushroll 11

How to replace brushroll or belt 12

Problem solving....13

The Eureka two-year limited warranty....14

How to order replacement parts 15

Follow caution information wherever you see this symbol.

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER WARNING

To reduce the risk of fire, electric shock, or injury:

- Do not use outdoors or on wet surfaces.

- Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka Customer Service HELPLINE at 1-800-282-2886.

- Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

- Do not use extension cords or outlets with inadequate current carrying capacity.

- Turn off all controls before unplugging.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle plug or vacuum cleaner with wet hands.

- Do not put any objects into openings. Do not use with any openings blocked; keep

free of dust, lint, hair, and anything that may reduce airflow.

- This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning stairs. Place vacuum cleaner on floor with the handle in storage position while using attachments.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

- Do not use without dust cup, filter and screen in place.

- Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt.

- Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.

- Store your vacuum cleaner indoors in a cool, dry area.

- Keep your work area well lit.

- Unplug electrical appliances before vacuuming them.

- WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Motor

Do Not Oil the motor or the brush roll at any time. The bearings are permanently lubricated and sealed.

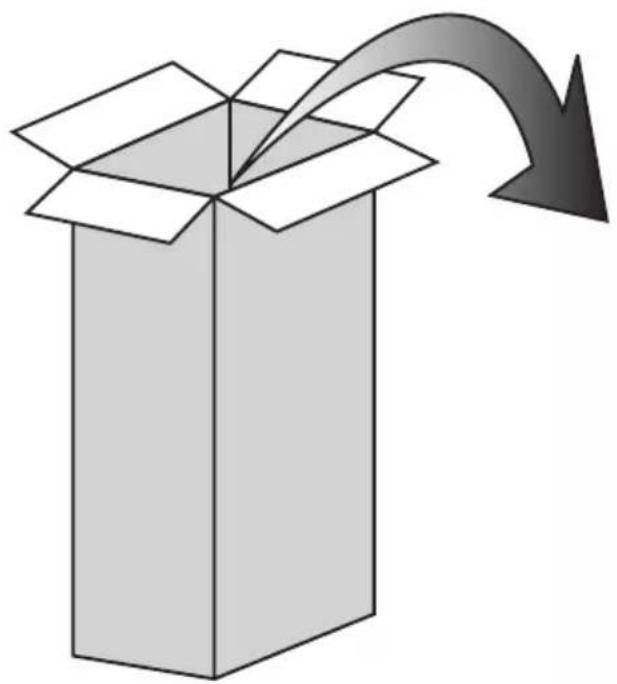

What comes in the carton

Illustration of a box with an arrow indicating direction, no text or symbols present

Important safeguards

Line drawing of a vacuum cleaner device with no text or symbols

Vacuum cleaner

Simple line drawing of a brush applying black powder onto a white surface (no text or symbols)

Simple line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Illustration of a bottle with a cap and internal components, no text or symbols present

Turbo brush
Handle

Accessories may vary depending on which model was purchased.

How to assemble your vacuum cleaner

Line drawing of a vacuum cleaner with attached base and top (no text or symbols)

Put the vacuum cleaner main body in the upright position.

Slide handle into top of vacuum cleaner. Push down until it clicks.

Technical line drawing of a mechanical assembly with no visible text or symbols

Store accessories on back of vacuum cleaner.

Technical line drawing of a mechanical assembly with a coiled spring and lever mechanism (no text or symbols)

Loop hose under the hose hook.

Technical diagram of a mechanical component with curved internal structure and directional arrow (no text or symbols)

Loop hose over hose retainer.

Technical diagram of a mechanical assembly with threaded component and directional arrow (no text or labels)

Push loose end of hose securely onto hose inlet.

Store turbo brush on front of handle. Align brush opening with slot and push to snap tool into clip.

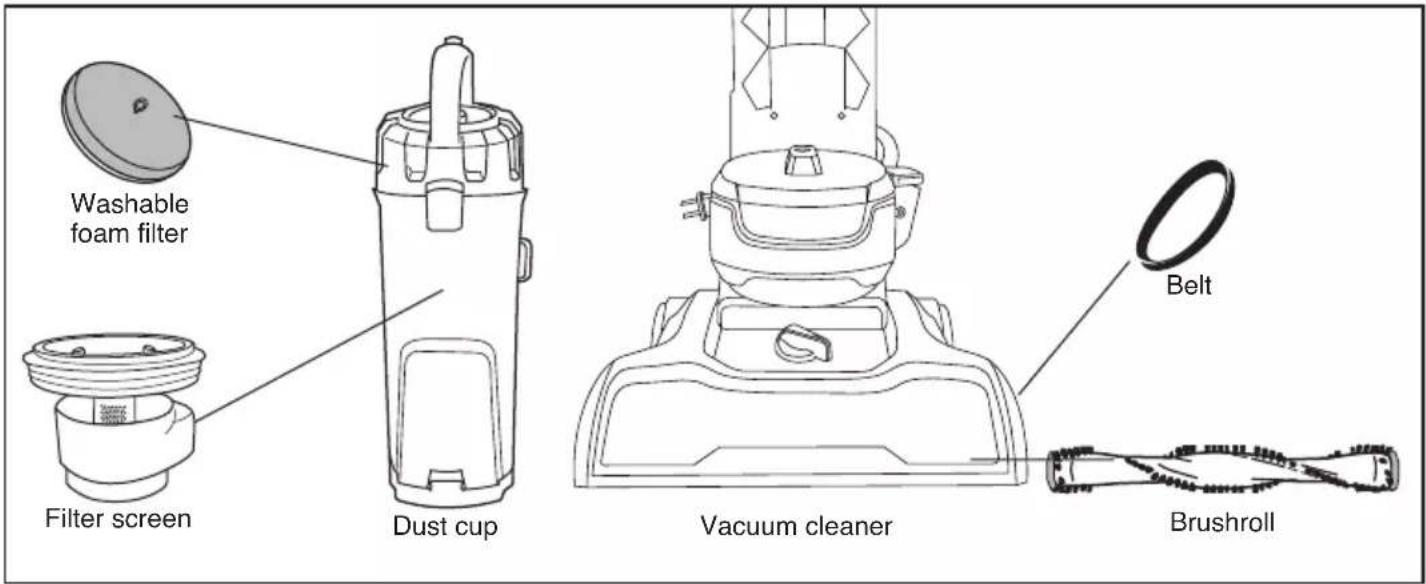

How to identify parts of your vacuum cleaner

For filter maintenance instructions, see page 9

How to use your vacuum cleaner

Line drawing of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols present)

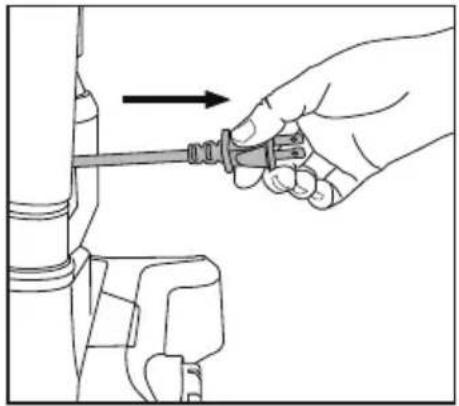

Grab onto the end of cord and pull it out until the yellow tape is visible.

Line drawing of a foot wearing a rubber hose and a shoe, with no visible text or symbols

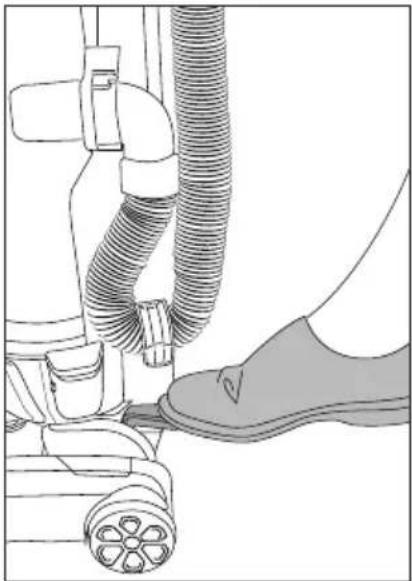

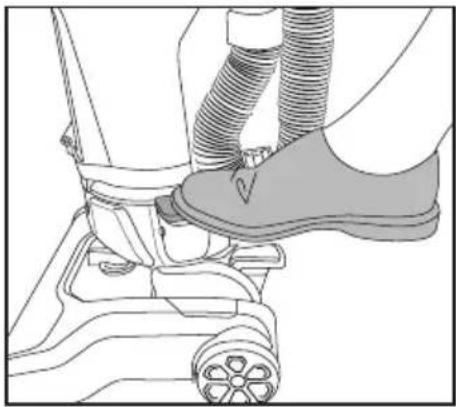

Step on the cord rewind pedal to retract the cord when needed.

Line drawing of a hand inserting a plug into an electrical socket (no text or symbols)

Plug power cord into outlet.

Line drawing of a mechanical device with a button and arrow indicating rotation (no text or symbols)

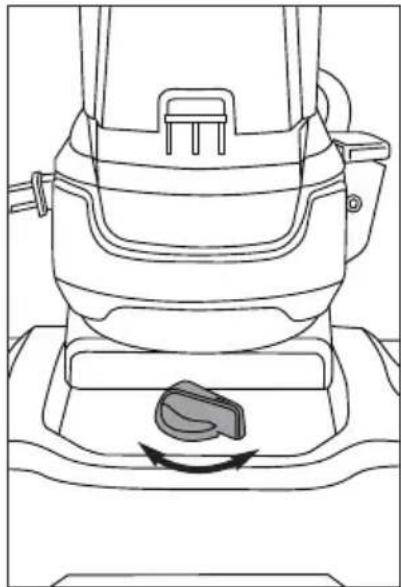

Turn height adjustment knob to adjust from bare oors to high pile carpet.

Line drawing of a hand pressing down on a rubber hose component (no text or symbols)

Step on power switch to turn vacuum cleaner on. Step on again to turn off.

Mechanical assembly diagram showing a foot pressing a rubber duck with an arrow indicating rotation (no text or symbols present)

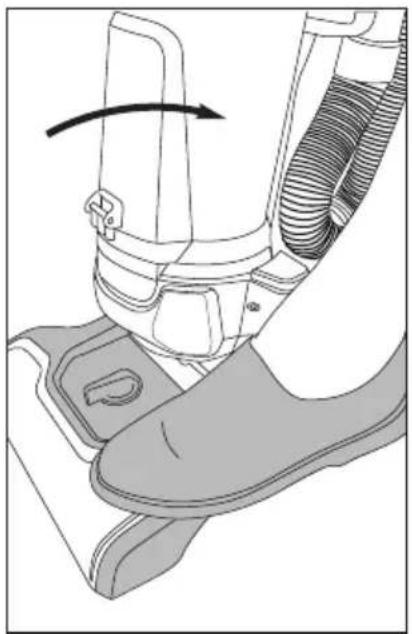

Step on front of the oor nozzle and recline the vacuum back from the handle to vacuum oors.

Empty dust cup after every use

Illustration of a hand operating a vacuum cleaner with hoses and a vertical pipe (no text or symbols visible)

Press release button and lift off dust cup.

Illustration of a hand using a tool to clean or store items in a container (no text or symbols visible)

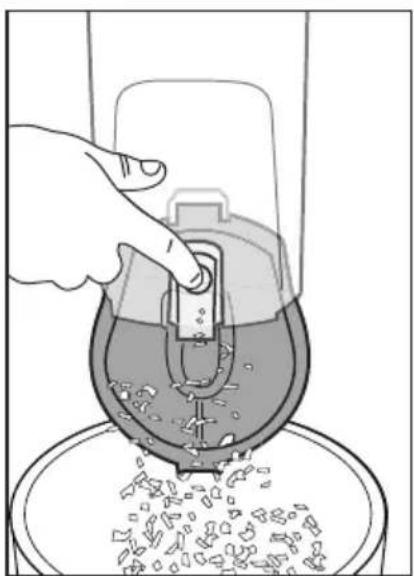

To empty debris, press lever to release bottom lid.

How to use accessories

CAUTION

When using tools, always place handle in upright position. Make sure vacuum cleaner is turned off while attaching tools.

• Place vacuum in upright position.
• Turn height adjustment knob to highest position.
• Pull up on hose connection to release hose end from hose inlet (Fig. 1).

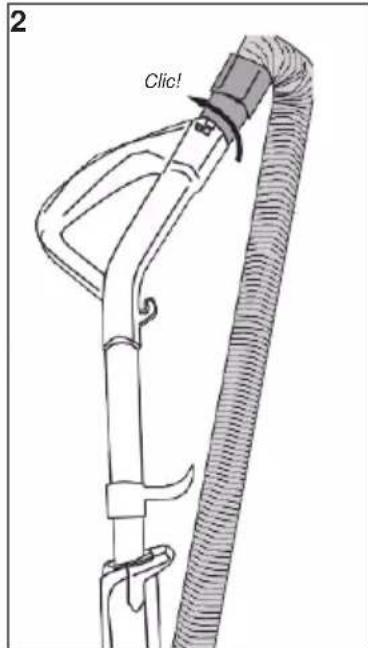

• Push end of hose into top of handle and twist clockwise until it clicks (Fig. 2).
• Press handle release latch and pull out handle with wand (Fig. 3).
• To attach accessories, push desired tool onto end of wand (Fig. 4).
• To use accessories without handle and wand, push desired tool directly onto end of hose (Fig. 5).
• When finished using accessories, twist hose counterclockwise and pull off handle. Slide handle into top of vacuum cleaner and push down until it clicks. Push loose end of hose securely onto hose inlet. Store tools on vacuum cleaner back. (See page 5.)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols present)

Crevice tool – Use for baseboard edges, corners, detailing chairs, sofas, dryer vents and tight spaces.

Upholstery tool – Use for furniture, chairs, sofas and mattresses.

Dusting brush – Use for furniture, drapes, blinds, drawers and vents.

Illustration of a mechanical device with a black cap and internal components (no text or symbols)

Turbo brush – Use to remove pet hair from stairs, carpet and upholstery.

How to maintain dust cup and filters

Dust cup – Empty after each use

Illustration of a hand operating a portable device next to a coiled tube (no text or symbols visible)

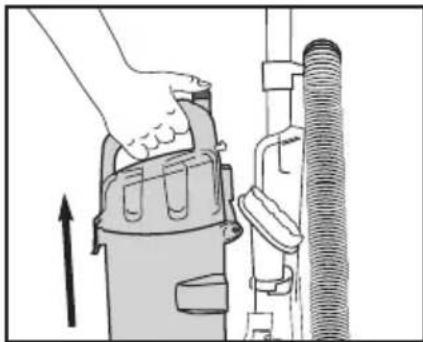

Press release button and lift off dust cup.

Illustration of a hand pouring liquid into a container with granular material (no text or symbols)

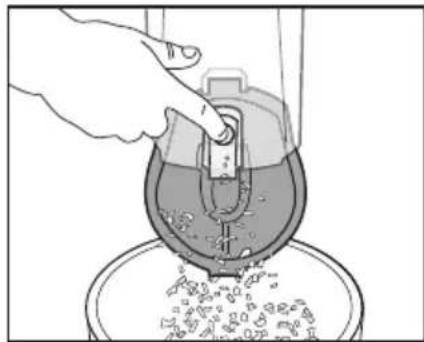

Hold dust cup over wastebasket and press lever to release bottom lid. Debris will empty.

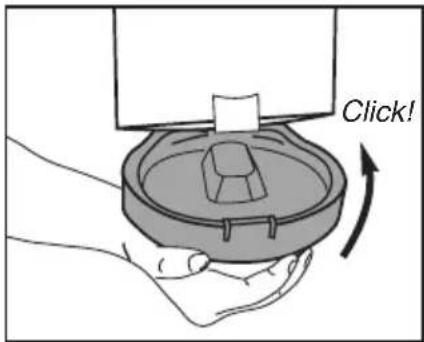

Close bottom lid until it clicks.

Washable dust cup filters – Clean monthly

Illustration of a hand holding a device with an arrow indicating rotational motion (no text or symbols)

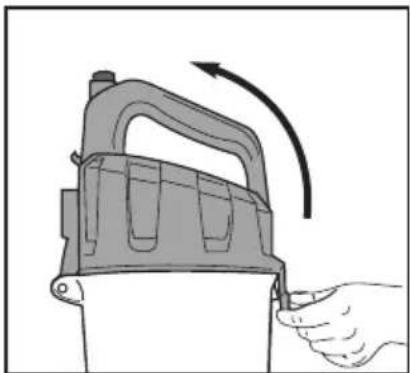

Pull dust cup latch to lift up dust cup lid.

Illustration of a hand placing a circular object onto a device, with an arrow indicating motion (no text or symbols)

Lift out foam filter and shake off dust. Rinse foam filter and dry THOROUGHLY.

Illustration of a hand holding a mechanical component with a close-up view of its base (no text or symbols)

Grip tabs and lift out filter screen. Twist bottom of filter screen counterclockwise to unlock and pull apart. Shake off dust. Rinse screen and dust cup. Dry all THOROUGHLY. Reassemble screen; twist clockwise to lock.

Diagram of a mechanical component with a central plate and downward force arrow, no text or symbols present

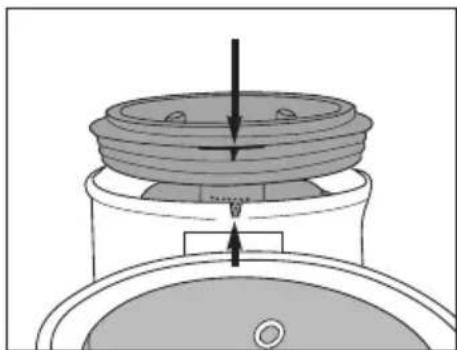

Align tab on filter screen with slot on back of dust cup and drop into position.

Illustration of a hand placing a circular object onto a container, with an arrow indicating the process (no text or symbols present)

Reinstall foam filter.

Close cover until it clicks.

Warning: Never operate vacuum cleaner without foam filter, filter screen and dust cup in proper position.

How to clear a blockage

CAUTION

Make sure vacuum is turned off and power cord is unplugged.

If vacuum is not cleaning floors, or if no suction at end of hose, check to be sure air path is not blocked.

• Press release button and lift off dust cup (Fig. 1).
• Empty debris. Hold over wastebasket and press lever to release bottom lid (Fig. 2).
• Check filter and filter screen. Remove any debris and shake off dust. (See maintenance instructions on page 9.)

- Loosen end of hose.

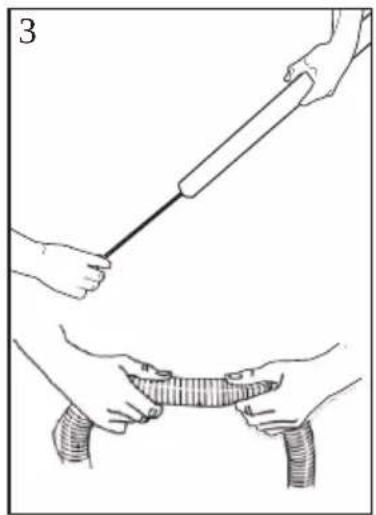

- Use a rod or similar blunt implement to clear a blockage in wand or hose. Flex hose to loosen debris (Fig. 3). Use caution if there is any risk that glass or nails could have become imbedded in hose.

- Use finger to check for debris in air path (Fig. 4).

- Reinstall filter and filter screen inside dust cup and position dust cup onto vacuum cleaner.

Illustration of a hand operating a vacuum cleaner with hoses and a hose assembly (no text or symbols)

Illustration of a hand pressing down on a container with granular material inside (no text or symbols)

Illustration of hands using a tool to interact with a bandage, no text or symbols present

Line drawing of a hand pressing a button on a vertical stand next to a small kitchen appliance (no text or symbols)

Warning: Never operate vacuum cleaner without foam filter, filter screen and dust cup in proper position.

How to maintain brushroll

CAUTION

Make sure vacuum is turned off and power cord is unplugged.

• Step on floor nozzle to lower handle.
• Turn vacuum face down on floor.
  • To avoid unnecessary service calls, check brushroll for debris.

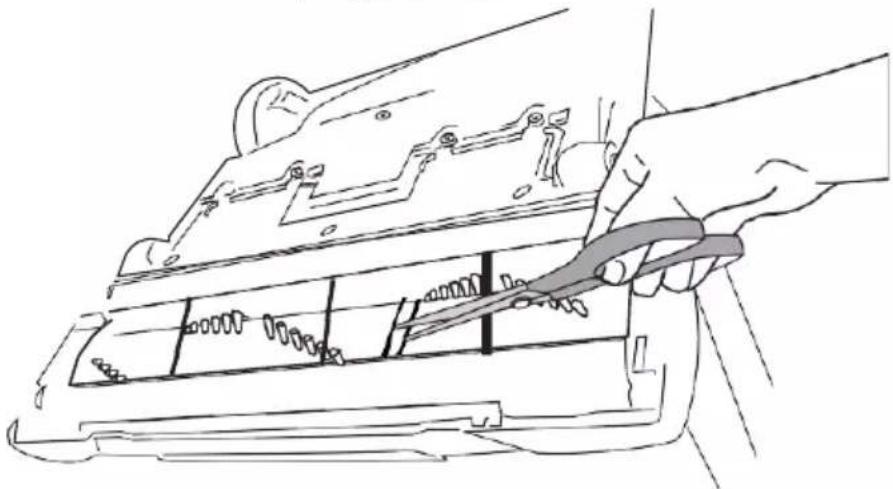

• Use scissors to clip heavy threads or strings.

Illustration of a foot wearing a shoe's seat and gauze, with no visible text or symbols

Line drawing of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

How to maintain turbo brush

Grasp collar and twist to unlock cover. Lift cover up.

Line drawing of a hand inserting a plug into a mechanical device (no text or symbols)

With cover open, use figers or small brush to clear accumulated pet hair from bristles.

Close cover and twist collar to lock.

How to replace brushroll or belt

CAUTION

Make sure vacuum is turned off and power cord is unplugged.

• Step on floor nozzle to lower the nozzle.
• Use Phillips screwdriver to remove 6 screws from brushroll cover (Fig. 1). Lift off cover. Refer to Fig. 7 for location of screws.
• Rotate right end of brushroll and lift out (Fig. 2).
• Lift out left end of brushroll.
  • To replace belt, position new belt around motor shaft (Fig. 3).

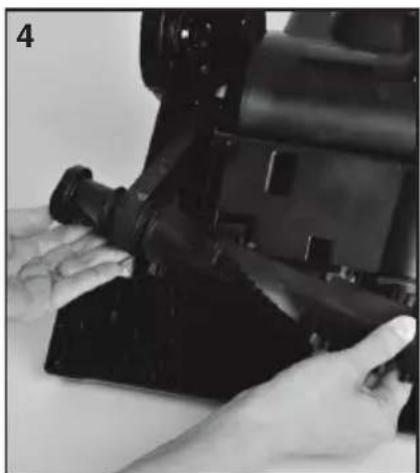

• Loop new belt around brushroll shaft at left end of brushroll (Fig. 4).
  • To reposition brushroll into base, pull belt down and insert left end of brushroll first. Align brushroll end cap with slot so it fits into position (Fig. 5). Press right end of brushroll into position.

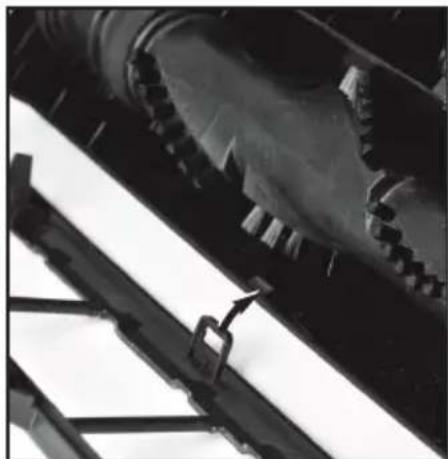

  • To replace brushroll cover, align slot on cover with tab (Fig. 6) and snap cover into place. Replace 6 screws (Fig. 7).

Close-up of a hand using a screwdriver to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand turning a mechanical component with a circular gear (no visible text or symbols)

Close-up of a hand pressing a small mechanical component (no visible text or symbols)

Close-up of hands operating a sewing machine with a black cloth (no visible text or symbols)

Close-up of hands operating a mechanical device with a white arrow indicating a component (no visible text or symbols)

Close-up of industrial machinery components with visible gears and metal frame (no text or symbols)

Problem solving

Make sure vacuum is turned off and power cord is unplugged.

NOTICE: Thermal cut-off

This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating.If the vacuum suddenly shuts off, proceed as follows: 1) Push the power switch to off and unplug the vacuum. 2) Check the vacuum for a possible source of overheating such as a full dust cup, blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum. 3) After the 30 minute period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, call the Eureka Customer Service HELPLINE at 1-800-282-2886.
Problem Solution
Motor will not start.	Push plug securely into outlet, try another outlet or check circuit breaker.Step on power switch to turn vacuum on.See detailed “thermal cut-off” instructions above.
Vacuum cleaner does not clean floors.	Empty dust cup, clean and/or change filter.Clean or replace filter regularly to maintain suction.Check vacuum height adjustment knob position.Clean brushroll if needed. Page 11.
No suction at the end of hose or wand.	See other solutions above.Remove clogs from the hose or wand that restrict the airflow. Page 10.
Burning smell;brushroll will not turn.	Check brushroll for debris.Replace broken or out of shape belt. Page 12.
Vacuum is hard to push.	Adjust vacuum height knob to a higher position.Check brushroll for debris and clean if needed. Page 11.
Turbo brush will not turn.	Check turbo brush for debris. Page 11.
Cord will not retract.	Pull out slightly and then step on the cord rewind pedal again.Make sure the cord has a clear path and is not twisted.

The Eureka two-year limited warranty

Midea America (Canada) Corp. ("Eureka"), subject to the terms and conditions herein, warrants this vacuum cleaner to be free from defects in material and workmanship for a term of two years from the date of original purchase when used in accordance with the Eureka operating and maintenance instructions and under normal household usage. This warranty is granted only to the original purchaser and members of immediate household, and is applicable only to original purchases from Eureka authorized resellers.

What Eureka will do:

Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. Repairs may be performed using new or refurbished parts that meet or exceed Eureka specifications for new parts. If Eureka elects to replace the vacuum, the replacement may be a reconditioned unit. Depending on availability of products, Eureka reserves the right to provide you with a replacement product that is the same or similar, or substitute equivalent of the original product. As a matter of warranty policy, Eureka will not refund the consumer's purchase price.

This warranty does not cover:

- Normal wear and tear of the vacuum and vacuum parts that require replacement under normal use such as disposable dust bags, filters, drive belts, light bulbs, brush-roll, bristles, impellers and cleaning.

- Damages or malfunctions resulting from: improper or unreasonable use or maintenance, abuse, negligence, failure to follow instructions contained in any written materials that accompany the product, deterioration by reason of excess moisture, corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such as extremes in temperature or humidity, modifications, scratches or discoloration, accidents, misuse, or acts of God. This warranty also does not cover damage resulting from repair or attempted repair by anyone other than Eureka. This warranty is not applicable to any product that has been altered or on which the serial number has been defaced, modified or removed. Altering, erasing, or forging any proof-of-purchase documents voids any applicable product warranty.

Obtaining warranty service:

To obtain warranty service you must contact the Eureka Service Team, toll free, at 1-800-282-2886 or [e-mail], to discuss the warranty claim and procedures to be followed. All warranty claims must include submission of proof-of-purchase documentation. For additional information, you may also visit www.eureka.com.

Shipping charges:

You will be responsible for any initial shipping and insurance charges if the defective product(s) must be shipped for warranty service or warranty evaluation; however, Eureka will pay the return shipping charges if repairs are covered by the warranty. When returning parts for repair, you must include the model, type and serial number located on the rating plate. If any product submitted for warranty service is found to be ineligible, an estimate of repair cost will be furnished and the repair performed only if requested by the owner and upon receipt of payment or acceptable arrangements for payment.

Further limitations and exclusions:

Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty of Fitness For A Particular Purpose is limited to the duration of this limited warranty. Some provinces/territories do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum. Some provinces/territories do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary by province/territory.

Midea America (Canada) Corp.

Markham, ON

Canada L3R 8V2

Image Part name Part #

	Dusting brush tool	E0101
	Crevice tool	E0102
	Upholstery tool	E0201
	Turbo brush	E0208
	Washable foam filter	E0202
	Brushroll	E0203B
	Hose	E0204
		E0205Belt
		E206CDetachab
		E207CDust cup

Owner's Guide

Do not return to the store, call

Eureka Customer Service

HELPLINE 1-800-282-2886

www.eureka.com

Eureka stands by our

Clean Promise seal.

Learn more at

www.eureka.com/cleanpromise

Exterior view of a black eureka vacuum cleaner with visible branding and model number (no text-heavy elements)

Guide d'utilisation

Close-up of a mechanical device with a threaded component and an arrow pointing to it (no visible text or symbols)

Illustration of an open box with a downward arrow, symbolizing decline or drop (no text or symbols present)

Line drawing of a vacuum cleaner device with no text or symbols

Aspirateur

Simple line drawing of a brush applying black powder onto a white surface (no text or symbols)

Brosse à é pousseter

Simple line drawing of a mechanical component or housing (no text or symbols)

Brosse pour meubles

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

Suceur plat

Line drawing of a mechanical lever or support device (no text or symbols)

Manche

Illustration of a mechanical device with a black cap and internal components (no text or symbols)

Balai-brosse

Line drawing of a vacuum cleaner with base and top components (no text or symbols)

Technical line drawing of a mechanical assembly with threaded shaft and mounting bracket (no text or symbols)

Mechanical assembly diagram showing a spring-loaded component with rotational motion indicated by an arrow (no text or labels)

Technical diagram of a mechanical component with curved internal structure and directional arrow (no text or symbols)

Technical diagram of a mechanical assembly with a threaded component and directional arrow (no text or labels)

Illustration of a car seatbelt switch mechanism with no text or symbols

Hand holding a screwdriver inserted into a mechanical component (no text or symbols visible)

Line drawing of a foot wearing a shoe and climbing a vehicle (no text or symbols)

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

Line drawing of a mechanical component with a knob and arrow indicating rotation (no text or symbols)

Line drawing of a person's foot wearing a shoe and applying a hairdryer to a mechanical device (no text or symbols)

Illustration of a person's foot wearing a seatbelt and gauze, with a curved arrow indicating motion (no text or symbols)

Illustration of a hand operating a vacuum cleaner with a coiled hose and mechanical components (no text or symbols)

Illustration of a hand pressing down on a container with granular material inside (no text or symbols)

Illustration of a hand holding a tool with a bent tube and handle, no text or symbols present

Simple line drawing of a mechanical device with no text or symbols

Illustration of a hand operating a mechanical device with a spring-like spring attached (no text or symbols)

Illustration of a hand using a tool to lift contents into a bowl (no text or symbols visible)

Line drawing of a hand inserting a device into a container with an upward arrow (no text or symbols)

Diagram of a hand placing a lid into a trash bin with an inset showing the lid being inserted (no text or symbols present)

Illustration of a hand holding a mechanical component with a tool, showing motion and assembly (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and central shaft (no text or symbols)

Diagram showing a hand pouring liquid into a container with an inset view of a tray (no text or symbols)

Illustration of a hand operating a vacuum cleaner with a coiled hose and directional arrow (no text or symbols)

Illustration of a hand pointing at a device with granular material inside, no text or symbols present

Illustration of hands using a tool to grip a piece of material, no text or symbols present

Line drawing of a hand operating a kitchen appliance with a square button (no text or symbols)

Line drawing of a foot wearing a shoe and belt, showing a curved arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to cut or install electronic components (no text or symbols visible)

Entretien de la brosse-turbo

Hand holding a small mechanical component with a black end cap, no visible text or symbols

Close-up of a hand using a screwdriver to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a circular dial (no visible text or symbols)

Close-up of a hand operating a mechanical device with a tool inserted (no visible text or symbols)

Close-up of hands operating a mechanical device with a tool, no visible text or symbols

Close-up of hands operating a mechanical device with a curved arrow indicating motion (no visible text or symbols)

Close-up of mechanical components with gears and a bracket, no visible text or symbols

Dé pannage
