Product type	2-way component speaker 6.5" (16.5 cm)
Brand	Rockford Fosgate
Model	Punch P1652-S
Category	Speaker
Rated power (RMS)	60 W
Peak power	120 W
Impedance	4 ohms
Frequency response	50 Hz - 20 kHz
Sensitivity	88 dB
Cutout diameter	140 mm
Mounting depth	63 mm
Weight	2.3 kg
Crossover filter	Integrated (ICC) with tweeter adjustment (0, -2, -4 dB)
Main features	Midrange speaker with integrated filter, separate tweeter, tweeter level adjustment
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemicals.
Safety	Disconnect battery before installation. Avoid prolonged listening at high volume (risk of hearing damage).
Spare parts and repairability	Contact Rockford Fosgate customer service or an authorized dealer.
General information	12-page user manual available for download. Professional installation recommended.

Frequently Asked Questions - Punch P1652-S Rockford Fosgate

What is the RMS power of the Rockford Fosgate Punch P1652-S

What is the impedance of this speaker?

How to install the speaker correctly?

Can I use this speaker with an amplifier?

How to adjust the tweeter level?

What is the required cutout diameter?

What to do if the speakers do not work after installation?

Are the speakers compatible with door installation?

How to clean the speakers?

Where can I find the full manual?

USER MANUAL Punch P1652-S Rockford Fosgate

1. Damage caused by accident, abuse, improper operations, water, theft, shipping

2.Any cost or expense related to the removal or reinstallation of product

1. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center

2. Any product which has had the serial number defaced, altered, or removed

3. Subsequent damage to other components

6.Any product purchased outside the U.S.

1. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

How to Obtain Service

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Rockford Fosgate

Rockford Corporation

600 South Rockford Drive

Tempe, Arizona 85281 U.S.A

in U.S.A., [phone] Customer Service I-800-669-9899

www.rockfordfosgate.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the result is inconsistent with the Ground Truth.

©2009 Bank of Canada, All rights reserved.

© 2009 Rockford Corporation. All Rights Reserved.

Rockford Togate and the Rockford Togate logo are either registered trademarks or trademarks of Rockford Corporation.

1230-55479-01

Installation & Operation Installation et fonctionnement Instalación y funcionamiento Einbau und Betrieb Installazione e funzionamento

P1T-S - Tweeter System

P152-S - 5.25" P1652-S - 6.5"

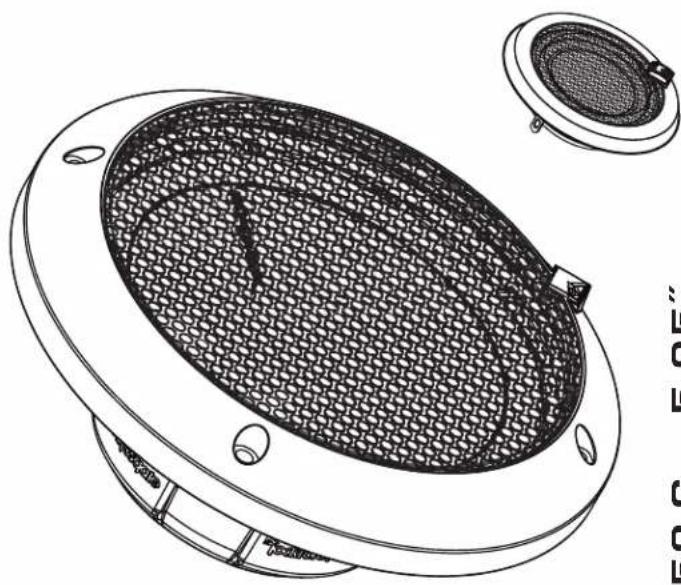

Technical line drawing of a circular mechanical component with a mesh grille and side view (no text or symbols)

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Speakers – 1 Year. Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.
This warranty covers only the original purchaser of Rockford product purchased from an Authorized
Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

that is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping

2.Any cost or expense related to the removal or reinstallation of product

1. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center

2. Any product which has had the serial number defaced, altered, or removed

3. Subsequent damage to other components

6.Any product purchased outside the U.S.

1. Any product not purchased from an Authorized Rockford Fosgate Dealer

LIMITED WARRANTY STATEMENT

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further
Assistance, Call 1-000-089-9899 for Rockford Customer Service. You must obtain an RAP (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment
of product to Rockford.

FU Warranty

01/2009 B.M. 02/2009 E.R.

Printed in China

SAFETY

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

CARTON CONTENTS

• (1) Set PI Series Speakers with Tweeters or PIT-S Tweeter System with Crossover
• (1) Set of grilles/trim rings
- Mounting Hardware and Tweeter Surface, Angle, and Flush Mounts

INSTALLATION CONSIDERATIONS

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers in place.

4. Use high quality connectors for a reliable installation and to minimize signal or power loss.

5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. If installation in a boat, take care not to cut or drill through the main hull.

6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area provides the best protection.

7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

MOUNTING

1. Determine where the speakers will be mounted. Ensure an area large enough for the speaker to mount evenly. Be sure that the mounting location is deep enough for the speaker to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model. The template provided also gives the proper cutout size.
3. Mark the locations for the mounting screws. Drill the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals. Be sure to observe proper polarity when connecting the wires. The speaker's positive terminal is indicated with a "+".
5. On models with slotted holes, fit the speaker into the cutout and install the screws in the slots at the top and bottom. This will allow you to rotate the speaker to match the remaining mounting holes. When aligned, tighten the screws.
6. Tighten the screws until the speaker is snug in place to prevent rattling. Do not over tighten the screws.

NOTE: If needed use the adapter plate provided to mount the speaker. See Adapter Plate Templates at the end of this manual.

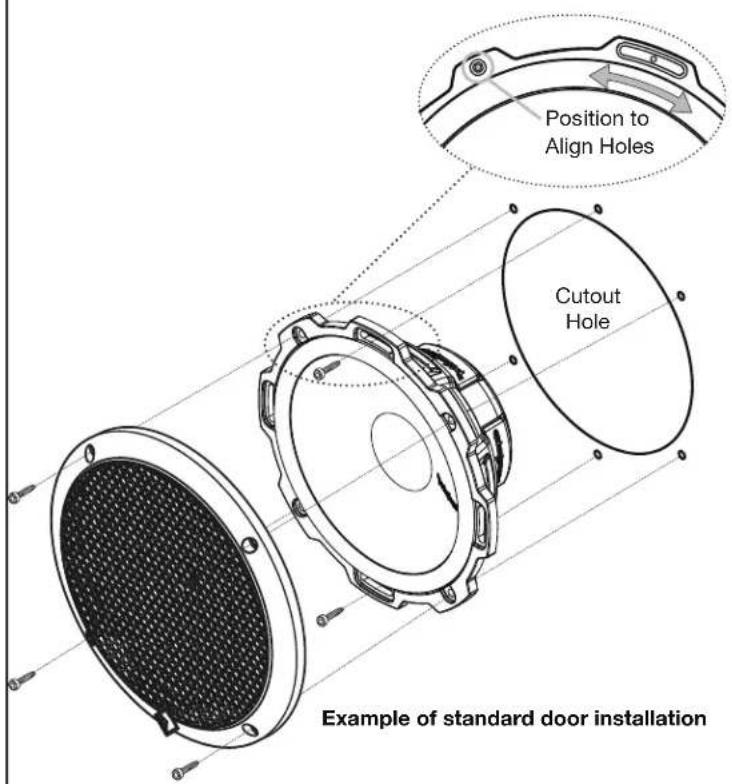

Position to Align Holes Cutout Hole Example of standard door installation

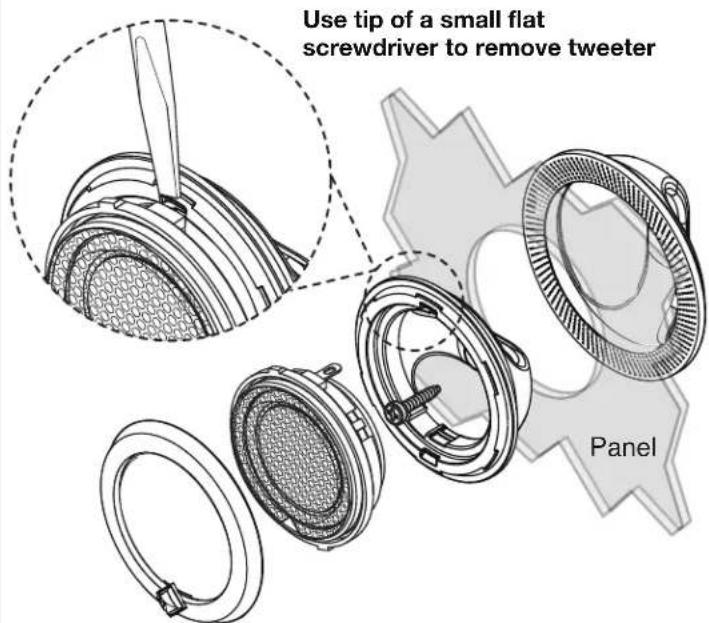

Use tip of a small flat screwdriver to remove tweeter Panel

Example of Discreet Dual Clamp (DDC™) Tweeter Mounting (Flush Mount)

FEATURES

Discreet Dual Clamp (DDC™) Tweeter Mount

Every aspect of the new Tweeter design has been completely re-engineered to allow for maximum ease of installation and fitment. This optimized patent pending design provides concentric clamping pressure around the perimeter of the mounting hole.

The "mounting cups" are in fact not "cups" at all, but rather unobtrusive "clamps" that quickly and easily mount in a standard 1.75 inch (45mm) hole saw opening with a single center screw securing with balanced pressure to both faces of the mounting surface. From there, the tweeter simply snaps into place and is secured by a snap-on trim ring. Removal is easy if needed. The protective grille on the tweeter is non-removable and an intergral part of the design.

ICC (Integrated Concealed Crossover)

For the P152-S and P1652-S, the crossover is integrated into the basket of the mid-bass driver. This component grade crossover allows for easy connection of the full component system without the need for an external crossover. Just connect the wires from the tweeter to the TWT terminals at the speaker, see below.

SPECIFICATIONS

P1 Components	P152-S P1652-S P1T-S
Nominal Diameter - inch (mm) 5.25 (133.35) 6.5 (165.10) 1.0 (25.0)
Description 2-Way 2-Way Tweeter Kit
Nominal Impedance (ohms)	4Ω	4Ω	4Ω
Frequency Response (Hz)	70Hz-22kHz	60Hz-22kHz	3.5kHz-22kHz
Crossover Frequency (Hz)	3.5kHz	3.0kHz	3.0kHz
12dB/octave Butterworth Crossover	HP (High Pass)	HP (High Pass)	HP (High Pass)
Voice Coil Diameter - inch (mm)	1.0 (25.4)	1.0 (25.4)	-
Fs - Free Air Resonance (Hz) 70Hz	60Hz	3.5kHz
Qts	0.68	0.68	-
Vas - cu. ft. (Liter)	0.19 (5.4)	0.60 (16.8)	-
Xmax - inch (mm)	0.1 (2.5)	0.14 (3.5)	-
SPL (dB @ 1w/1m)	87dB	89dB	90dB
Power Handling-Watts (RMS / Peak)	50/100	60/120	60/120
Mounting Diameter-inch (mm)	4.81 (122.21)	5.57 (141.35)	1.75 (44.40) (Flush Mount)
Mounting Depth-inch (mm)	1.87 (47.50)	2.17 (55.00)	0.91 (23.14) (Flush Mount)
Includes Grille/Trim Ring	YES	YES	YES
Trim Ring Diameter-inch (mm)	6.22 (158.00)	6.97 (177.00)	2.10 (53.34)
Trim Ring Height-inch (mm)	0.88 (22.34)	0.83 (21.00)	0.30 (7.66)
Includes Adapter Plate	5"x7"/6"x9"	5"x7"/6"x9"	NO

See figures on following pages.

Specifications subject to change without notice.

WIRING

P1T-S Crossover Wiring

I. Use illustration for proper connection.
2. Be sure to maintain speaker polarity.
3. Connecting the positive wire to 0dB matches the amplitude of the tweeter to the speaker.
4. Connecting the positive wire to -2dB or -4dB reduces the amplitude of the tweeter -2dB or -4dB lower than the midrange, (ideal for tweeters located high in door panels and midranges located low in the kick panel).

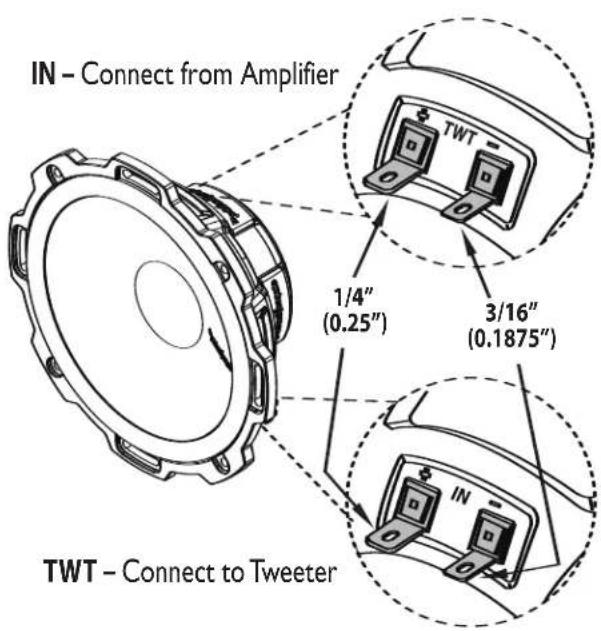

IN - Connect from Amplifier 1/4" (0.25") 3/16" (0.1875") TWT - Connect to Tweeter

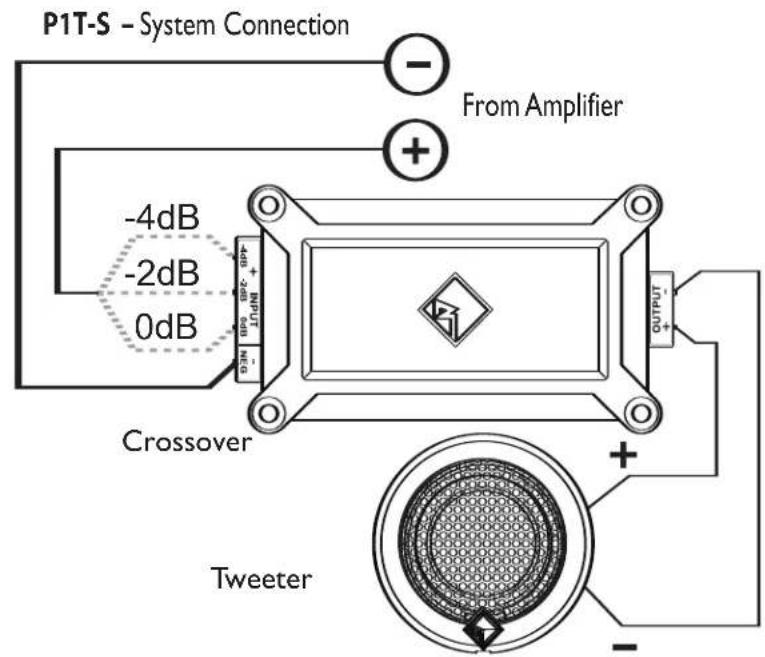

P1T-S - System Connection From Amplifier -4dB -2dB 0dB Crossover Tweeter

SPECIFICATIONS

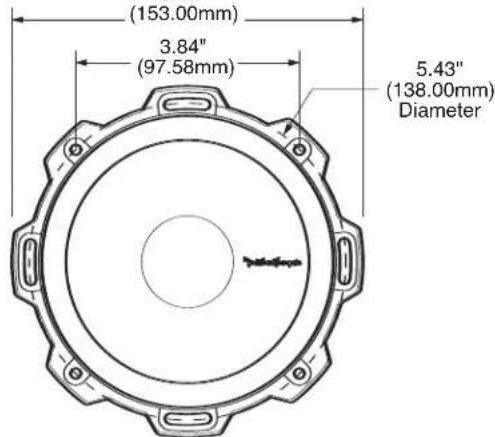

P152-SP1652-S 6.02"

(153.00mm) 3.84" (97.58mm) 5.43" (138.00mm) Diameter

6.22" (158.00mm) 0.88" (22.34mm)

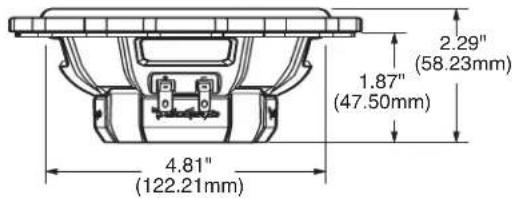

2.29" (58.23mm) 1.87" (47.50mm) 4.81" (122.21mm)

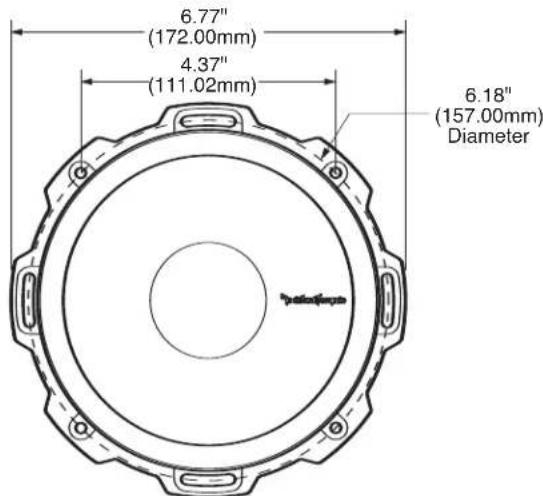

6.77" (172.00mm) 4.37" (111.02mm) 6.18" (157.00mm) Diameter

6.97" (177.00mm) 0.83" (21.00mm)

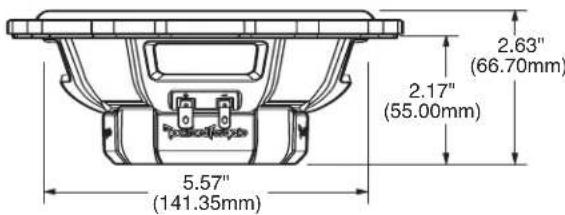

2.63" (66.70mm) 2.17" (55.00mm) 5.57" (141.35mm)

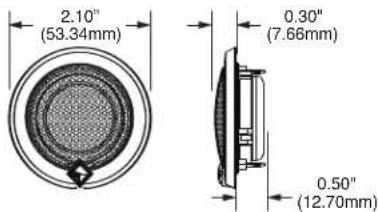

Tweeter

2.10" (53.34mm) 0.30" (7.66mm) 0.50" (12.70mm)

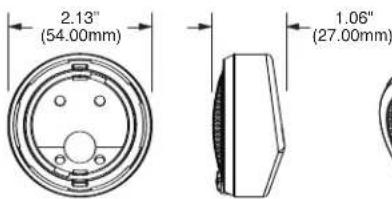

Surface Mount

2.13" (54.00mm) 1.06" (27.00mm)

Technical line drawing of a mechanical component with two views (top and side), showing internal structure without any text or symbols.

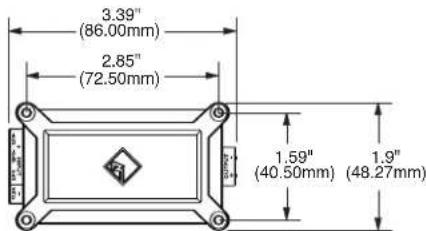

P1T-S - Tweeter Kit Crossover

3.39" (86.00mm) 2.85" (72.50mm) 1.59" (40.50mm) 1.9" (48.27mm)

Flush Mount

2.13" (54.00mm) 0.32" (9.20mm)

Mounting Hole Diameter

1.75" (44.40mm) 0.91" (23.14mm)

Français

Remove Shaded Area From Adapter Plate for P152-S Shallow Mount Spacer Plate

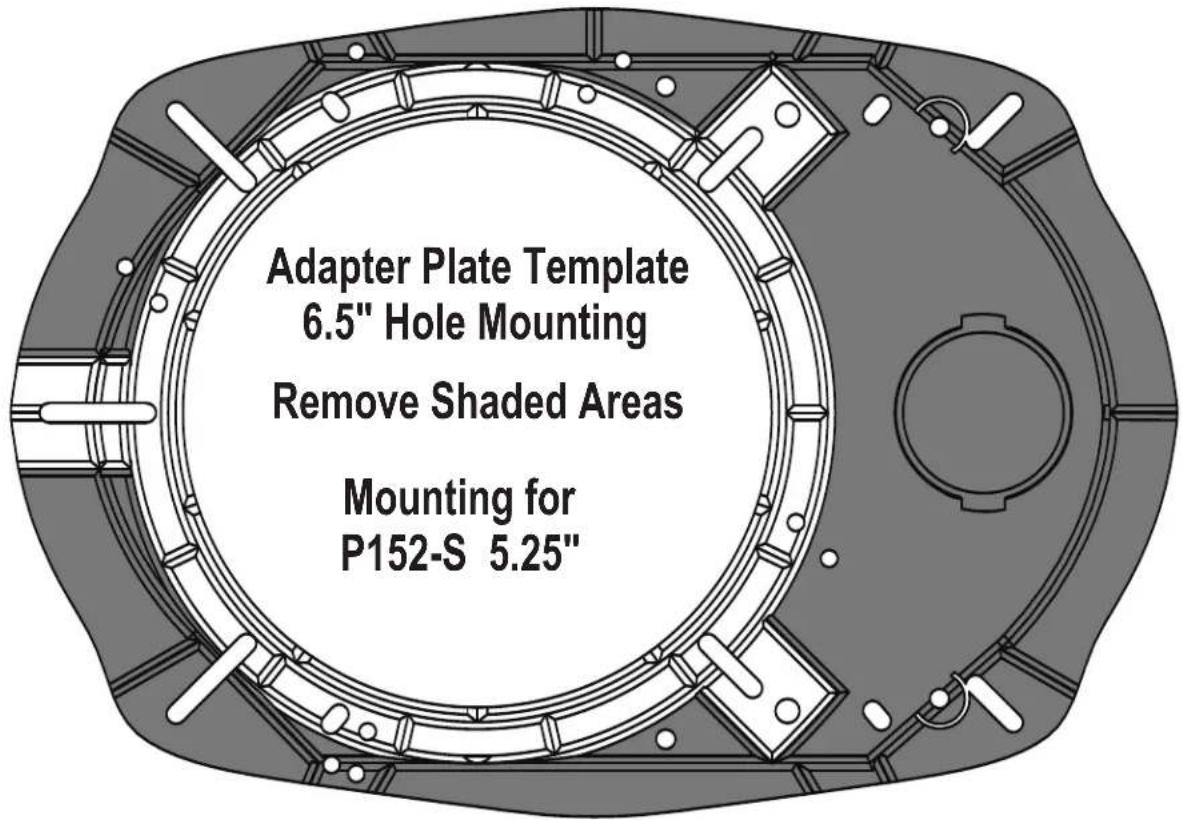

Adapter Plate Template 6.5" Hole Mounting Remove Shaded Areas Mounting for P152-S 5.25"

Adapter Plate Template – 6"x9" Hole Mounting For 5"x7" Hole Mounting - Remove Dark Shaded Areas

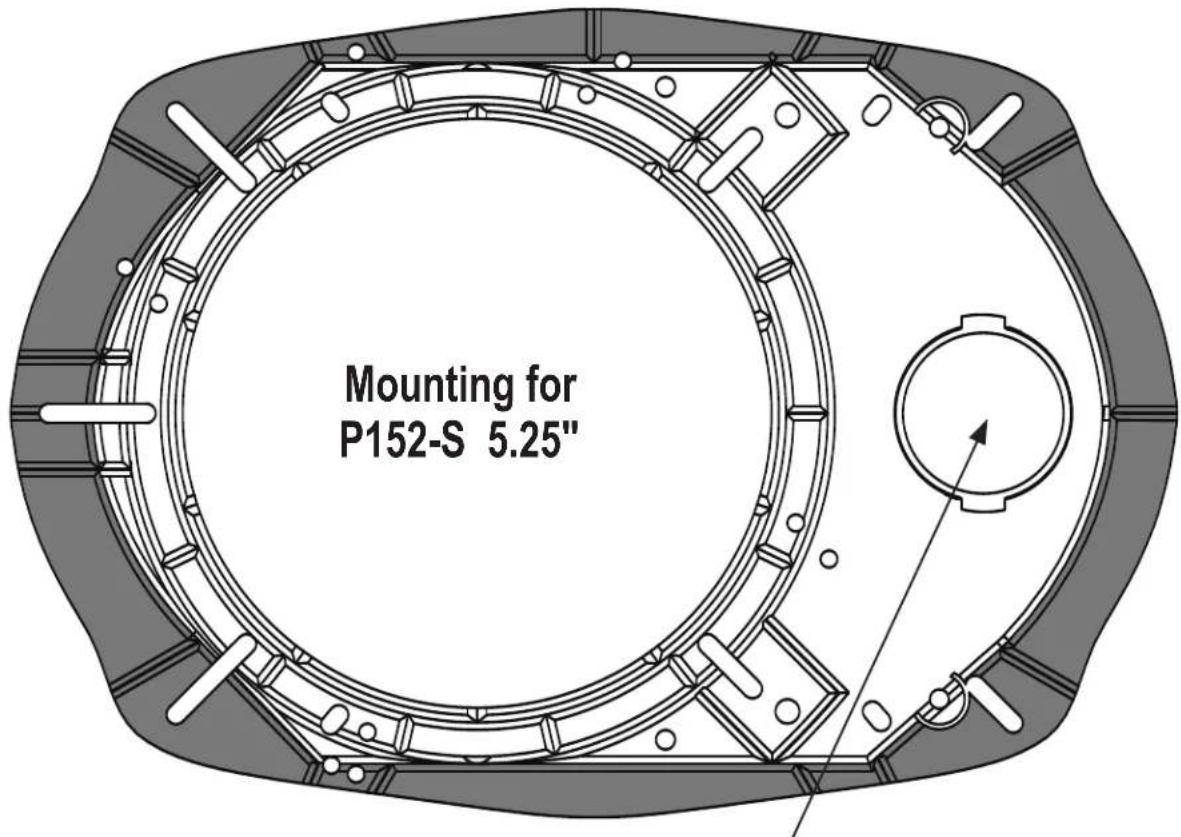

Mounting for P152-S 5.25"

Remove For Tweeter

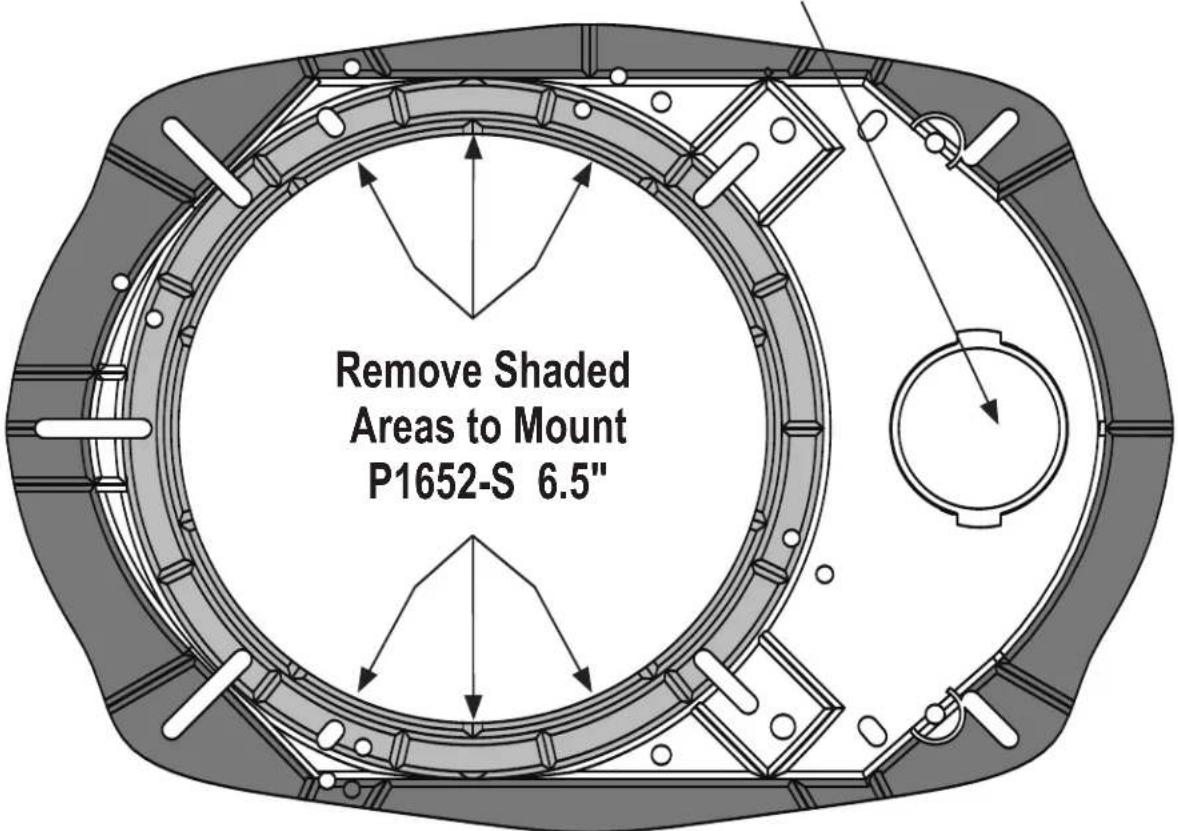

Remove Shaded Areas to Mount P1652-S 6.5"

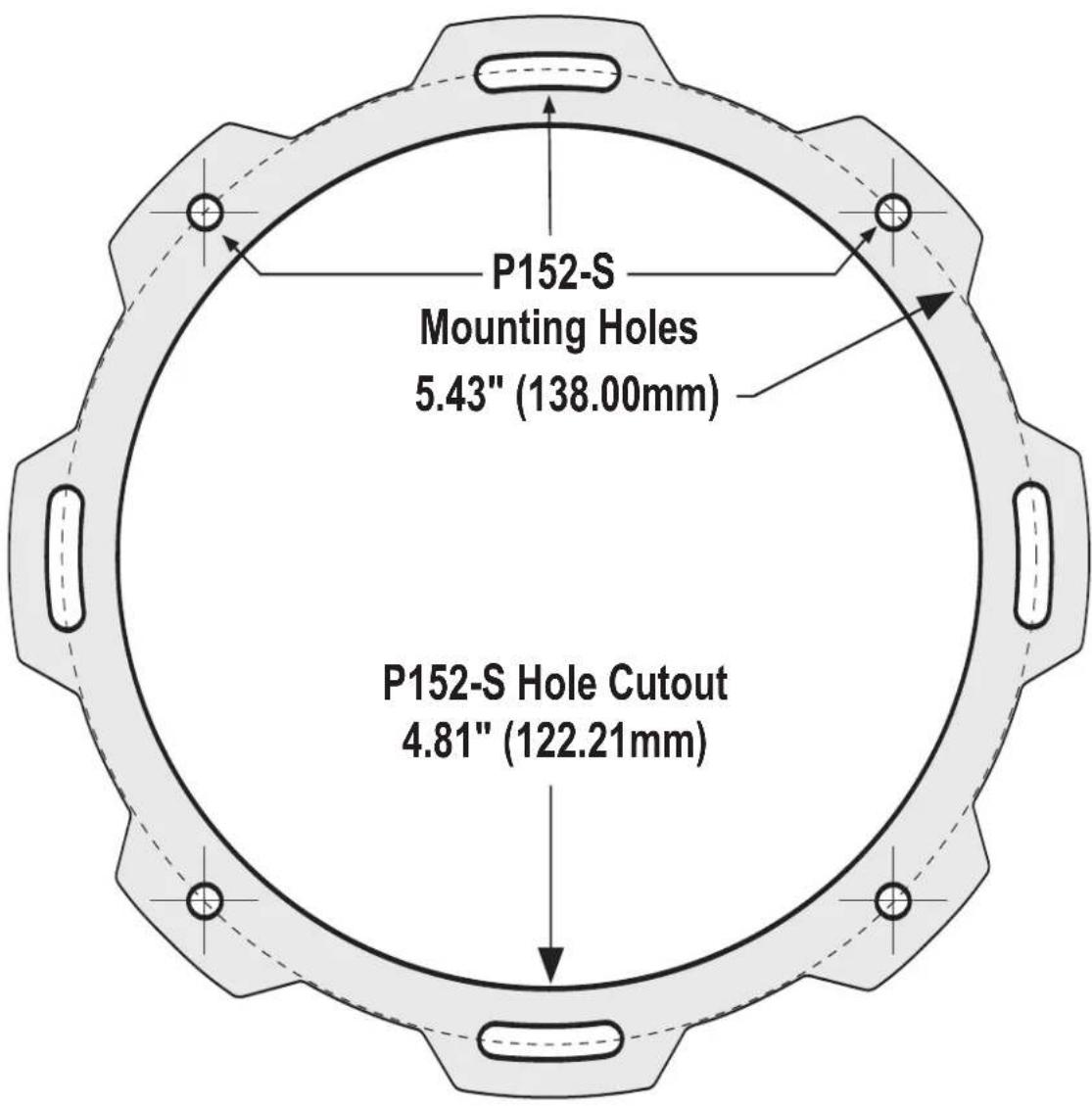

Mounting Template

P152-S Mounting Holes 5.43" (138.00mm) P152-S Hole Cutout 4.81" (122.21mm)

Verify Scale Before Using Template 1.00" (25.40mm) 1.00" (25.40mm)

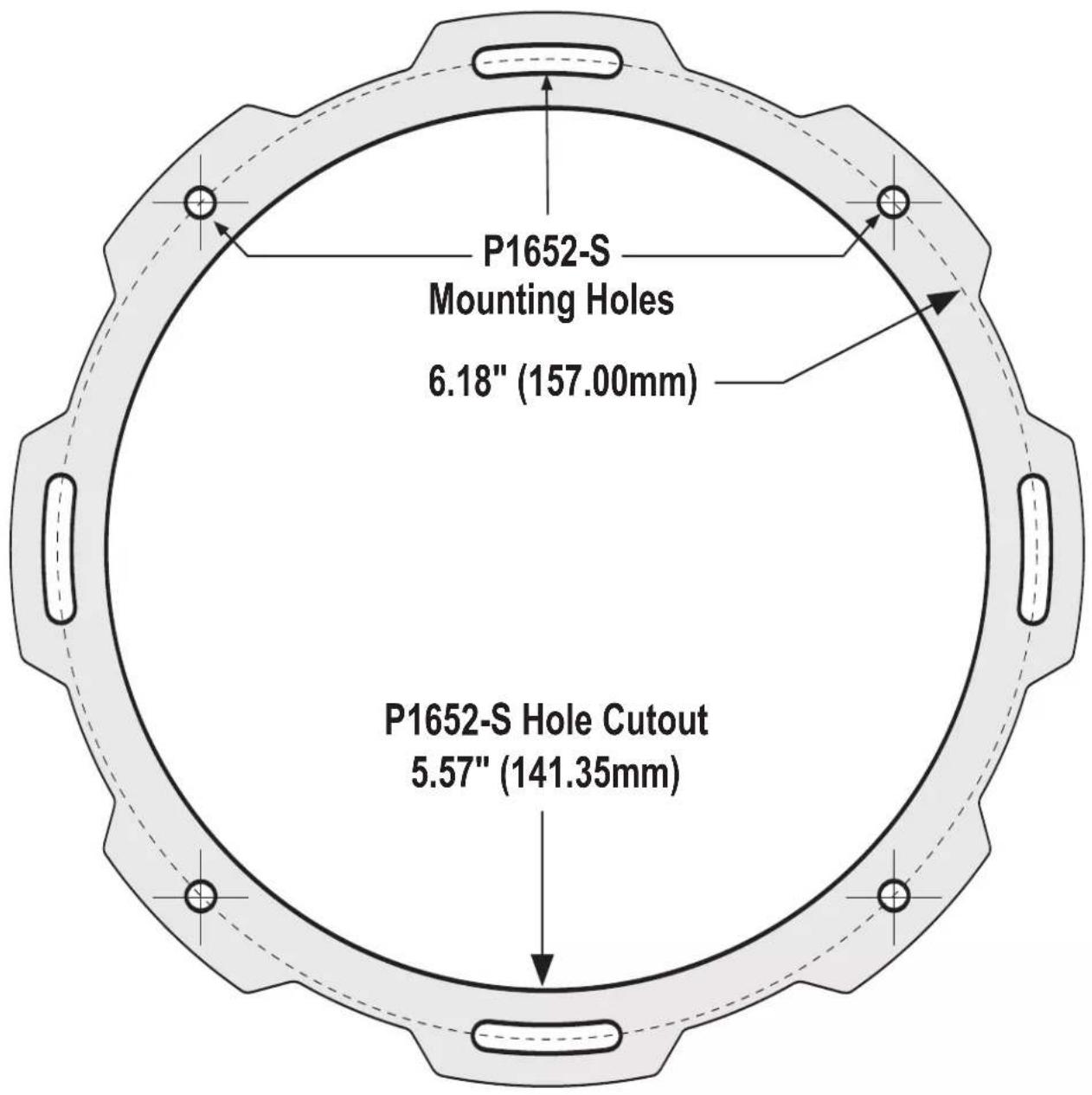

Mounting Template

P1652-S Mounting Holes 6.18" (157.00mm) P1652-S Hole Cutout 5.57" (141.35mm)

Verify Scale Before Using Template 1.00" (25.40mm) 1.00" (25.40mm)
