16540012 - Shoe dryer Melissa - Free user manual and instructions

Brand	Melissa
Model	16540012
Product type	Shoe and boot dryer
Power supply	230 V, 50 Hz
Timer	Adjustable (0-120 min, estimate)
Functions	Fan only, Heating + fan
Indicator light	Yes, indicates operation
Overheat protection	Thermal cut-off
Usage	Domestic, indoor only
Mounting screw spacing	176 mm
Required clearance	80 cm above and below, 40 cm on sides
Accessories included	Hoses for shoes and boots
Maintenance	Vacuum on grilles, wipe with damp cloth
Cleaning	Do not immerse, do not use detergent
Made in	China
Distributor	Commaxx B.V., Netherlands

Frequently Asked Questions - 16540012 Melissa

How to use the shoe dryer?

Plug in the device, insert the hoses into the shoes, set the timer and function selector (fan only or with heating). The device turns off automatically once the timer has elapsed.

Can I leave the device unattended?

No, do not leave the device unattended. Supervise children nearby. The device is not a toy.

What to do in case of overheating?

In case of overheating, the thermal cut-off automatically turns off the device. Unplug it, remove the cause (air obstruction), let it cool for about 10 minutes, then turn it on again.

How to clean the device?

Turn off and unplug the device. Vacuum the grilles to remove dust and lint. Wipe the housing with a damp cloth. Do not use detergent.

Can I immerse the device in water?

No, never immerse the device in water or any other liquid. If water enters, unplug immediately.

What types of shoes can I dry?

The device is designed for shoes and boots. For delicate materials, set a shorter duration to avoid over-drying.

How long should I let the device run?

Use the adjustable timer. For delicate materials, it is recommended to dry in two shorter phases rather than one long session.

Is the shoe dryer noisy?

The manual does not mention the noise level, but the fan is generally quiet.

Can I use an extension cord?

It is advised to use only the supplied cord. If you use an extension cord, ensure it does not create a tripping hazard. The manual does not explicitly recommend using an extension cord.

Where can I find spare parts?

Contact your retailer or visit the manufacturer's website: www.commaxx.nl. The warranty does not cover unauthorized repairs.

USER MANUAL 16540012 Melissa

UK Shoe and boot dryer....23

Diagram of a portable air conditioner with labeled parts including cooling fins and control knobs

MONTERING

80cm 40cm 40cm 80cm

Diagram of a hair dryer with labeled parts including a fan, buttons, and three threaded connectors

SE

MONTERING

80cm 40cm 40cm 80cm

Diagram of a hair dryer with labeled parts including a vent, three blades, and a handle.

FI

KOKOAMINEN

80cm 40cm 40cm 80cm

To get the best out of your new shoe and boot dryer, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved.

UK

• Children must not play with the appliance.
Cleaning and user maintenance must not be performed by children without supervision.
- Never leave unattended when in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.
- Incorrect use of this appliance may cause personal injury or damage the appliance.

UK

• Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).
• For domestic use only. Not for outdoor or commercial use.
• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.

• Do not use with any cords other than that supplied.

• Check that it is not possible to pull or trip over the cord or any extension cord.

• Turn off the appliance and remove the plug from the socket when cleaning or when not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.

UK

• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.
• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• The appliance must not be used together with a timer switch

or a separate remote control system.

• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.

SPECIAL SAFETY INSTRUCTIONS

• The appliance and its openings must not be covered with clothing, etc.
• Do not insert foreign objects into the openings of the appliance, as this may cause electric shock or fire or damage the unit.
• Do not use the appliance in the immediate vicinity of bathtubs, showers, sinks, or the like.

UK

- The appliance must not be immersed in water or any other liquid. If the appliance comes into contact with water, unplug it immediately.

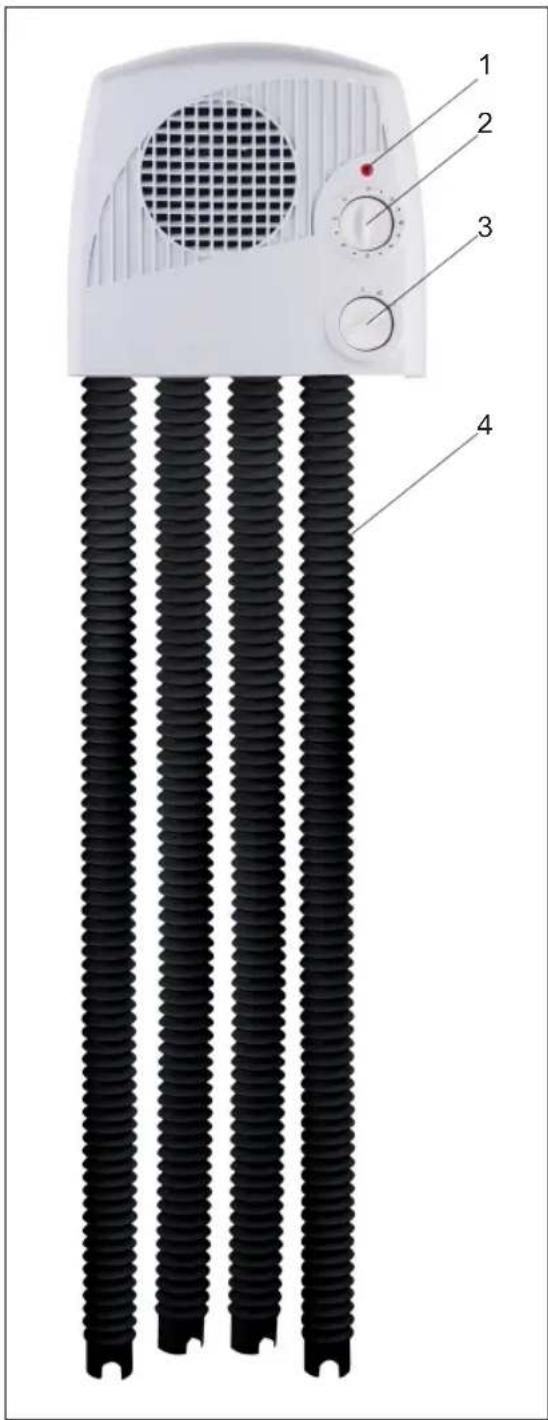

MAIN COMPONENTS

1. Indicator light
2. Timer button
3. Function selector
4. Hoses

Diagram of a hair dryer with labeled parts including a vent, three blades, and a red indicator light.

UK

ASSEMBLY

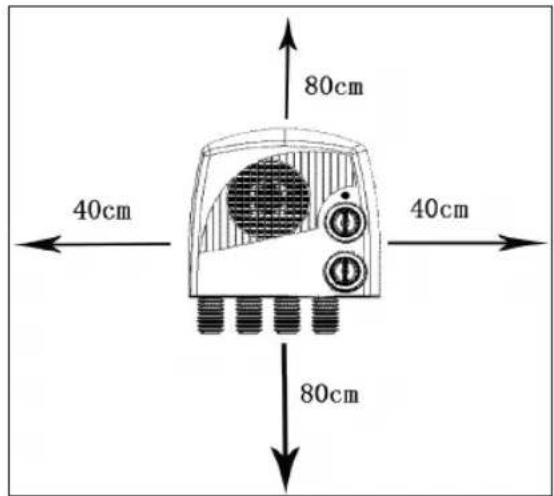

- There must be clearance of at least 80 cm at the top and bottom of the appliance, and 40 cm on each side of the appliance to ensure sufficient ventilation. This also applies if the appliance is mounted under a shelf or the like.

80cm 40cm 40cm 80cm

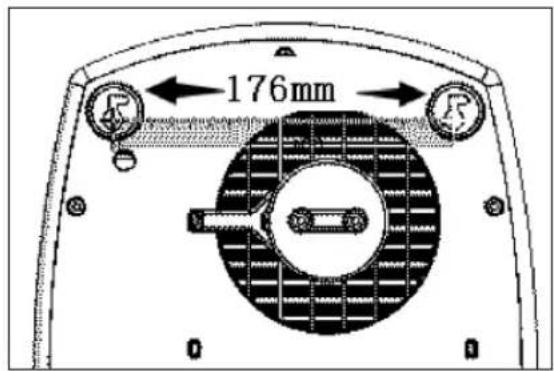

- Insert two flatheaded screws in the wall in a horizontal line 176 mm apart. Use rawlplugs if necessary. Make sure that the screws are level.

176mm

- Place the fitting holes on the screws. Push the appliance straight down and then to the right to make the screws fit tight in the fitting holes.

UK

USE

1. Plug in.
2. Insert the hoses into the boots or shoes to be dried.
3. Turn the timer button to the required setting.
4. Set the function selector to the required position:

0: Off

Fan only

I: Fan and heat

The appliance starts and the indicator light comes on.

1. The indicator light remains on as long as the appliance is running.
2. Once the timer button reaches the "0" position, the appliance goes off automatically. If further drying is necessary, simply set the timer again.
3. Turn the function selector to the 0 position after use.

Warning: To avoid drying out the material in shoes/boots with delicate materials, do not leave the appliance to run for too long at a time. It is better to divide the drying process into two shorter periods.

Overheat protection

A thermal cut-out automatically switches the appliance off if it is overheating.

If the appliance is turned off due to overheating, follow the instructions below:

• Switch off the appliance (unplug it).
• Remove the cause of the overheating (e.g. materials covering the air intake or preventing free air circulation, dust, lint, etc.).
• Allow the appliance to cool for around 10 minutes.
• Then turn the appliance back on.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Turn off the appliance and unplug it before cleaning.
• Never submerge the appliance in water and make sure no water enters the appliance.
  • Vacuum the grilles to remove any dust or lint.
• Clean the casing by wiping it with a damp cloth. Do not use detergents of any kind.

UK

INFORMATION ON DISPOS- AL AND RECYCLING OF THIS PRODUCT

Please note that this product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.commaxx.nl.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED IN CHINA FOR

Commaxx B.V.

Wiebachstraat 37,

NL-6466 NG Kerkrade

Netherlands

www.commaxx.nl

We cannot be held responsible for any printing errors.
