USER MANUAL Panini TSA3232 Teesa

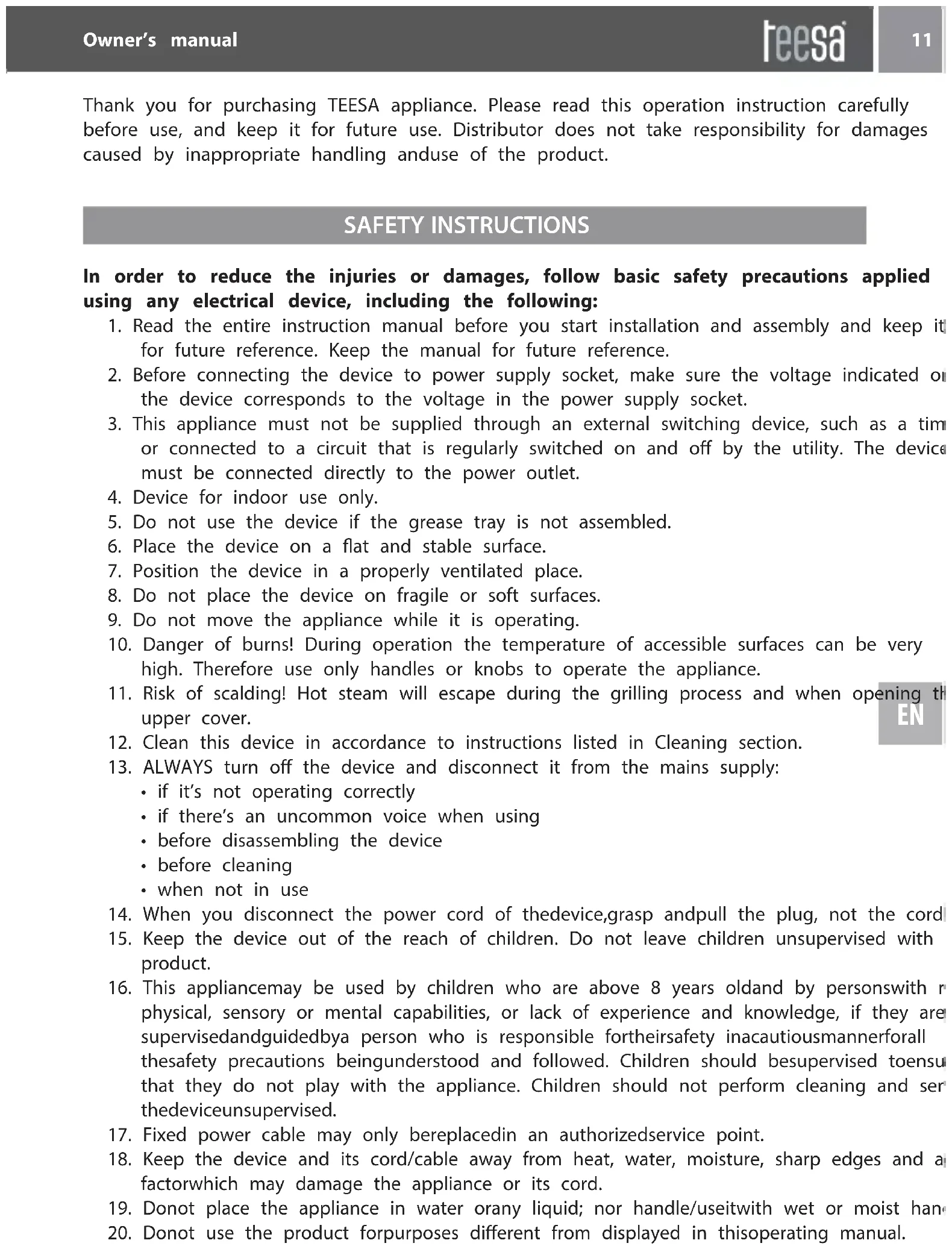

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling anduse of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied using any electrical device, including the following:

1. Read the entire instruction manual before you start installation and assembly and keep it for future reference. Keep the manual for future reference.
2. Before connecting the device to power supply socket, make sure the voltage indicated on the device corresponds to the voltage in the power supply socket.
3. This appliance must not be supplied through an external switching device, such as a timer or connected to a circuit that is regularly switched on and off by the utility. The device must be connected directly to the power outlet.
4. Device for indoor use only.
5. Do not use the device if the grease tray is not assembled.
6. Place the device on a flat and stable surface.
7. Position the device in a properly ventilated place.
8. Do not place the device on fragile or soft surfaces.
9. Do not move the appliance while it is operating.
10. Danger of burns! During operation the temperature of accessible surfaces can be very high. Therefore use only handles or knobs to operate the appliance.
11. Risk of scalding! Hot steam will escape during the grilling process and when opening the upper cover. EN
12. Clean this device in accordance to instructions listed in Cleaning section.

13. ALWAYS turn off the device and disconnect it from the mains supply:

14. if it's not operating correctly

15. if there's an uncommon voice when using
16. before disassembling the device
17. before cleaning

18. when not in use

19. When you disconnect the power cord of the device, grasp and pull the plug, not the cord

20. Keep the device out of the reach of children. Do not leave children unsupervised with product.
21. This appliancemay be used by children who are above 8 years old and by persons with physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervisedandguidedbya person who is responsible fortheirsafety inacauitouismannerforall thesafety precautions beingunderstood and followed. Children should besupervised toensu that they do not play with the appliance. Children should not perform cleaning and ser thedeviceunsupervised.
22. Fixed power cable may only bereplaced in an authorizedservice point.
23. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and a factor which may damage the appliance or its cord.
24. Donot place the appliance in water orany liquid; nor handle/useitwith wet or moist han

25. Donot use the product forpurposes different from displayed in thisoperating manual.

26. Donot levetheappliance unattendedwhenit's working.

27. Producer of this product is not responsible for damages caused by inappropriate handling using of the device.
28. DO NOT use this device if the cord orthe plug is damaged, orthe appliance isbroken.
29. Donotattempt torepairthisdeviceyourself. Onlyauthorizedand qualifiedpersonnelmay repair this device.The device has nouser serviceable parts inside.
30. Use only authorized accessories.
31. Makesure the power cord does not touch any hot or sharp elements.
32. This device is suitable exclusively for food preparation. Do not place inside the device a that is not food.
33. Toavoid the riskofelectric shock,the deviceisequippedwiththegrounded plug.Iftheprovided plug does not fit into your outlet, consult an electrician for replacement of the obsolete Donot modify the plug or use any adaptors.

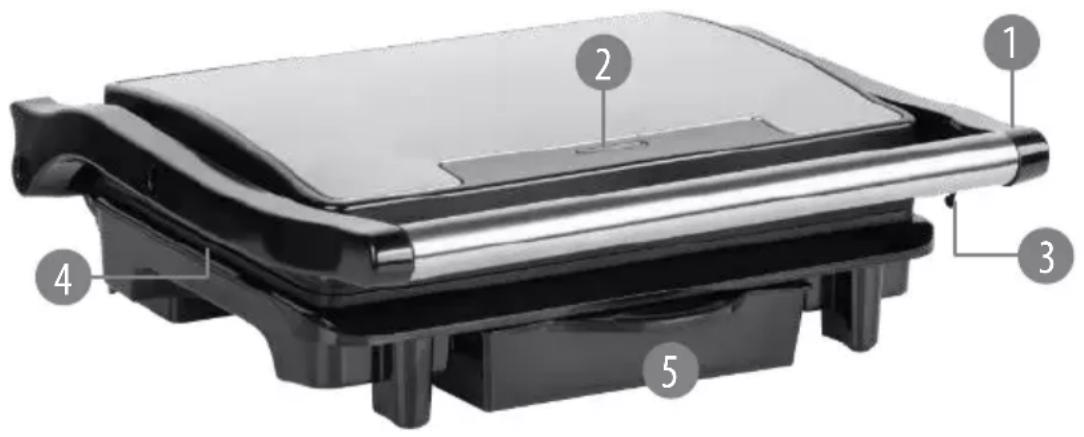

PRODUCT DESCRIPTION

1. Handle
2. Power indicator
3. Opening latch
4. Plate
5. Grease tray

OPERATION

First use

1. Take the device out of the packaging and place it on flat, stable surface.
2. Make sure, that the power supply socket is nearby the mounting location.
3. Clean the plates with soft, slightly damp cloth and wait for it to dry.
4. Make sure, that the grease tray is assembled.
5. Connect the device to power outlet. First use of the device should last about 10 minute without any food inside. During first use there could be an odor. This is normal and is caused by initial heating of the plates. It should not reoccur.

Grilling

1. Open the lid.
2. Cover the plates in small amount of cooking oil or butter with cake brush or paper tow
3. Connect the device to the power outlet.
4. Place food on the bottom plate.
5. Close the lid and adjust the angle.
6. Grilling time is determined by type of food or user's preferences. Regularly check the grilled food.
7. If food is ready, take it out with wooden or plastic spatula.

Caution: do not use metal or sharp kitchen utensils.

1. After finished grilling, disconnect the device from a power supply outlet.

Caution: while grilling, the power indicator will turn on and off. It means, that the device is keeping the temperature at correct level.

EN

CLEANING

• Clean the plates with soft, slightly damp cloth.
• In case of hard to remove residues, squeeze some warm water mixed with a detergent.
• The grease tray can be washed in dishwasher.
• Clean the plates and the grease tray after every use.
• Do not submerge the device in water.
• Before storing, make sure the device is cold, clean and dry.
• Before storage make sure that the power supply cable is disconnected.

SPECIFICATION

Main features

Non-stick, ribbed plates

Adjustable hinge for even cooking

Grease outlets

Removable drip tray

Power light

Heatproof grip

Overheating protection

Stainless steel cover

Anti-slip feet

Technical data

Maximum power: 1500 W

Power supply: 220 240 ~V ; 50 / 60 ~Hz

Physical parameters

Weight: 1,7 kg

Dimensions:

EN

Device: 260 × 295 × 90 mm

Plate: 243 x 168 mm

Cord length: 70 cm

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate it from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolinska 1, 08-400 Mietne.

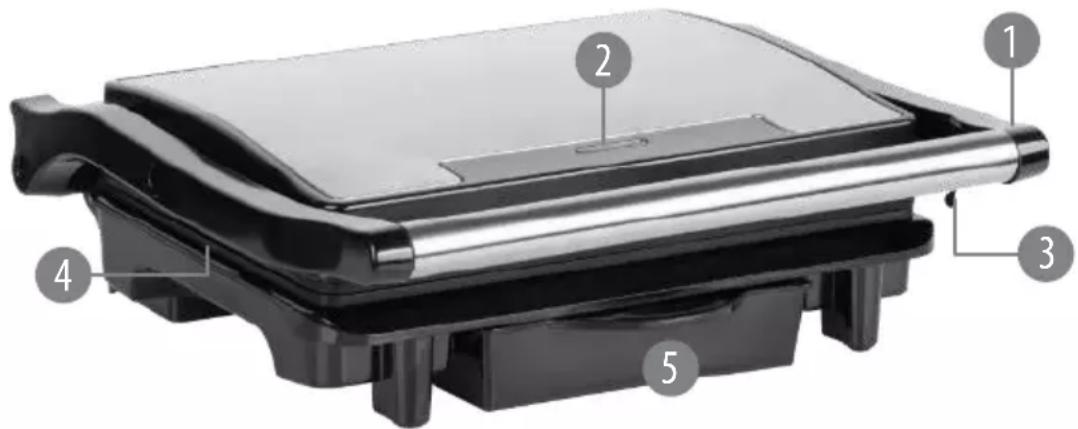

BESCHRIJVING VAN HET PRODUCT
