DOI 602 S - Cooker Arçelik - Free user manual and instructions

Product Type	Cooker with integrated hood
Brand	Arçelik
Model	DOI 602 S
Width	60 cm or 80 cm depending on version
Depth	Approximately 52 cm (estimate)
Height	Approximately 5 cm (estimate)
Weight	Approximately 25 kg (estimate)
Power supply	Single-phase or three-phase, 220-240 V / 50 Hz
Maximum power	Approximately 7-9 kW (depending on configuration)
Installation type	Built-in (types A, B, C)
Main functions	Cooking by electric plates or ceramic hob (not specified), integrated hood with extraction or recirculation ventilation
Filters	Metal grease filter, activated carbon filter (optional)
Suction speed	Not specified, probably 3 speeds
Maintenance and cleaning	Regular cleaning of the metal filter, replacement of the activated carbon filter
Safety	Automatic shut-off not mentioned, but requires installation by a professional, mandatory earthing
Spare parts and repairability	Parts available via authorized service or authorized dealers (e.g. Naber)
General information	User and installation manual provided, 60 pages

Frequently Asked Questions - DOI 602 S Arçelik

What are the possible installation types for the Arçelik DOI 602 S cooker?

The installation types are A (without internal circulation shaft), B (with internal circulation shaft), and C (with external circulation). See the manual for detailed diagrams.

How to install the activated carbon filter?

Remove the metal grease filter, then the liquid collection chamber. Place two activated carbon filter units on the right and left, then reassemble.

What are the exact dimensions of the appliance?

Dimensions vary by width: 60 cm (ref. 601 560) or 80 cm (ref. 821 740). Refer to diagram 1 in the manual for exact measurements.

Can I use an extension cord with this cooker?

No, use of extension cords or damaged cables is prohibited. Plug directly into a suitable earthed outlet.

How to clean the metal grease filter?

Remove the filter by pulling it upwards and wash it with warm soapy water or in a dishwasher. Dry it before reinstalling.

Can the cooker operate without external ventilation?

Yes, in recirculation mode (type A) with an activated carbon filter. The air is filtered and returned to the room.

What is the electrical connection procedure?

Connection must be carried out by a qualified electrician according to diagram E. The cable can be single-phase (3 conductors) or two-phase (4 or 5 conductors). Follow the colors: brown/L, blue/N, green-yellow/earth.

Where can I find spare parts for the ventilation system?

Plastic air guide parts are available from the Arçelik authorized service or authorized dealers. See the table on pages 12-13 of the manual.

What to do in case of suction malfunction?

First check that the filters are not clogged. If the problem persists, contact authorized after-sales service.

Does the cooker require room ventilation?

Yes, if you use another combustion appliance in the same room, ensure that negative pressure does not exceed 0.04 mbar. Have the ventilation system checked by a professional.

USER MANUAL DOI 602 S Arçelik

Black and white icon of a crossed wrench and screwdriver (no text or symbols)

TR / EN / DE / FR / DA / FI / IT / NL / NO / PL / SV

Image displaying four labeled tool illustrations: a measuring tape, a pen, a screwdriver, and a rolled-up cable with a metric value.

1

520 X 227,5 X 60cm : 600 80cm : 820

A2

Technical line drawing of a two-part mechanical device with internal components and directional arrows indicating movement (no text or symbols)

A6

Line drawing of a multi-compartment drawer with arrows indicating flow direction (no text or symbols)

A7

Diagram showing a device being processed into a rack, with an inset image of the rack component labeled '123'.

A8

Line drawing of a two-person appliance with a side panel and drawer, showing structural change (no text or symbols)

A9

Diagram of a multi-compartment refrigerator with labeled parts and a magnified inset showing three views of the lid.

Line drawing of a two-door appliance with a handle and mounting bracket (no text or symbols)

B2

10,5 5,5 10,5 R 3,5 10,5 490 521 Y Z 490 min. 50 535 min. 60 223,5 60 cm 601 560 80 cm 821 740 100 94 306,7

Technical line drawing of two mechanical assembly components with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

B5

B6

Technical line drawing of a mechanical or electrical enclosure with internal components and a downward arrow indicating motion (no text or symbols)

B7

Technical line drawing of a mechanical device with a base, panel, and housing (no text or symbols)

B8

Line drawing of a multi-compartment drawer with arrows indicating flow direction (no text or symbols)

B9 123

B10

B11 123

C2

10,5 5,5 10,5 R 3,5 10,5 521 Y 490 490 Z Z 60 cm 601 560 80 cm 821 740

C3

Technical line drawing of two mechanical assembly components with no visible text or symbols

C4

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

C5

Technical line drawing showing a mechanical assembly with directional arrows indicating motion (no text or symbols)

C6

Technical line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols present)

C7

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

C8

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

E

BRW L BLU N E GR/YE

1 N AC 220-240 V

BRW BLA GRE BLU GR/YE L N E

1 N AC 220-240 V

BRW L1 L2 BLA GRE N BLU E GR/YE

2 N AC 380-415 V

BRW L1 BLA N BLU E GR/YE

2 N AC 380-415 V

BRW L1 BLA L2 GRE L3 BLU N E GR/YE

3 N AC 380-415 V

	X1 X2
	4043007 158265028
	4022039 158265033
	4022040 158265034
	4022029 158265035
	4022038 158265036
	4022012 158265037
	4043001 158265025
	4043005 158265026
	4043003 158265029
	4043002 158265030
	4043004 158265024
	4043006 158265031
	4043042 158265032

- (BRW) Kahverengi = L (Faz)

- (BLU) Mavi = N (Nötr)

- (BRW/BLA) Kahverengi/Siyah = L (Faz)

- (BLU/GRE) Mavi/Gri = N (Nötr)

- (BRW) Kahverengi = L1 (Faz)

- (BLA) Siyah = L2 (Faz)

- (BLU/GRE) Mavi/Gri = N (Nötr)

- (BRW) Kahverengi = L1 (Faz)

- (BLA) Siyah = L2 (Faz)

- (BLU) Mavi = N (Nötr)

- (GR/YE) Yeşil/sarı kablo = (E) ⏚ (Topraklama)

- (BRW) Kahverengi = L1 (Faz)

- (BLA) Siyah = L2 (Faz)

- (GRE) Gri = L3 (Faz)

- (BLU) Mavi = N (Nötr)

EN- Safety Instructions

• The appliance shall be installed by a qualified person in accordance with the regulations in force to keep the warranty applicable. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which will also void the warranty.
• It is customer's responsibility to prepare the location the appliance shall be placed on and to have the electrical installation prepared. Before calling Authorized Service, make sure the electrical infrastructure is suitable. If it is not, call a qualified electrician and fitter to have the required arrangements made.
• The rules in local electrical installation standards shall be followed during product installation.
• Remove all packaging materials and documents inside the appliance and check for any damage on the appliance before the installation. Do not have it installed if the appliance is damaged.
• The product is heavy, carry the product with at least two people.
• Make sure that the user cannot reach the electrical connections after the installation.
• Failing to install the screws and securing equipments in accordance with the guide may cause electrical danger.
• Parts that you may be in touching distance during the installation may have sharp edges and may cause

cut injuries. Therefore always wear protective gloves during transport and installation.

• Disconnect electrical connections in the area of installation before starting the installation.
• Surfaces of the furniture that the appliance shall be installed shall be heat resistant (100 °C minimum).
• Make sure that the furniture is in straight, horizontal position and that it is fixed before the installation of the appliance.
• Do not install heat insulation strips to the furniture that the appliance shall be installed.
• The air to be expelled from the product should not be fed into a chimney used by other appliances burning gas or other fuels. (not applicable for appliances that discharge air back into the room).
  •Legislation regarding the evacuation of air must be complied with.
• Poisoning Danger! While the appliance is operating, air is drawn from the whole house. If adequate ventilation is not provided, air flow occurs and the waste and toxic gases released as a result of combustion in the house are reabsorbed. Do not operate the product together with products that provide air circulation and may emit toxic gas (wood, gas, oil and coal stoves, boilers, water heaters, etc.).
• Have the adequacy of your building's ventilation and chimney system checked by authorized persons.
• If there is another appliance operating with energy other than electrical energy in the same environment with ventilation, the negative pressure in the room should be at most 0.04 mbar so that the exhaust of the other appliance is not drawn back into the room by the ventilation.
• Dimensions given in installation diagrams are in mm.
  •The air to be expelled from the ventilation should not be fed into a chimney used by other appliances burning gas or other fuels. (not applicable for appliances that discharge air back into the room).

•Legislation regarding the evacuation of air must be complied with.
- Oil sludges may form on metal oil filters. For that reason, there should not be any flame near the product. In addition, installation of the product near a heating equipment using solid fuel is only permitted if there is a non-removable closed cover to prevent sparks.
- Our company shall not be responsible for problems that arise for not observing any of the warnings above.
•The product manufacturer does not accept any responsibility for the defects caused by the ventilation pipes used in the installation.
•The air outlet pipe to be used should be as short as possible, straight and should have a large diameter.
- Long air outlet pipes, multiple pipe bends or small pipe diameters reduce ventilation performance and increase fan noise.
- The air outlet pipe must be made of non-combustible material.
- The air outlet pipe should be installed with an inclination of 1 degree to prevent the return of condensation.

Product dimensions (Figure 1)

Pay attention to the product dimensions. Consider its suitability with your furniture. Your product is suitable for 3 different types of installation according to the suitability of your furniture. A, B and C type installations are described respectively.

A : Installation without internal circulation shaft

B : Installation with internal circulation shaft

C : Installation with external circulation

A type installation (Installation without internal circulation shaft)

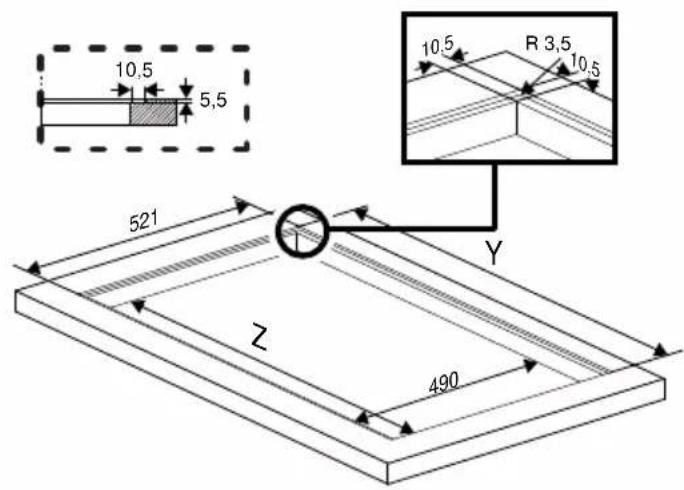

Preparation of the furniture on which installation will be made: (Figure A2)

Prepare your furniture according to the dimensions presented in Figure A2. Cut dimensions for flush-fit installation are also indicated in Figure A2.

Steps for A type installation

- Remove the tape on the countertop plastic described in Figure A3, and place it in its slot on the back of the hob as shown in the figure.

- Completely remove the drawers of your furniture and place your stove in its place on your furniture. (Figure A4)

- Stick the countertop plastic on the wall by pulling it towards the wall through the gap you have opened in your furniture. (Figure A5)

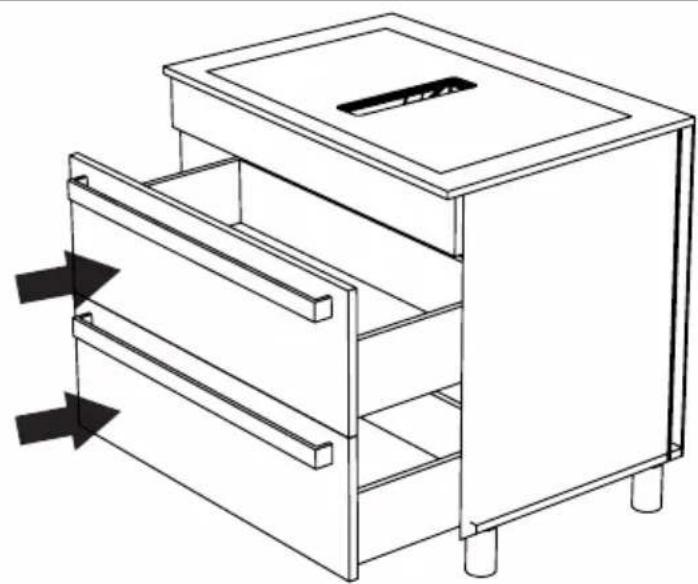

- Put your drawers back in place. (Figure A6)

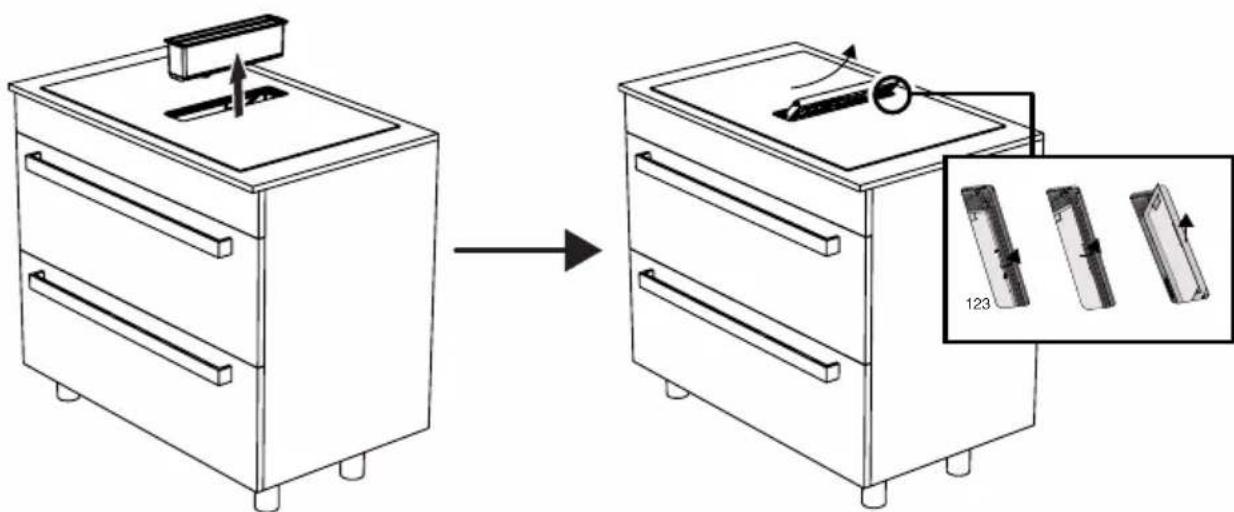

- Remove the metal oil filter by pulling it upwards. (Figure A7)

- Remove the liquid collection chamber as shown in the figure A7.

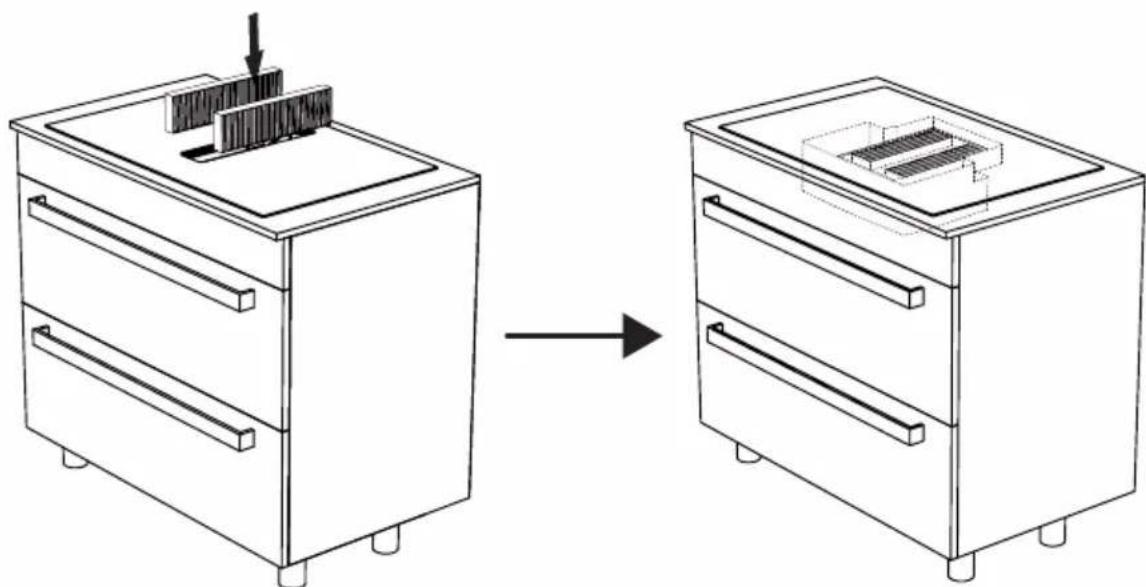

- Place two units of active carbon filters to right and left as shown in figure A8.

- Place back the liquid collection chamber as shown in the figure A9. Complete the installation by placing back the metal oil filter.

B type installation (Installation with internal circulation shaft)

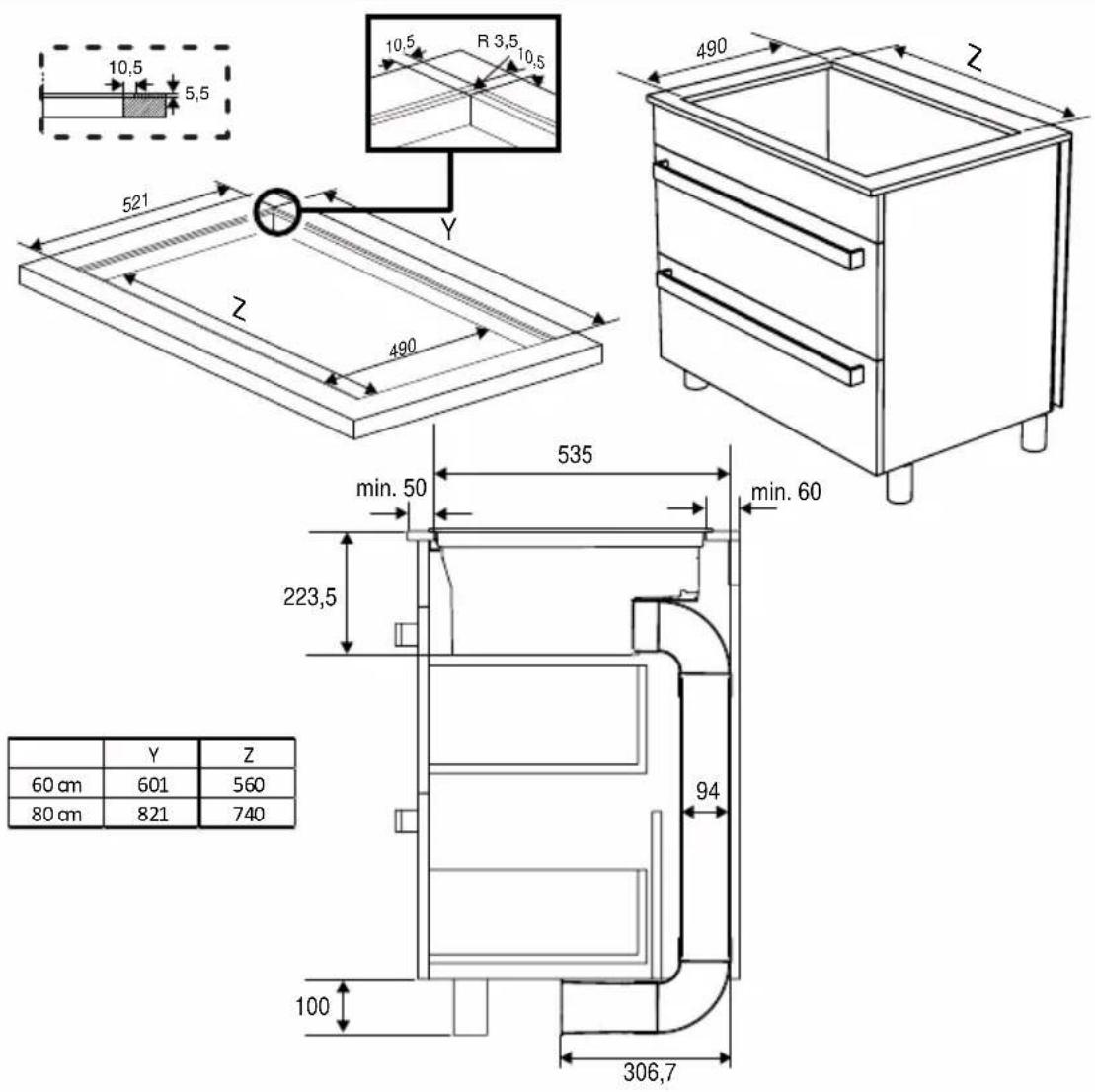

Preparation of the furniture on which installation will be made: (Figure B2)

Prepare your furniture according to the dimensions presented in Figure B2. Cut dimensions for flush-fit installation are also indicated in Figure B2. You need to obtain the plastic parts of the air guide described in this installation from the authorized service or authorized dealers. These parts are not supplied with the product.

Steps for B type installation

- Place the ventilation corner plastic described in Figure B3 in its slot on the back of the hob as shown in the figure.

•Completely remove the drawers of your furniture and place your stove by tilting it into its place on your furniture. (Figure A4)

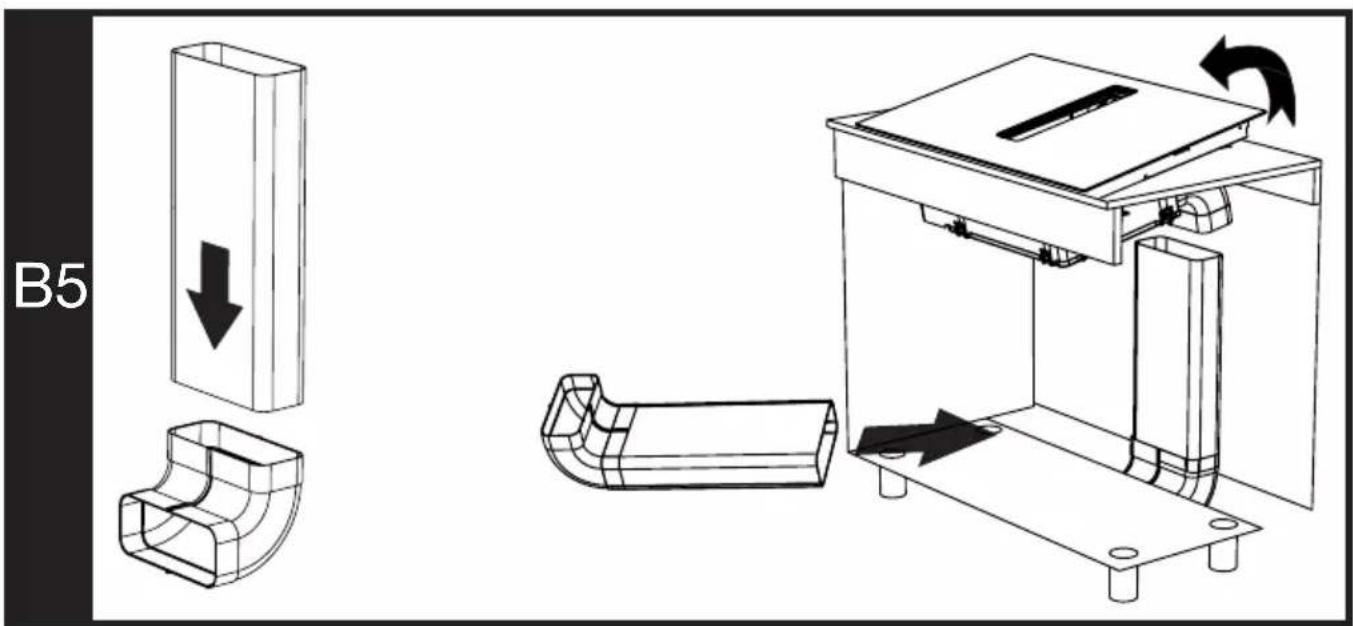

- Attach the long and corner plastics of ventilation that will direct the air to the bottom of the furniture, and attach them to the corner plastic you have attached to the back of the stove as shown in figure B5. In order to attach it to the corner plastic, you need to lift the

hob a little from the back. Ventilation plastic parts must have been mounted as shown in figure B6.

- Attach the ventilation outlet bit to the ventilation corner plastic from the bottom of your furniture as shown in figure B7.

- Put your drawers back in place. (Figure B8)

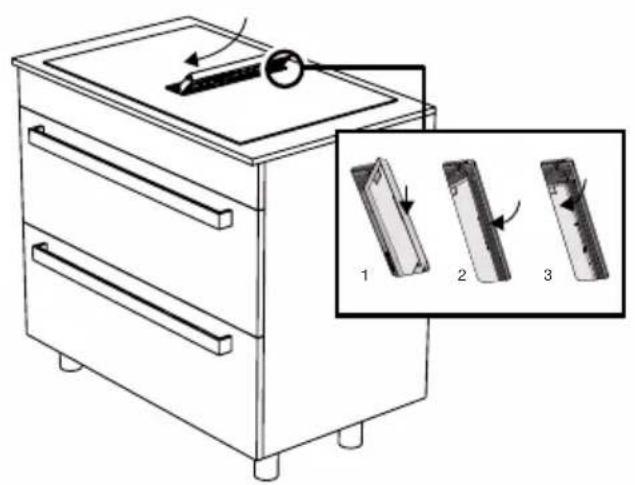

- Remove the metal oil filter by pulling it upwards. (Figure B9)

- Remove the liquid collection chamber as shown in figure B9.

- Place two units of active carbon filters to right and left as shown in figure B10.

- Place back the liquid collection chamber as shown in figure B11. Complete the installation by placing back the metal oil filter.

C type installation (Installation with external circulation)

Preparation of the furniture on which installation will be made: (Figure C2)

Prepare your furniture according to the dimensions presented in Figure C2. Cut dimensions for flush-fit installation are also indicated in Figure C2. You need to obtain the plastic parts of the air guide described in this installation from the authorized service or authorized dealers. These parts are not supplied with the product.

Steps for C type installation

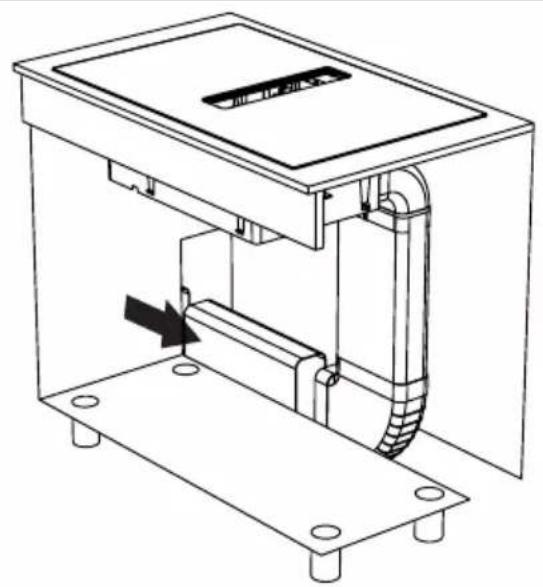

- Place the ventilation corner plastic described in Figure C3 in its slot on the back of the hob as shown in the figure.

- Completely remove the drawers of your furniture and place your stove by tilting it into its place on your furniture. (Figure C4)

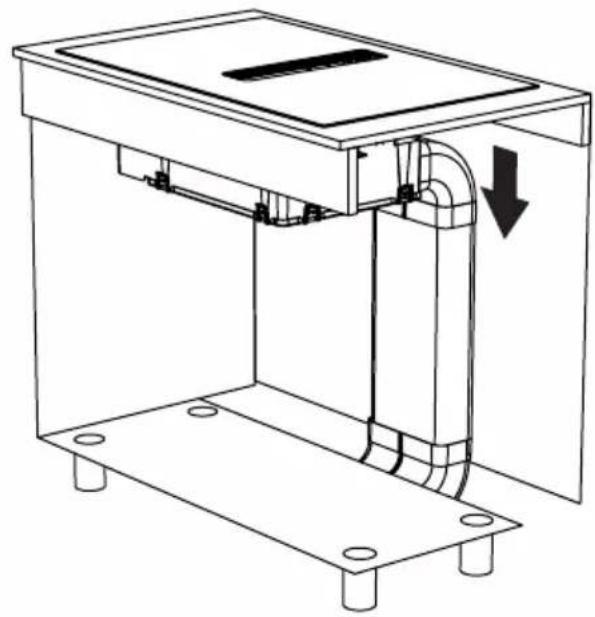

- Attach the long and corner plastics of ventilation that will direct the air to the bottom of the furniture, and attach them to the corner plastic you have attached to the back of the stove as shown in figure C5. In order to attach it to the corner plastic, you need to lift the hob a little from the back. Ventilation plastic parts must have been mounted as shown in figure C5.

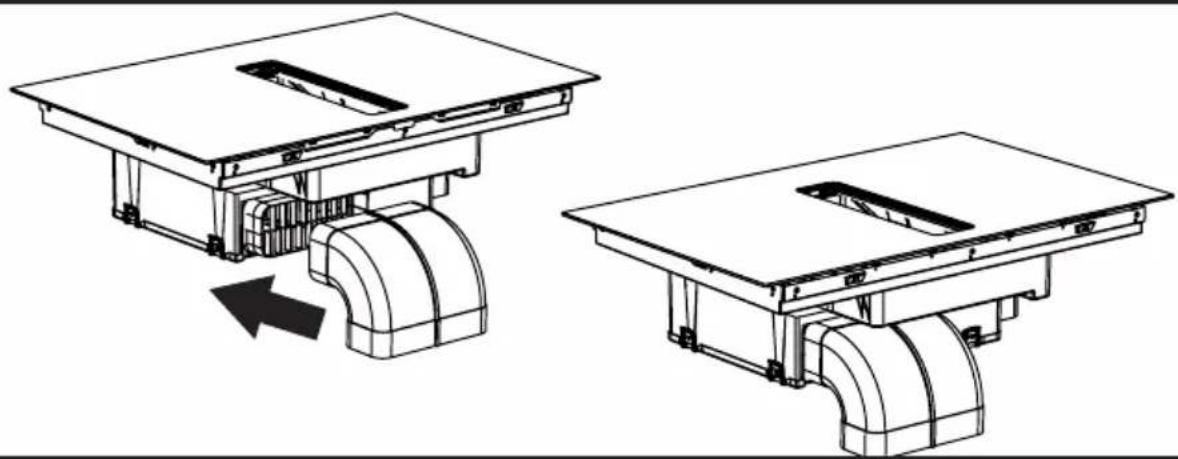

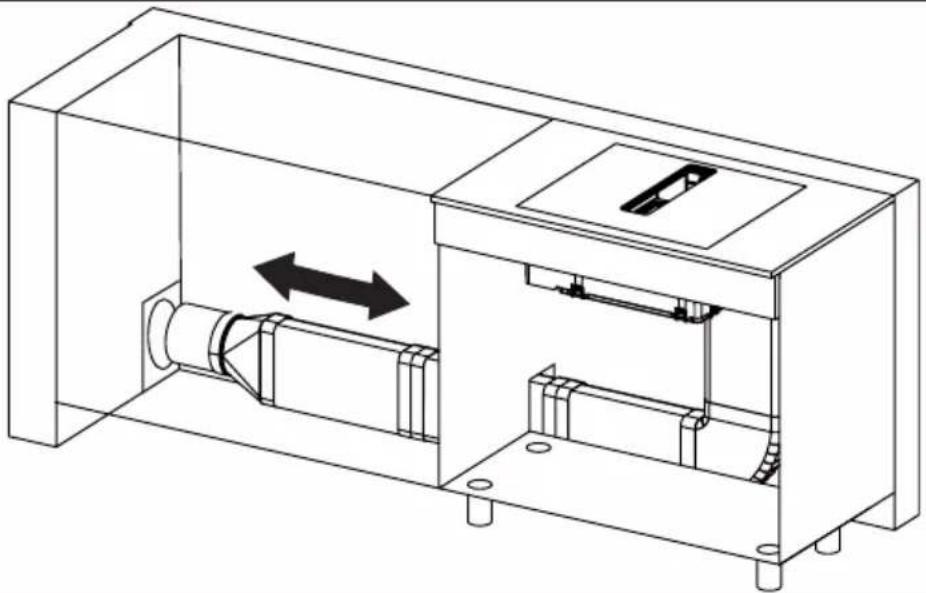

- Reach at your chimney using ventilation parts in accordance with its location.

- Ventilation parts that you can obtain from authorized service or authorized dealers are given in the table on pages 12-13. The X1 column given in the table includes “Naber” company codes, the X2 column includes the codes of our authorized service.

Electrical connection of the appliance (Figure E)

- Connect the appliance to a grounded outlet/line protected by a fuse that is compatible with the values in the “Technical specifications” table. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any problems arising due to the product not being earthed in accordance with the local regulations.

- Disconnect the appliance from the electric connection before starting any work on the electrical installation. Risk of electric shock.

- The appliance may only be connected to the mains electricity connection by an authorized and qualified person. The manufacturer shall not be held responsible for any damages that may occur as a result of operations performed by unauthorized persons.

- The appliance must be installed in a way that it can be completely disconnected from the mains supply. The disconnection shall be provided by a switch built into the fixed electrical installation, according to the construction regulations.

- The bottom surface of the cooker gets hot, too, when it is in use. Electrical connections shall not contact the bottom surface, otherwise the connections may be damaged.

- Do not pass the connection cables over the hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit of the cooker. If the electric cable is damaged, it must be replaced by a qualified electrician. Otherwise there is a risk of electric shock, short circuit or fire hazard!

- While performing the wiring, you shall comply with the national/local

electrical regulations and shall use the appropriate socket outlet/line and plug for the cooker. In case the product's power limits exceed the current carrying capability of plug and socket outlet/ line, the product must be connected to the fixed electrical installation directly without using plug and socket outlet/ line.

- Make sure that fuse rating is compatible with the product.

- Connection must comply with national regulations.

- The mains supply data must correspond to the data specified on the type label of the product. You may see the type label on the bottom of the cooker.

- Power cable of your product must comply with the values presented in "Technical specifications" section.

- If the appliance shall be directly connected to the mains: If it is not possible to disconnect all poles in the mains supply, a disconnection unit with at least 3 mm contact clearance (fuse, line safety switch, contactor) shall be connected and all the poles of this disconnection unit shall be adjacent to (not above) the appliance in accordance with IEE directives. Failure to obey this instruction may cause operational problems and invalidate the product warranty.

• Additional protection by a residual current circuit breaker is recommended.

If your appliance has a cord and plug:

- Perform the electrical connection of your appliance by plugging it to a grounded socket.

If your appliance has a cord, but does not have a plug:

- Connect your appliance to the mains as specified below as per the cord type. The cord type of your appliance is specified in the “Technical Specifications” section of the operation manual.

If your cord type is 3-conductor type, for

1-phase connection:

- (BRW) Brown = L (Phase)

- (BLU) Blue = N (Neutral)

- (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

If your cord type is 5-conductor type, for

1-phase connection:

For single phase connection

- (BRW/BLA) Brown/Black = L (Phase)

- (BLU/GRE) Blue/Grey = N (Neutral)

- (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

If your cord type is 5-conductor type, for

2-phase connection:

- (BRW) Brown = L1 (Phase)

- (BLA) Black = L2 (Phase)

- (BLU/GRE) Blue/Grey = N (Neutral)

- (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

If your cord type is 4-conductor type, for

2-phase connection:

- (BRW) Brown = L1 (Phase)

- (BLA) Black = L2 (Phase)

- (BLU) Blue = N (Neutral)

- (GR/YE) Green/yellow wire = (E) (Earthing)

If your cord type is 5-conductor type, for

3-phase connection:

- (BRW) Brown = L1 (Phase)

- (BLA) Black = L2 (Phase)

- (GRE) Grey = L3 (Phase)

- (BLU) Blue = N (Neutral)

- (GR/YE) Green/yellow wire = (E) (Earthing)

For the protection of the appliance against burning:

• Make sure that the product plug is securely plugged into the outlet to avoid arcing.
• Do not use damaged cables or extension cables.
• Ensure there is no liquid or moisture on the socket where the product plug is connected.

Final inspection

• After completing the installation, turn on the mains supply.
• Read the operation manual for the first operation of the appliance.
• Ensure that each cooking hob heats and ventilation works.

• (BRW) Braun = L (Phase)
• (BLU) Blau = N (Neutral)
• (GR/YE) Grüner/gelber Draht = (E) (Earthing)

- (BRW/BLA) Braun/Schwarz = L (Phase)

- (BLU/GRAU) Blau/Grau = N (Neutral)

- (GR/YE) Grüner/gelber Draht = (E) (Earthing)

• (BRW) Braun = L1 (Phase)
• (BLA) Schwarz = L2 (Phase)
• (BLU/GRAU) Blau/Grau = N (Neutral)
• (GR/YE) Grüner/gelber Draht = (E) (Earthing)

• (BRW) Braun = L1 (Phase)
• (BLA) Schwarz = L2 (Phase)
• (BLU) Blau = N (Neutral)
• (GR/YE) Grüner/gelber Draht = (E) (Earthing)

• (BRW) Braun = L1 (Phase)
• (BLA) Schwarz = L2 (Phase)
• (GRE) Grau = L3 (Phase)
• (BLU) Blau = N (Neutral)
• (GR/YE) Grüner/gelber Draht = (E) (Earthing)

• (BRW) Brun = L1 (Fase)
• (BLA) Sort = L2 (Fase)
• (BLU/GRE) Blå/Grå= N (Neutral)
• (GR/YE) Grøn/gul ledning = (E)

(Jordforbindelse)

- (BRW) Brun = L1 (Fase)

- (BLA) Sort = L2 (Fase)

- (BLU) Blå = N (Neutral)

- (GR/YE) Grøn/gul ledning = (E)

(Jordforbindelse)

Hvis din netledningstype er 5-leder type, til 3-fasetilslutning:

- (BRW) Brun = L1 (Fase)

- (BLA) Sort = L2 (Fase)

- (GRA) Sort = L3 (Fase)

- (BLU) Blå = N (Neutral)

- (GR/YE) Grøn/gul ledning = (E)

(Jordforbindelse)

- (BRW) Bruin = L (Fase)

- (BRW/BLA) Bruin/Zwart = L (Fase)

- (BRW) Bruin = L1 (Fase)

- (BLA) Zwart = L2 (Fase)

- (BRW) Brun = L1 (fase)

- (BLA) Svart = L2 (fase)

- (BRW) Brun = L1 (fase)

- (BLA) Svart = L2 (fase)

- (GRE) Grå = L3 (fase)

- (GRE) Szary = L3 (Faza)
