Product type	Microwave oven with grill
Brand	Orbegozo
Model	MIG 2050 CE
External dimensions (W x H x D)	457 x 271 x 396 mm
Cavity dimensions (W x H x D)	261 x 173 x 325 mm
Capacity	20 liters
Net weight	Approximately 13.1 kg
Power supply	230 V ~ 50 Hz
Power consumption (microwave)	1200 W
Power consumption (grill)	1000 W
Rated output power (microwave)	800 W
Microwave frequency	2450 MHz
Main functions	Microwave, grill, combination, quick and automatic defrost, auto cook, two-stage cooking, delayed start, child lock
Microwave power levels	6 levels (100%, 80%, 60%, 40%, 20%, 0%)
Control type	Knob + push buttons, digital display
Cavity material	Metal with coating
Included accessories	Metal tray, grill
Safety	Child safety lock, auto shut-off when door opens, overheating protection
Care and cleaning	Clean with a damp cloth and mild detergent; avoid abrasive cleaners; do not let water enter vents
General information	Legal warranty as per applicable legislation; technical service via https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - MIG 2050 CE Orbegozo

How to set the oven clock?

Press WEIGHT/CLOCK once or twice to choose 12h or 24h format. Turn the knob to set the hour, press WEIGHT/CLOCK again, then set the minutes and confirm.

Which utensils can I use?

Use heat-resistant glass, ceramic, or microwave-safe plastic containers. Avoid metal (except for the grill). Do not put recycled paper containing metal fragments.

How to defrost food?

Two methods: Speed defrost (press SPEED DEFROST, set time) or Auto defrost (press AUTO DEFROST, select weight with WEIGHT/CLOCK, then press START). The oven will beep to turn the food.

How to clean the inside of the microwave?

Unplug the appliance. Clean with a damp cloth and mild detergent. For odors, heat a bowl of water with lemon for 5 minutes. Avoid abrasive cleaners and do not let water enter vents.

What to do if the oven does not work?

Check the plug, fuse, and circuit breaker. Make sure the door is closed properly and the control panel is programmed correctly. If it still doesn't work, contact a qualified technician. Do not attempt to repair yourself.

How to use the grill function?

Press GRILL/COMBI once, turn the knob to set time (max 95 min), then press START/QUICK START. Place food on the provided metal tray.

Can I program the oven to start later?

Yes, after selecting a cooking mode (except quick start and defrost), press PRESET, set the hour then minutes, confirm with PRESET. The oven will start at the set time.

How to deactivate child lock?

The child lock activates automatically after one minute of inactivity. To cancel, open or close the door. This function cannot be permanently disabled.

What does 'End' on the screen mean?

This message indicates the end of cooking. A beep sounds every two minutes until you press PAUSE/CANCEL or open the door.

Why is there smoke or a strange smell when using the grill for the first time?

This is normal. The oven is coated with lubricating oil that burns slightly. This will disappear after a few uses.

USER MANUAL MIG 2050 CE Orbegozo

Exterior view of a Bluesgoza microwave oven with control panel and digital display (no visible text or symbols on main body)

MIG 2050 CE

Sonifer,S.A.

Avenida de Santiago, 86, 30007, Murcia, Spain

e-mail: [e-mail]//www.orbegozo.com

MADE IN P.R.C.

Read this manual carefully before running this appliance and save it for reference

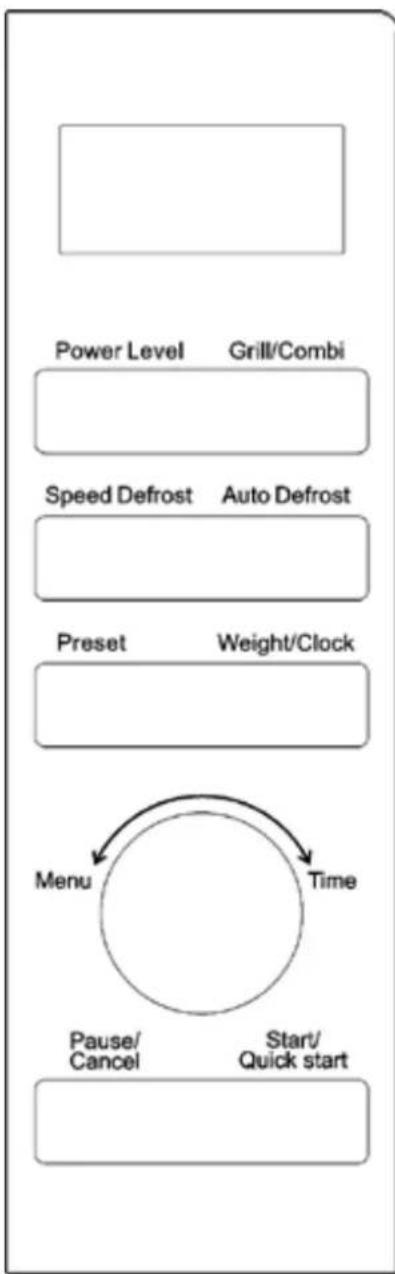

PANEL DE CONTROL

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the
   a. Door (bent),
   b. Hinges and latches (broken or loosened),
   c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. The rear of the appliance should be against the wall.

15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

16. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

17. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

18. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

19. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

20. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

21. WARNING: If the door or seals are damaged, the oven must not be used until properly repaired by qualified service personnel.

22. Use only utensils that are intended for use in microwave ovens.

23. When heating food in plastic or paper containers, carefully attend the oven due to the possibility of ignition.

24. The intended use of the microwave oven is that of heating beverages and food. The drying of food or clothes and the warming of pillows, slippers, sponges, damp clothes and similar items may result in injury, ignition or

fire.

1. The oven must be cleaned regularly and any food residue removed.
2. The failure to keep the oven clean could lead to damage in its surface and negatively affect the appliance's performance, leading to a potentially hazardous situation.
3. WARNING: Check the oven for any damage, for example, a misaligned or bent door, damaged door seals and sealing surfaces, broken or loose latches or hinges, and dents inside the oven or on the door. If there is any damage, do not operate the oven and contact the qualified service personnel.
4. Read these instructions completely before using the microwave.
5. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
6. Do not operate the oven when empty.
7. To reduce the risk of fire in the oven cavity:

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity

when not in use.

1. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

2. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

3. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

4. Utensils should be checked to ensure that they are suitable for use in microwave oven.

5. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

6. CAUTION: The surface can remain hot during or after use.

7. Do not operate the device connected to an external timer or a separate remote control system.

39. WARNING: In case of misuse, there is a risk of possible injury.

SPECIFICATIONS*

Power Consumption:	230V~50Hz, 1200W (microondas)
	1000W (grill)
Rated Microwave Power Output:	800W
Operation Frequency:	2450MHz
Outside Dimensions:	271x457x396 mm
Oven Cavity Dimensions:	173x261x325mm
Oven Capacity:	20 Litros
Net Weight:	Approx. 13,1Kg

INSTALLATION

Make sure that all the packing materials are removed from the inside of the door.

1. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
2. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
3. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
4. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
5. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
6. The socket must be readily accessible so that it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

• Clean door and sealing surface of the oven.
• Reorient the receiving antenna of radio or television.

- Relocate the microwave oven with respect to the receiver.

- Move the microwave oven away from the receiver.

- Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF

UTENSILS GUIDE

The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks or fires.

Round or oval dishes rather than square or oblong ones are recommend, as food in corners tends to overcook.

Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils

Cookware	Microwave	Grill	Combination*
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Container	No	Yes	No

* Combination: applicable for both "microwave+grill".

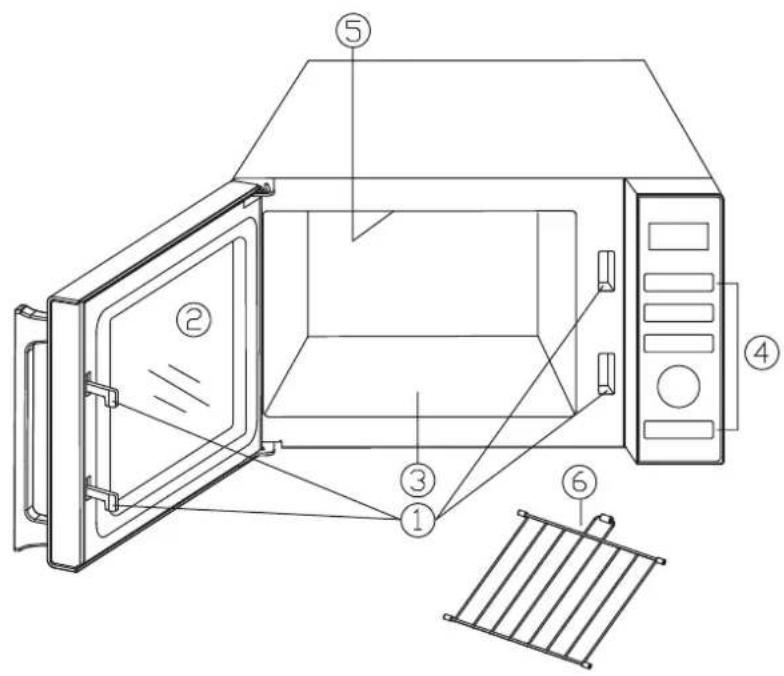

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Cavity Floor
4. Control Panel
5. Grill Heater
6. Metal Rack

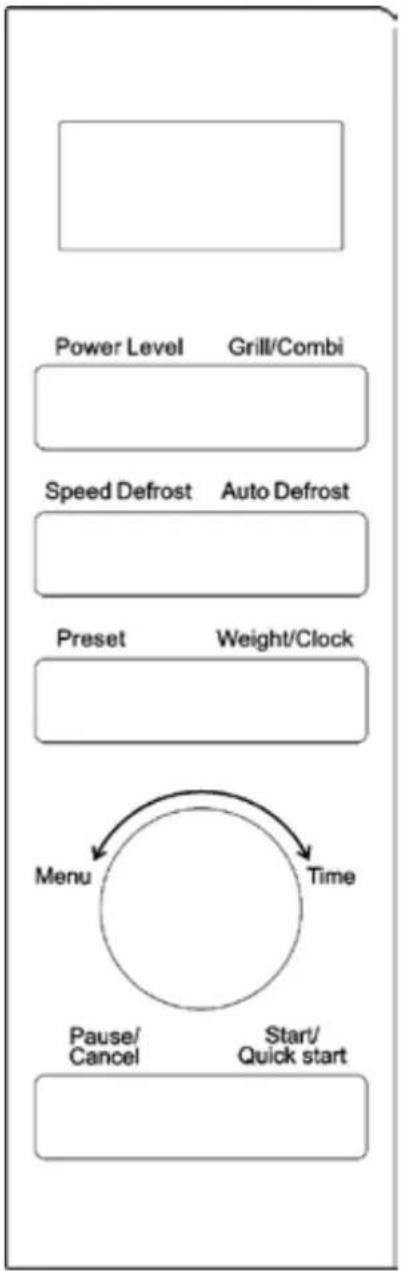

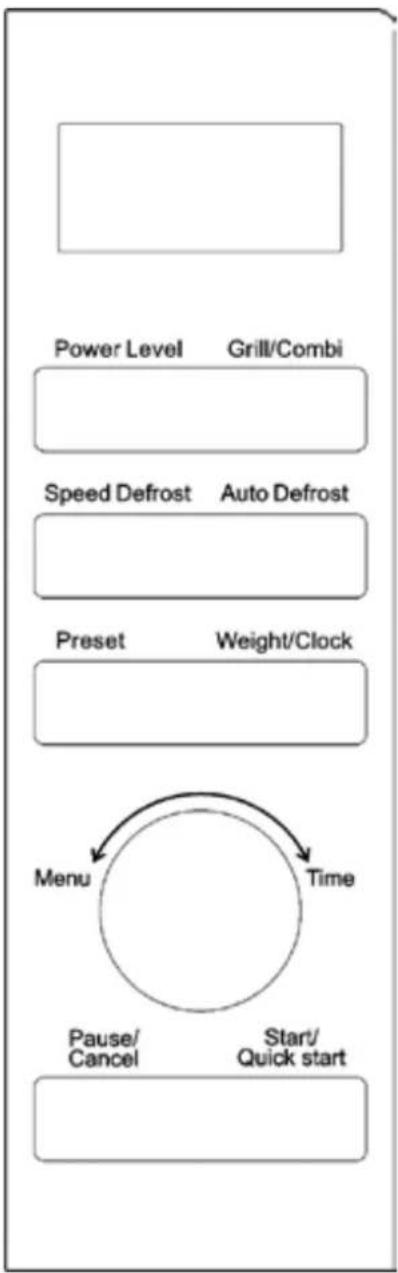

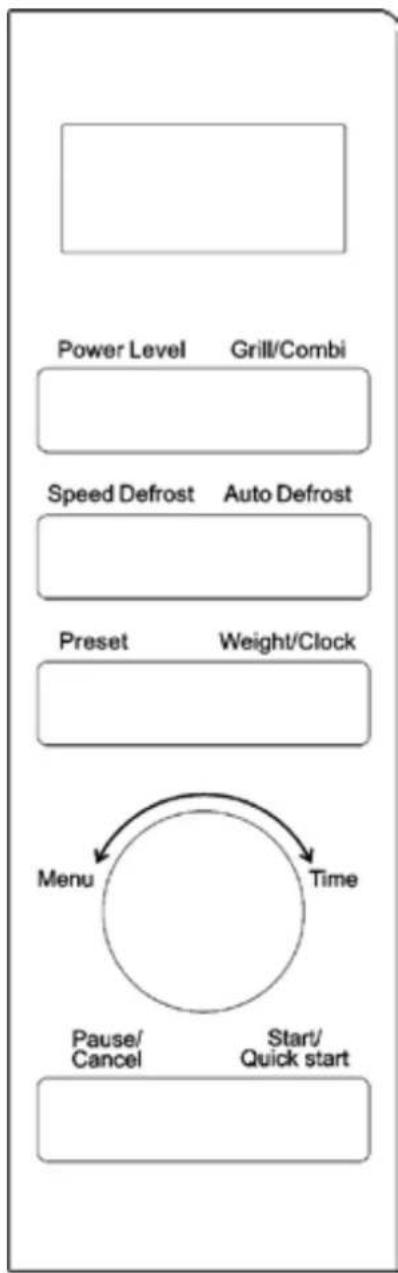

CONTROL PANEL

FUNCTION MENU DISPLAY

Shows cooking time, power, function indicators and actual time.

POWER LEVEL

Press this button to select the power level.

GRILL/COMBI

Press this button to select the grill or combination program.

SPEED DEFROST

Press to defrost based on a set time.

AUTO DEFROST

Press to defrost based on a set weight

PRESET

Use it to set the oven to start later.

WEIGHT/CLOCK

Used to specify food weights or time setting

MENU/TIME (KNOB)

Turn the wheel to select the time.

Turn the wheel to select the auto cook menu.

PAUSE/CANCEL

Press once to pause cooking or twice to cancel it completely.

START/QUICK START

Press this button to start a selected program, pressing it without selecting a program will start the microwave at full power for 30 seconds, press it several times to increase the time in 30 second steps.

Each time a button is pressed, a beep sounds to warn that a button has been pressed

(Please also see the following pages for more detail)

HOW TO SET THE OVEN CONTROLS

When the oven is first plugged in, the display will show 📁 and "1:01".
During cooking, if press PAUSE/CANCEL pad once or open the door, the program will be paused, then press START/QUICK START pad to resume, but if press PAUSE/CANCEL pad twice, the program will be canceled.
After ending cooking, the screen will display End with sound every two minutes until user press PAUSE/CANCEL pad or open the door.
In the process of running, if you press a valid button, a beep will sound. Instead, if you press a button that is not valid, the beep will sound twice.

SETTING CLOCK TIME

This is a 12 or 24 hour clock. To check the time while the oven is operating, press the CLOCK button, then the time will be displayed for a while on the display screen.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. Press WEIGHT/CLOCK button once or twice to select 12or 24 hour clock cycle
2. Turn MENU/TIME knob to set hour digit 8.
3. Press WEIGHT/CLOCK button once to confirm the hour setting.
4. Turn MENU/TIME to set minute digit 30.
5. Press WEIGHT/CLOCK button once to confirm the setting.

QUICK START

The oven will cook food quickly at HIGH power (100% power output) for quick start cooking program.

Just press the START/QUICK START a number of times to set cooking time. Each time you press it, time will increase 30 seconds. The microwave starts working automatically at full power. The maximum cooking time you can enter is 10 minutes.

MICROWAVE COOKING

For microwave cooking, just press the POWER/LEVEL button a number of times to select a cooking power level, and then use the MENU/TIME knob to set a desired cooking time. The longest cooking time is 95 minutes. The oven will start to cook after START/QUICK START button is pressed.

Press MICROWAVE button	COOKING POWER
Once	100%
Twice	80%
3 times	60%
4 times	40%
5 times	20%
6 times	0%

NOTE: During cooking, you can check the power level by touching MICROWAVE pad.

NOTE: For programs equal to or longer than 2 minutes, once the cooking time is over, the fan will continue to run for 3 minutes to allow the microwave to cool down and extend its useful life. During this time DO NOT DISCONNECT FROM THE POWER SUPPLY.

GRILL

The oven allows you to grill food based on the time entered by user. The longest cooking time is 95 minutes.

1. Press GRILL/COMBI button once. GR I will be shown on the display.
2. Turn MENU/TIME knob to enter cook time.
3. Press START/QUICK START to confirm.

COMBINATION

COMBINATION 1 means that the grill mode works more time than microwave mode: Use for fish, potatoes or au gratin.

COMBINATION 2 means that the microwaves mode works more time than grill mode: Use for pudding, omelets, baked potatoes and poultry.

1. In standby, press GRILL/COMBI twice or three times to select "CO-1" or "CO-2".
2. Turn MENU/TIME to select the cooking time.
3. Press START/QUICK START to confirm.

AUTO DEFROST

The oven allows you to defrost food based on the weight entered by user. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g.

FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

1. Press AUTO DEFROST button.
2. Press WEIGHT/CLOCK to select weight of food to be defrosted.
3. Press START/QUICK START to confirm your selection.

NOTE: The oven stops during defrosting. User can turn food over for uniform defrosting and then press START/QUICK START to defrost for the remaining time.

SPEED DEFROST

In standby mode, press SPEED DEFROST once.

Turn the MENU/TIME knob to select the defrost time up to a maximum of 95 minutes.

Press START/QUICK START to confirm selection.

NOTE: The microwave will stop during defrosting and beep. User can turn the food over for even defrosting, press START/QUICK START again to continue defrosting for the remaining time.

COOKING IN TWO STAGES

Your microwave can be programmed to run up to two auto cook sequences. Suppose you want to select the following program:

Microwave

↓

Microwave with lower power

1. Enter the first microwave cooking mode. Do not press START/QUICK START.
2. Enter the second microwave cooking mode.
3. Press START/QUICK START to start.

NOTE: Quick Start, Auto Defrost, Quick Defrost and Auto Cook cannot be entered in Two Stage Cooking.

EXAMPLE: We want to cook food in the microwave and then gratin it.

• Turn the MENU/TIME knob until you select the desired time (microwave function).
• We press the GRILL/COMBI button.
• Turn the MENU/TIME knob until you select the desired time (grill function).
• Press START/QUICK START to start.

PROGRAMMING

This function allows you to set the oven to start working at a later time.

1. Enter a cooking mode (except Quick Start, Auto Defrost, and Speed Defrost).
2. Press PRESET once.
3. Rotate MENU/TIME to select a time.
4. Press PRESET once.
5. Rotate MENU/TIME to select the minute.
6. Press PRESET once.
7. The microwave will start operating at the selected time.

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven cannot be operated while the CHILD LOCK is set.

To set the CHILD LOCK: In standby mode, the oven will enter child lock mode if there is not any operation within 1 minute.

To cancel the CHILD LOCK: In child lock mode, open or close the door to cancel child lock.

AUTO COOKING

For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs.

1. In standby mode, turn the MENU/TIME dial anti-clockwise to select food code.
2. Press WEIGHT/CLOCK button a number of times to enter the desired weight or numbers of serving.
3. Press START/QUICK START button.

Auto cooking menu

Food Code	Menu Note
1	Milk/coffee(200ml/glass)	1. For milk/coffee and potato, the screen will show the number of serving instead of food weight when pressing WEIGHT ADJUST button.2. For item 7~9, the oven stops during cooking to let the user to turn food over for uniform cooking and then press START/QUICK START button to finish the remaining time3. The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven.
2 Rice (150-600g)
3	Spaghetti (100g, 200g, 300g)
4	Potato (230g, 1-3 pieces)
5 Reheat (200-800g)
6 Fish (200-600g)
7 Chicken (800-1400g)
8 Lamb/Beef (200-600g)
9	Meat Skewers (100-500g)

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or

in a dishwasher.

1. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
2. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
3. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
4. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
6. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information

concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

PANNEAU DE COMMANDE

AFFICHAGE DU MENU DES FONCTIONS

PAINEL DE CONTROLO

