USER MANUAL 3200 series EP3546 PHILIPS

Fully automatic espresso machine 2200 series 3200 series

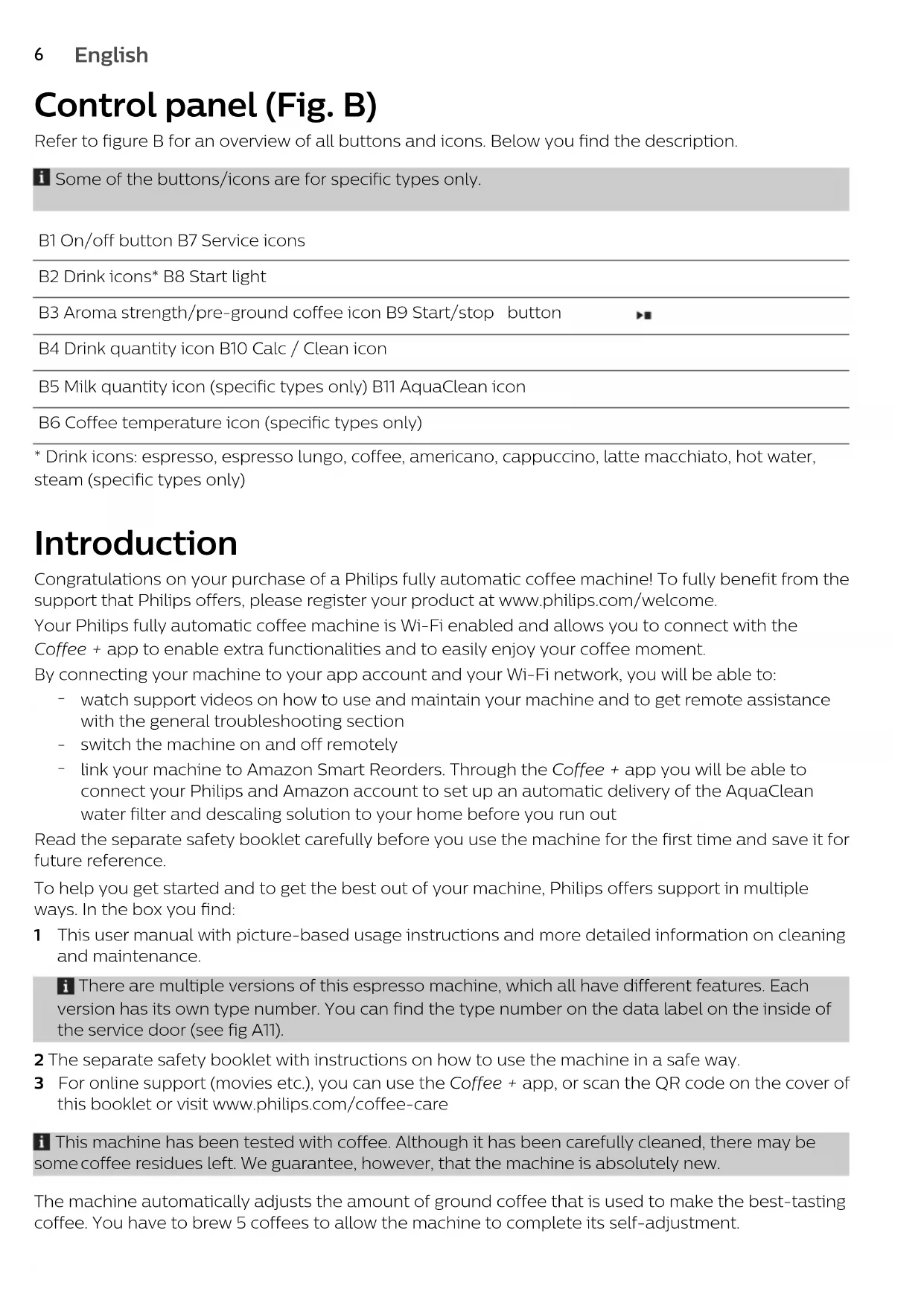

• Drink icons: espresso, espresso lungo, coffee, americano, cappuccino, latte macchiato, hot water, steam (specific types only) Introduction Congratulations on your purchase of a Philips fully automatic coffee machine! To fully benefit from the support that Philips offers, please register your product at www.philips.com/welcome. Your Philips fully automatic coffee machine is Wi-Fi enabled and allows you to connect with the Coffee + app to enable extra functionalities and to easily enjoy your coffee moment. By connecting your machine to your app account and your Wi-Fi network, you will be able to:

watch support videos on how to use and maintain your machine and to get remote assistance with the general troubleshooting section

switch the machine on and off remotely

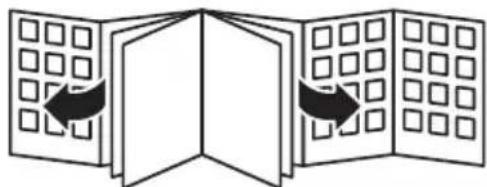

link your machine to Amazon Smart Reorders. Through the Coffee + app you will be able to connect your Philips and Amazon account to set up an automatic delivery of the AquaClean water filter and descaling solution to your home before you run out Read the separate safety booklet carefully before you use the machine for the first time and save it for future reference. To help you get started and to get the best out of your machine, Philips offers support in multiple ways. In the box you find: 1 This user manual with picture-based usage instructions and more detailed information on cleaning and maintenance. There are multiple versions of this espresso machine, which all have different features. Each version has its own type number. You can find the type number on the data label on the inside of the service door (see fig A11). 2 The separate safety booklet with instructions on how to use the machine in a safe way. 3 For online support (movies etc.), you can use the Coffee + app, or scan the QR code on the cover of this booklet or visit www.philips.com/coffee-care This machine has been tested with coffee. Although it has been carefully cleaned, there may be some coffee residues left. We guarantee, however, that the machine is absolutely new. The machine automatically adjusts the amount of ground coffee that is used to make the best-tasting coffee. You have to brew 5 coffees to allow the machine to complete its self-adjustment.7 English English Make sure you rinse the LatteGo (milk container) or the classic milk frother before first use. Before first use

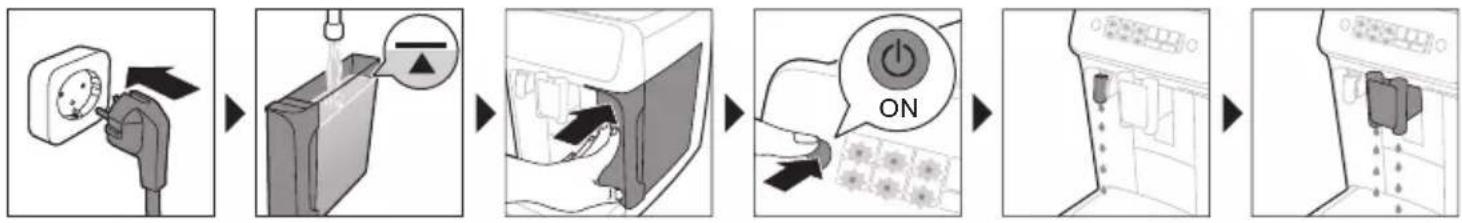

1. Setting up the machine

After you have switched on the machine, some water may be dispensed from the hot water spout or coffee spout. This is normal.

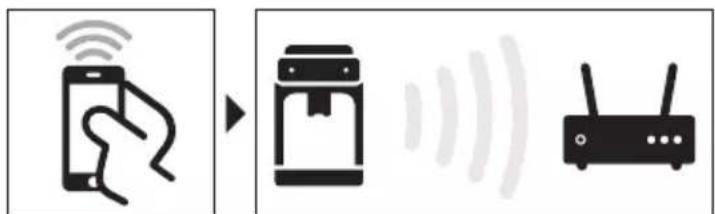

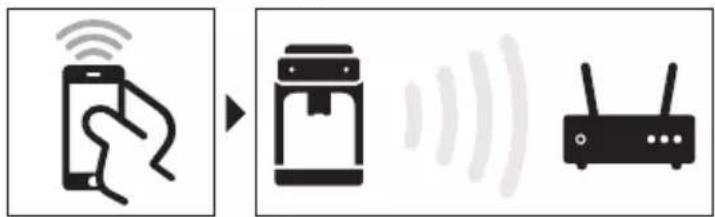

2. Connecting to Wi-Fi

For a connected experience, you have to connect your coffee machine to your Wi-Fi network with the free Coffee + app. You can download the free Coffee + app* for iOS® or Android™ from the App Store or from Google Play. Follow the instructions in the app to connect your coffee machine to your Wi-Fi and to pair your coffee machine with the Coffee + app. In this user manual you can find step-by-step instructions for setting up the Wi-Fi connection (see 'Setting up the Wi-Fi connection for the first time'). *The app may not be available in your country.

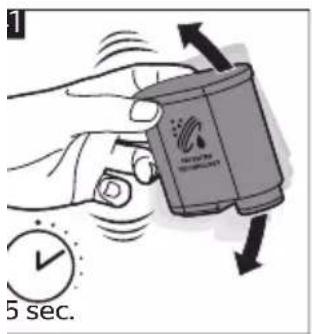

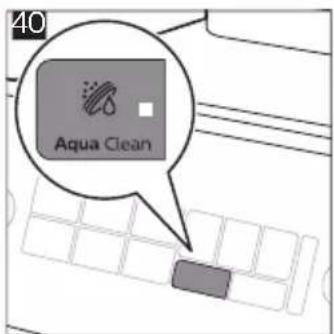

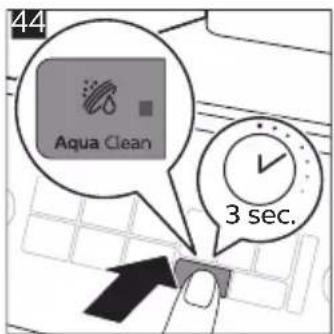

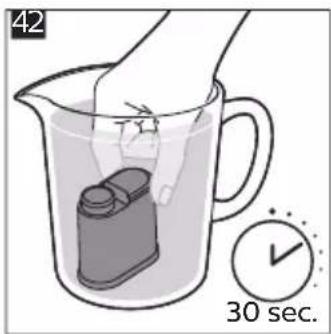

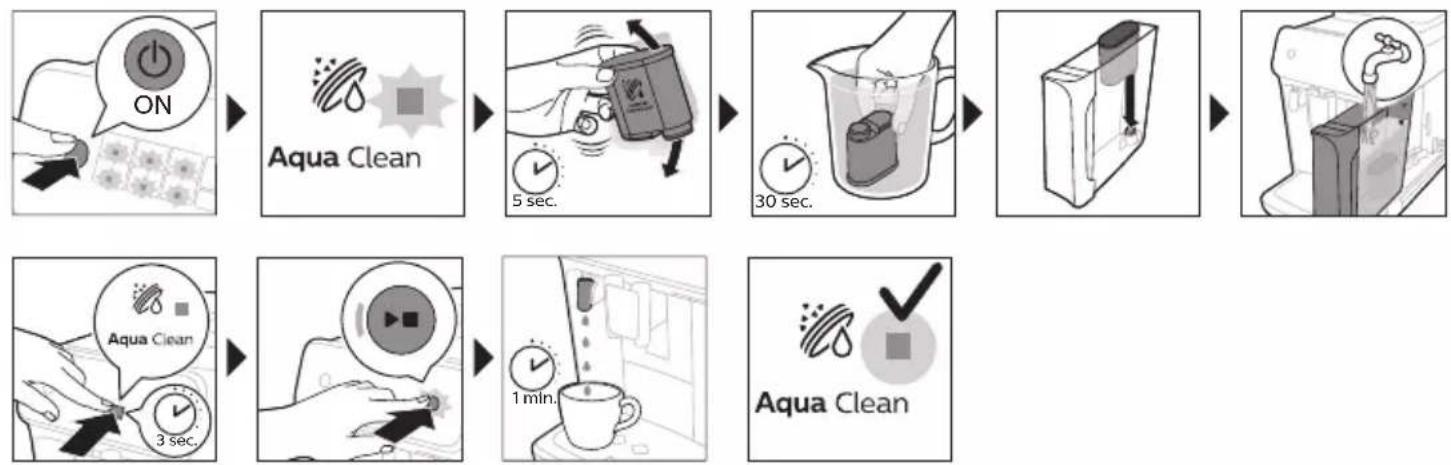

3. Activating the AquaClean water filter (5 min.)

For more information, you can watch supporting videos in the Coffee + app or see chapter 'AquaClean water filter' in this user manual. 5 sec.30 sec. 1 min.

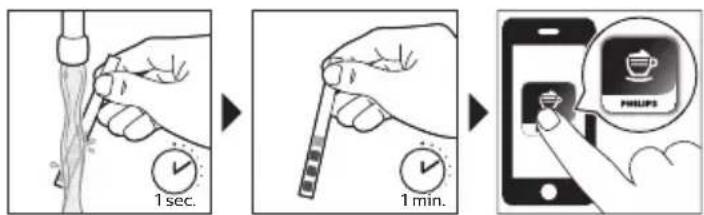

4. Setting the water hardness

To change the water hardness settings, you can use the machine settings menu in the Coffee + app, or can you find step-by-step instructions in this user manual (see 'Setting the water hardness '). 1 sec.1 min.

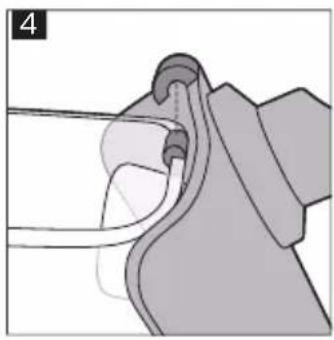

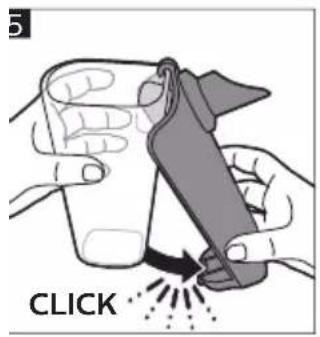

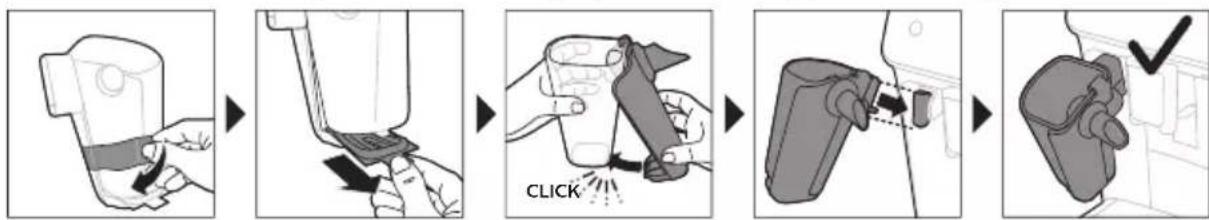

5. Assembling LatteGo (specific types only)

6. Assembling the classic milk frother (specific types only)

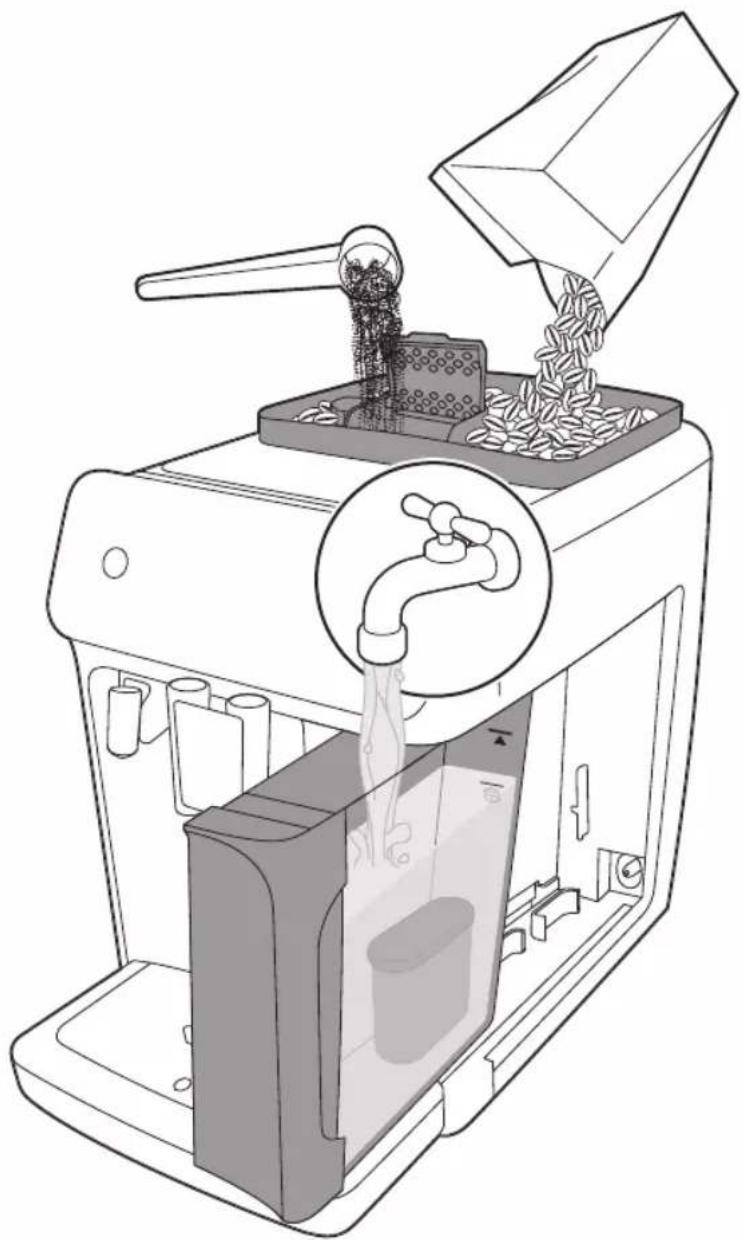

Brewing drinks General steps 1 Fill the water tank with tap water and fill the bean hopper with beans. 2 Press the on/off button, use the Coffee + app or Alexa voice control to switch on the machine.

The machine starts heating up and performs the automatic rinsing cycle. During heating up, the lights in the drinks icons light up and go out slowly one by one.

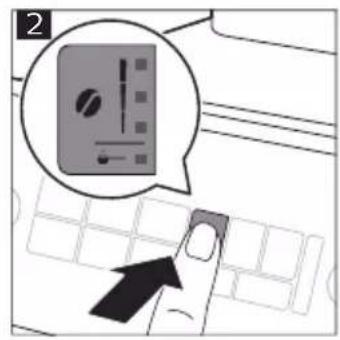

When all lights in the drink icons light up continuously, the machine is ready for use. 3 Place a cup under the coffee dispensing spout. Slide the coffee dispensing spout up or down to adjust its height to the size of the cup or glass you are using (Fig. 1). Personalizing drinks This machine allows you to adjust the settings of a drink to your own preference. After selecting a drink you can: 1 Adjust the aroma strength by tapping the aroma strength icon (Fig. 2). There are 3 strengths, the lowest is the mildest and the highest is the strongest. 2 Adjust the drink quantity by tapping the drink quantity (Fig. 3) and/or the milk quantity icon (specific types only). There are 3 quantities: low, medium and high. You can also adjust the coffee temperature to your own preference (see 'Adjusting the coffee temperature').9 English English Brewing coffee with beans 1 To brew a coffee, tap the drink icon of your choice.

The aroma strength and quantity lights go on and show the previously selected setting.

You can now adjust the drink to your preferred taste (see 'Personalizing drinks'). 2 Press the start/stop button.

The light in the drink icon flashes while the drink is being dispensed. Specific types only: An americano is made of espresso and water. When you brew an americano, the machine first dispenses an espresso and then water. 3 To stop dispensing coffee before the machine is finished, press the start/stop button again. To brew 2 coffees at the same time, tap the drink icon twice. The 2x light lights up. Brewing milk-based drinks with LatteGo (milk container) LatteGo consists of a milk container, a frame and a storage lid. To avoid leakage, make sure the frame and the milk container are properly assembled before you fill the milk container. 1 To assemble LatteGo, first insert the top of the milk container under the hook at the top of the frame (Fig. 4). Then press home the bottom part of the milk container. You hear a click when it locks into place (Fig. 5). Note: Make sure that the milk container and the frame are clean before you connect them. 2 Slightly tilt LatteGo and put it on the hot water spout (Fig. 6). Then press it home until it locks into place (Fig. 7). 3 Fill LatteGo with milk up to the level indicated on the milk container for the drink you are brewing (Fig. 8). Do not fill the milk container beyond the maximum indication. If you have personalized the milk quantity, you may need to fill the milk container with more or less milk than indicated for this drink on LatteGo. Always use milk coming directly from the fridge for optimal results. 4 Place a cup on the drip tray. 5 Tap the milk-based drink icon of your choice.

You can now adjust the drink to your own preference (see 'Personalizing drinks'). 6 Press the start/stop button.

The light in the drink icon flashes while the drink is being dispensed. When you brew a cappuccino or latte macchiato, the machine first dispenses milk and then coffee. When you brew caffè latte, the machine first dispenses coffee and then milk.

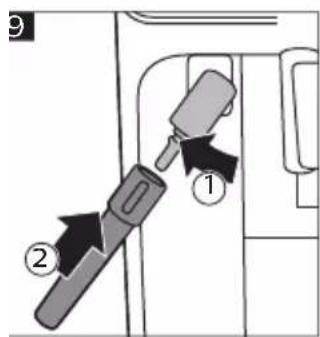

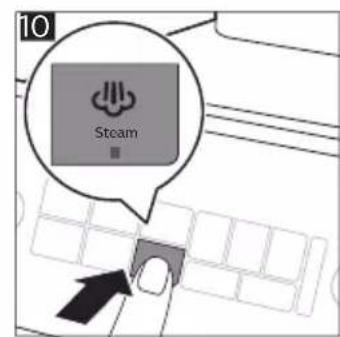

To stop dispensing milk before the machine has dispensed the preset amount, press the start/stop button. 7 To stop dispensing the complete drink (milk and coffee) before the machine is finished, press and hold the start/stop button. Frothing milk with classic milk frother Always use milk coming directly from the fridge for the best foam quality. 1 Tilt the black silicone handle on the machine to the left and slide the milk frother onto it (Fig. 9). 2 Fill a milk jug with with approx. 100 ml milk for cappuccino and approx. 150 ml milk for latte macchiato. 3 Insert the milk frother approx. 1 cm into the milk.10 English 4 Tap the steam icon (Fig. 10).

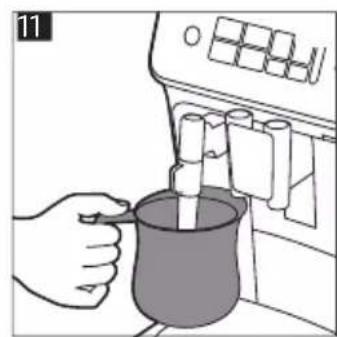

The light in the steam icon goes on and the start light starts pulsing. 5 Press the start/stop button to froth the milk (Fig. 11).

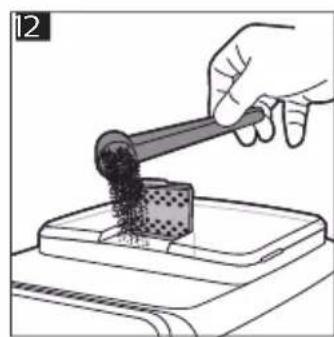

The machine starts heating up, steam is forced into the milk and the milk is frothed. 6 When the milk foam in the milk jug has reached the required volume, press the start/stop button again to stop frothing milk. Never froth milk longer than 90 seconds. The frothing automatically stops after 90 seconds. You do not have to move the milk jug during milk frothing to get the best milk froth quality. Brewing coffee with pre-ground coffee You can choose to use pre-ground coffee instead of beans, for example if you prefer a different coffee variety or decaffeinated coffee. 1 Press the on/off button to switch on the machine and wait until it is ready for use. 2 Open the lid of the pre-ground coffee compartment and pour one leveled measuring scoop of pre- ground coffee into it (Fig. 12). Then close the lid. 3 Place a cup under the coffee dispensing spout. 4 Select a single drink. 5 Press the aroma strength icon for 3 seconds (Fig. 13).

The pre-ground coffee light goes on and the start light starts pulsing. 6 Press the start/stop button. 7 To stop dispensing coffee before the machine is finished, press the start/stop button again. With pre-ground coffee you can only brew one coffee at a time. Pre-ground coffee is not a setting that is saved as a previous selected strength setting. Each time you want to use pre-ground coffee, you need to press the aroma strength icon for 3 seconds. When you select pre-ground coffee, you cannot select a different aroma strength. Dispensing hot water 1 If attached, remove LatteGo or the milk frother. 2 Tap the hot water icon (Fig. 14).

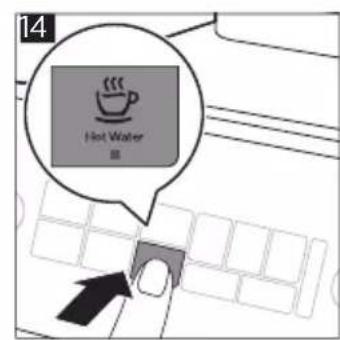

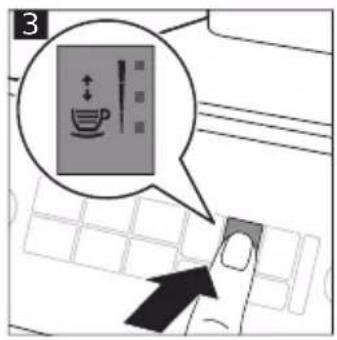

The drink quantity lights go on and show the previous selected drink setting for hot water. 3 Adjust the hot water quantity to your preference by tapping the drink quantity icon (Fig. 3). 4 Press the start/stop button.

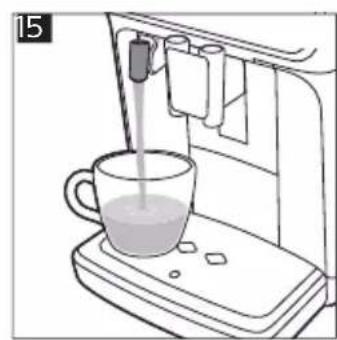

The light in the hot water icon flashes and hot water is dispensed from the hot water spout (Fig. 15). 5 To stop dispensing hot water before the machine is finished, press the start/stop button again. Wi-Fi connection Setting up the Wi-Fi connection for the first time Connect your coffee machine to a 2.4 GHz 802.11 b/g/n home Wi-Fi network.11 English English Connecting your coffee machine to your home Wi-Fi network, provides you with an enhanced user experience. 1 Make sure that you have the password of your Wi-Fi network at hand before you start the Wi-Fi set-up process and that your smartphone or tablet, the coffee machine and the Wi-Fi router are within range of each other. 2 Download the Coffee + app on your smartphone or tablet from the App Store or from Google Play. 3 Fill the water tank of your coffee machine with fresh water and place it back into the machine. 4 Make sure that when you start the Wi-Fi set-up process, your smartphone or tablet is connected to the same Wi-Fi network that you want to connect your machine to. 5 Follow the instructions in the app to pair your smartphone or tablet with the coffee machine and connect your coffee machine to your Wi-Fi. 6 When the Wi-Fi light on the user interface of the coffee machine lights up continuously, and the app shows that the machine is connected, the Wi-Fi connection has been successfully established.

You can check if Wi-Fi installation has been established successfully by checking the connection status in the app and by switching the machine on and off in the app. If the Wi-Fi light stays off or keeps flashing, you can check the troubleshooting section in this booklet to find a solution. You are now ready to start your connected experience. If the network has changed and the connection needs to be re-established, perform the setup again (see 'Changing the Wi-Fi connection'). This app supports the latest versions of Android™ and iOS®. Please check the App Store or Google Play for the latest update of supported operating systems and devices. The Wi-Fi setup process can be cancelled in the app or by exiting the app. To be able to switch your coffee machine on and off with the app, the smartphone or tablet with the app must be connected to the same Wi-Fi network as your coffee machine. Connecting your smartphone or tablet to the machine that is already connected to the Wi-Fi When the first user has connected the coffee machine to the Wi-Fi network, all other users don´t have to perform the whole Wi-Fi setup process again. They can simply connect a smartphone or tablet to the machine by finding the machine in the Coffee + app and pairing with it. 1 Make sure the smartphone or tablet is connected to the same Wi-Fi network as the machine. 2 Download the Coffee + app on the smartphone or tablet from the App Store or from Google Play. 3 Follow the instructions in the app to pair the smartphone or tablet with the coffee machine. Switching the Wi-Fi connection of the machine on and off Switching the Wi-Fi connection off If the Wi-Fi connection is on and you want to turn it off, you can follow the steps below. 1 Switch on the machine and wait until the machine is ready for use. 2 Press and hold the start/stop button until the Wi-Fi light starts flashing several times and then goes off.12 English Switching the Wi-Fi connection back on When you have switched off the Wi-Fi connection and you want to switch it on again, you can follow the steps below. 1 Switch on the machine and wait until the machine is ready for use. 2 Press and hold the the start/stop button until the Wi-Fi light starts flashing several times and then lights up continuously. The machine will reconnect to the Wi-Fi network it was previously connected to. Changing the Wi-Fi connection Change the Wi-Fi connection when the network to which your machine is currently connected has changed or if you wish to connect the machine to a different/new network. If one of the users changes the Wi-Fi connection, every other user only needs to connect the smartphone or tablet to that same Wi-Fi network to be able to control the machine with the app again. You can change the Wi-Fi connection by following the steps below. 1 Switch off the machine. 2 Press and hold the hot water icon (for type EP2520) or the cappuccino icon (for type EP3546), until the start/stop button starts flashing. 3 Press the start/stop button to confirm that you want to delete the current Wi-Fi connection. 4 Navigate in the app to machine settings and remove the machine from the app. 5 Follow the steps in the app to set up the Wi-Fi connection. The instruction above only explains how to connect the machine to a new network or to reconnect the machine to its current network if the network name or password has been changed. Resetting all network settings and connections If you follow the instructions in this section, all smartphones and tablets and your Alexa device will no longer be connected to the coffee machine. The factory settings will be restored and all personalized settings will be erased. 1 Switch off the machine. 2 Press and hold the espresso icon until the start/stop button starts flashing. 3 Press the start/stop button. 4 Navigate in the app to machine settings and remove the machine from the app. When you want to reconnect to the Wi-Fi network, follow the steps in the app to setup the Wi-Fi connection again. After a reset, it can take at least five minutes before the machine is able to perform the Wi-Fi set up again.13 English English Adjusting machine settings Adjusting the stand-by time To change the stand-by time, use the Coffee + app or follow the steps below on the user interface of the machine. 1 Press the on/off button to switch off the machine. 2 When the machine is switched off: press and hold the Calc / Clean icon (Fig. 16) until the Calc / Clean light and the Aroma strength lights go on (Fig. 17). 3 Tap the Aroma strength icon to select the required stand-by time: 15, 30, 60 or 180 minutes. Respectively 1, 2, 3 or 4 lights of the Aroma strenght icon light up. 4 When you have finished setting the stand-by time, press the start/stop button. The machine switches off. 5 Press the on/off button to switch on the machine again. Programming the highest default setting of your drinks The machine has 3 default settings for each drink: low, medium, high. You can only adjust the quantity of the highest setting. The new quantity can be stored as soon as the start light starts to pulse. Before you start programming the quantity of a milk drink, assemble LatteGo and pour milk in it. 1 To adjust the highest quantity setting, press and hold the icon of the drink you want to adjust for 3 seconds.

The upper light of the drinks quantity icon and the upper light of the milk quantity icon (specific types only) starts to pulse and the start/stop button starts to pulse, indicating that you are in programming mode. 2 Press the start/stop button. The machine starts to brew the selected beverage.

The start light lights up continuously at first. When the machine is ready to store the adjusted volume, the start/stop light starts to pulse. 3 Press the start/stop button again when the cup contains the desired quantity of coffee or milk.

In case of cappuccino or latte macchiato, first the milk will be dispensed. Press the start/stop button when the cup contains the desired milk quantity. The machine automatically starts dispensing the coffee. Press the start/stop button again when the cup contains the desired quantity. After you have programmed the new highest default quantity for a drink, the machine will dispense this new amount each time you select the highest quantity of this drink. You can only adjust the highest default quantity level. If you want to go back to the default quantity settings, see ' Restoring factory settings'. Adjusting the coffee temperature Machines without temperature icon 1 Press the on/off button to switch off the machine. 2 When the machine is switched off: press and hold the coffee quantity icon until the lights in this icon go on (Fig. 18). 3 Tap the quantity icon to select the required temperature: normal, high or max.14 English

Respectively 1, 2 or 3 lights are on. 4 When you have finished setting the coffee temperature, press the start/stop button. 5 Press the on/off button to switch on the machine again. If you do not switch off the machine yourself, it will switch off automatically after some time. Restoring factory settings The machine offers you the possibility to restore the default drinks settings and the Wi-Fi settings at any moment. You can only restore the default settings when the machine is switched off. If you reset the machine, it is disconnected from your home Wi-Fi and is no longer paired with your smartphone or tablet and Alexa device. To reconnect, follow the instructions in section 'Resetting all network settings and connections '. 1 Switch off the machine. 2 Press and hold the espresso icon until the start/stop button starts flashing. 3 Press the start/stop button to confirm you want to restore the settings. 4 Navigate in the app to machine settings and remove the machine from the app. After a reset, it can take at least five minutes before the machine is able to perform the Wi-Fi set up again. Adjusting grinder settings You can change the coffee strength with the grind setting knob inside the bean container. The lower the grind setting, the finer the coffee beans are ground and the stronger the coffee. There are 12 different grind settings you can choose from. The machine has been set up to get the best taste out of your coffee beans. Therefore we advise you not to adjust the grind setting until you have brewed 100-150 cups (approx. 1 month of use). You can only adjust the grind settings when the machine is grinding coffee beans. You need to brew 2 to 3 drinks before you can taste the full difference. Do not turn the grind setting knob more than one notch at a time to prevent damage to the grinder. 1 Place a cup under the coffee dispensing spout. 2 Open the lid of the coffee bean hopper. 3 Tap the espresso icon and then press the start/stop button. 4 When the grinder starts grinding, press down the grind setting knob and turn it to the left or right. (Fig. 19) Deactivate the beeps of the control panel 1 Press the on/off button to switch off the machine. 2 When the machine is switched off, tap and hold the coffee icon (espresso lungo icon for EP3221) until the light in the icon goes on. The start light starts flashing. 3 Tap the coffee icon again to deactivate the beeps of the control panel. The light in the coffee icon goes out. 4 Press the start/stop button to confirm your choice.15 English English 5 Press the on/off button to switch on the machine again. The beeps of the control panel have now been deactivated. Note: If the light in the coffee icon does not go on after tapping and holding the icon, this means that the beeps of the control panel already have been deactivated. To activate them again, tap the icon again and confirm by pressing the start/stop button. The beeps in the on/off button and in the start/stop button cannot be deactivated. Removing and inserting the brew group Use your Coffee + app or go to www.philips.com/coffee-care for detailed video instructions on how to remove, insert and clean the brew group. Removing the brew group from the machine 1 Switch off the machine. 2 Remove the water tank and open the service door (Fig. 20). 3 Press the PUSH handle (Fig. 21) and pull at the grip of the brew group to remove it from the machine (Fig. 22). Reinserting the brew group Before you slide the brew group back into the machine, make sure it is in the correct position. 1 Check if the brew group is in the correct position. The arrow on the yellow cylinder on the side of the brew group has to be aligned with the black arrow and N (Fig. 23).

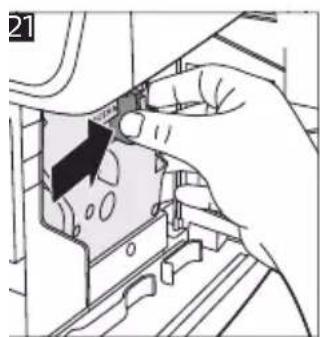

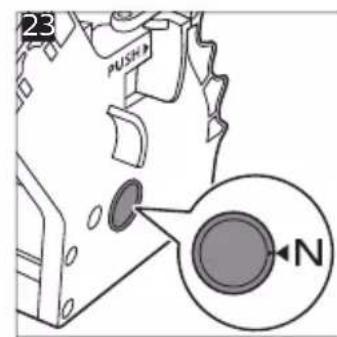

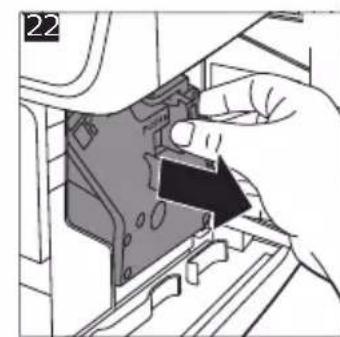

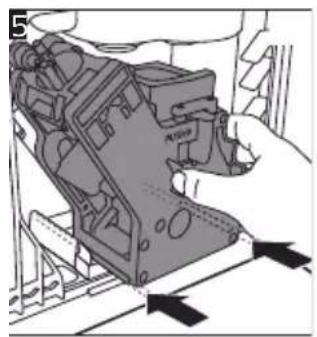

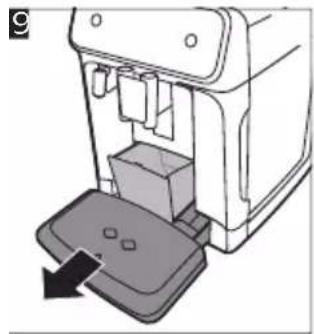

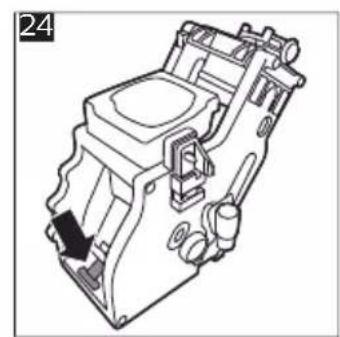

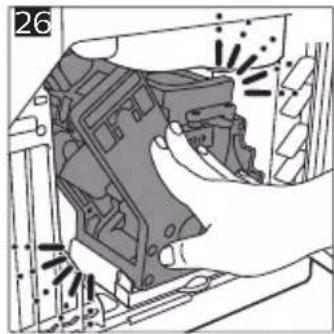

If they are not aligned, push down the lever until it is in contact with the base of the brew group (Fig. 24). 2 Slide the brew group back into the machine along the guiding rails on the sides (Fig. 25) until it locks into position with a click (Fig. 26). Do not press the PUSH button. 3 Close the service door and place back the water tank. Cleaning and maintenance Regular cleaning and maintenance keeps your machine in top condition and ensures good-tasting coffee for a long time with a steady coffee flow. Consult the table below for a detailed description on when and how to clean all detachable parts of the machine. You can find more detailed information and video instructions in the Coffee + app and on www.philips.com/coffee-care. See figure D for an overview of which parts can be cleaned in the dishwasher. Detachable parts When to clean How to clean Brew group Weekly Remove the brew group from the machine (see 'Removing and inserting the brew group'). Rinse it under the tap (see 'Cleaning the brew group under the tap').16 English Detachable parts When to clean How to clean Monthly Clean the brew group with the Philips coffee oil remover tablet (see 'Cleaning the brew group with the coffee oil remover tablets'). Classic milk frother After every use First dispense hot water with the milk frother attached to the machine for thorough cleaning. Then remove the milk frother from the machine and disassemble it. Clean all parts under the tap or in the dishwasher. Pre-ground coffee compartment Check the pre-ground coffee compartment weekly to see if it is clogged. Unplug the machine and remove the brew group. Open the lid of the pre-ground coffee compartment and insert the spoon handle into it. Move the handle up and down until the clogged ground coffee falls down (Fig. 27). Use your Coffee + app or go to www.philips.com/coffee- care for detailed video instructions. Coffee grounds container Empty the coffee grounds container when prompted by the machine. Clean it weekly. Remove the coffee grounds container while the machine is switched on. Rinse it under the tap with some washing-up liquid or clean it in the dishwasher. The front panel of the coffee grounds container is not dishwasher-safe. Drip tray Empty the drip tray daily or as soon as the red 'drip tray full' indicator pops up through the drip tray (Fig. 28). Clean the drip tray weekly. Remove the drip tray (Fig. 29) and rinse it under the tap with some washing-up liquid. You can also clean the drip tray in the dishwasher. The front panel of the coffee grounds container (fig. A15) is not dishwasher-safe. LatteGo After every use Rinse LatteGo under the tap or clean it in the dishwasher. Lubrication of the brew group Every 2 months Consult the lubrication table and lubricate the brew group with the Philips grease (see 'Lubricating the brew group'). Water tank Weekly Rinse the water tank under the tap Cleaning the brew group Regular cleaning of the brew group prevents coffee residues from clogging up the internal circuits. You can use the Coffee + app or visit www.philips.com/coffee-care for support videos on how to remove, insert and clean the brew group. Cleaning the brew group under the tap 1 Remove the brew group (see 'Removing and inserting the brew group'). 2 Rinse the brew group thoroughly with water. Carefully clean the upper filter (Fig. 30) of the brew group. 3 Let the brew group air-dry before you place it back. Do not dry the brew group with a cloth to prevent fibers from collecting inside the brew group.17 English English Cleaning the brew group with the coffee oil remover tablets Only use Philips coffee oil remover tablets. 1 Put a cup under the coffee spout. Fill the water tank with fresh water. 2 Put a coffee oil remover tablet in the pre-ground coffee compartment. 3 Tap the coffee icon and then press the aroma strength icon for 3 seconds to select the pre-ground coffee function (Fig. 2). 4 Do not add pre-ground coffee. Press the the start/stop button to start the brewing cycle. When half a cup of water has been brewed, unplug the machine. 5 Let the coffee oil remover solution act for at least 15 minutes. 6 Insert the mains plug back into a wall socket and switch on the machine to complete the brewing cycle. Empty the cup. 7 Remove the water tank and open the service door. Remove the brew group (see 'Removing the brew group from the machine') and rinse it thoroughly under the tap. 8 Reinsert the brew group and water tank and place a cup under the coffee spout. 9 Tap the coffee icon and then press the aroma strength icon for 3 seconds to select the pre-ground coffee function (Fig. 2). Do not add pre-ground coffee. Press the start/stop button to start the brewing cycle. Repeat this twice. Empty the cup. Lubricating the brew group Lubricate the brew group every 2 months, to ensure that the moving parts continue to move smoothly. 1 Apply a thin layer of grease on the piston (grey part) of the brew group (Fig. 31). 2 Apply a thin layer of grease around the shaft (grey part) in the bottom of the brew group (Fig. 32). 3 Apply a thin layer of grease to the rails on both sides (Fig. 33). Cleaning LatteGo (milk container) Cleaning LatteGo after every use 1 Remove LatteGo from the machine (Fig. 34). 2 Pour out any remaining milk. 3 Press the release button and remove the milk container from the frame of LatteGo (Fig. 35). 4 Clean all parts in the dishwasher or under the tap with lukewarm water and some washing-up liquid. Cleaning the classic milk frother Cleaning the classic milk frother after every use Clean the milk frother each time you use it for hygiene reasons and to avoid the build-up of milk residues. 1 Place a cup under the milk frother. 2 Tap the steam icon and then press the start/stop button to start dispensing steam and to remove any milk that may be left inside the milk frother. 3 To stop dispensing steam after a few seconds, press the start/stop button again. 4 Clean the milk frother with a damp cloth. Daily cleaning of the classic milk frother 1 Let the milk frother cool down completely. 2 Tilt the milk frother to the left (Fig. 36) and remove both the metal part and the silicone part (Fig. 37).18 English 3 Disassemble the two parts (Fig. 38) and rinse them with fresh water or clean them in the dishwasher. Make sure that the small hole on the metal tube (Fig. 39) is completely clean and not clogged by milk residues. 4 Reassemble the two milk frother parts and reattach the milk frother to the machine. AquaClean water filter Your machine is AquaClean enabled. You can place the AquaClean water filter in the water tank to preserve the taste of your coffee. The AquaClean water filter also diminishes the need for descaling by reducing limescale build-up in your machine. You can purchase an AquaClean water filter from Amazon through the Coffee + app, from your local retailer, from authorized service centers or online at www.philips.com/parts-and-accessories. AquaClean icon and light Your machine is equipped with an AquaClean water filter light (Fig. 40) to indicate the status of the filter. Use the table below to see what actions are required when the light is on or when it is flashing. When you use the machine for the first time, the AquaClean light starts flashing orange. This indicates that you can start using the AquaClean water filter. If you do not activate an AquaClean water filter, the light will switch off automatically after a while. Once you have installed the filter and activated it with the AquaClean icon, the AquaClean light turns blue to confirm that the AquaClean water filter is active. When the filter is exhausted, the AquaClean light starts flashing orange again to remind you to replace the filter with a new one. When the orange AquaClean light is off, you can still activate an AquaClean filter, you will need to descale the machine first. Activating the AquaClean water filter (5 min.) The machine does not automatically detect that a filter has been placed in the water tank. Therefore you need to activate each new AquaClean water filter that you install with the AquaClean icon. When the orange AquaClean light is off, you can still activate an AquaClean water filter, but you will need to descale the machine first. Your machine has to be completely limescale-free before you start to use the AquaClean water filter. Before activating the AquaClean water filter, it has to be prepared by soaking it in water as described below. If you don't do this, air might be drawn into the machine instead of water, which makes a lot of noise and prevents the machine from being able to brew coffee. 1 Make sure that the machine is switched on. 2 Shake the filter for about 5 seconds (Fig. 41). 3 Immerse the filter upside down in a jug with cold water and shake/press it (Fig. 42). 4 The filter is now prepared for use and can be inserted into the water tank.19 English English 5 Insert the filter vertically onto the filter connection in the water tank. Press it down to the lowest possible point (Fig. 43). 6 Fill the water tank with fresh water and place it back into the machine. 7 If attached, remove the LatteGo. 8 Place a bowl under the hot water spout/milk frother. 9 Press the AquaClean icon for 3 seconds (Fig. 44). The start light starts to pulse. 10 Press the start/stop button to start the activation process. 11 Hot water will be dispensed from the hot water spout/milk frother (3 min.). 12 When the activation process is finished, the blue AquaClean light goes on to confirm that the AquaClean water filter has been activated correctly. Replacing the AquaClean water filter (5 min.) After 95 liters of water have flowed through the filter, the filter will cease to work. The AquaClean light turns orange and starts to flash to remind you to replace the filter. As long as it flashes, you can replace the filter without having to descale the machine first. If you do not replace the AquaClean water filter, the orange light will go out eventually. In that case you can still replace the filter but you first need to descale the machine. When the orange AquaClean light flashes: 1 Take out the old AquaClean water filter. 2 Install a new filter and activate it as described in chapter 'Activating the AquaClean water filter (5 min.)'. Replace the AquaClean water filter at least every 3 months, even if the machine does not yet indicate that replacement is required. By connecting your coffee machine to your Wi-Fi network and registering to Amazon Smart Reorders in the Coffee + app, you enable automatic ordering of replacement filters and have them delivered to your home. Deactivating the AquaClean reminder If you do not want to use Philips AquaClean water filters anymore, you can always deactivate the AquaClean reminders (AquaClean light flashing orange): 1 Press the on/off button to switch off the machine. 2 When the machine is switched off, press and hold the AquaClean icon until the light in this icon goes on. The start light starts flashing. 3 Tap the AquaClean icon again to deactivate the reminders. The light in the AquaClean icon goes off. 4 Press the start/stop button to confirm your choice. 5 Press the on/off button to switch on the machine again. The AquaClean reminders are now deactivated. Note: The activation of a new AquaClean filter will automatically re-activate the AquaClean reminders.20 English Setting the water hardness We advise you to adjust the water hardness to the water hardness in your region for optimalperformance and a longer lifetime of the machine. This also prevents you from having to descale themachine too often. The default water hardness setting is 4: hard water. To change the water hardness settings, you can use the settings menu in the Coffee + app or follow the steps below. 1 sec. OFF 1 min.3 sec.

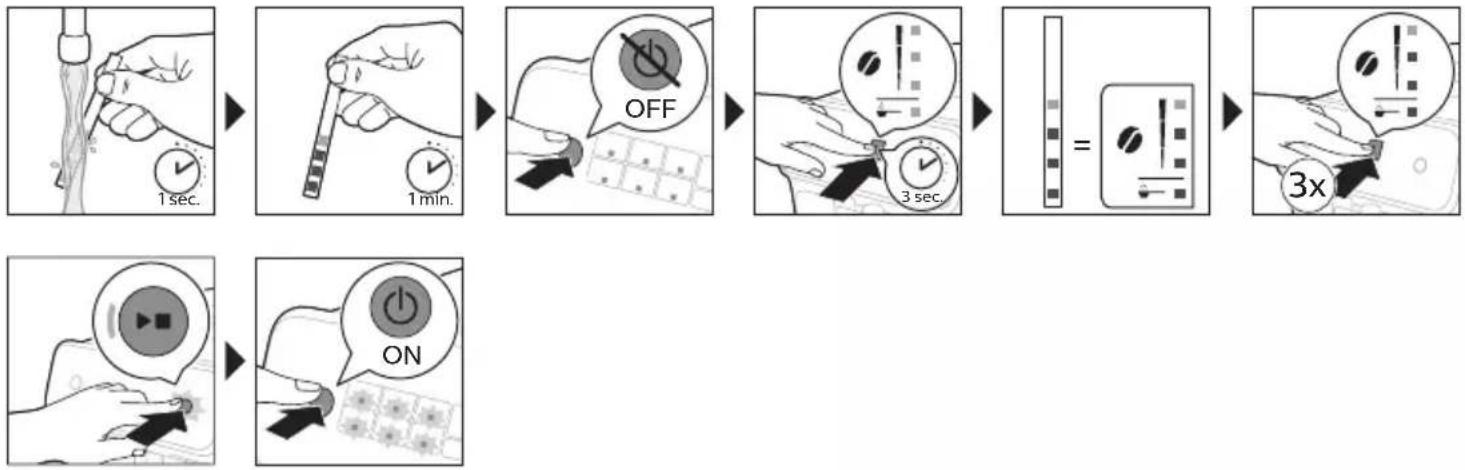

Use the water hardness test strip supplied in the box to determine the water hardness in your region: 1 Immerse the water hardness test strip in tap water or hold it under the tap for 1 second (Fig. 45). 2 Wait 1 minute. The number of squares on the test strip that turn red indicate the water hardness (Fig. 46). Set the machine to the correct water hardness: 1 Press the on/off button to switch off the machine. 2 When the machine is switched off, tap and hold the aroma strength icon until all lights in the icon go on (Fig. 2). 3 Tap the aroma strength icon 1, 2, 3 or 4 times. The number of lights that are on should be the same as the number of red squares on the test strip (Fig. 47). When there are no red squares on the teststrip (so all squares are green) please select 1 light.4 When you have set the correct water hardness, press the start/stop button.5 Press the on/off icon to switch on the machine. Since you only set the water hardness once, the aroma strength function is used to select the waterhardness. This does not affect the aroma strength of the drinks you make afterwards. Descaling procedure (30 min.) Please use Philips descaler only. Under no circumstances should you use a descaler based on sulfuricacid, hydrochloric acid, sulfamic or acetic acid (vinegar) as this may damage the water circuit in yourmachine and not dissolve the limescale properly. Not using the Philips descaler will void yourwarranty. Failure to descale the appliance will also void your warranty. By connecting your coffeemachine to your Wi-Fi network and registering to Amazon Smart Reorders in the Coffee + app, youenable automatic ordering of descaling solution and have it delivered to your home. You can also buydescaling solution at www.philips.com/parts-and-accessories or go to your Philips dealer.When the Calc / Clean light starts to flash slowly, you need to descale the machine.1 Make sure that the machine is switched on.21 English English 2 If attached remove LatteGo or milk frother. 3 Remove the drip tray and the coffee grounds container, empty them and put them back into place. 4 Remove the water tank and empty it. Then remove the AquaClean water filter. 5 Pour the whole bottle of Philips descaler in the water tank and then fill it with water up to the Calc / Clean indication (Fig. 48). Then place it back into the machine. 6 Place a large container (1.5 l) under the coffee dispensing spout and the water spout. 7 Press the Calc / Clean icon for 3 sec. and then press the start/stop button. 8 The first phase of the descaling procedure starts. The descaling procedure lasts approx. 30 minutes and consists of a descaling cycle and a rinsing cycle. During the descaling cycle the Calc / Clean light flashes to show that the descaling phase is in progress. 9 Let the machine dispense the descaling solution until the display reminds you that the water tank is empty. 10 Empty the water tank, rinse it and then refill it with fresh water up to the Calc / Clean indication. 11 Empty the container and place it back under the coffee dispensing spout and the water spout. Press the start/stop button again. 12 The second phase of the descaling cycle, the rinsing phase, starts and lasts 3 minutes. During this phase the lights on the control panel go on and off to show that the rinsing phase is in progress. 13 Wait until the machine stops dispensing water. The descaling procedure is finished when the machine stops dispensing water. 14 The machine will now heat up again. When the lights in the drink icons light up continuously, the machine is ready for use again. 15 Install and activate a new AquaClean water filter in the water tank (see 'Activating the AquaClean water filter (5 min.)').

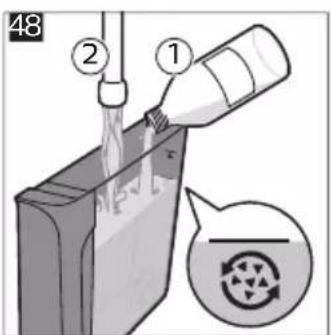

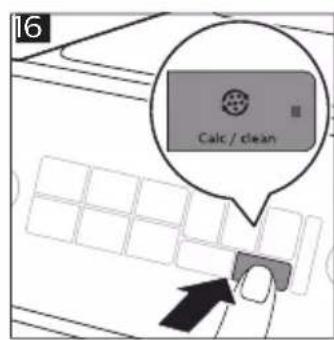

When the descaling procedure is finished, the AquaClean light flashes for a while to remind you to install a new AquaClean water filter. Tip: Using the AquaClean filter reduces the need for descaling! What to do if the descaling procedure is interrupted You can exit the descaling procedure by pressing the on/off button on the control panel. If the descaling procedure is interrupted before it is completely finished, do the following: 1 Empty and rinse the water tank thoroughly. 2 Fill the water tank with fresh water up to the Calc / Clean level indication and switch the machine back on. The machine will heat up and perform an automatic rinsing cycle. 3 Before brewing any drinks, perform a manual rinsing cycle. To perform a manual rinsing cycle, first dispense half a water tank of hot water by repeatedly tapping the hot water icon (Fig. 14) and then brew 2 cups of pre-ground coffee without adding ground coffee. If the descaling procedure was not completed, the machine will require another descaling procedure as soon as possible. Ordering accessories To clean and descale the machine, only use Philips maintenance products. These products can be purchased by enabling Amazon Smart Reorders in the Coffee + app, from your local retailer, from authorized service centers or online at www.philips.com/parts-and-accessories. To find a full list of spare parts online, enter the type number of your machine. You can find the type number on the inside of the service door.22 English Where to buy Philips maintenance products: Descaling solution CA6700 AquaClean water filter CA6903 Brew group grease HD5061 Coffee oil remover tablets CA6704 Amazon Smart Reorders Local retailers Authorized Philips service centers Website: www.philips.com/parts-and-accessories Software updates Updating is essential to safeguard your privacy and proper functioning of your coffee machine and the app. From time to time, the Coffee + app will inform you to update the app to the latest version. The coffee machine will also update the firmware automatically when the machine is connected to the Wi-Fi network. Make sure that the machine is also plugged in at night and Wi-Fi is enabled, so that the machine can receive the software updates overnight. Always use the latest Coffee + app version. Updates are made available when there are software improvements, new features for the machine and to prevent a possible security issue. Mandatory firmware updates are started automatically when the coffee machine is in stand-by mode. A firmware update can take at least 1 minute and during this time the Wi-Fi light flashes and the coffee machine cannot be used. Device compatibility For detailed information about the compatibility of the app, please refer to the information in the App Store or on Google Play.23 English English Icons Icon Explanation of signals The Wi-Fi light is off - The coffee machine is not connected to your home Wi-Fi (no initial Wi-Fi set-up done so far). - The machine's Wi-Fi connection is switched off. - The home Wi-Fi connection is not working properly. - The connection to your home Wi-Fi is lost e.g. because the home router has changed or the network name or password has been changed. - The distance between the coffee machine and router is too big. The Wi-Fi light is on The Wi-Fi setup has been completed successfully and the coffee machine is connected to the home Wi-Fi. The Wi-Fi light is flashing - The coffee machine is in the setup mode during the Wi-Fi setup process. The buttons on the coffee machine are inactive. - In case the machine was already connected, the flashing light is an indication that the coffee machine is in the process of reconnecting to the home Wi-Fi. - In case the machine is connected to the Wi-Fi network, the slow flashing light is an indication that the coffee machine is updating the firmware. This update can take several minutes and during this time the coffee machine cannot be used. The 'water tank empty'/'empty coffee grounds container' light is on. - The water tank is almost empty. Fill the water tank with fresh water to the maximum level indication. - The water tank is not in place. Place back the water tank. - The coffee grounds container is full. Remove and empty the coffee grounds container while the machine is switched on. Wait at least 5 seconds before you reinsert the container. The alarm light is on - The coffee grounds container and/or the drip tray is not in place or not placed correctly. Place back the coffee grounds container and/or the drip tray and make sure they are in the correct position. - The service door is open. Remove the water tank and make sure the service door is closed. The alarm light is flashing - The brew group is not in place or not placed correctly. Remove the brew group and make sure it is locked into place. See chapter 'Removing and inserting the brew group' for step-by-step instructions. - The brew group is blocked. Remove the brew group and rinse it with water under the tap. Then lubricate the brew group and place it back into the machine. See chapter 'Cleaning and maintenance' for step-by-step instructions. The alarm light is on and the start light flashes. Some air is trapped inside the machine. To release the air from the machine, fill the water tank with water, place a cup under the classic milk frother and press the flashing start/stop button. Be careful: small jets of hot water will be dispensed from the classic milk frother to release the air.24 English Icon Explanation of signals AquaClean light is flashing: place or replace the AquaClean water filter and activate it. See chapter 'AquaClean water filter' for step-by-step instructions. Descaling light is on: Descale the machine (see 'Descaling procedure (30 min.)'). The lights in the drink icons light up and go out one by one. The machine is heating up and/or trying to release the air that was drawn into the machine. Wait until all drink lights light up continuously. The 'water tank empty'/'empty coffee grounds container' light and the alarm light are flashing. Reset the machine by unplugging it and plugging it back in. Before switching the machine back on, follow these steps: - Remove the AquaClean water filter from the water tank. - Place back the water tank. Push it into the machine as far as possible to make sure it is in the right position. - Open the lid of the pre-ground coffee compartment and check if it is clogged with coffee powder. To clean it, insert a spoon handle into the pre-ground coffee compartment and move the handle up and down until the clogged ground coffee falls down (Fig. 27). Remove the brew group and remove all ground coffee that has fallen down. Place back the clean brew group. - Switch the machine back on. If the problem is not solved, the AquaClean filter was not prepared properly. Prepare the AquaClean filter before placing it back by following steps 1 and 2 in chapter 'Activating the AquaClean water filter (5 min) '. If the lights continue to flash, the machine could be overheated. Switch off the machine, wait 30 minutes and switch it on again. If the lights are still flashing, contact the Consumer Care Center in your country. For contact details, see the international warranty leaflet. Troubleshooting This chapter summarizes the most common problems you could encounter with the machine. Support videos and troubleshooting content are available in the Coffee + app. On www.philips.com/coffee- care you can find a complete list of frequently asked questions and support videos. If you are unable to solve the problem, contact the Consumer Care Center in your country. For contact details, see the warranty leaflet. Troubleshooting table Problem Cause Solution The drip tray fills up quickly. This is normal. The machine uses water to rinse the internal circuit and brew group. Some water flows through the internal system directly into the drip tray. Empty the drip tray daily or as soon as the red 'drip tray full' indicator pops up through the drip tray cover. Tip: place a cup under the dispensing spout to collect rinsing water that comes out of it.25 English English Problem Cause Solution The 'empty coffee grounds container' light remains on. You emptied the coffee grounds container while the machine was switched off. Always empty the coffee grounds container while the machine is switched on. Remove the coffee grounds container, wait at least 5 sec. and then insert it again. The machine prompts to empty the coffee grounds container even though the container is not full. The machine did not reset the counter the last time you emptied the coffee grounds container. Always wait approx. 5 seconds when you place back the coffee grounds container. In this way the coffee grounds counter will be reset to zero. Always empty the coffee grounds container while the machine is switched on. If you empty the coffee grounds container when the machine is switched off, the coffee grounds counter won't reset. The coffee grounds container is too full and the 'empty coffee grounds container' light did not go on. You removed the drip tray without emptying the grounds container. When you remove the drip tray, also empty the coffee grounds container even if it contains only a few coffee pucks. In this way the coffee grounds counter will be reset to zero, re-starting to correctly count the coffee pucks. I cannot remove the brew group. The brew group is not in the correct position. Reset the machine in the following way: close the service door and place back the water tank. Switch the machine off and back on again. Try again to remove the brew group. See chapter 'Removing and inserting the brew group' for step by step instructions. I cannot insert the brew group. The brew group is not in the correct position. Reset the machine in the following way: close the service door and place back the water tank. Leave the brew group out. Switch the machine off and unplug it. Wait for 30 sec. and then plug the machine back in and switch it on. Then put the brew group in the correct position and reinsert it into in the machine. See chapter 'Removing and inserting the brew group' for step by step instructions. The coffee is watery. The brew group is dirty or needs to be lubricated. Remove the brew group (see 'Removing the brew group from the machine'), rinse it under the tap and leave it to dry. Then lubricate the moving parts (see 'Lubricating the brew group').26 English Problem Cause Solution The machine is performing its self-adjustment procedure. This procedure is started automatically when you use the machine for the first time, when you change to another type of coffee beans or after a long period of non-use. Brew 5 cups of coffee initially to allow the machine to complete its self- adjustment procedure. The grinder is set to a too coarse setting. Set the grinder to a finer (lower) setting. Brew 2 to 3 drinks to be able to before taste the full difference. The coffee is not hot enough. The temperature is set too low. Set the temperature to the maximum (see 'Adjusting the coffee temperature'). A cold cup reduces the temperature of the drink. Preheat the cups by rinsing them with hot water. Adding milk reduces the temperature of the drink. Regardless of whether you add hot or cold milk, adding milk always reduces the temperature of the coffee. Preheat the cups by rinsing them with hot water. Coffee does not come out or coffee comes out slowly. The AquaClean water filter was not prepared properly for installation. Remove the AquaClean water filter and try to brew a coffee again. If this works, make sure that you have prepared the AquaClean water filter properly before you place it back. See chapter 'AquaClean water filter' for step-by-step instructions. After a long period of non-use, you need to prepare the AquaClean water filter for use again and then place it back. See step 1 - 3 of chapter 'Activating the AquaClean water filter'. The AquaClean water filter is clogged. Replace the AquaClean water filter every 3 months. A filter that is older than 3 months can become clogged. The grinder is set to a too fine setting. Set the grinder to a coarser (higher) setting. Note that this will impact the coffee taste. The brew group is dirty. Remove the brew group and rinse it under the tap (see 'Cleaning the brew group under the tap'). The coffee dispensing spout is dirty. Clean the coffee dispensing spout and its holes with a pipe cleaner or needle.27 English English Problem Cause Solution The pre-ground coffee compartment is clogged Switch off the machine and remove the brew group. Open the lid of the pre- ground coffee compartment and insert the spoon handle into it. Move the handle up and down until the clogged ground coffee falls down (Fig. 27). The machine circuit is blocked by limescale. Descale the machine with Philips descaler. Always descale the machine when the descaling light starts to flash. The machine grinds the coffee beans, but coffee does not come out. The pre-ground coffee compartment is clogged. Switch off the machine and remove the brew group. Open the lid of the pre- ground coffee compartment and insert the spoon handle into it. Move the handle up and down until the clogged ground coffee falls down (Fig. 27). The milk does not froth. Machines with LatteGo: LatteGo is incorrectly assembled. Make sure that the milk container is properly assembled to the frame of LatteGo ('click'). Machines with LatteGo: the milk container and/or frame of LatteGo are dirty. Disassemble LatteGo and rinse both parts under the tap or clean them in the dishwasher (see 'Cleaning LatteGo after every use'). Machines with classic milk frother: the milk frother is dirty. Thoroughly clean the milk frother (see 'Cleaning the classic milk frother '). The type of milk used is not suitable for frothing. Different types of milk result in different amounts of froth and different froth qualities. We have tested the following milk types which proved to deliver a good milk froth result: semi-skimmed or full-fat cow's milk and lactose-free milk. Milk is leaking from the bottom of the LatteGo milk container. The frame and the milk container are not assembled properly. First insert the top of the milk container under the hook at the top of the frame. Then press home the bottom part of the milk container. You hear a click when it locks into place. The machine seems to be leaking. The machine uses water to rinse the internal circuit and brew group. This water flows through the internal system directly into the drip tray. This is normal. Empty the drip tray every day or as soon as the 'drip tray full' indicator pops up through the drip tray cover. Tip: Place a cup under the dispensing spout to collect rinsing water and reduce the amount of water in the drip tray. The drip tray is too full and has overflowed which makes it look like the machine is leaking. Empty the drip tray every day or as soon as the 'drip tray full' indicator pops up through the drip tray cover.28 English Problem Cause Solution The water tank is not fully inserted and air is drawn into the machine. Make sure the water tank is in the correct position: remove it and insert it again pushing it as far as possible. The brew group is dirty/clogged. Rinse the brew group. The machine is not placed on a horizontal surface. Place the machine on a horizontal surface so that the drip tray does not overflow and the 'drip tray full' indicator works properly. I cannot activate the AquaClean water filter and the machine asks for descaling. The filter has not been installed or replaced in time after the AquaClean water filter light started to flash. This means your machine is not completely limescale free. Descale your machine first and then install the AquaClean water filter. The new water filter does not fit. You are trying to install another filter than the AquaClean water filter. Only the AquaClean water filter fits into the machine. The rubber ring on the AquaClean water filter is not in place. Place back the rubber ring on the AquaClean water filter. The machine is making a loud noise. It is normal that your machine makes noise during use. If the machine starts to make a different kind of noise, clean the brew group and lubricate it (see 'Lubricating the brew group'). The AquaClean water filter was not prepared properly and air is now drawn into the machine. Remove the AquaClean water filter from the water tank and properly prepare it for use before you place it back. See chapter 'AquaClean water filter' for step-by-step instructions. The water tank is not fully inserted and air is drawn into the machine. Make sure the water tank is in the correct position: remove it and insert it again pushing it as far as possible. When I try to connect the machine to Wi-Fi for the first time, the machine cannot connect to the Wi-Fi network. Your Wi-Fi name and password are not correct. Check your Wi-Fi name and password.29 English English Problem Cause Solution At the start of the Wi-Fi setup process your smartphone or tablet is connected to a different network than the network to which you want to connect your machine. Ensure that at the start of the Wi-Fi setup process your smartphone or tablet is connected to the same Wi-Fi network as the one to which you will connect your coffee machine. Note: During the Wi-Fi setup process the network of your smartphone or tablet will switch between the Philips setup network and the home Wi-Fi network. This is normal and part of the Wi-Fi setup process. At any point during the Wi-Fi setup process there is no need to manually switch between the home Wi-Fi and the Philips setup network. The smartphone or tablet does this automatically. Your smartphone or tablet, the coffee machine and the Wi-Fi router are not within range of each other. Ensure that your smartphone or tablet, the coffee machine and the Wi-Fi router are within range of each other. Your smartphone or tablet is not connected to the Wi-Fi network. Make sure your smartphone or tablet remains Wi-Fi enabled while following the steps from chapter 'Setting up the Wi-Fi connection for the first time'. Note: During the Wi-Fi setup process, the smartphone or tablet may show that it is connecting to the Philips setup network and that this network provides no internet connection. Please note that this is not an issue and does not need to be corrected manually. The app is not able to find the home Wi-Fi network. The Wi-Fi router is not working properly. Please make sure that the Wi-Fi router is working properly and has an internet connection. Your smartphone or tablet is not within range of the router. Make sure your smartphone or tablet is within range of the router. The Wi-Fi network is a hidden network. Add the hidden network manually to the app. The app cannot find the Philips setup network during the Wi-Fi setup process. While following the steps in the app, the machine has not been put into setup mode properly. Repeat the steps in the app to put the machine in setup mode.30 English Problem Cause Solution The machine was previously connected to Wi-Fi and you are going through the Wi-Fi setup process again to connect to another network. Make sure that you first follow the steps of section 'Resetting all network settings and connections'. When that is done, the machine can be put back into the setup mode by following the Wi-Fi setup process in the app. The smartphone or tablet is out of range of the Philips setup network. Make sure you bring the smartphone or tablet closer to the machine to get within range of the Philips setup network. The app finds the Philips setup network but fails to connect to it. You did not allow the app to connect your smartphone or tablet to the Philips setup network. Make sure that you allow the app to connect your smartphone or tablet to the Philips setup network. The settings of your smartphone or tablet are configured so that connection to any network without internet access is not permitted. Change the settings of your smartphone or tablet so that connecting to any network without internet access is permitted. The settings of your smartphone or tablet are configured so that connection to an open network is not permitted. Change the settings of your smartphone or tablet so that connecting to an open network is permitted. The Philips setup network was saved on your smartphone or tablet, and the smartphone or tablet has automatically reconnected to a different network because the Philips setup network has no internet connection. Clear all saved networks in the network settings of your smartphone or tablet, except for the one you wish to connect the machine to. The app and the machine fail to pair. Your machine is not in pairing mode anymore (the start/stop button no longer flashes). Repeat the steps in the app. The machine is in the correct mode (start/stop button is flashing), but you have not performed the steps correctly. Make sure you follow the steps indicated in the app in the correct order. First press the start/stop button on the machine and then tap the 'Pair' icon in the app.31 English English Problem Cause Solution I cannot use Alexa and Amazon Smart Reorders yet. You have not yet connected to your Amazon account in the app. Please follow the instructions in the app to connect your Amazon account to your Philips account to be able to use Alexa voice control and Amazon Smart Reorders. Note: To be able to use these features you need to have an Alexa app or an Alexa device and you need to enable the Smart Reorders service on Amazon. The Wi-Fi connectivity of the machine used to work but is not working anymore. Your smartphone or tablet is connected to a different network than your machine. Make sure your smartphone or tablet is connected to the same Wi-Fi network as your machine. Your Wi-Fi name and/or password have changed. Follow all steps of section 'Changing the Wi-Fi connection'. Your smartphone or tablet and the coffee machine are not within range of the Wi-Fi router. Make sure that your smartphone or tablet the coffee machine are within range of the Wi-Fi router. None of the solutions mentioned above work. Close and restart the app to recheck the Wi-Fi connection. None of the solutions mentioned above work. Navigate to machine settings in the app and remove the machine from the app. Then select 'Machine is already connected to Wi-Fi' in the app. I could always connect my smartphone or tablet to the machine, but suddenly that is no longer possible. The machine is now connected to a different Wi-Fi network than before. Make sure that your smartphone or tablet and coffee machine are connected to the same network. The name or password of the Wi-Fi network has been changed. Please make sure that all paired smartphones and tablets reconnect to the network with the new password. None of the solutions mentioned above work. Clear all network settings and connections of the machine (see 'Resetting all network settings and connections'). And then follow the steps in the app to set up the Wi-Fi connection again (see 'Setting up the Wi-Fi connection for the first time'). The Wi-Fi light on the machine is flashing, and I can use the machine manually, but not with the Coffee + app. The coffee machine is not connected to your home Wi-Fi network anymore. Follow all steps of section 'Changing the Wi-Fi connection'.32 English Problem Cause Solution The name or password of the existing Wi-Fi network has been changed or you have installed a new router. Follow all steps of section 'Changing the Wi-Fi connection'. The solution mentioned above is not working. Follow all steps of section 'Resetting all network settings and connections'. The app cannot reconnect to the machine. The machine is not plugged in. Plug in the machine to restore the Wi-Fi connection. The router is not working properly. Check the router and make sure it is working. Your smart smartphone or tablet is connected to a different network than your machine. Make sure your smartphone or tablet is connected to the same Wi-Fi network as your machine. None of the solutions mentioned above work. Close and restart the app to recheck the Wi-Fi connection. None of the solutions mentioned above work. Navigate to machine settings in the app and remove the machine from the app. Then add the machine again in the app. The Wi-Fi light on my coffee machine is not on anymore. You may have accidentally switched off the Wi-Fi connection on the machine. Switch on Wi-Fi by following the steps in the chapter 'Switching the Wi-Fi connection on and off'. The Wi-Fi router is switched off. Switch the router back on and wait for the Wi-Fi light on the machine to light up again. The Wi-Fi connection of the machine is on and the machine and the app are connected, but remote control via the app or Alexa does not work. The machine is currently rinsing or brewing. The machine can only be controlled remotely via the app or Alexa when it is on, in standby mode or when there is a warning signal. I cannot use the coffee machine, and the Wi-Fi light on the machine is flashing. Your coffee machine is updating the firmware. Wait for at least 5 minutes. Then the firmware update process is finished. During this time, you cannot use the coffee machine. The internet connection to the machine is not possible or not stable. The Wi-Fi connectivity can be interrupted by electromagnetic or other interferences. Keep the appliance away from other electronic devices that may cause interferences.33 English English Technical specifications The manufacturer reserves the right to improve the technical specifications of the product. All the preset quantities are approximate. Description Value Size (w x h x d) 246 x 372 x 433 mm Weight 7 - 7.5 kg Power cord length 1000 mm Water tank 1.8 litres, removable Coffee bean hopper capacity 275 g Coffee grounds container capacity 12 pucks LatteGo (milk container) capacity 250 ml Adjustable spout height 85-145 mm Nominal voltage - Power rating - Power supply See data label on inside of service door (fig. A11) Wi-Fi frequency band 2.4 GHz 802.11 b/g/n Declaration of Conformity Hereby, DAP B.V. declares that the fully automatic espresso machine series EP2200 and EP3200 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.philips.com. The fully automatic espresso machines EP2520 and EP3546 are equipped with a Wi-Fi module, 2.4GHz 802.11 b/g/n (channels 1..11). maximum transmitting power <100mW(20dBm).Dansk
