USER MANUAL PR150DV PRIMO

Dear client, All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. www.primo-elektro.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 WARRANTY This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The war- ranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you pur- chased it. The guarantee on accessories and components that are liable to wear- and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automati- cally in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-autho- rised third parties.

• If the customer used parts or accessories that are not recommended or pro- vided by the supplier / manufacturer.DV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 or supervised. SAFETY INSTRUCTIONS51

WWW.PRIMO-ELEKTRO.BEPR149DV / PR150DV

• Keep the appliance and its cord out of reach of children younger than 8 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Make sure that children do not touch the cord or appliance.

• Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly ammable. Therefore you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

I ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• It is prohibited to alter or modify the device and its specications.

• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord. I INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Always use the appliance on a steady, dry and level surface.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Keep the ventilation openings free of obstructions.

• Avoid long exposure to direct sunlight.53

WWW.PRIMO-ELEKTRO.BEPR149DV / PR150DV

• Make sure that you have access to the plug of the appliance.

• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and re.

• This is a heavy appliance. Be careful when moving it.

• This cooling unit is not intended for use as a built-in appliance.

• Do not place a power strip or other portable power supply behind the appliance.

• After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to ow back in the compressor. I USE

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Do not use any other electrical appliance inside the freezer, unless they are approved for this purpose by the manufacturer. Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a ammable propellant.DV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

• Do not place carbonated or zzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in injury or damage to the appliance.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Ensure the food in the appliance does not touch the back wall.

• Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

• Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.

• Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly.

• If the appliance is left empty for longer periods, it should be turned o, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

I CLEANING AND MAINTENANCE

• Never immerse the appliance, the cord or the plug in water or any other liquid.55

WWW.PRIMO-ELEKTRO.BEPR149DV / PR150DV

• Do not place warm or hot objects on top of the appliance.

• Do not clean the appliance with anything made of metal.

• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

• WARNING! Never place this appliance on or in the neighbourhood of a gas or electric re or in a place where it could come into contact with a heat source. There are ammable materials located on the back of the appliance.

• Pay attention to the symbol ‘Fire risk – ammable materials’ located on the back of the appliance. Climate class Ambient temperature SN Between 10°C and 32°C N Between 16°C and 32°C ST Between 18°C and 38°C T Between 18°C and 43°C SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCEDV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

• Remove all packing material, both inside and outside.

• Clean the outside of the unit with a dry cloth. You can clean the inside with a soft damp cloth.

• Do not place the appliance in a narrow passage, in direct sunlight or moisture.

• Make sure that air can circulate freely around the refrigerator. The back of the refrigerator should be at least 5 cm away from the wall.

• Place the refrigerator on a solid, level surface. If your surface is not flat, you can straighten the appliance using the feet. You can raise or lower these by turning them.

• Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator. Heat will cause higher consumption.

• Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly in your refrigerator.

• The thermostat is located on the inside of the appliance. When you open the door, you can set the thermostat at the top. Set the thermostat to “MAX” for maximum cooling. The higher the setting, the harder the appliance will cool.

Thermostat Temperature (ambient temperature between +16°C and +38°C)

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellsh, oily

2 months Non-oily sh, shellsh, pizza, scones and muns 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked craysh, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 monthsDV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

• When you freeze fresh foods whit a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

• Once defrosted, food should be consumed quickly. STORAGE GUIDE For the best storage, set up your refrigerating appliance as follows: Freezer compartment Type of food Top drawer Ice cream, frozen fruit, frozen baked goods Middle drawer Frozen vegetables and fries Bottom drawer Raw meat, poultry, sh DOOR CONVERSION You can change the direction of rotation of the door. If you wish to do so, proceed as follows: Attention : Make sure that the appliance is not live!

1. Remove the protective cap from the hinge.

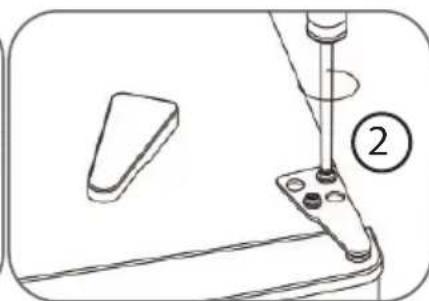

2. Remove the screws located in the upper hinge. Remove the hinge.

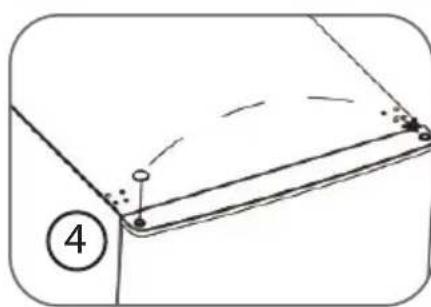

4. Remove the sealing cap on the upper left, and place it in the opening on the

upper right. Remove the door and put it in a place where you can keep it scratch-free.

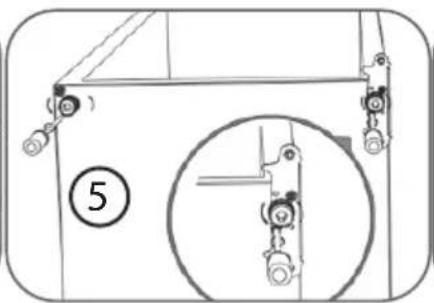

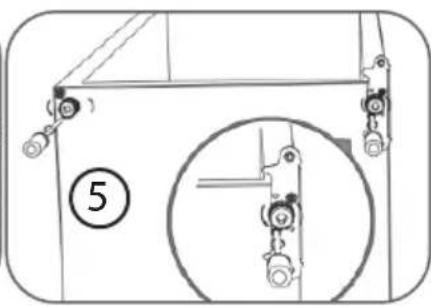

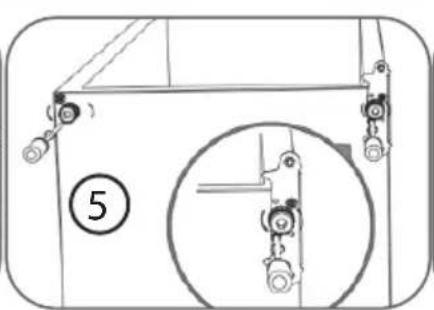

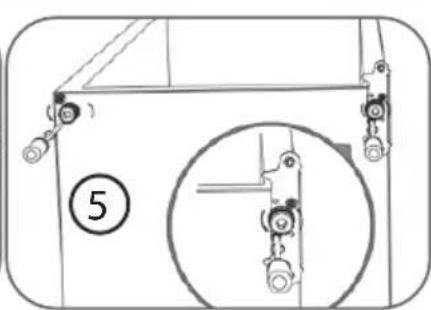

5. At the bottom of the appliance, remove the 2 adjustable feet. The foot with the

short shaft, should always be on the side with the hinge. Unscrew the bottom hinge.

6. Unscrew the pin and remove the pin from the hinge.59

7. Turn the hinge 180° and reattach the pin as shown below.

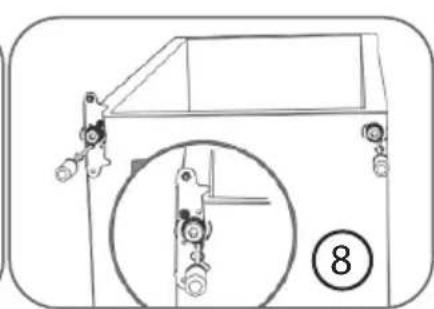

8. Screw the hinge in place at the bottom of the unit. Place the adjustable foot

on the other side. You can now hang the door back on the appliance.

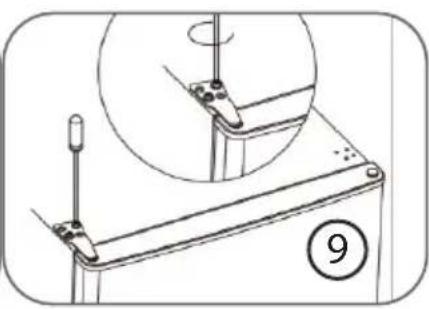

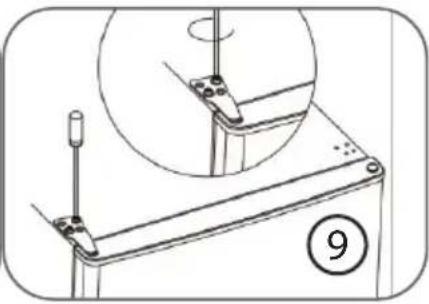

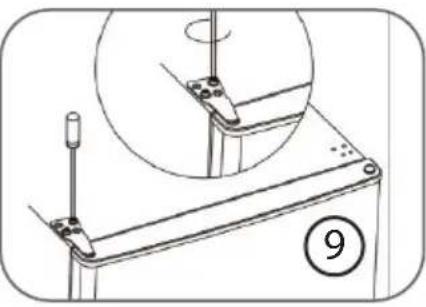

9. Finally, screw the top hinge back into place. Make sure the rubber seal seals

tightly. Position the door so that it is flush with the top of your appliance. Tighten all the screws and put the protective caps in place.

MAINTENANCE AND CLEANING

Clean the device on a regular basis. When doing so, keep the following guidelines in mind. Do not clean the appliance while it is still plugged in.

• Do not use abrasives to clean the appliance, as this will damage it.

• Use a mild detergent to clean the freezer drawers. Afterwards, dry everything carefully.

• Empty the appliance and clean the inside with a damp cloth.

• The accumulation of dust at the back of the appliance can cause the appliance to stop working optimally and consume more power. Carefully remove the dust with a soft brush at the back of the unit once a year. DEFROST You should defrost your appliance when an ice layer of about 5mm begins to form. Defrosting will take several hours. Turn off the appliance, unplug the power cord and open the door. The appliance will begin to defrost. We recommend placing a mop under the appliance. When the appliance is completely defrosted, dry everything again.DV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

Note: Never use sharp or pointed objects to remove ice.The appliance contains refrigerant gas. If the pipes are accidentally perforated, the appliance will stop working and the warranty will also be void. When the appliance will not be used for an extended period of time, unplug the appliance. Leave the door partially open, this will prevent the formation of mold and foul odors.

• If the unit is turned off for any reason, wait 10 minutes before turning it on again. The pressure in the cooling system should be stabilized before turning the unit on again.

• Turn off the appliance and unplug it. Remove all food products. Also remove or secure all mobile parts (drawers, etc.) in the freezer to prevent shock.

• Move the appliance and install. If the appliance was held on its side while being moved, even if very briefly, leave the appliance in the upright position for at least 10 minutes before turning it on.

• Your appliance uses isobutane (R600a) as a refrigerant. Notwithstanding that R600a is an environmentally friendly and natural gas, it is flammable. Therefore, be very careful while moving or installing your device to avoid dam- age to the cooling elements. In case of a leak caused by damage to the cooling elements, move your freezer away from open flames or heat sources and air the room the appliance is in for a few minutes. TIPS

• Do not freeze food back when it has already been defrosted.

• Do not put beverages with bubbles in the freezer.

• Be careful when consuming popsicles just out of the freezer to avoid freezer burns.

• Do not take anything out of the freezer with wet hands.

• The freezer makes noise when the compressor pumps the refrigerant around. This is normal.

• Do not put hot foods in the freezer.

• Make sure the food is covered.

• Do not compress the food too much; air should still be able to circulate around it.

• Do not leave the door open too long. Also make sure that the door is always closed properly again.

• Label the food with the date to check the shelf life in the freezer.61

Problem Solution The device is not working.

• The unit is not receiving power, check that the power supply is OK.

• Check that the plug is plugged in.

• Check that the correct voltage is used. The device jumps up too often.

• Is the door closed properly?

• Have you put hot food in the appliance, causing the appliance to work harder to cool?

• The door has been open too often or too long.

• The appliance is getting the wrong voltage.

• The appliance is too close to a heat source or direct sunlight. The inside temperature of the appliance is too hot.

• Check that the unit has power.

• Check that the plug is plugged in.

• The door has been left open too long or too often.

• The air supply is blocked.

• Check that the appliance is getting the correct voltage.

• The appliance is too close to a heat source or the sun. The device is making a strange noise.

• The device is not standing straight.

• The device is placed against another object or against the wall. Move the device.DV1-WS / PR104DV / PR111DV / PR123DV / PR124DV / PR125DV

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. ENVIRONMENTAL GUIDELINES63
