Product Type	Smartphone
Brand	Motorola
Model	Moto G84 5G (XT2347-2)
Dimensions	160 x 74 x 7.6 mm (approximate)
Weight	168 g (approximate)
Display	6.5-inch pOLED, 1080 x 2400 pixels
Processor	Qualcomm Snapdragon 695 5G
RAM Memory	8 GB
Internal Storage	256 GB (expandable via microSD)
Battery	5000 mAh, TurboPower 30 W charging
Operating System	Android 13
Network	5G, LTE, UMTS, GSM
Connectivity	Wi-Fi 6, Bluetooth 5.1, NFC, USB-C
Main Camera	50 MP (wide-angle) + 8 MP (ultra-wide-angle/macro)
Front Camera	16 MP
Sensors	Fingerprint (under display), proximity, accelerometer, gyroscope
SIM Cards	Dual Nano SIM or Nano SIM + microSD
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemicals. Do not expose to water (not waterproof).
Battery Safety	Removal only by an authorized center. Do not charge below -20°C or above 45°C.
Spare Parts and Repairability	Contact a Motorola authorized service center. Repair by qualified personnel only.
General Information	For legal information, SAR, and recycling, check the phone settings or www.motorola.com.

Frequently Asked Questions - Moto G84 5G MOTOROLA

How to insert the SIM card and microSD card?

Use the provided tool to open the SIM tray. Insert the SIM cards (nano) with gold contacts facing down. The microSD card (sold separately) goes in the same tray. See the manual for detailed diagrams.

How to turn on or off the Moto G84 5G?

To turn on, long press the Power button. To turn off, simultaneously press the Power and Volume Up buttons for a few seconds.

Is the Moto G84 5G waterproof?

No, the phone is not waterproof. Avoid any contact with water. For more information, go to Settings > Help.

How to charge the battery correctly?

Use a compatible Motorola charger (30 W recommended). Do not charge at temperatures below -20°C or above 45°C. Avoid using non-compliant chargers.

What is the battery capacity and charging speed?

The battery has a capacity of 5000 mAh and supports TurboPower 30 W fast charging.

How to access help and support settings?

Swipe up on the home screen, then tap Settings > Help. There you'll find tutorials and answers to common questions.

Where to find legal and safety information?

Swipe up, go to Settings, then type "Legal information" in the search bar. Also visit www.motorola.com/device-legal.

How to check the SAR value (Specific Absorption Rate)?

Dial *#07# on the phone keypad, or go to Settings > type "Regulatory labels". You can also visit www.motorola.com/sar.

What to do if the phone is unresponsive?

Long press the Power button until the screen turns off and the phone restarts. If the problem persists, contact an authorized service center.

How to recycle my old phone?

Motorola encourages responsible recycling. Go to www.motorola.com/recycling to learn about product and packaging recycling options.

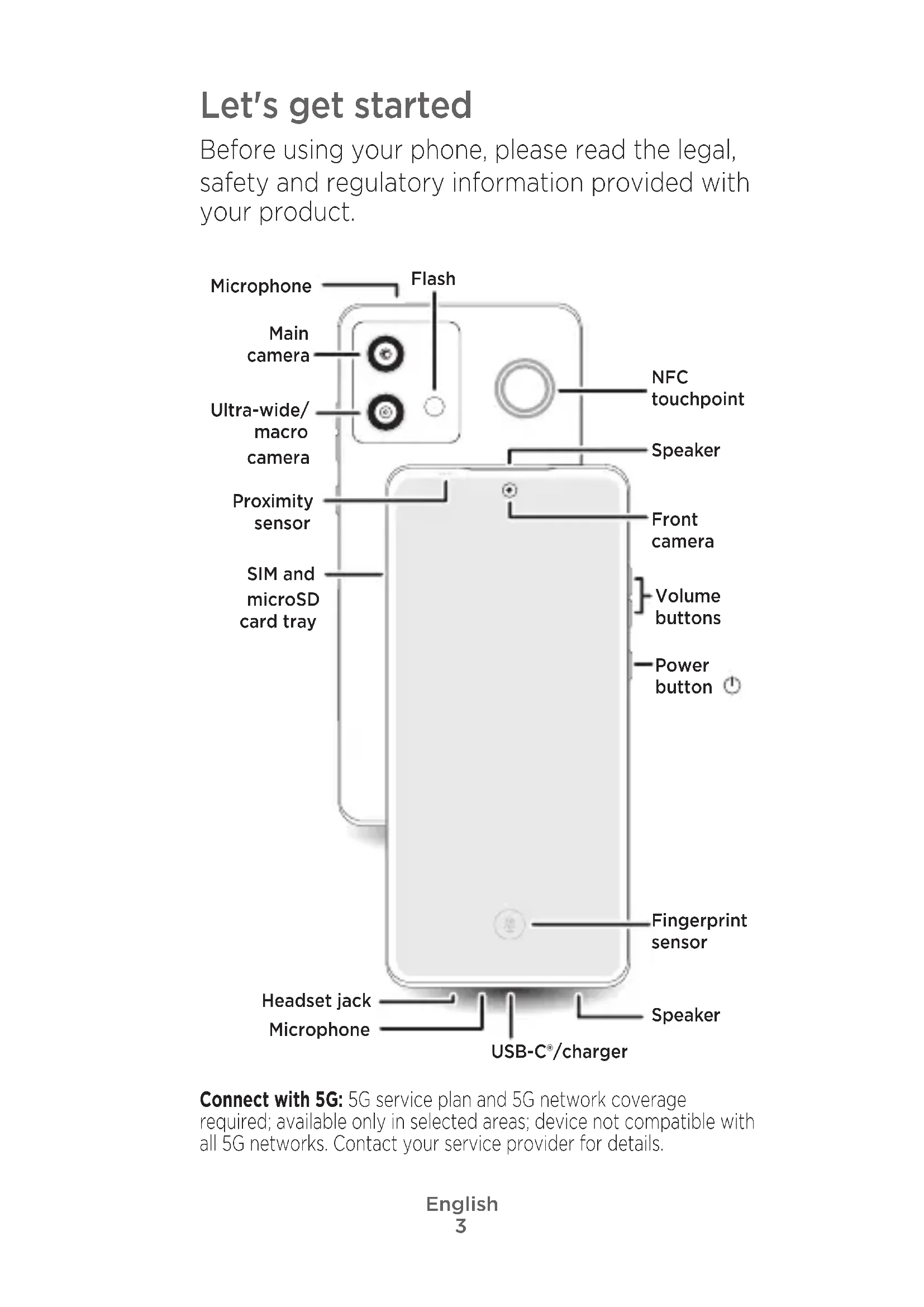

USER MANUAL Moto G84 5G MOTOROLA

[e-mail]

moto g84 5G

English 3

العربية 7

Français....11

српски....15

Русский....19

Українська 24

Қазақша 28

Македонски....32

Before using your phone, please read the legal, safety and regulatory information provided with your product.

Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

Put the card(s) in and power on

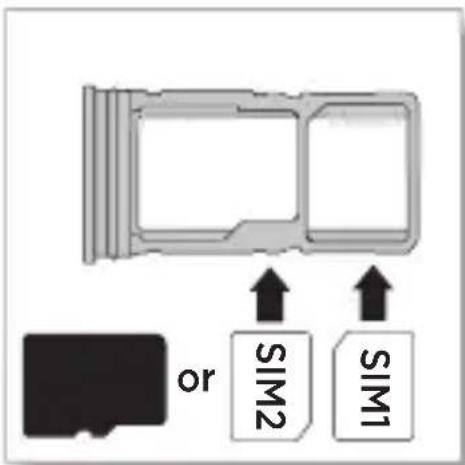

1 Insert the SIM tool into the hole next to the tray to pop out the tray.

Make sure that you use the correct size of SIM card and don't cut the SIM card.

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card micro (optional, sold separately) for additional storage.

Side view of a smartphone with a power button icon pointing to the right side (no text or symbols on the device itself)

3 Press and hold the power button to turn on your phone, then follow the prompts to get started.

Note: Press the power and volume up buttons at the same time to turn off your phone.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mymotog.
  • Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > 🔒, then type Legal information, or visit www.motorola.com/device-legal.

Water repellent. Your phone is not waterproof. For more about your phone's water-repellent design and care, swipe up and tap

Settings > Help.

Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > 🔒, then type Regulatory labels, from your phone's dial pad type *#07#, or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2347-2). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/Band	Maximum nominal transmit power dBm
Bluetooth 2400	- 2483.5 20 dBm EIRP
Wi-Fi 2400 - 2483.5 20 dBm EIRP
Wi-Fi 5150 - 5250 23 dBm EIRP
Wi-Fi 5250 - 5350/5470 - 5725 20 dBm EIRP
Wi-Fi 5725 - 5850 14 dBm EIRP
NFC 13.56 -17.23 dBuA/m		@ 10m
GNSS 1559 - 1610/1164 - 1300 N/A
FM receive 87.5 - 108 N/A
GSM	2/3/5/8	33/30
UMTS	1/2/5/8	24
LTE	B1/2/3/5/7/8/18/19/20/26/28/32/38/40/41*/42	23/(26*)
5G	n1/3/5/7/8/20/26/28/38/40/41*/77*/78*	23/(26*)

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved.

Product ID: moto g84 5G (Model XT2347-2)

Manual Number: P201-CJ8003-010-A
