Lux C520 - Kettle Eldom - Free user manual and instructions

Product type	Cordless kettle
Brand	Eldom
Model	Lux C520
Capacity	1.8 L
Power	1800-2200 W
Supply voltage	220-240 V ~50/60 Hz
Container material	Glass
Functions	Boiling, temperature setting (40,70,80,90,100°C), keep warm (2h)
Backlight	Yes, color by temperature (green, blue, yellow, purple)
Water level indicator	Yes, graduated from 0.5 to 1.8 L
Removable filter	Yes, mesh filter
Power base	Yes, with cable storage
Automatic shut-off	Yes when boiling
Dry boil protection	Yes
Safety	Do not immerse, use on stable surface
Cleaning	Damp cloth, descaling with vinegar
Filter maintenance	Regular cleaning, rinsing or soft brush
Repairs	Authorized center only
Warranty	Private domestic use, professional use excluded
Use	Domestic only

Frequently Asked Questions - Lux C520 Eldom

How to use the temperature setting function?

Press button (B) until the indicator for the desired temperature (40, 70, 80 or 90°C) lights up. The kettle heats the water to that temperature and then automatically turns off. The backlight changes color according to the temperature.

How to activate keep warm?

After boiling water at 100°C, press and hold button (A) until a second beep is heard. Keep warm is activated for 2 hours: the kettle reheats the water to 100°C as soon as it drops to 85°C.

What does the colored backlight mean?

The backlight changes according to the selected temperature: green for 40°C, blue for 70°C, yellow for 80°C, purple for 90°C. During boiling at 100°C, the color may vary; refer to the manual for more details.

How to clean the filter?

The mesh filter is removable. Remove it and rinse under water, or clean with a soft brush. Regular maintenance is necessary, especially in hard water.

How to descale the kettle?

Boil 0.5 L of water, turn off and unplug. Add 0.1 L of vinegar and let it sit for several hours. Empty, rinse, then boil 1 L of water and rinse again. Do not use harsh descaling agents.

What is the maximum capacity?

The maximum capacity is 1.8 L. The minimum level is 0.5 L. Do not exceed the maximum mark to avoid overflow.

Can I use the kettle without water?

No, never operate the kettle without water. Always check that there is at least 0.5 L of water before turning it on.

What to do if the kettle does not turn on?

Make sure the kettle is properly placed on the base and that the base is plugged in. Check that the lid is closed properly. If the problem persists, contact an authorized service center.

How to clean the outside of the kettle?

Use a damp cloth with a little dish soap. Never immerse the kettle in water. Wipe carefully after cleaning.

Is the kettle suitable for professional use?

No, the kettle is designed for private domestic use. Professional or improper use voids the warranty.

USER MANUAL Lux C520 Eldom

Black and white photo of a modern glass coffee maker with water level markings (no text or symbols on the device itself)

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

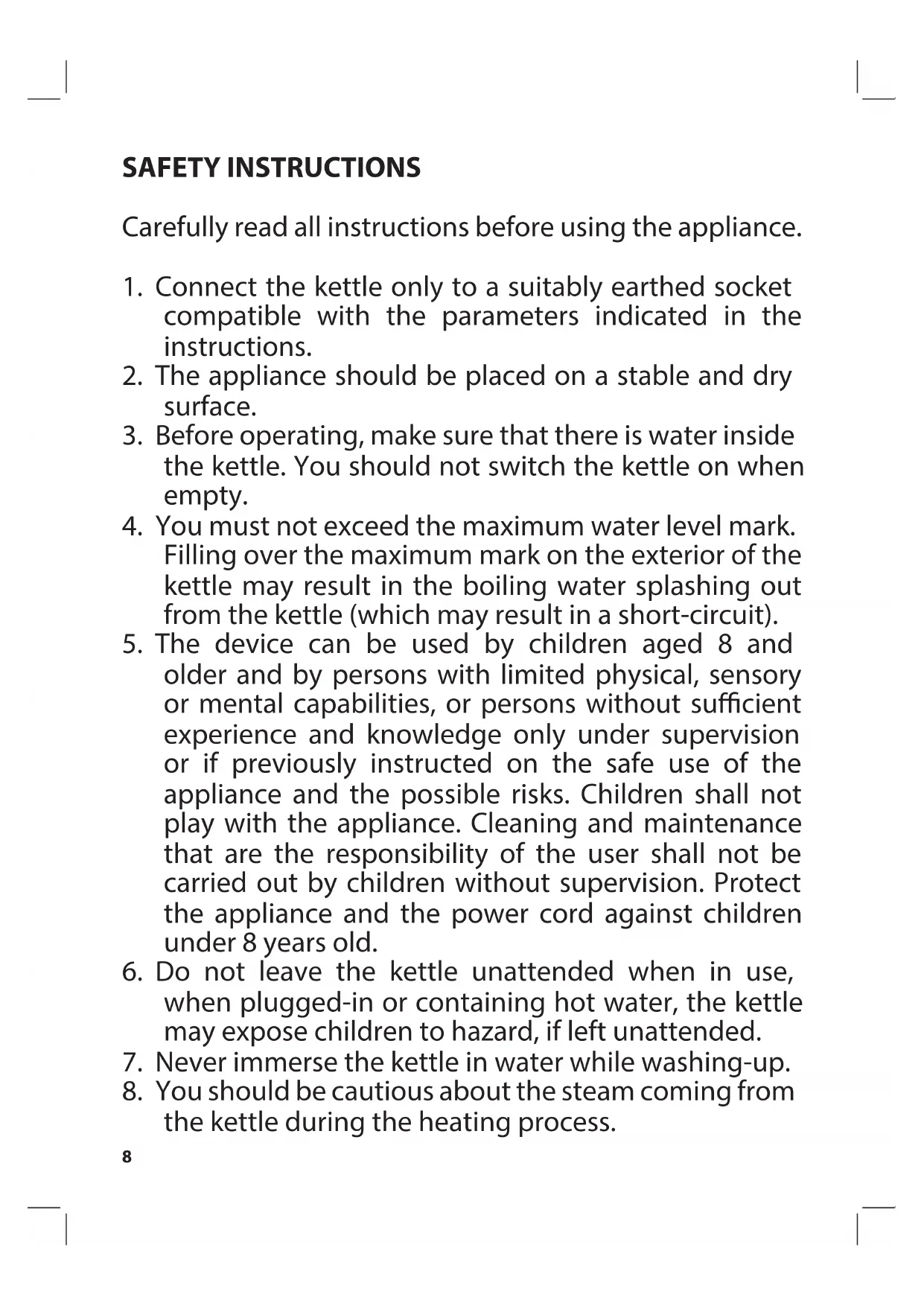

Carefully read all instructions before using the appliance.

1. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
2. The appliance should be placed on a stable and dry surface.
3. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
4. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
6. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
7. Never immerse the kettle in water while washing-up.

8. You should be cautious about the steam coming from the kettle during the heating process.

9. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

10. Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorized Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu
11. The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
12. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.
13. This kettle must be used with the power base supplied.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

EN

INSTRUCTION MANUAL

CORDLESS KETTLE C520

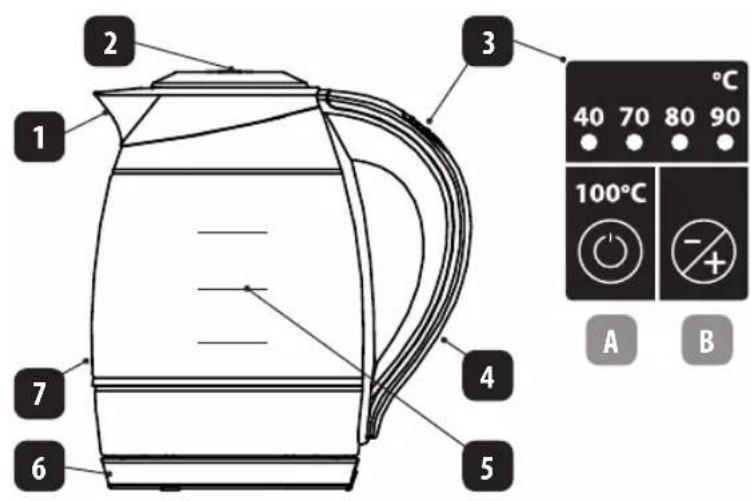

GENERAL DESCRIPTION

1. Spout + net filter
2. Opening lid + lid release button
3. Control panel
4. Handle
5. Water level indicator
6. Base
7. Illuminated jug

TECHNICAL DATA

power: 1850 - 2200W

mains voltage:

220-240V, \~50Hz

capacity: 1.8 litre

2 3 40 70 80 90 100°C A B

INTENDED USE

The C520 wireless kettle is intended for boiling water. It is fitted with the function of temperature control and hold (85 – 100°C). The capacity of the kettle allows to boil 0.5–1.8 l of water. The maximum and minimum level of water is marked with the indicator (5).

OPERATION

All changes of settings are confirmed with audible signal.

Place the base of the appliance (6) on flat, stable and dry surface.

Excess cord may be kept inside the base. Make sure that the cord protrudes from the base (6) through the special groove to have the appliance stable.

Boil water 2-3 times and discard before the first use of the kettle.

Fill in the appliance after opening the cover (2).

Do not fill in the kettle while on the base.

The kettle will be activated after pressing the button (A).

Operation of the appliance is signaled with illumination of the jug (7).

The kettle will be automatically turned off when the water is boiled.

The appliance may be turned off at any time with the button (A).

• TEMPERATURE CONTROL

The kettle allows to warm up water to the pre-set temperature.

To select the required temperature of water (40°C, 70°C, 80°C or 90°C), press the button (B) to cause illumination of the relevant indicator on the panel (3).

Operation of the appliance is signaled with illumination of the jug (7). Illumination color depends on the selected temperature.

When the preset temperature is reached, the kettle will turn off.

Note. Taking the kettle off the base cancels the settings.

The appliance may be turned off at any time with the button (A).

ILLUMINATION

40°C: green light.

70°C: blue light.

80°C: yellow light.

90°C: purple light.

TEMPERATURE HOLD - 85-100°C

Press the button (A) and hold it for 3 seconds.

Activation of the function will be signalled with flashing indicator and illumination of the jug (7). The kettle will hold the temperature (85-100°C) for 2 hours, and then it will automatically turn off. Taking the kettle off the base cancels the settings.

CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,
• limescale should be removed in the following way:
• fill the kettle with 0.75 litre of water and bring it to boil,
• switch the kettle off and disconnect the kettle from the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,
• discard the water and rinse the inside with water,
• no timely removal of the scale from the heating element results in the heating element's quicker wear,
• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).
