CS7 - Kettle Eldom - Free user manual and instructions

Product type	Cordless kettle
Brand	Eldom
Model	CS7
Power	2000 W
Supply voltage	230 V ~ 50 Hz
Capacity	1.7 L
Minimum water level	0.7 L
Maximum water level	1.7 L
Water level indicator	Yes, graduated
Automatic shut-off	Yes, at boiling
Swivel base	Yes
Anti-limescale filter	Yes, removable
Hinged lid	Yes, with release button
On/off switch	Yes, with indicator light
Body material	Plastic
Intended use	Boil water for domestic use
Safety	Do not operate without water; do not immerse
External cleaning	Damp cloth and dish soap
Descaling	Water and vinegar solution (0.75 L water + 0.1 L vinegar)
Warranty	Private domestic use only
Repairs	By approved center, original parts

Frequently Asked Questions - CS7 Eldom

How to use the Eldom CS7 kettle for the first time?

Before first use, boil water 2 to 3 times and discard it. Fill the kettle through the spout or by opening the lid using the release button. Ensure the water level is between 0.7 L and 1.7 L. Place the kettle on its base, lower the on/off switch; the indicator light turns on. The appliance automatically stops at boiling.

How to descale the Eldom CS7 kettle?

To descale, boil 0.75 L of water, turn off and unplug. Add 0.1 L of vinegar and let it sit for several hours. Empty the solution, rinse with clean water, then boil 1 L of water and rinse again. Do not use harsh descaling products, as this will void the warranty.

Can I boil other liquids besides water in the kettle?

No, the kettle is designed exclusively for boiling water. Never heat milk, tea, or other liquids, as this could damage the appliance and void the warranty.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on its base and that the base is plugged in. Make sure the switch is lowered. If the problem persists, check that the water level is sufficient (minimum 0.7 L). If nothing works, contact an approved service center.

How to clean the anti-limescale filter of the kettle?

The anti-limescale filter is removable. Remove it and rinse under running water or clean with a soft brush. Regular maintenance is recommended, especially in hard water areas, as the filter may clog after a few uses.

Does the appliance automatically shut off?

Yes, the Eldom CS7 kettle has automatic shut-off that cuts the power as soon as the water reaches boiling. You can also stop operation at any time by switching the switch to the off position.

What is the maximum water capacity of the kettle?

The maximum capacity is 1.7 liters, and the minimum capacity is 0.7 liters. Do not exceed the maximum level shown on the indicator to avoid overflow of hot water.

Can I use the kettle without its base?

No, the Eldom CS7 is a cordless kettle that only works when placed on its original base. The base provides power and stability. Never use the kettle without the base.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the kettle with a damaged cord.

How to open the lid of the Eldom CS7 kettle?

Press the lid release button located on the handle. The lid opens. To close it, lower it gently until it locks with an audible click.

USER MANUAL CS7 Eldom

Exterior view of a modern silver kettle with black handle and 'eldom' logo (no additional text or symbols)

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

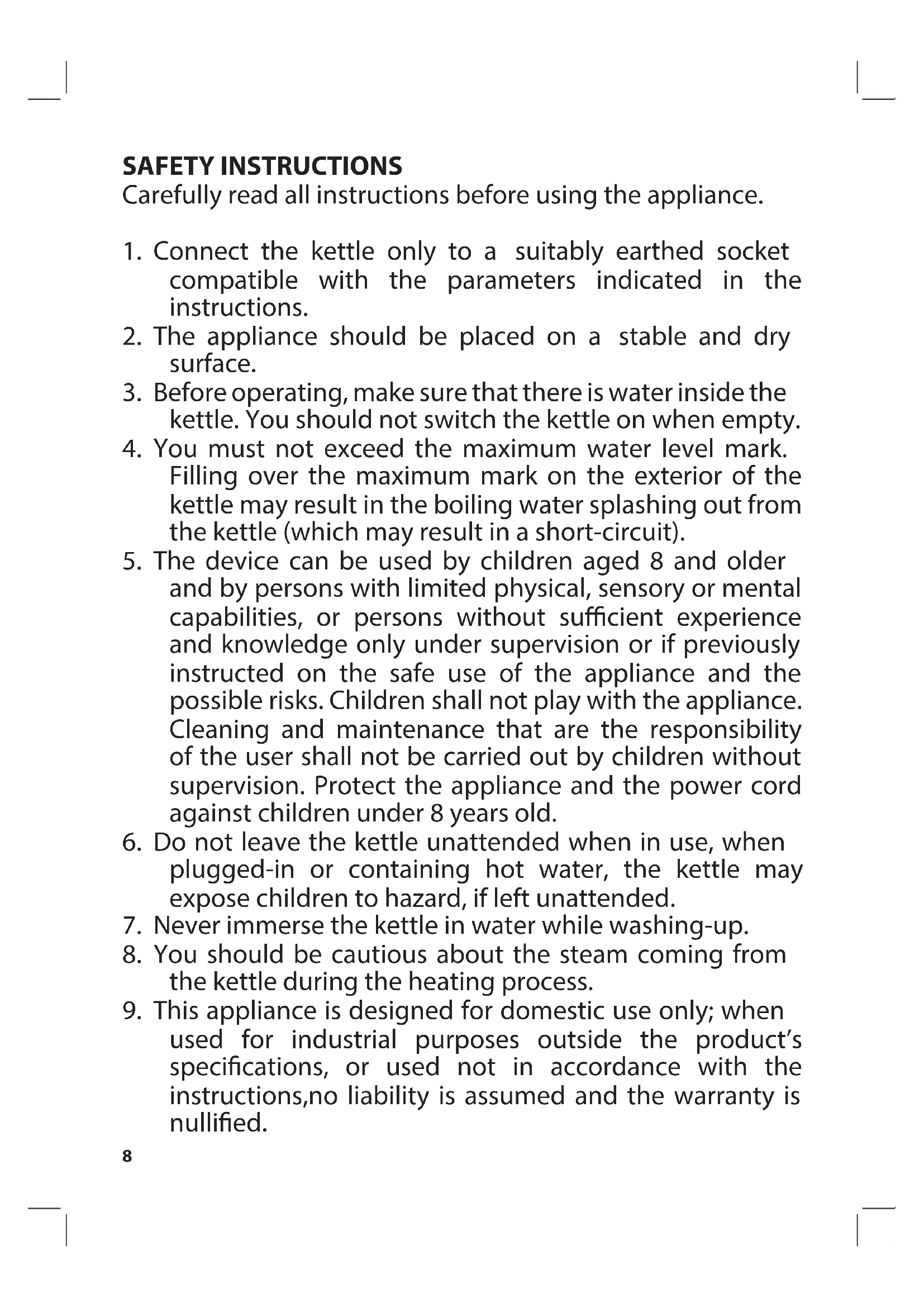

Carefully read all instructions before using the appliance.

1. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
2. The appliance should be placed on a stable and dry surface.
3. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
4. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
6. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
7. Never immerse the kettle in water while washing-up.
8. You should be cautious about the steam coming from the kettle during the heating process.

9. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

10. Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.

11. The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
12. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.
13. This kettle must be used with the power base supplied.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

EN

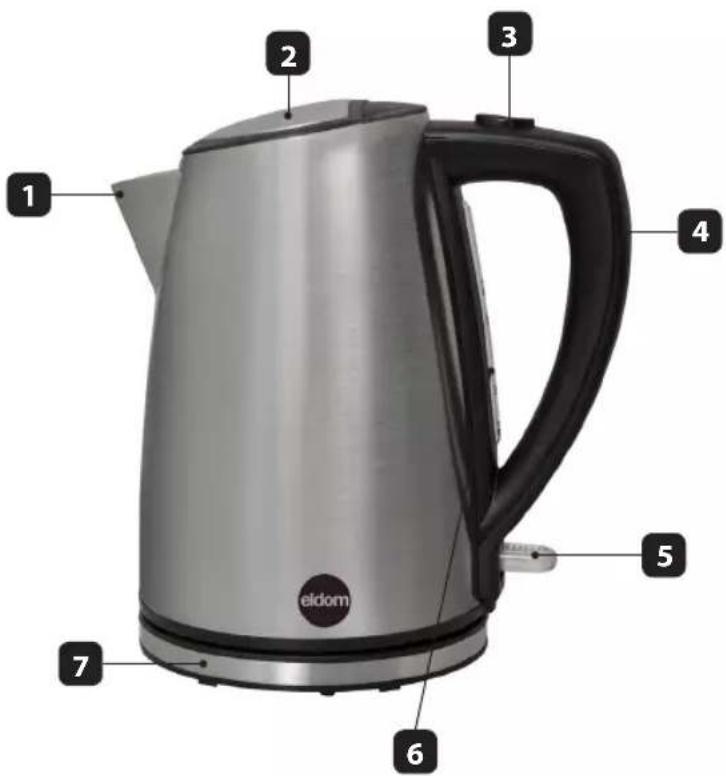

1. Spout
2. Lid
3. Lid release switch
4. Handle
5. On/off switch
6. Water level indicator
7. Base

TECHNICAL DATA

• power: 2000W
• mains voltage: 230V, \~50Hz
• 1.7 litre capacity

1 2 3 4 5 6 7 eidom

Cordless kettle CS7 is for boiling water. It is possible to boil 0.7 – 1.7 litre of water in the kettle.

The kettle base (7) must be put on a flat and dry surface. In the base there is some space for an excess cord. It is important for the cord to be led from the base (7) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (2). In order to open the lid (2) you must press the button (3). The lid should be closed by pressing until you hear it snapp. The kettle must not be filled up when on the base. The minimum level of boiling water is 0.7 l. The maximum water level (1.7 l) is marked on the indicator (6). The kettle starts working after putting the switch (5) in the position 'l'. The kettle working is signalled by the control lamp. The kettle switches off automatically after the water has boiled. You can stop heating water at any time by putting the switch (5) in the position '0'.

CLEANING AND MAINTENANCE

• Allow the unit to cool down completely before cleaning.
• Do not immerse the kettle in water while washing up.
• The outside of the kettle may be wiped over with a damp cloth and washing-up liquid.
• Water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards.

• Limescale should be removed in the following way:

• Fill the kettle with 0.75 litre of water and bring it to boil.

• Switch the kettle off and disconnect the kettle from the power supply.
• Pour 0.1 litre of white vinegar into the kettle.
• Allow to stand overnight.
• Discard the solution and rinse the inside with water.
• Fill the kettle with 1 litre of water and bring to boil.
• Discard the water and rinse the inside with water. If the scale is persistent, the cleaning should be done in the following way:
• fill the kettle with 0.75 litre of white vinegar.
• Bring the vinegar to boil and leave the hot solution inside the kettle for about 30 minutes.
• Bring the vinegar to boil again.
• Discard the vinegar and rinse the inside with water.
• Fill the kettle with 1.0 litre of water and bring it to boil.

• Discard the water and rinse the inside with water.

• No timely removal of the scale from the heating element results in the heating element's quicker wear.

• Any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty.
• If the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in. The filter should be cleaned regularly. Hard water may block the filter after boiling water a couple of times. The filter can be removed and rinsed with water or cleaned with a soft brush.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.
