Product Type	Doorstop alarm (alarm buzzer)
Brand	Blaupunkt
Model	ISD-DA1
Power Supply	9V block battery
Siren Volume	100 dB at 1 meter
Minimum door opening height	6 mm
Maximum door opening height	30 mm
Housing Material	ABS
Weight	152 g (battery included)
Dimensions (L x H x D)	175 x 50 x 42 mm
Operating Conditions	-20°C to +40°C
Main Functions	Door alarm, powerful siren, mechanical door blocking
Safety	Do not use in humid environments, do not immerse, keep out of reach of children, avoid prolonged exposure to alarm
Maintenance and Cleaning	Periodically check the condition of the device and battery; remove the battery if not used for a long time; clean with a dry cloth
Batteries	Use only a 9V block battery; observe polarity
Intended Use	Private use only, door monitoring
Warranty	Warranty is excluded in case of misuse or incorrect connection

Frequently Asked Questions - ISD-DA1 BLAUPUNKT

How to install the batteries in the doorstop alarm?

Open the battery compartment at the bottom of the device, insert a 9V block battery respecting polarity, then close the compartment.

Where to place the doorstop alarm?

Place the device on the floor, under the door handle. The gap between the door and the floor must be between 6 mm and 30 mm.

How to arm the alarm?

Set the power switch to ON. The LED lights up to indicate the alarm is armed.

What happens when the door is opened?

The door presses the metal contact plate, which blocks the door and triggers a powerful siren for 1 minute. If the plate remains pressed after 1 minute, the alarm restarts.

What type of battery to use?

Use only a 9V block battery. Do not use other types of batteries.

Can the alarm be used outdoors?

No, the device should not be used in humid environments or outdoors. It is designed for indoor use only.

How to stop the alarm once triggered?

The alarm stops automatically after 1 minute. To stop it immediately, set the switch to OFF or remove the battery.

Is the device suitable for children?

No, this device is not a toy. It must be kept out of reach of children due to risk of injury and the powerful siren.

How to maintain the doorstop alarm?

Regularly check the condition of the device and battery. Remove the battery if not used for a long time. Clean with a dry cloth.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to an electronic waste collection point. Used batteries must be recycled separately.

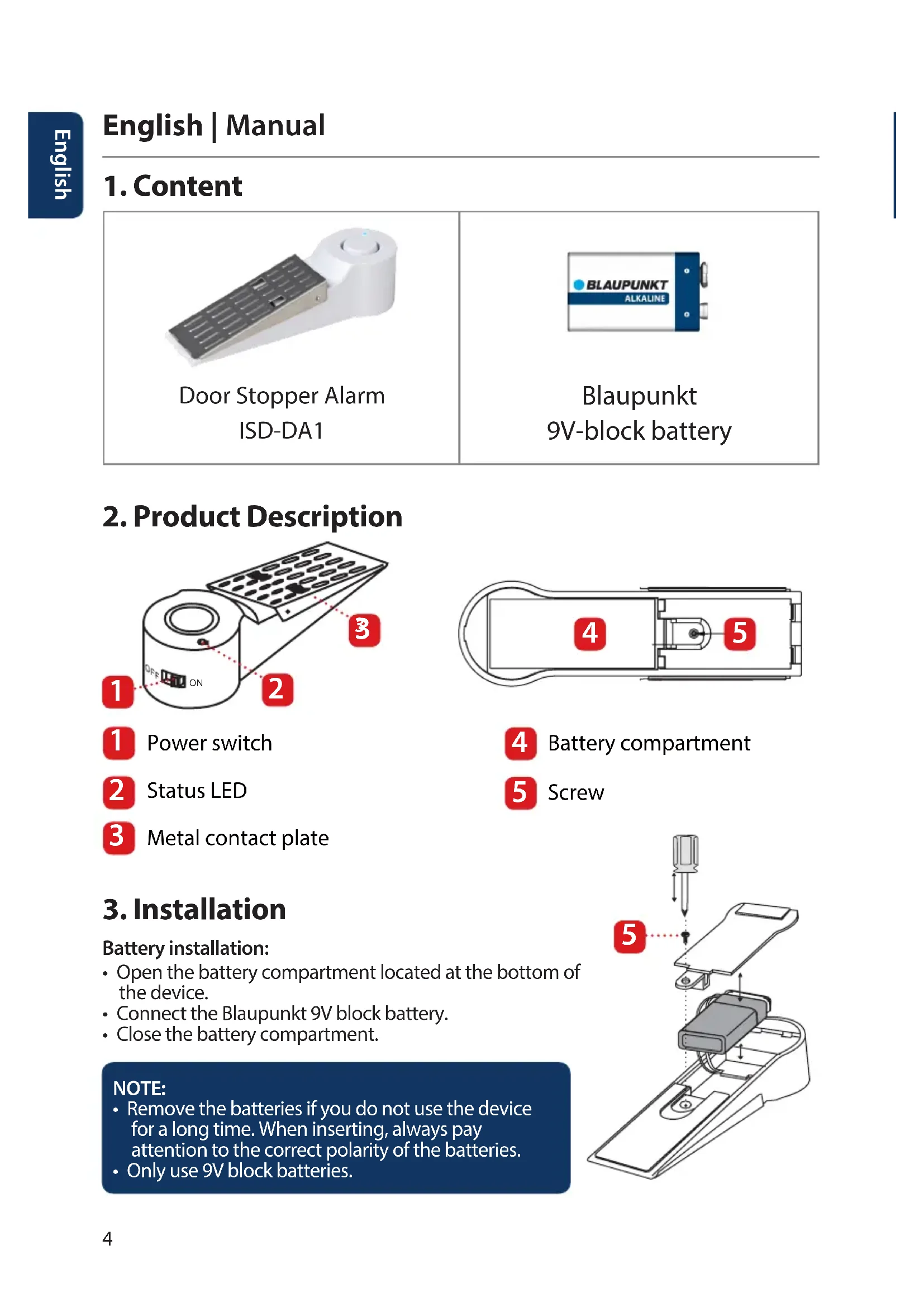

USER MANUAL ISD-DA1 BLAUPUNKT

White disposable door handle with metal plate and control knob (no text or symbols visible)

Enjoy it.

Stand alone Door Stopper Alarm

BLAUPUNKT

EN Manual 4

Door Stopper Alarm ISD-DA1

White ergonomic balance scale with metal tray and control knob (no text or symbols visible)

Door Stopper Alarm ISD-DA1

BLAUPUNKT ALKALINE

Blaupunkt 9V-block battery

2. Product Description

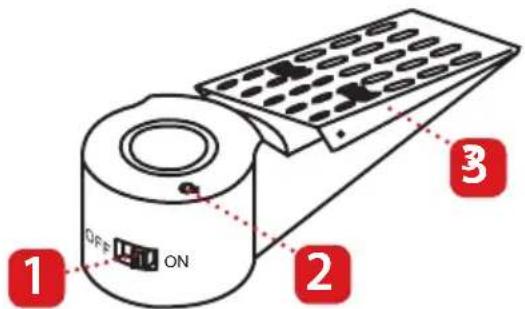

OFF ON 1 2 3

1 Power switch
2 Status LED
3 Metal contact plate

3. Installation

Battery installation:

• Open the battery compartment located at the bottom of the device.
• Connect the Blaupunkt 9V block battery.
• Close the battery compartment.

NOTE:

• Remove the batteries if you do not use the device for a long time. When inserting, always pay attention to the correct polarity of the batteries.
• Only use 9V block batteries.

4 5

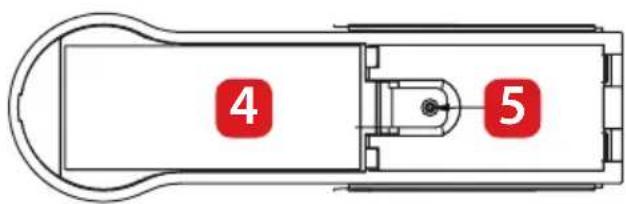

4 Battery compartment
5 Screw

5

4. Operation

• Place the door stopper alarm on the floor right bellow the door handle.
• The space between the door and the floor must have a minimum height of 6mm and up to a maximum of 30mm.
• The door must have a slight distance to the device.
• Set the power switch to ON. The LED will turn ON to inform that the door stopper alarm is "armed".

- When a door protected by a door stopper alarm is opened the door will press the metal contact plate. This will block the door so it cannot be opened any further and will trigger a powerfull acoustic siren noise for 1 minute.

• After 1 minute the alarm will stop. If the metal contact plate is still pressed the siren will start again.

Safety guide

Attention!

• This device must not be used at damp environments.
- This device is designed exclusively for the surveillance of doors and triggers an extremely loud alarm to scare away burglars.
• This device is intended for private use only and not for commercial use.
- Use the device only as described in this manual. Any other use will be considered incorrect and can lead to material damage on the product.
- The manufacturer assumes no liability for damage caused by an incorrect use of the device.

Risk of injury!

Improper handling of the device can lead to injuries.

• The device has a powerful alarm. Do not expose yourself for a extended period of time to the alarm noise, to avoid hearing loss or damage.
• This device is not a toy. Keep the device and its accessories out of the reach of children.
• Do not let children play with the device packaging material or accessories. Children might swallow small parts or play with the plastic bags and die by suffocation

Diagram showing a mechanical device inside a circular frame and a door with directional arrows (no text or symbols)

Electric shock!

Faulty electrical installation or excessive mains voltage can lead to a electric shock.

• Do not manipulate the device.
• If the device has a malfunction or shows any signs of damage take it out of operation immediately.
  • Repairs must be done only by professionals. Contact
  • The technical support service on technical support chapter.
• The device works with a battery, inside the unit there are areas without electrical insulation and contact can lead to strong electric shocks, which can lead to health issues or death
• Do not immerse the device in water or other liquids.
• Keep the device away from intense sunlight, open fire or other heat sources surfaces.

NOTE!

improper connection or incorrect operation excludes liability and warranty claims.

Risk of damage!

Improper handling of the device can lead to damage.

• Check periodically the device and the battery for damage.
• Check the brackets and screw connections on the device for damage at regular intervals.
• Remove the batteries if you do not use the device for a long time. When inserting, always pay attention to the correct polarity of the batteries.
• Only use the type of battery that is expressly suitable for the device.

5. Technical Specifications

Door stopper alarm Model: ISD-DA1

Voltage supply 9 V block battery

Siren volume 100dB @ 1 meter

Minimum door gap height 6 mm

Maximum door gap height 30 mm

Material housing ABS

Weight 152g(battery included)

Operating conditions -20°C to +40°C

Dimensions (W x H ) 175*50*42mm

Battery Disposal Batteries and rechargeable batteries must never be disposed of in the regular household waste!

Every consumer is legally obligated and responsible for the proper disposal of used and rechargeable batteries, whether they contain harmful substances* or not, to the designated collecting sites designated for the recycling of batteries. This ensures that waste is recycled properly and avoid negative environmental effects.

Dispose of packaging Dispose of the packaging according to type. Give cardboard and cardboard to the waste paper, foil in the recyclables collection.

Disposal Electrical- and electronic devices must never be disposed of in the regular household waste!

Every consumer is legally obligated and responsible for the proper disposal of electronic and electrical devices market with the symbol shown here. Return the device to collecting sites designated for the recycling of electronic and electrical waste. This ensures that waste is recycled properly and avoid negative environmental effects.

Declaration of conformity The EU Declaration of Conformity can be obtained from the address listed in the manual.

6. Technical Support

Portrait of a smiling man wearing a headset, seated in an office environment with other staff in the background (no visible text or symbols)

For more product information, please visit www.blaupunkt.com/service

Blaupunkt Competence Center Security & Care www.blaupunkt.com

Security Brand Pro GmbH

Mondstrasse 2-4

85622 Feldkirchen-München, Germany

© Technical changes and errors excepted

NOTE:

• This manual is for reference only. All the designs and software here are subject to change without prior written notice.
• All trademarks and registered trademarks mentioned are the properties of their respective owners.
• Please visit our website or contact your local service engineer for more information at: http://security.blaupunkt-service.com
